乌鲁梅阿河步行桥——简约优雅的曲线设计

发布时间:2014-01-12 22:32:15 00
设计亮点
无支撑跨越 73 米,自然弯曲的桥体与两岸环境完美融合。

anta ingenieria civil curves footbridge over urumea river

设计方:Anta ingenieria civil

位置:西班牙

分类:园林小品

内容:实景照片

图片:12张

乌鲁梅阿河步行桥——简约优雅的曲线设计

Anta ingenieria civil公司设计的乌鲁梅阿河步行桥全场73米,并且没有任何中间支撑。大桥两侧分别是新城区和古老的城市公园。两侧岸边的构成元素不尽相同,城市公园那一侧的堤岸与大桥是相互垂直的,而新城区一侧的堤岸则是由一个抛物线形状的道路组成。这座大桥从来没有用过临时支撑,即便是在建设阶段也没有用到,自然弯曲的桥体加上相关形态学的知识运用,使得大桥能够稳稳地扎根在乌鲁梅阿河之上。

图片来源:Courtesy of anta ingeniería civil

译者: 饭团小组

the ‘riberas de loyola footbridge’ designed by spanish firm anta ingenieria civil crosses a span of over 73 meters without intermediate supports. gently curving over the river urumea in san sebastian in spain, the bridge connects a new urban area with a historic city park. the attachments to these two distinct banks are distinguished through the shape of the structure – the side of cristina enea park features a flat vertical surface, while the side of riberas de loyola consists of a more curved, warped platform, with the intersection of the two generating a parabolic shape. the crossing was designed to be simple in its assembly and no temporary supports were placed in the river. the curved elevation and the morphology of the abutments help to reinforce its appearance of emerging from the ground.

乌鲁梅阿河步行桥——简约优雅的曲线设计

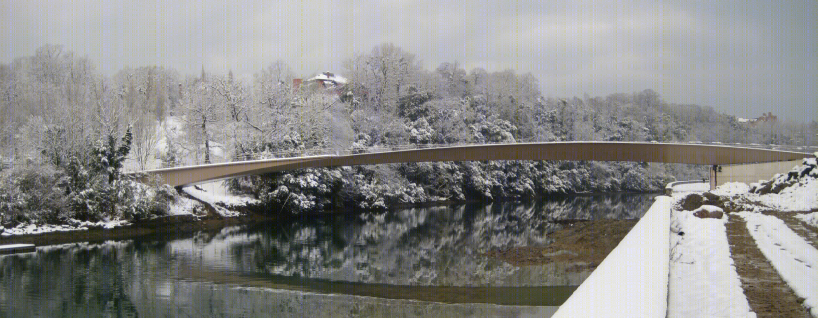

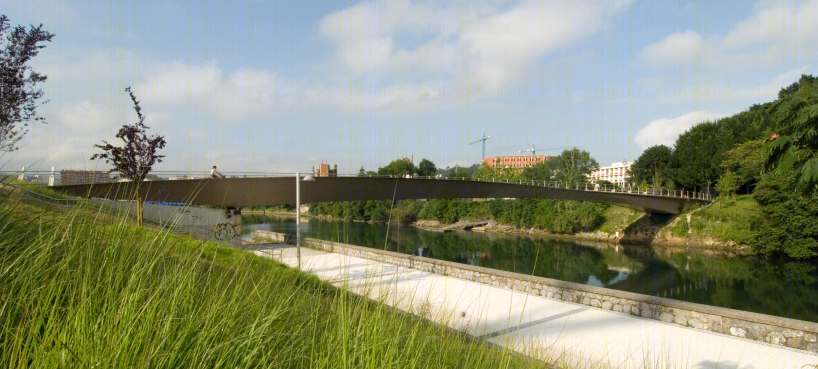

乌鲁梅阿河步行桥外部环境图

乌鲁梅阿河步行桥——简约优雅的曲线设计

乌鲁梅阿河步行桥——简约优雅的曲线设计

乌鲁梅阿河步行桥——简约优雅的曲线设计

乌鲁梅阿河步行桥——简约优雅的曲线设计

乌鲁梅阿河步行桥

乌鲁梅阿河步行桥——简约优雅的曲线设计

乌鲁梅阿河步行桥——简约优雅的曲线设计

乌鲁梅阿河步行桥——简约优雅的曲线设计

乌鲁梅阿河步行桥——简约优雅的曲线设计

乌鲁梅阿河步行桥——简约优雅的曲线设计

乌鲁梅阿河步行桥——简约优雅的曲线设计
