设计亮点
结构绝缘板建造,被动式设计,双高度光井/空隙,环保材料和节能系统,尊重原有建筑的同时实现空间创新。

Project: Peekaboo Residence Architects: Native Design Workshop Location: Preston, Melbourne, Australia Area: 120 m2 Year 2018 Photographer: Tatjana Plitt

项目:Peekabo住宅建筑师:NativeDesignWorkshopLocation:Preston,Melbourne,澳大利亚地区:120平方米2018摄影师:TatjanaPLITT

Description by NATIVE: Playing on the idea of the extension ‘at the back’ of the house by creating a form that peeks over and hugs the existing Californian Bungalow, with the function of housing the required program and reconnecting the home with it’s backyard – contrary to the lean-to that existed before.

本地人的描述:利用“在房子后面”扩展的想法,创建一种形式,可以俯瞰并拥抱现有的加州Bungalow,其功能是为所需的程序提供住房,并将房屋与后院重新连接起来-这与以前存在的情况相反。

What was the brief? – Our clients had just purchased a new home that simply didn’t allow them to live how they wanted – they had a charming bungalow and a beautiful garden to enjoy, but there was a big disconnect between the two. This constraint along with the site orientation played a big part in driving the design process.

这是怎么回事?-我们的客户刚刚买了一套新房子,根本不允许他们按自己的意愿生活-他们有一个迷人的平房和一个美丽的花园可以欣赏,但两者之间存在着很大的脱节。这种约束和站点定位在驱动设计过程中起了很大的作用。

– The extension had to keep the garden aspect of the site whilst providing a spacious, light-filled, flexible and durable living areas that engaged with this garden. Mum and Dad, our clients, also wanted to be able to have visual connection to the kids both inside and outside of the Peekaboo residence, but also be able to have privacy when required.

-扩展部分必须保留土地的花园部分,同时提供一个宽敞、轻盈、灵活和耐用的起居区,与这座花园结合在一起。爸爸妈妈,我们的客户,也希望能够与皮卡布住所内外的孩子有视觉联系,但也能在需要时有隐私。

– A home that performs efficiently through use of both passive design principles and simple active systems as backup.

-通过使用被动设计原则和简单主动系统作为后备有效执行的家庭。

The ability to handle the influx family/friends at any given time.

能够随时处理涌入的家人/朋友。

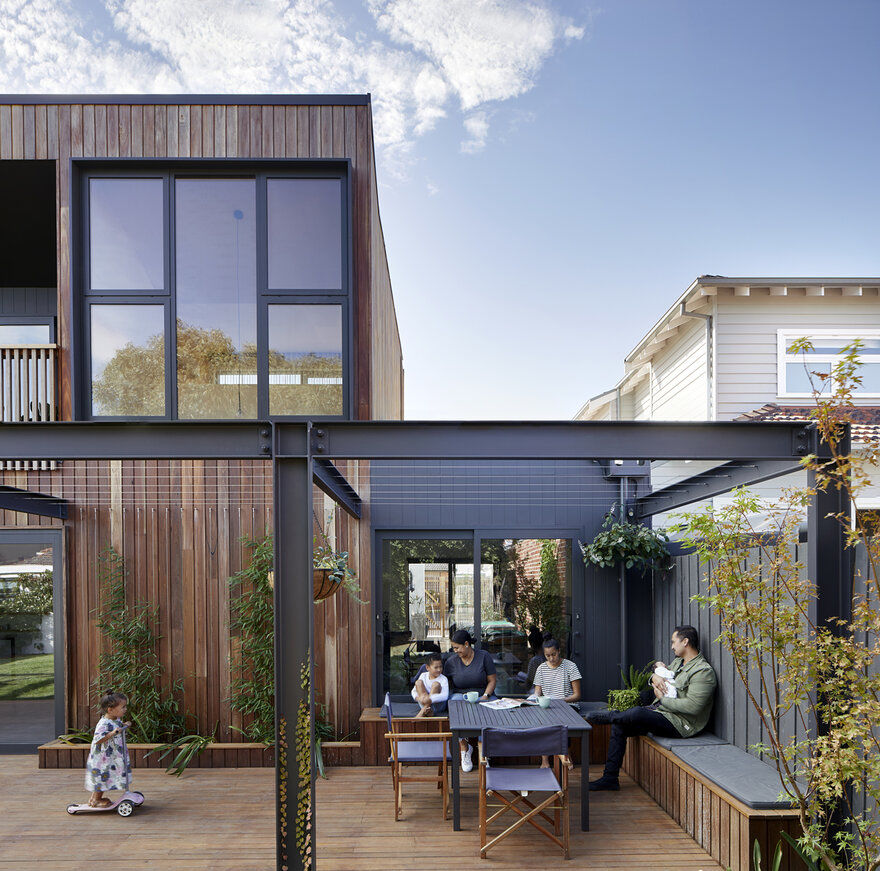

What were the key challenges? With the garden aspect to the south and the resistance to want to build out into the garden, the addition holds its encroachment into the yard by not passing the existing building line of the demolished verandah, keeping the garden intact. By pushing up and peeking over the existing building form, the opportunity to catch the sun to the north and bring ample daylighting into this naturally south-facing dwelling could be achieved by way of a double height light-well/void which also provides the connection with the parents’ room upstairs and the living area and children below. The budget for this type of build was modest, yet aspirations were high. We had to ensure that we were getting as much value out of items as possible, which meant keeping things as simple as possible.

主要的挑战是什么?随着南面的花园和抵抗想要建设到花园,增加了它的侵蚀进入院子,没有通过现有的建筑线被拆除的阳台,保持花园完整。通过推上和窥视现有的建筑形式,可以通过一个双高度的光井/空隙实现向北晒太阳和给这座自然南面住宅带来充足的采光的机会,这也提供了与父母楼上的房间、起居室和下面的孩子之间的联系。这类建筑的预算不大,但期望很高。我们必须确保我们从物品中获得尽可能多的价值,这意味着保持事情尽可能简单。

What building methods were used? This project was a prototype for our studio in using a newer building methodology. In this case, we used Structurally Insulated Panels allowing for an expedited construction process and high-performing building envelop. The double-storey extension volume was built in 7 days from only a concrete slab to putting the roof panels on.

使用了什么建筑方法?这个项目是我们工作室使用较新的建筑方法的原型。在这种情况下,我们使用了结构绝缘板,允许一个快速的施工过程和高性能的建筑围护结构。两层楼的扩建体积是在7天内建成的,从一个混凝土板到屋顶面板。

What are the sustainability features? – Structurally Insulated Panels (Prefab) as the construction methodology of the entire new portion of the build. – Passively designed so as to cut out thermal gain during summer and open up northern facing elements mid-winter. – Locally sourced Australian Hardwoods or FSC Certified Timber Panel products. – All downpipes connected to 5,000L Water tank and plumbed into laundry, toilets and irrigation. – LED Lighting and energy efficient appliances throughout. – 5kW Photovoltaic Array – Hydronic Heating both in-slab and panels throughout home.

可持续性的特点是什么?-结构绝缘面板(预置)作为整个建筑的新部分的建造方法。-被动设计,以减少夏季的热增益,并开辟北面元素在冬季。-当地采购的澳大利亚Hardwood或FSC认证木材小组产品。-连接5 000升水箱的所有下水管,并经管道输送到洗衣、厕所和灌溉。-LED照明和节能电器。-5千瓦光伏阵列-太阳能加热,包括板坯和电池板在整个家庭。

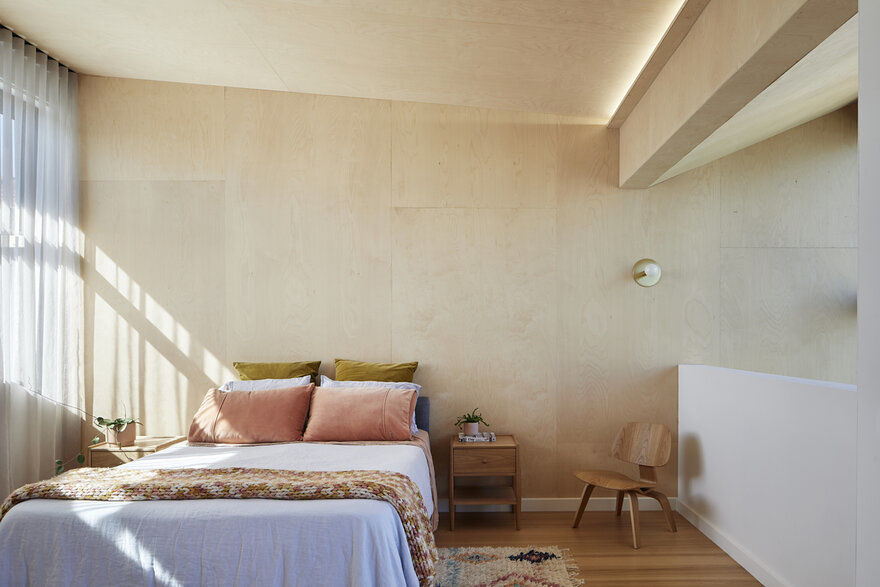

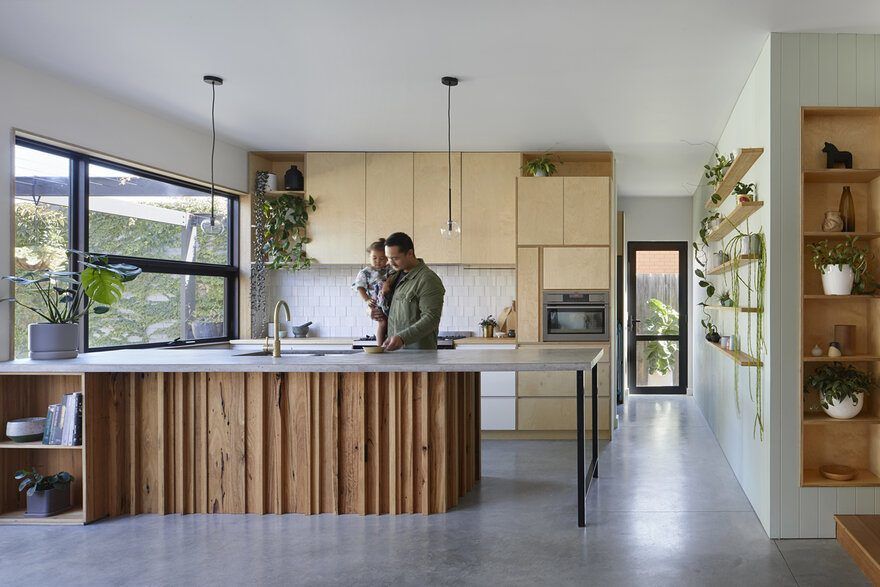

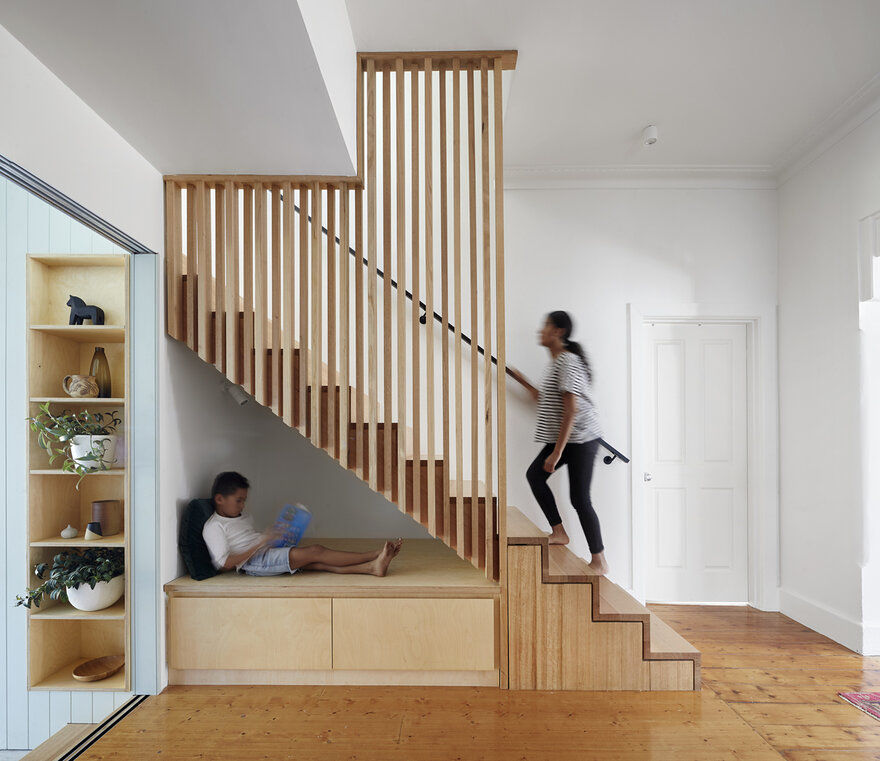

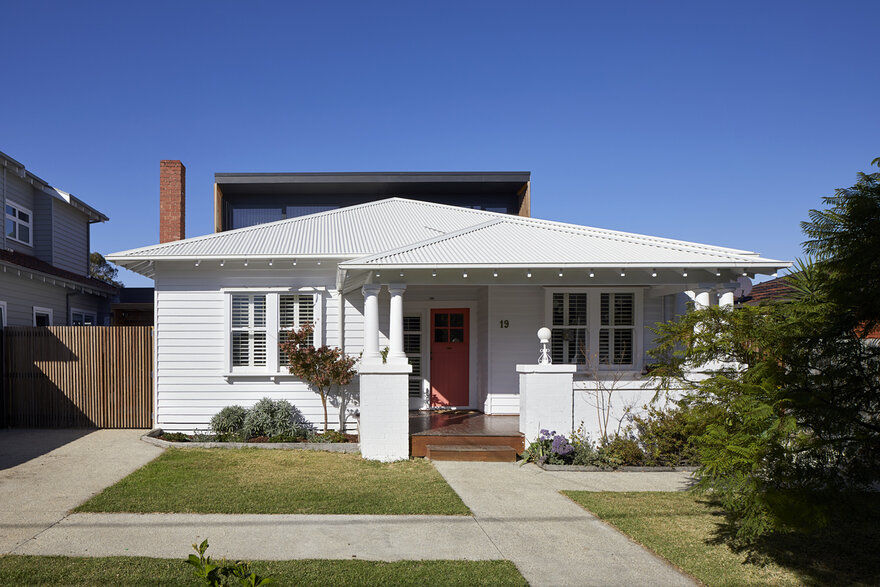

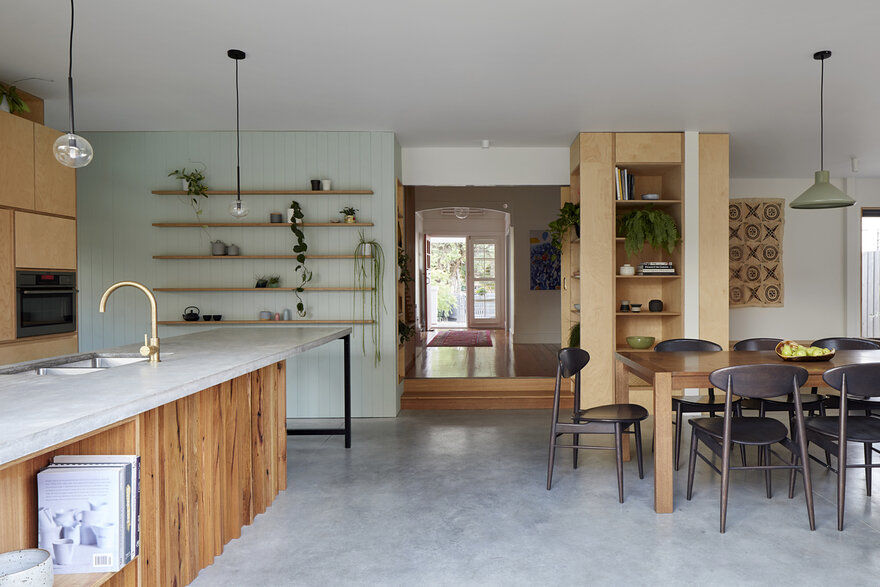

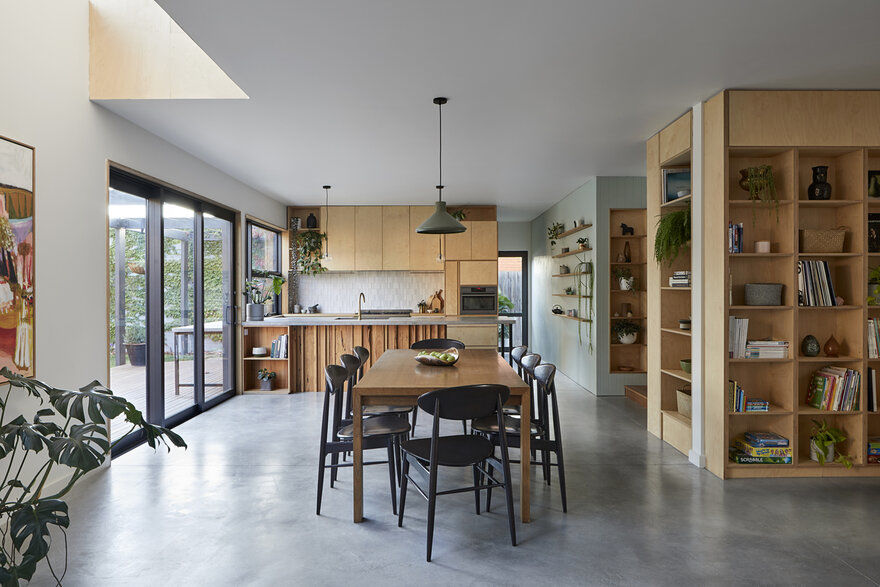

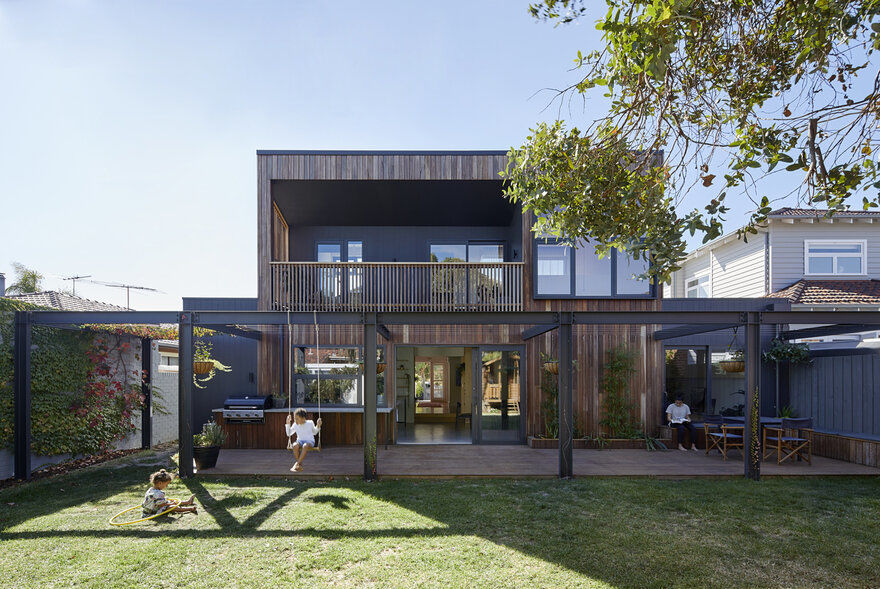

What were the solutions? The response was by way of a simple rectangular form that connected to the existing as tightly as possible so as to not take away real-estate from the garden to the south. This double storey volume allows for the existing rooms of the bungalow to be given over as bedrooms for the children, a bathroom as well as a circulation axis that leads one on entry to the rear of the Peekaboo residence, stepping down into the living area then backyard. Upstairs, Mum and Dad have a near ‘self-contained’ living quarters providing separation from the rest of the dwelling. Flooded with light, this upper space volume shares and bounces light down a void to the living area below. From the exterior, the building form respects the existing bungalow by peeking over the back of it, playing with it in proportion, but staying in it’s lane with regards to hierarchy.

解决方案是什么?该反应的方式是简单的矩形形状,它尽可能紧密地连接到现有的,从而不能将房地产从花园带走到南方。该双层容积允许将平房的现有房间作为儿童的卧室、浴室以及引导进入Peekabo住宅后面的一个循环轴线,向下进入后院里的生活区。在楼上,妈妈和爸爸有一个靠近“自给自足”的生活区,提供与其余住所的隔离。此上部空间体积共享,并将光线向下反弹至下方的生活区。从外部看,建筑形式尊重现存平房,靠它的背面偷看,按比例播放,但在层次上停留在它的车道上。
