设计亮点

将建筑与周边环境完美融合，实现节能 80%，达到 LEED 白金认证和三星级的目标。

Hangzhou Xixi National Wetland

设计方：北京三磊建筑设计有限公司

位置：浙江杭州

分类：办公建筑

内容：实景照片

设计团队：Zhang Hua, Fan Li

项目规模：4,722 sq

图片：29张

摄影师：三磊设计公司

这是由三磊设计公司设计的杭州西溪国家湿地公园游客服务中心。该项目坐落于杭州西溪湿地公园龙舌嘴入口处的一个半岛上，建筑功能涵盖游客服务中心、生态展示、环保教育、会议办公等多种类型。

考虑到建筑周边绿水环绕、丘陵起伏、环境优美，设计师便将建筑外观与地域、地貌整体考量，整个造型像背景丘陵一样起伏，而建筑平面则根据功能要求形成简洁的圆角三角形，良好的体形系数为建筑节能创造了有利条件。

作为为数不多具有实用功能的绿色节能示范工程，该项目在

绿色建筑

技术运用方面力争做到全国领先。通过最新的、适宜的建筑节能、节水、除污减排技术，可再生能源应用技术以及能源管理技术等的有机整合，设计团队力争使该工程达到节能80%，以达到LEED白金认证和

三星级的目标。

译者：艾比

Located at Long Shezui Area of Hangzhou Xixi National Wetland Park, the third phase of the project is designed as ‘green buildings’ and provides different functional areas including visitor center, ecological exhibition, ecological education, office, meeting and dinning. The overall approach features ‘Xixi’, wetland, ecology and bionic environment. The ecological exhibition area consists of one upper and lower floor that provides plants growing and exhibition. The ecological education area cooperates with the ecological environment research center of Zhejiang University, providing students an education site that is a ideal location for outdoors studies.

The green energy-saving building shows passive design methods in its use of natural lighting, natural ventilation, external cladding structure and sunshade system. It uses integrated design method that efficiently adopt a ground source heat pump, thermal and photovoltaic use of solar energy, light pipe, green roof, integrated treatment and utilization of water, and building energy intelligent management system. Interior design makes full use of environmental protection material, local fast-growing material and recyclable material, embodying the concept of a green building.

Considering the green building integrated intelligent control and simulation analysis, architects attempt to save energy consumption to the fullest, in the context of satisfying the user needs. Energy usage can be reduced 80%, achieving LEED Platinum certification and a three-star rating.

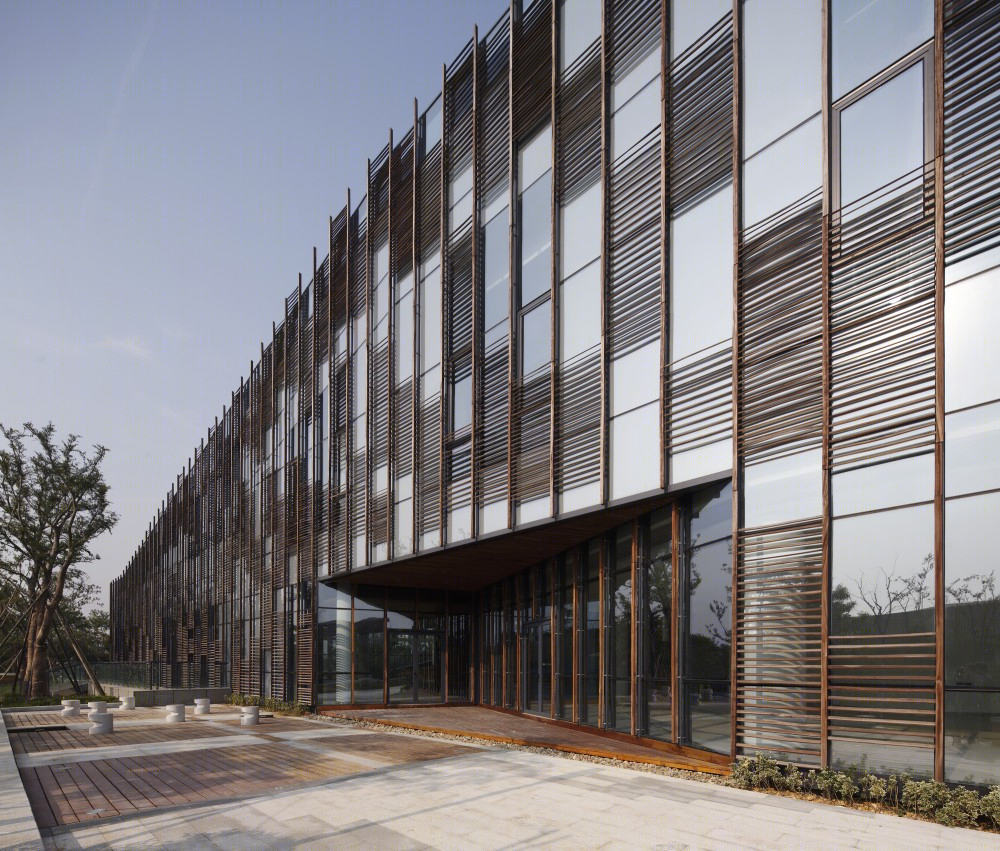

西溪国家湿地公园游客服务中心外部局部图

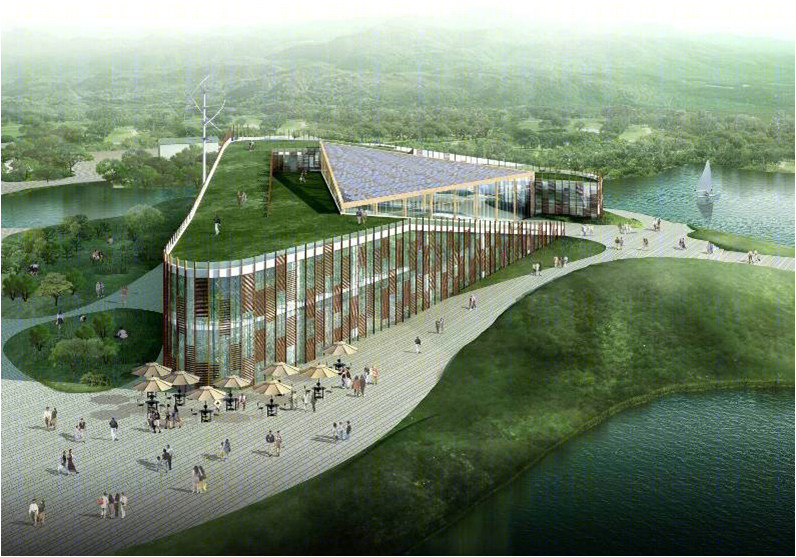

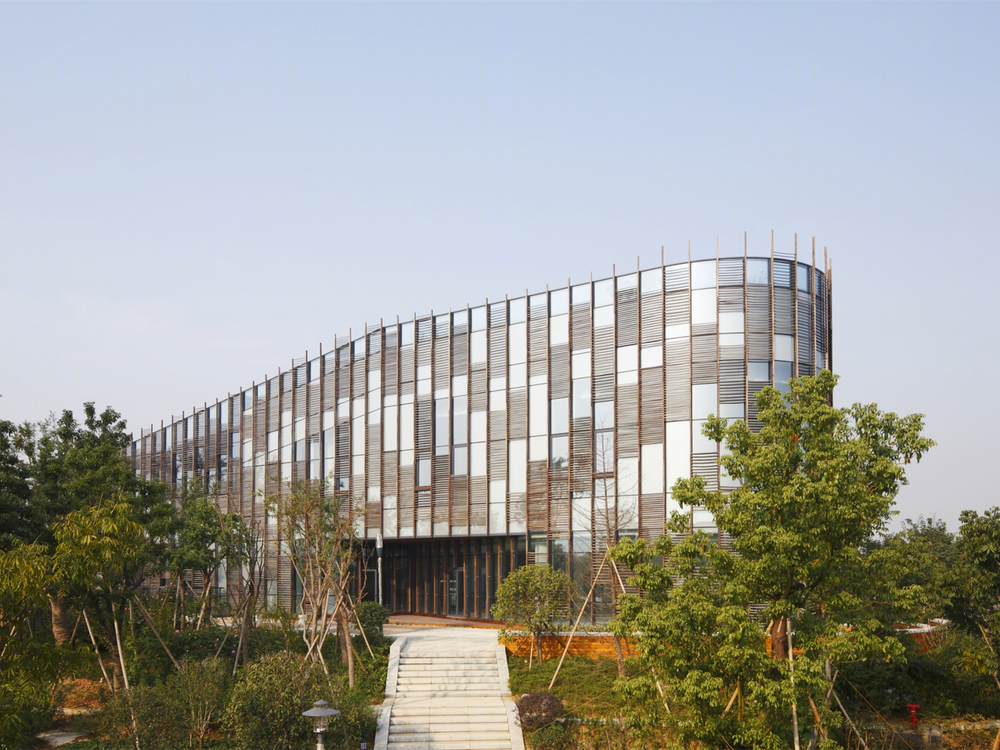

西溪国家湿地公园游客服务中心外部图

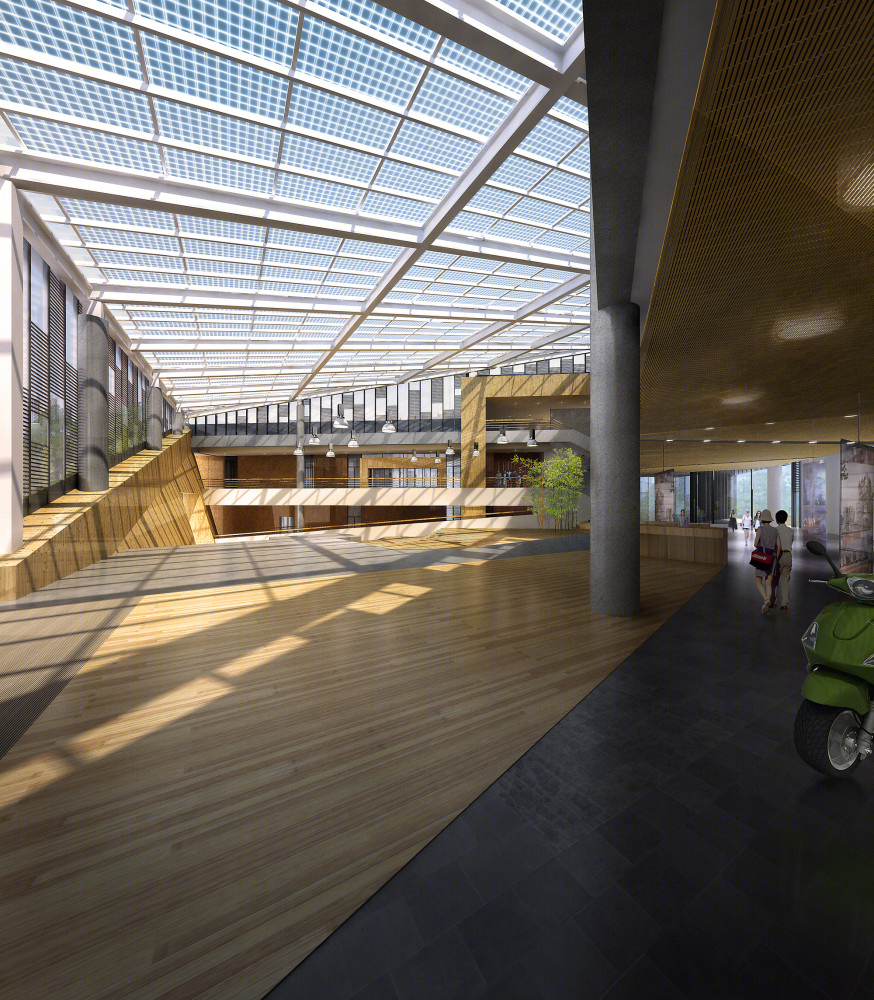

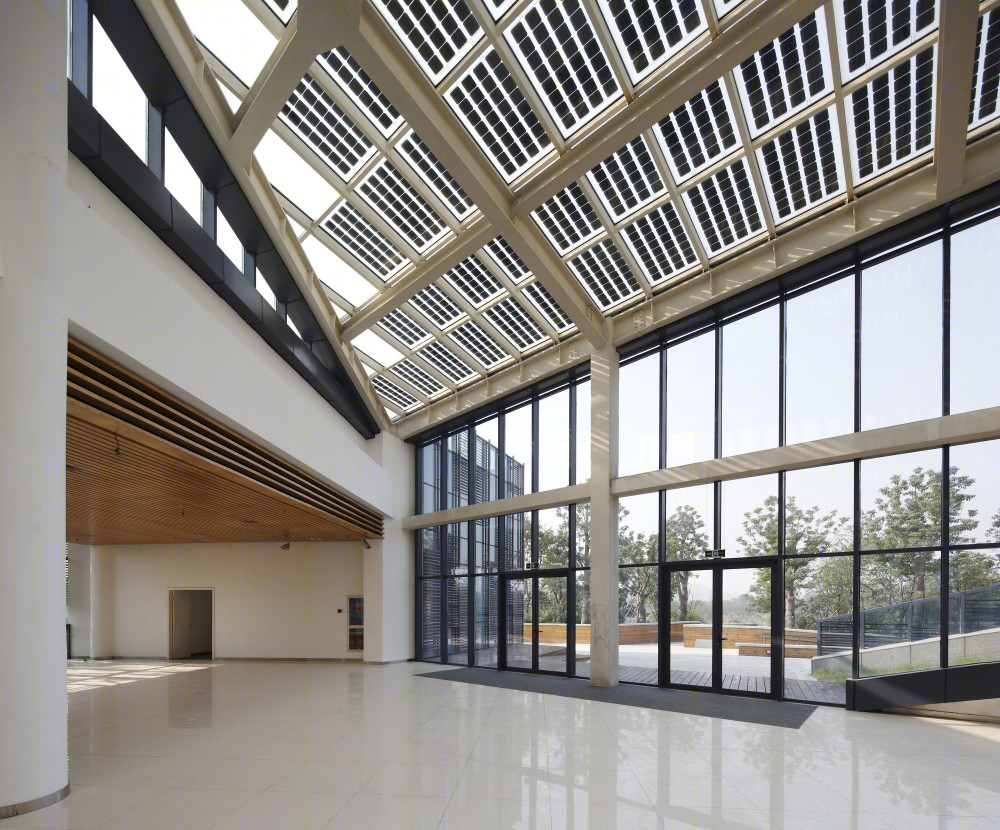

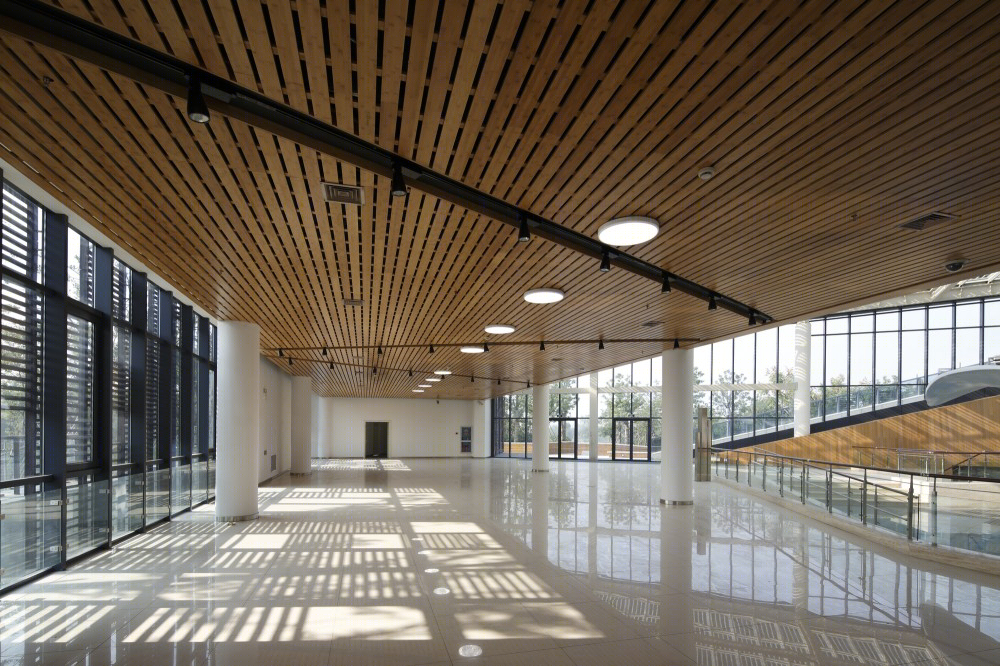

西溪国家湿地公园游客服务中心内部局部图

西溪国家湿地公园游客服务中心
