印度班加罗尔 M9 设计工作室庭院扩展项目

© Shamanth Patil Photography

(3)萨曼斯·帕蒂尔摄影

架构师提供的文本描述。这片土地以前是客户祖父母占用的房子花园的一部分。新建筑物的设计是为了尽量减少它在建造期间和之后对这座现有房屋的影响。一种与现有房屋保持联系的愿望决定保留尽可能多的现有花园面积，并将新楼的入口定位在这个空间上。

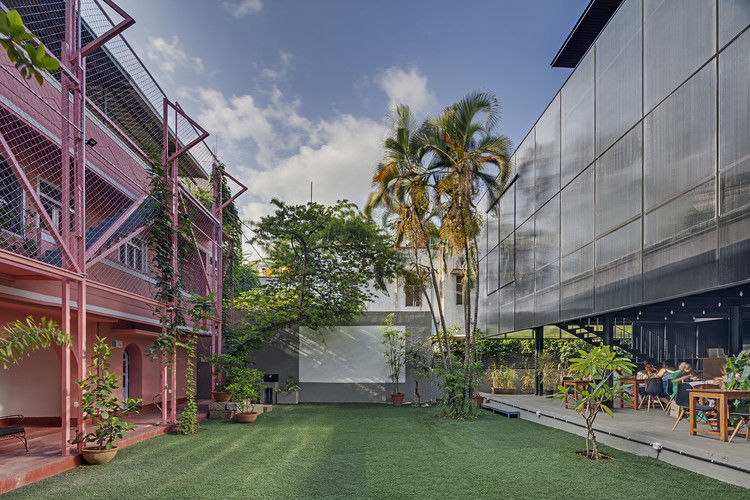

Text description provided by the architects. The site previously formed part of the garden of a house occupied by the clients' grandparents. The design of the new building was intended to minimize its impact on this existing house, both during and after its construction. A desire to maintain a connection with the existing house informed the decision to keep as much of the existing garden area as possible, and to position the entrance to the new building so it opens onto this space.

© Shamanth Patil Photography

(3)萨曼斯·帕蒂尔摄影

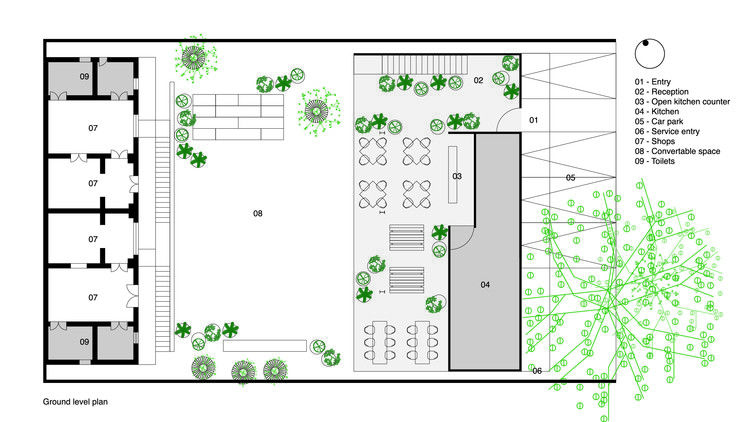

Ground Floor Plan

© Shamanth Patil Photography

(3)萨曼斯·帕蒂尔摄影

我们的目标是用大量生产的组件创造出一座独特的建筑-我们都想要高质量的产品，但价格便宜，执行时间也短。这座两层楼的建筑以平面屋顶、波纹金属墙和软钢框架为特色，呈长方形。波纹聚碳酸酯板正面围住一楼的多用途活动空间.我们用一种薄而半透明的材料来代替普通的外墙，在那里，自然光可以在室内空间中得到最大限度的利用。

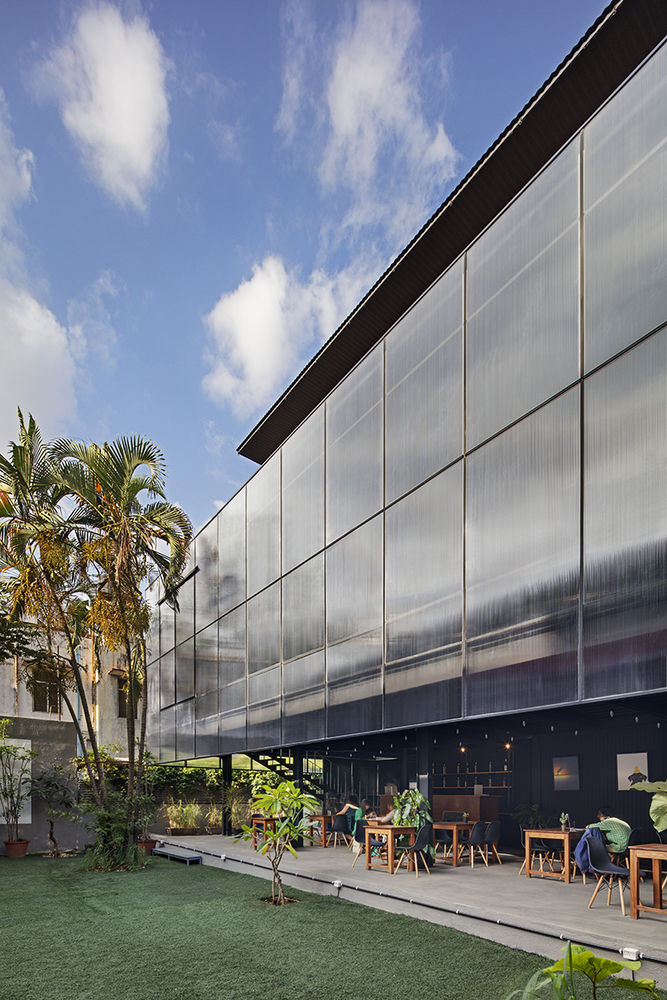

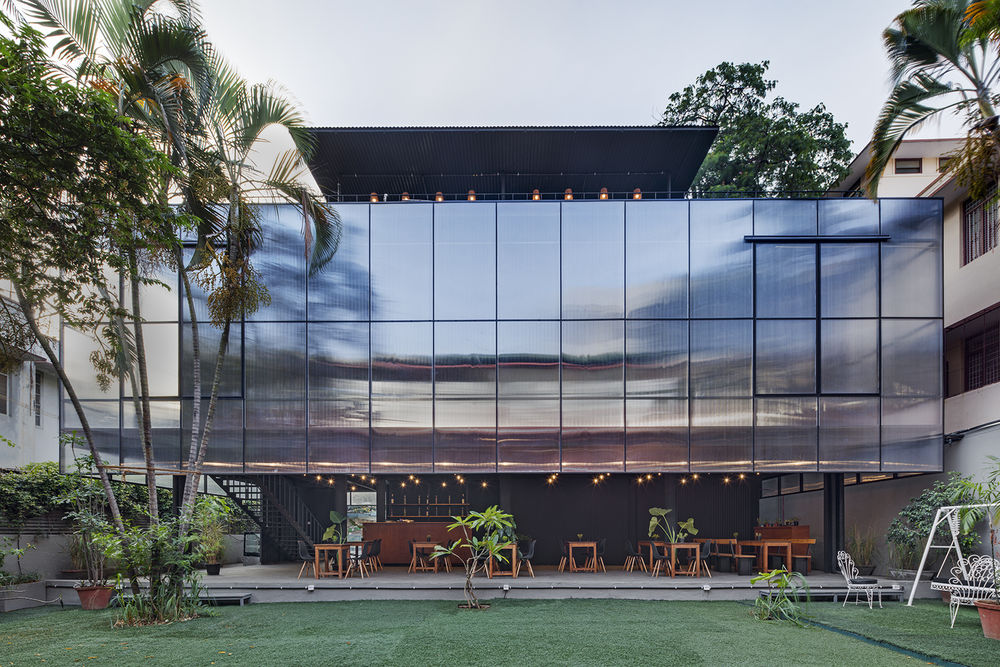

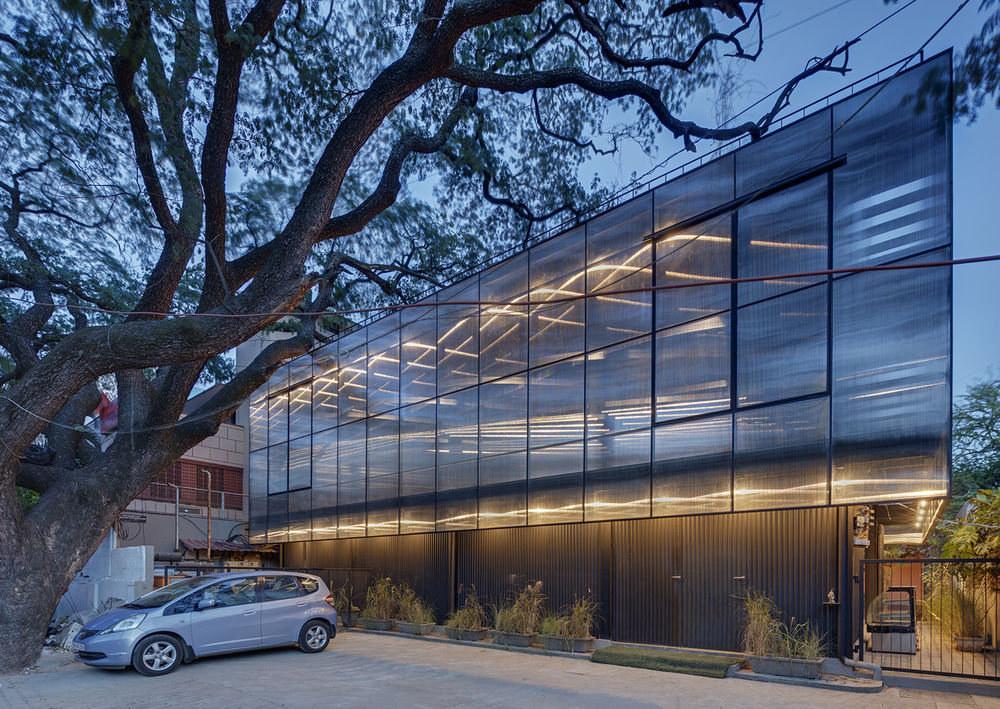

We aimed to create a unique building using mass-produced components – we all want high-quality products, but at a cheap price and with a short execution timeline. Rectangular in a plan, the two-story building features a flat roof, corrugated metal walls, and a mild steel frame. Corrugated polycarbonate sheet facade encases the multi-purpose event space on the first floor. We used a thin and translucent material to replace the regular exterior walls, where natural light can be maximized in the interior space.

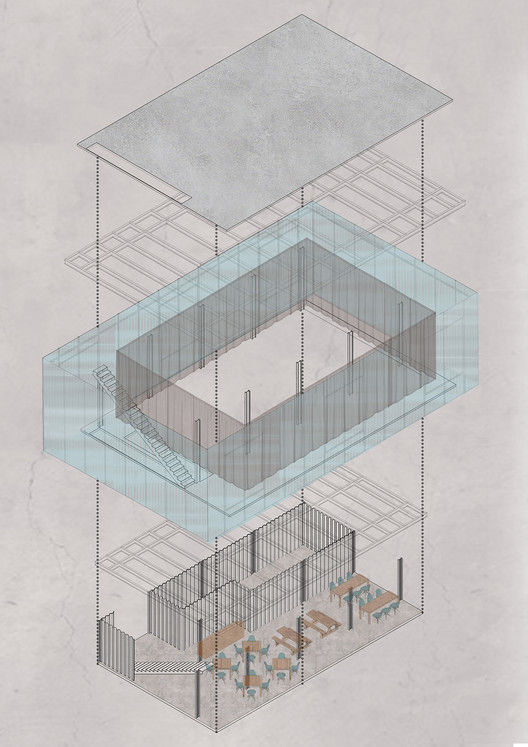

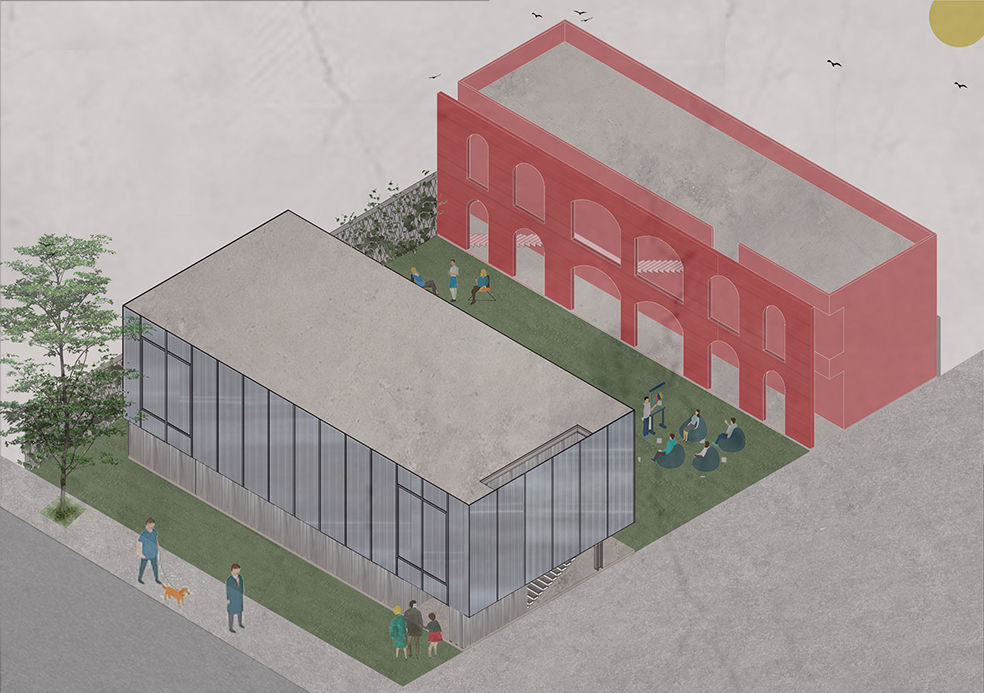

Exploded Isometric

爆炸等距

内部的聚碳酸酯片正面是内衬丰富的纹理窗帘，以控制自然光的数量，在具体的显示和事件。窗户是用与墙壁相同的材料制成的，所以它们不提供任何额外的光线，而是可以打开，让新鲜空气进入建筑物。到了晚上，灯光从里面照出来，把大楼变成了街景上的一个巨大的灯箱。一座由I字形梁组成的钢结构正在大楼内展出，并已漆成黑色。甲板天花板暴露，而地板包括混凝土和木材的混合物。

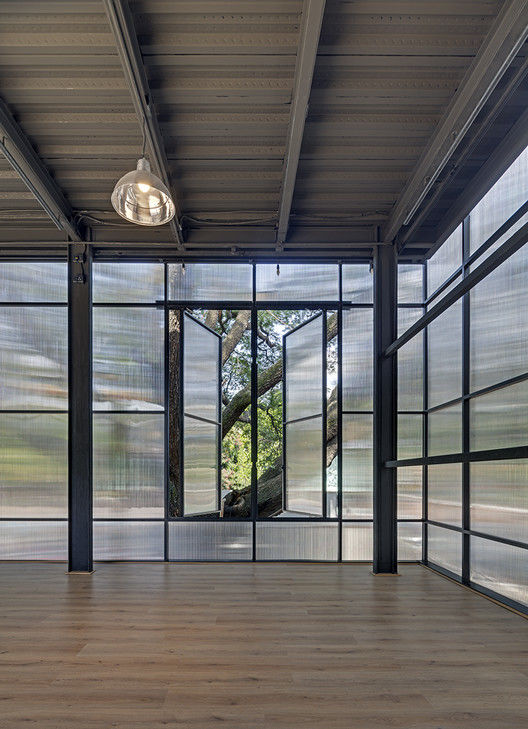

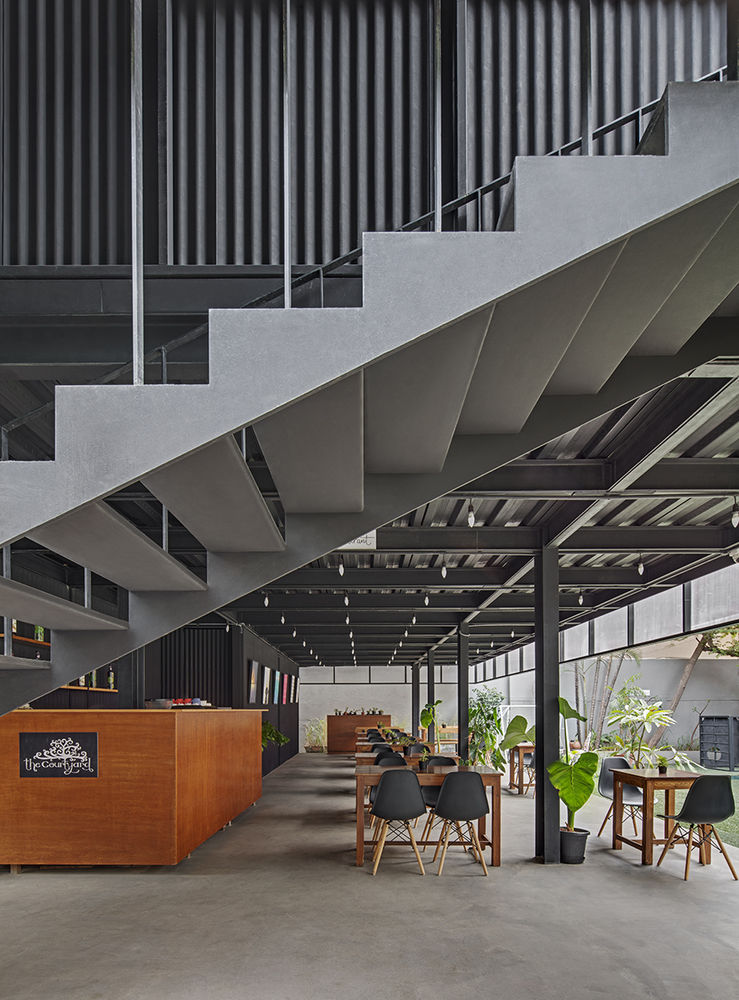

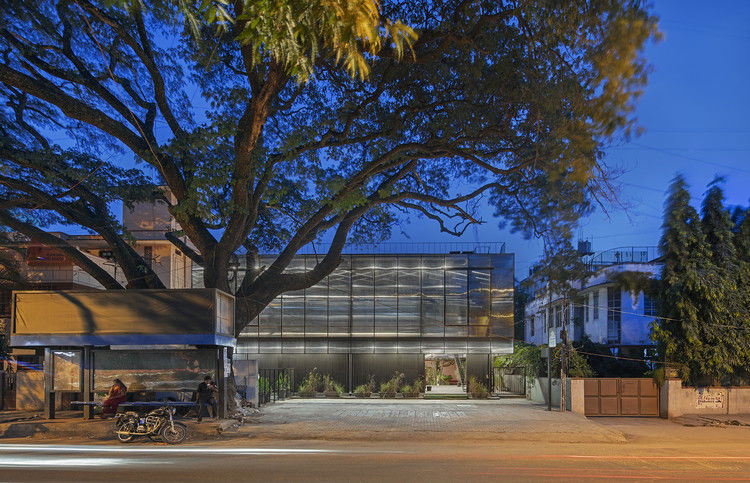

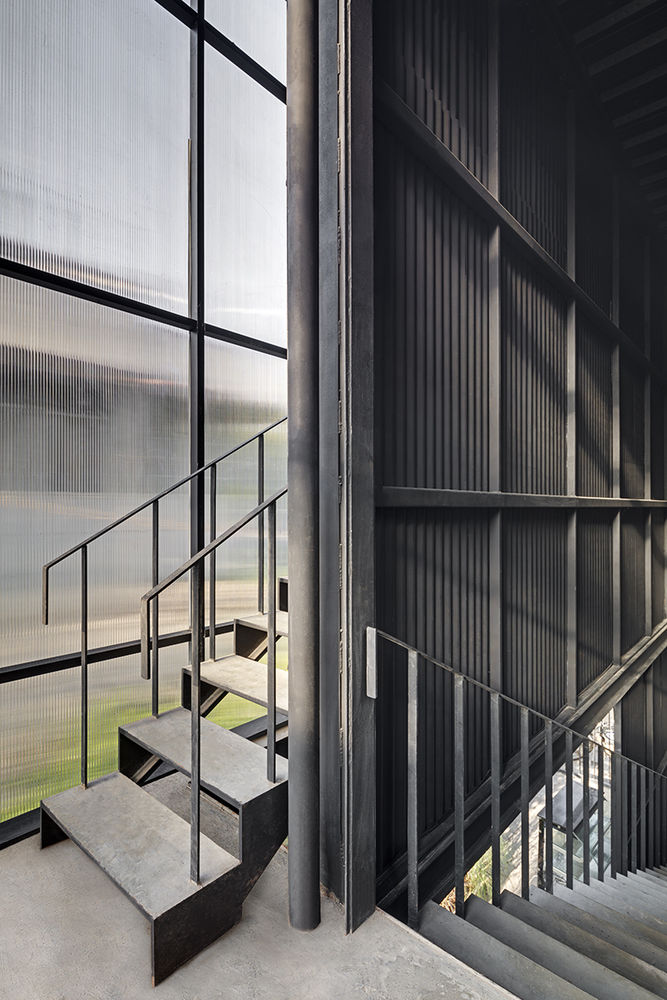

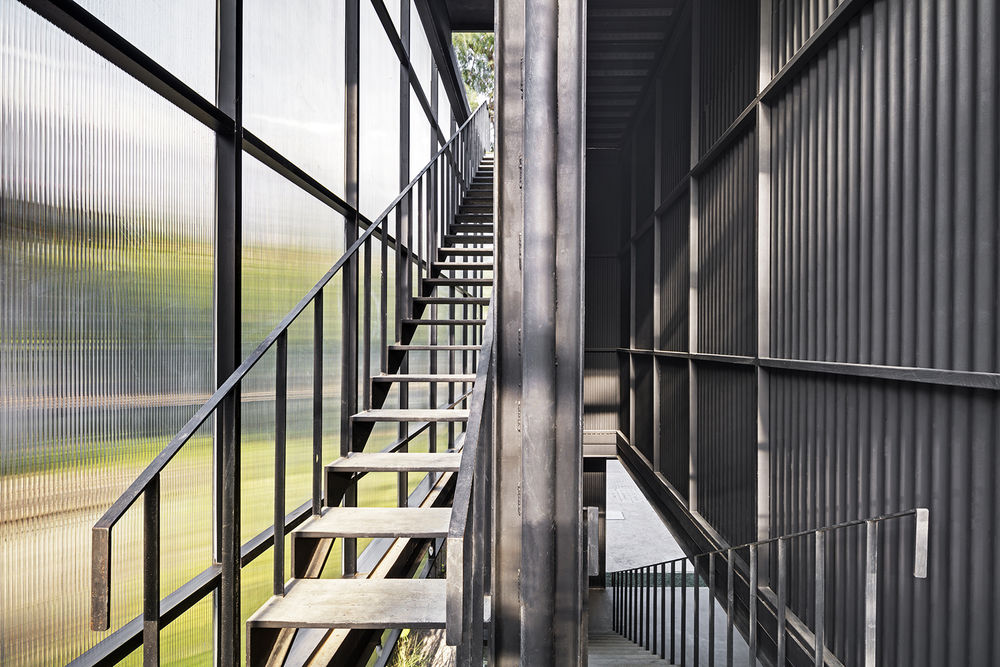

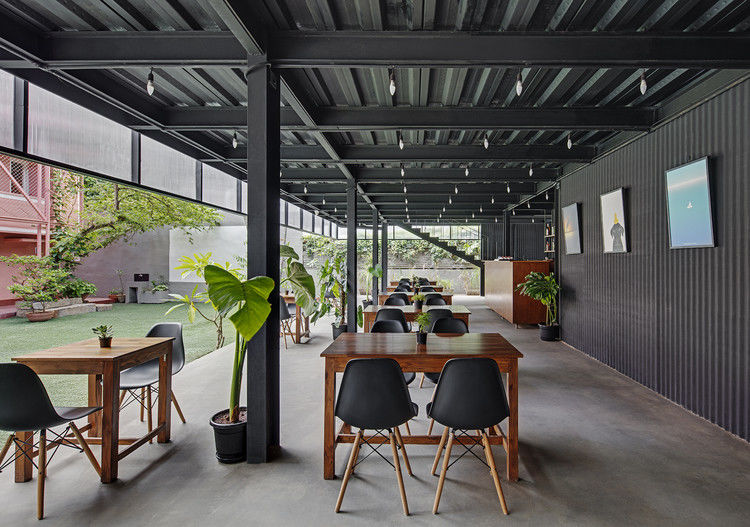

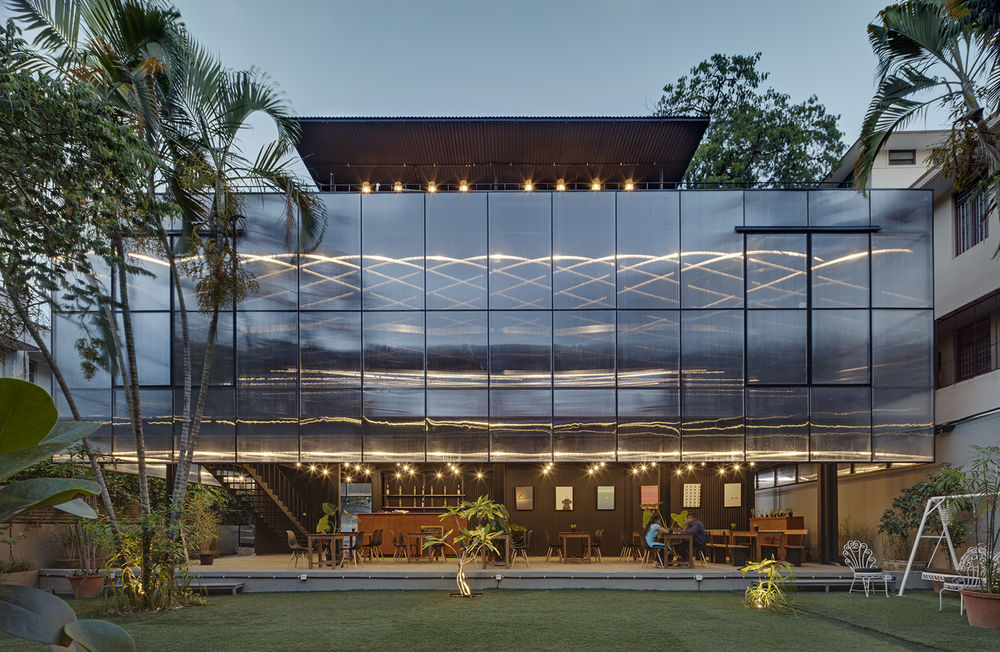

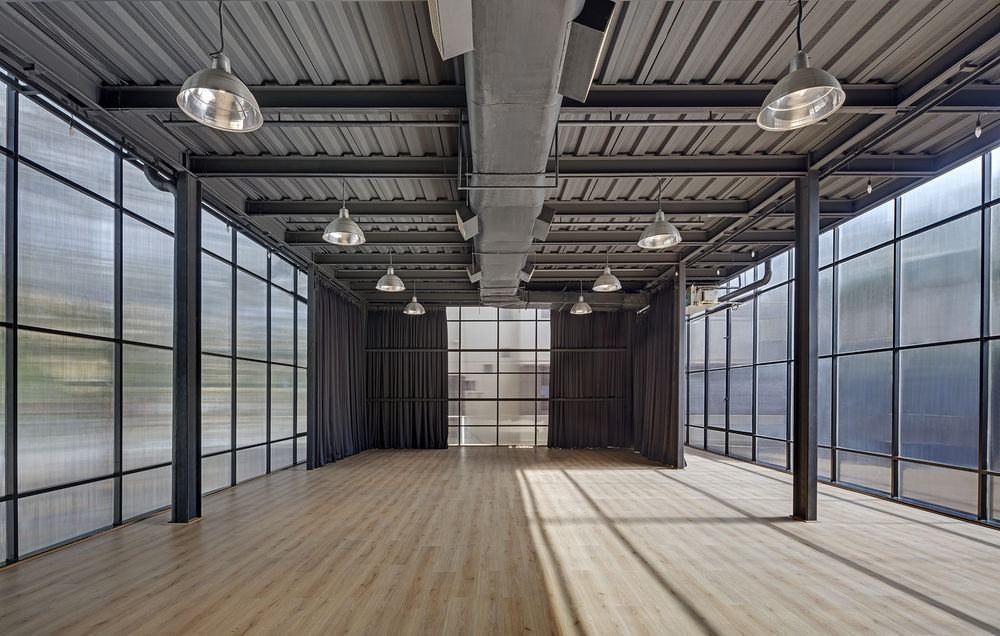

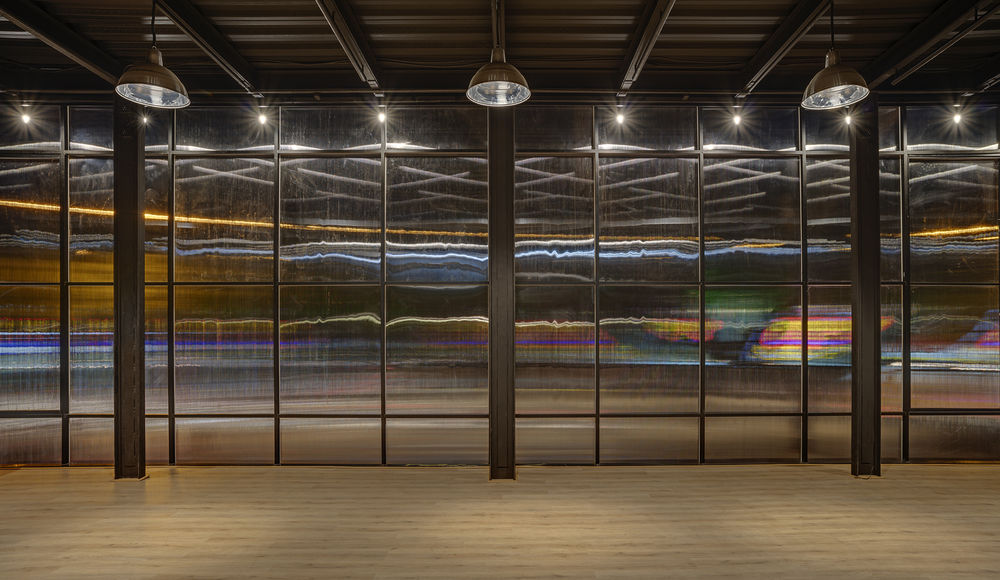

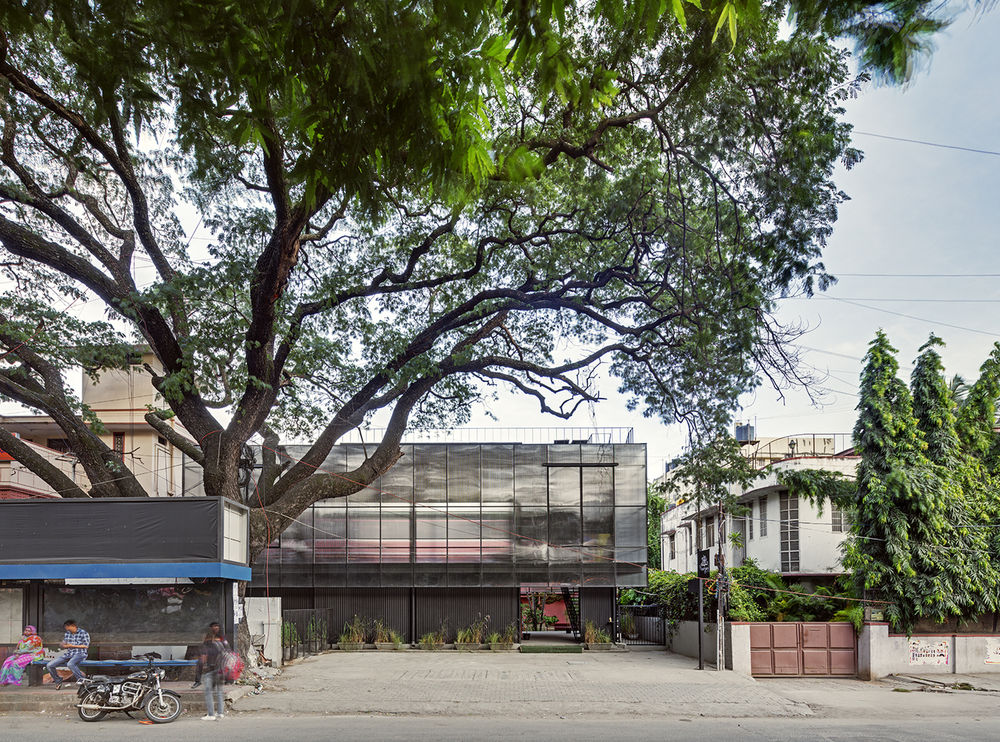

The inside of this polycarbonate sheet facade is lined by rich textured drapes to control the amount of natural light inside during specific shows and events. Windows are made from the same material as the walls, so they don't offer any additional light but can be opened to let fresh air into the building. At night, lights glowing from within transform the building into a huge light-box along the streetscape. A steel structure made up of I-beams is on show inside the building and has been painted black. Deck sheet ceilings are left exposed, while the floors encompass a mixture of concrete and timber.

© Shamanth Patil Photography

(3)萨曼斯·帕蒂尔摄影

Architects M9 Design Studio

Location Bengaluru, India

Lead Architects Nischal Abhaykumar and Jesal Pathak

Team Preethi B Raju, Karamveer Singh

Project Year 2018

Photographs Shamanth Patil Photography

Category Extension
