Netherlands Jisp别 villa

设计方：SeARCH

位置：荷兰

分类：别墅建筑

内容：实景照片

图片：14张

这是由SeARCH设计的Jisp别墅。该项目是一个现代化扩建建筑，用现代化的方式诠释了北荷兰典型的农舍特点。原建筑为Stolp，有着清晰而强力的外形。传统的Stolp的核心是“广场（square）”，由通高的干草棚组成。干草棚周边是农夫生活区及谷仓，谷仓与广场之间形成开放的联系。干草和住宅均可望见奶牛群。新扩建建筑体与广场上方的斜屋顶形成偏斜，形成旧砖墙的立面。在其两侧创建了5至7米宽的区域，布置了新起居室、厨房以及两间卧室。

译者：筑龙网艾比

From the architect. How do you enlarge a farmhouse that has low eaves on three sides and one high side with barn doors? Typical North-Holland farmhouses, the ‘Stolp’, have a clear, strong shape. A modern extension easily demystifies this characteristic.The traditional Stolp has a core, the ‘square’ comprising a hayloft over the full height. Around it are the living quarters of the farmer and the barn which is in open communication with the square. Hay and house enjoy the warmth of the cows.The new extension ‘skews’ the slanted roof up from the square and protrudes over the old brick facades. On two sides this creates a zone of 5 to 7 meters wide where the new living room, kitchen and two bedrooms are located.The old Stolp contains the other bedrooms, study and all service areas.The living room, with a sloping concrete floor down to polder level, has 32 meters length of panoramic views over the beautiful Wormer and Jisperveld while the rooms in the existing dome have a more introversive, oak interior.The old and mostly rotten, boards on the east facade were replaced by a single ‘patchwork’ of different kinds of treated wood according to Japanese ShouSugi Ban technique, created by ‘Zwarthout’.

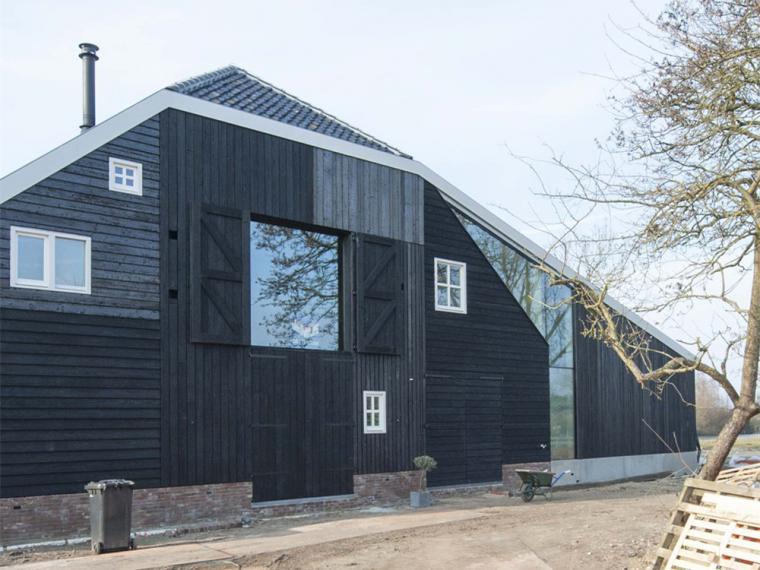

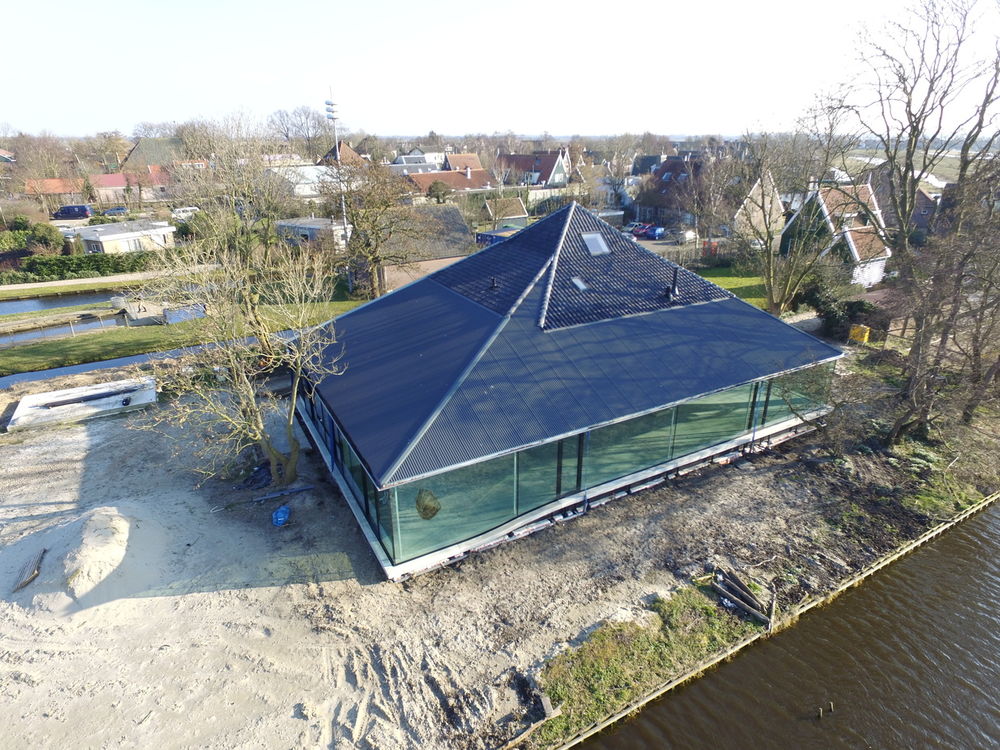

荷兰Jisp别墅外部实景图

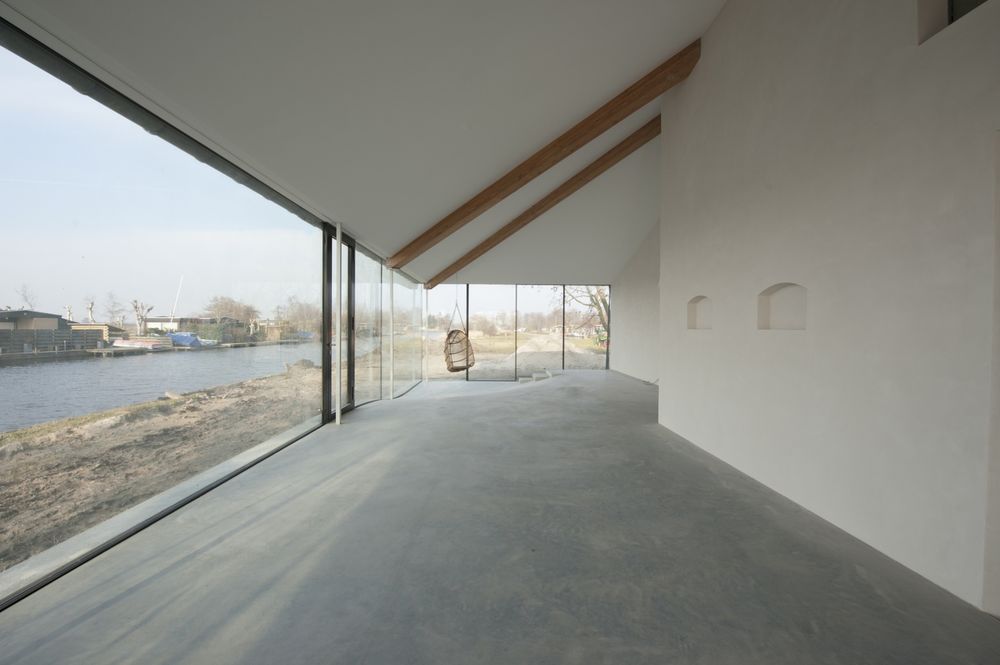

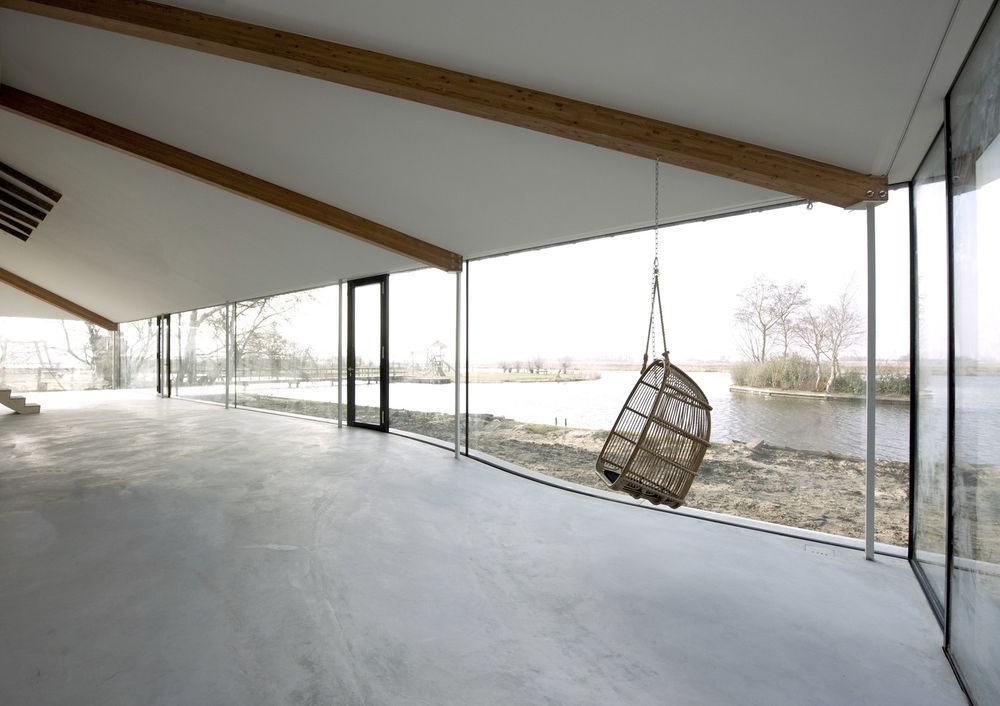

荷兰Jisp别墅内部实景图

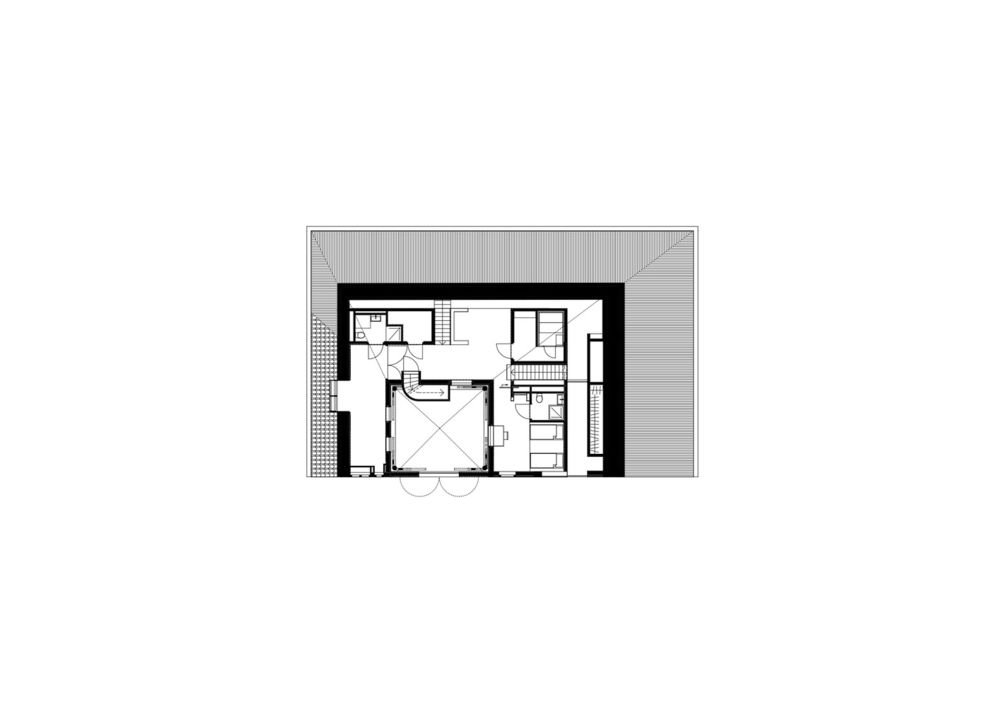

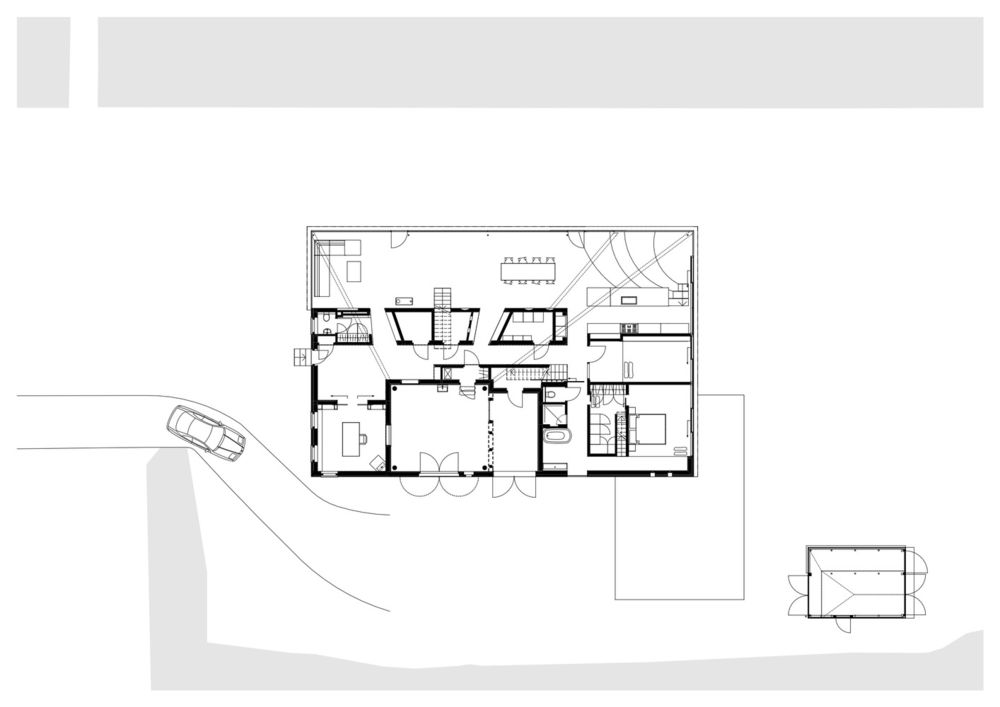

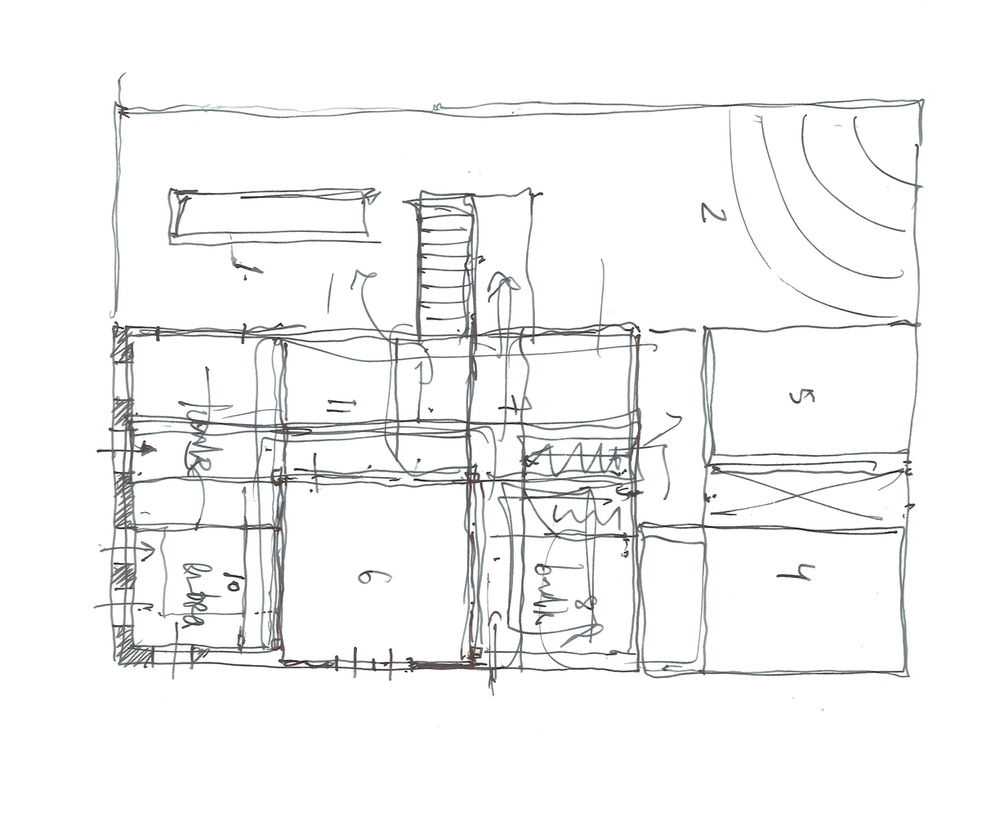

荷兰Jisp别墅平面图

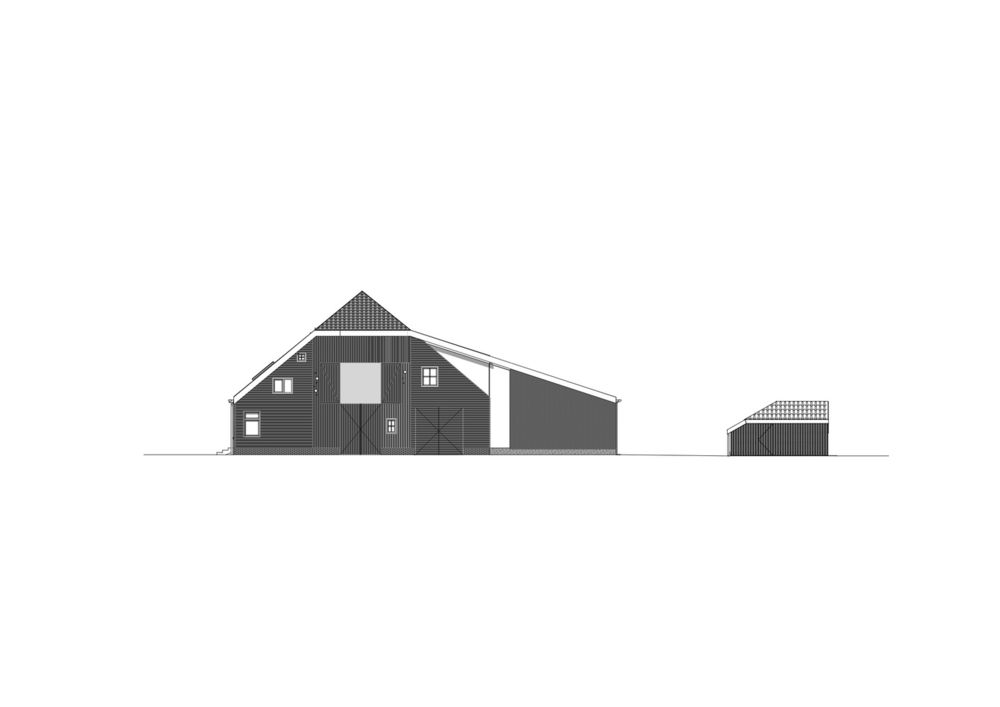

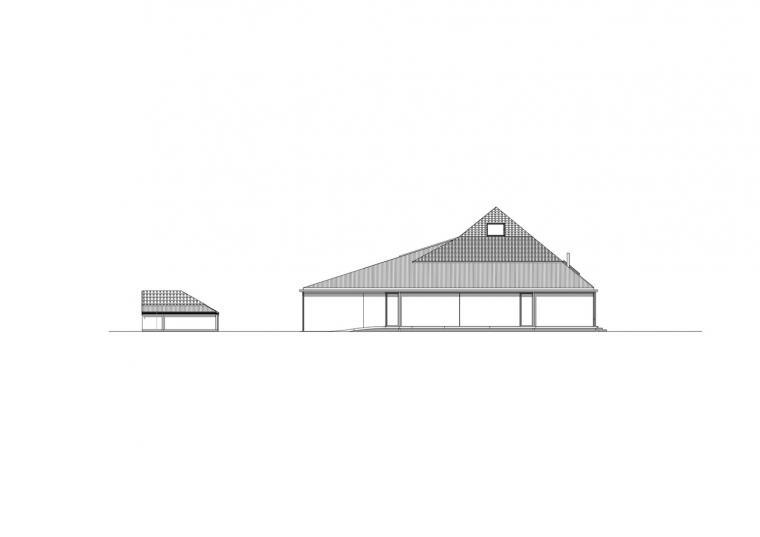

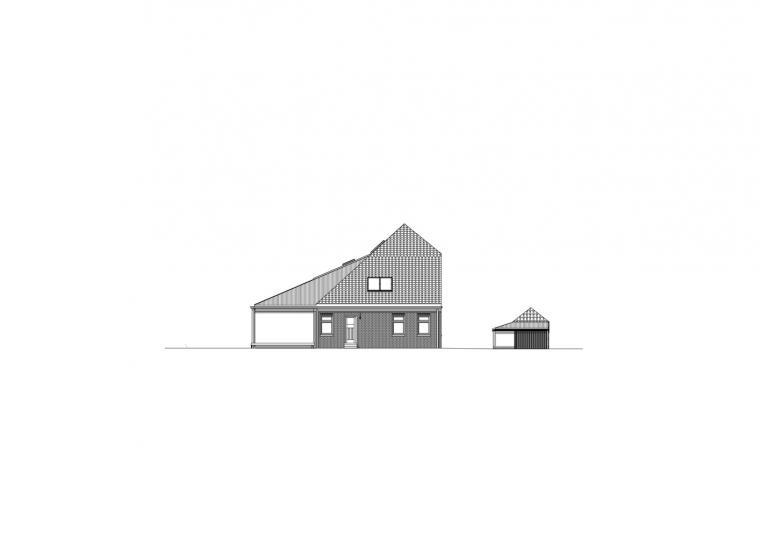

荷兰Jisp别墅立面图

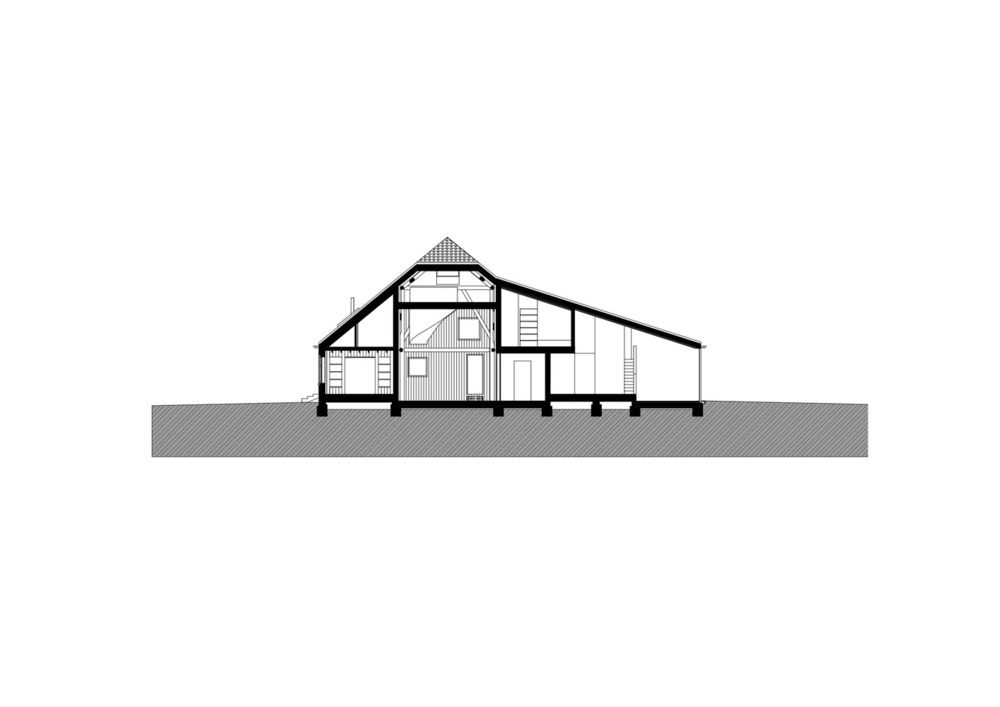

荷兰Jisp别墅剖面图
