Architects:Julian Breinersdorfer Architekten

Area:12400m²

Year:2022

Photographs:Francisco Nogueira,Guillaume Bonn,Julian Breinersdorfer

Electrical Installations:Iberinstal

HVAC:Engavac

Acoustic Consultant:Inside Building

Lighting Consultants:Lledo,Ohm Light Design

Design Architect:Julian Breinersdorfer Architekten

Julian Breinersdorfer Architekten Team:Lena Brandt, Alessandro Cugola, Corinna Studier, Gareth Hammond

Permit Architect:José Baganha Arquitectos

Permit Architect Team:Raquel Coutinho, Carolina Costa

Project Architect:Angela Maurice Arquitectos

Project Architect Team:Goncalo Soares

Client:Factory

Concept Direction:Simon Schaefer

Artwork And Signage:Constantin Peyfuss

Team:Carlota Pires de Almeida, Jeremy Bamberg

Facade Contractor:F&J Lotra

Partitions:Line Systems

Wood Panelling:MBF

Construction Manager:Pedro Reis

Supervision:Afaplan

Technical Coordinator:Alberto Cabral

Structural Engineers:Ricardo Sampaio, Duarte Silveira

Fire Engineers:Antonio Matias, Daniel Arena

Restaurant Design:Marta Fea - Foodriders

City:Lisbon

Country:Portugal

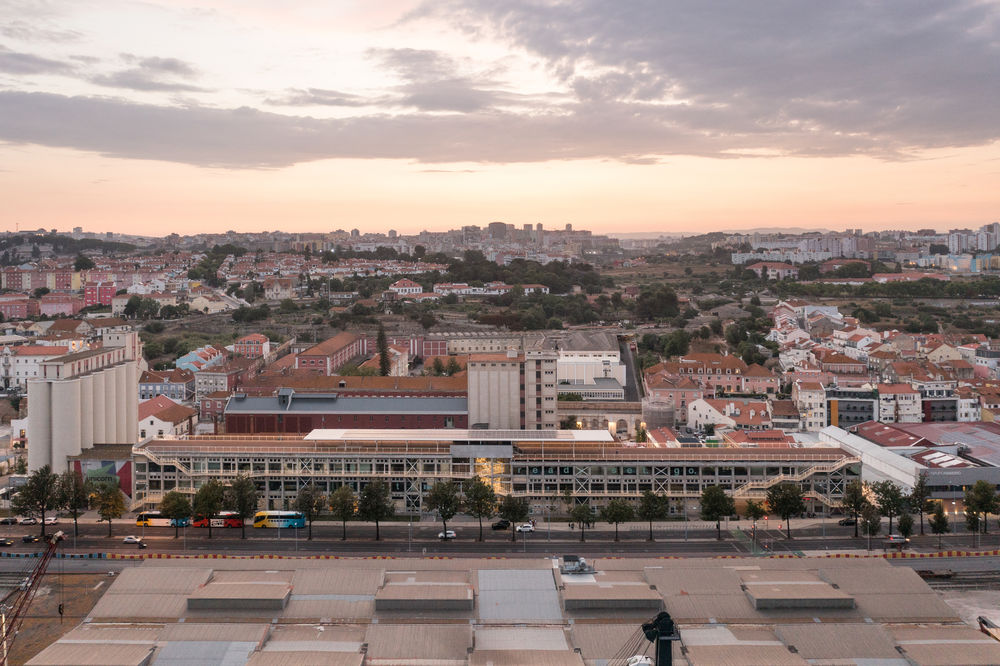

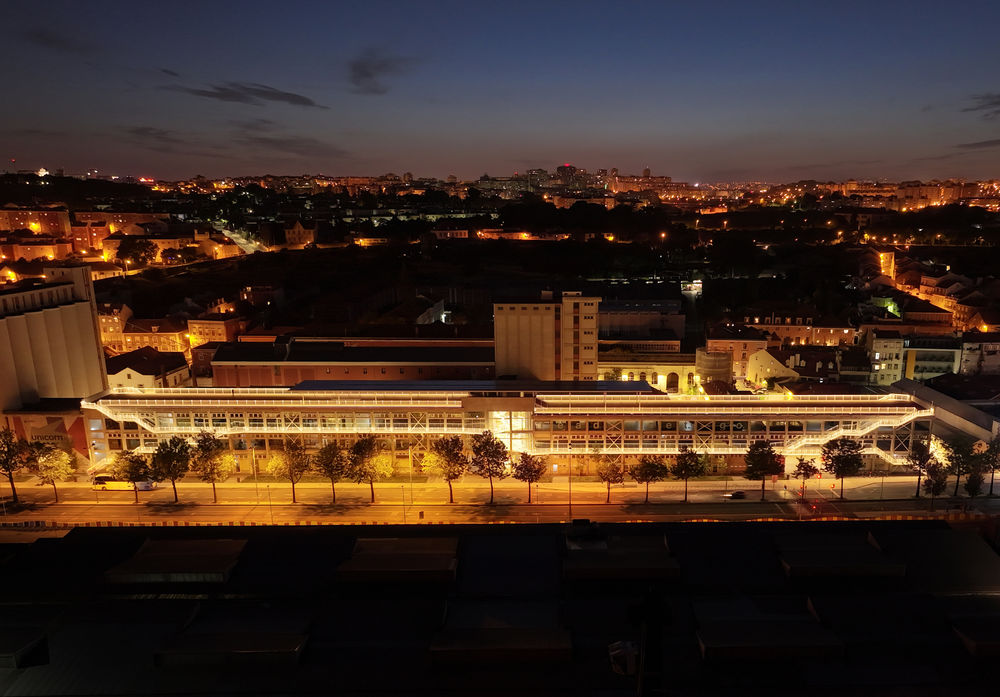

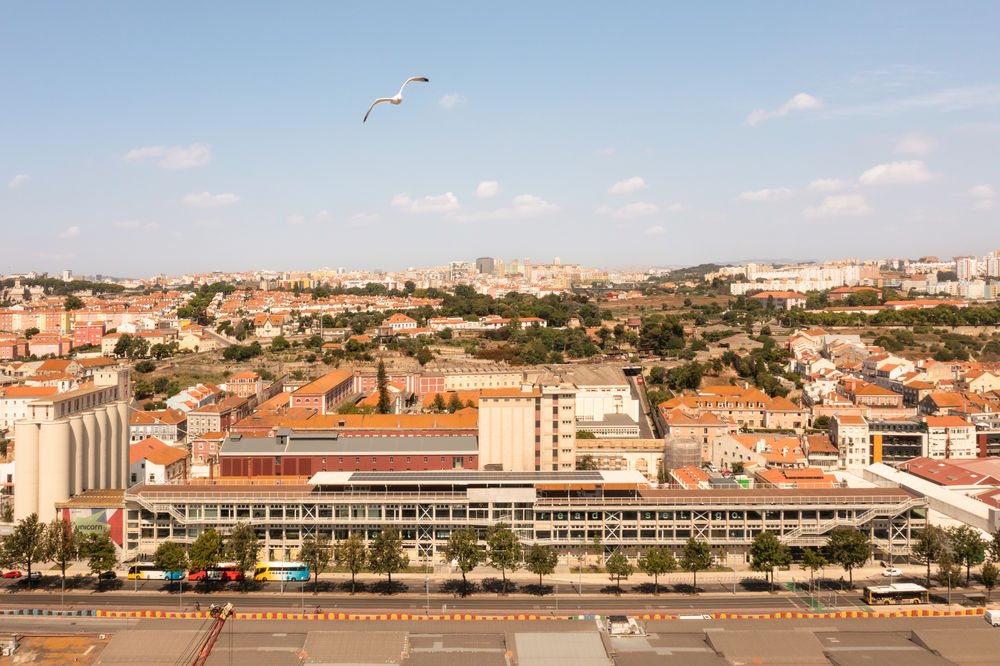

Text description provided by the architects. Factory Lisbon is the adaptive reuse of a 1973 cookie and noodle factory of the Portuguese military. The heritage-protected building sits on Lisbon‘s harbor front, in a historic army supply complex, currently being transformed into an innovation district, Hub Criativo de Beato. Shaped to house noodle machines, the building is 200m long and only 11m wide.

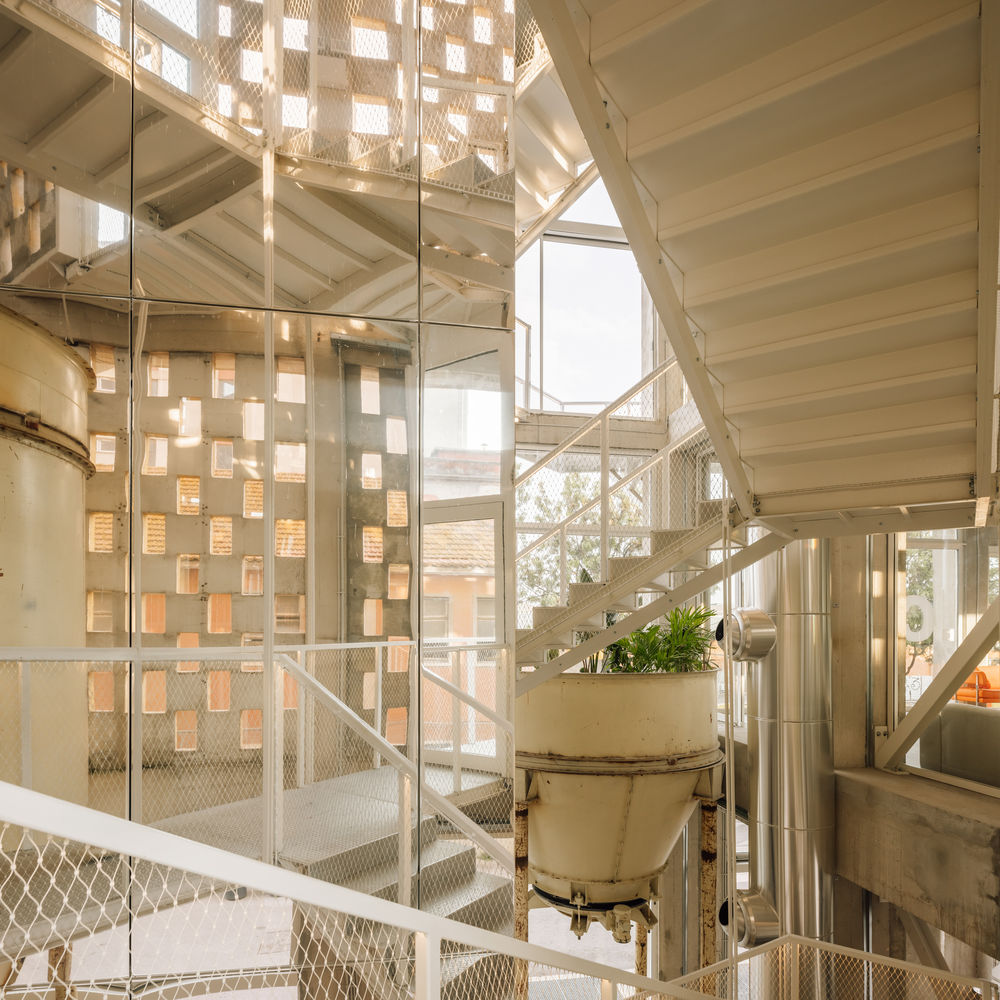

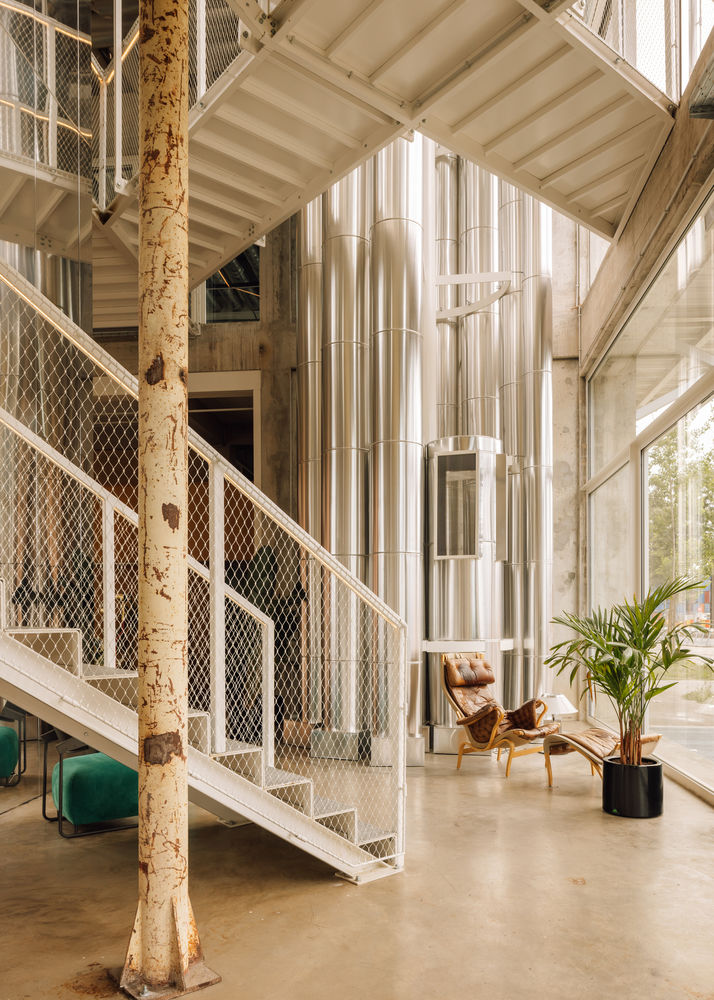

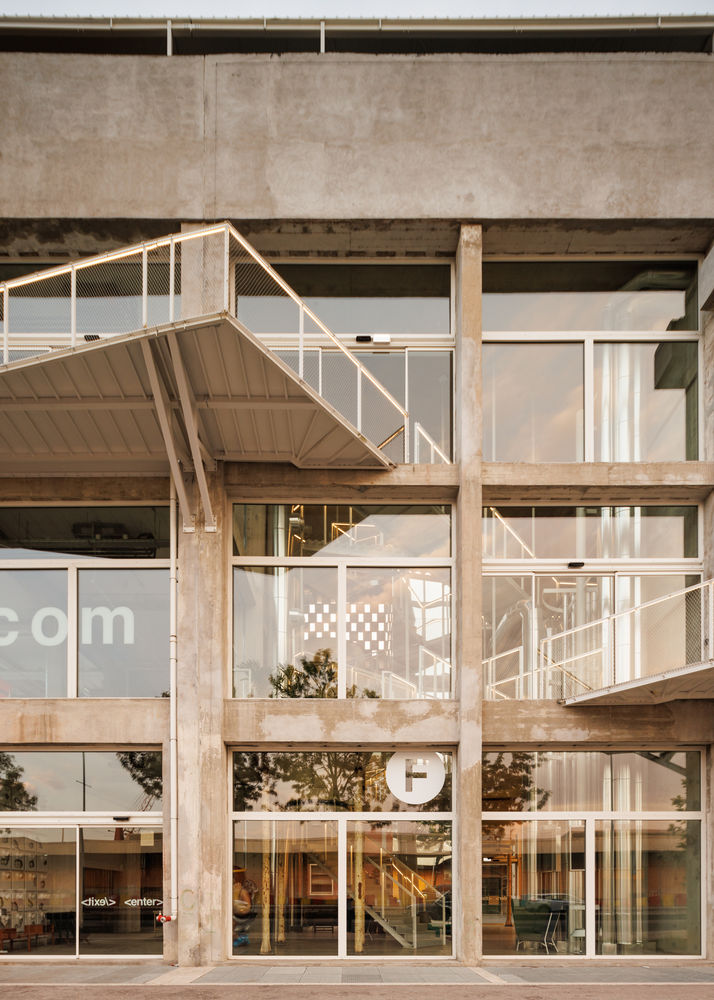

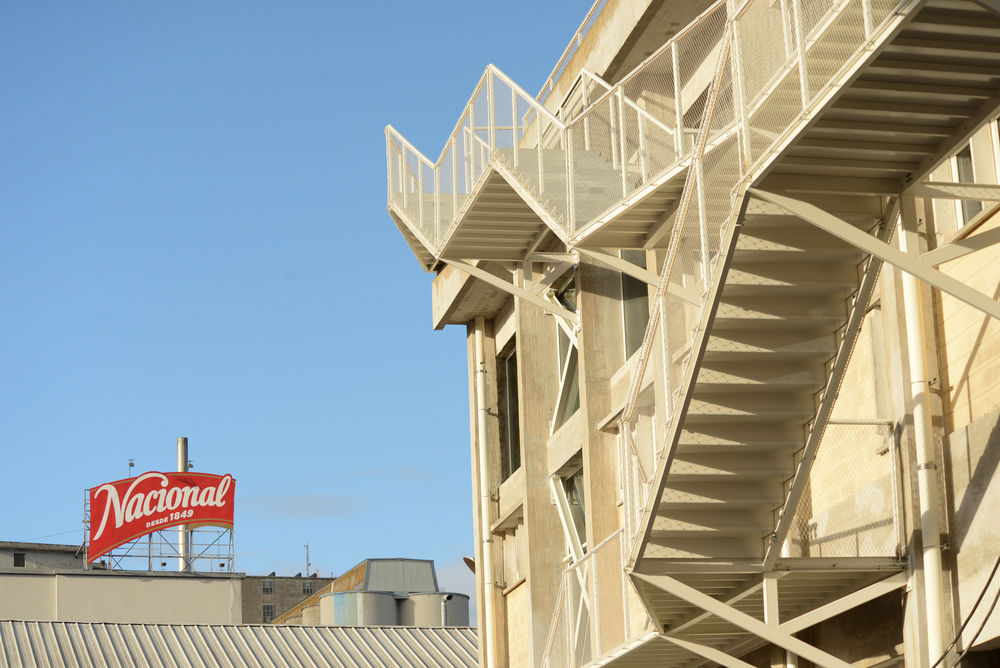

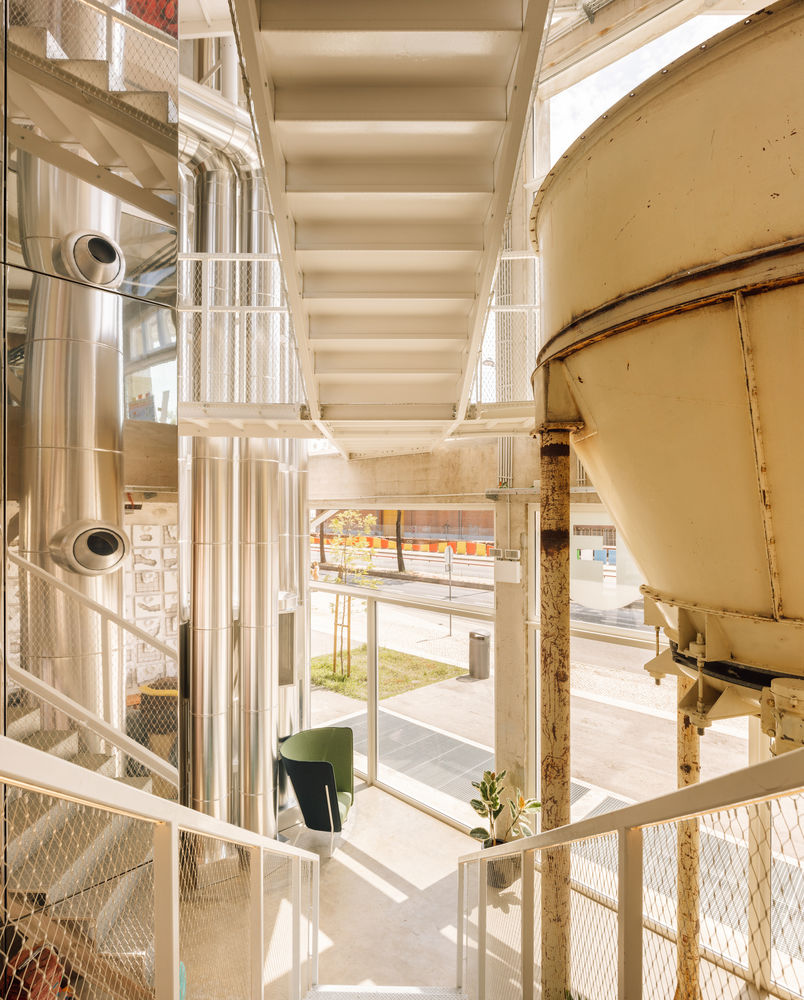

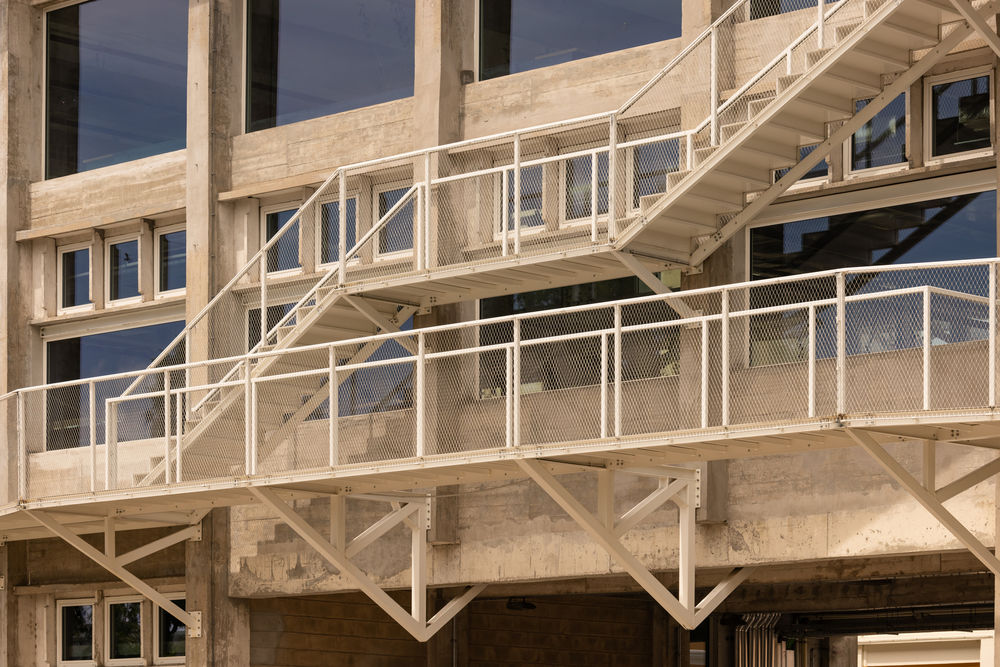

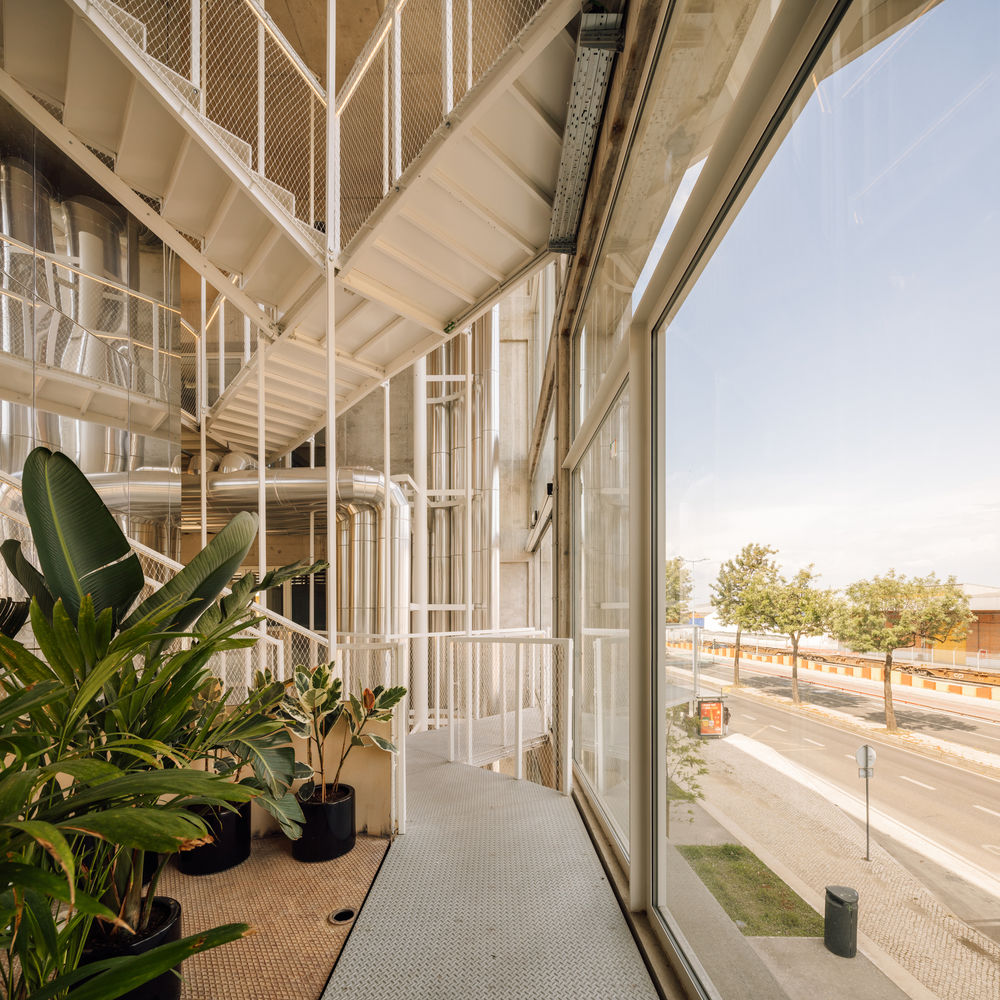

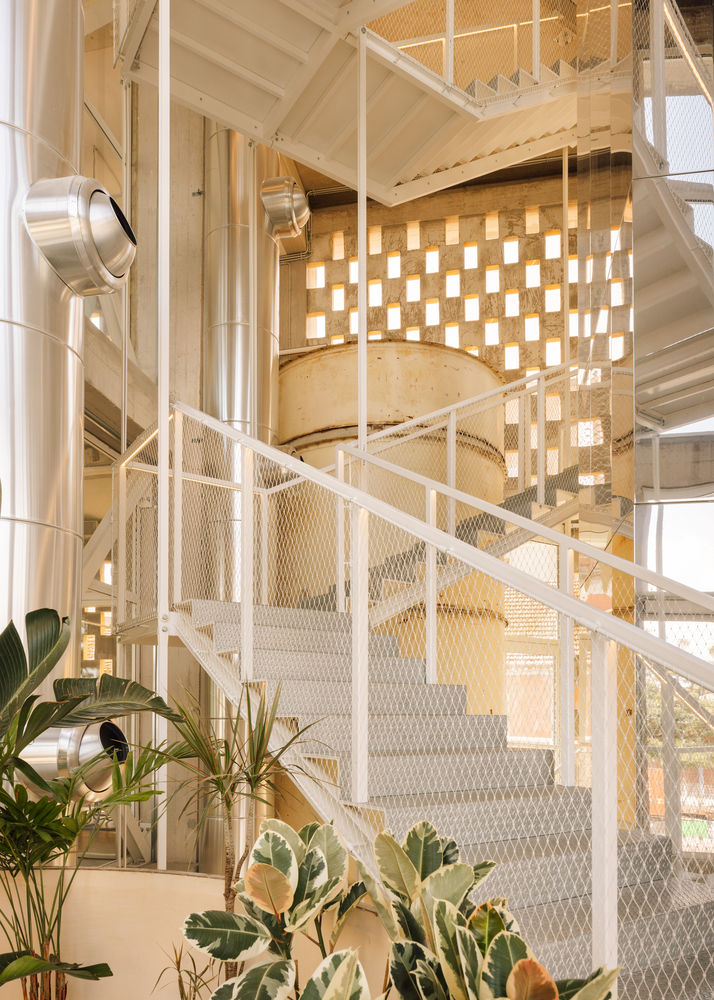

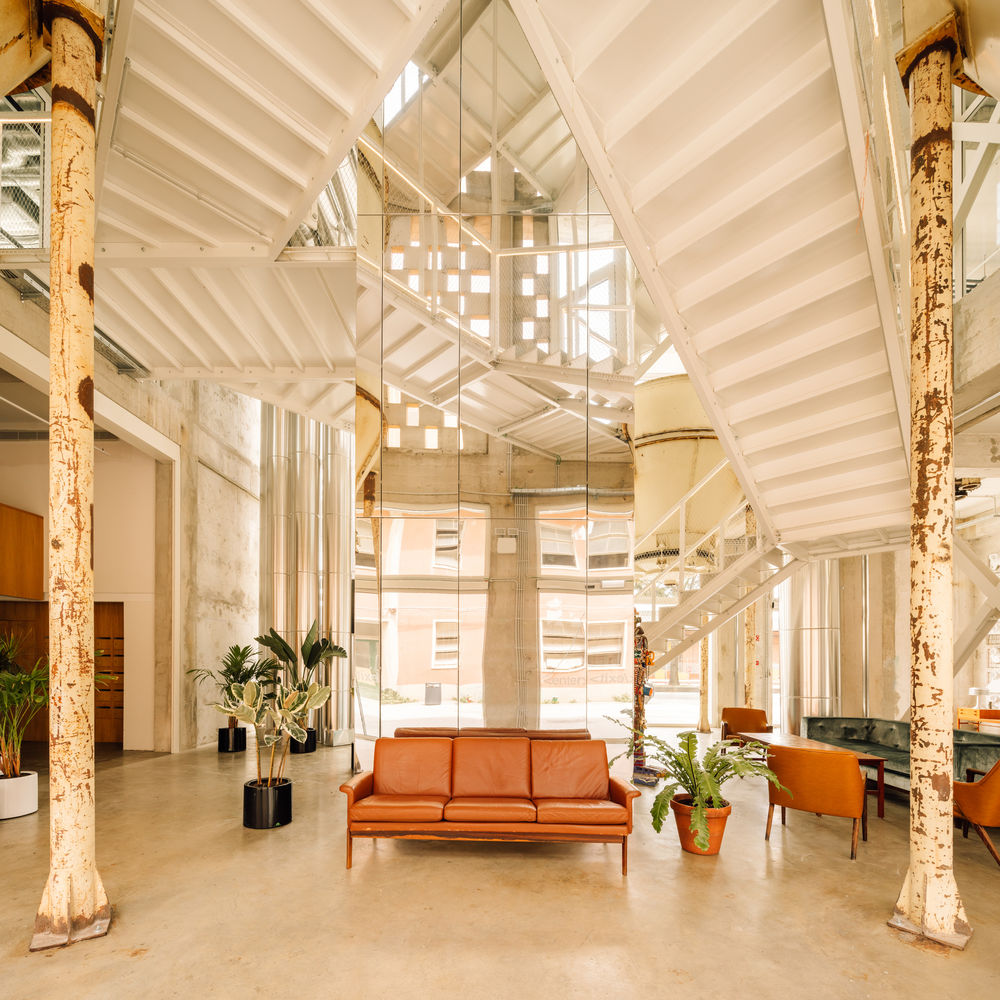

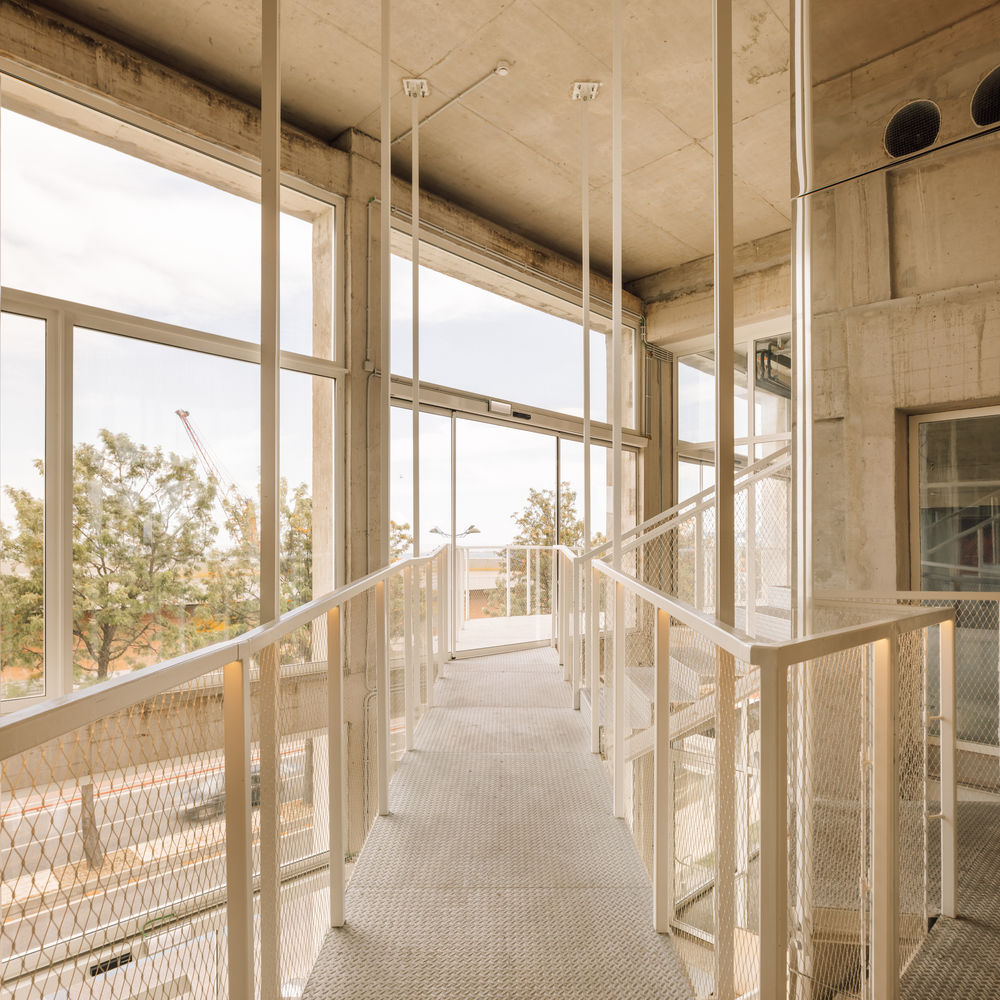

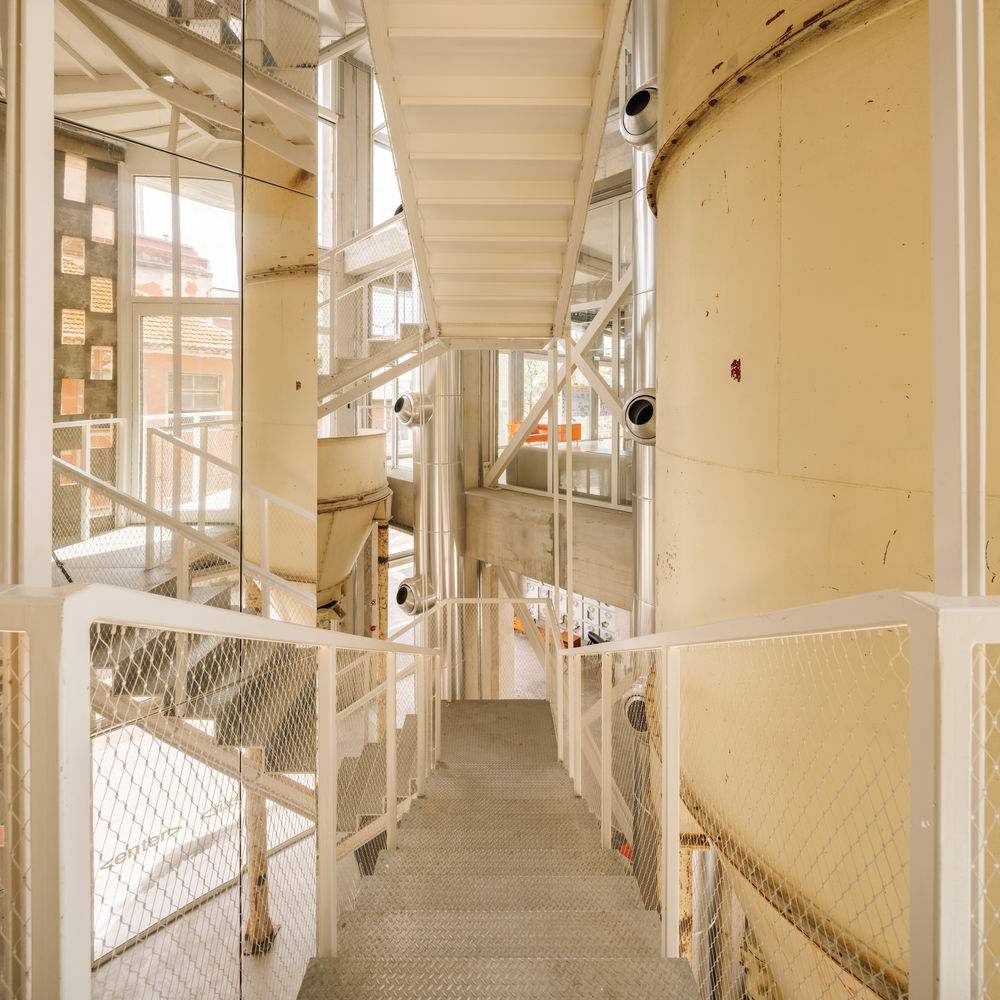

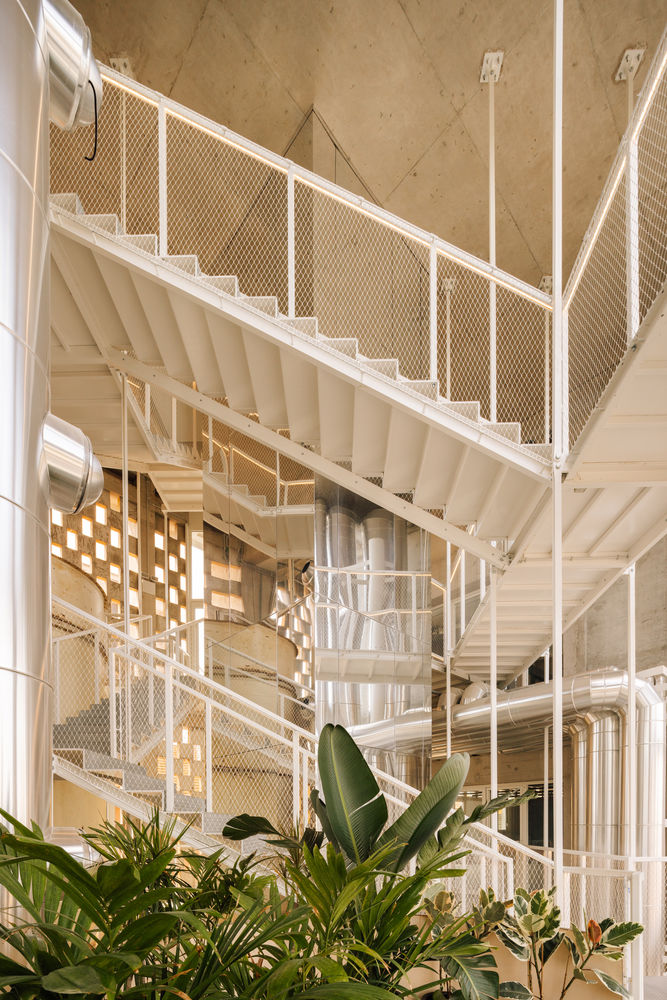

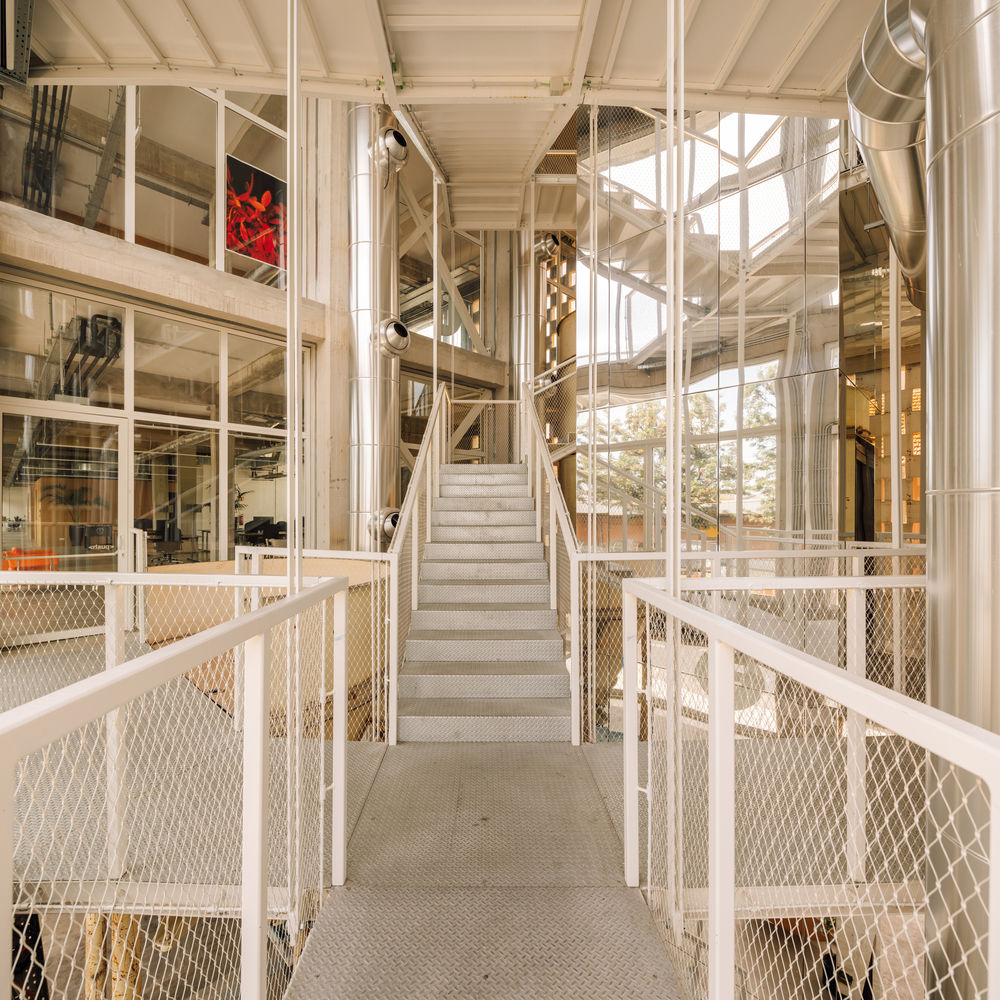

This slender volume would normally require the introduction of several concrete cores for emergency circulation. In order to avoid such a disruptive intervention, all circulation has been attached externally. In the shape of lightweight steel walkways and single-flight stairs, it meanders along the façades and weaves around the historic silos and an elevator shaft in the center of the building. Here, the stairs are suspended from the ceiling, to minimize their structural impact. The new elevator shaft is clad with mirrors, so it blends with the historic colors and features.

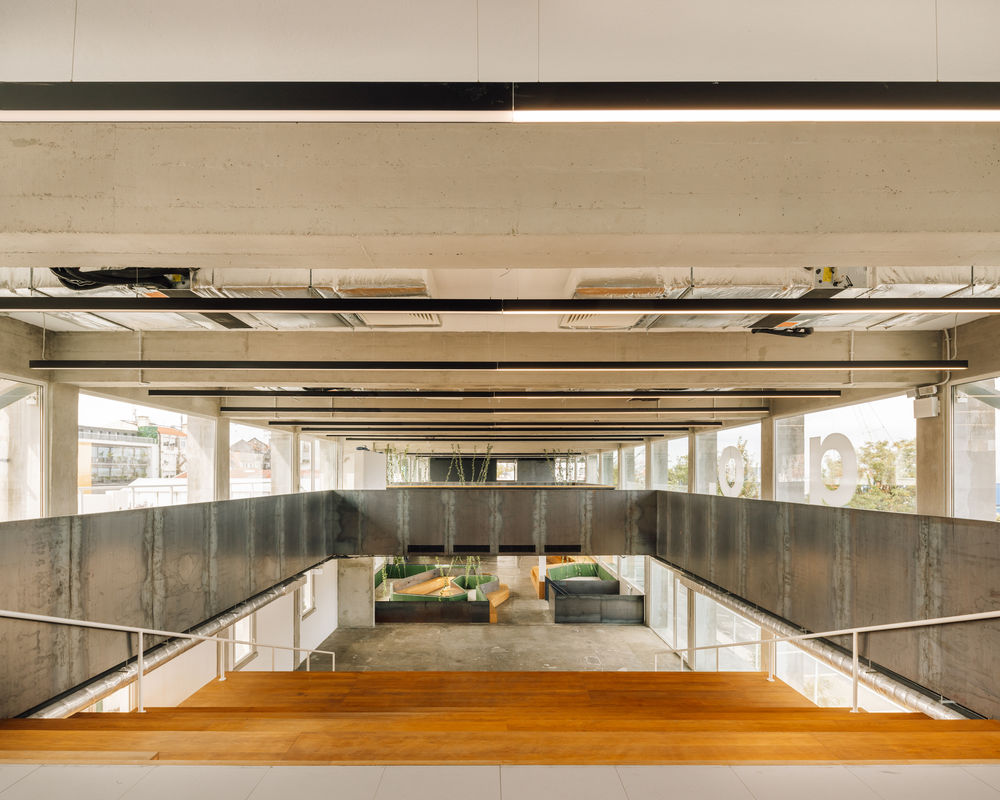

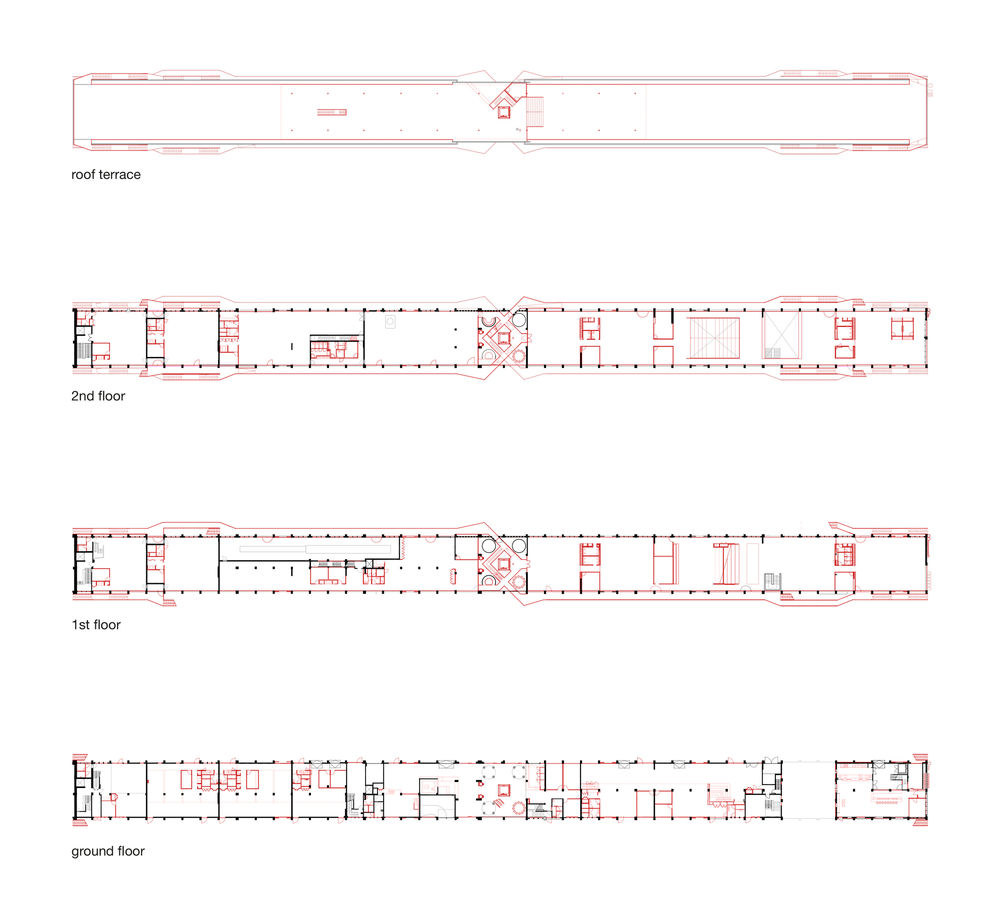

The ribbon-shaped circulation ties together Factory‘s unique blend of program and design principles: office spaces for large companies and start-ups are combined with event spaces, local restaurants, and a 2.000m2 public access roof terrace. The design approach is to retain old materials and surfaces wherever possible and contrast them with contemporary elements of concrete, steel, glass, and wood.

Factory Lisbon aims to make a multilayered and nuanced impact on Beato‘s local community. There is a strong focus on making the venue accessible to a diverse local and international public, beyond that of the typical conference business: current events cover tech, food, gender, skateboarding, fashion, architecture, and art, on both a for- and non-profit basis.

Architecture and concept have been developed in an interdisciplinary and collaborative effort. Aligning bold architecture respectfully along its given context is the shared Leitmotiv of Factory‘s founder Simon Schaefer, and the architects Julian Breinersdorfer, José Baganha, and Angela Maurice.

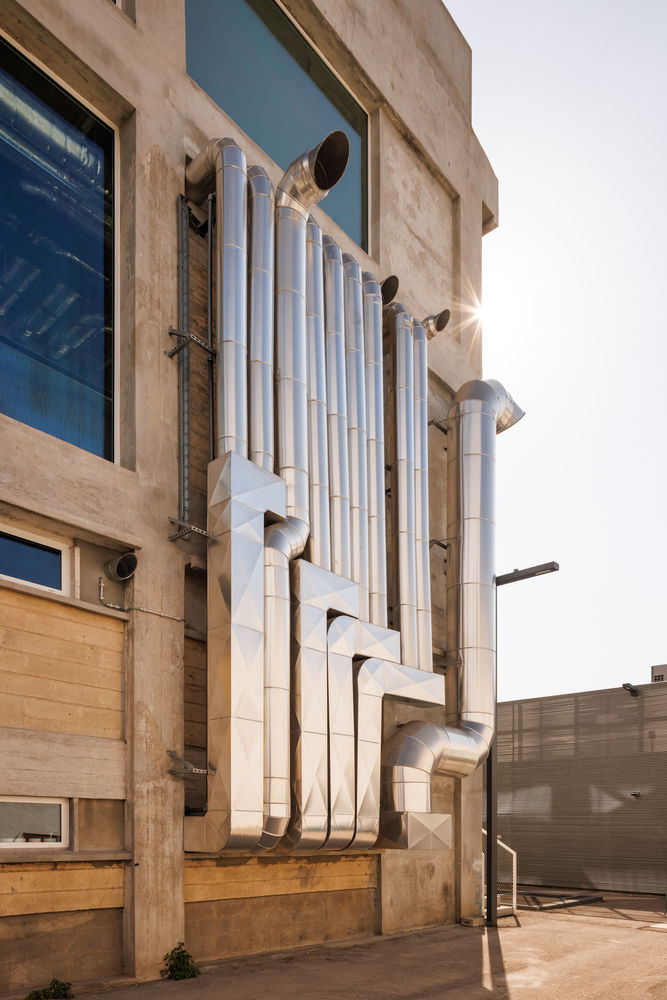

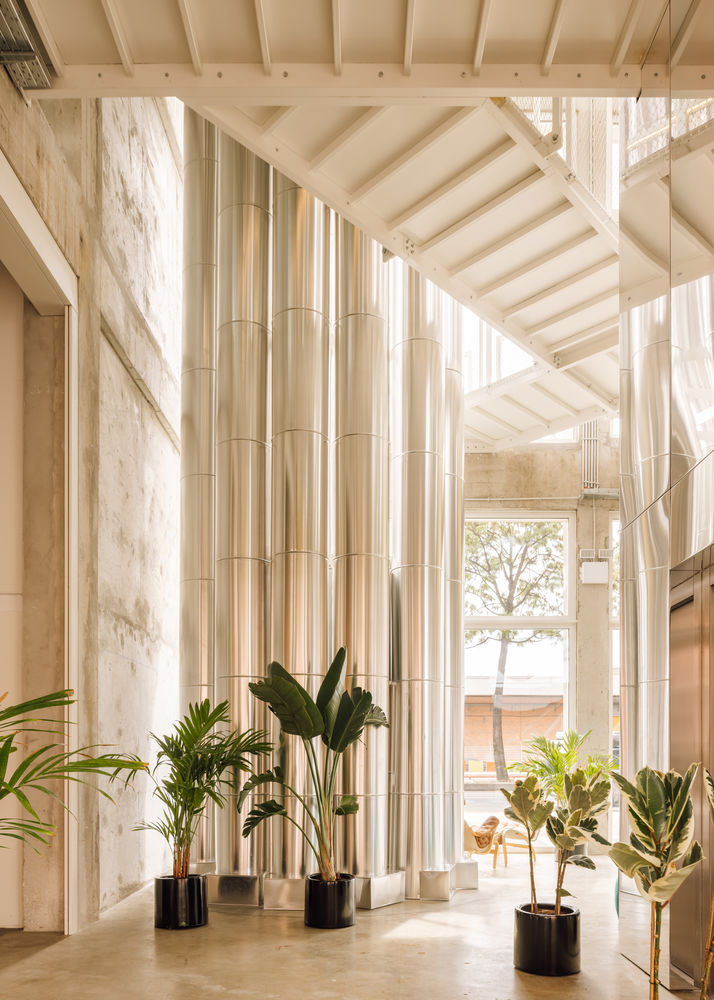

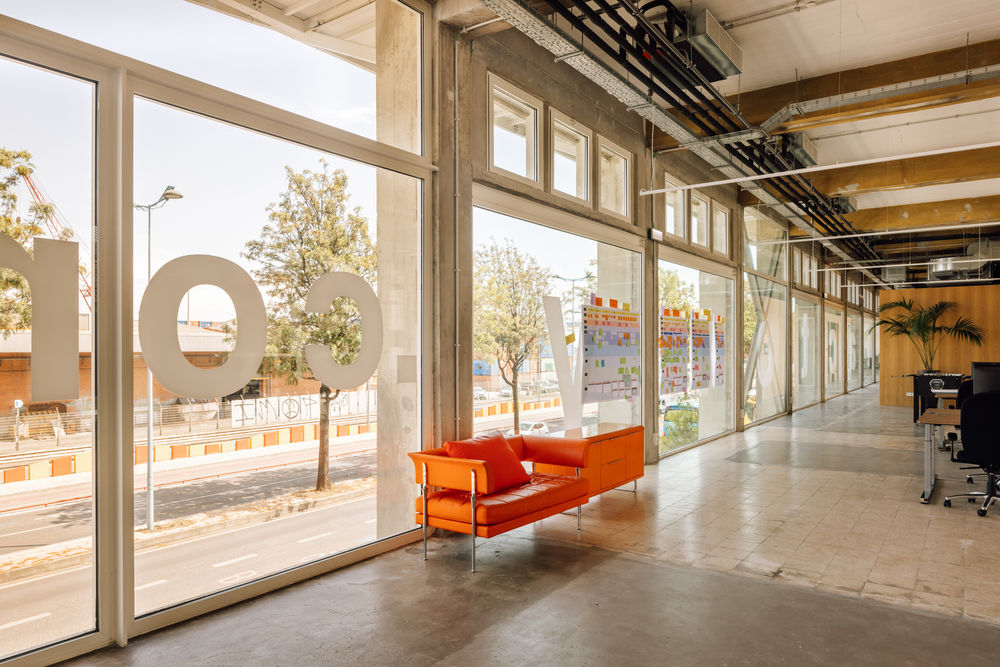

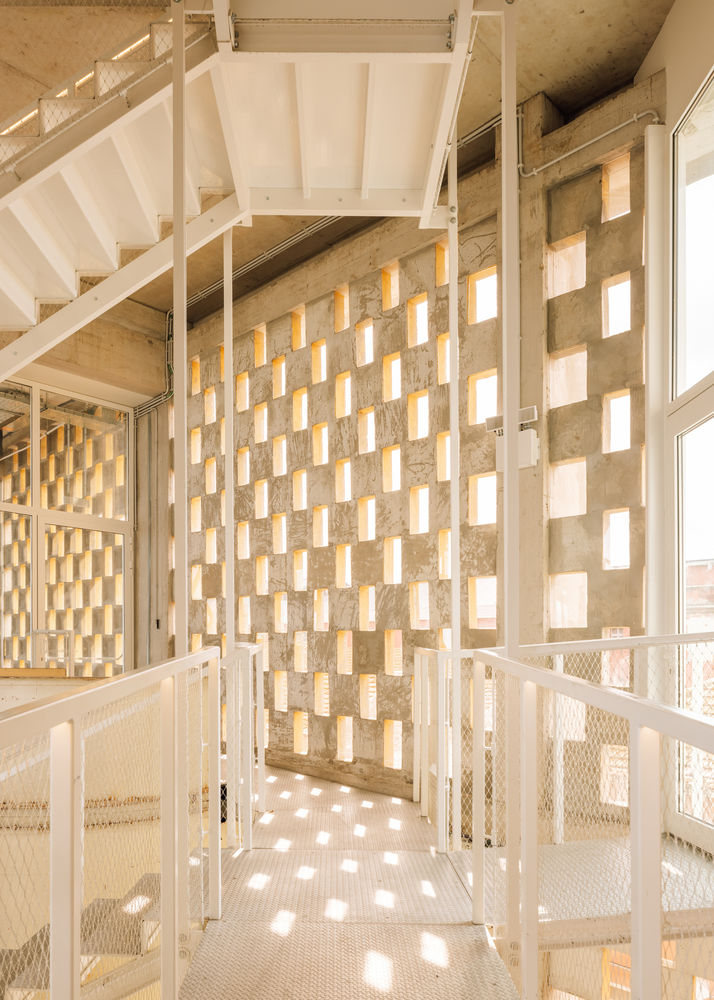

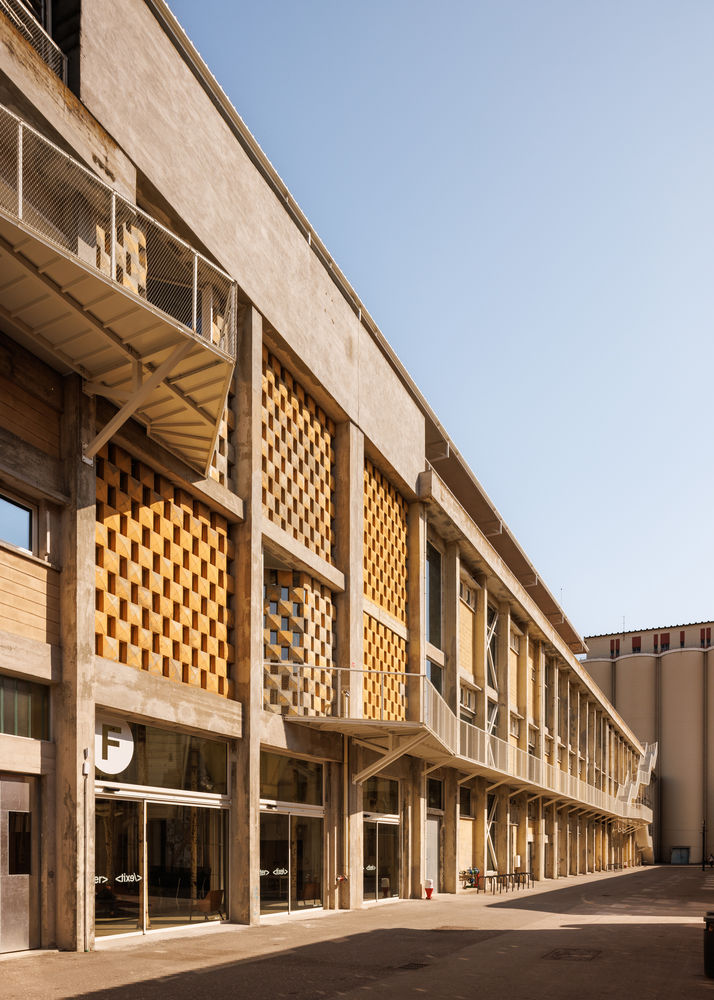

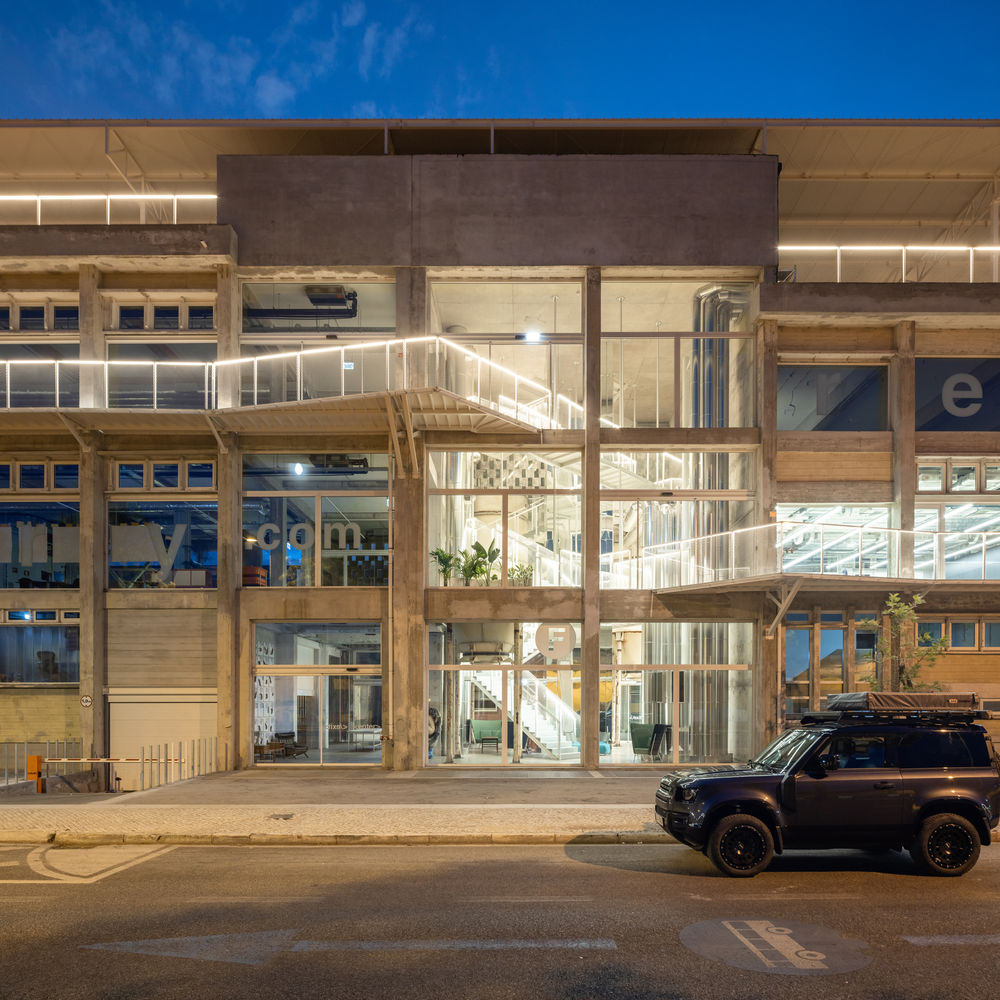

In line with these design principles, all major interventions are drawn as white steel lines. They add or fix what is necessary while leaving the historic building body legible and intact. In addition to the walkways, St. Andreas crosses have been attached to make the building earthquake resistant, brick façade elements have been opened as white-framed glazing, to bring light in or allow for circulation, and mezzanine floors have been extended to use high spaces more efficiently. The necessary technical installations are treated as veins, unashamedly taking their place in the building's body. They are visible as technological transformations, adapting the functionality of an old food production facility to contemporary office and event uses.

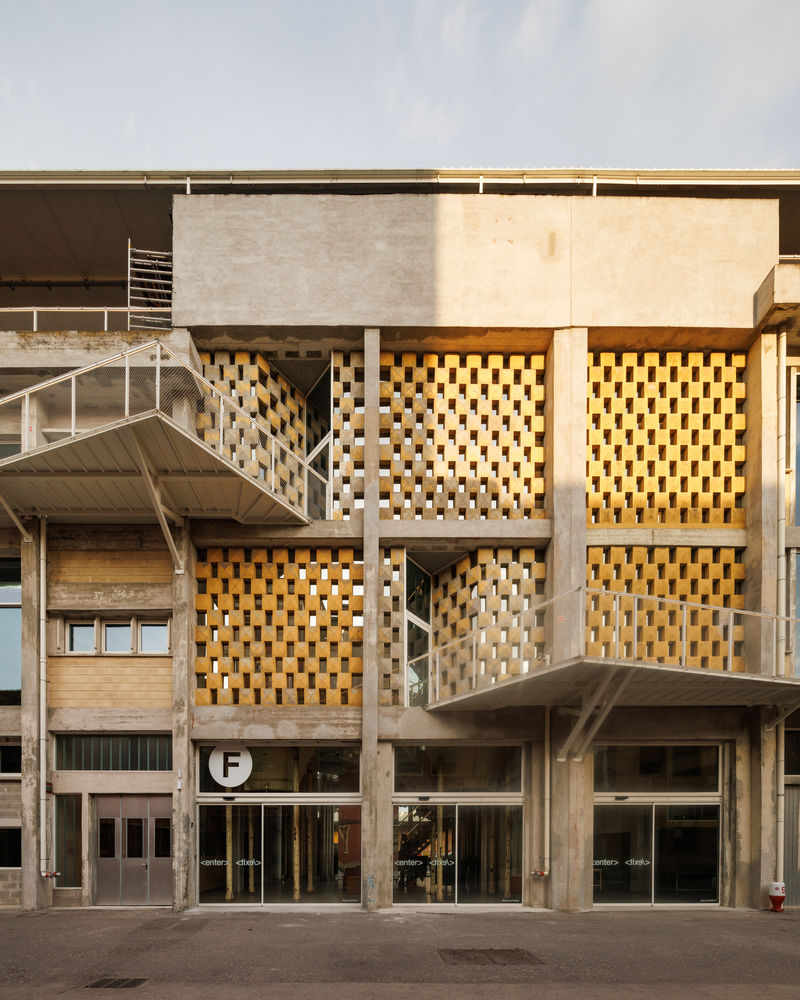

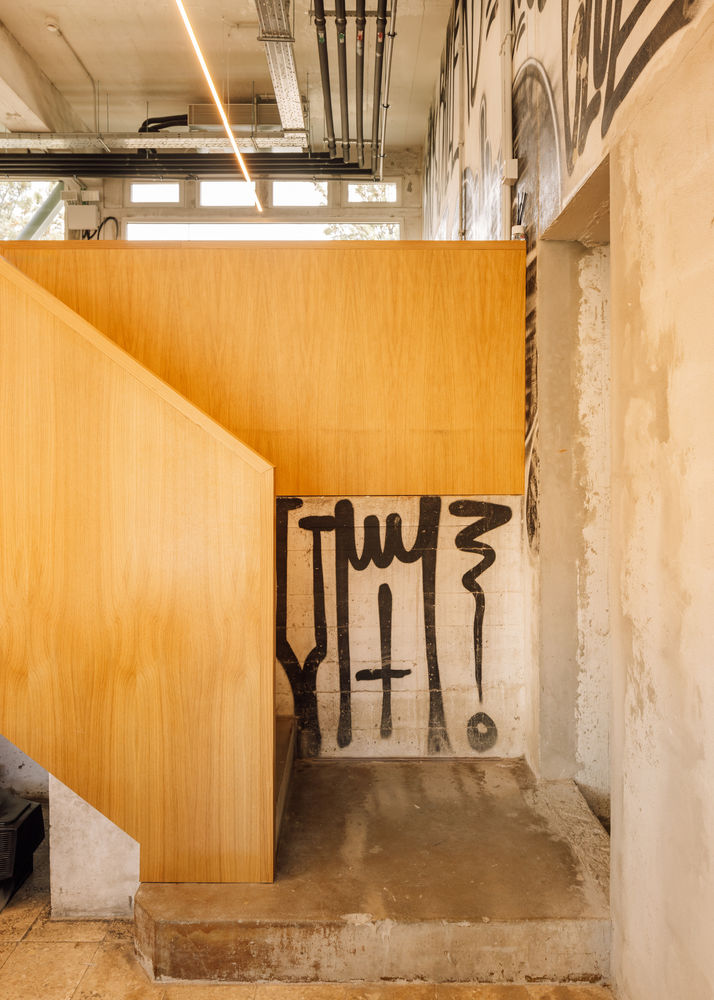

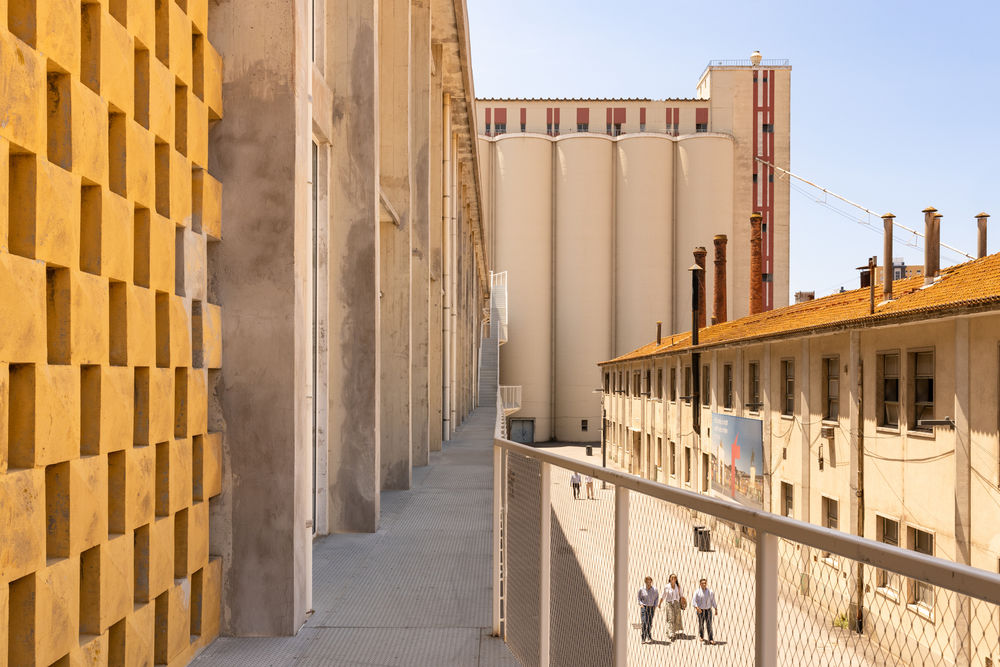

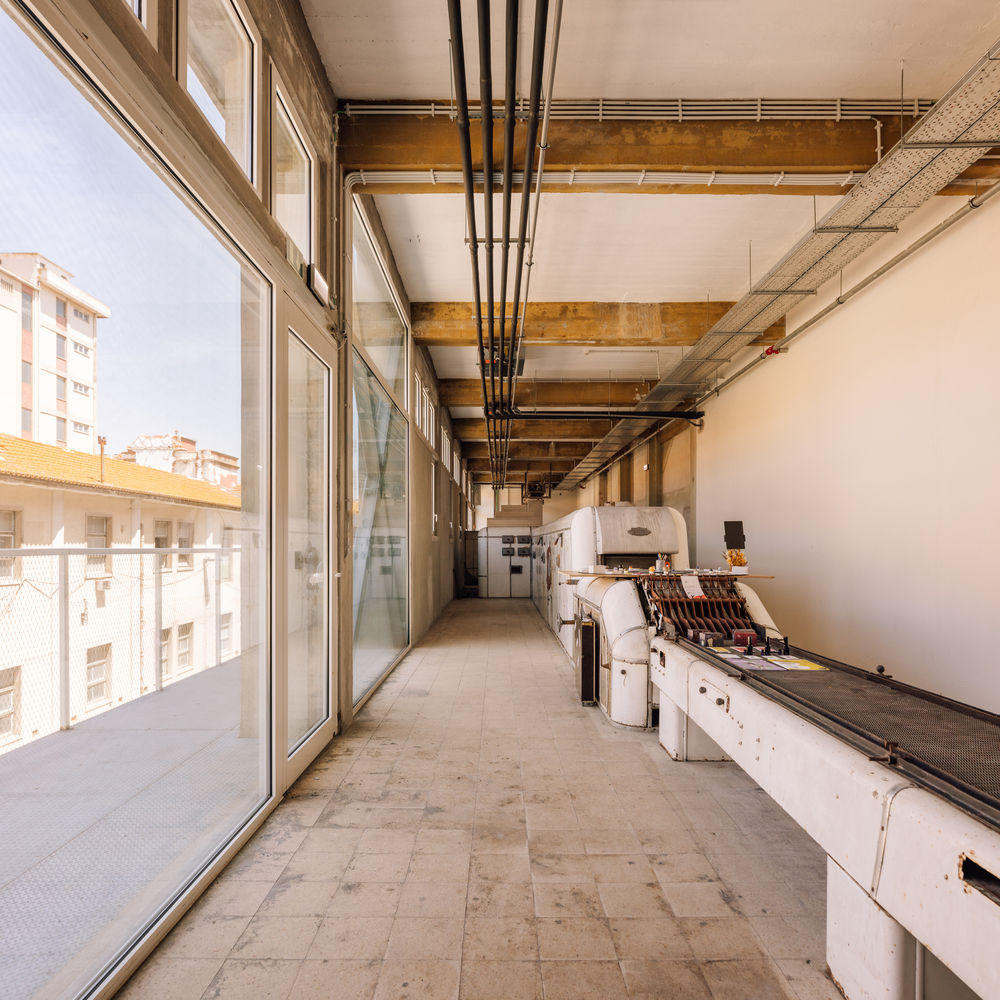

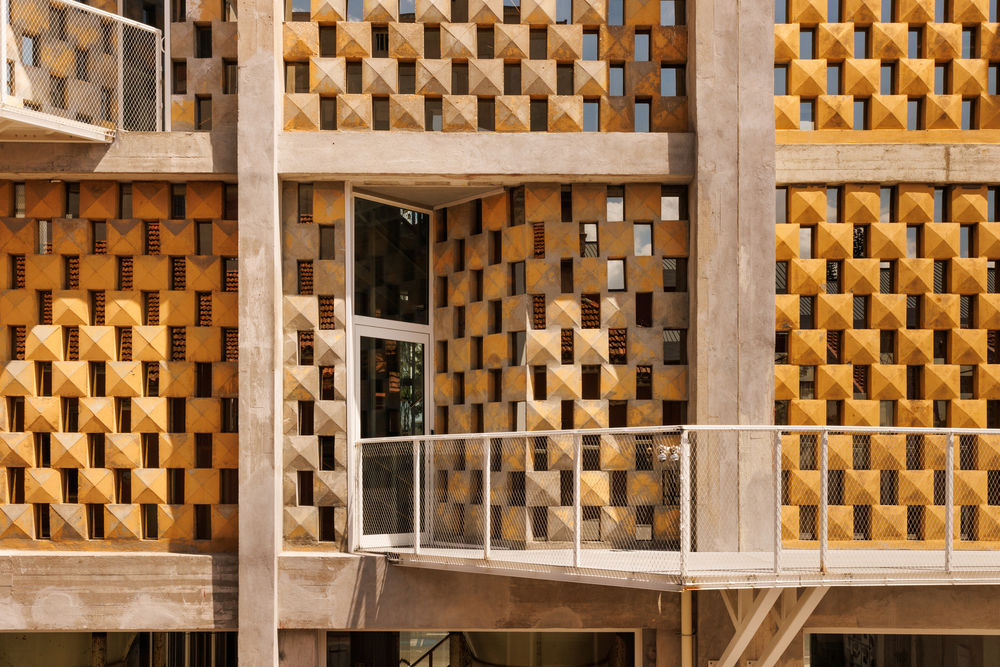

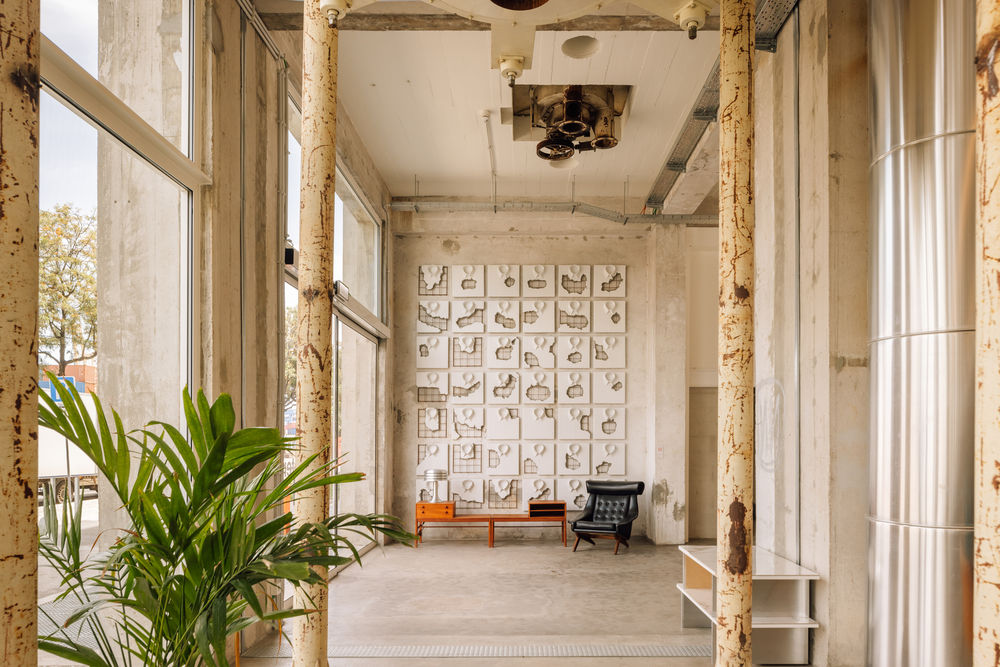

Plants and wooden buildout elements bring a nonindustrial softness, without leaving the 1970s palette. Historic details like two cookie machines, the yellow perforated brick walls, and damaged marble staircases have been lovingly restored and integrated. All building materials, finishes, and geometries have been selected to vibrate with Lisbon‘s magic Atlantic light.

Project gallery

Project location

Address:Lisbon, Portugal
