英国 Ceangal House | 传统与现代的完美融合

Architects:Loader Monteith

Area :220 m²

Year :2021

Photographs :Dapple Photography

Manufacturers :  Buster and Punch, Schneider Electric, Archispek, Astrolighting, Atkinson Kirby, Esporta, House of Finn Juhl, The Fire SideBuster and Punch

Lead Architect :Iain Monteith

Structural Engineer :Entuitive

Main contractor :Lawrie Construction

Clients : James and Lorna Hamilton

Cdm Co Ordinator : Principle CDM

Joinery : Lawrie Construction

Styling : Nordic Living by Biehl

Country : United Kingdom

Loader Monteith’s Ceangal House marks a new, architecturally striking heart of a working farm in South Lanarkshire, Scotland. Loader Monteith completed the new build home for a young family of five, incorporating materials from the existing buildings on-site to continue the family’s long-standing connection to the land. Loader Monteith was briefed by clients, James and Lorna Hamilton, to design a new ‘outstanding home of architectural interest’ to replace the original 1800’s steading buildings that had long since fallen into a state of disrepair.

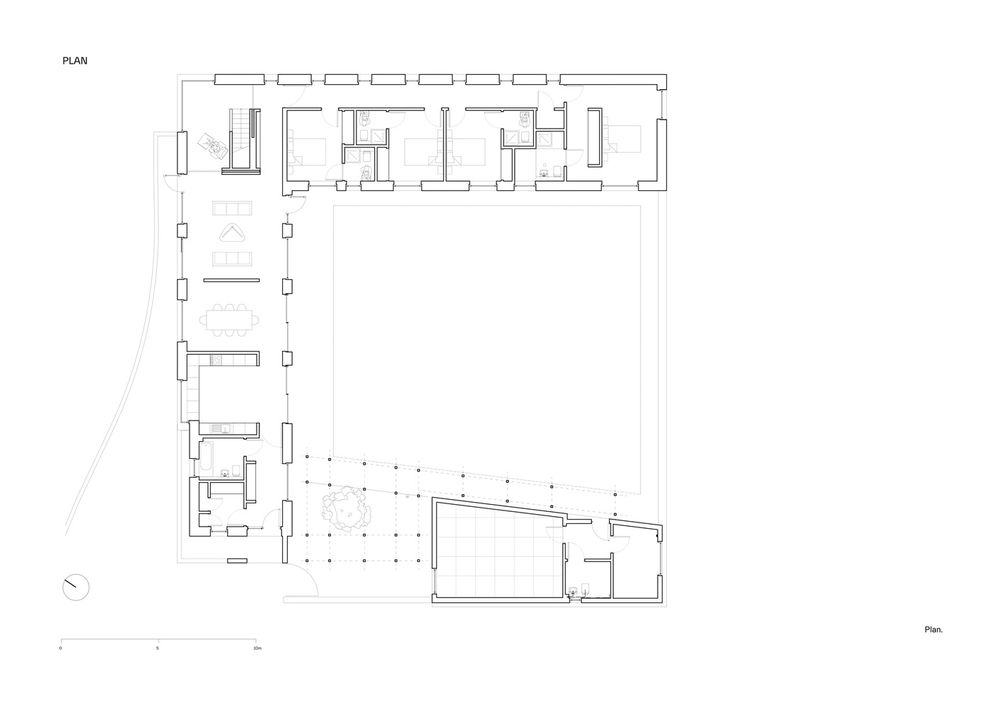

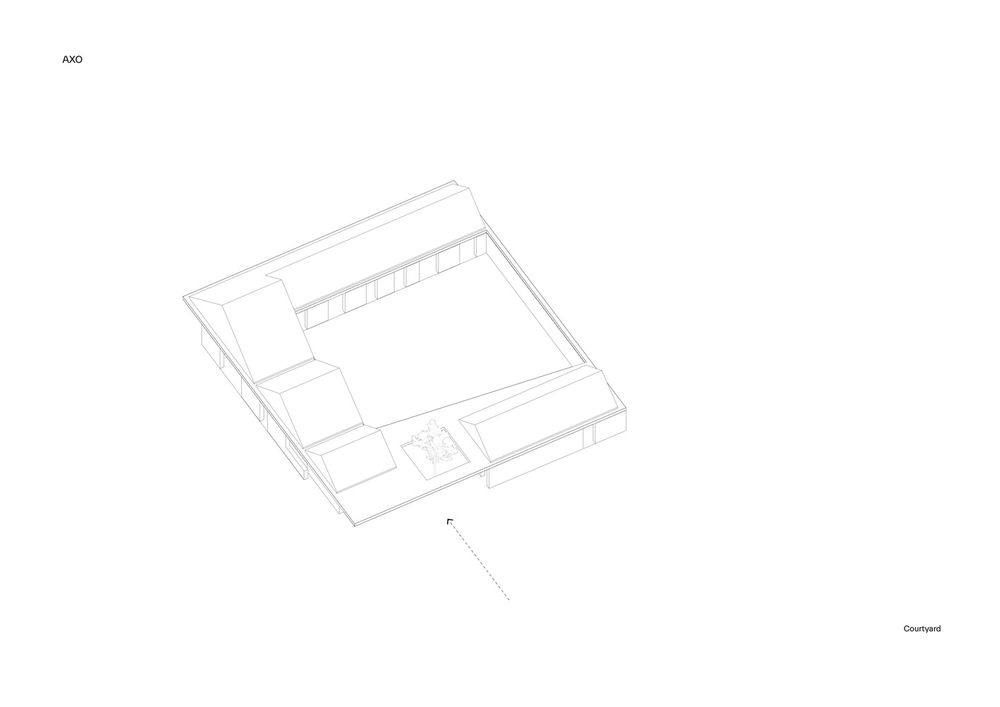

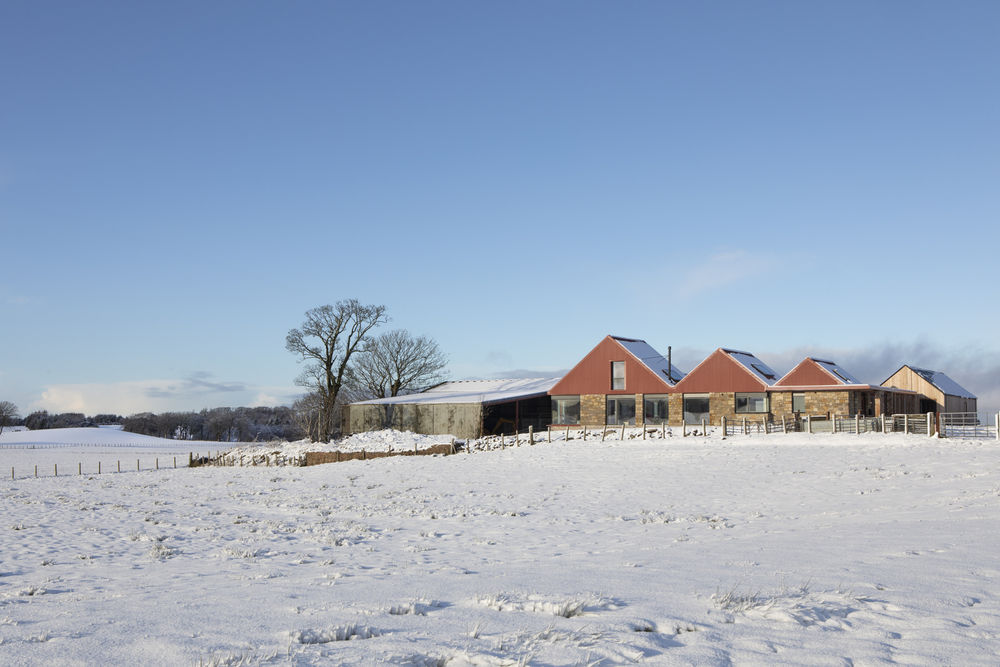

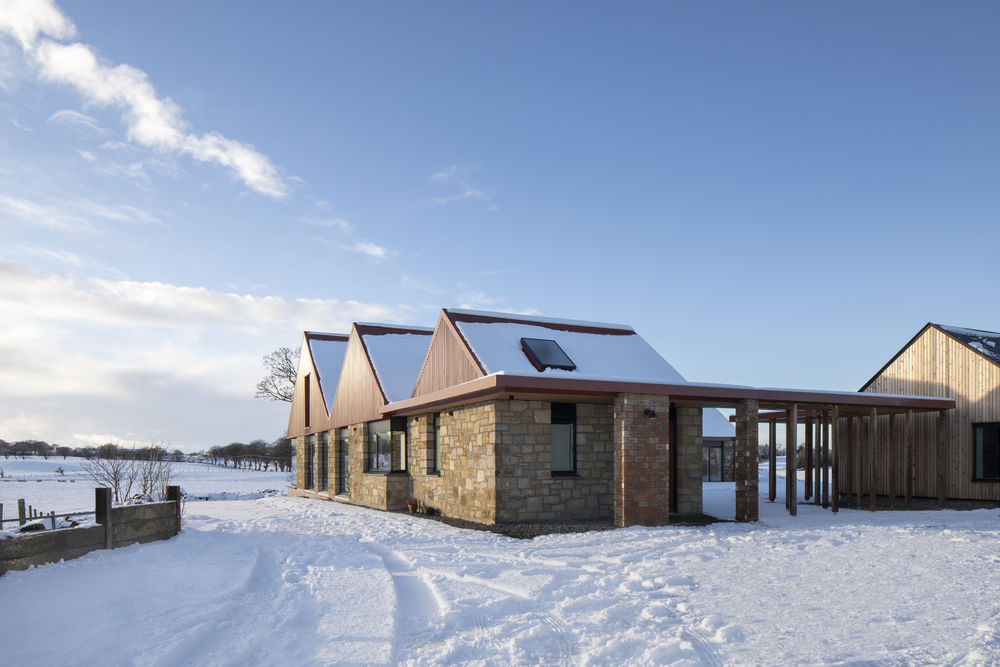

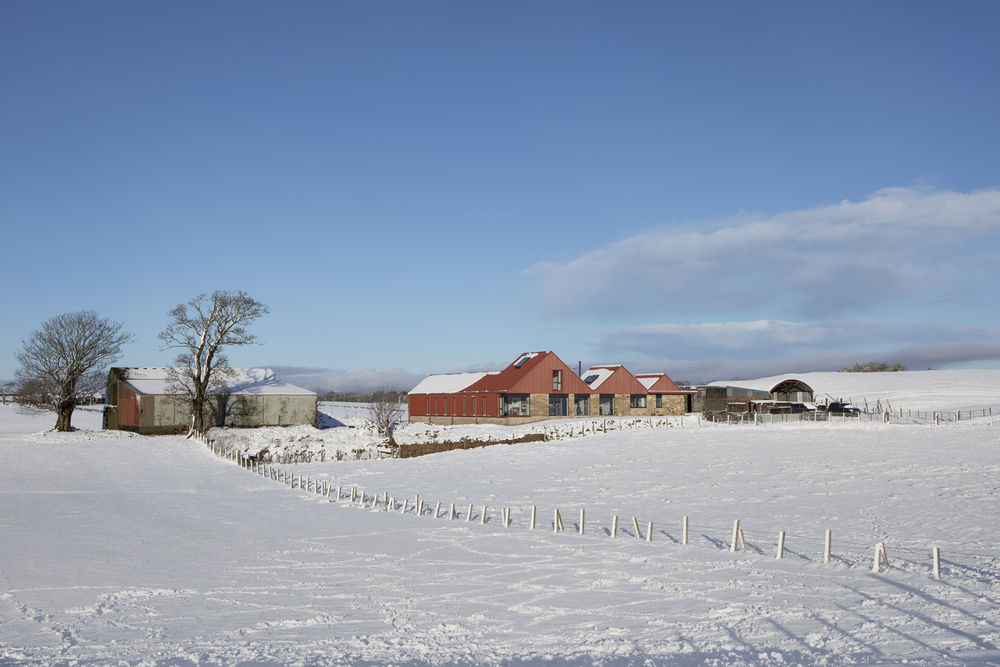

The architects designed a courtyard home that echoes the language of the original steading, organized in an L-shape to provide shelter from the unforgiving Scottish landscape. A new timber-clad office and guest studio lie at the western boundary, connected to the main house by a red aluminum and timber pergola.

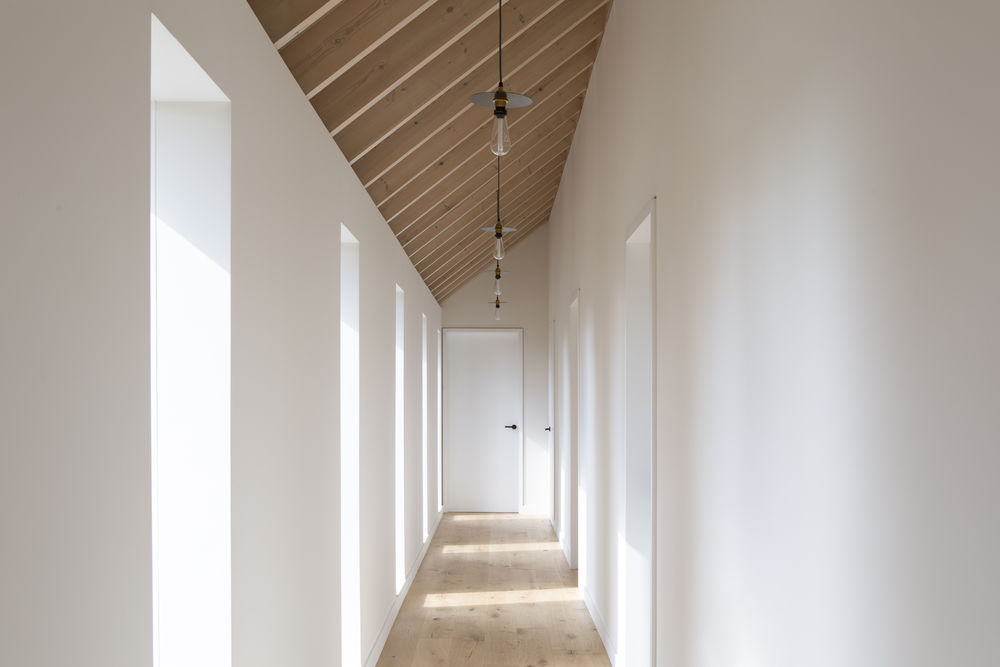

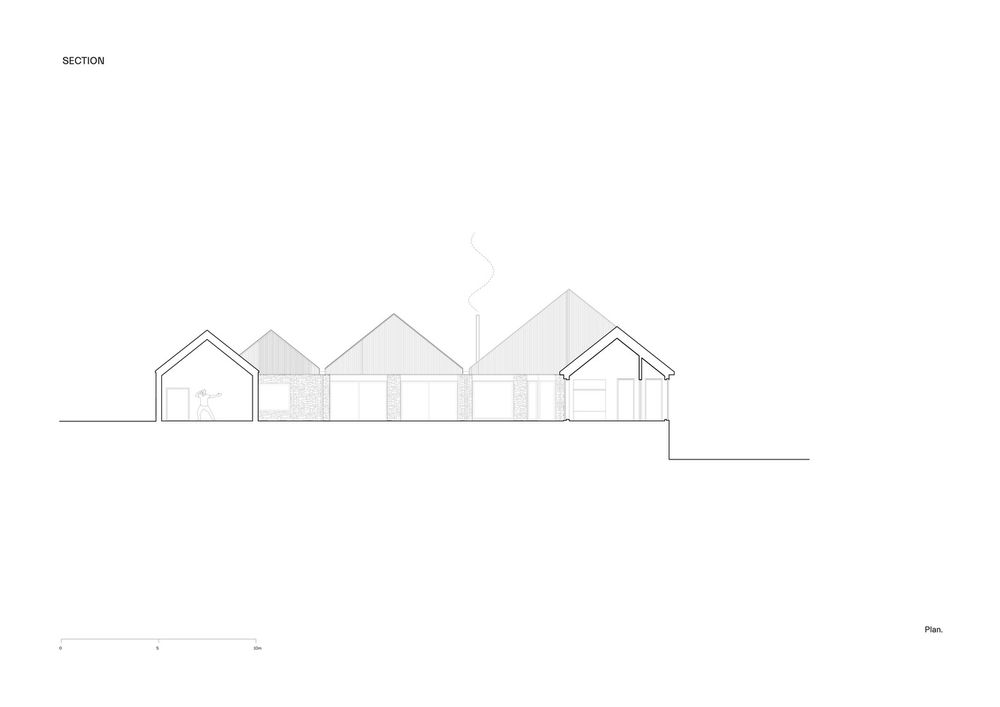

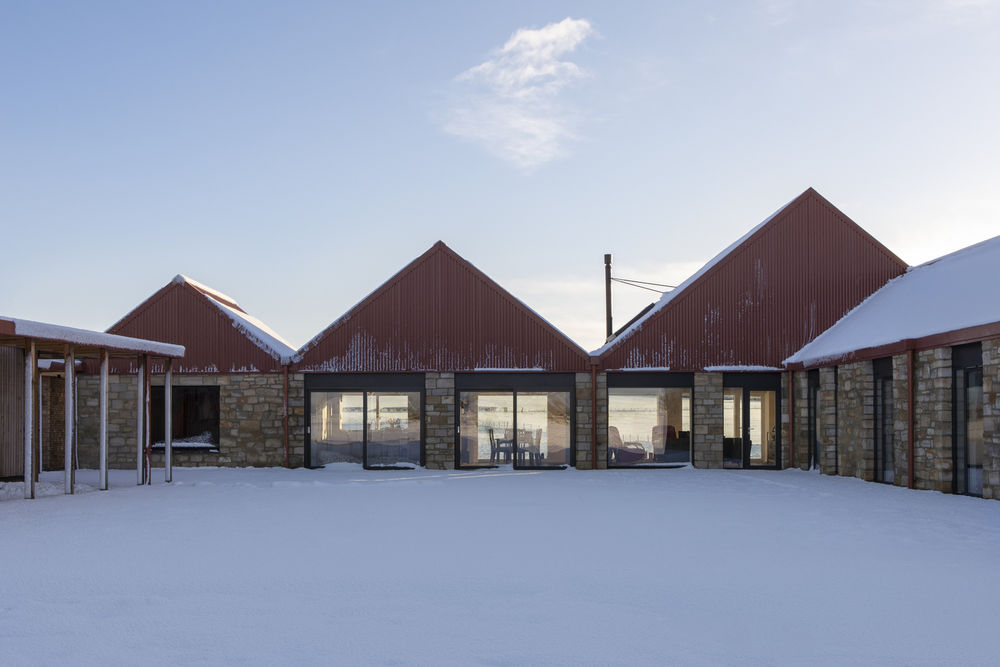

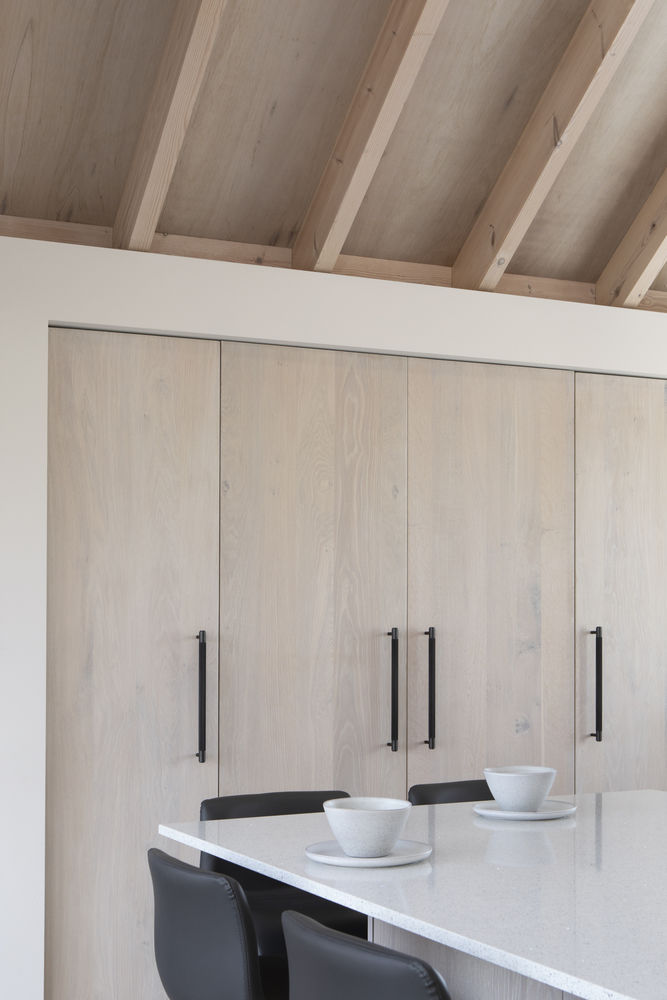

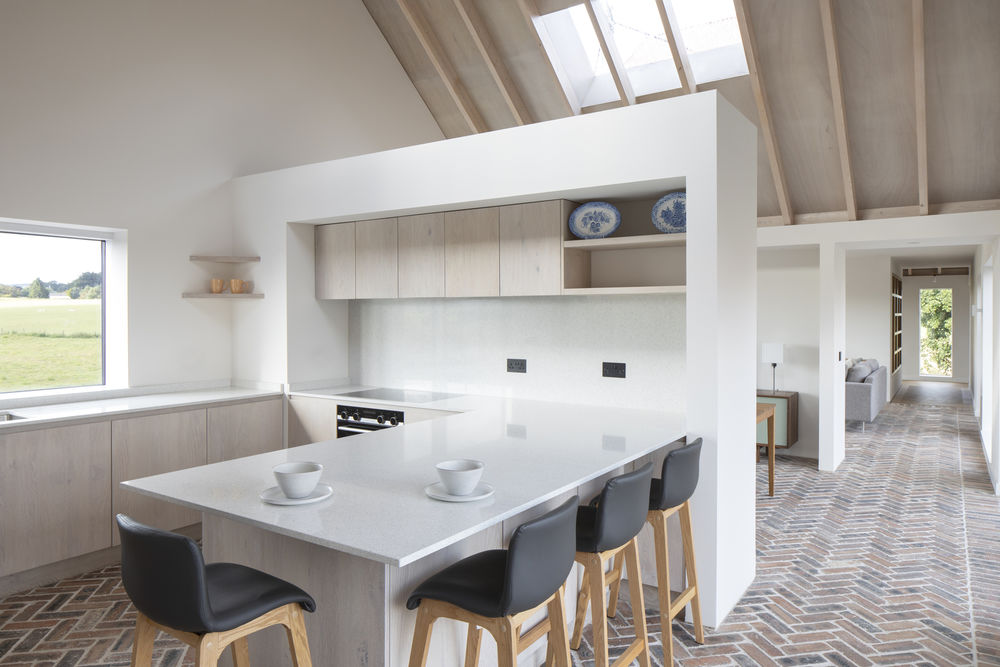

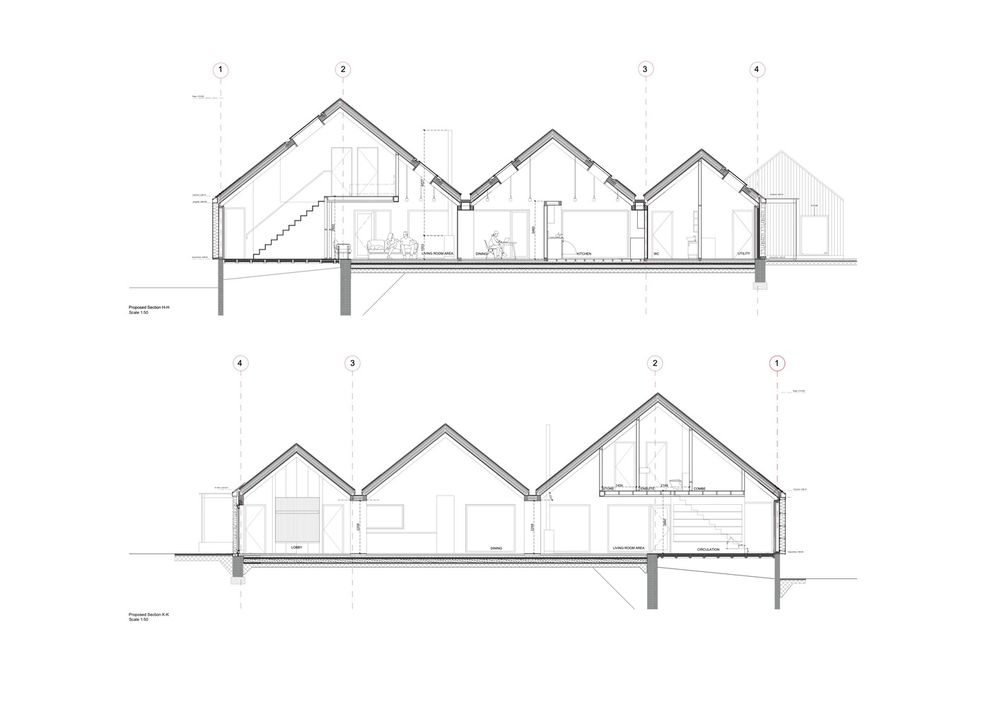

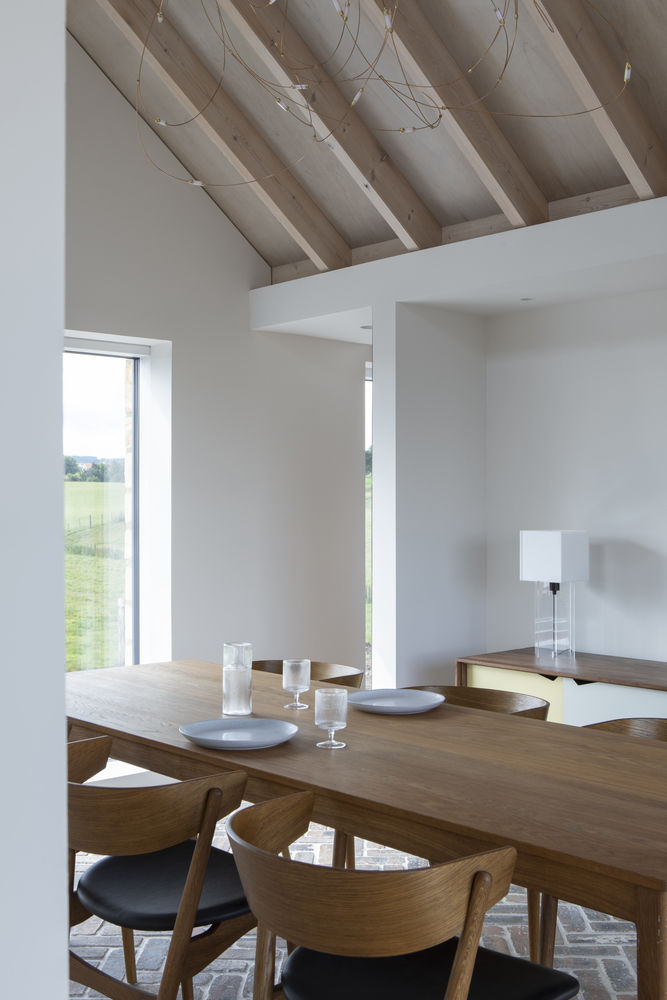

Volume is central to the design principles in play at Ceangal House. The house is characterized by three pitched red gables increasing in volume from east to west act, which offers both visual interest and generous interiors. Inside, these volumes accommodate a lobby, kitchen, dining, living room, and reading room, with a guest bedroom contained on the first floor of the largest gable. The north-south wing contains the children’s bedrooms leading to the master bedroom at the northernmost part of the house.

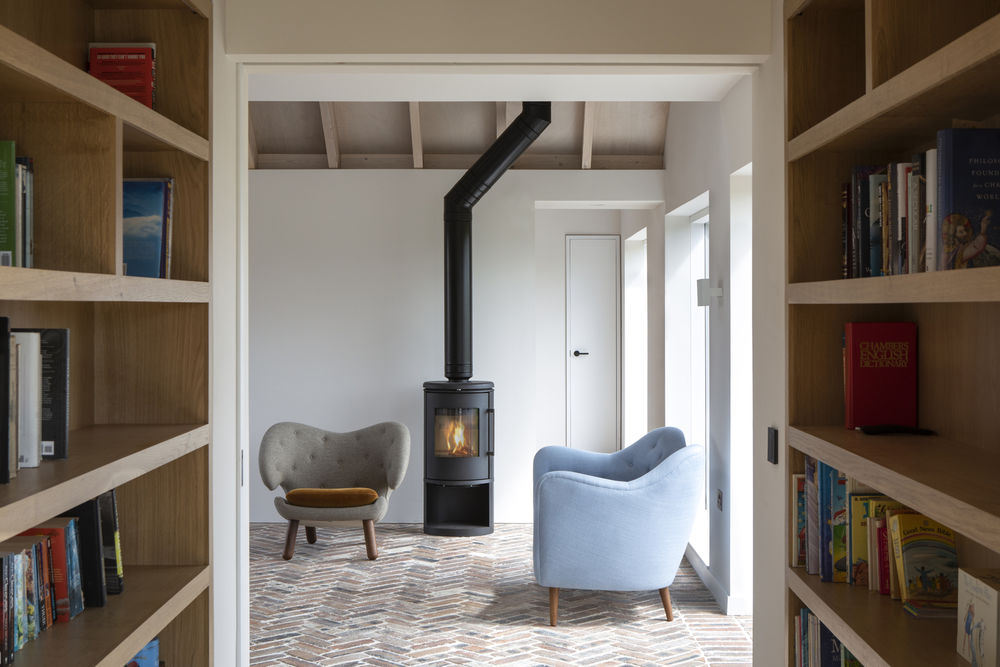

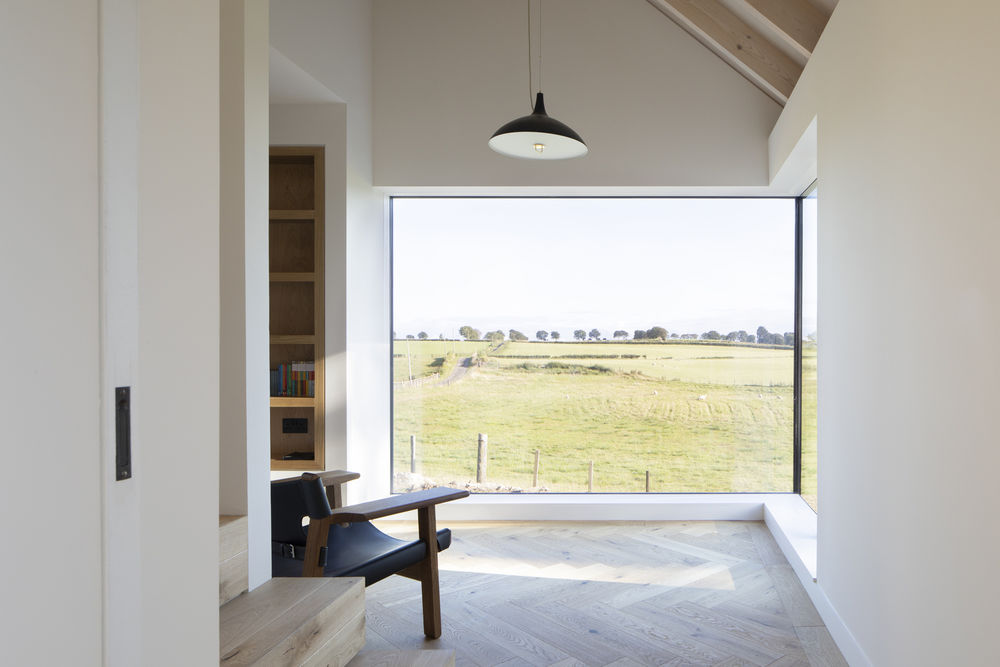

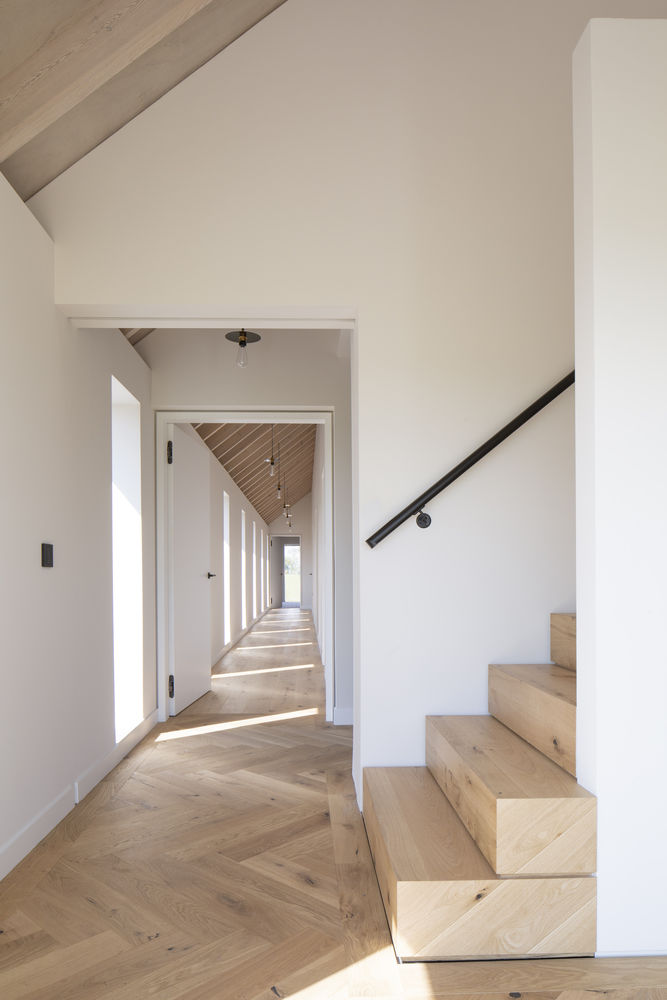

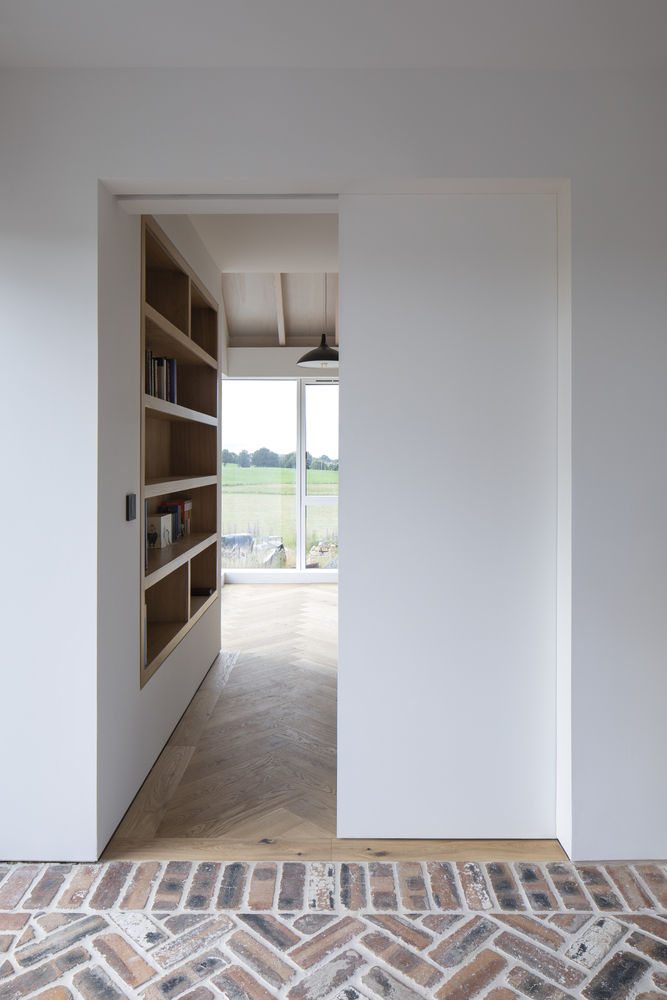

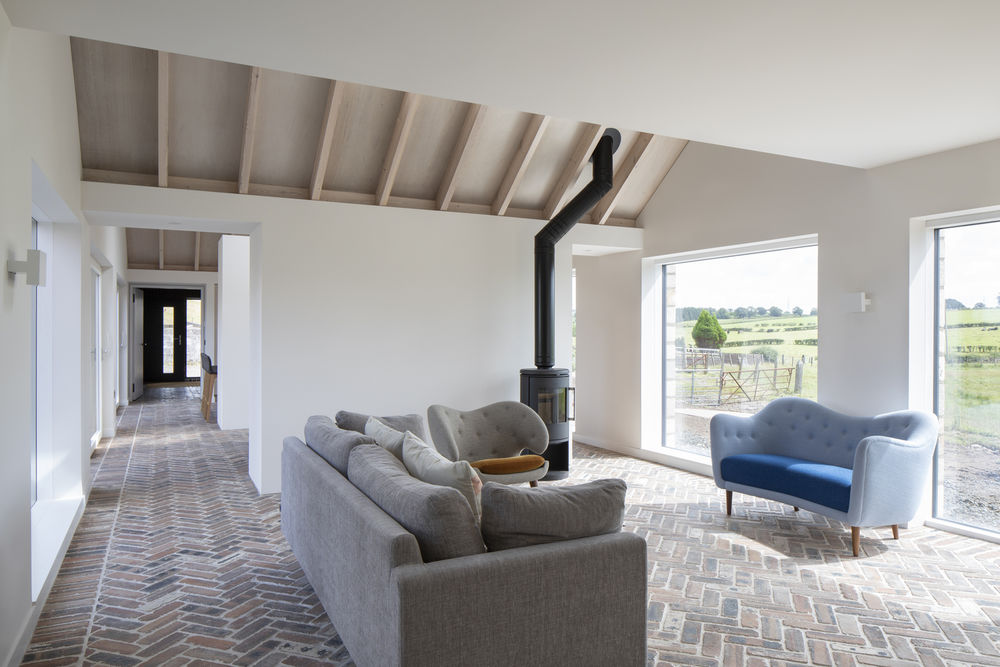

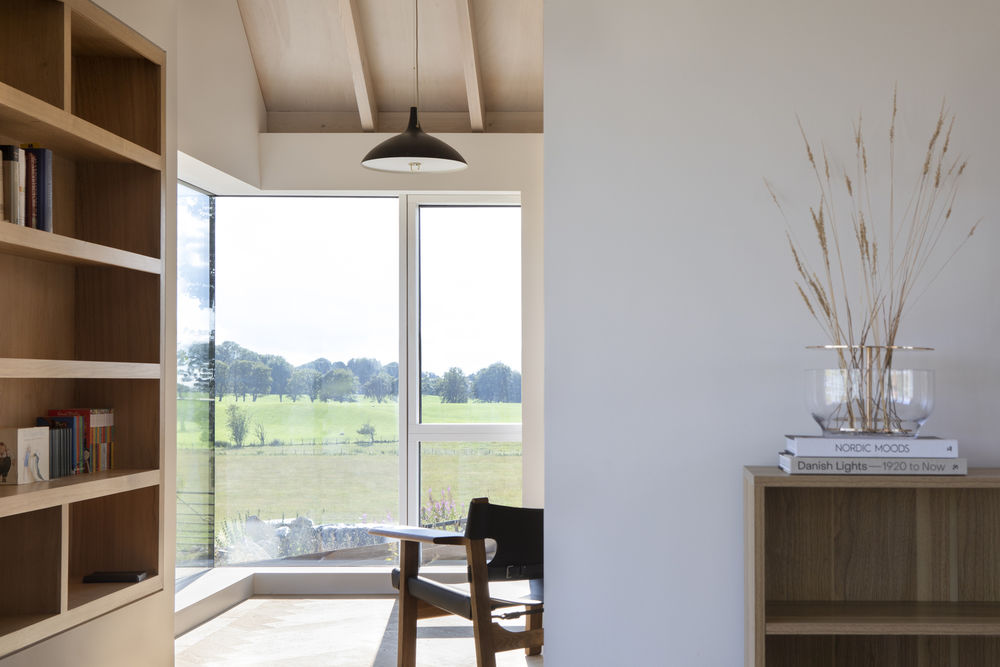

The main living space interiors are arranged in a semi-broken plan, allowing light to fill the pitched volumes of the gables and spill into adjacent spaces. Ceangal House is also a celebration of the family’s ancestral ties to the land, a connection Loader Monteith brings to the fore through constant, continuing views of the surrounding farmland. There are no visual ‘dead ends’, meaning the family can enjoy long views across and down the length of the house from any point within. A large glazed corner reading room provides a serene space to rest and watch the weather, while each ground-level bedroom connects directly into the private courtyard by way of sliding or french doors.

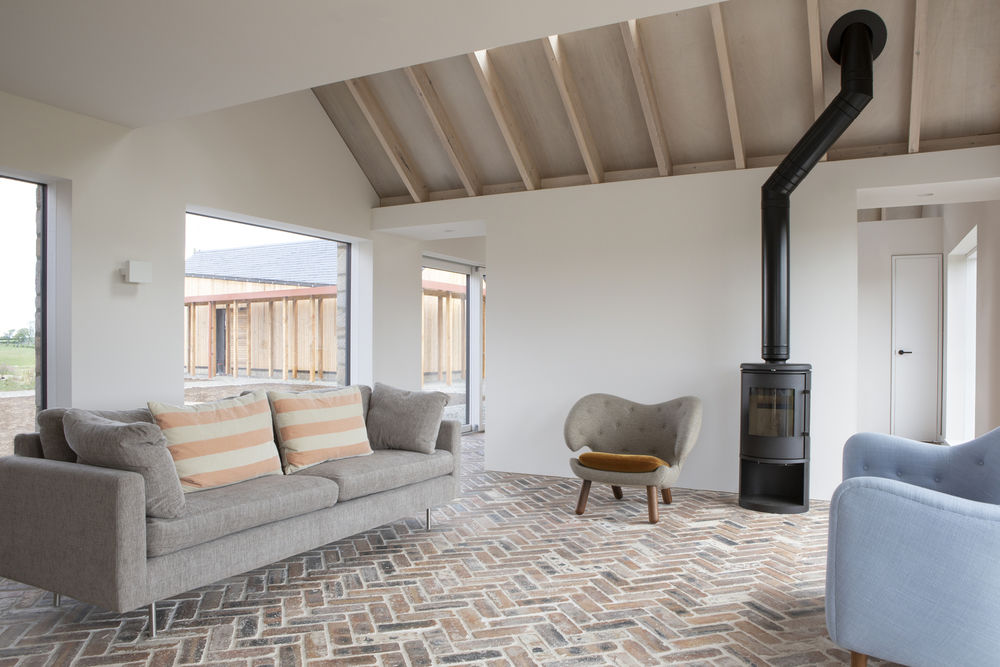

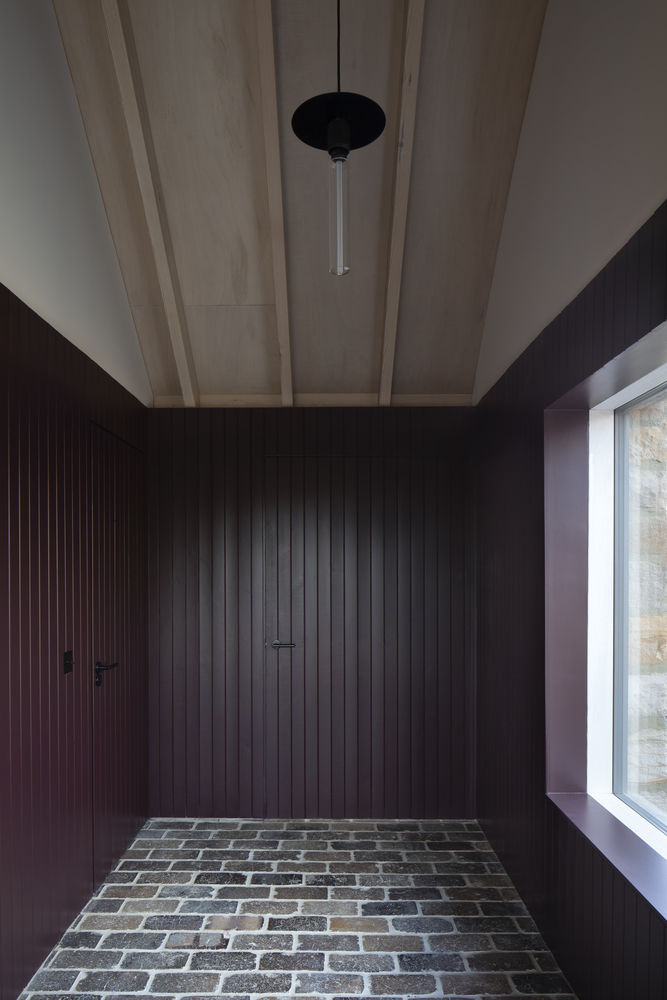

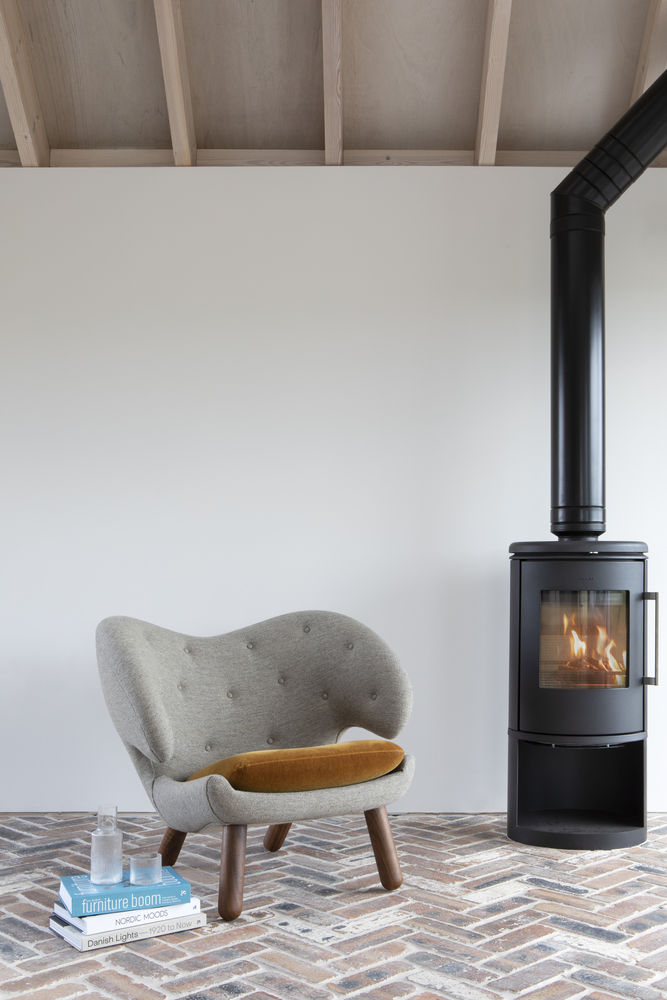

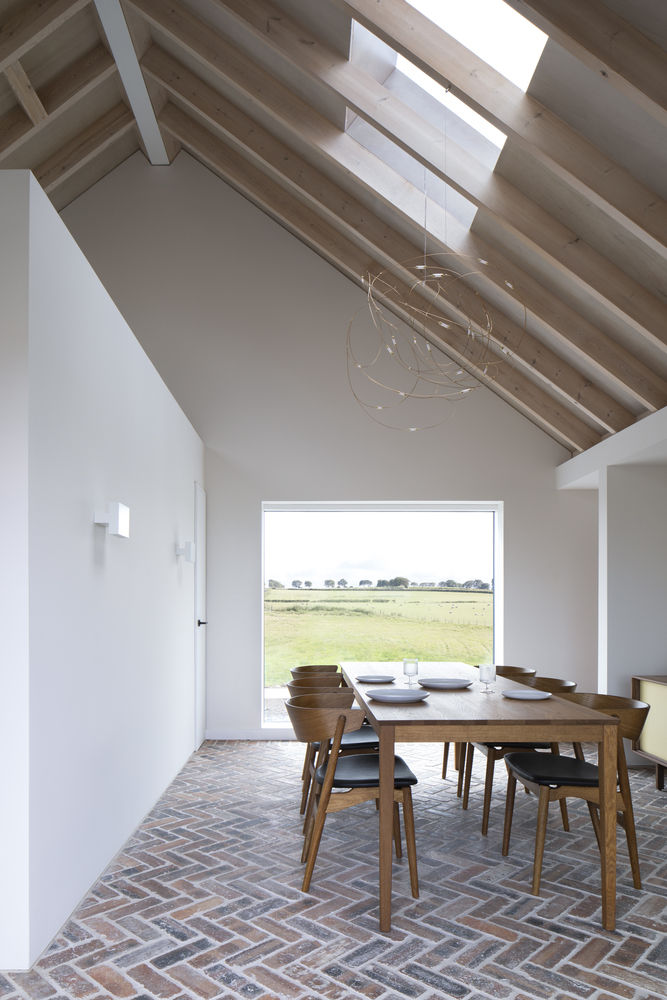

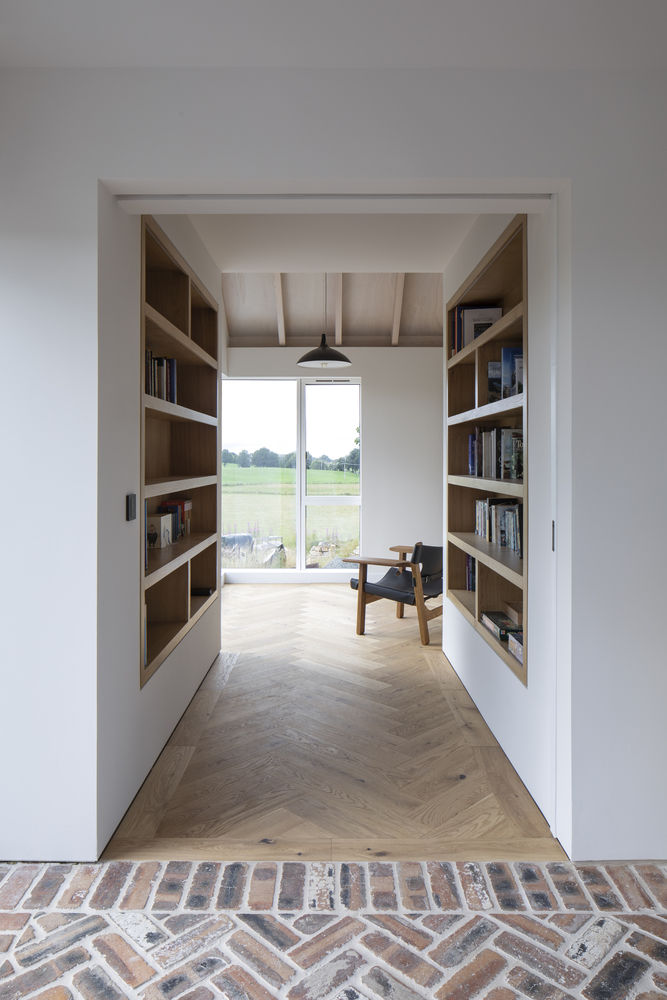

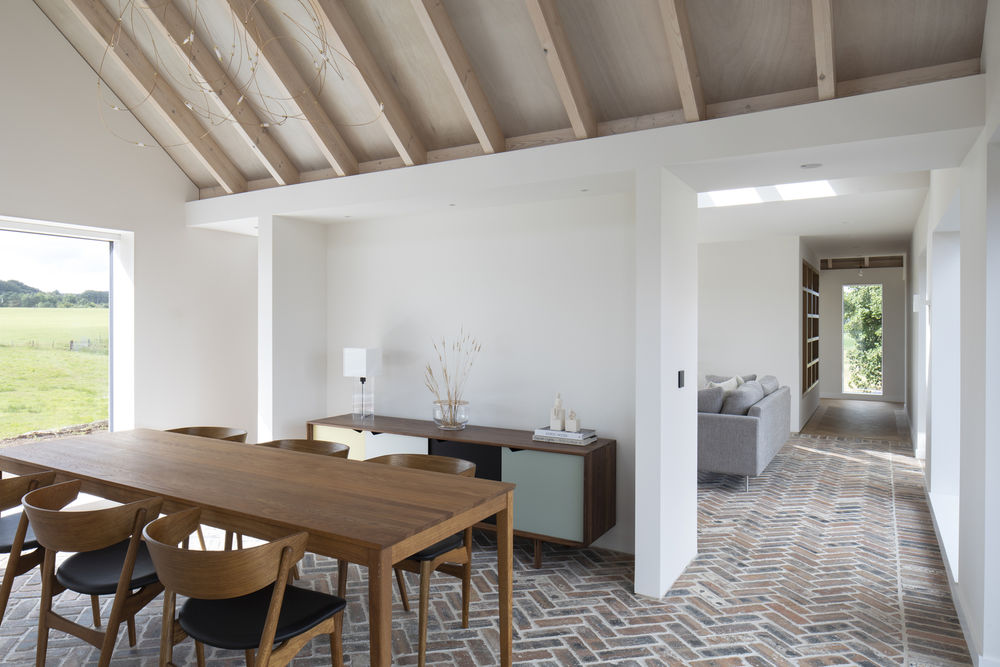

Large expanses of triple glazing allow the house to experience the changing seasons of the site along the southern elevation. In line with Loader Monteith’s rigorous approach to sustainability, 90 percent of the original masonry from the old steading was reclaimed and used throughout the home. The clients hand-cleaned and reclaimed over 4000 locally-cast bricks which were used to lay a herringbone floor throughout, grounding the new house in its place. Loader Monteith overcame the technical challenge of incorporating underfloor heating beneath the layer of thick brick by digging deep foundations of 90 centimeters. This solution allows the expansive brick floor to act as a thermal store for heat throughout the day and gently radiate warmth overnight.

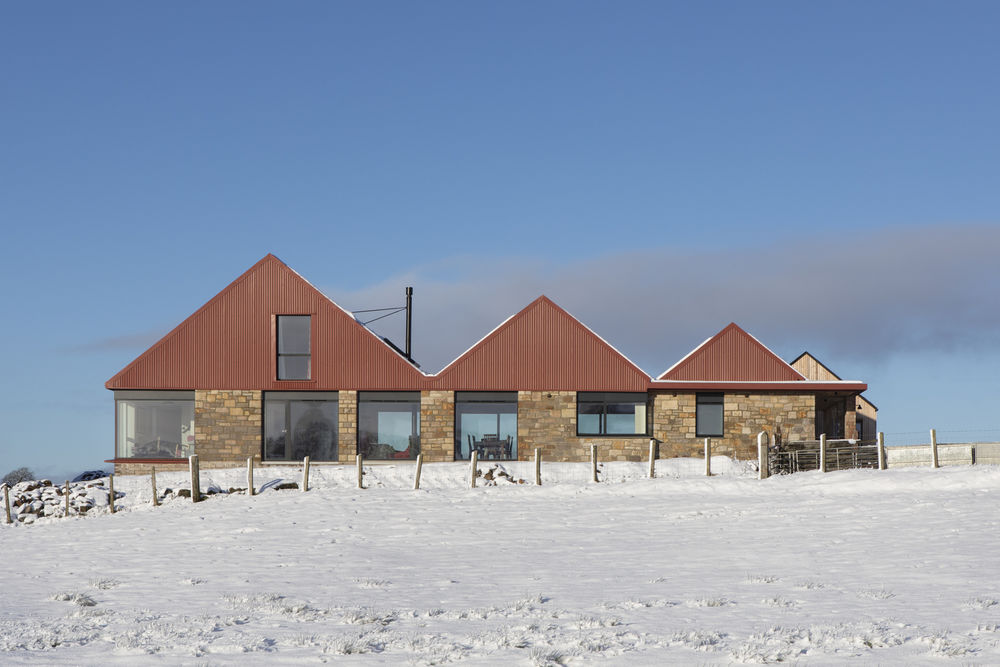

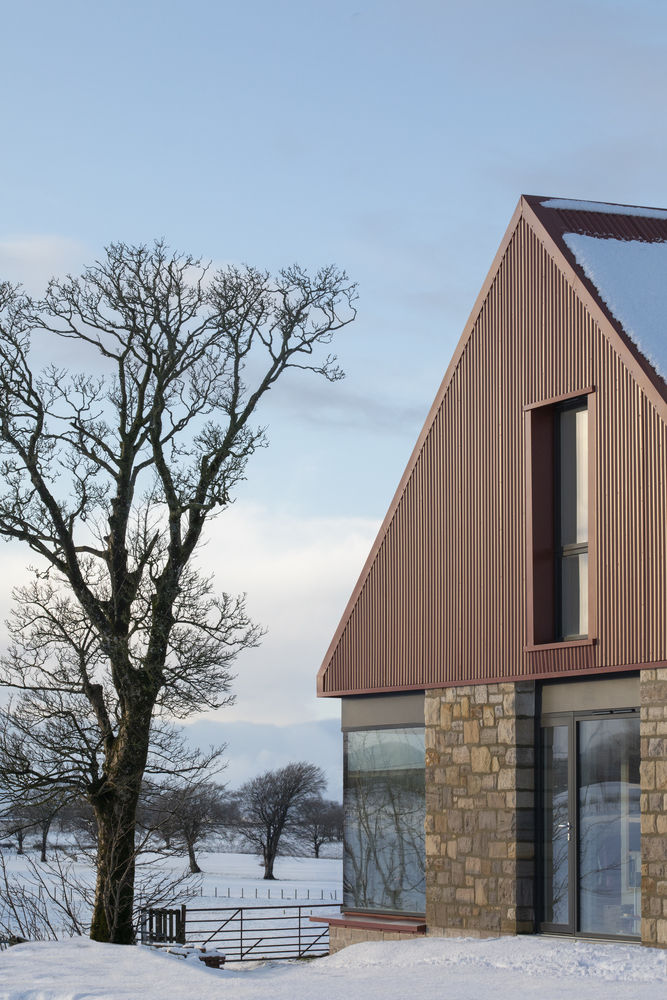

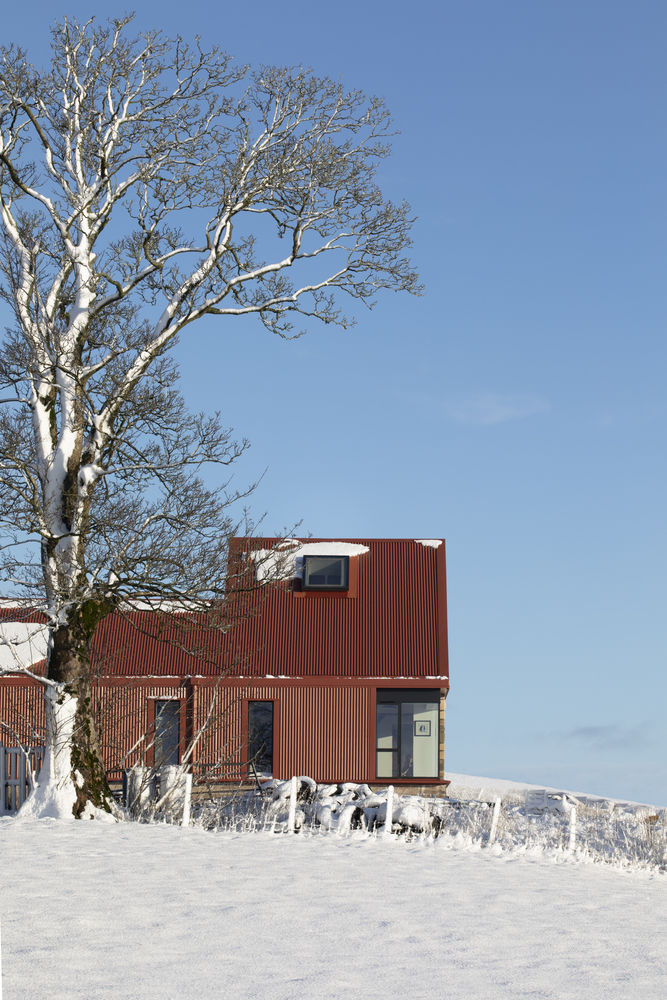

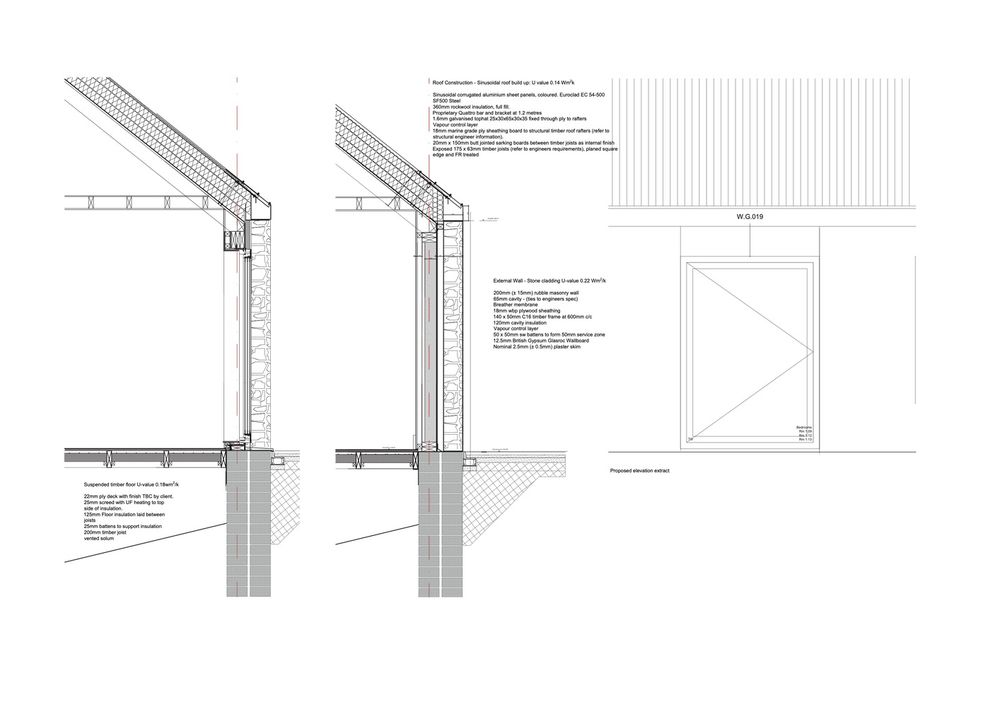

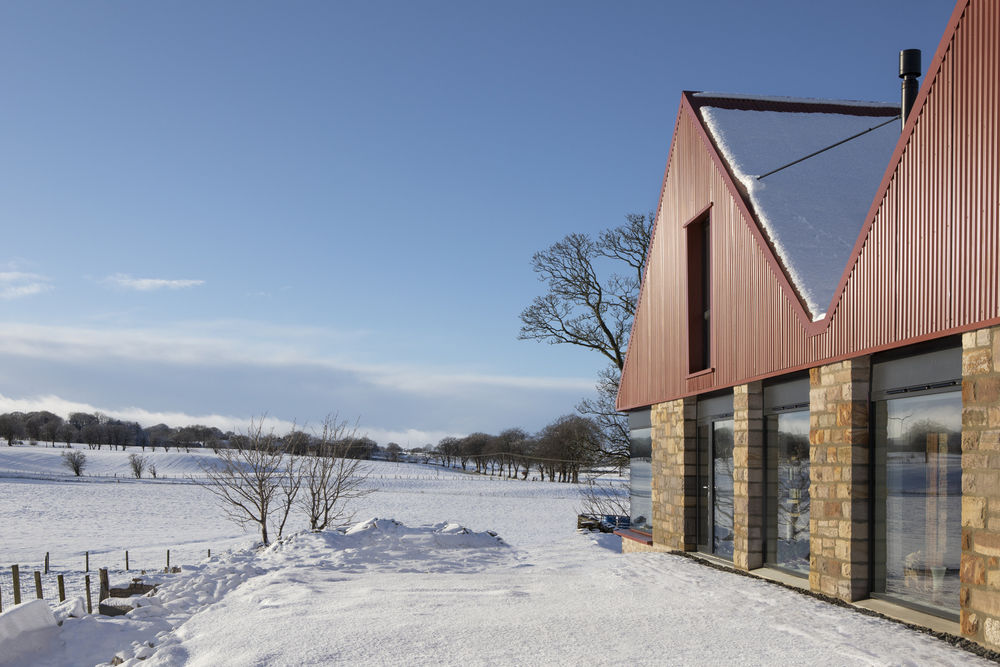

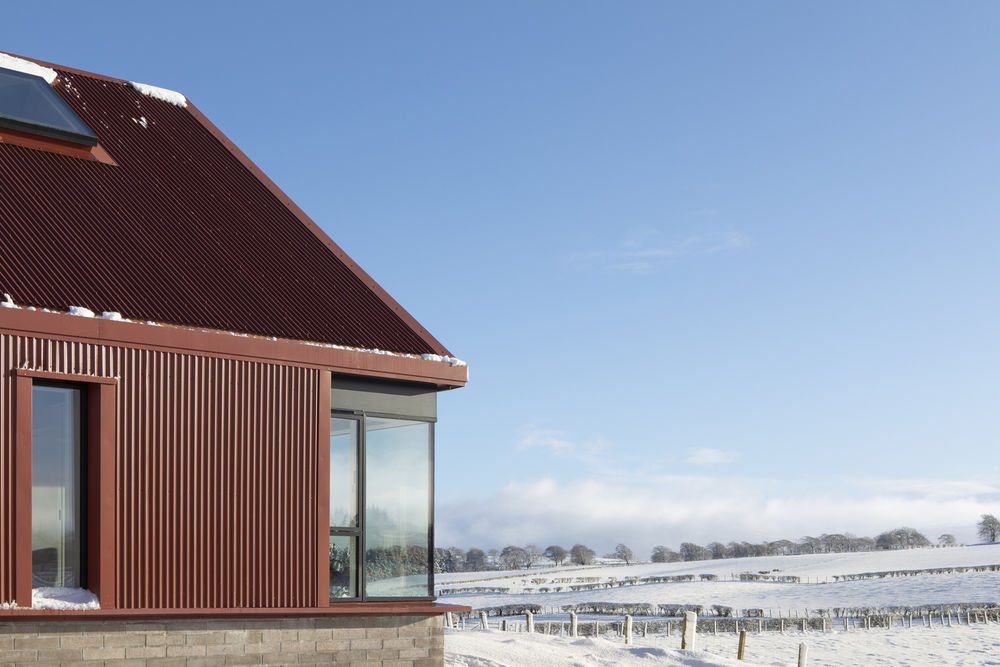

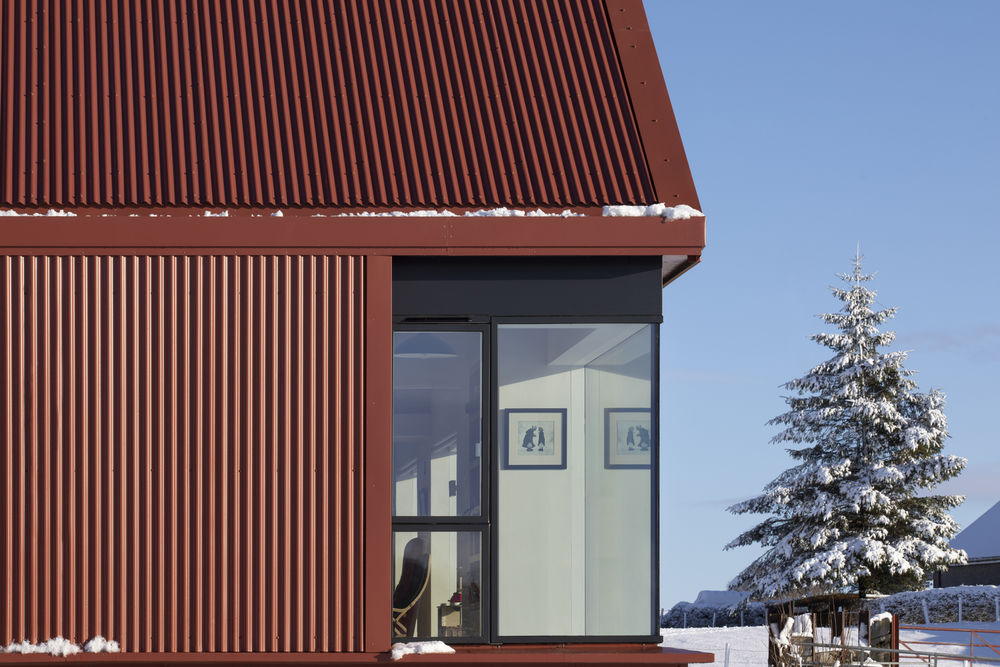

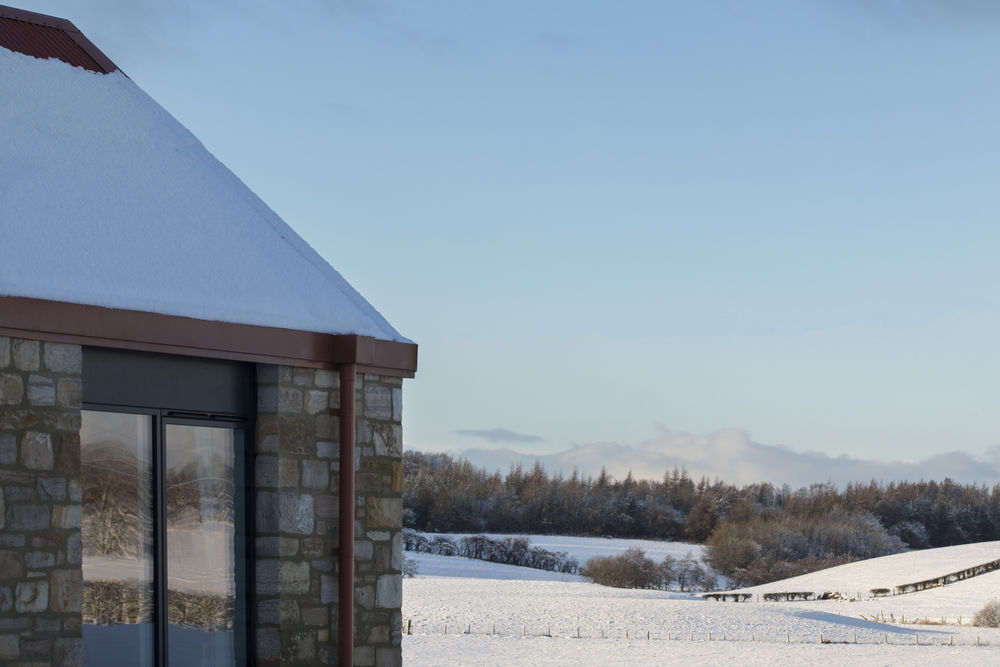

To keep running costs low, the house is highly insulated featuring triple glazing throughout, heat from an Air Source Heat Pump, super-insulated metal cladding, and a rainwater harvesting system. Externally, red sinusoidal cladding references the agricultural heritage of the site and the surrounding region, whilst reinforcing the presence of the house in the wider landscape. Reclaimed sandstone cladding was also used externally, further anchoring Ceangal House in its setting. The house is titled in relation to Scot’s Gaelic origins of the farm, the earliest operations of which have been dated by the family to the 1600s. The word ‘Ceangal’ is derived from Scot’s Gaelic meaning ‘to bond’.

Loader Monteith and their clients believe this word is not only reflected in the fabric of the house, but also in its purpose; to strengthen the bond between the family and their past, present, and future connection to the land.
