发布时间:2023-10-21 06:14:24 {{ caseViews }} {{ caseCollects }}

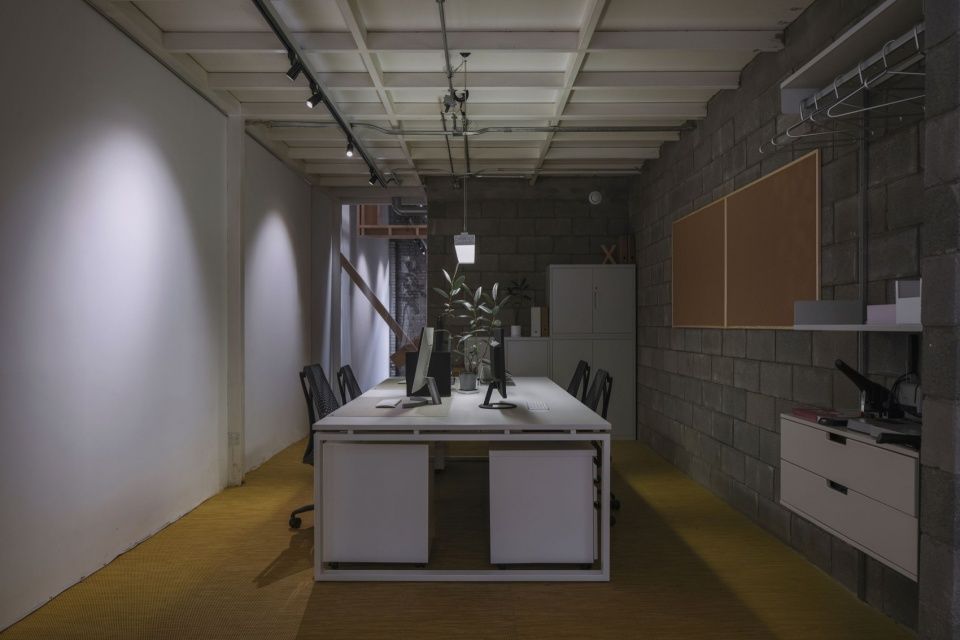

▼新建的财务室,newly added financial office © SpaceStation

为了表达“内”与“外”,我们改造了标准的木龙骨隔墙构造。一般的墙体构造为中间龙骨,填充吸音材料,两面封板。我们重新排列了龙骨、吸音材料和封板的顺序,变为龙骨单侧封板,并把吸音材料直接粘贴在有板的一侧。这样一来原来隐藏在墙体内部的有秩序的龙骨以及自成体系的管线全部显现了出来,墙体变成了类似画板的构造,材料的肌理成为了画板上的作品,没有封板的一侧成为了“背面”。

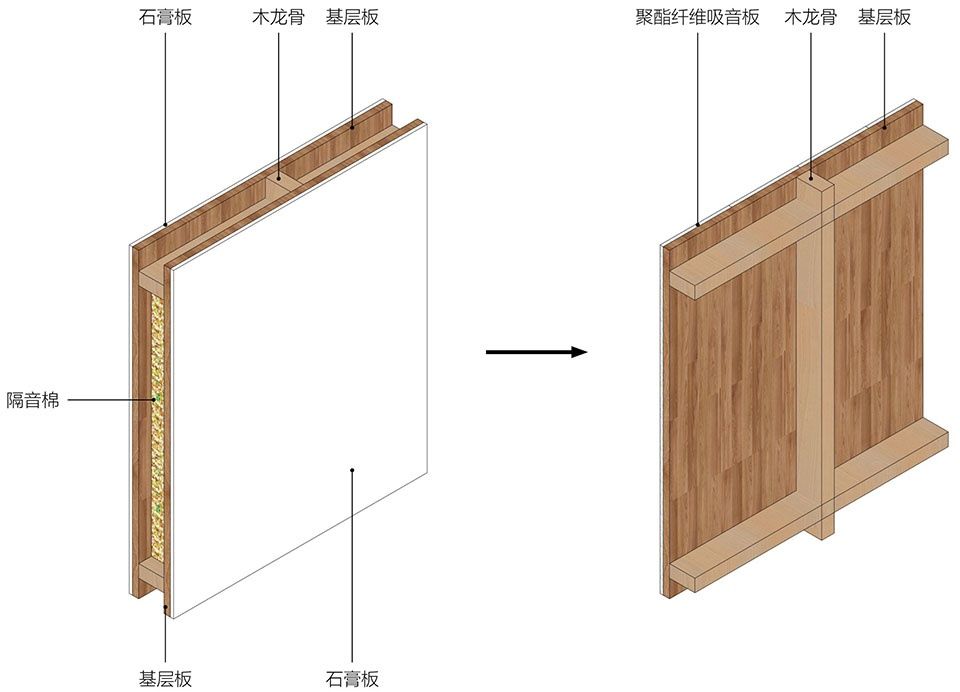

▼两种墙体结构对比图,comparison of two wall structures © SpaceStation

In order to underline the differences between “interior” and “exterior”, we re-arranged the standard wall structure made of wooden structure parti-tions. Generally, wall structures include a wooden skeleton, filled with sound-absorbing materials, and sealed on both sides. We rearranged the order of the wooden components, sound-absorbing material and sealing boards, changed it to one side that exposes the customarily hidden wooden structures, and pasted sound-absorbing materials directly on the wall boards. In this way, the well-ordered wooden lattices and self-contained pipelines originally hidden inside the wall are all but revealed. The wall becomes a structure akin to a drawing board, and the texture of the materials morphs into a decorative mesh. The unsealed side also be-comes a back wall.

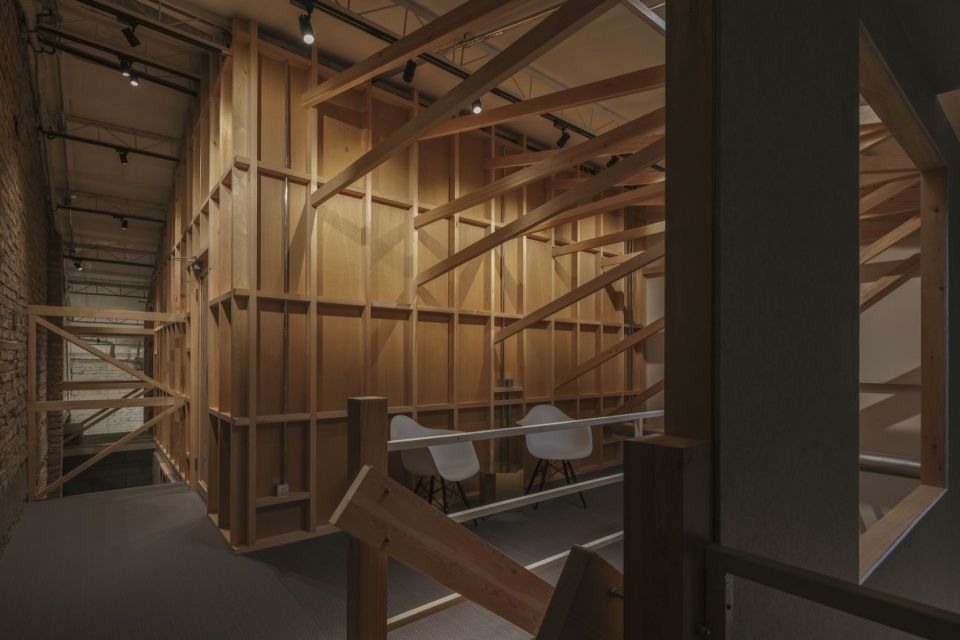

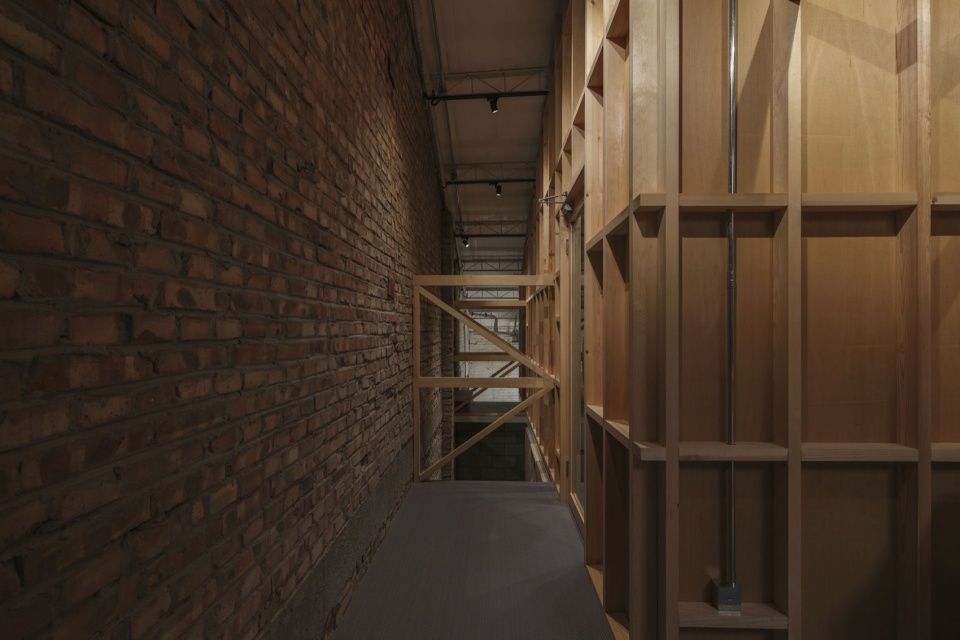

▼改造后的木龙骨隔墙将结构暴露在外,transformed wall structure exposed its rib to outside © SpaceStation

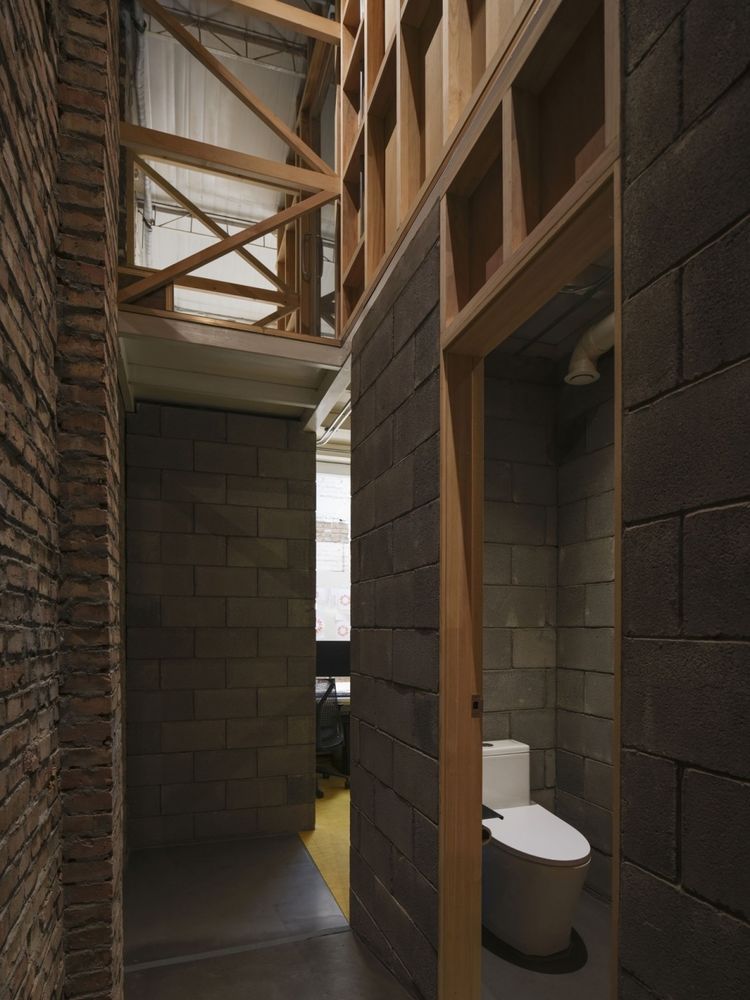

▼连接的廊桥与卫生间空间,the connection bridge and toilet space © SpaceStation

墙体有了正面和背面的区别,空间也因而有了逻辑上的“内”与“外”。内侧的两个空间色调偏冷,界面柔软、纯净,光线柔和,并有吸音材料构建的安静声场;外侧的空间显露出温暖的木色,界面复杂而有结构感,光线更有戏剧性,声场开放并有适度的混响。

The wall maintains a distinction between front and back, and the space has a logical “inside” and “outside”. The two inner spaces are cooler in tone, with a soft, pristine surfaces, gentle lightning, and a quiet sound field composed of sound-absorbing materials; the outer space emanates a warm wooden hue, with a complex and structured interface, more dra-matic light effects, an open sound field with moderate reverberation.

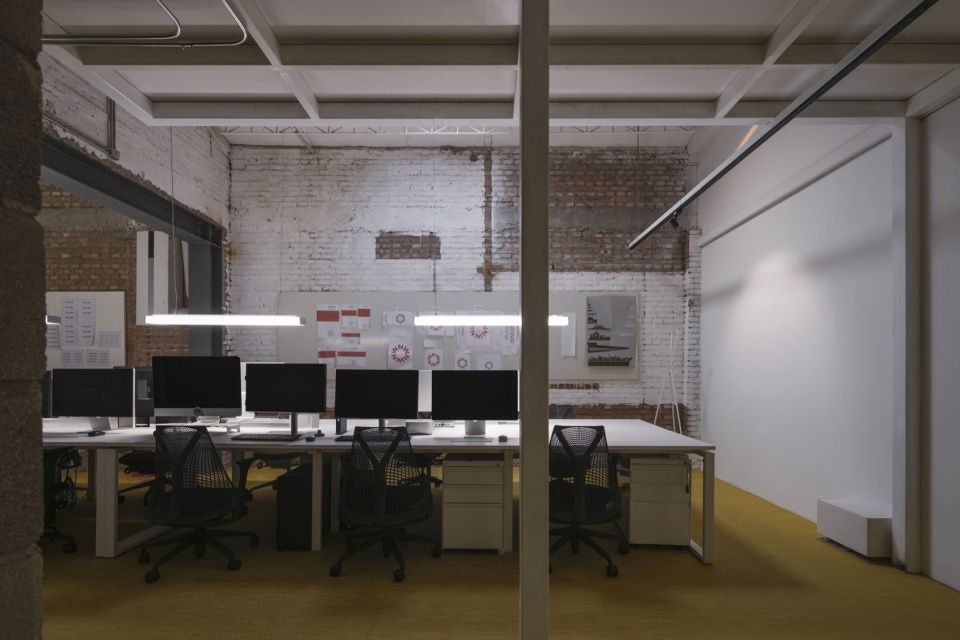

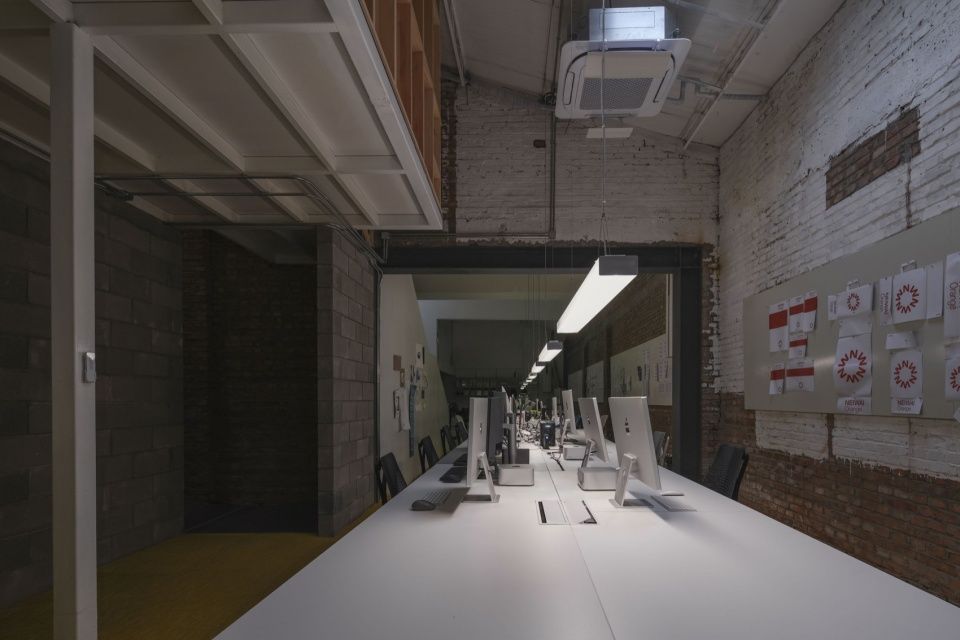

▼扩建的工作区,expanded workplace © SpaceStation

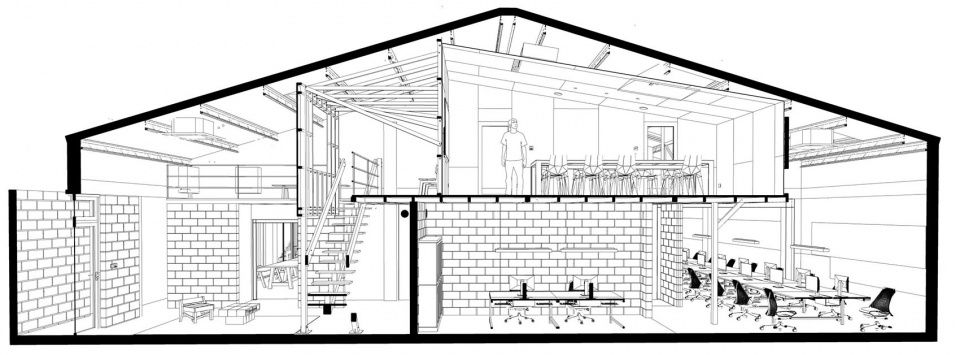

▼剖透视,sectional perspective © SpaceStation

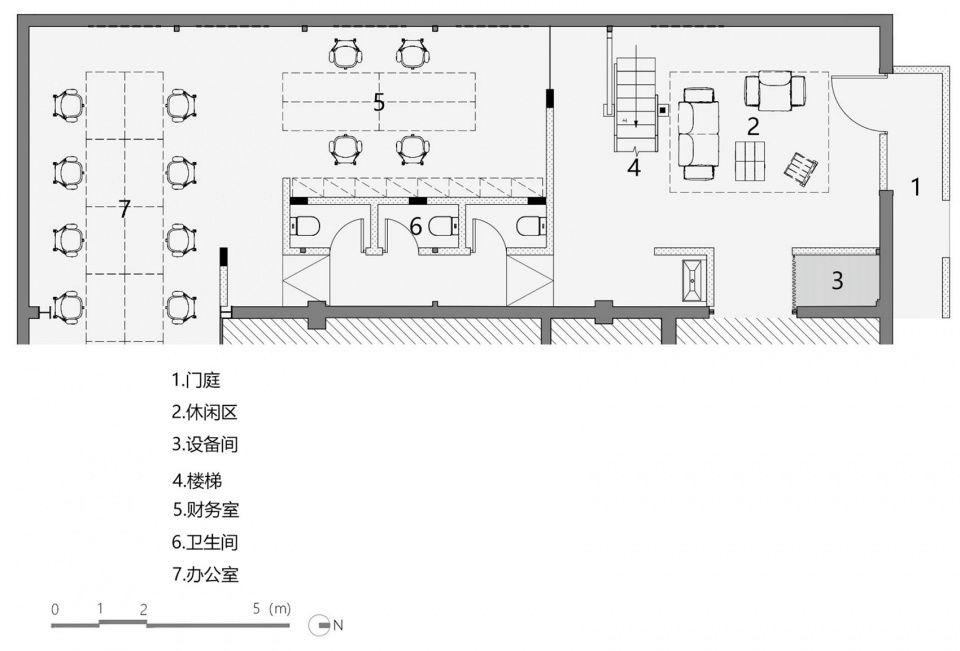

▼一层平面图,1F plan © SpaceStation

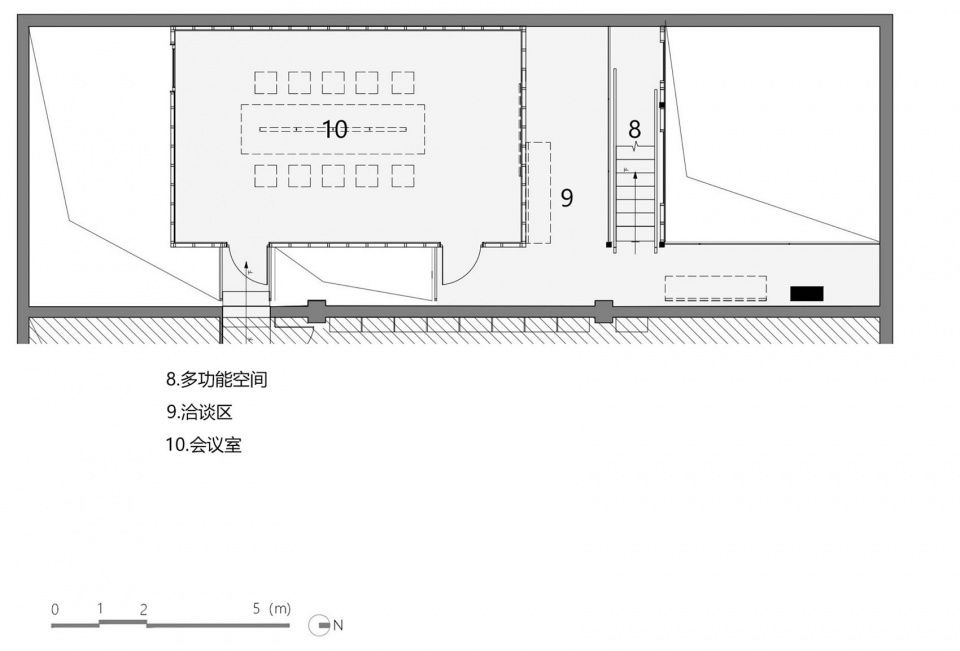

▼二层平面图,2F plan © SpaceStation

这样一来,接待访客的场景变得生动起来:客人从一层客厅经过小楼梯到达会议室,主人则从工作区的楼梯,经过小桥和会议室的另一扇门到达会议室。客人和主人在会议室不期而遇,应该是很有趣的场景吧。

UDL is a graphic design office/studio located within an industrial park. The requirements for this addition were a living room, a new conference room (on the second floor), more bathrooms, and an expanded working area. The new living room needed to be connected to the original dining room, and the newly added working area was required to become an extension of the existing one.

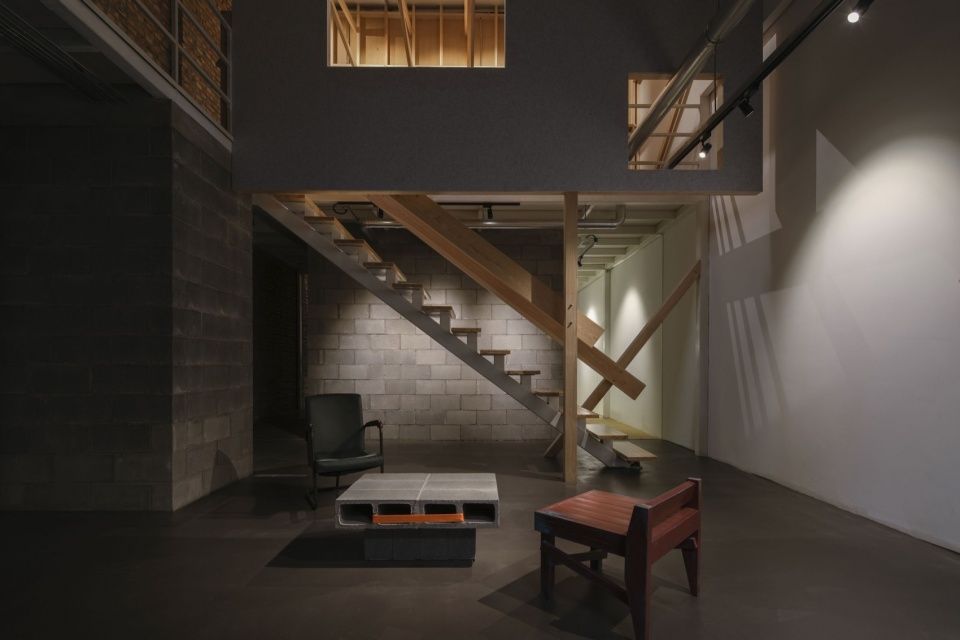

▼新建的客厅区域,newly added living room © SpaceStation

我们在原有的需求之外在二层增加了一处连接,使得二层新建的会议室与原有通向工作区的一处楼梯通过一座小桥连在一起。这使得会议室在流线上的位置从“尽端空间”变成一个“可以穿过的空间”。会议室因而有了两扇门:一扇通往客人的来向,另一扇通向主人的空间。

In addition to the original requirements, we added a connection on the second floor, so that the new conference room on the second floor and the original staircase leading to the working area are connected through a small bridge. This changes the location of the conference room on the cir-culation line from a “terminal space” to a “traversable space.” The confer-ence room therefore has two doors: one that leads to the guests’ en-trance, and the other that leads to the host’s area.

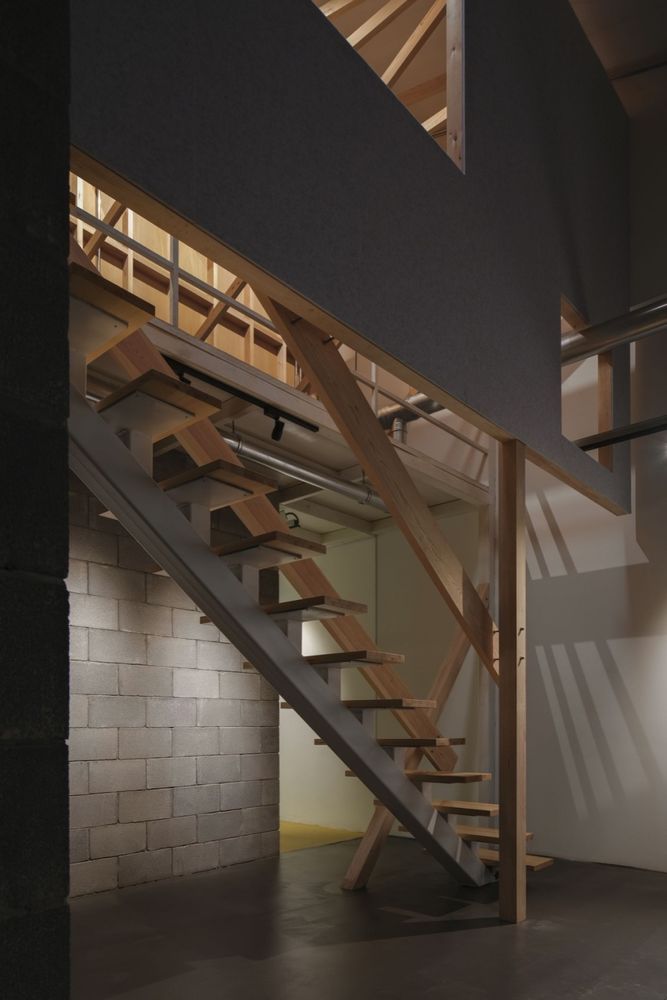

▼通向新建会议室的楼梯, connection to the new conference room © SpaceStation

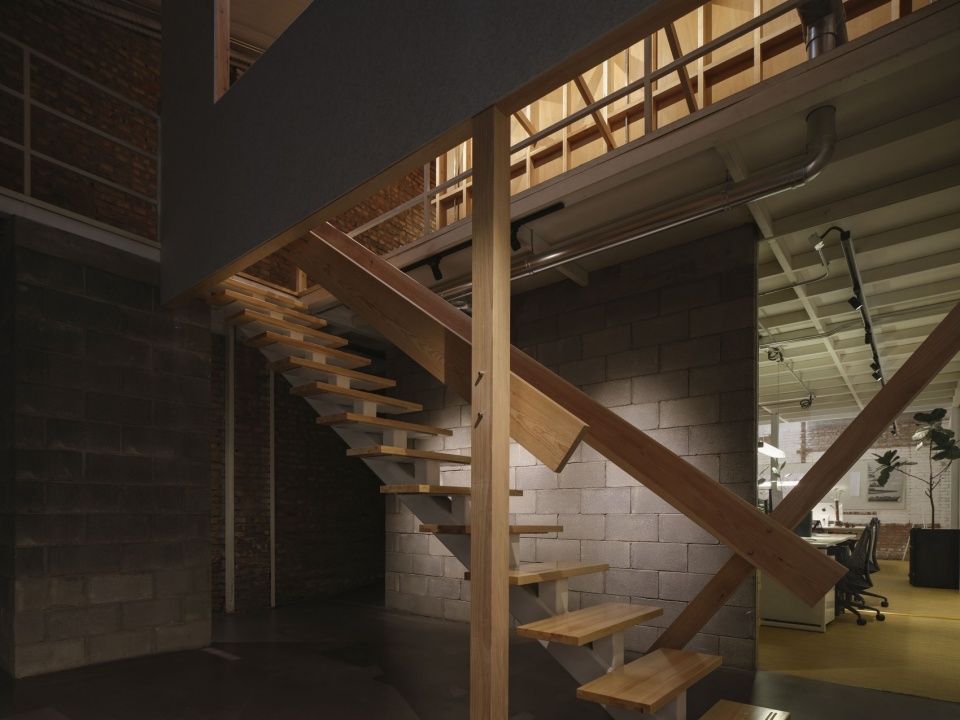

▼楼梯概览, stairs overview © SpaceStation

UDL是一家平面设计事务所,工作室位于工业园区内。这次加建的需求是一个客厅、一间新的会议室(处在二层)、更多的卫生间以及扩大的工作区。其中新建的客厅需要与原有的餐厅连接,而新增加的工作区需要成为原有工作区的延伸。

In this way, visitors may be received in a vivid atmosphere: guests reach the conference room from the living room on the first floor through a small staircase, while the host reaches the conference room from the stairs in the working area, through a small bridge and another door of the conference room. It must be a very interesting scene when guests and hosts unexpectedly intersect in the conference room.

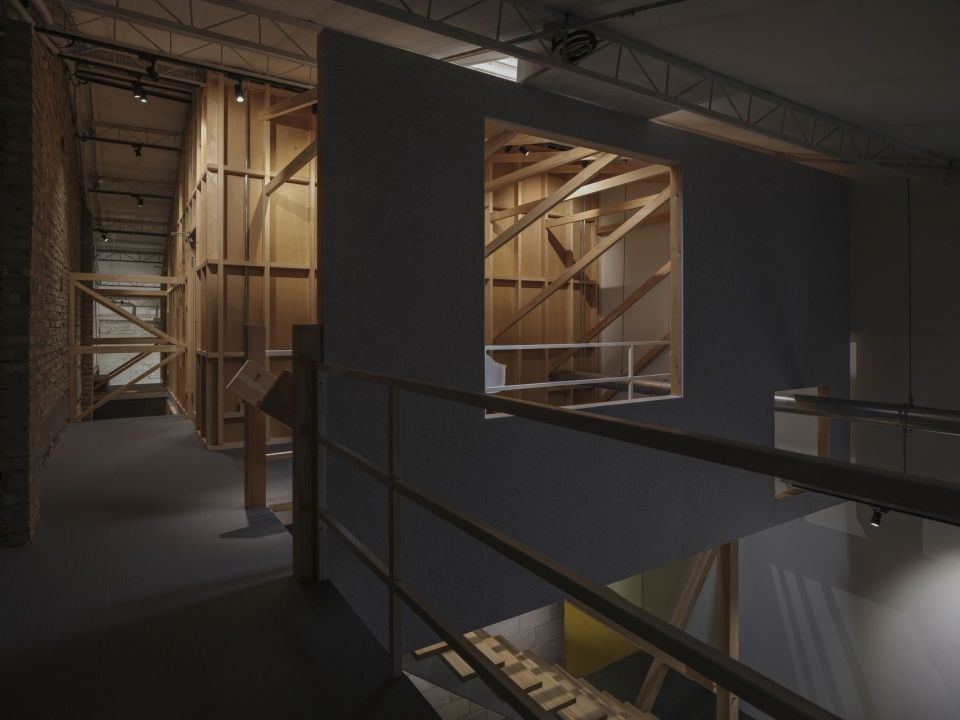

▼会议室的外部立面,exterior facade of the conference room © SpaceStation

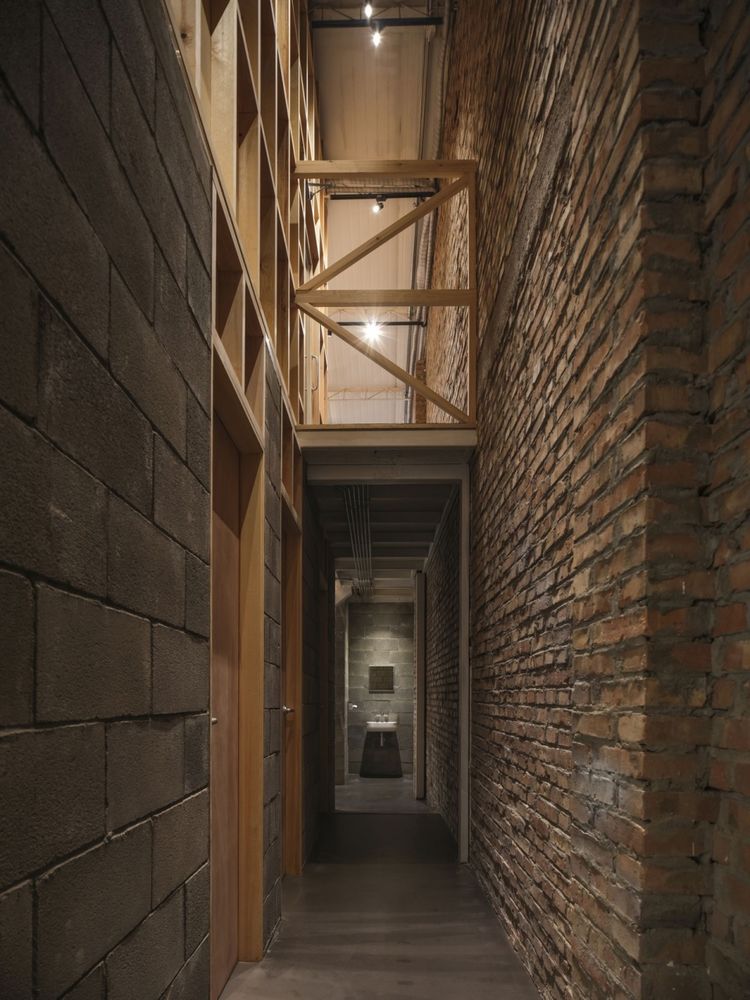

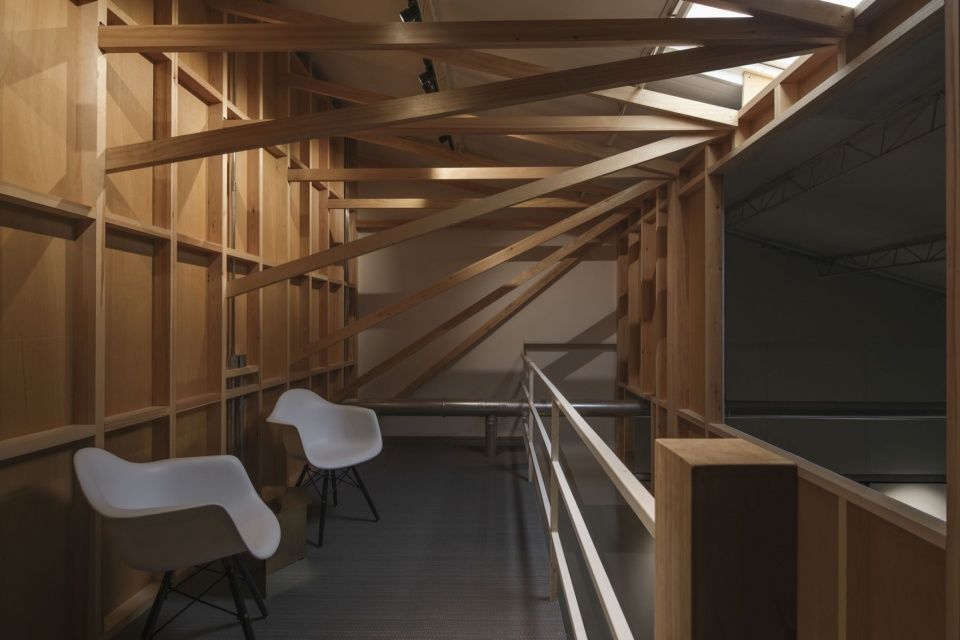

▼连接会议室的两个廊桥,two bridges connecting to the conference room © SpaceStation

在确定了新的动线之后,我们再次审视新的空间的序列:客厅——楼梯——会议室,两个静态的空间由一次跃升连接在一起。我们发现可以用內——外——内的逻辑赋予他们新的身份。新的身份会强化这三个空间的动静分区,因而可以在这个很短的路径之中实现体验者的心情起伏。

After determining a new movement flow line, we re-examined the rhythmi-cal sequence created by the new space: living room – staircase – confer-ence room. The two static areas were connected by a “leap”. We dis-covered that we could confer a new identity to the space by using the log-ic of interior-exterior-interior. The new identity will give prominence the dynamic and static divisions of these three spaces, so that the emotional ebb and flows of the experiencing visitor can be accentuated in this short path.

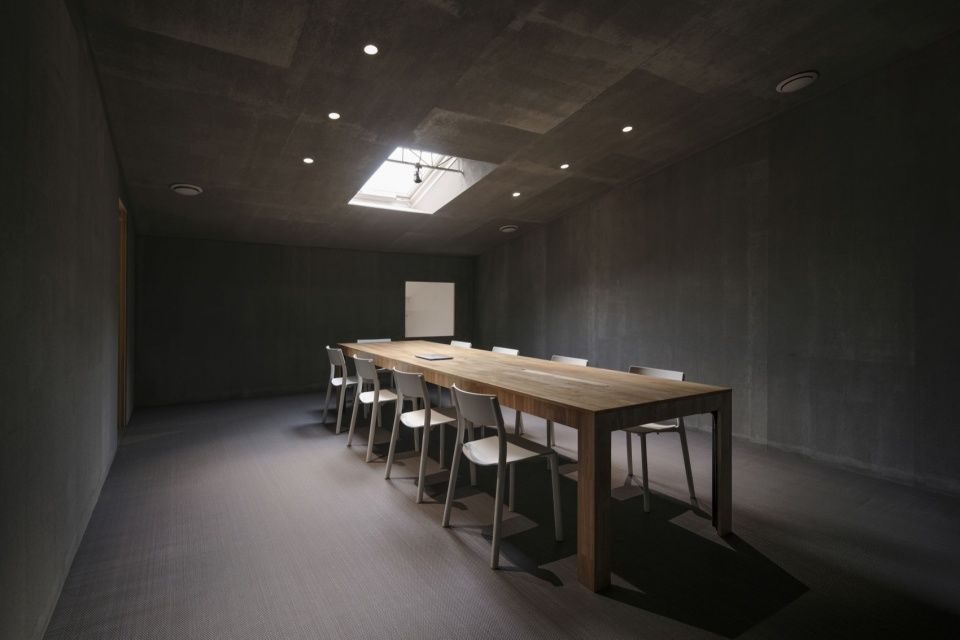

▼会议室内部概览,conference room interior overview © SpaceStation

{{item.text_origin}}

UDL工作室扩建,北京 / 空间站建筑师事务所
