The Portuguese SOL villa

设计方：atelier data

位置：葡萄牙

分类：别墅建筑

内容：实景照片

建筑设计负责人：Filipe Vogt Rodrigues, Inês Maia Vicente, Marta Mateus Frazão

结构工程师：Augusto Candeias – Miraba, Construção Civil e obras públicas, Lda.

景观设计师：Filipe Rodrigues, Inês Vicente, Marta Frazão, Emmanuel Novo

设计团队：Filipe Rodrigues, Inês Vicente, Marta Frazão, Emmanuel Novo

图片：23张

摄影师：Mercês Tomaz Gomes

这是由atelier data设计的SOL别墅，位于维拉摩拉，是阿尔加维最著名的旅游景点之一，也是葡萄牙最顶级的度假胜地之一。该项目位于别墅住宅区内，旨在对80年代的住宅进行改造以及扩建，以适应新的功能需求。从体块上，该项目通过纠正一些路线和加强建筑原有的L型布局，更加明确地突出建筑主体。新建体块布置了新的功能配置，与现状建筑相连，在平面布局中形成连续性，并在整个项目中沿用了几何形状，而又通过材料进行区分。建筑师选择了传统材料和涂料，如水泥、石膏、木材和当地传统的陶器，与建筑的新元素（木板与混凝土）相互协调，并与住宅功能的尺度相适应。

译者： 艾比

The house is located in Vilamoura, municipality of Loulé, one of the most touristic places in Algarve and one of the top vacation destinations of the Portuguese.Set in a neighbourhood of single-family houses, the project focused on an existing building dating from the 80s and on which it was proposed an intervention aimed at expansion and adaptation to a new program.

Thus, the project of rehabilitation / expansion focused on the following principles:Designing a solution that articulates the pre-existing construction with a proposal of expansion able to interpret the housing program and fit simultaneously to the pre-existing construction.Invest on a clear distinction between private and social areas, taking advantage of the “L” configuration of the pre-existing construction.

Enrich the generator concept of the existing house, the porch, emphasizing the connection between interior and exterior with the creation of larger openings in south and west facades;Insert the “patio” as an additional element in the resolution of issues associated with natural lighting and ventilation of the house, exploring simultaneously the crossing visual relations;Increase the area of the pool with a water mirror, resulting in a total surface directly proportional to the construction that involves it, creating simultaneously a privileged area of outdoor living.

CONCEPT:Volumetrically, the project tries to introduce greater clarity to the constructed object by correcting some alignments and reinforcing the “L” configuration that the building originally held.The new configuration is achieved through new volumes that are attached to the existing building in the continuity of existing plans and replicating the geometry of coverage plans, but distinguishing itself through its singular materiality.

The combination of the initial construction masonry plans and the exposed concrete plans allow us to identify the different “times” of the house, combining pre-existing structure with the recent intervention, which are intended to build new spatial relations and new programmatic commitments.These new “bodies” enabled simultaneously to articulate the connection that the house establishes with the streets, which is closed, and with the garden, which is opened.

PROGRAM:Functionally, the program is distributed on one floor only.The Hall operates as a “kneecap” from which the two major areas are distinguished – social area on the left wing and the access to the rooms that develops threading the entrance area.The area corresponding to the social program includes the kitchen, the dining room, the living room and the large porch that relates directly to the pool.

The extension of the pool supports the visual relationship between the living room and the water level while enhancing the connection between the building and the pool around which is located the large outdoor living area.The more restricted area results from linear distribution of three bedrooms, the last being the master bedroom of the house, where a new volume receives the toilet, dressing room and a small patio between them, responsible for lighting and ventilation in these two spaces.

Still in the entrance area the office/library allows to open or close itself, compressing or dilating this area, with it being possible, in the future, to integrate it in the bedroom wing.n synthesis, the design strategy adopted results of the combination between the demand for a clear reading of the object and of its program of uses and functions.The patios and porches are responsible for mediating the interior spaces and the exterior of the house.

MATERIALITY:We opted for the use of traditional materials and coatings, as exemplified by the cement materials, plasters, woods, and the pottery of local tradition, combined with the construction of new elements in apparent concrete with wood planks formwork that allowed a certain plasticity to the material, adapting it to the scale of the house program.The painting of the house in an off-white color acts as an articulating element of the design, unifying the pre-existing structure and new building elements.

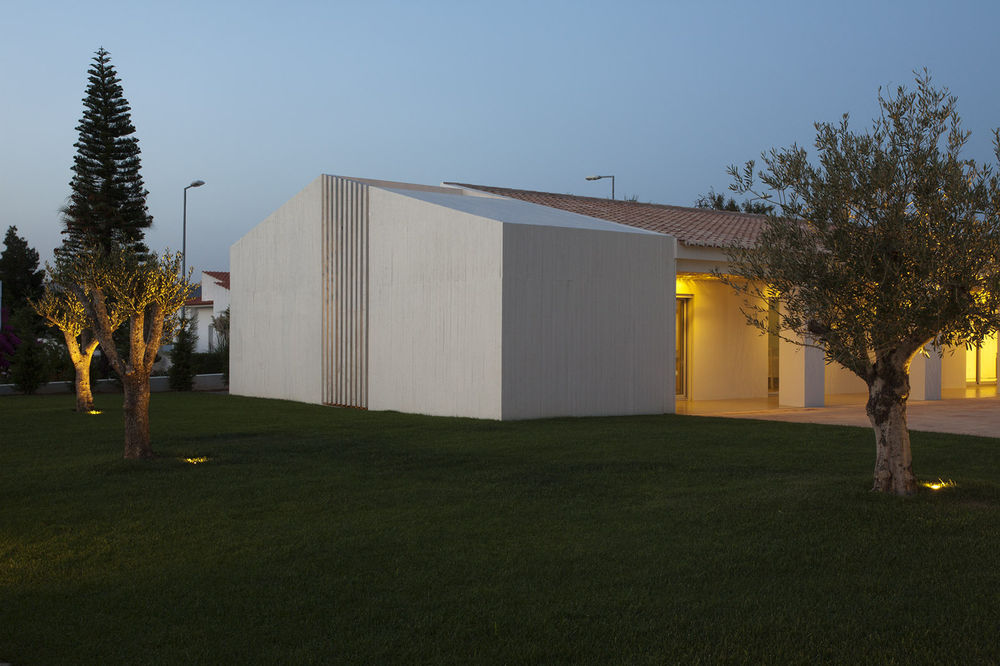

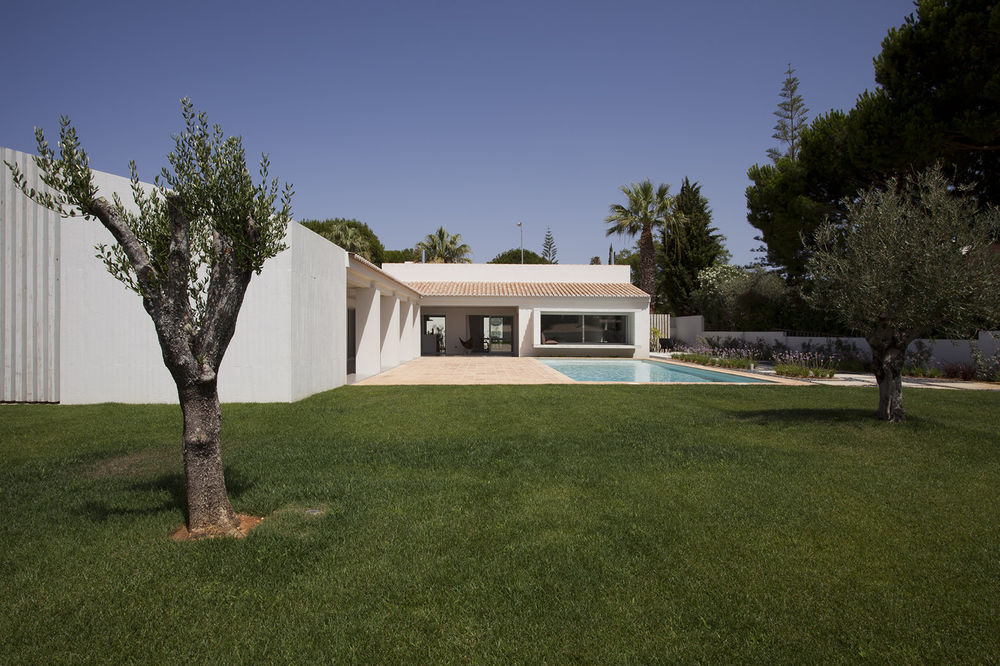

葡萄牙SOL别墅外部实景图

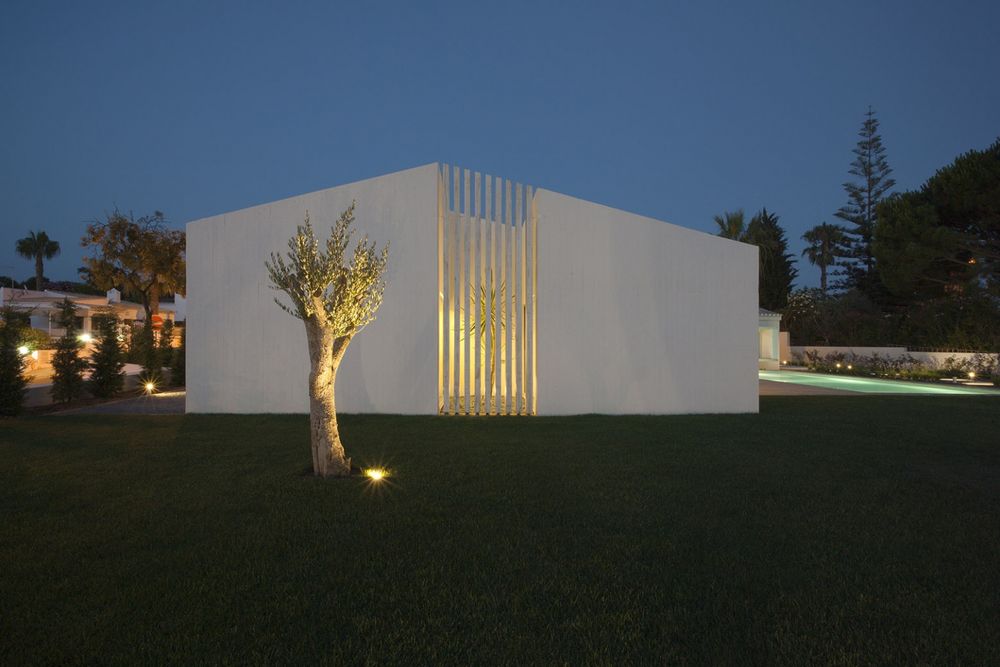

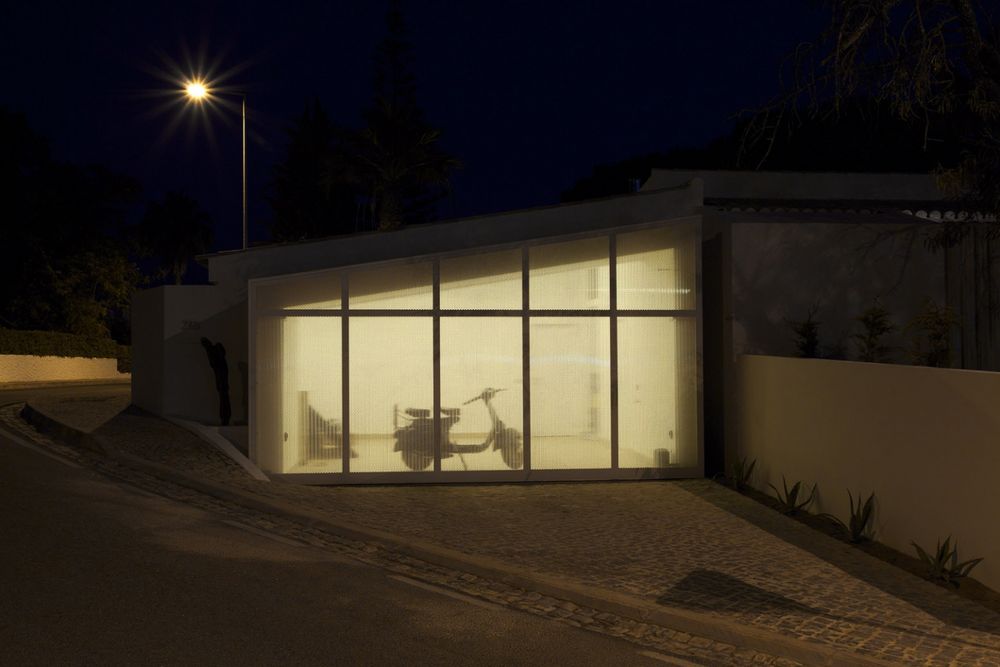

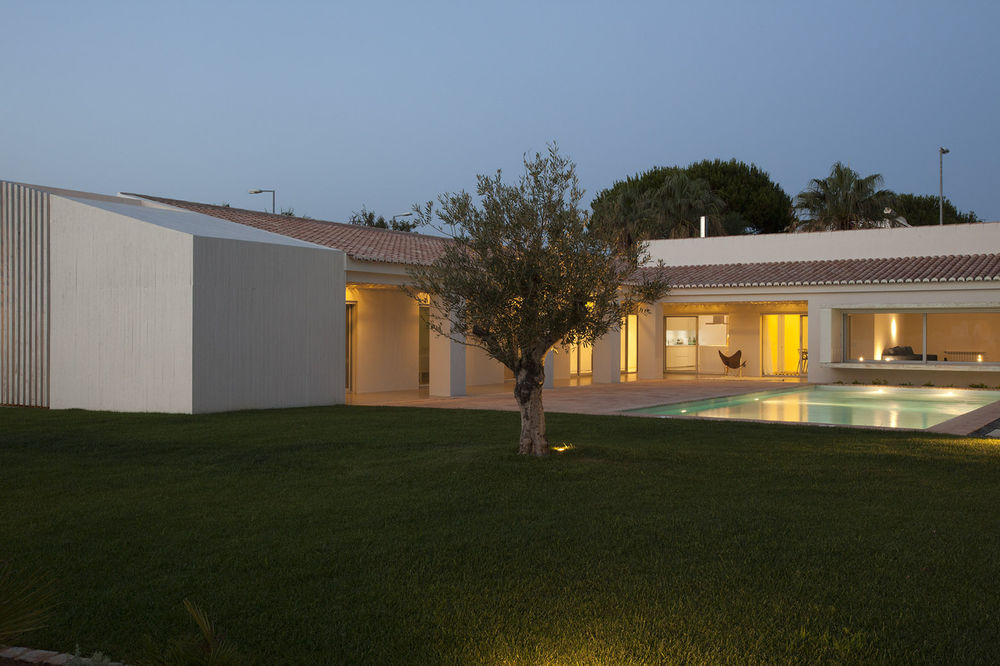

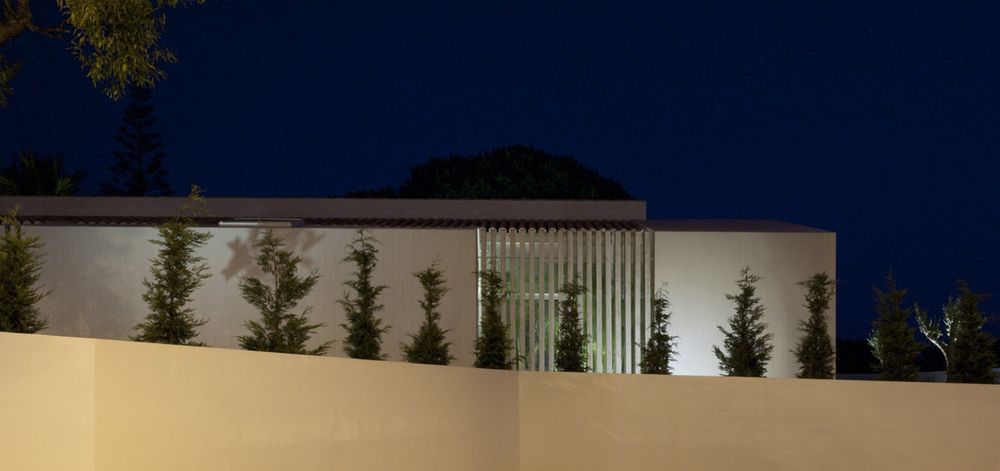

葡萄牙SOL别墅外部夜景实景图

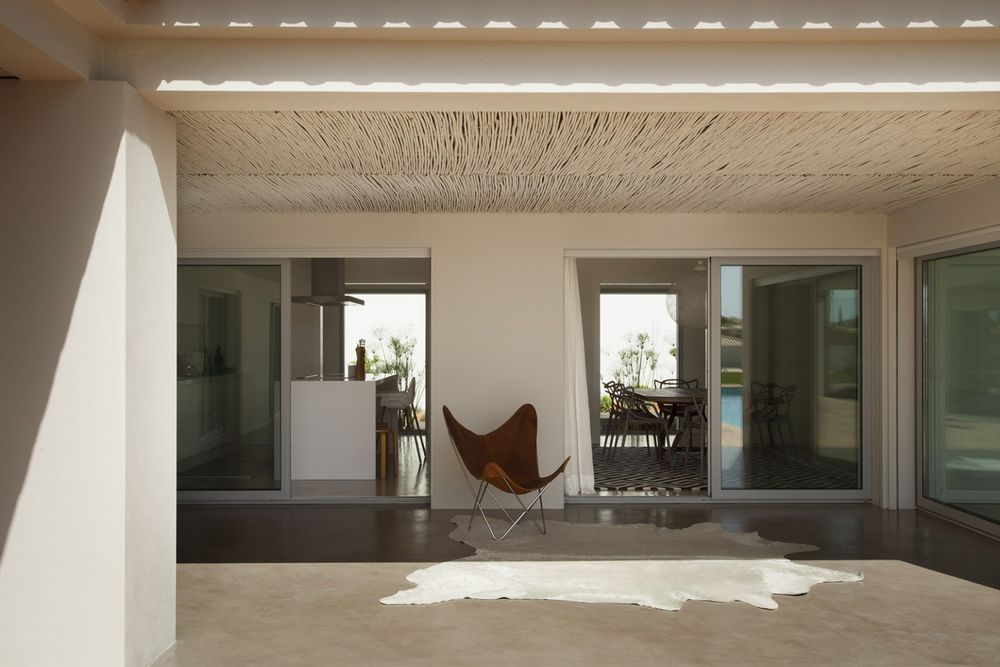

葡萄牙SOL别墅内部局部实景图

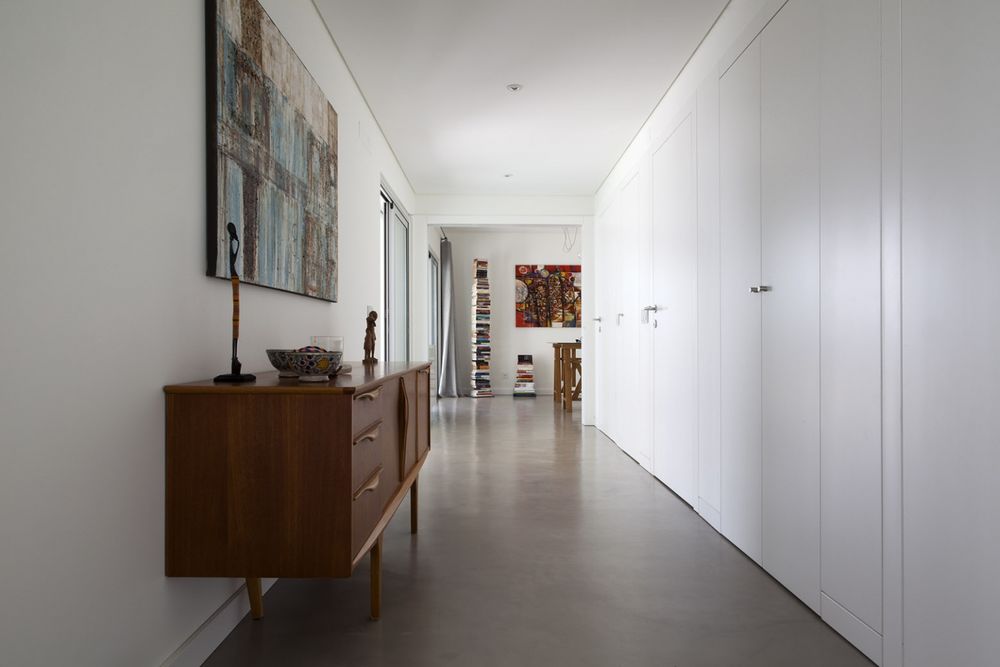

葡萄牙SOL别墅内部过道实景图

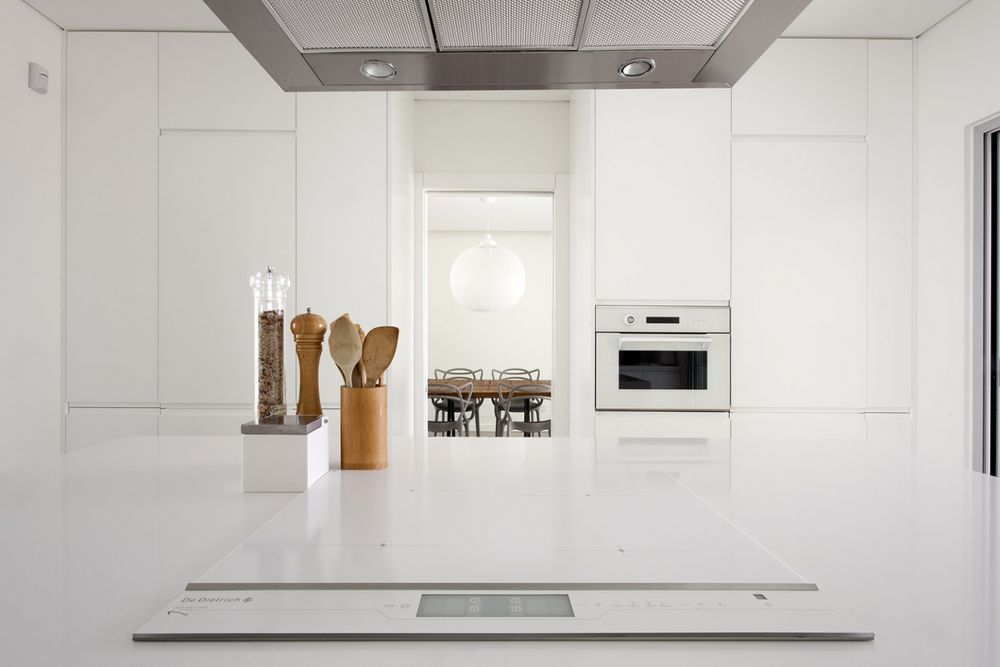

葡萄牙SOL别墅内部厨房实景图

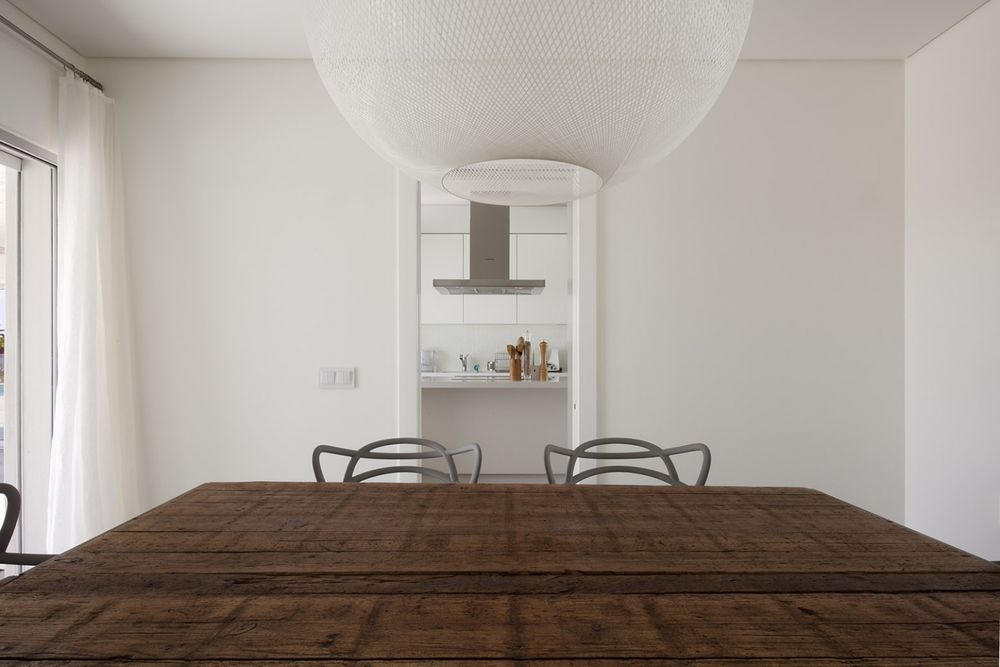

葡萄牙SOL别墅内部餐厅实景图

葡萄牙SOL别墅内部洗手处实景图

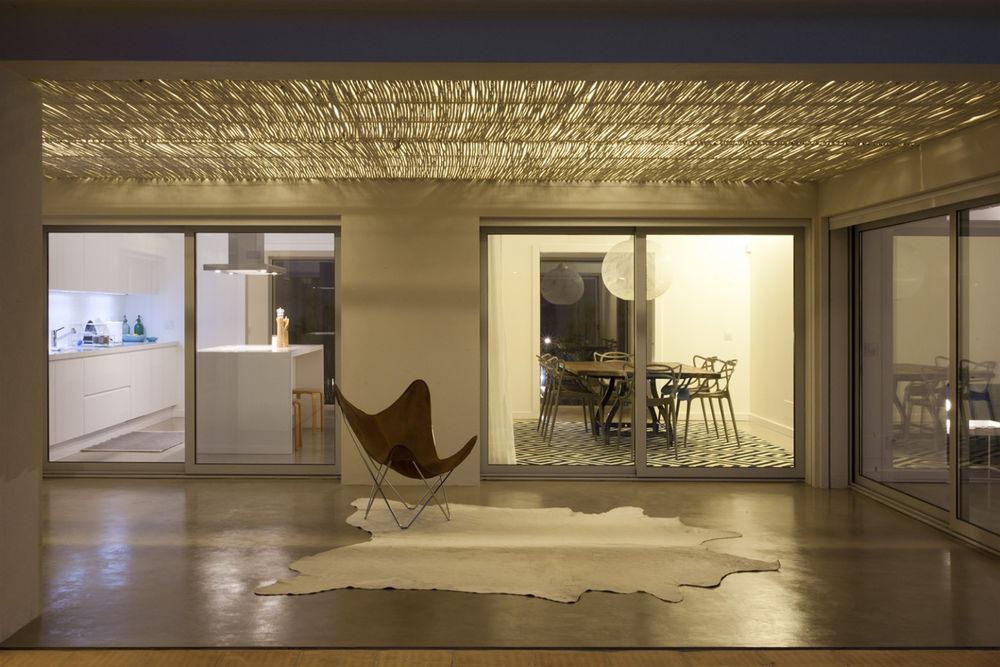

葡萄牙SOL别墅内部夜景实景图

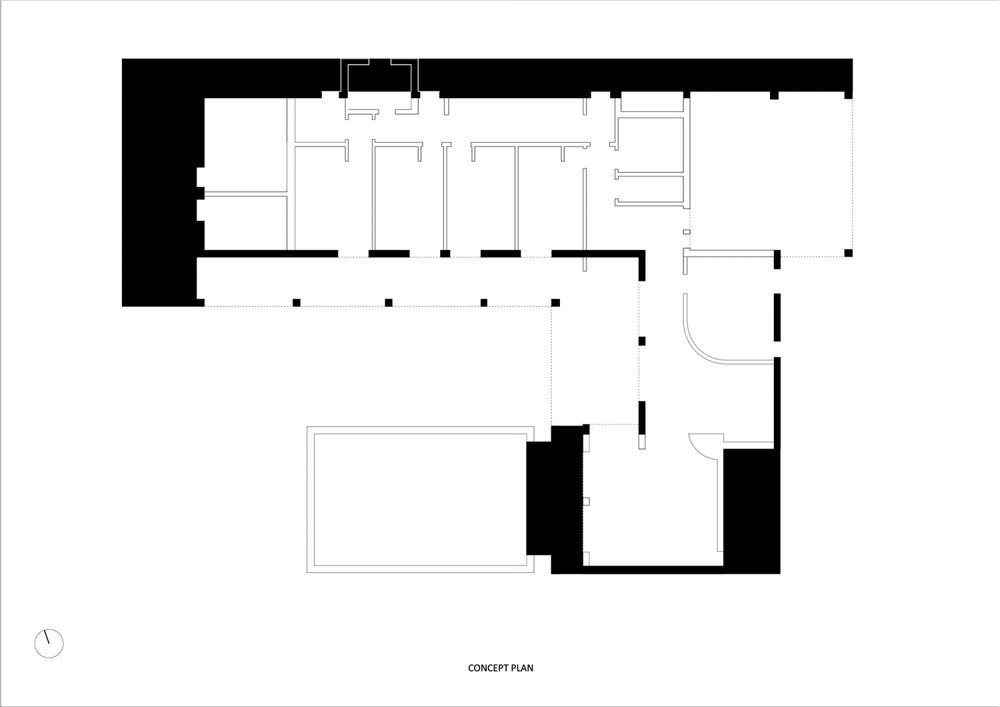

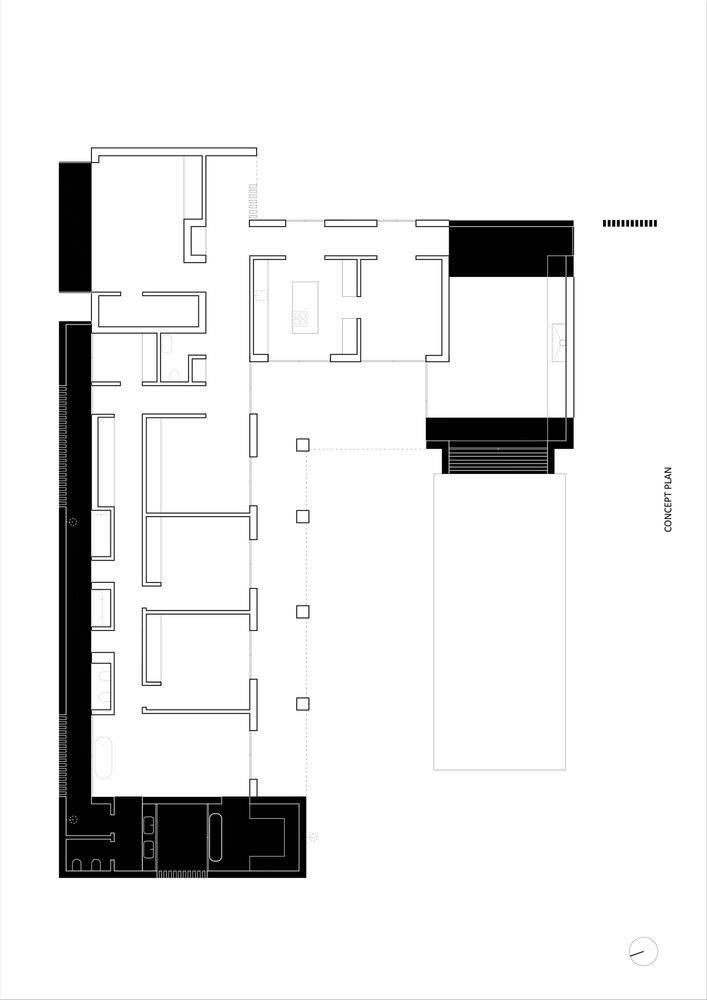

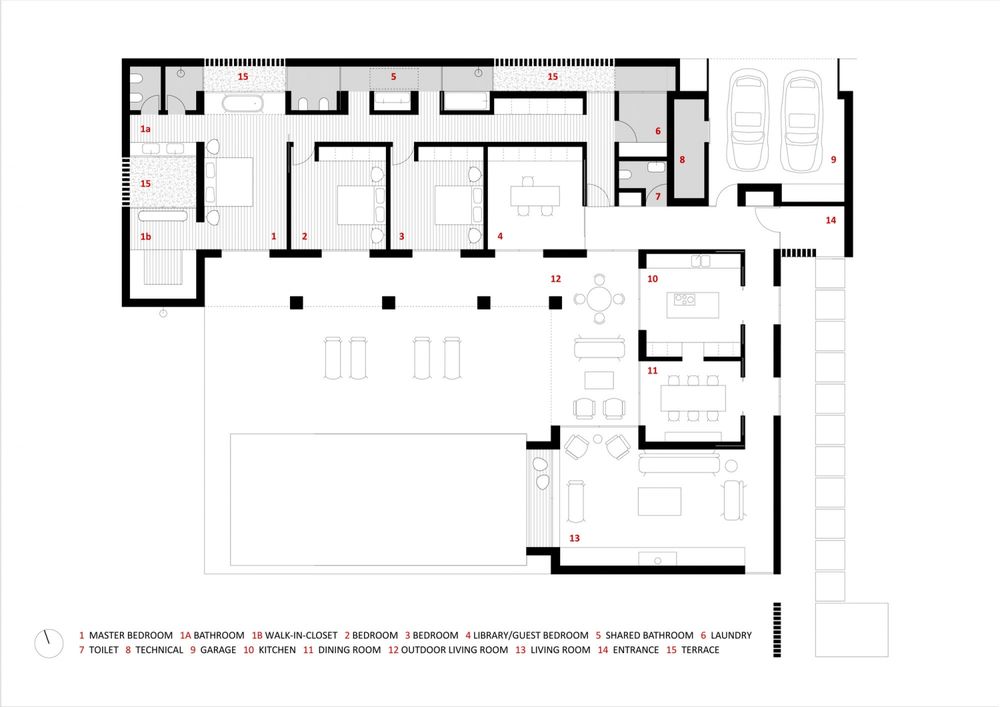

葡萄牙SOL别墅平面图

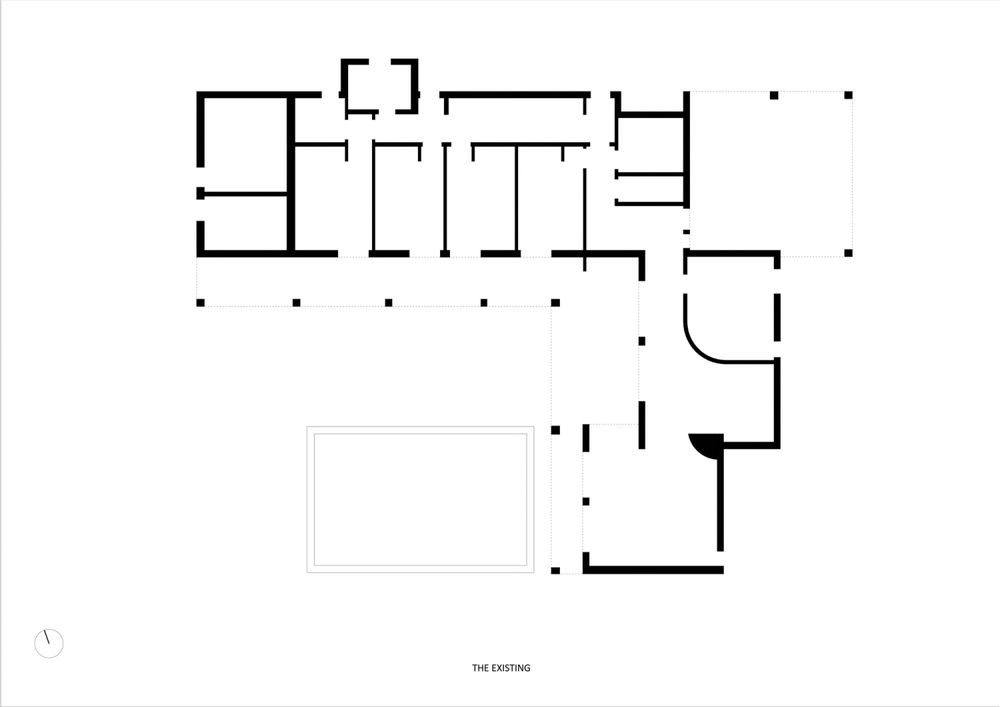

葡萄牙SOL别墅简图

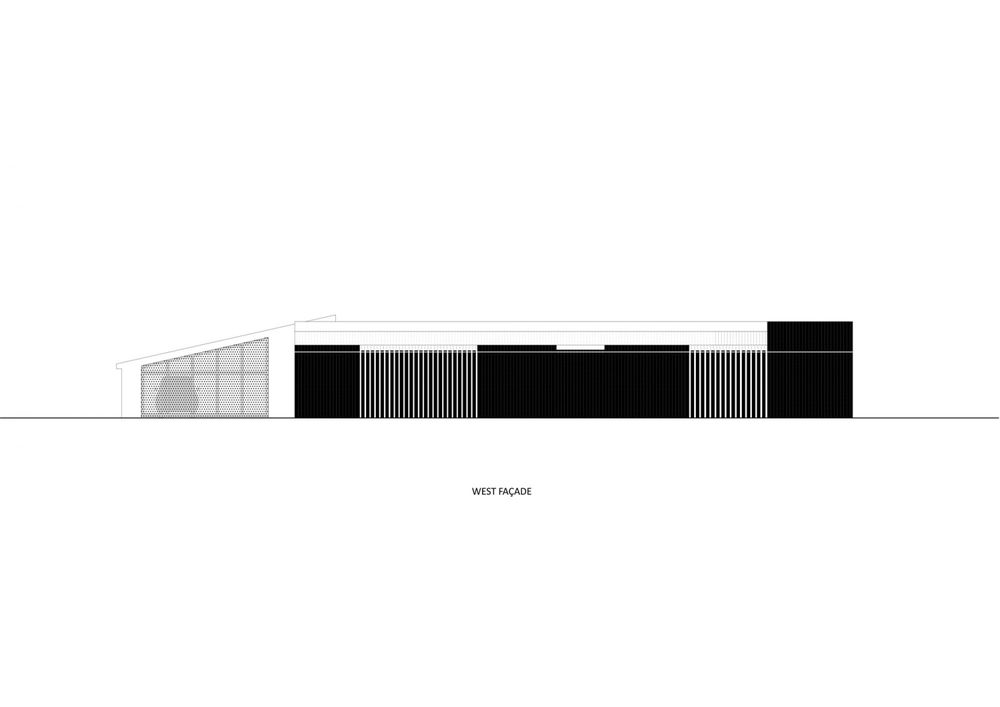

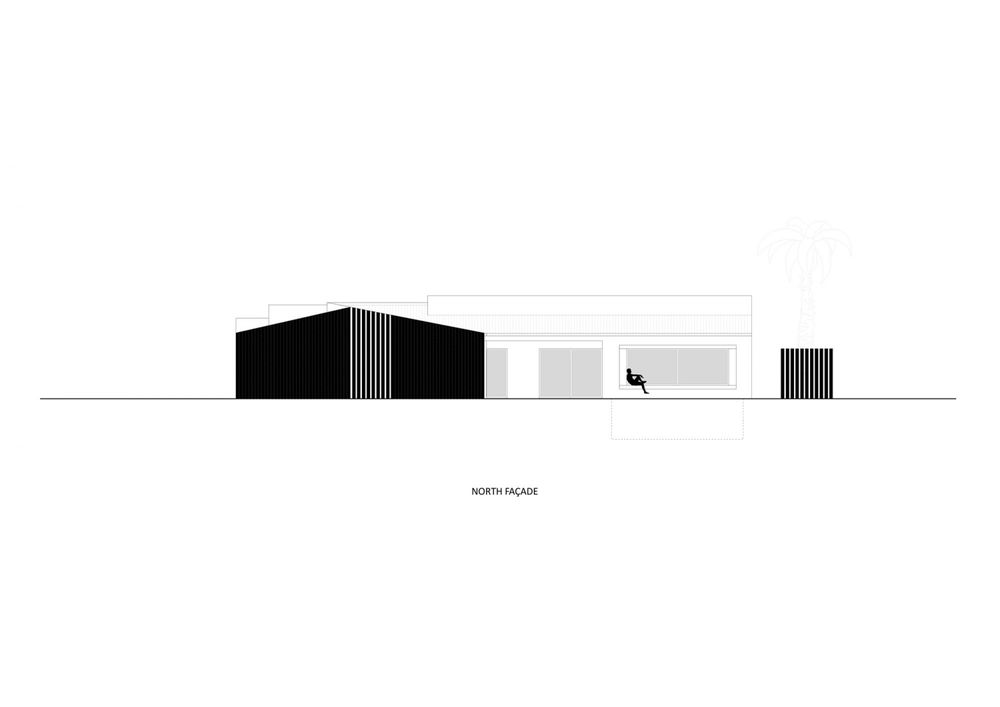

葡萄牙SOL别墅正面图

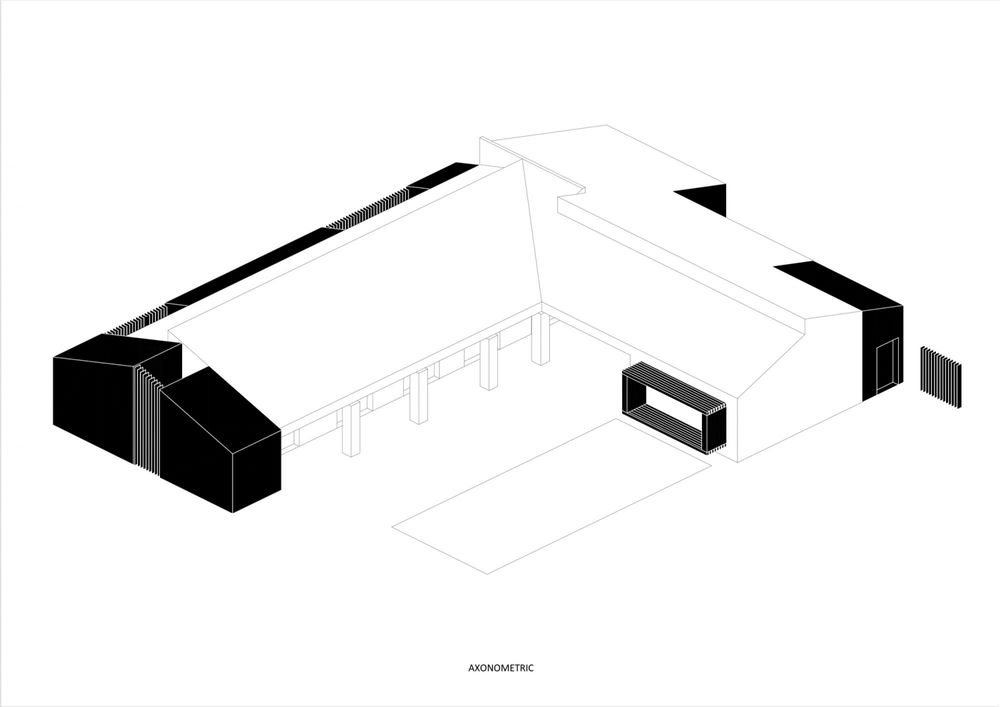

葡萄牙SOL别墅轴测图
