Weissenstein New School Building | 双层体育场馆设计亮点

Architects:Ernst Niklaus Fausch Partner

Area :5670 m²

Year :2020

Photographs :Johannes Marburg

Lead Architect :Ursina Fausch

Landscape Architects :Müller Illien Landschaftsarchitekten GmbH

Civil Engineer :HKP Bauingenieure AG

Electrical Engineer :Bhend Elektroplan GmbH

HVAC Engineers :Gähler und Partner AG

Building Physics :Durable Planung und Beratung GmbH

Lighting Design :Lightsphere GmbH

Project Architect : Miriam Jörn

Construction Management : Jessica Wälti, Michael Baumgartner

Facade Design : Lüchinger Meyer Hermansen, Dr. Lüchinger+Meyer Bauingenieure AG

School Area : 3250 m2

Double Sports Hall Area : 2420 m2

City : Würenlingen

Country : Switzerland

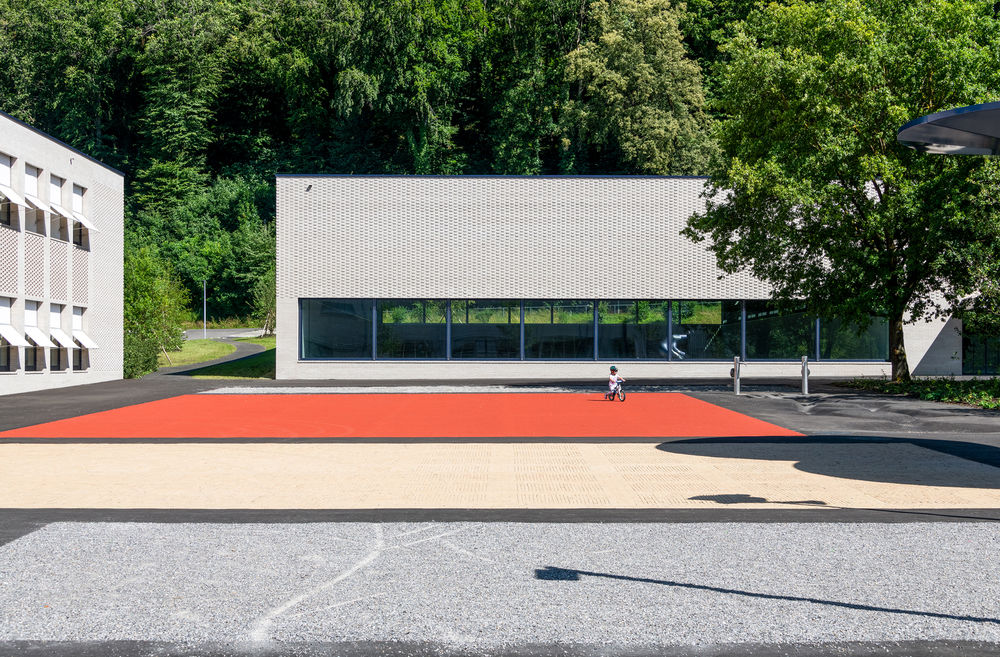

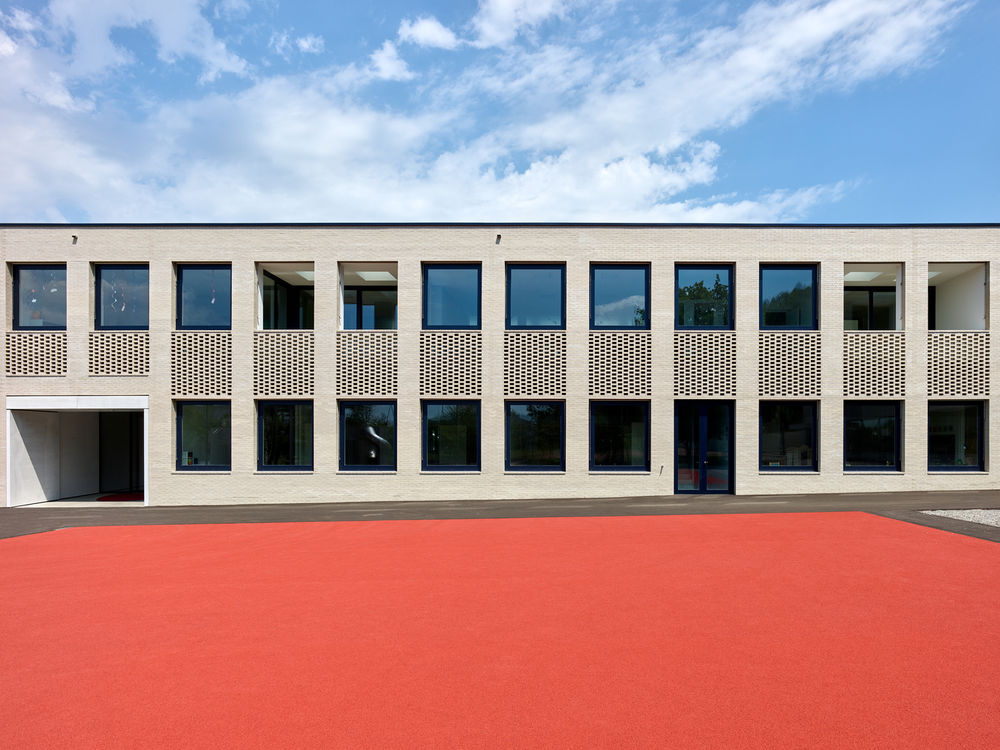

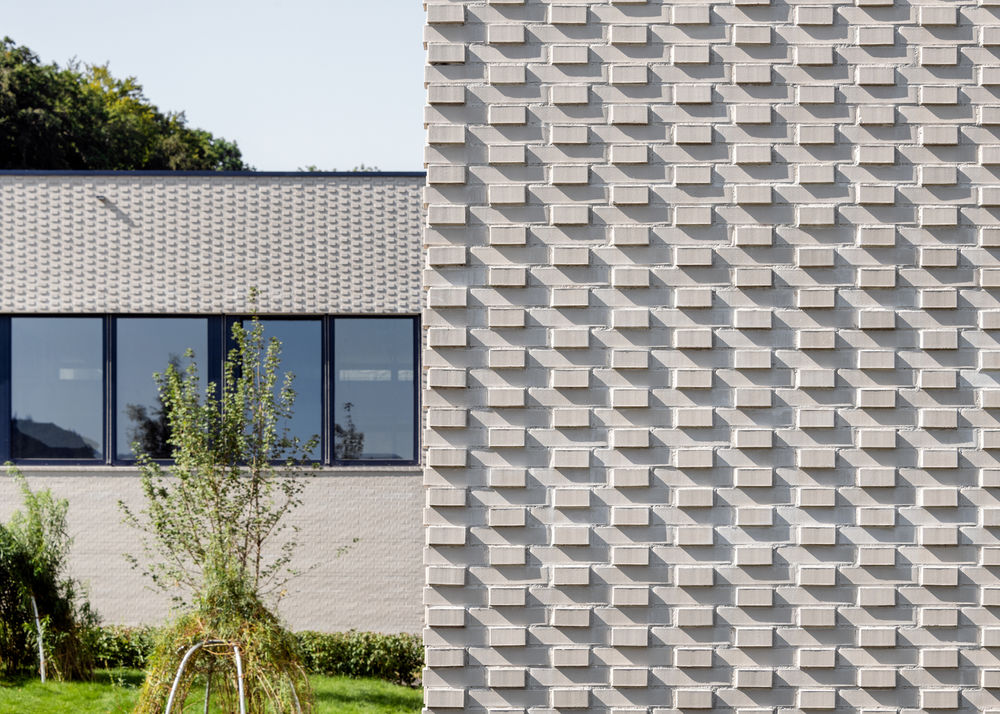

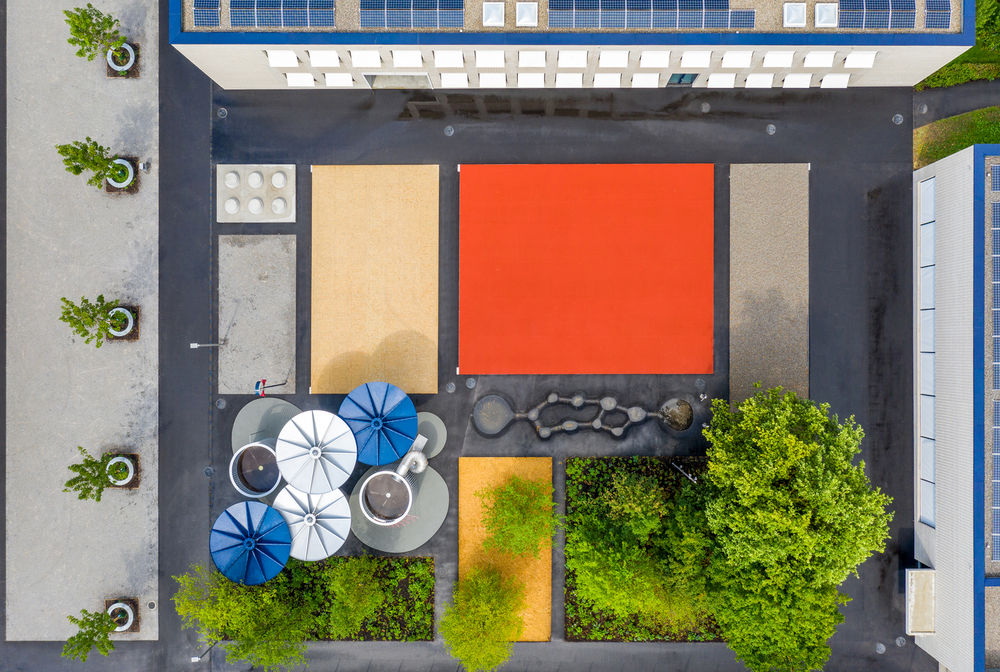

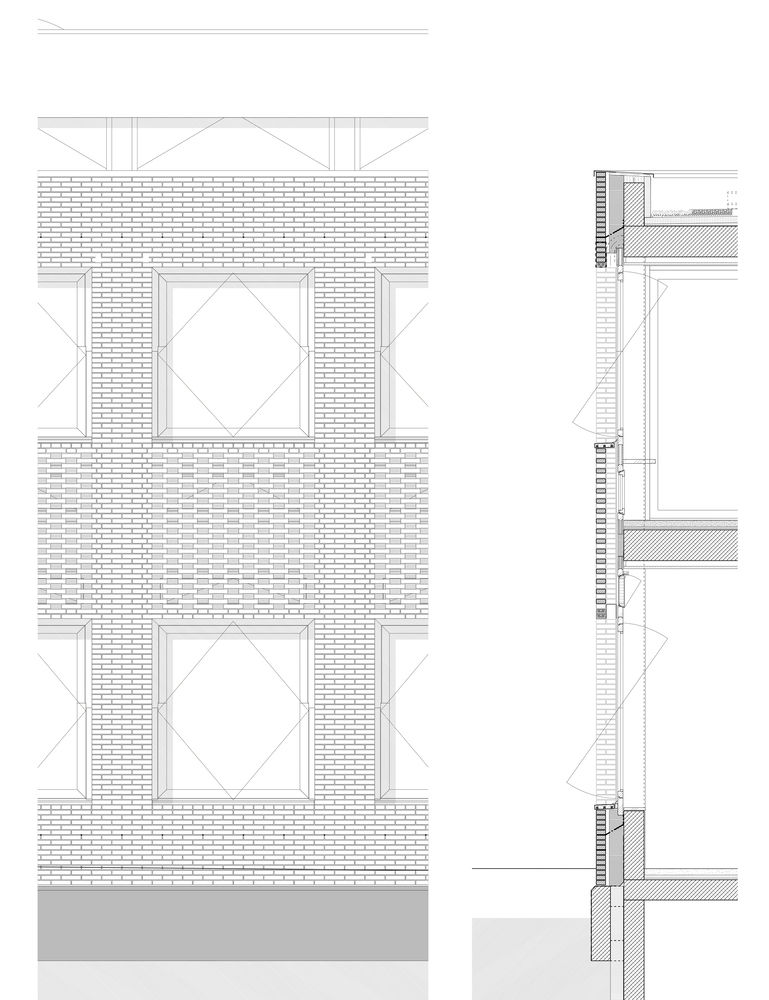

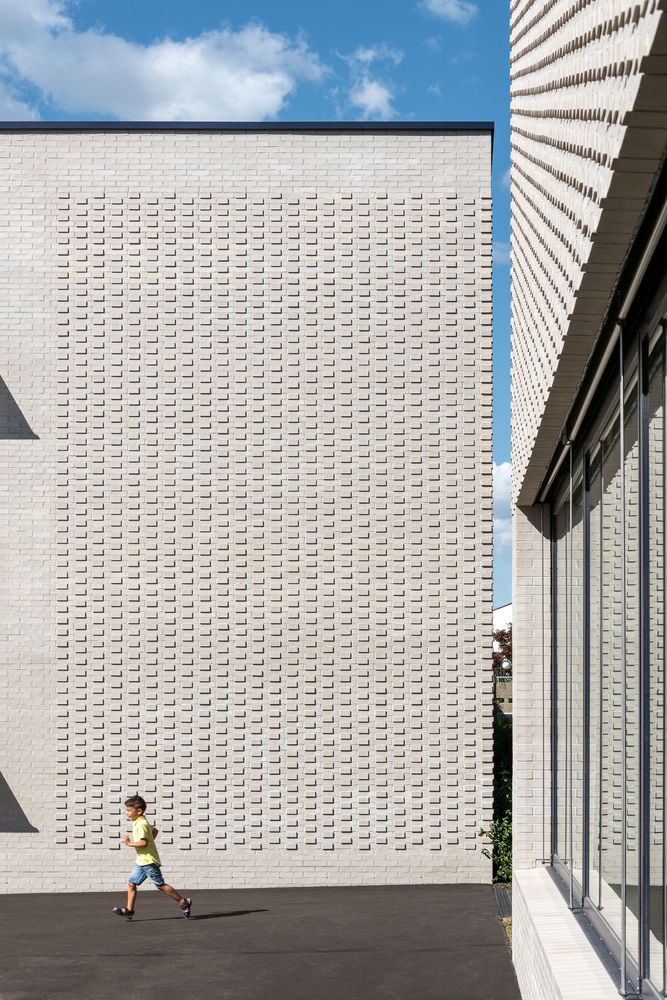

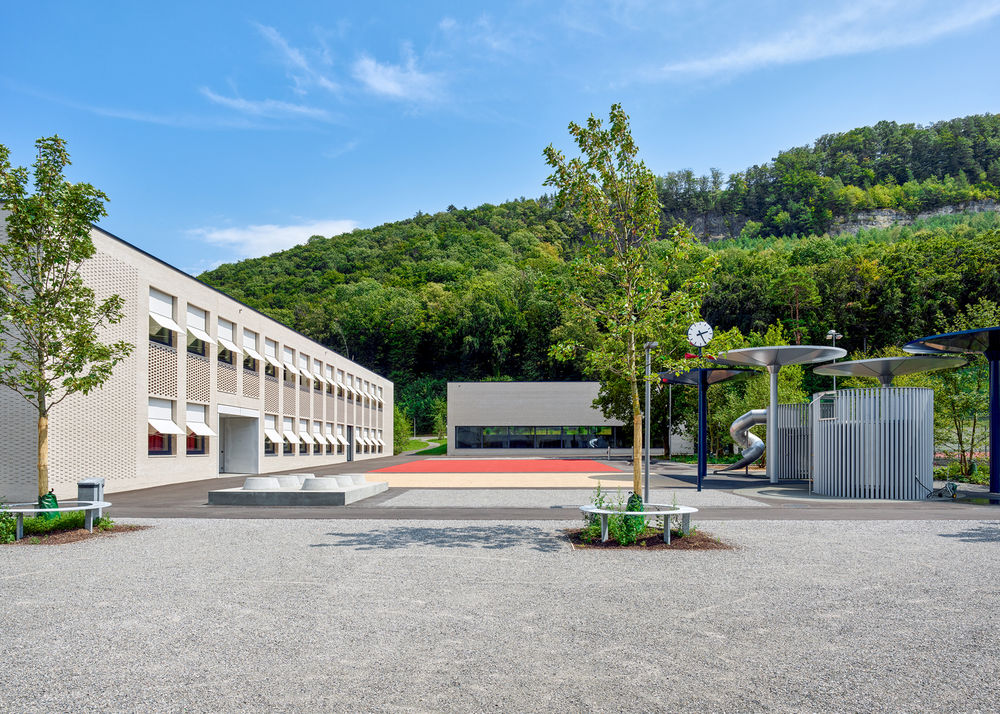

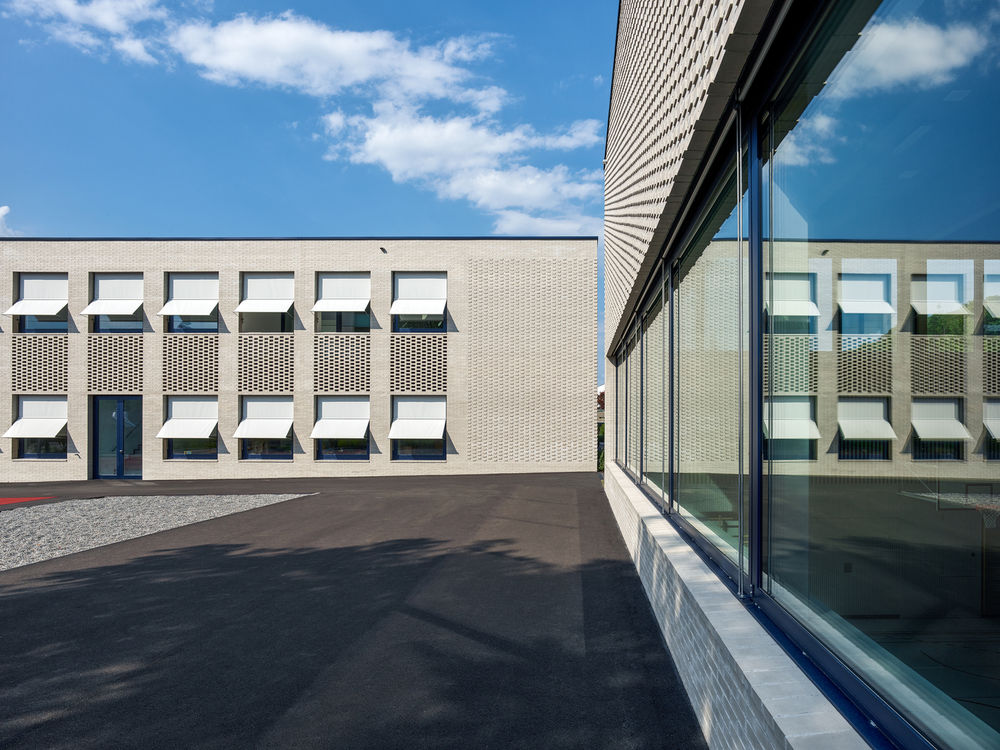

Two functions, two halls, one ensemble. The new schoolhouse and double sports hall are two independent volumes that extend the ensemble of Weissenstein school complex. They define a new school yard and events space for the school and the community. The facades of the new buildings adopt the light-coloured clinker brick used throughout the complex but laid in a stretcher and Flemish bond.

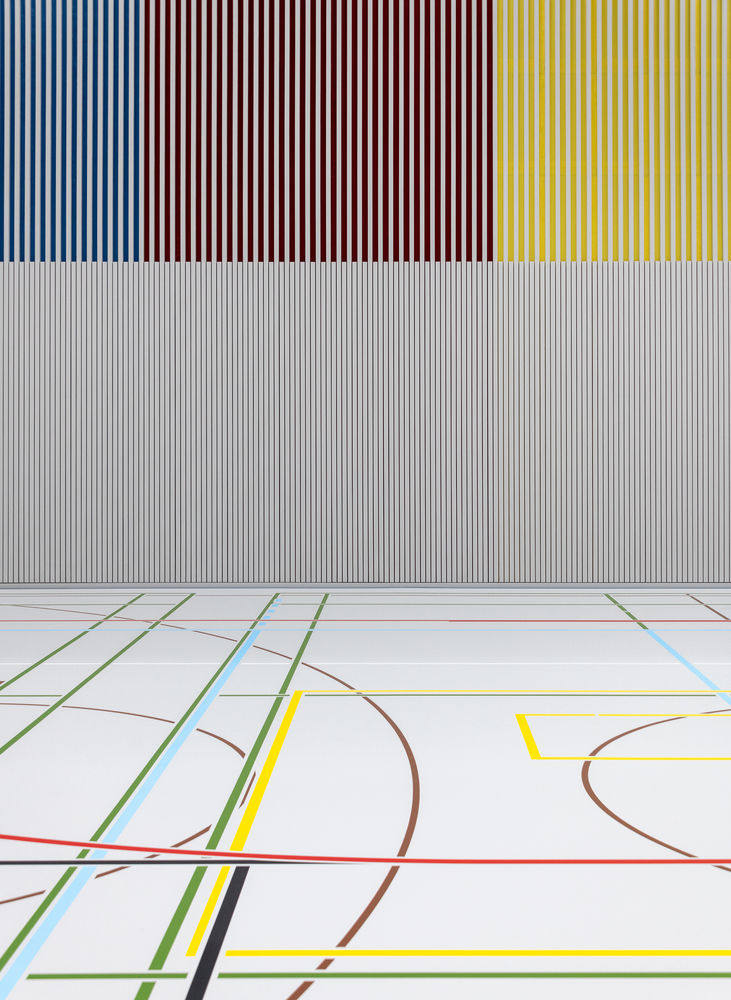

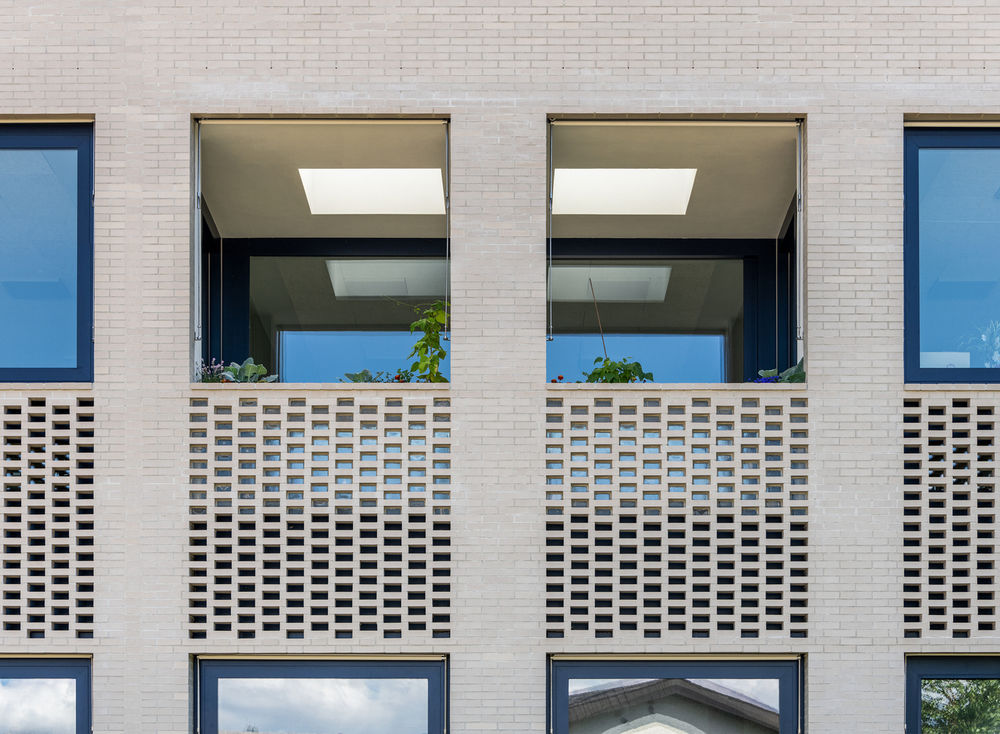

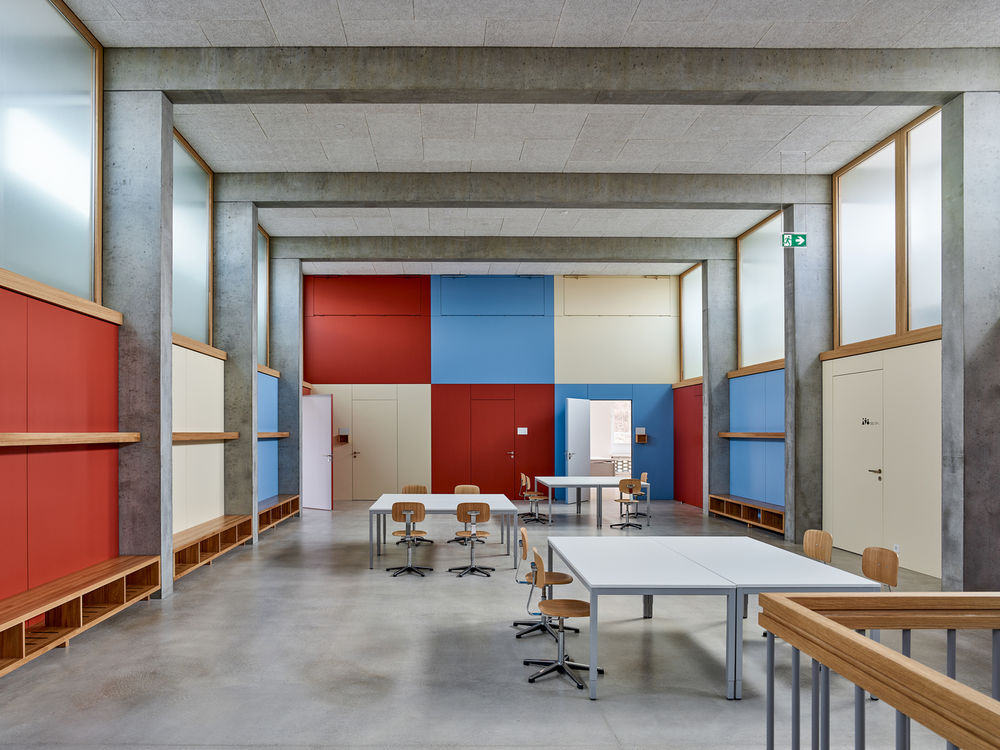

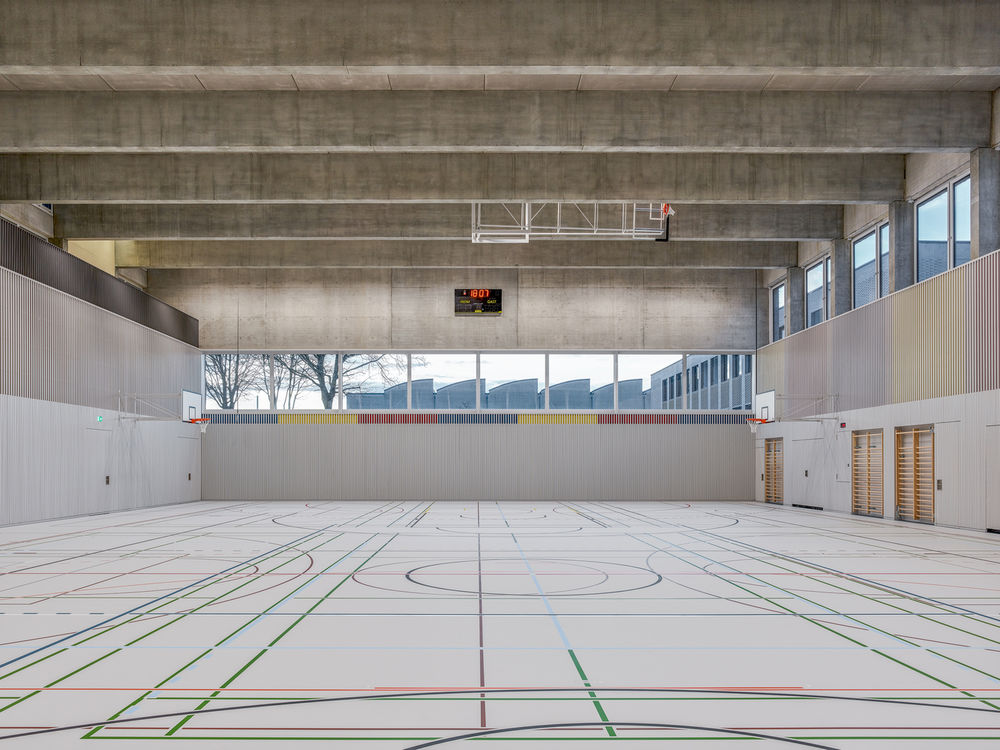

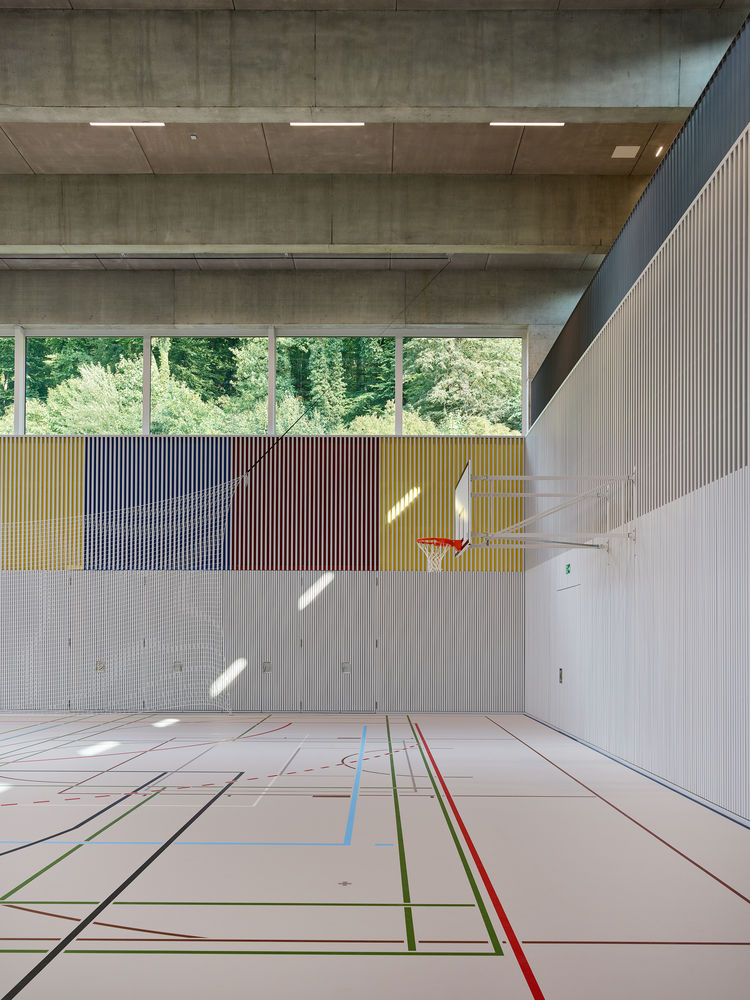

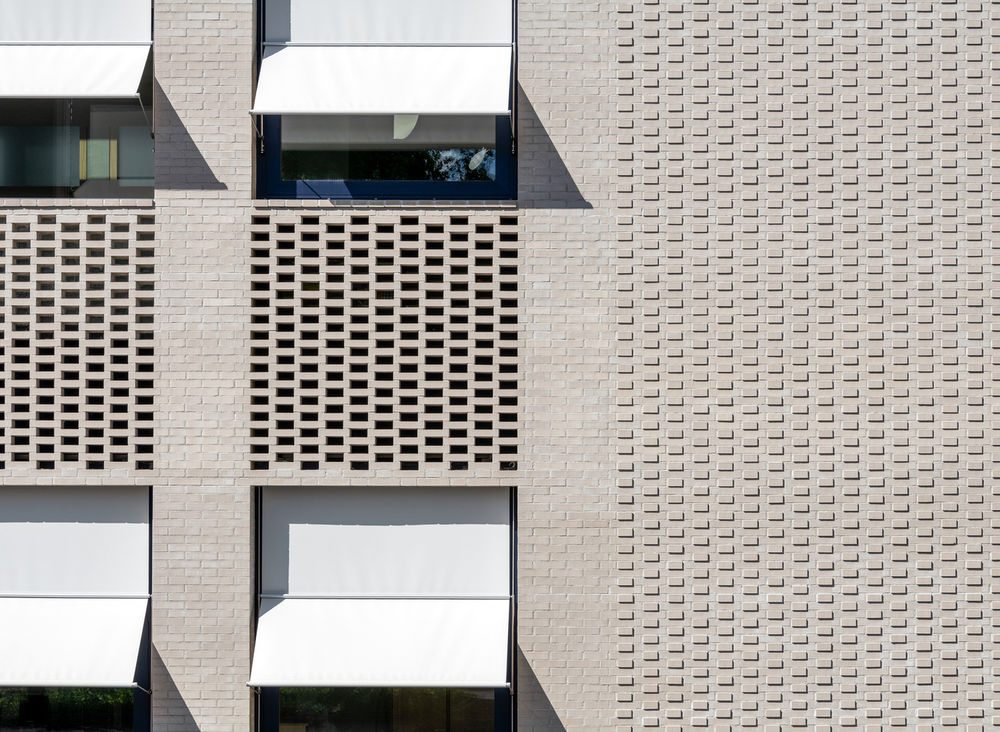

Omitting the headers in the parapets creates a perforated grid (night-time cooling), while at the ends and above the windows the headers project slightly, creating an unmistakable play of light and shade. The character of both buildings is shaped by an internal hall – a „school hall“ and a „sports hall“ are made. Large, coloured infill areas in the prefabricated concrete loadbearing structure articulate both halls.

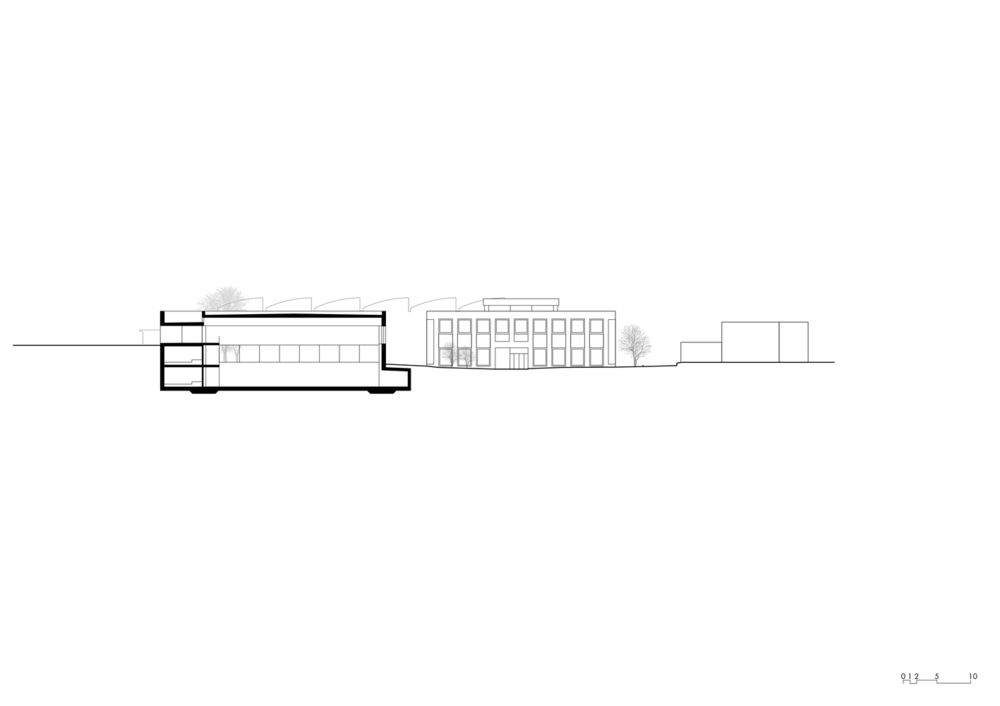

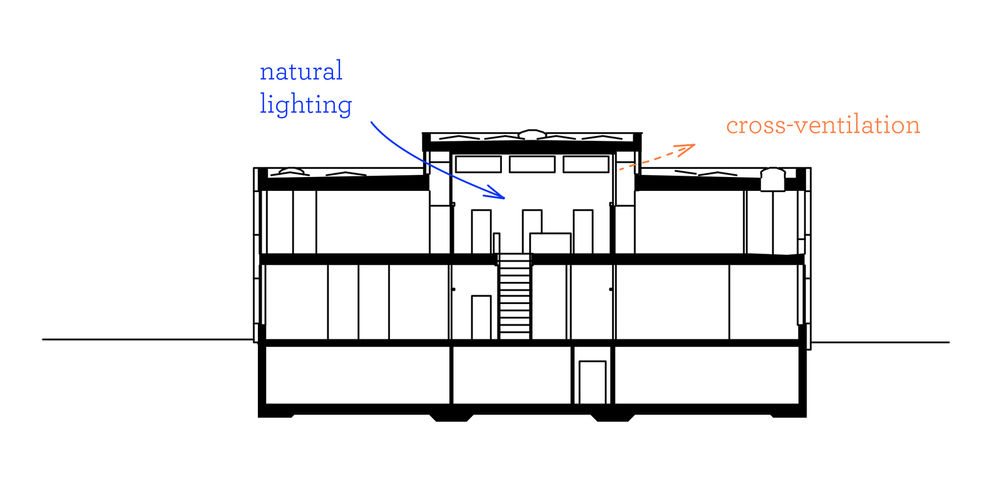

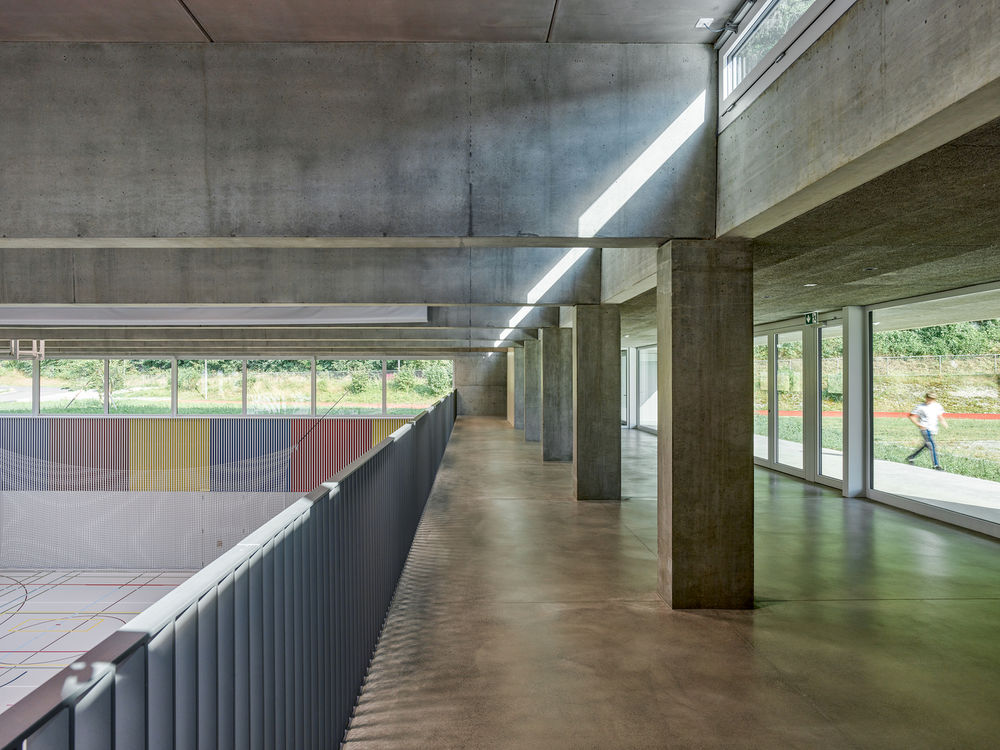

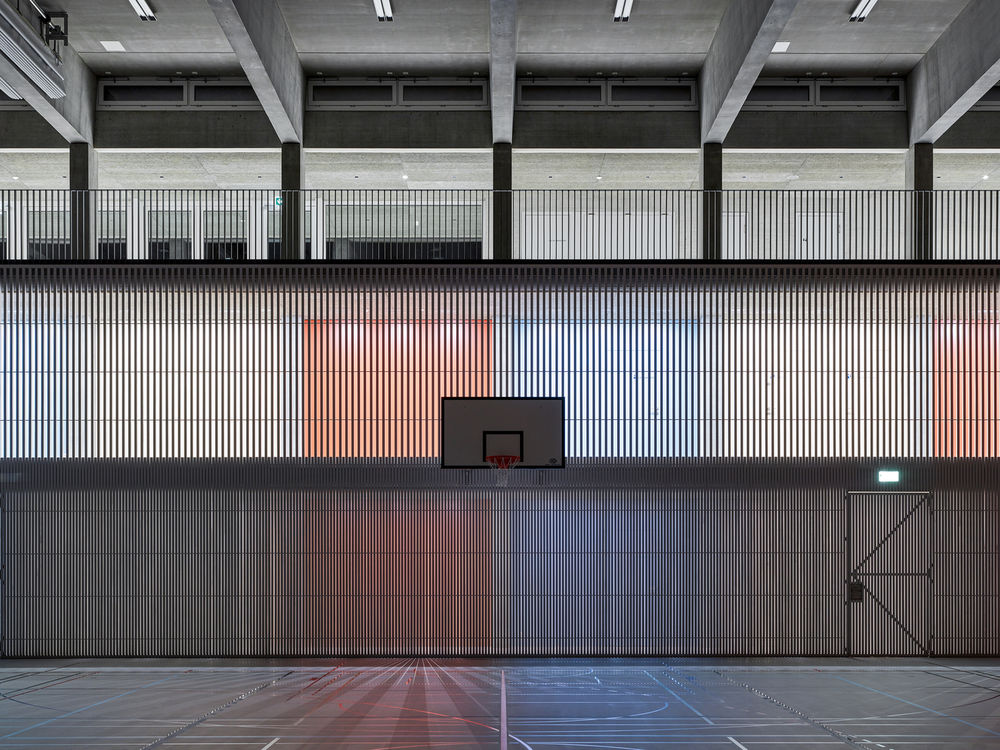

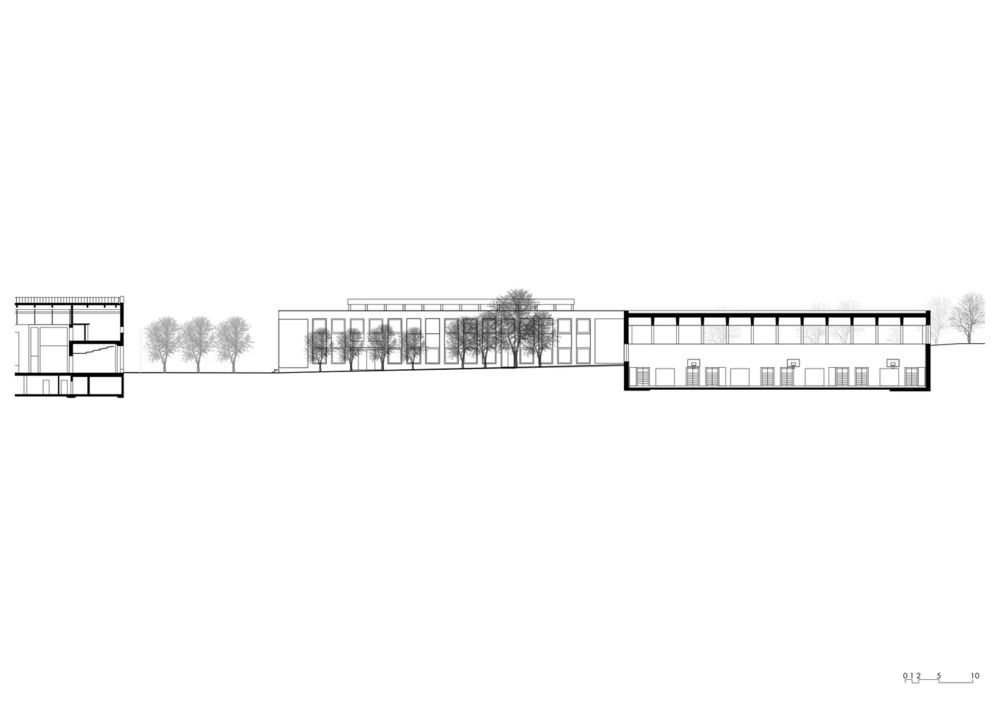

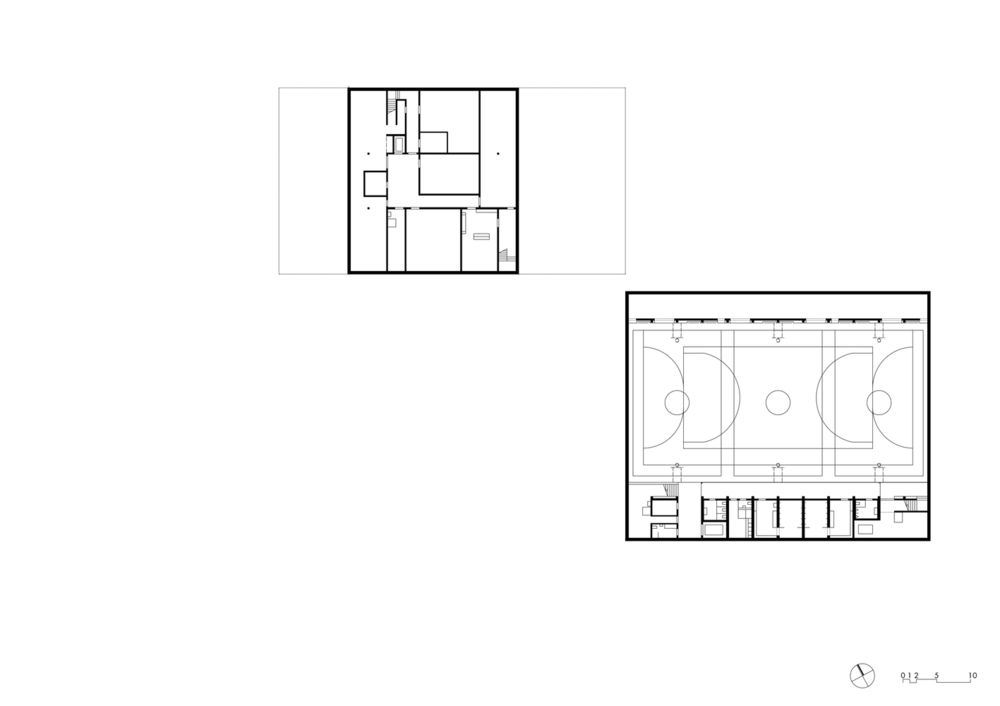

They also serve the cross-ventilation of all the rooms without the need for ventilation technology. Placed precisely in the topography, the sports hall is integrated into the sports complex on three levels. The middle level connects to the schoolyard, while the upper gallery offers access to the outdoor sports facilities and can also be used to watch matches being played on the lower level.

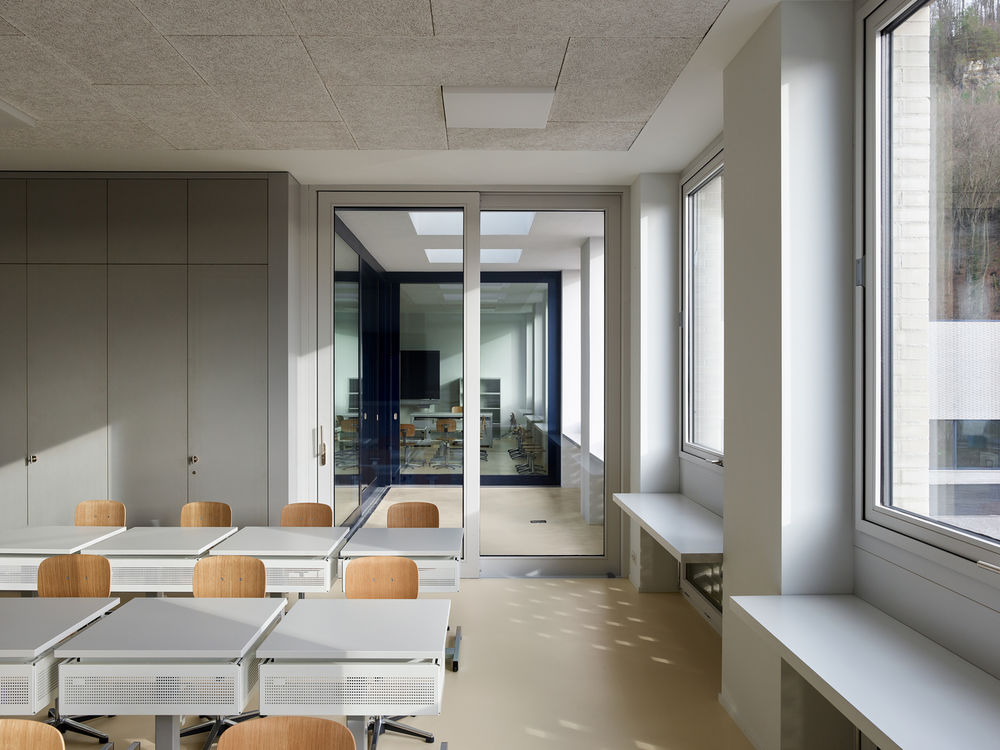

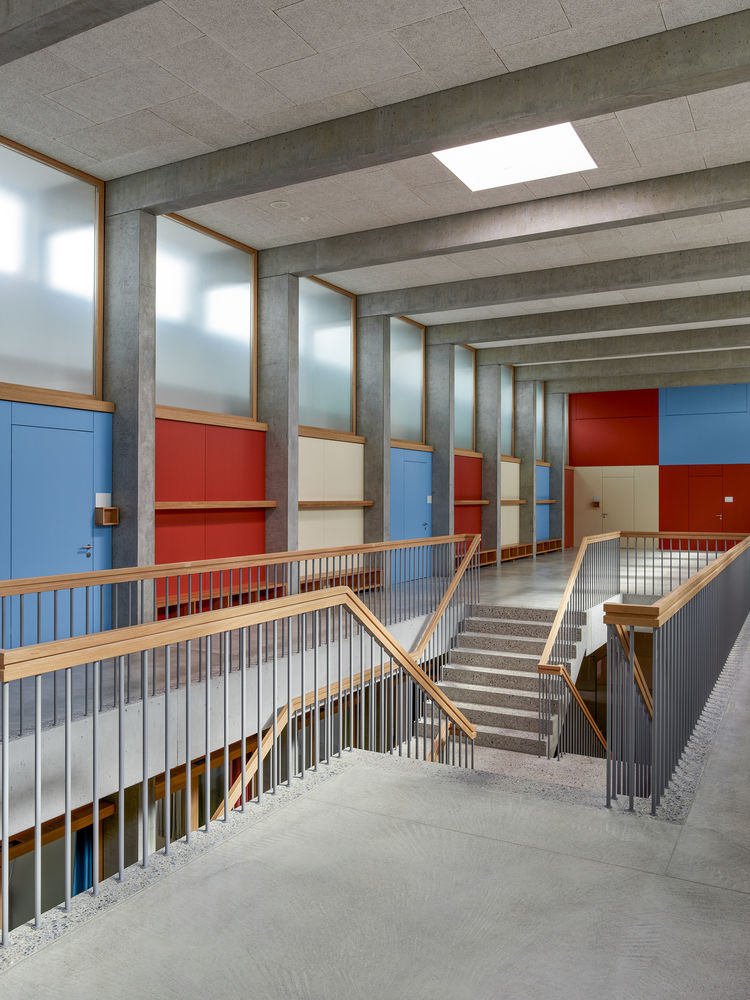

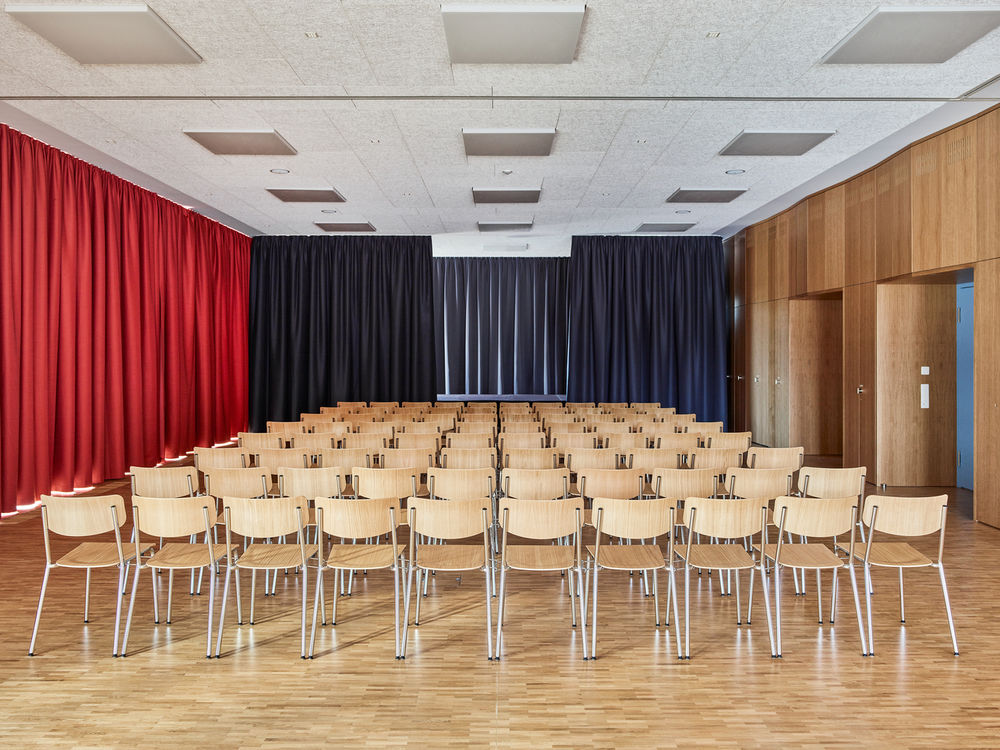

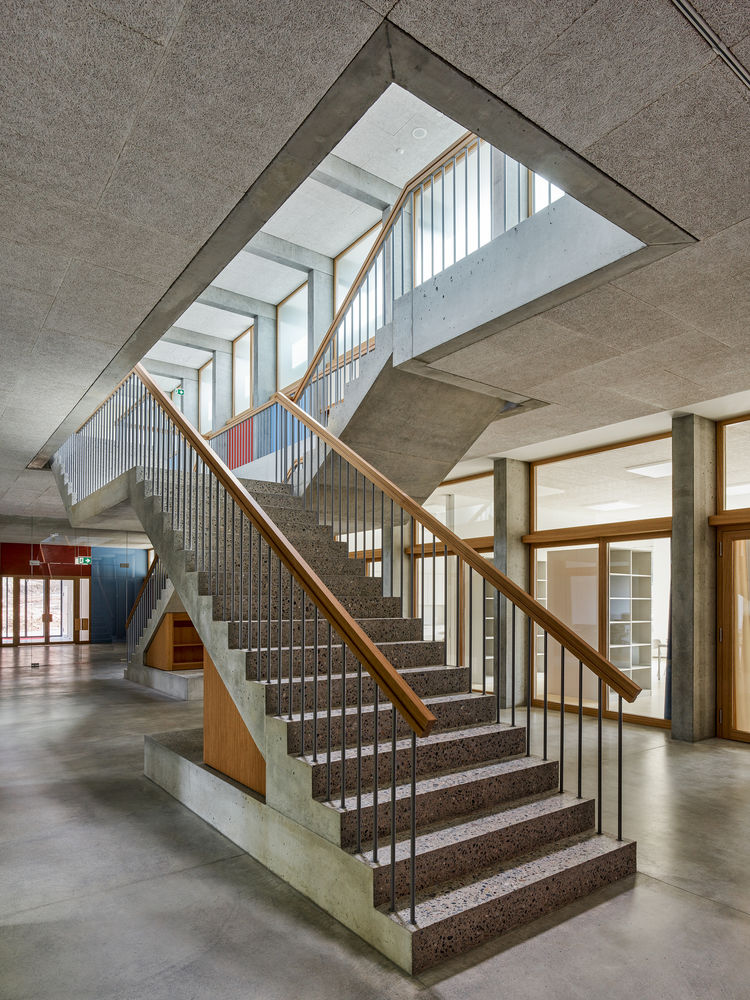

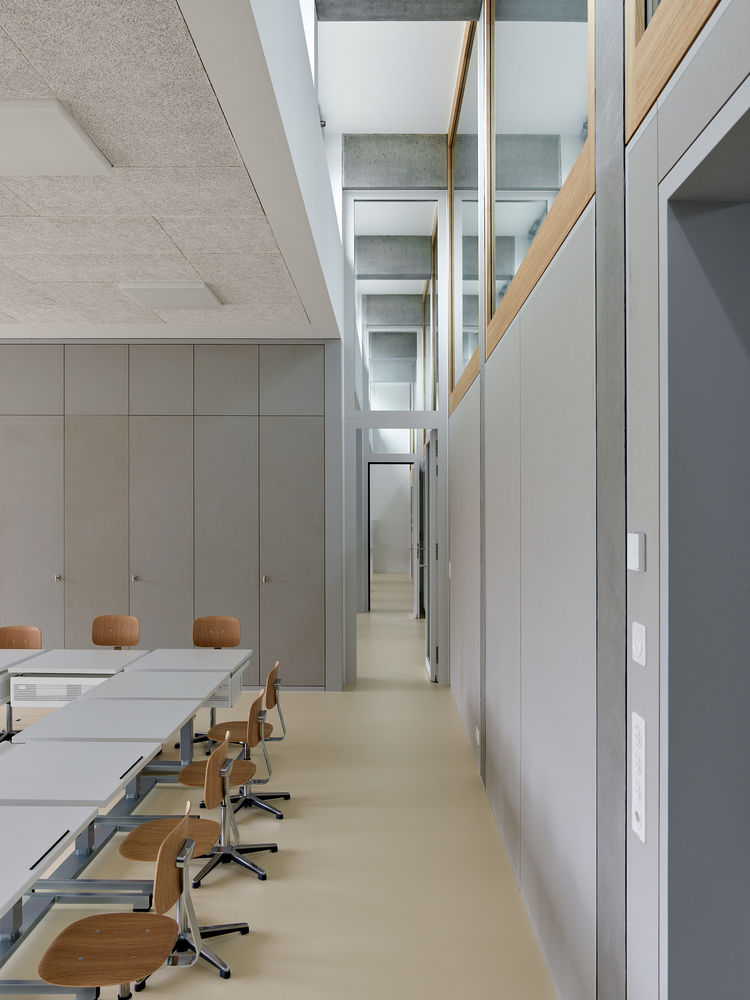

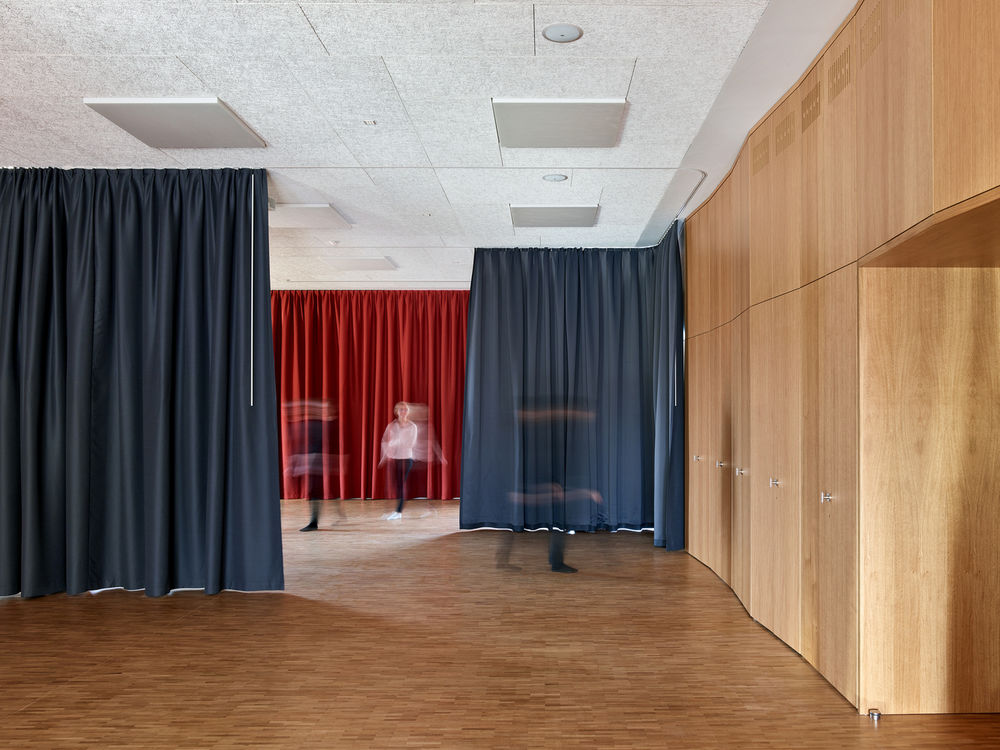

The school building becomes a „space for school life“ with the two-storey school hall forming a central internal space. As a fire safety concept was agreed on, this entire space can be used for teaching or to hold events. This enables the complex as a whole to become part of educational, sporting and village life.
