设计亮点
利用回收集装箱建成的工业建筑,将环保理念与经济效益完美结合,空间规划充分利用自然光,节约能源,设计风格独特且符合工业环境需求。

Since the first liner with intermodal containers was unloaded in Bremen in 1966, its growth in the development of world trade has been spectacular. The container is an icon of our globalized society. Almost everything we buy travels in them, either in disassembled components or as finished products. There are about 800 million containers on earth, but their lifespan for transportation is just between 8 and 10 years, and then the problem of what to do with them arises. Melting a container into steel consumes about 8.000 kWh, while to reuse it as a construction element requires only between 400 to 800 kWh. Why not reuse it in the industrial sector as a structural piece while maintaining its storage capacity?

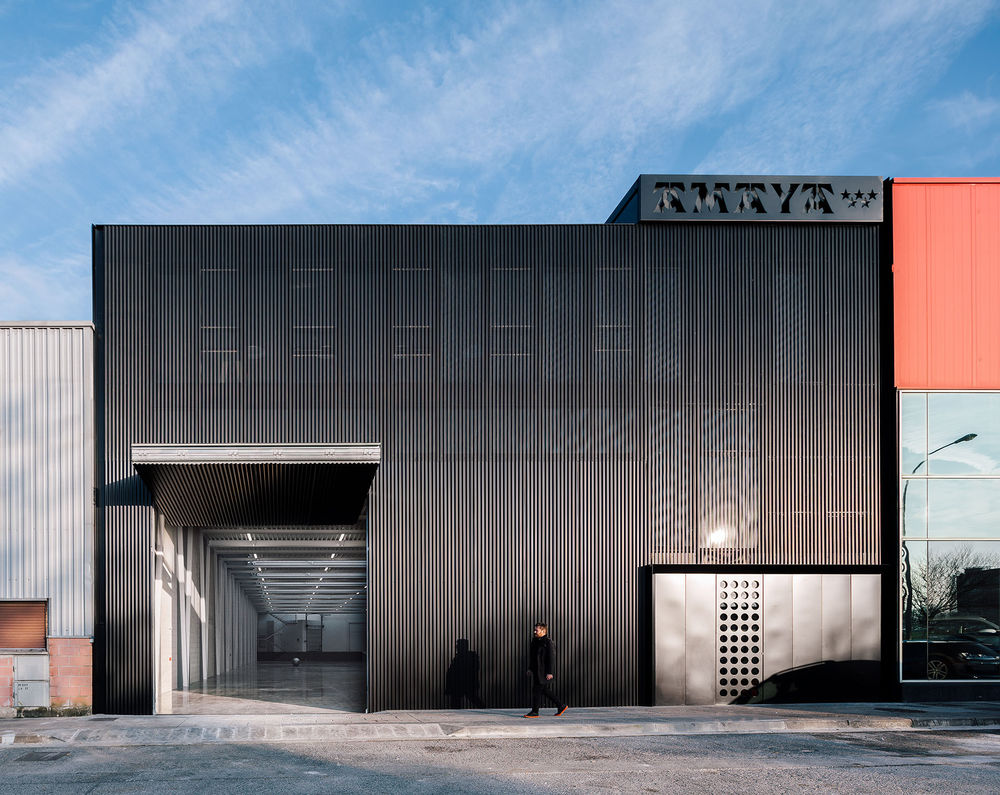

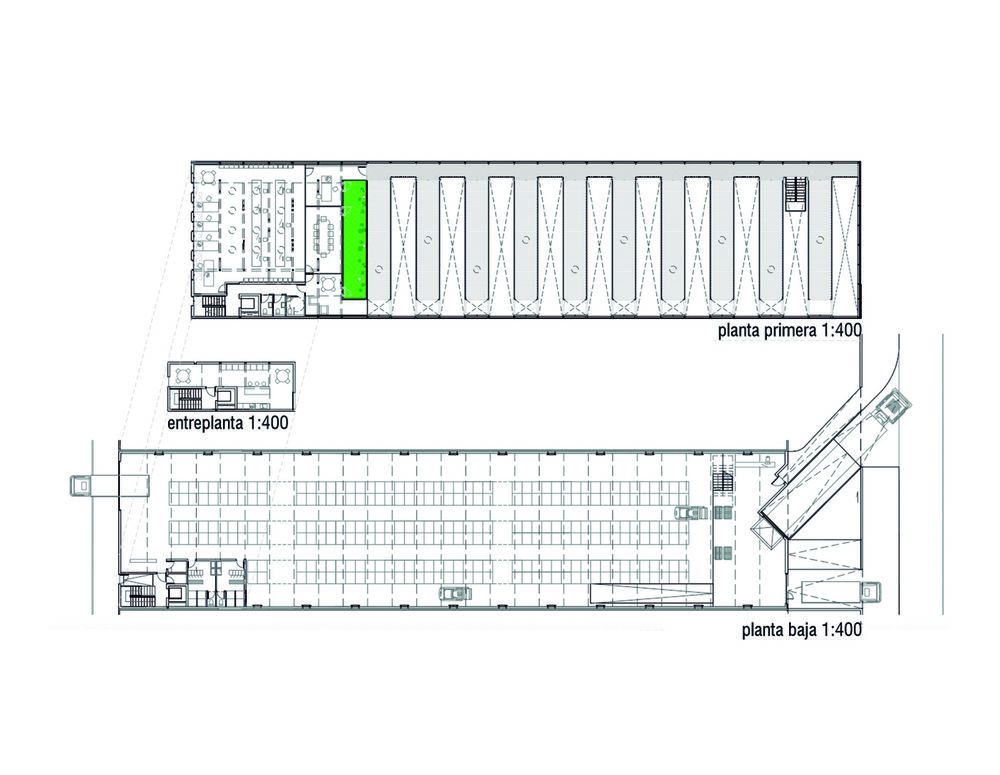

Industrial estates are an atonal architectural symphony. An apparent chaos of buildings hides what is really an efficient system, which generates substantial wealth in our society. Architecture has ceded these spaces to engineering, and even to self-construction. In response to a hostile context, our strategy is that of dissimulation, that of the disappearance of the object proposing a black box. This Black Box of 16 x 64 x 10 m3, fits between two existing warehouses in the Talluntxe Industrial Estate in Navarra. Its two facades open to the east and west, giving access to the warehouse, offices, a loading dock and a recreational mezzanine

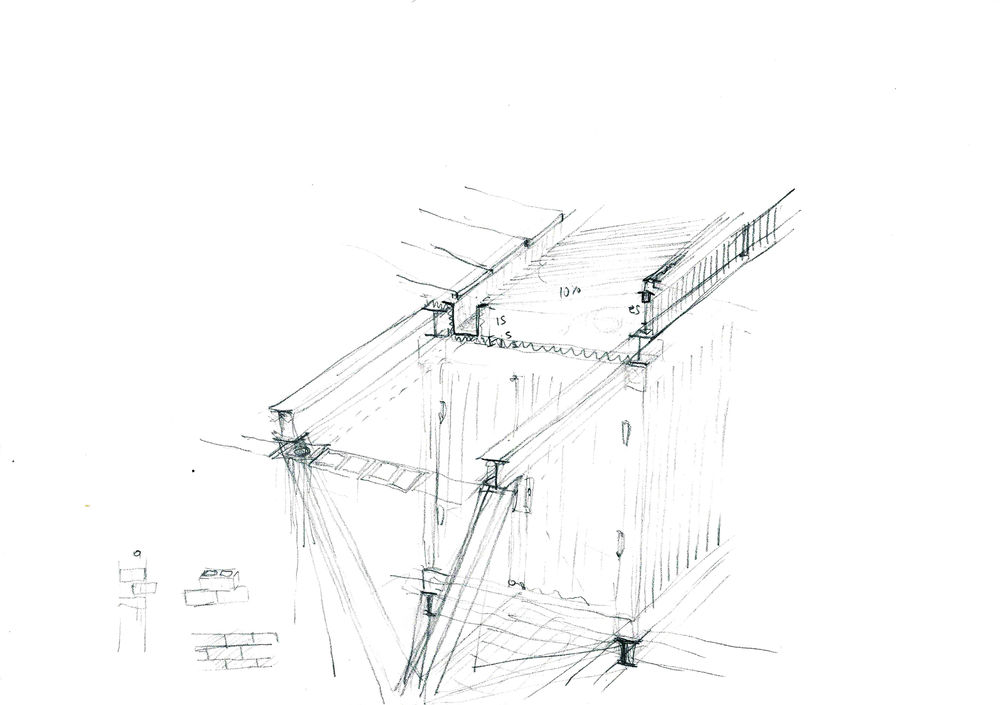

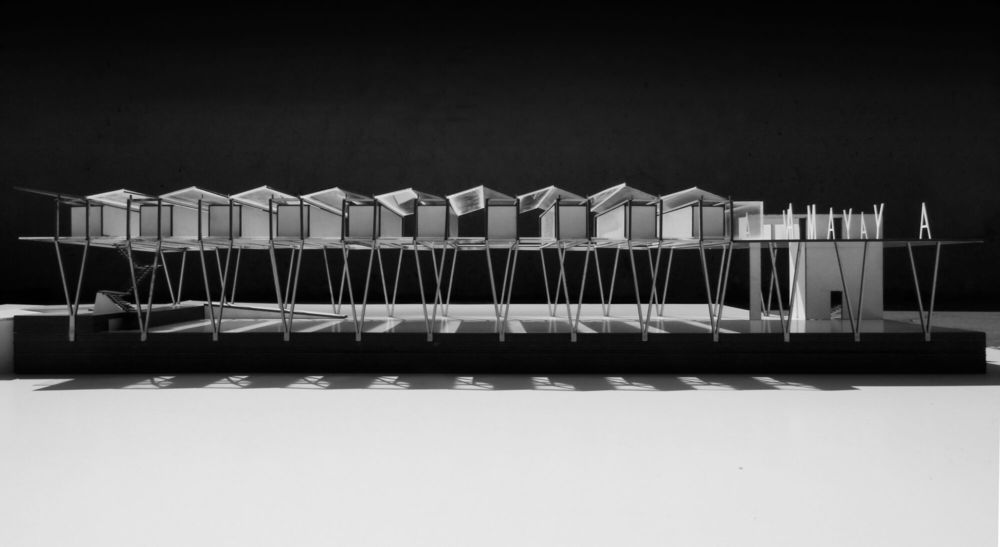

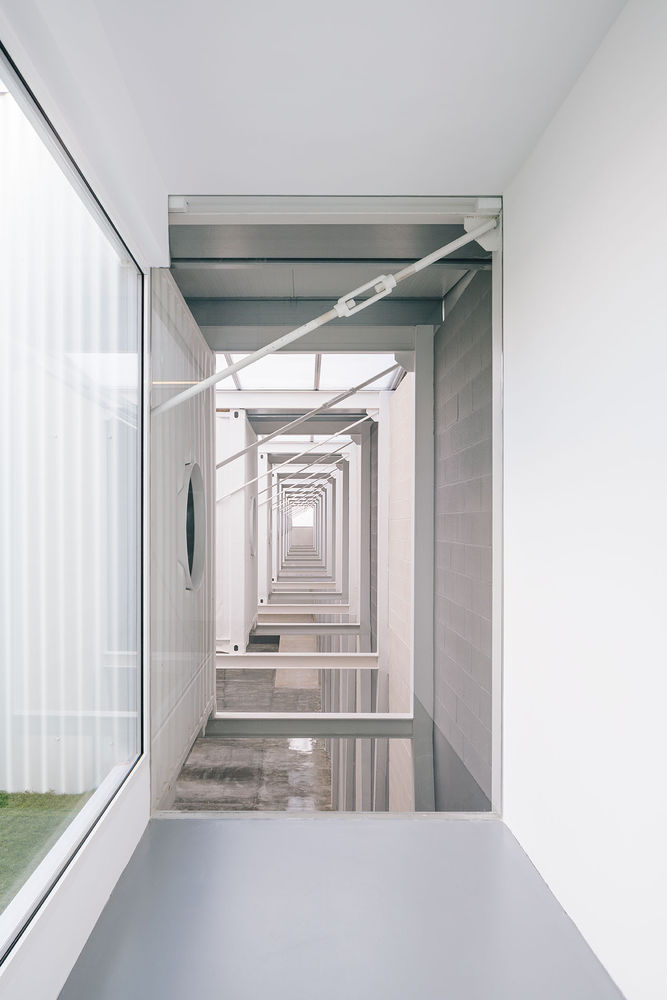

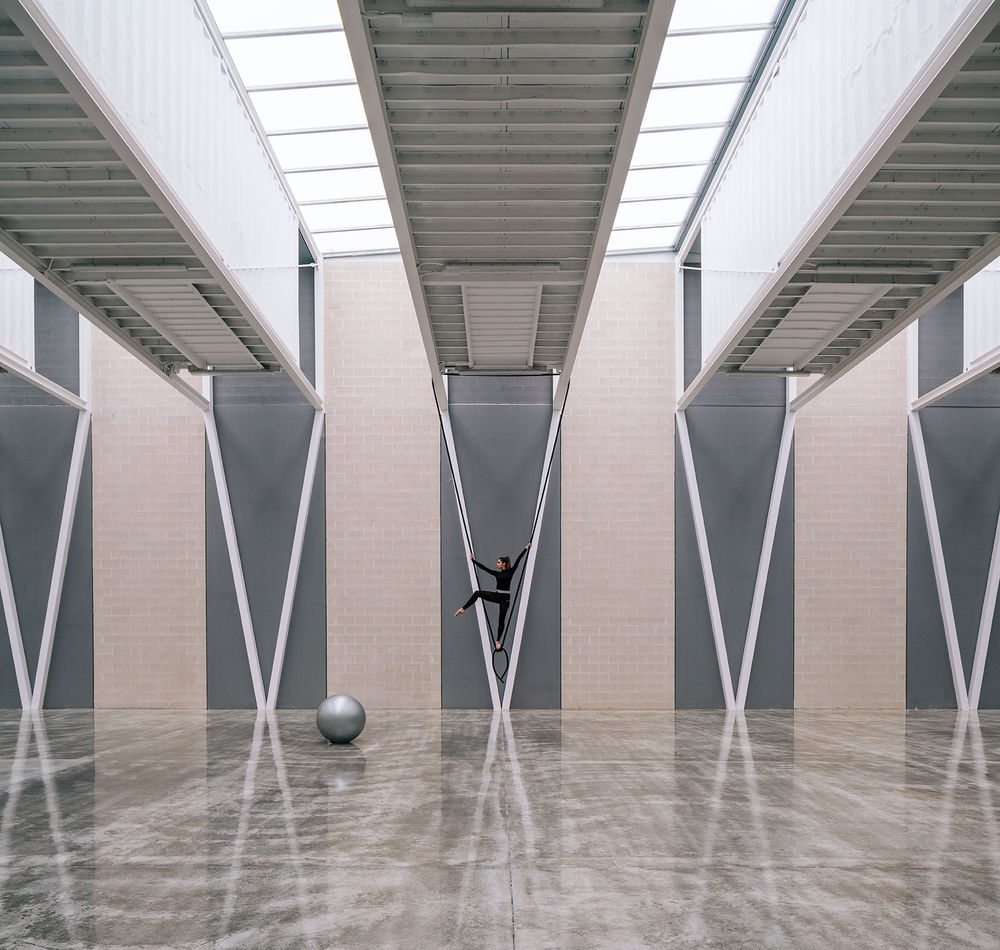

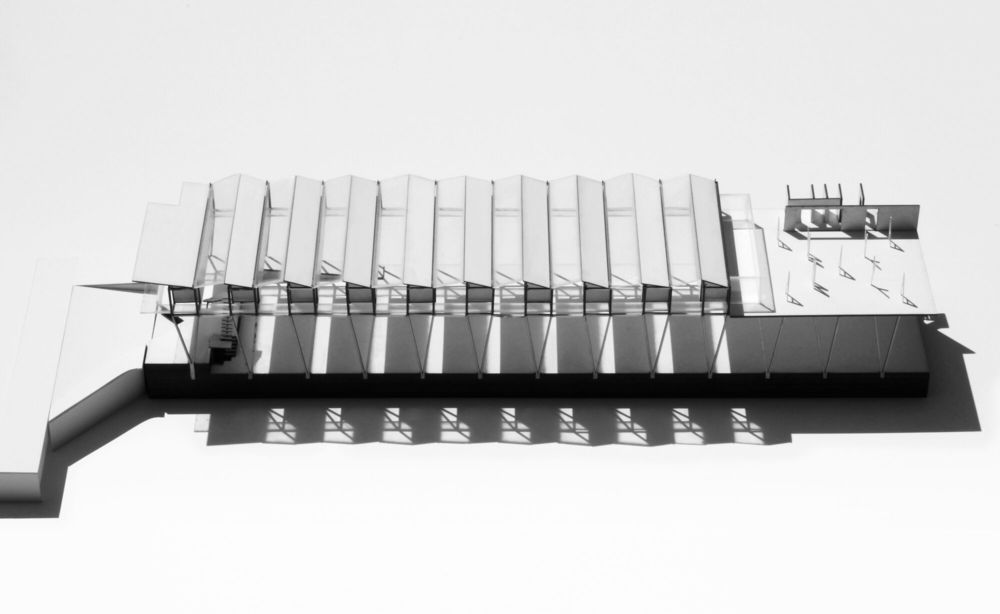

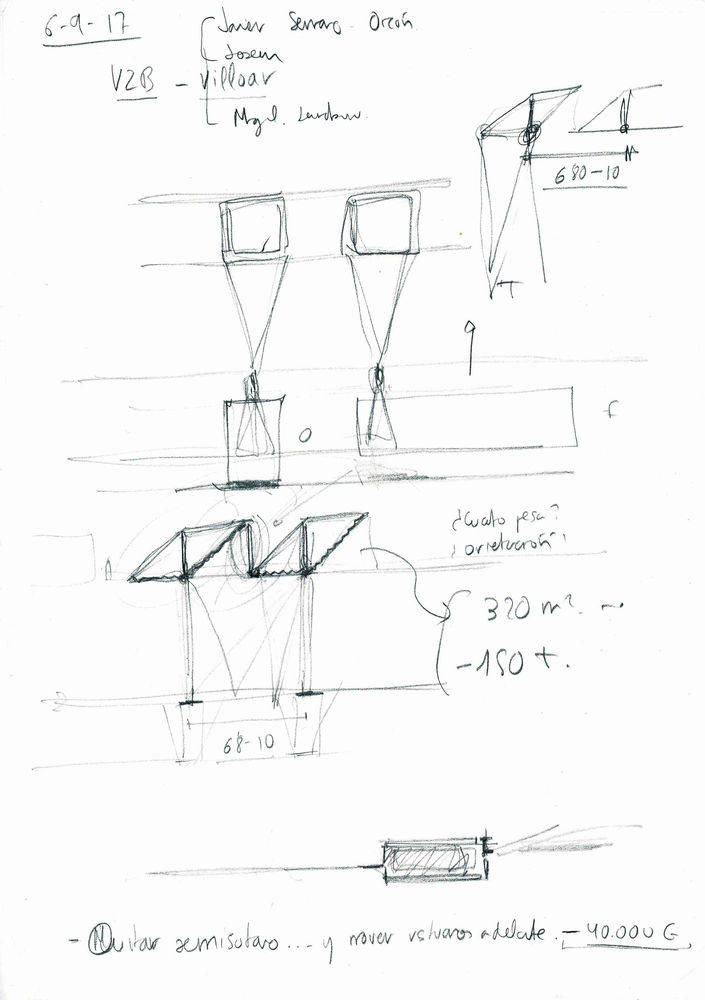

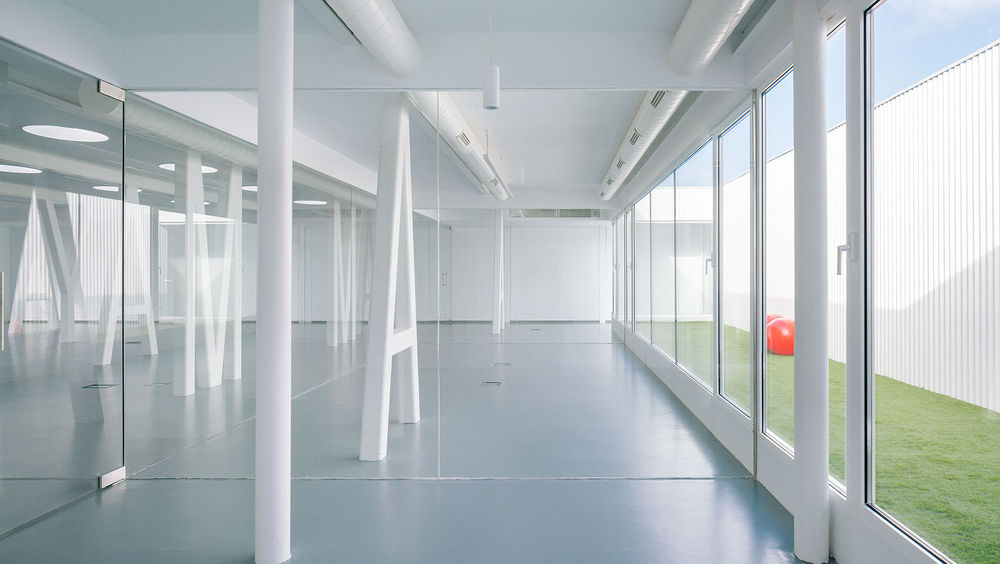

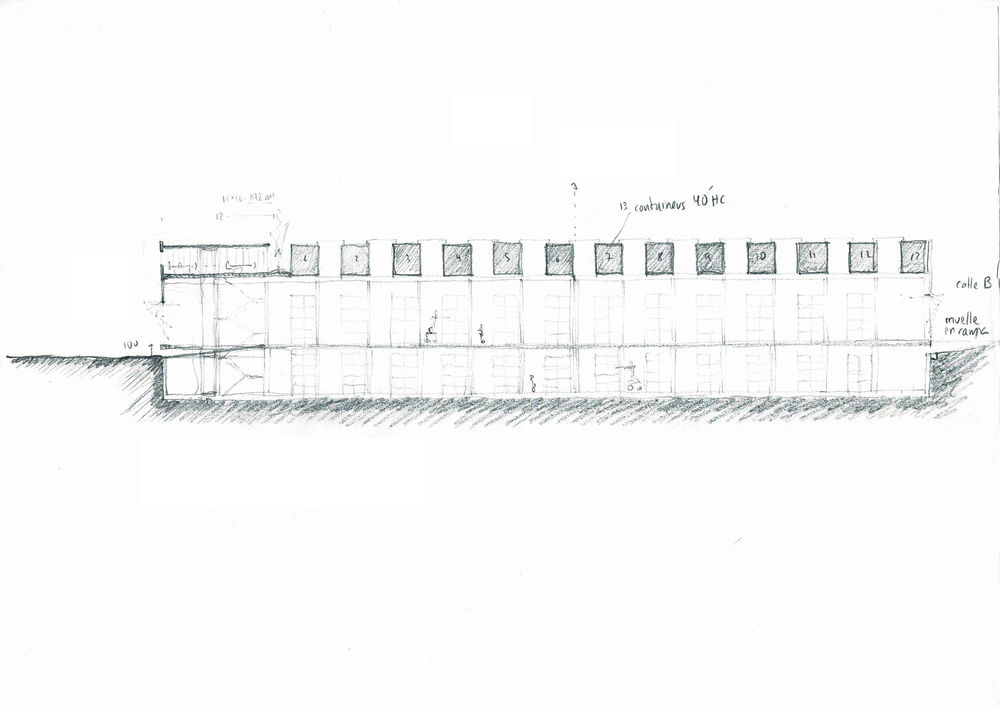

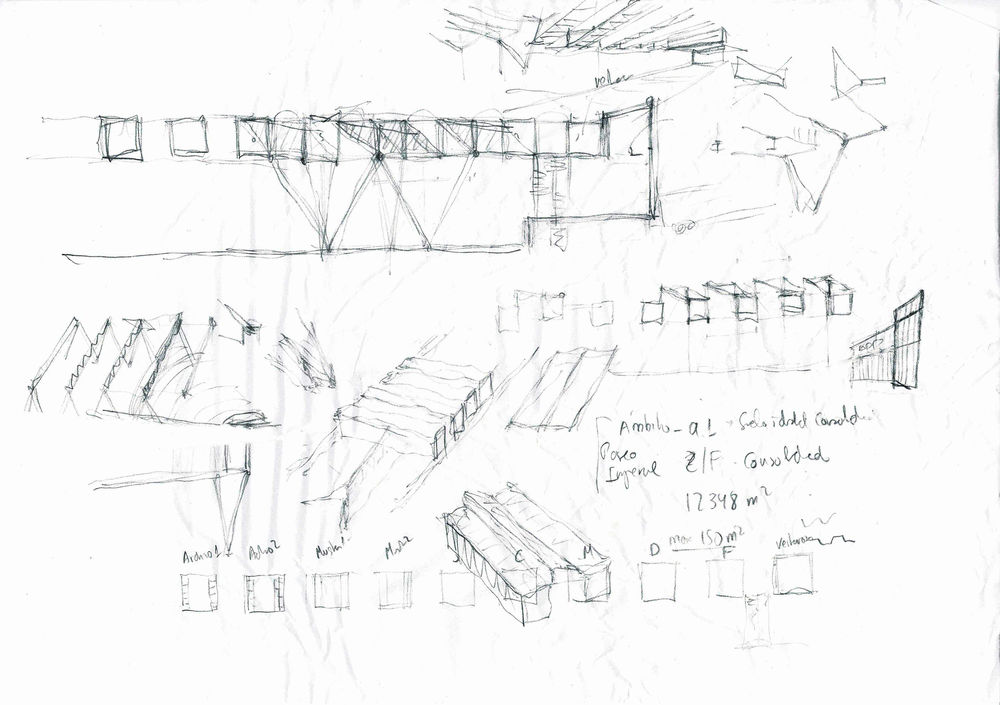

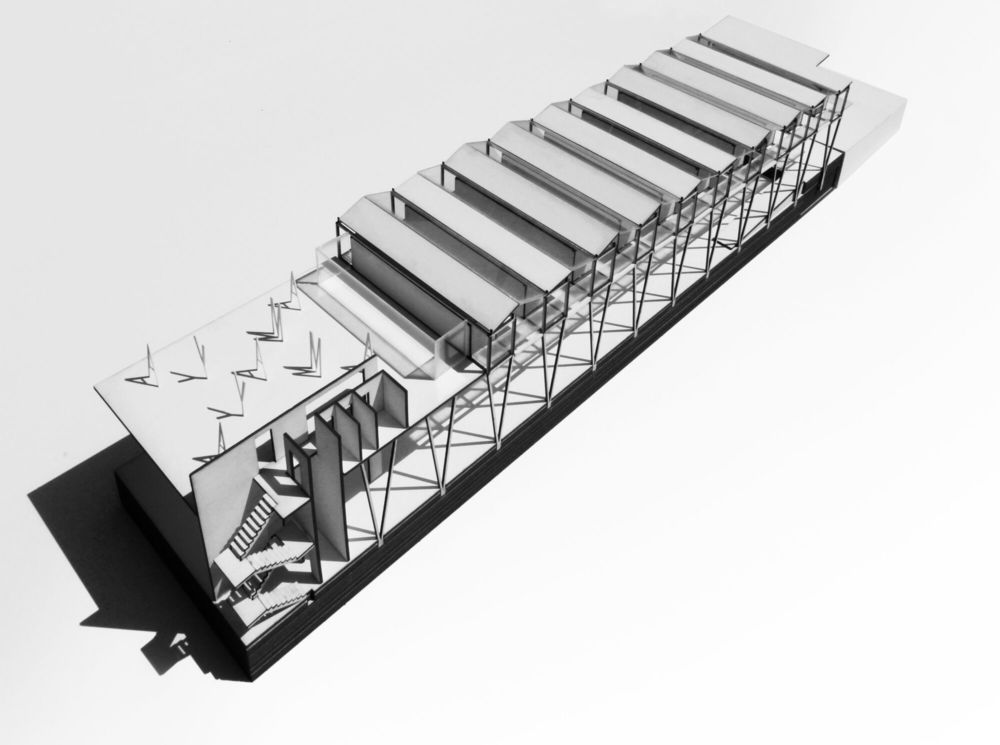

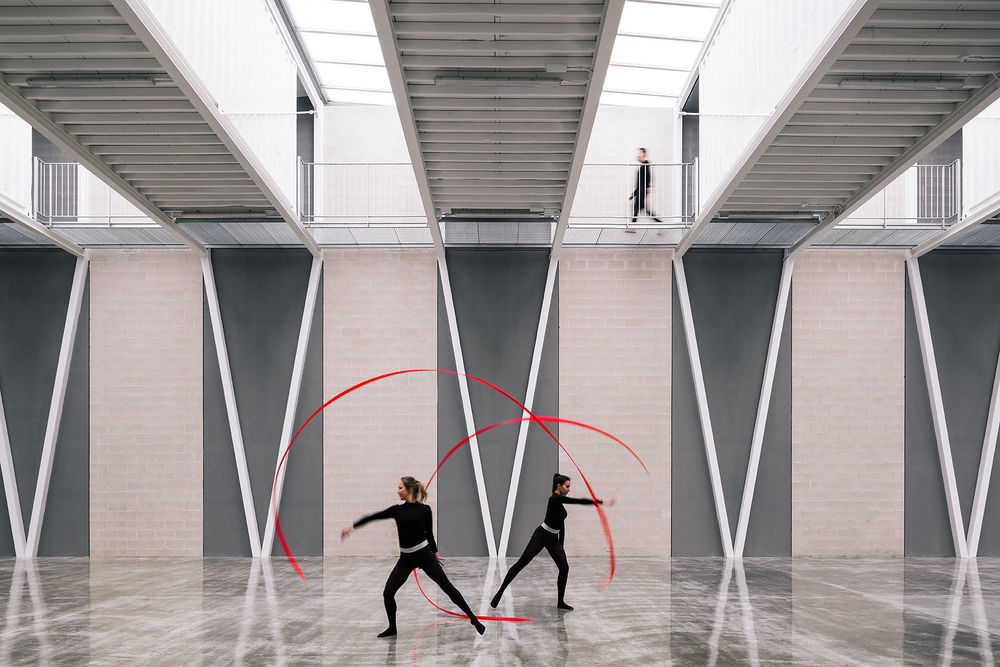

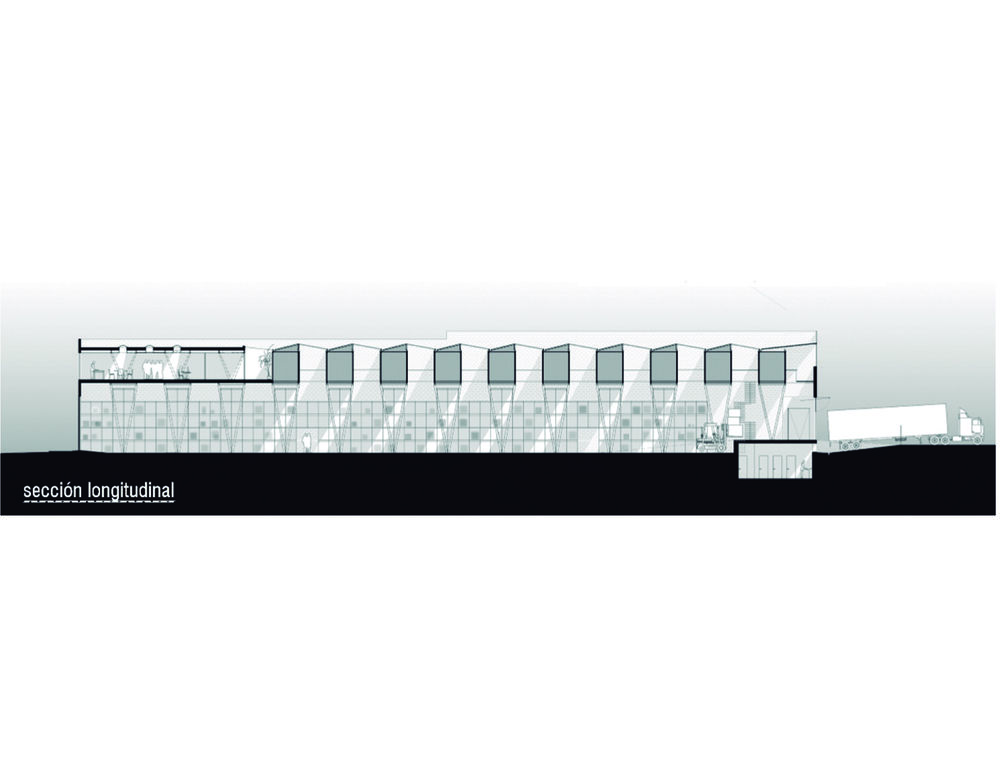

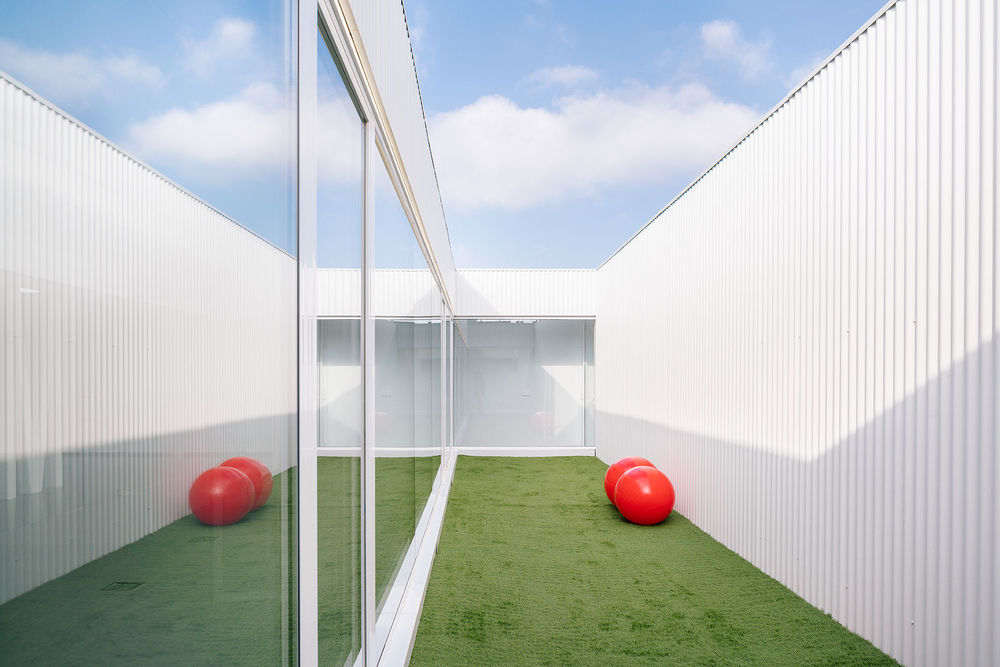

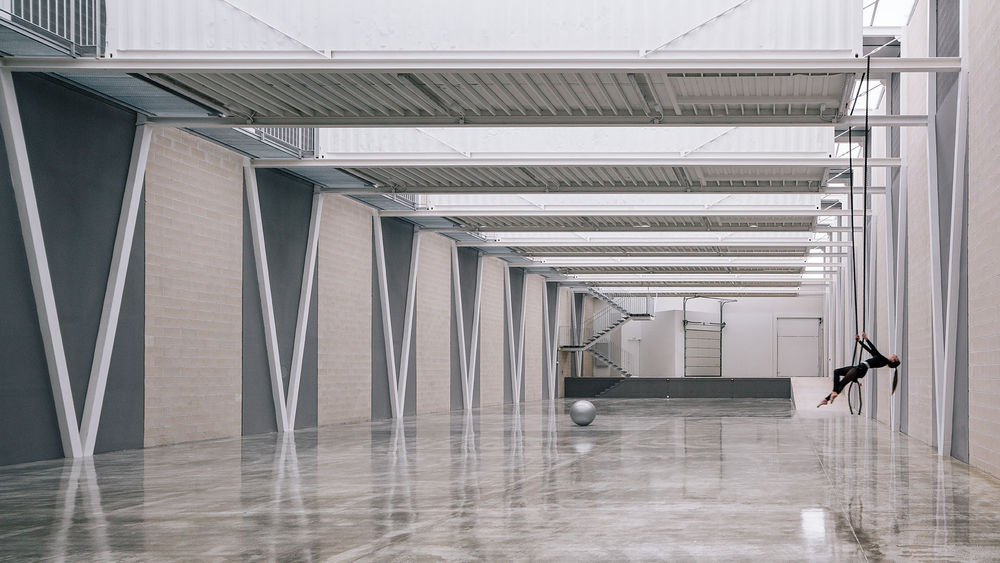

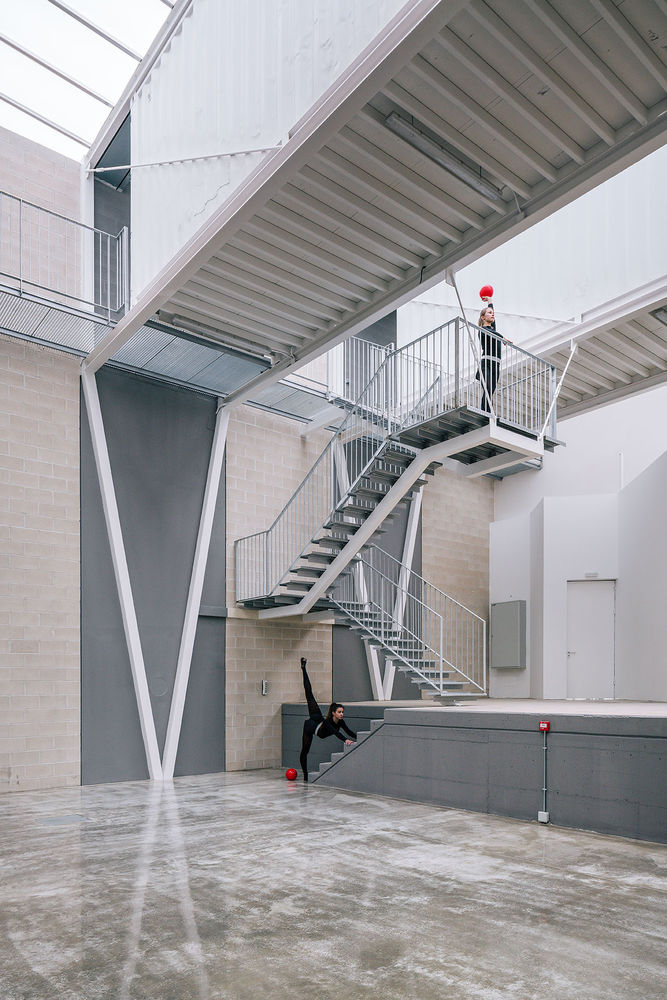

The dark mutism of the exterior contrasts with the whiteness of the interior light. The longitudinal section reuses ten 40-ft containers, conforming the roof with vierendeel trusses supported by structural “V” shape pillars. The light is filtered between these porticos through generous bands of translucent skylights. The offices are located on the upper level in the west side, within a truss personalized by the letters of the company (Amaya) and illuminated through a perforated black steel facade and by a full glazed patio that continues the rhythm of the space between the containers. On the mezzanine there are meetings rooms and a resting lounge for all workers.

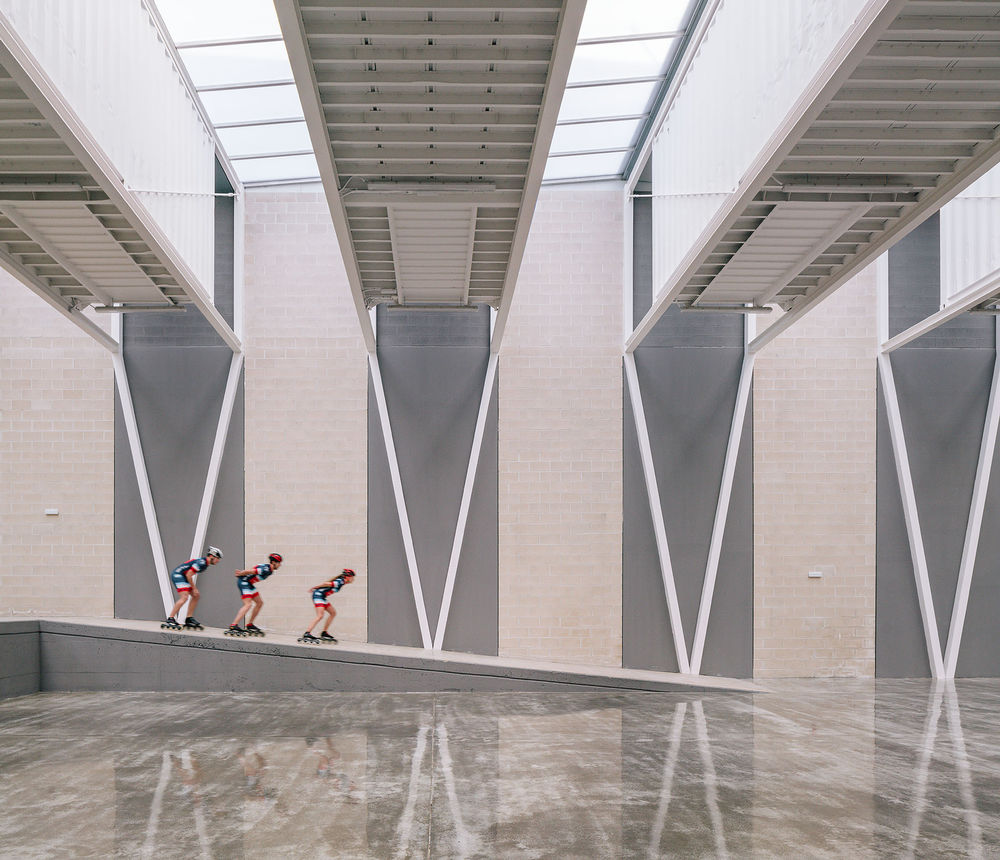

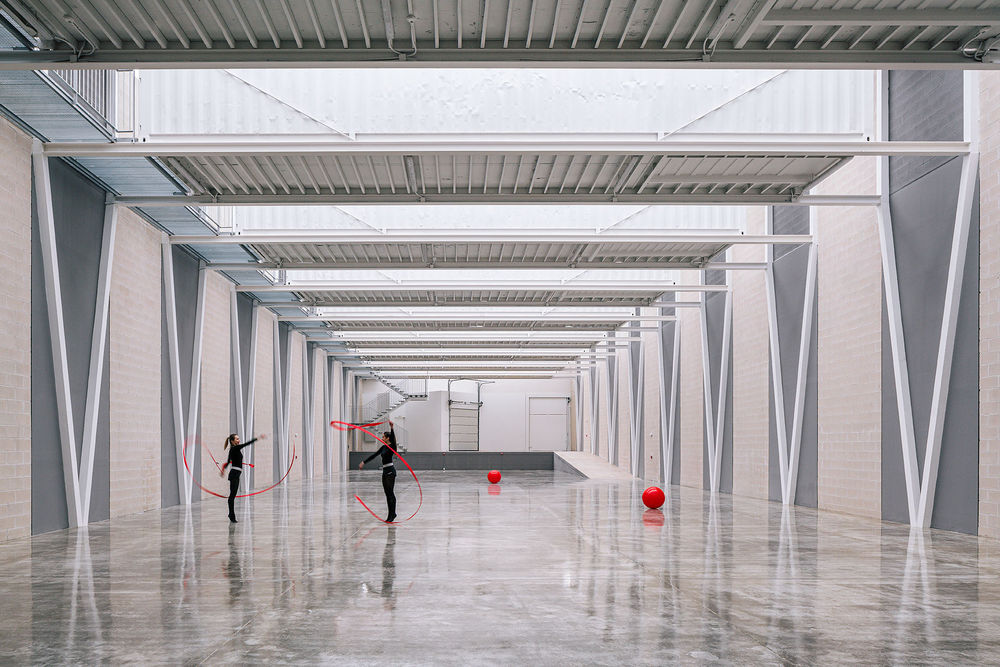

In this attempt to recover some land in the industrial estates, we have worked with economic materials and standardized dimensions. Material sobriety and rigorous modulation can be felt in the recycled containers, steel structures, joints of the concrete blocks and in the corrugated sheets of the floors and facades. The abundant skylights in the warehouse and offices make the use of artificial lighting practically unnecessary during daylight hours. Although it will be filled with pallet racking, the space has been enjoyed by gymnasts and skaters that the sports company sponsors.
