设计亮点

充分利用自然光，实现室内外空间融合，保持户外空间精髓。

(C)戴维·弗鲁托斯

架构师提供的文本描述。埃斯皮伊格·德恩·瓦尔斯体育中心的项目分为两个不同的阶段；第一个阶段包括对现有两个室外场地的覆盖；第二个阶段是设计和执行其周边的围护设施。

Text description provided by the architects. The project of the EsPuig d'en Valls Sports Center was conceived in two distinct phases; the first of these consisted of the covering of the two existing outdoor courts; the second was the design and execution of the enclosure of its perimeter.

(C)戴维·弗鲁托斯

在第一阶段的执行过程中，我们收到了围护结构设计的概要，我们的主要目标是在室内和更广阔的环境之间实现一种融合，以避免失去这个户外空间的精髓，用于运动实践，这一空间多年来一直被埃斯基格·德恩瓦尔斯的团队所使用。

When, during the execution of the first phase, we receive the brief for the design of the enclosure, our main aim was to achieve an element of fusion between the interior and its broader setting, so as not to lose the essence of this outdoor space for the practice of sport, which had been used as such by teams from EsPuig d'en Valls for years.

(C)戴维·弗鲁托斯

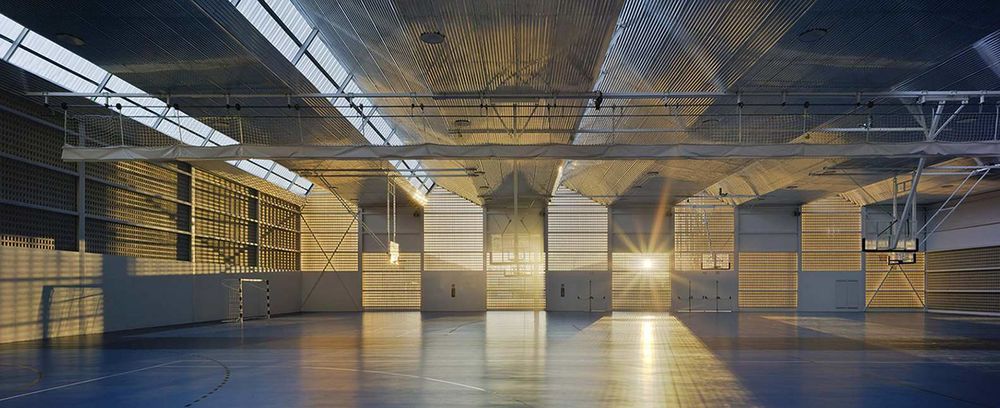

事实上，正是在第一阶段的实施过程中，我们才发现太阳从第一缕光线(由于东方没有障碍物)投射到黄昏的颜色的强度。因此，在新定义的空间中引入这些短暂的自然光的色调，已成为该项目的一个基本要素，使现有空间的体育本质在时间上得以延续，而该空间以前是完全开放的。

Indeed, it was during the implementation of the first phase that we discovered the intensity of the shades of colour that the sun projected onto the building from first light (due to the absence of obstacles to the east) until dusk. For this reason, the introduction of these fleeting tones of natural light into the newly defined space has become a fundamental element in the project, one which gives continuity in time to the sporting essence of the existing space, which previously was completely open.

(C)戴维·弗鲁托斯

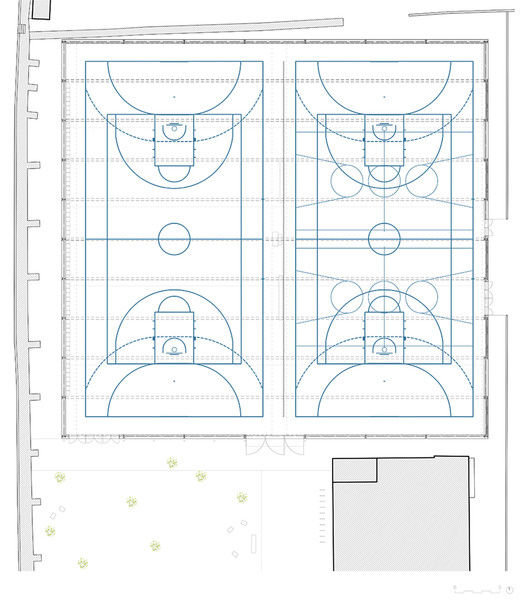

Ground Floor

(C)戴维·弗鲁托斯

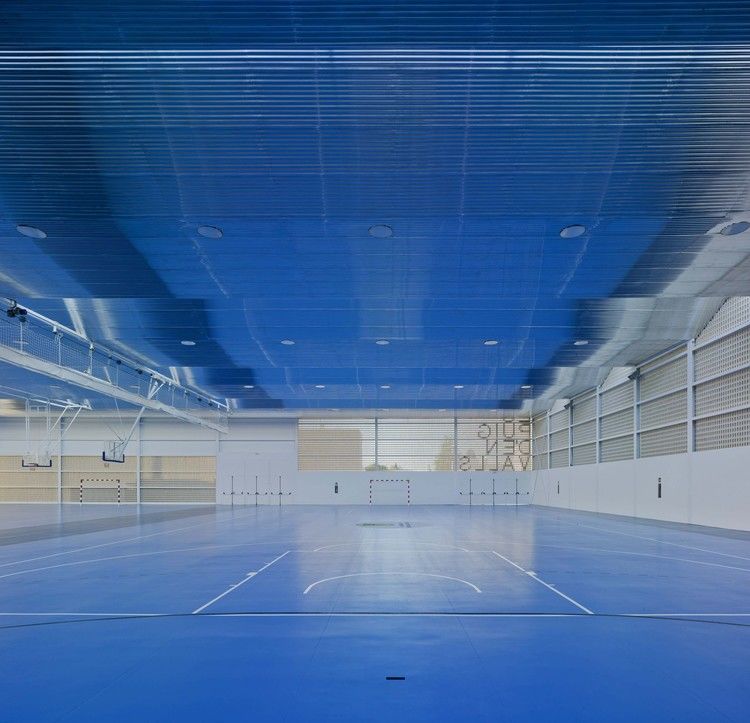

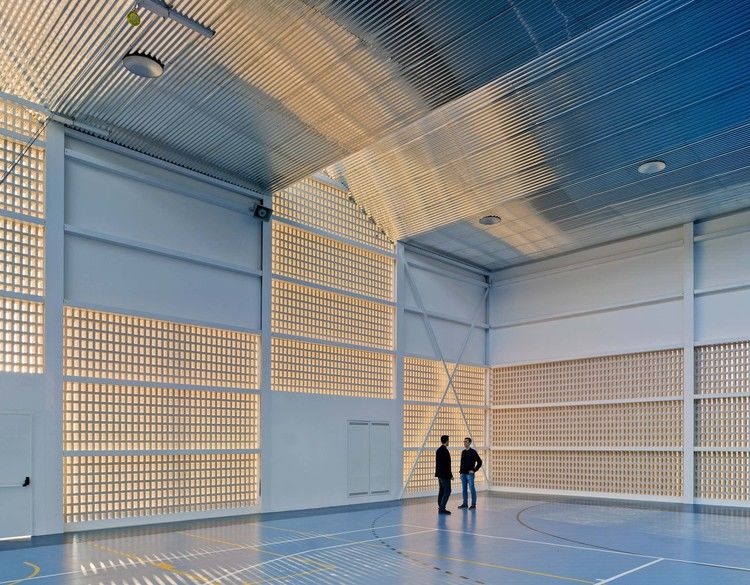

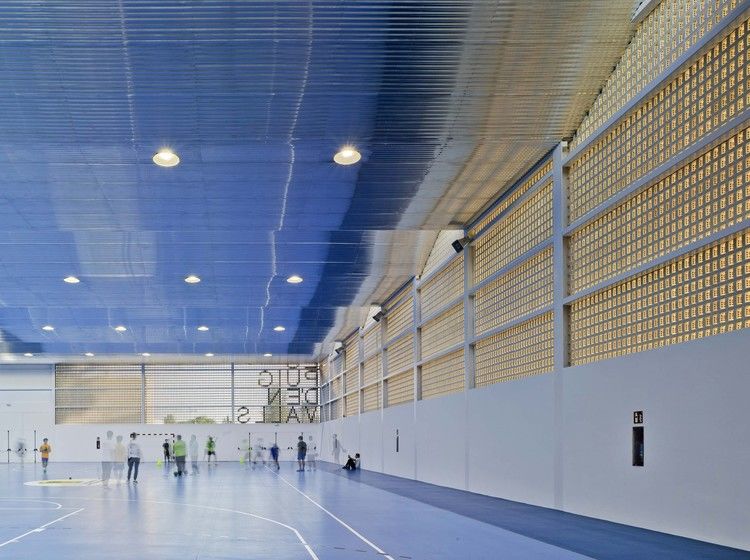

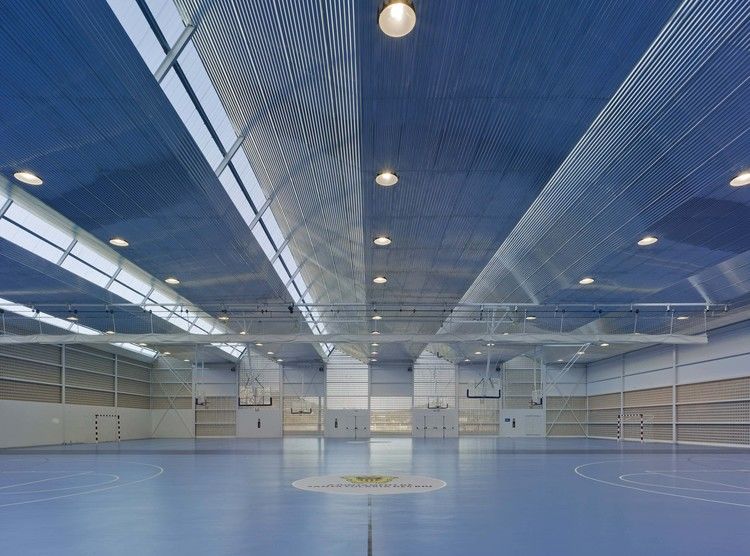

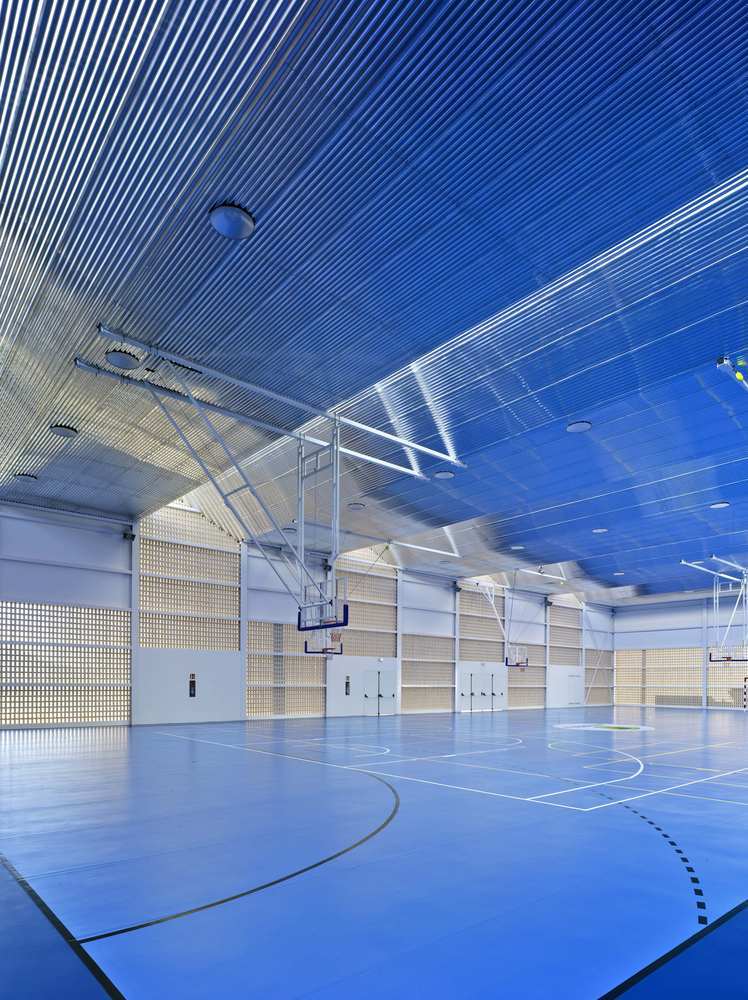

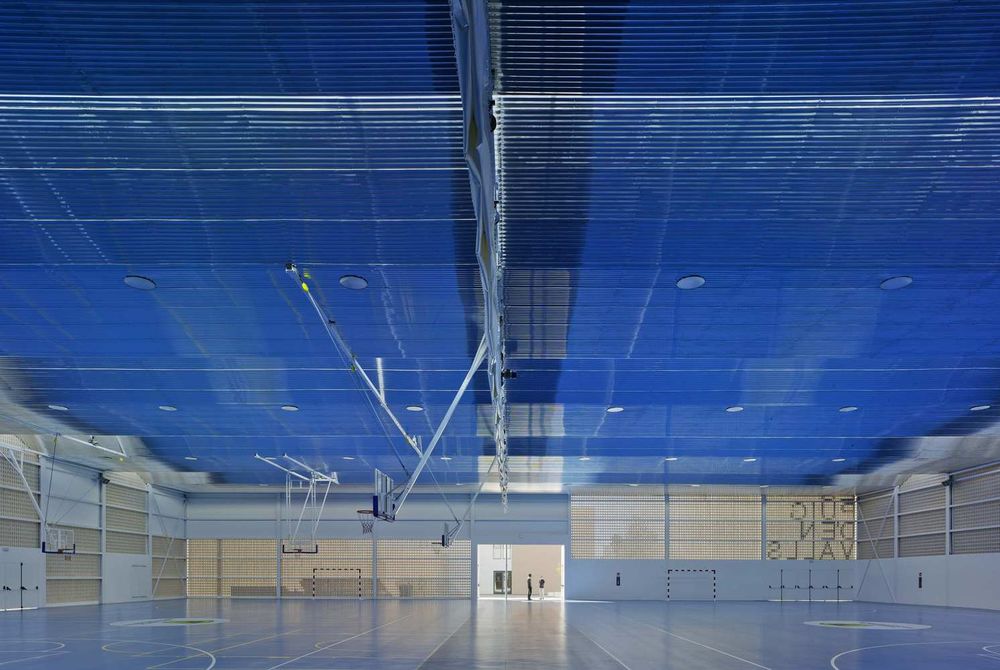

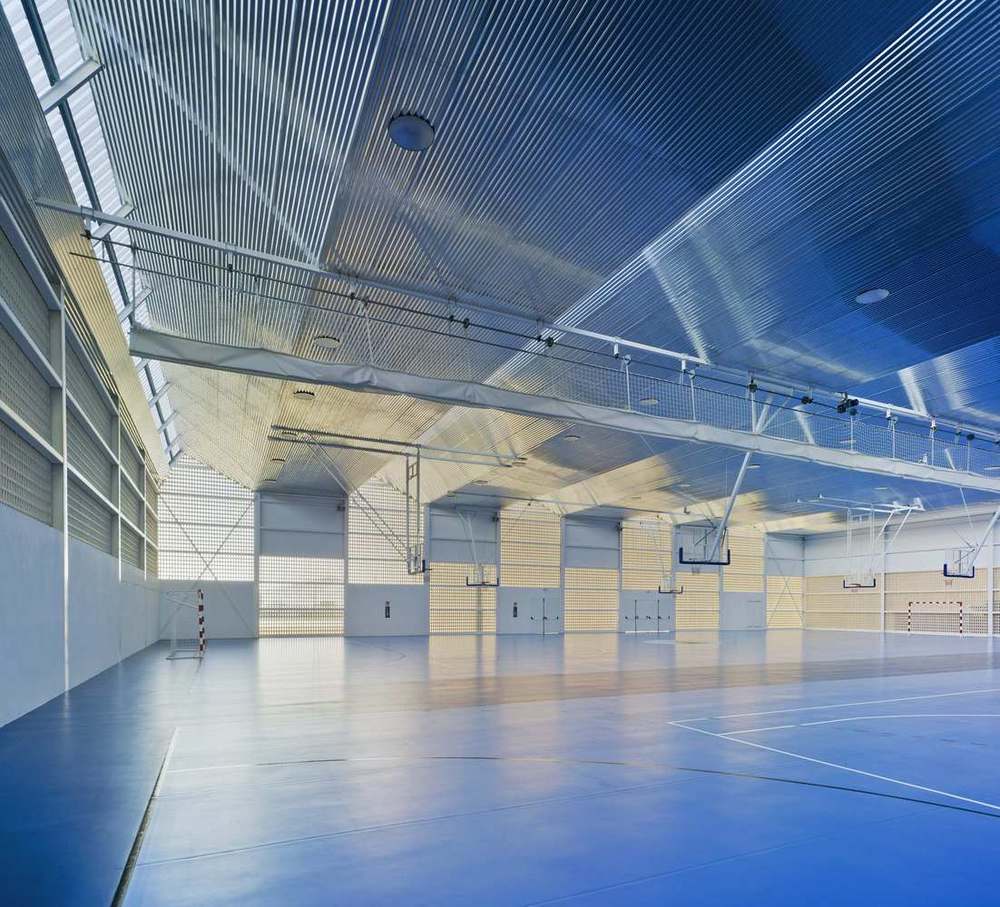

现有空间的本质，它以前是完全开放的。为了确定这种内部和外部永久变化的关系，我们研究了建筑的六个表面：它的地面，它引入了一种蓝色，在巴里尔景观中很明显；它的天花板，瓦楞纸铝制，具有反射能力，提供了开发过程中所有元素的融合；这四面墙是通过将24厘米裸露白砖的盲板墙和格子墙结合而成的，具有足够的透气性，允许两个相对正面的组成重叠，并引入环境的颜色作为每一种墙面组成的一部分。

essence of the existing space, which previously was completely open. To define this relationship of permanent change between the interior and exterior,we worked with the six surfaces of the building: its ground, which introduces a blue colour, so evident in the Balearic landscape; its ceiling, of corrugated aluminium, with a reflective capacity which provides a fusion of all elements in the development; and the four walls, materialized through the combination of blind panel walls and lattice walls of 24 cm exposed white brick with sufficient permeability to allow for the compositional overlapping of two opposing facades and the introduction of the colours of the environment as part of the composition of each of these.

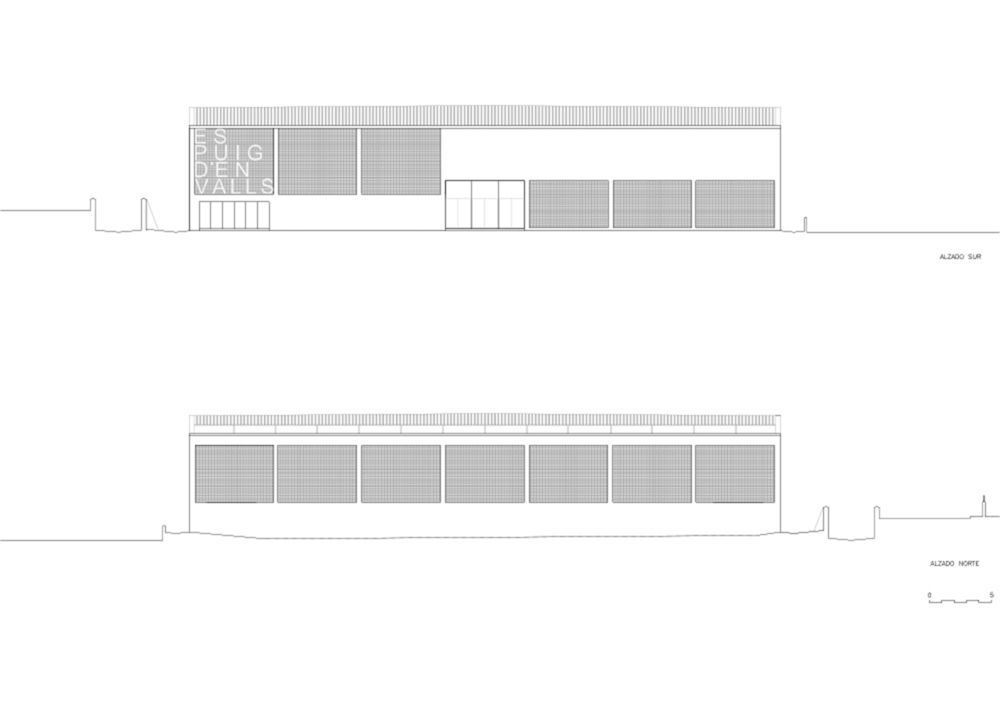

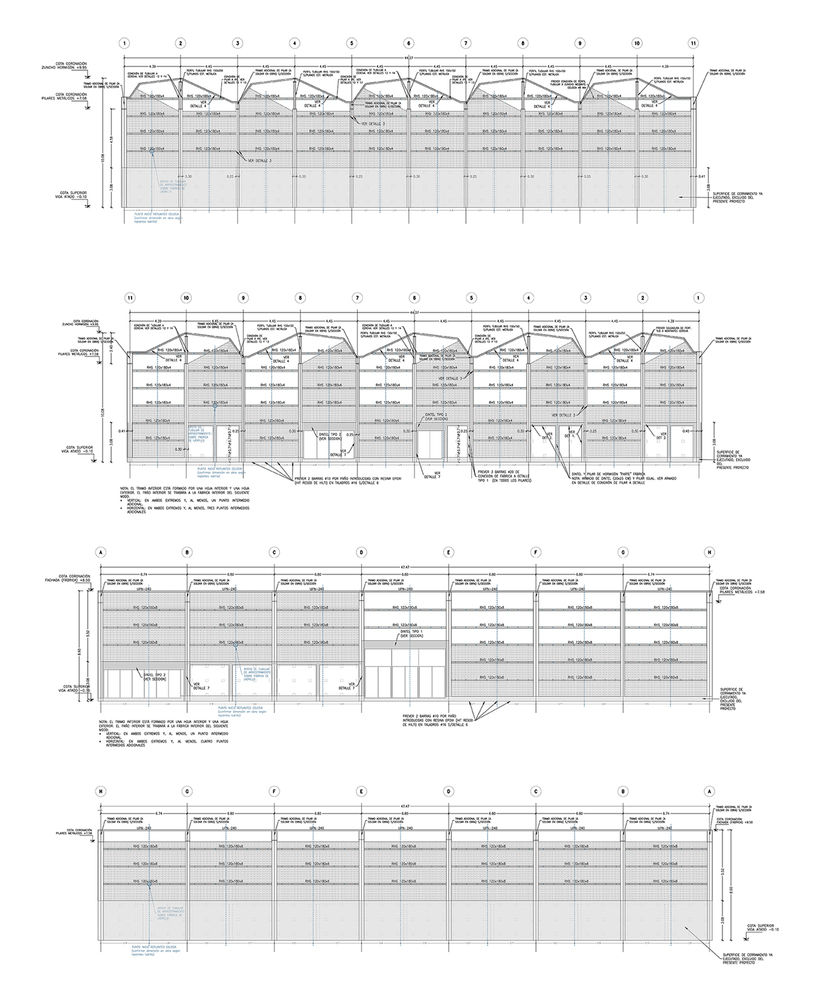

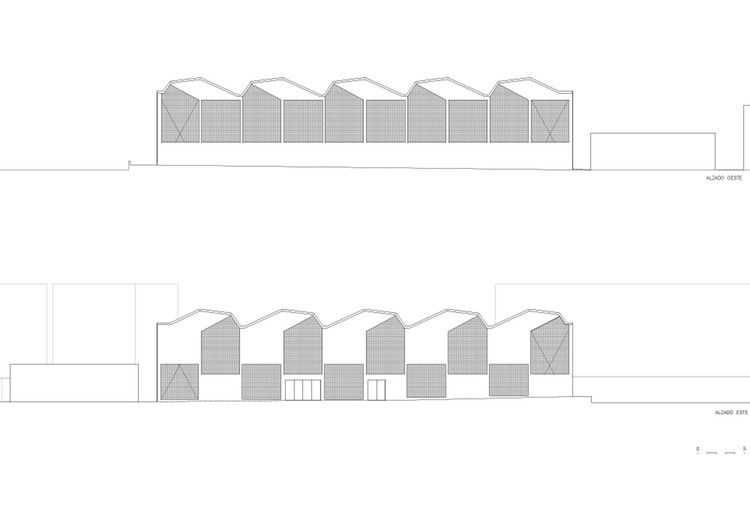

Elevations

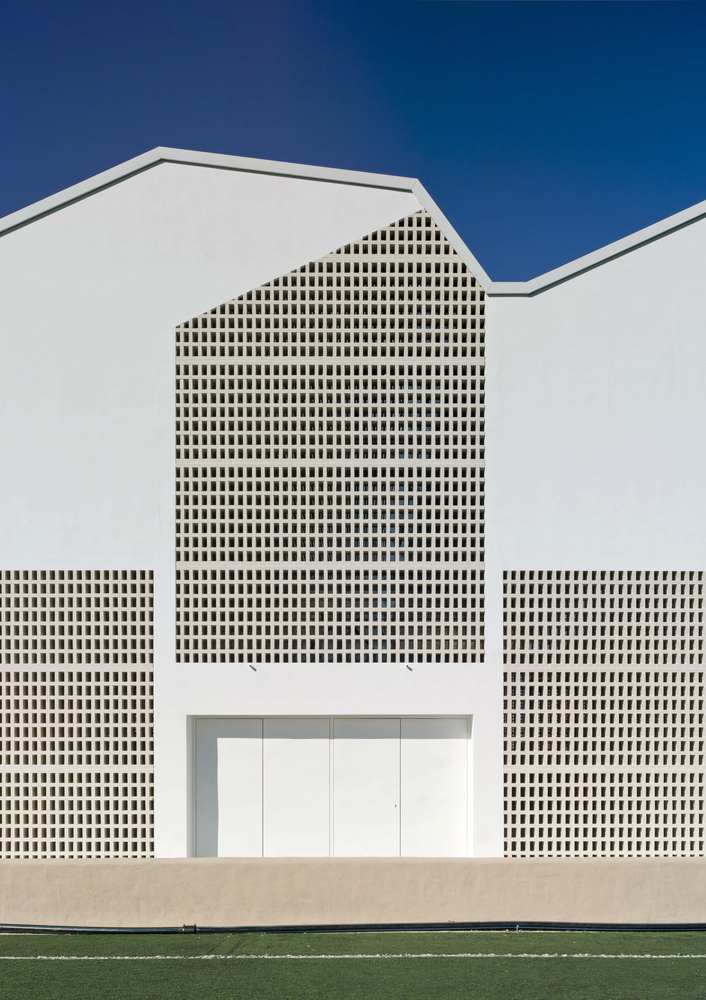

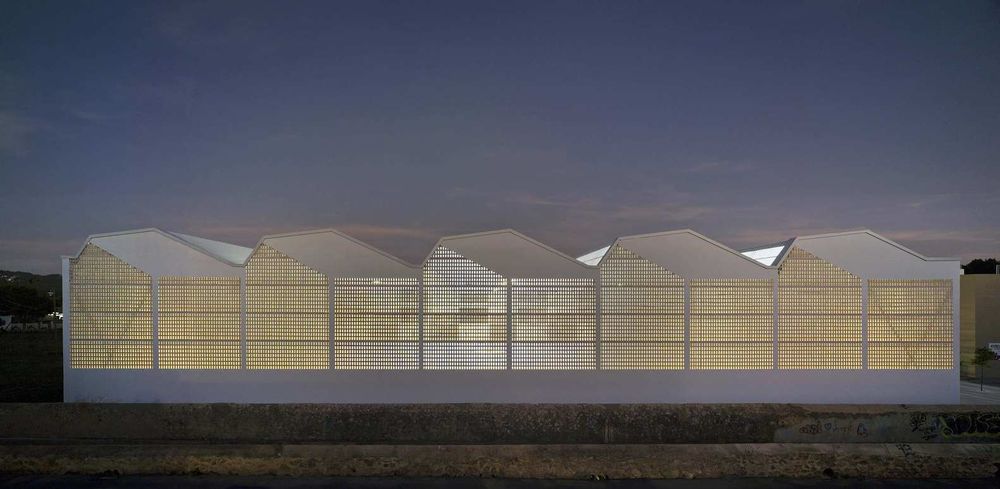

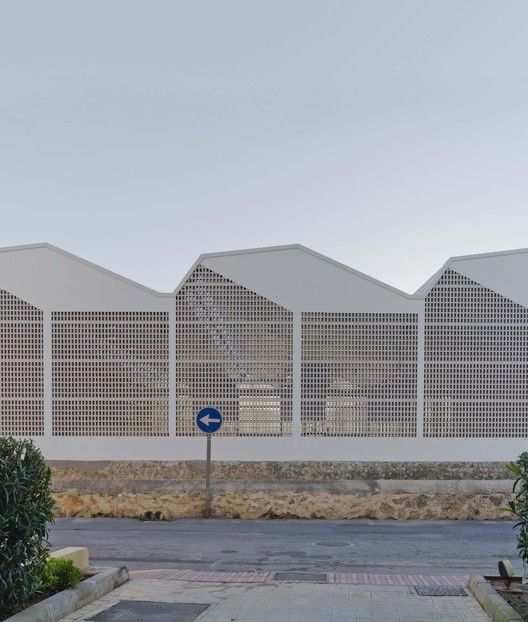

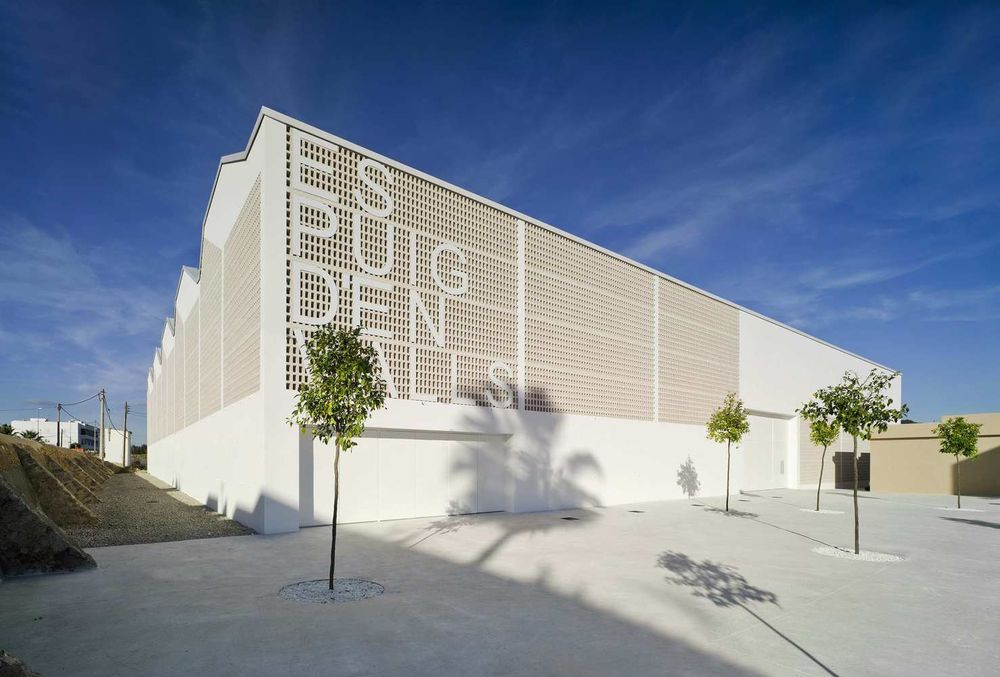

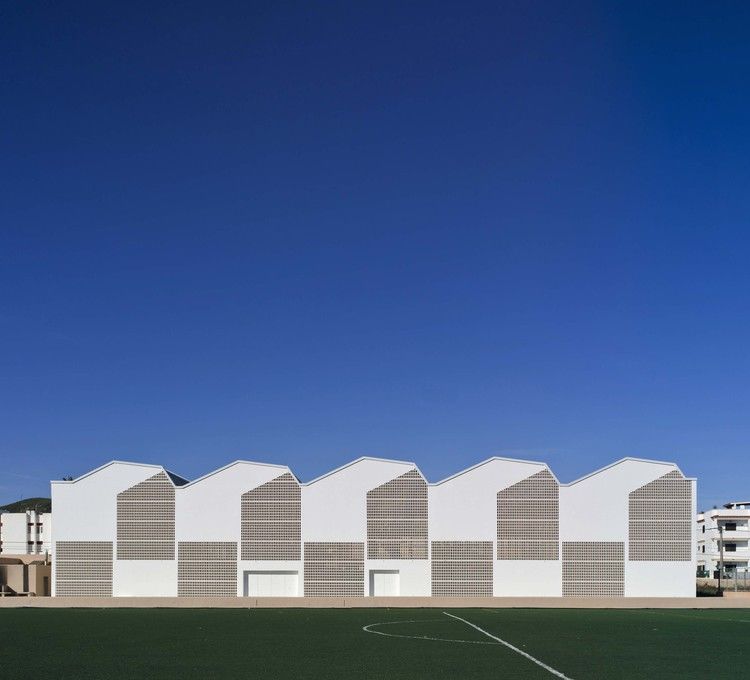

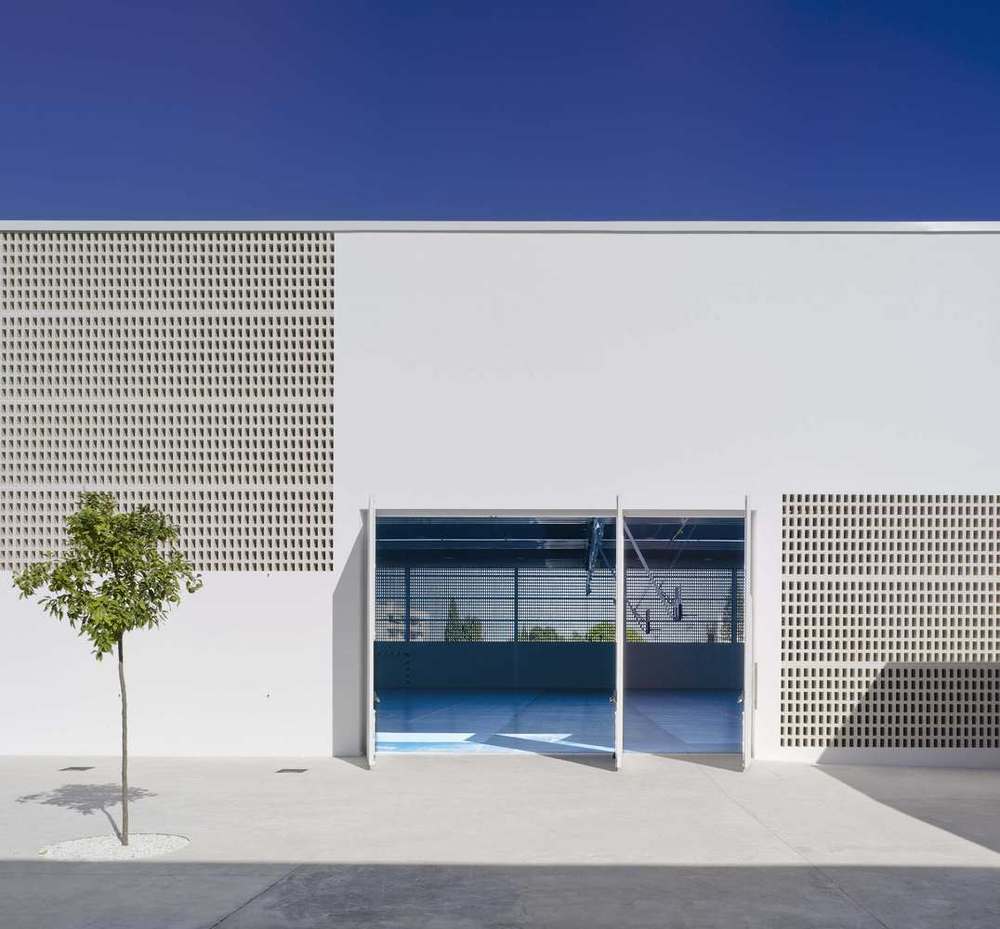

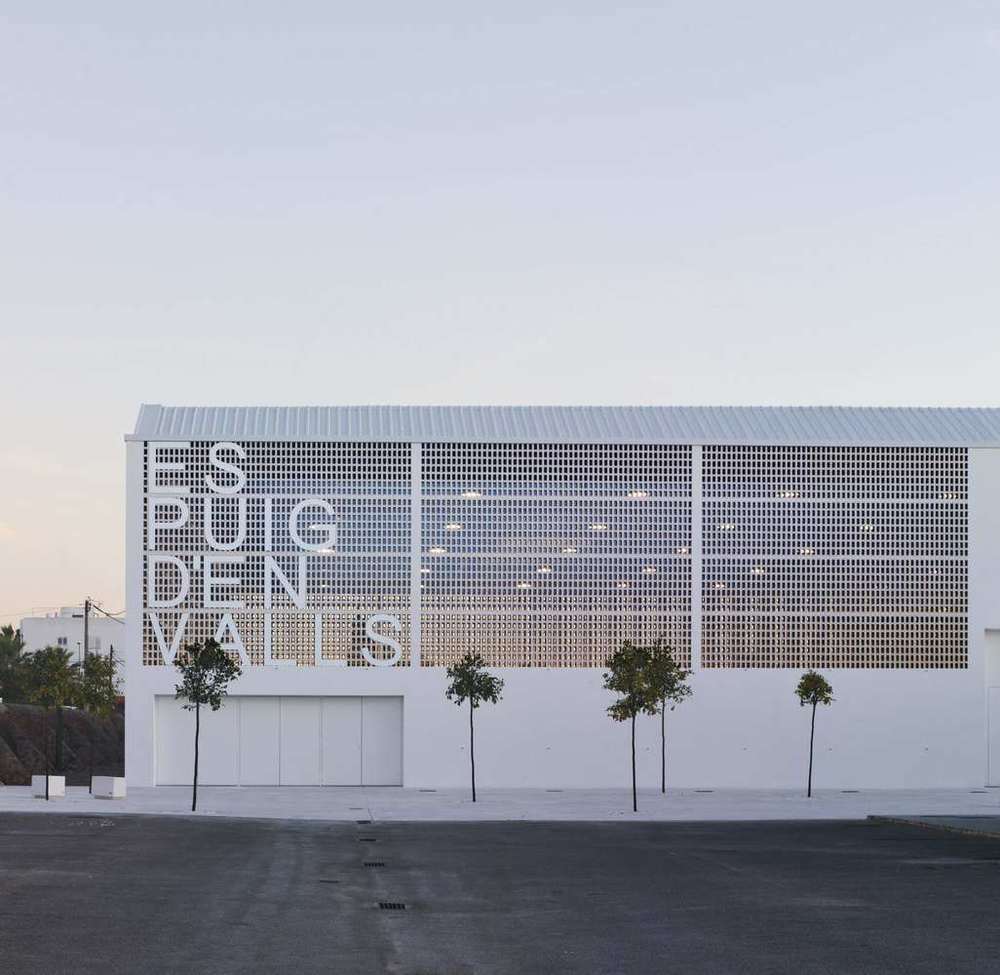

在西面，格子板是按照水平线对齐的，这条水平线是沿着建筑物边流过的；东面的正面打破了这种线性，以便能够反射出远处山区地平线的破碎线；提供主要通道的南面采用了一种格状织物，这种织物处于不断变化的颜色状态，因此构成了整个布局中最具代表性的元素。格子材料(白色开砖)，以及根据太阳的位置提供显著的颜色细微差别，从一天中的某些时间的颜色到纯白色，都是最有代表性的。允许包括一个24厘米厚的墙，这大大抑制了水进入围场，即使在恶劣的天气条件。

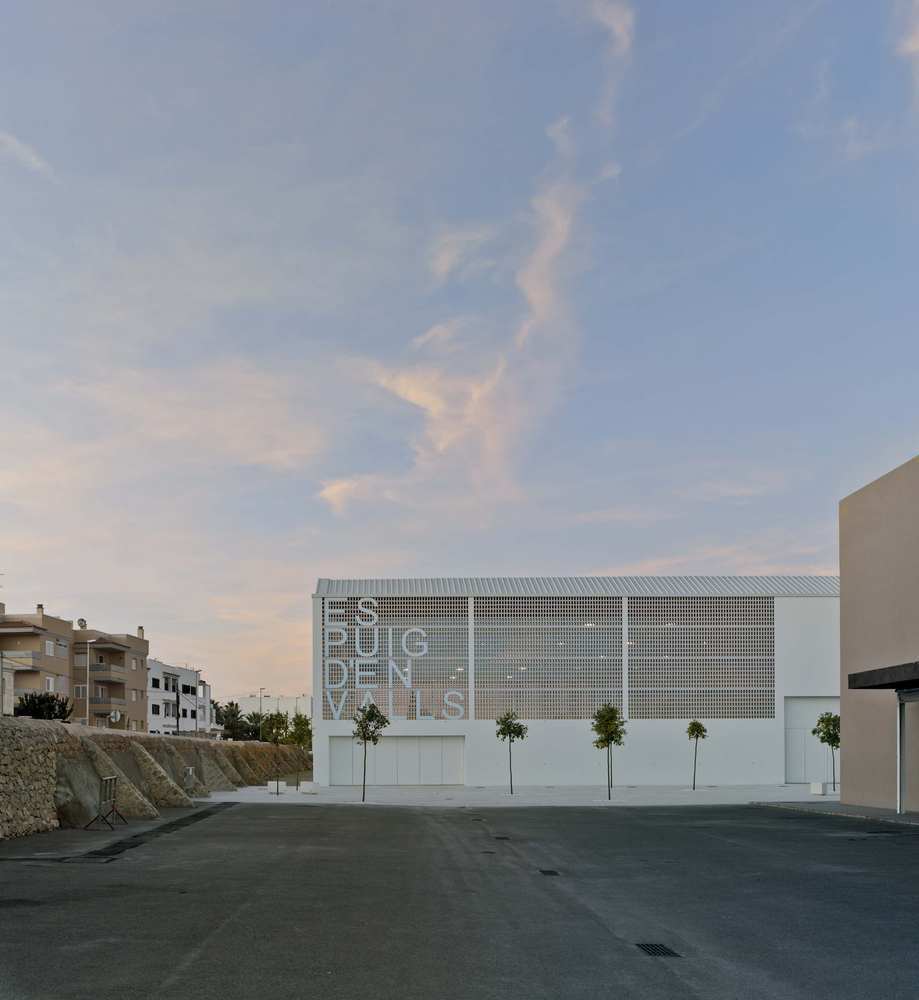

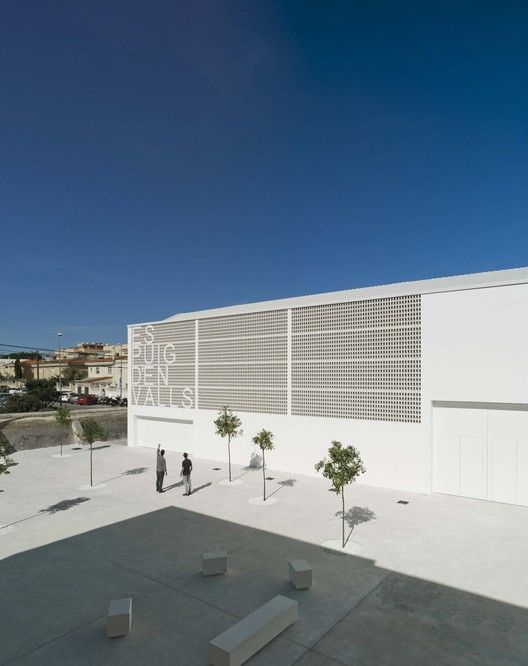

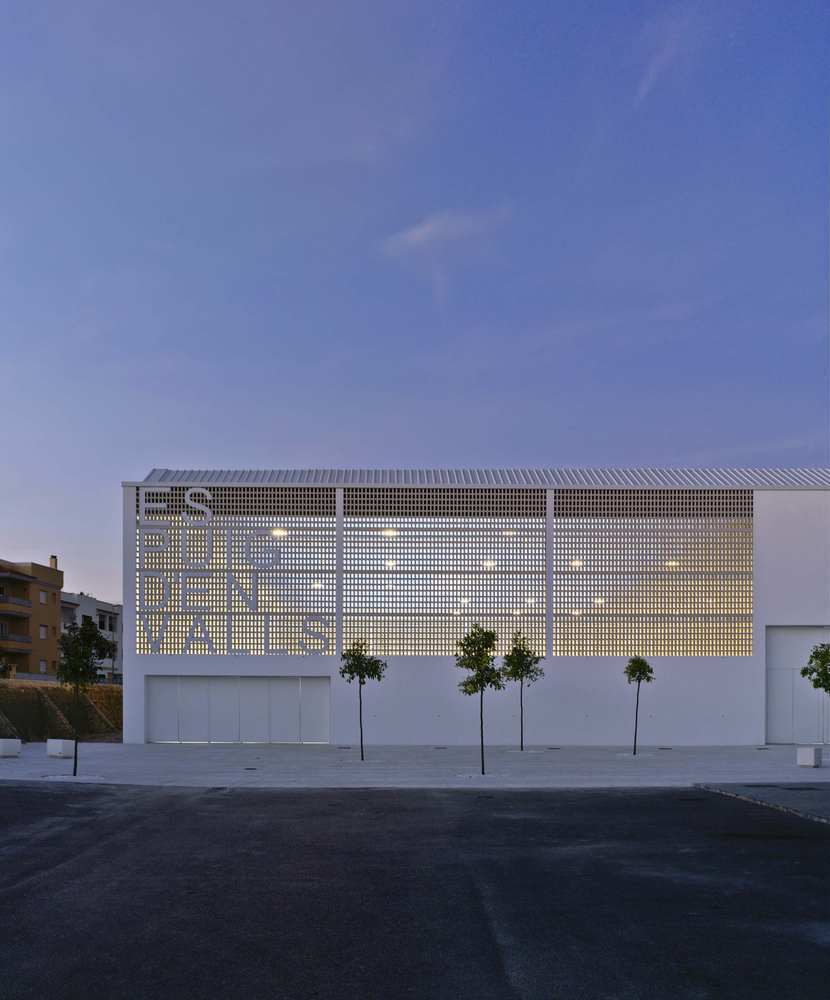

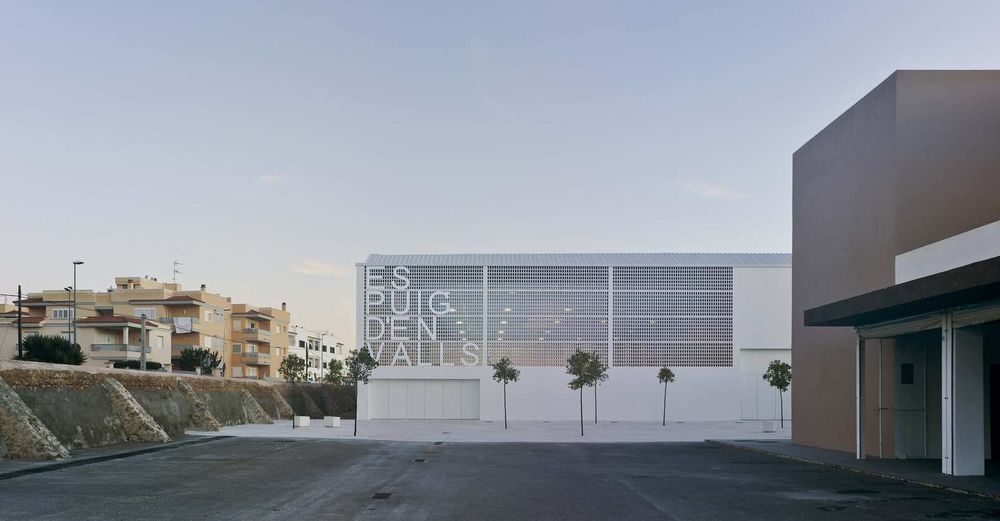

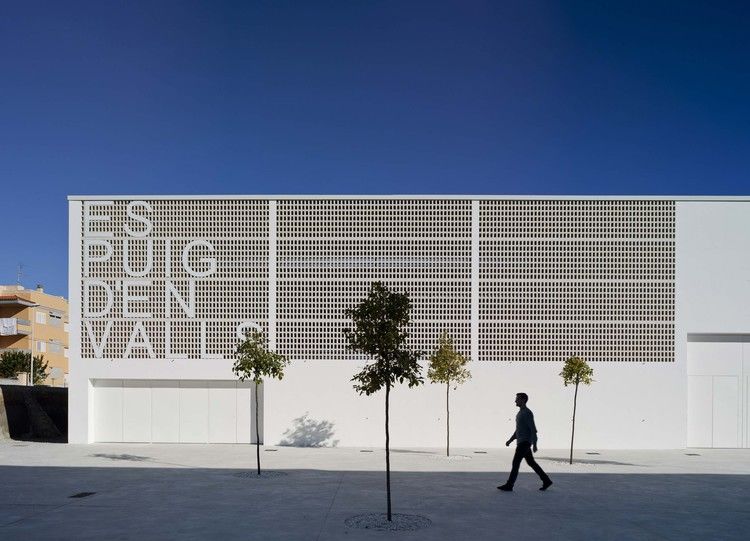

On the western facade, the lattice panels are aligned according to the horizontal line marked by the stream that runs alongside the building; the eastern facade breaks this linearity to allow for a reflection of the broken lines of the mountainous horizon beyond; the southern facade, which provides the main access, incorporates a lattice fabric in a continuous state of changing colours, and as such constitutes the most representative element of the whole plot.The material selected for the lattice (white open brick), as well as providing notable nuances of colour according to the sun’s position, these ranging from ochre at certain hours of the day to pure whites, allows for the inclusion of a 24cm thick wall which greatly inhibits the entry of water into the enclosure, even in adverse weather conditions.

(C)戴维·弗鲁托斯

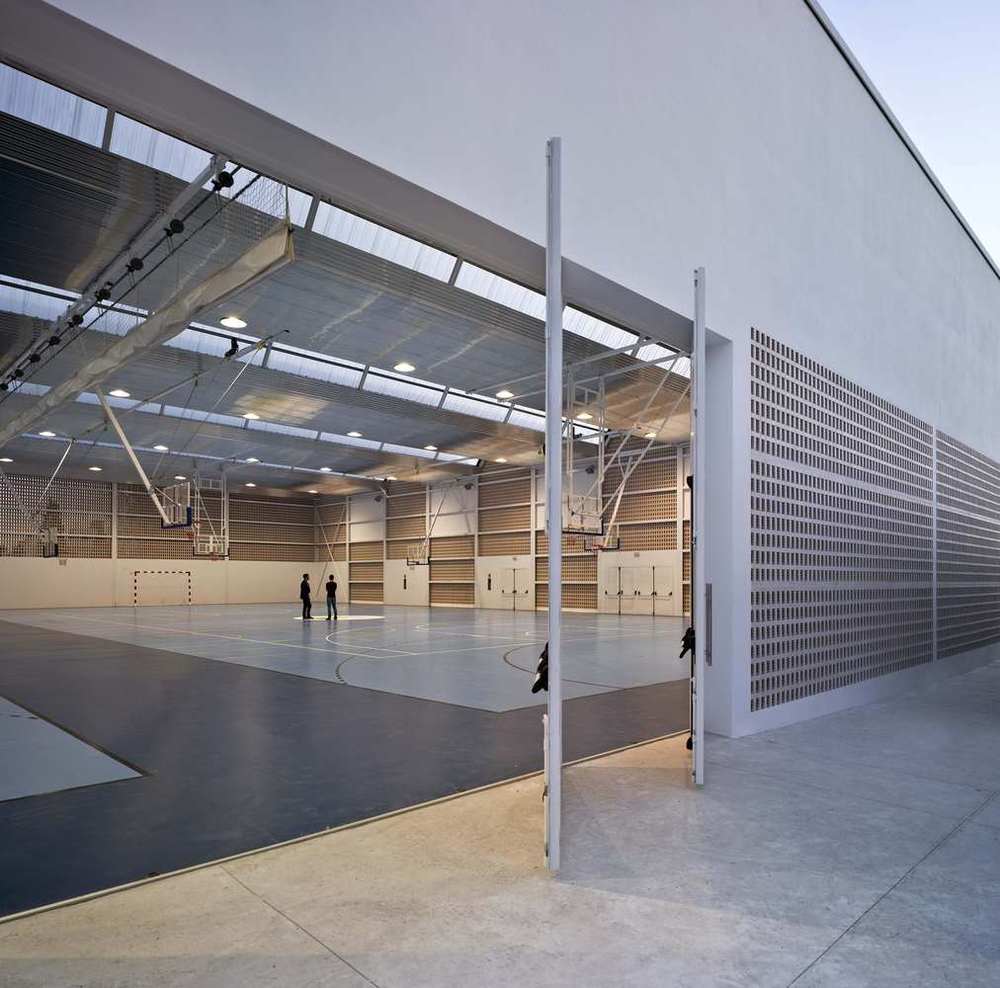

因此，为了寻求内部和外部的密切关系，建筑能够充分利用当时的气候条件，以实现通风和自然照明系统，从而使能耗水平接近于零。

As a result seeking a close relationship between interior and exterior, the building is able to take full advantage of the prevailing climatic conditions, in order to attain a system of ventilation and natural lighting, and which leads to a level of energy consumption close to zero.
