设计亮点
结合斐济传统文化,打造多功能社区活动空间,鼓励创意表达和社交互动。

该项目位于斐济瓦努阿莱武岛的Naidi村庄,自原先的社区大厅因失修而停止使用以来,Naidi村庄已经有7年未曾修建新的大厅。考虑到这一问题,当地的一家非政府组织(Naqaqa施惠基金会)与事务所CAUKIN Studio取得了联系,希望为村庄建造一座新的社区大厅,从而为400多位居民和75户家庭提供聚会、庆祝和活动场地。按照斐济的传统,社区大厅代表着一个村落的文化和管理中心。

Naidi village, located on Vanua Levu in Fiji, had been without a community hall for 7 years, when their previous community hall fell into disrepair and was deemed unsafe for use. In the wake of this, the project came to fruition when a local NGO, the Naqaqa Giving Foundation approached CAUKIN Studio. Serving a village of 400 people and 75 households, the hall’s main function was to provide a space for the community to come together for meetings, celebrations, funerals and weddings. In Fijian culture, the community hall is the cultural and operational heart of a village.

▼Naidi乡村社区大厅外观,Naidi Community Hall ©Katie Edwards

在社区的共同影响下,设计团队很快地意识到该项目需要构建的核心空间:一个能够供人们唱歌、制作手工艺品以及表演斐济传统“米克舞”(Meke)的场所。CAUKIN Studio相信,一个安全、实用、美观且能够鼓励创造性表达的空间对于个人和社区的发展而言均有着十分重要的意义。

With the collaborative influence of the community, it quickly became clear that the building must provide a space to sing, create local handmade crafts and perform their famous ‘Meke’ – a traditional Fijian dance. CAUKIN Studio believes that having a safe, functioning and beautiful space to express oneself creatively is vital to personal and community growth.

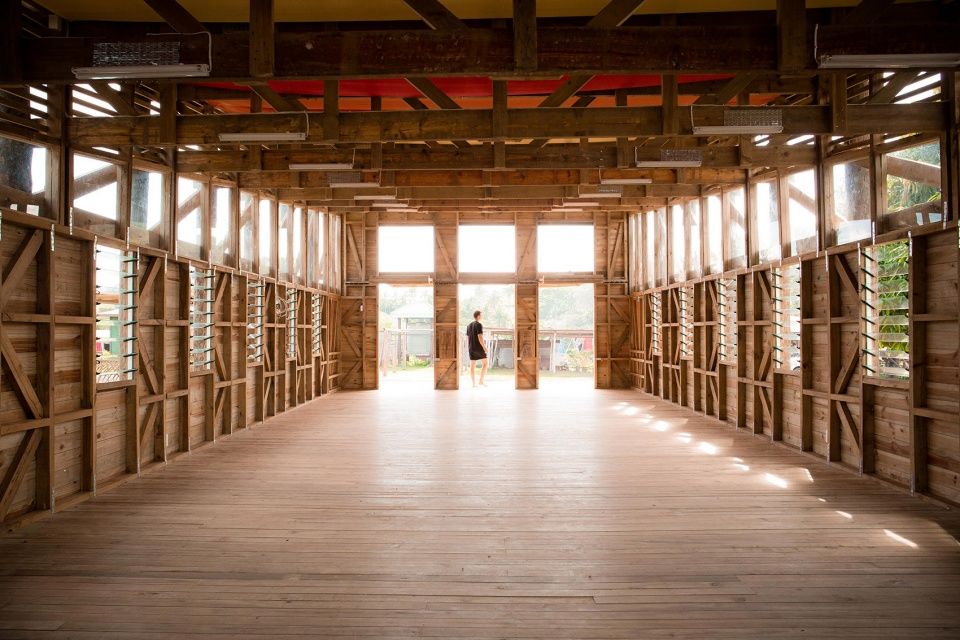

▼大厅内部概览,Interior of the community hall ©Katie Edwards

设计采用了剧院舞台的形式,使空间的宽度朝着主立面的方向逐渐扩大并伸向村庄广场的中心。入口立面安装了三扇上挂式枢轴门,将人们引向用于表演米克舞的舞台。增高的天花板为建筑物引入了更多的自然气流,并通过屋檐下方的木制栅格释出空气,从而能够在炎热的天气里保持室内的凉爽。

▼立面细部透视,Facade detail perspective ©CAUKIN Studio

The design takes its form from theatre staging, crescendoing at its front facade, facing towards the centre of the village green. Three large counter-weighted, top hung doors, open to create a stage playing host to performances of the village ‘Meke’. Through the extended ceiling height, a natural flow of air throughout the building is increased, being released through hit-and-miss timber cladding under the roof eaves. This results in a space that can remain cool on the hottest days.

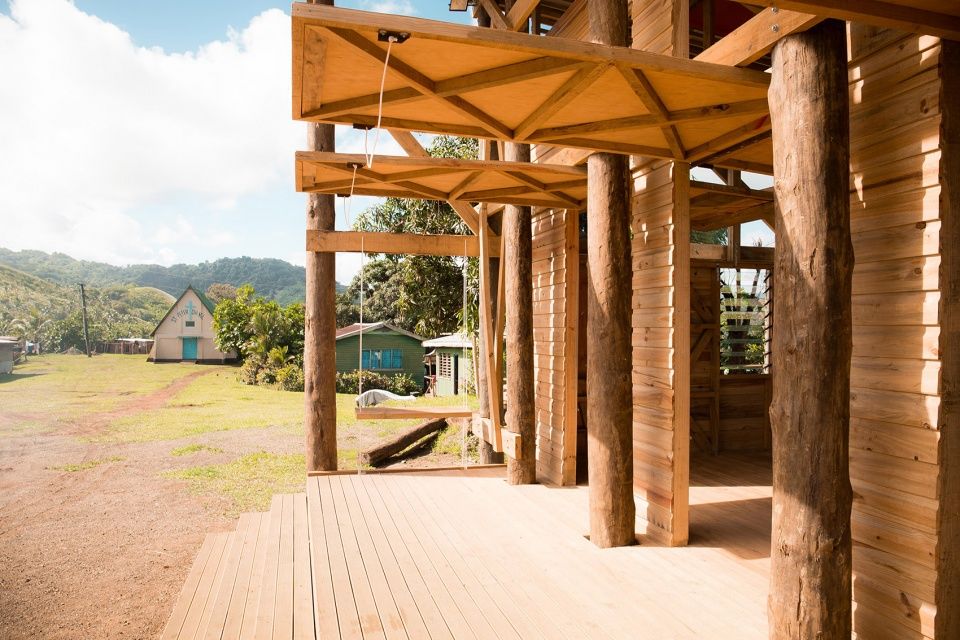

▼三扇枢轴门通向舞台空间,Three pivot doors create a stage area for performances ©Katie Edwards

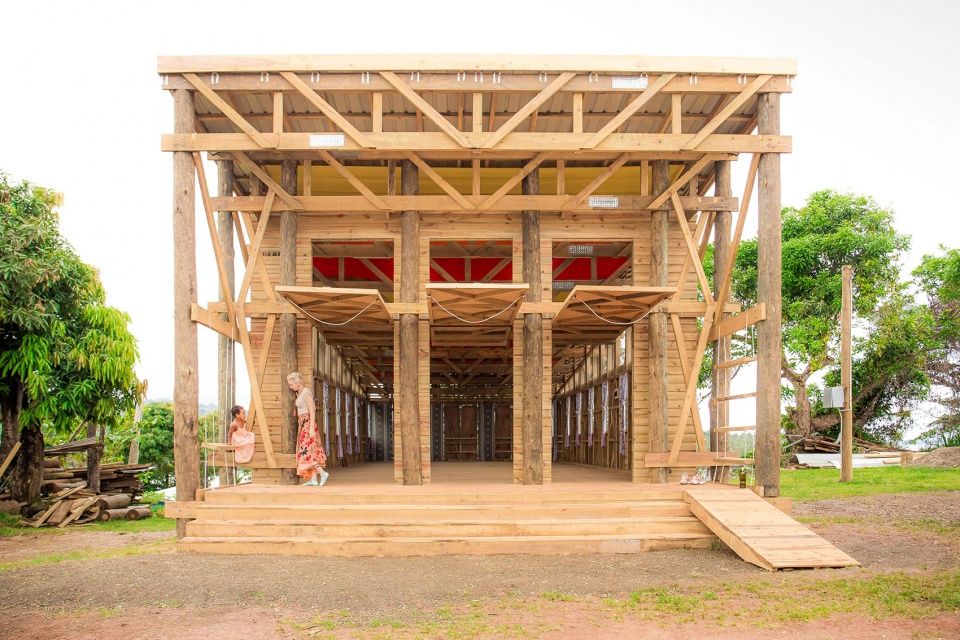

▼大厅的立面朝向村庄广场,The front of the community hall opens out to the village green ©Katie Edwards

通风的遮阳板、百叶窗和大尺寸玻璃窗共同营造出一个充满自然光的空间,为舞蹈表演和各类活动提供了理想的场地。建筑结构体现了创新性的设计和抗风性能,并且只使用了产自当地的材料,可以在斐济的其他社区进行复制和应用。该建筑的结构设计由Centrespace Design担任,该事务所在过去的4年中对CAUKIN提供了大量支持。

▼剖面透视图,sectional perspective ©CAUKIN Studio

The opening shutters, louvre blades and large panes of glass create a naturally lit space internally, enhancing performances and events taking place within. The structure demonstrates innovative design and cyclone resistance whilst still using only locally sourced materials, thus allowing the project to be replicable by local communities in Fiji. The building’s structural design was carried out by Centrespace Design, who have supported CAUKIN’s work for the past 4 years.

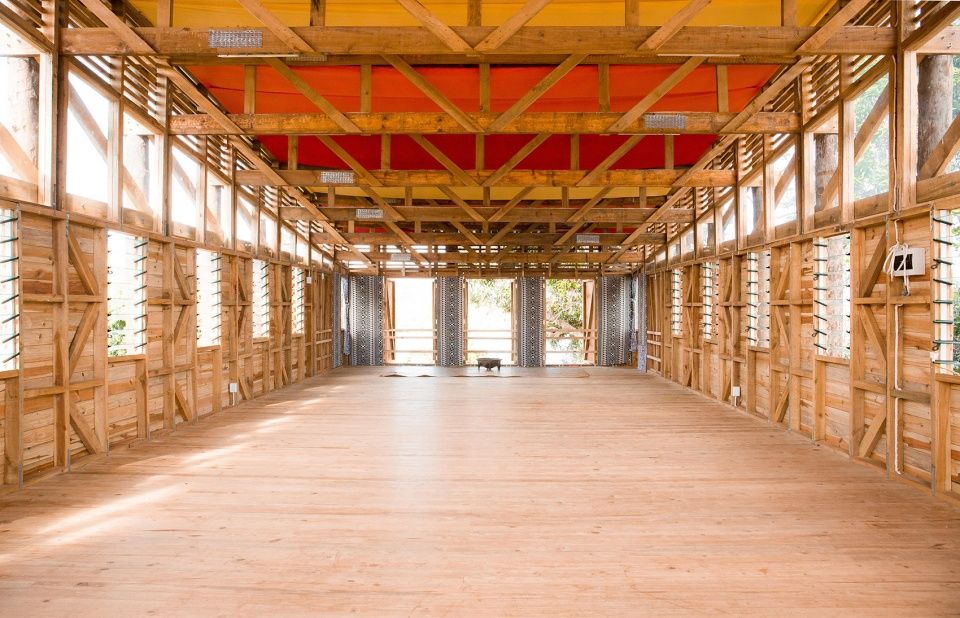

▼通风且充满自然光的空间,Interior of the community hall, with natural light and breeze ©Katie Edwards

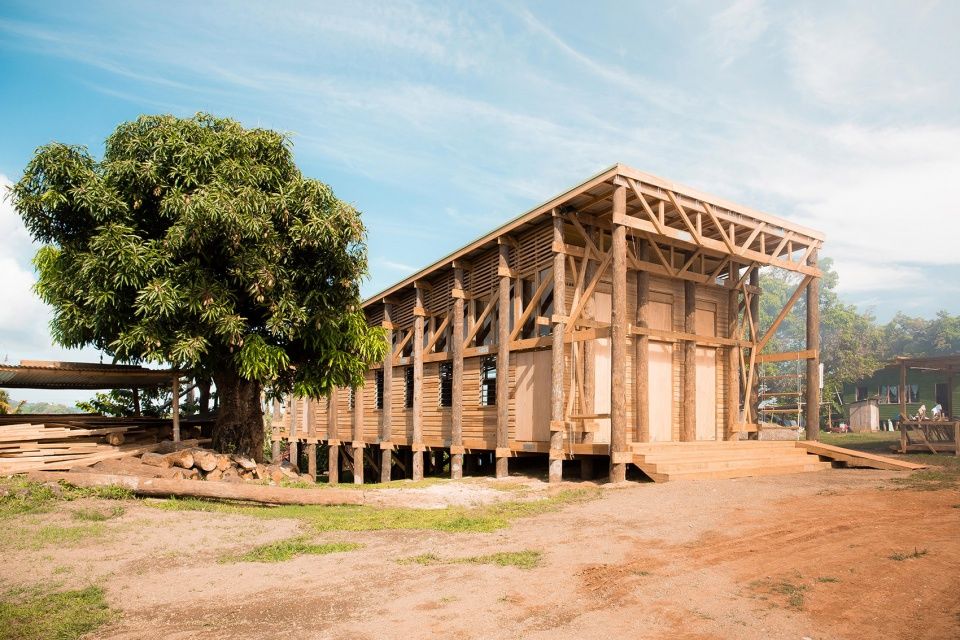

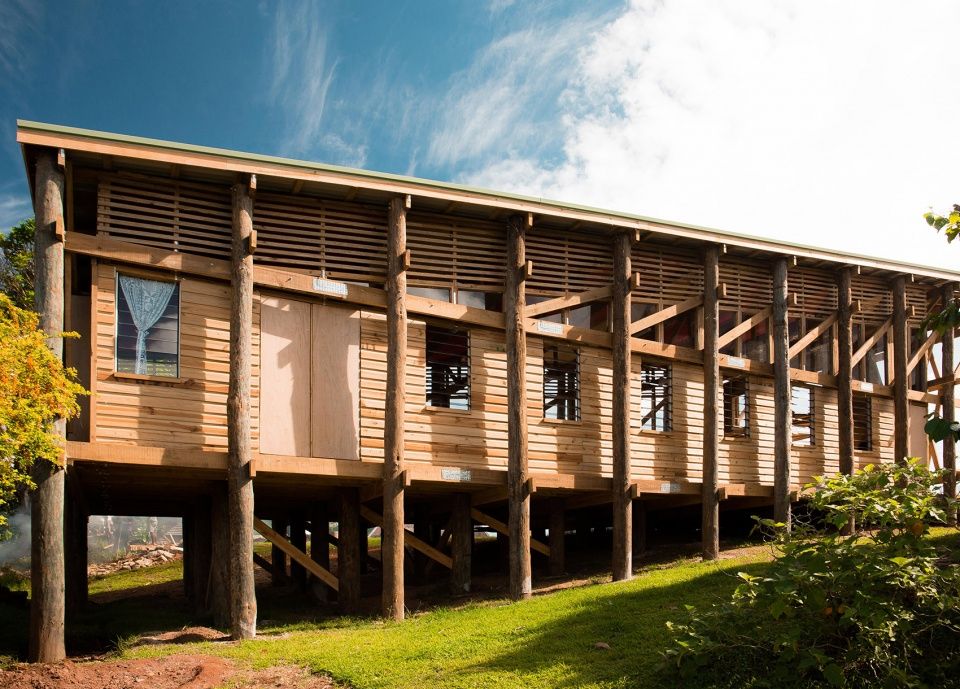

▼大厅由抬升于地面的框架结构支撑,The hall is suspeneded above a slope in an exoskeleton structure ©Katie Edwards

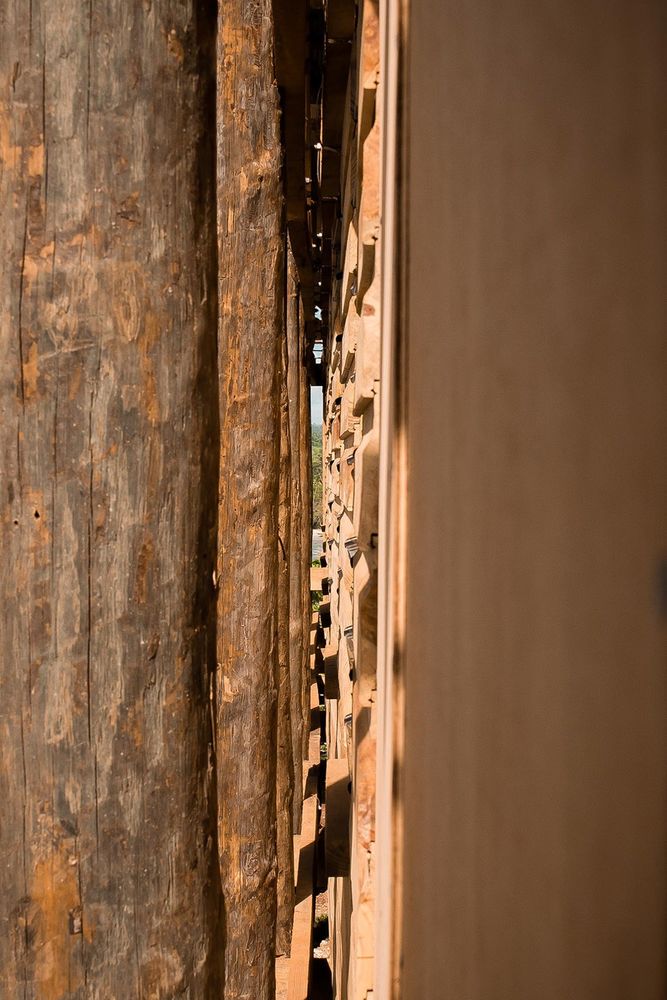

▼框架结构与饰面间的间隙,A gap separates the exoskeleton from the cladding ©Katie Edwards

项目的建造历时8个星期。施工团队由20位来自不同国家建筑学院和建筑事务所的参与者组成,并与当地的30多位工人进行了合作。类似的协作在项目开始前6个月便已启动;设计的每个阶段均采纳了来自社区的意见。建造的过程中不时会涉及到更多细节上的研究,参与者们与Naidi村的村民们同吃同住,潜移默化地获得了有用的知识和经验。

The project construction took place over the course of 8 weeks, with a team of 20 international participants from architecture schools and practices, working alongside over 30 local workers. The design was the result of a collaborative process that began 6 months prior to the project start date, and included input from the community at every stage of the design development. Much of the detailing and ongoing research happened concurrently with the project construction, with all participants living with the families of Naidi Village and gaining experience and knowledge through cultural immersion.

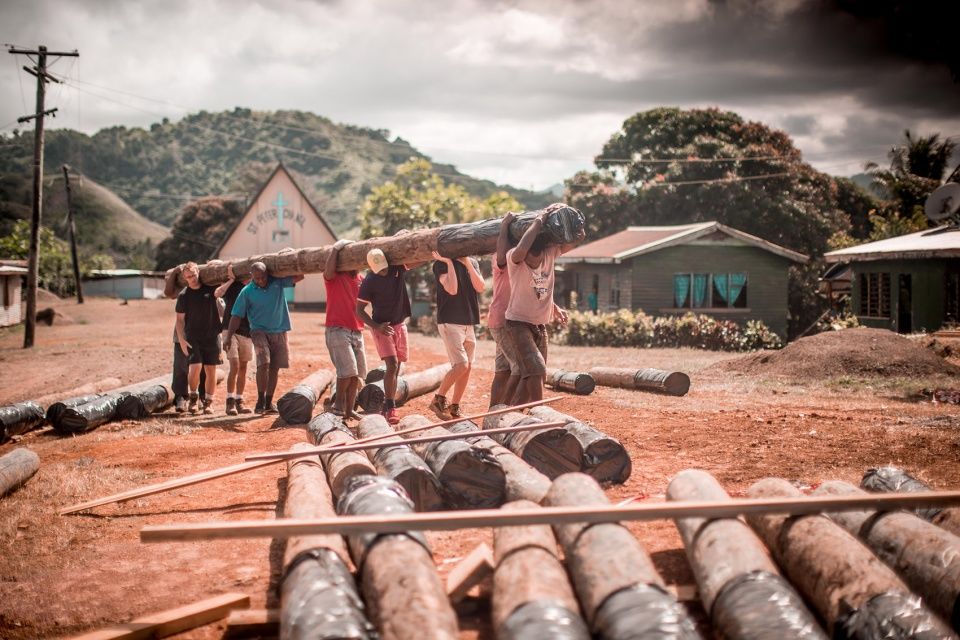

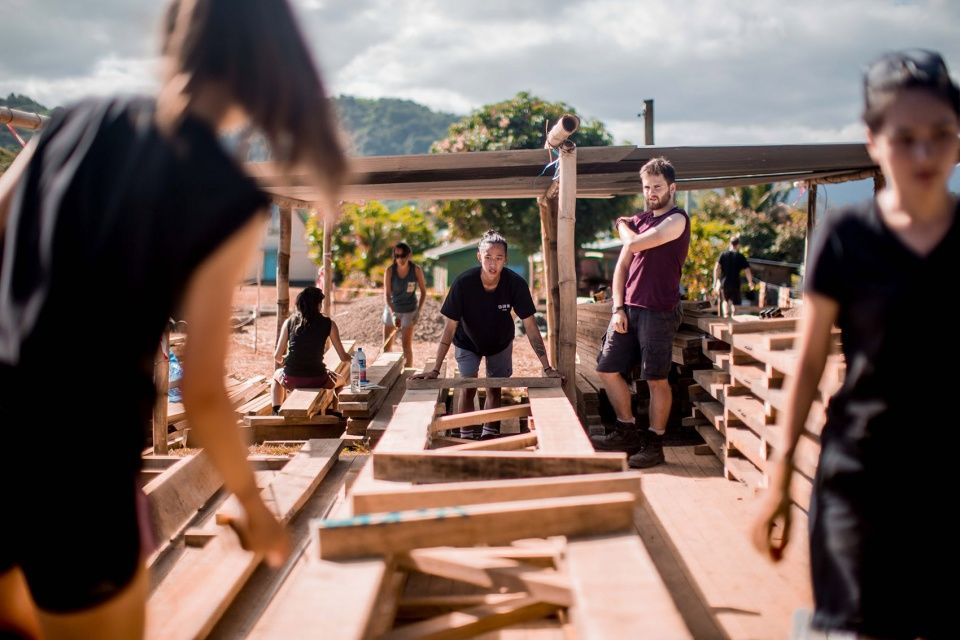

▼建造过程,Construction process ©Katie Edwards

CAUKIN Studio与Naqaqa施惠基金会旗下机构Jazmin Fund合作完成了该项目,后者积极地鼓励将表演艺术作为社区大厅的设计主题,从而为Naidi村营造一个富于创意同时又能够凭借其坚固结构抵御然灾害的公共场所。

自建成以来,大厅每周三都会举行当地音乐会和手工艺工作坊,并在每晚为孩子们组织一小时的阅读活动,此外也用于婚礼和葬礼等仪式。由于新建筑吸引了更多顾客的到来,村民制作的手工纪念品的销量也有所增长。最近,社区大厅还申请了幼儿园资格,每天有17名儿童在这里上学。

CAUKIN Studio worked in partnership with The Jazmin Fund, a charitable arm of the Naqaqa Giving Foundation to realise the project. The Jazmin Fund, run by Jazmin Grace Grimaldi, helped encourage a performing arts theme to the hall and its design. The brief was to create a space which enabled the Naidi Community to express themselves creatively whilst providing a structure strong enough to take shelter in – in the event of any future natural disasters.

Since completion, the hall has hosted a local concerts, arts and crafts workshops every Wednesday, a reading hour every evening for the children as well as weddings and funerals. The handicraft salesmen and women have also recorded greater sales of their handmade souvenirs due to the new hall attracting more customers. In recent months the hall has become a registered kindergarten with 17 children in attendance everyday.

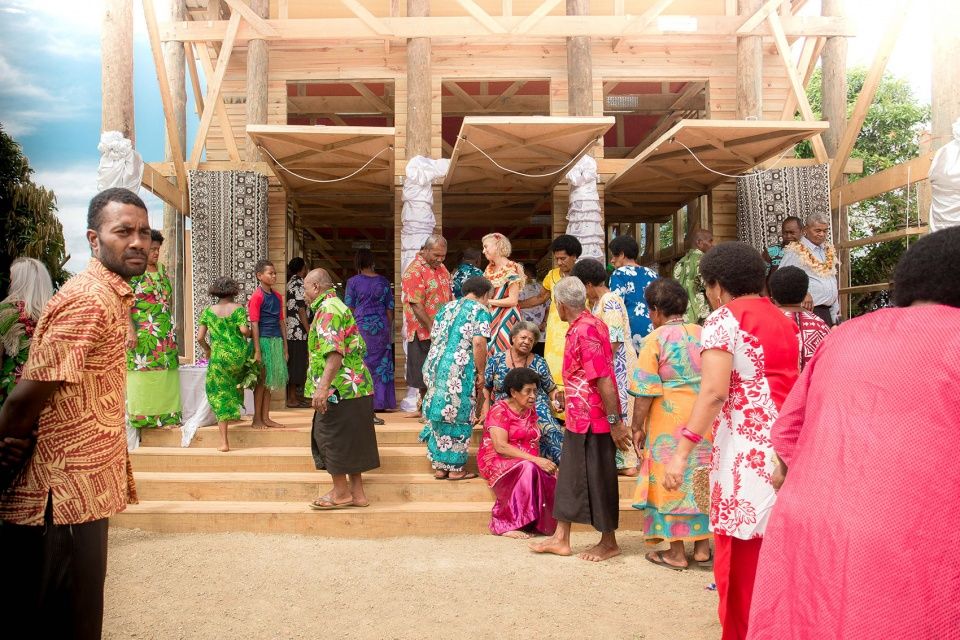

▼开幕仪式,Opening ceremony ©Katie Edwards

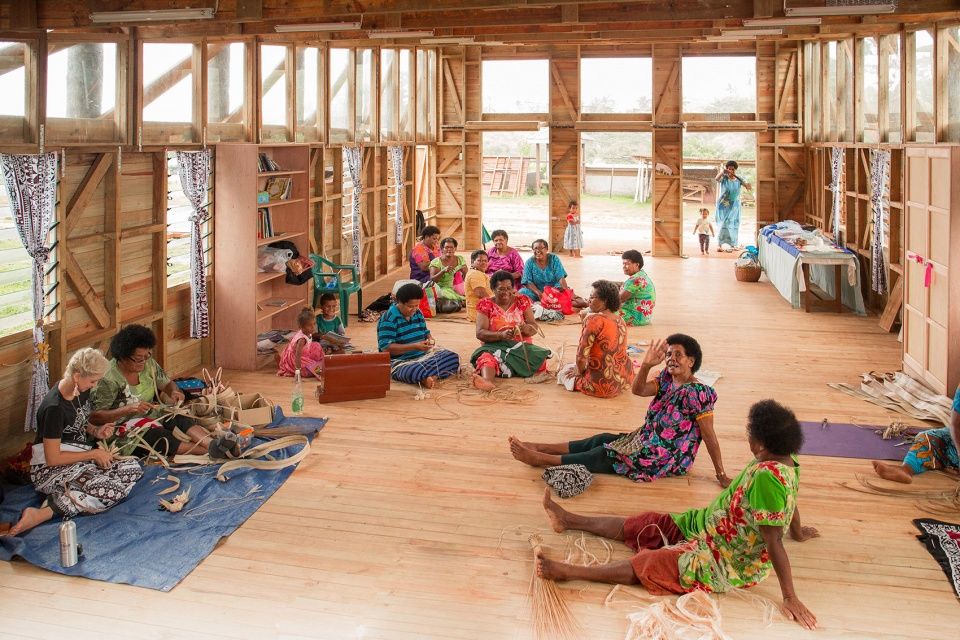

▼手工艺品制作和售卖,Womens craft making and sales ©Katie Edwards

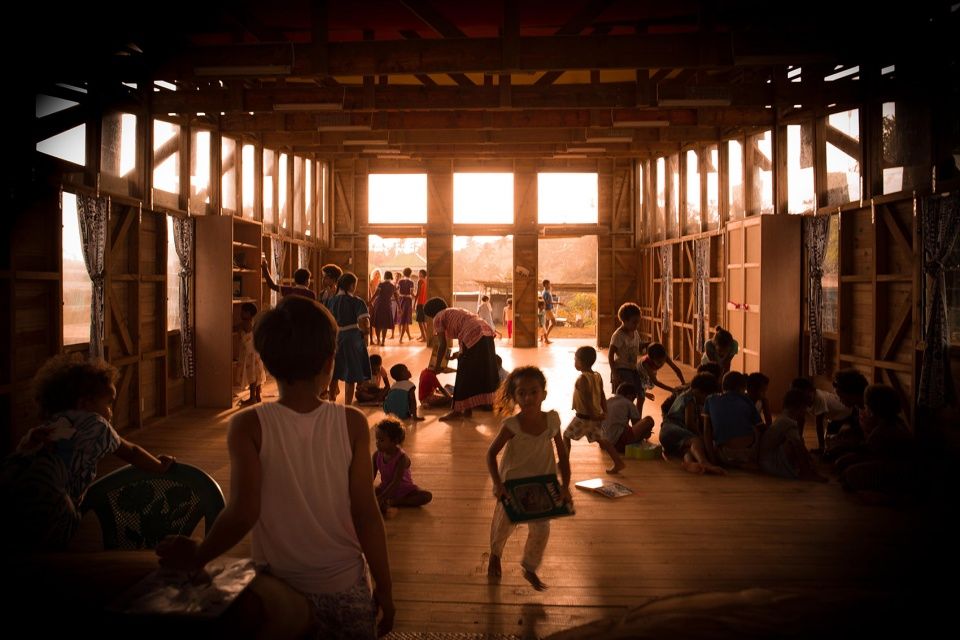

▼儿童读书活动,Childrens reading club ©Katie Edwards

▼建造期间的米克舞表演,Traditional meke dance performed during construction ©Katie Edwards

▼平面图,plan ©CAUKIN Studio

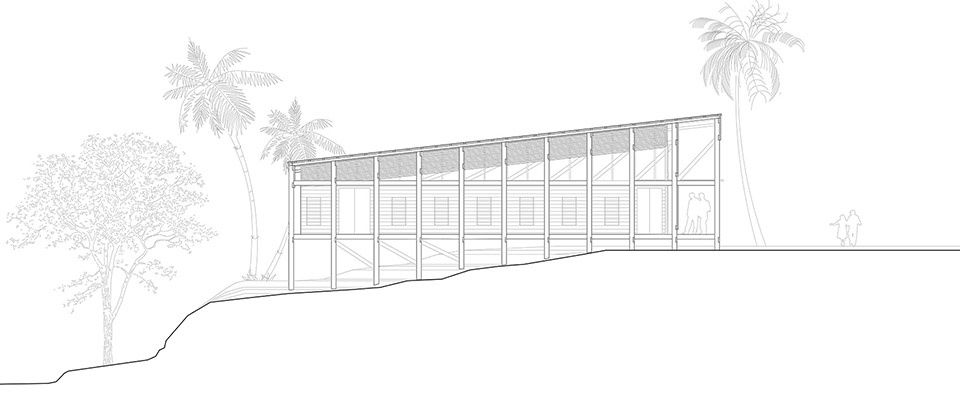

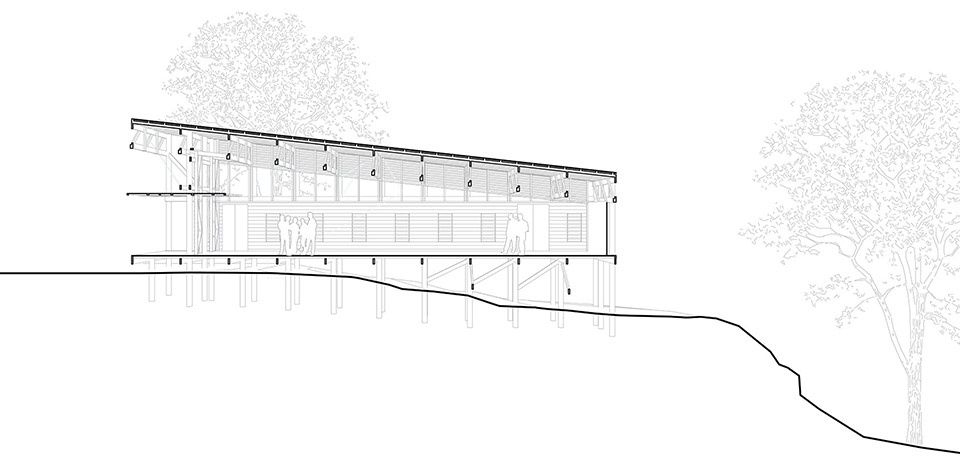

▼立面图,elevation ©CAUKIN Studio

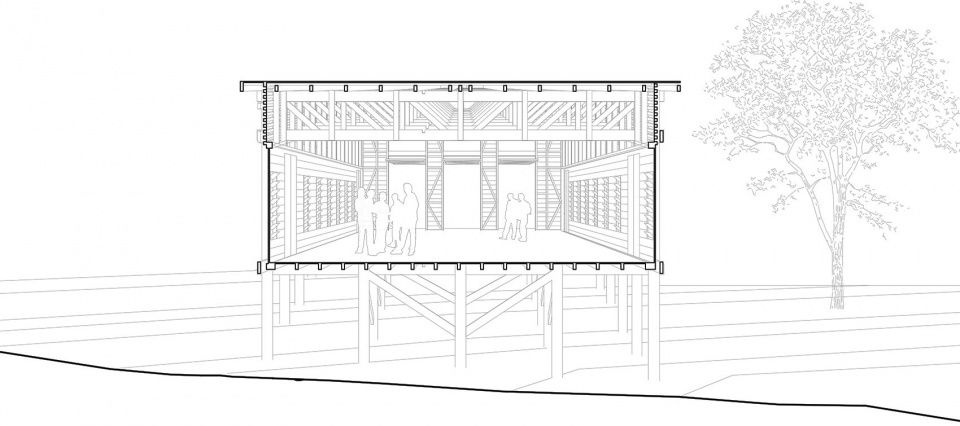

▼剖面图,section ©CAUKIN Studio

▼轴测图和细部,axon & details ©CAUKIN Studio

Project Name: Naidi Community Hall

Architecture Firm: CAUKIN Studio

Firm Location: London, UK

Completion Year: 2018

Gross Built Area: 130m2

Project location: Naidi Village, Vanua Levu, Fiji

Lead Architects: Harrison Marshall, Joshua Peasley, Alden Ching, Andrzej Bak

Media Provider

Photo credits: Katie Edwards

Photographer’s e-mail: k_d_edwards@hotmail.co.uk

Additional Credits

Design Team: Harrison Marshall, Joshua Peasley, Alden Ching, Andrzej Bak

Clients: The Naqaqa Giving Foundation, The Jazmin Fund, Naidi Village

Engineering: Centrespace Design

International Participants: Maria Reyes Bariain, Emily Charlton, Maggie Dalton, Dinjal Damania, Lewis Danielson, Ksenia Davydova, Nikolina Georgieva, Kate Gonashvili, Maddie Griffiths, Ash Kendall, Cassie Li, Nikoleta Petrova, Richard Rothwell, Nadejda Tabakova, Connor Tulip, Lili Wagner, Sabrina Waibel, Janet Wong

Project Donors: The John Gore Organization, Fulton Hogan Hiways, Spratley & Partners, Centrespace Structural Design, The Pratt Foundation, Vincent Hughes, Susan Rose, Stefan Berner, Sandra Elkins, Cristina and Liam Lynch Family Foundation, Anna Miller, Andrew D. Perlman, The Carl and Renee Landegger Trust, Aaron Siegel, Anna L. Miller, Niamh Blancardi, Salma Aitali, Paul Isaacs, Claire Fordham
