俄勒冈大学简·桑德斯体育场 | 创新、环保与社区的融合_公共建筑_设计案例作品

发布时间：2016-11-14 15:24:00 {{ caseViews }} {{ caseCollects }}

设计亮点

结合品牌创新，打造环保、社区互动的体育场设计。

C.劳伦斯·安德森

架构师提供的文本描述。激发力量和力量，简·桑德斯体育场是俄勒冈州鸭子垒球队的新主场。这座由罗伯特·桑德斯(RobertSanders)赠送并以他已故妻子简(Jane)的名字命名的最先进的1，500个固定座位体育场，受到了美国最具创意和最受尊敬的体育品牌之一的启发，但却优雅地融入了俄勒冈大学校园的结构中。(鼓掌)

Text description provided by the architects. Evoking power and strength, Jane Sanders Stadium is the sleek new home for the Oregon Ducks Softball team. A state-of-the-art 1,500 fixed-seat stadium made possible by a gift from Robert Sanders and named in honor of his late wife Jane, this facility is inspired by one of the most innovative and respected athletic brands in the country but fits gracefully into the fabric of the University of Oregon campus.

C.劳伦斯·安德森

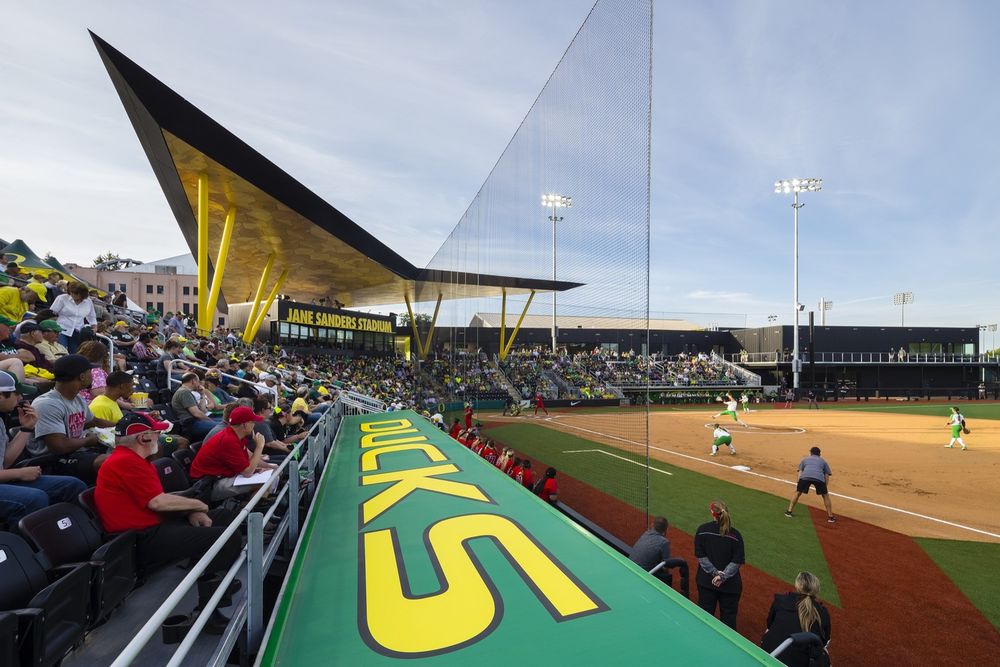

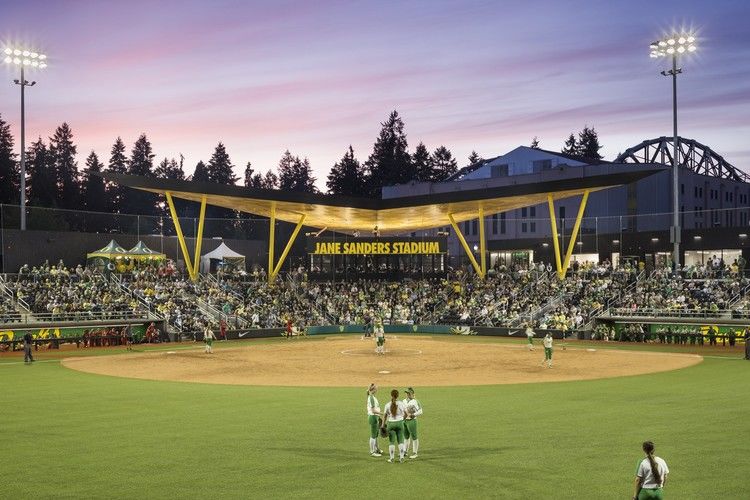

品牌整合这个体育场，包括标志性的天篷，高高的上方的大厅和座位碗，已经成为俄勒冈州垒球和它的创新品牌的发挥同义词。作为主要的到达感元素，翼型结构优雅.关键主题-隐身，羽毛，桑德斯家族与木材产业的联系，以及家庭板-影响设计过程，并出现在形式和材料。结果是UO垒球故事的独特和可识别的视觉清晰度-结合创新，鸭子在飞行，桑德斯家庭和体育。

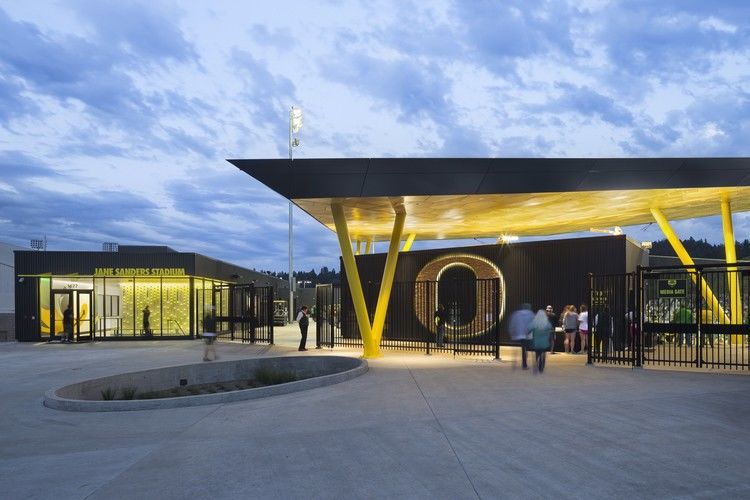

Brand Integration This stadium, including the iconic canopy that soars high above the concourse and seating bowl, has become synonymous with Oregon softball and its innovative brand of play. As the primary sense of arrival element, the wing-shaped structure is elegant and graceful. Key themes—stealth, feathers, the Sanders Family tie to the wood industry, and the home plate—influenced the design process and appear in the forms and materials. The outcome is a unique and identifiable visual articulation of the UO softball story—combining innovation, ducks in flight, the Sanders Family and sport.

C.劳伦斯·安德森

主场优势学生运动员和球迷经验是最高的设计优先之一。鸭子们依靠互动和与粉丝分享能量而茁壮成长。体育场碗的设计，座位延伸到球场水平，创造了运动员和球迷之间的亲密关系。简桑德斯体育场独特的连接项目的组成部分，如套房和练习设施，提供直接连接到现场。这种方法还创造了一个成本效益高的解决方案，最大限度地增加了团队的座位数和空间。

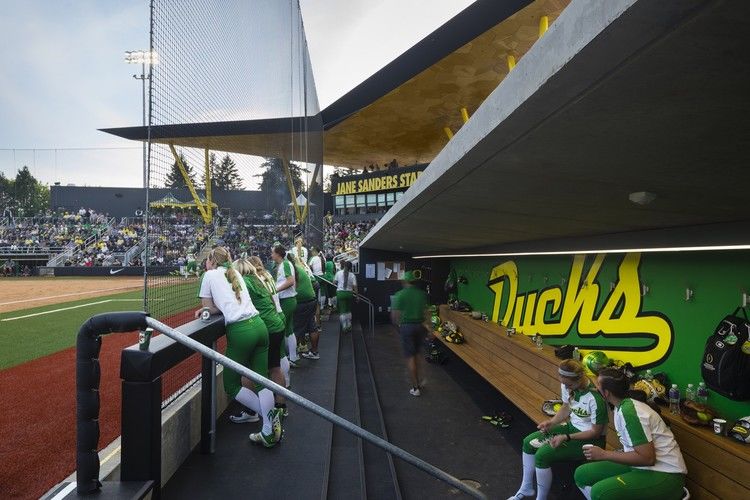

Home Field Advantage Student-athlete and fan experience was one of the highest design priorities. The Ducks thrive on interaction and shared energy with their fans. The stadium bowl’s design, with seats extending to field level, create intimacy between athletes and fans. Jane Sanders Stadium uniquely links program components like suites and practice facilities, providing direct connections to the field. This approach also created a cost-efficient solution that maximized seat count and space for the team.

C.劳伦斯·安德森

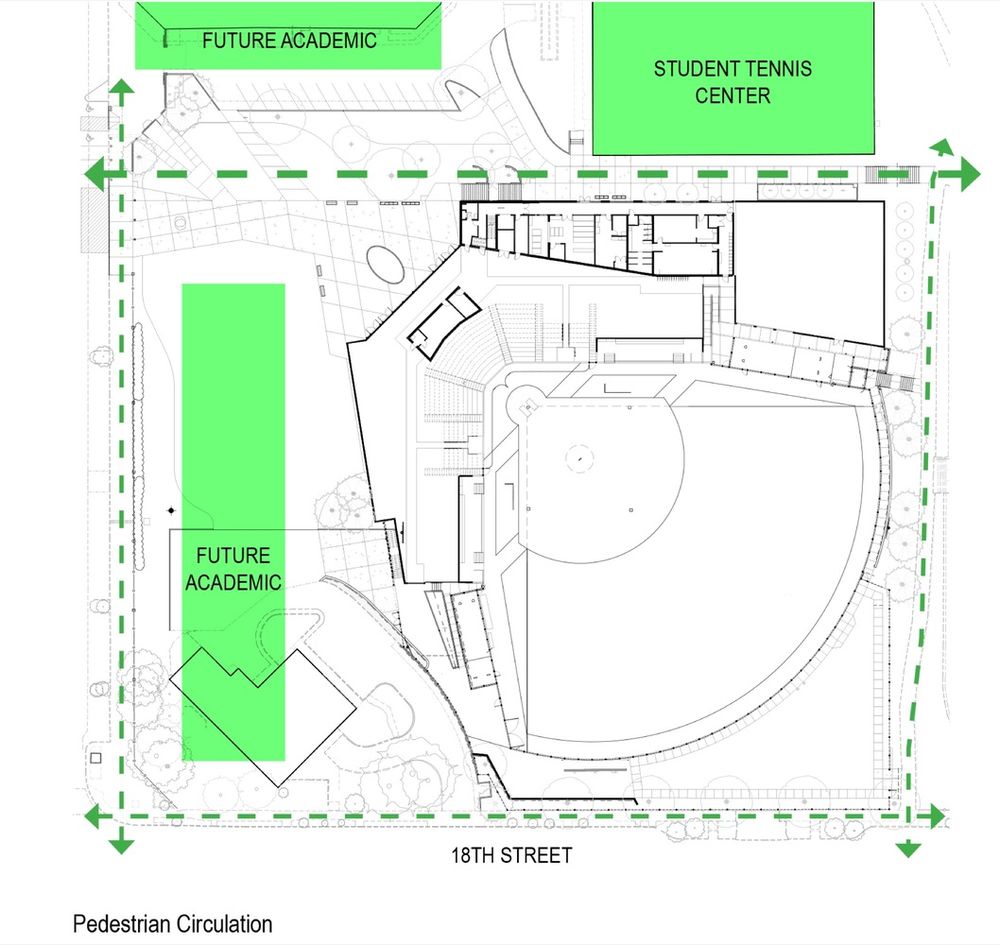

在UO校园建设社区发展必须响应校园规划委员会的全球校园目标。设计小组成功地改善现有的行人接驳设施，并加入新的行人接驳设施。一个开放的广场，欢迎所有的校园连接到大学街。

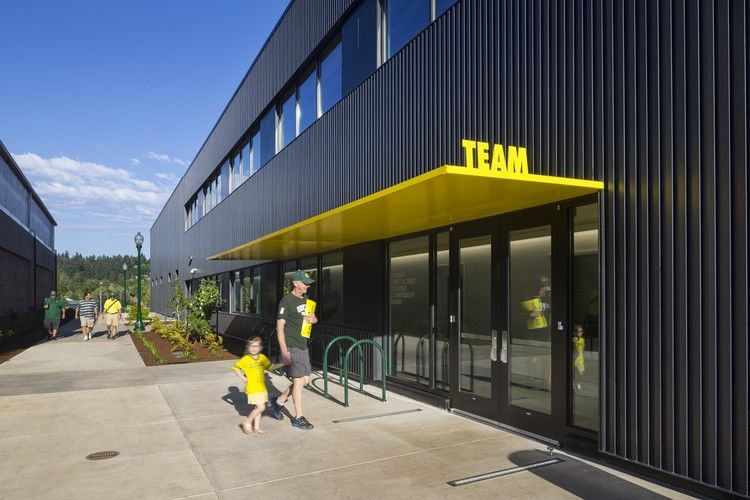

Building Community Development on the UO campus must respond to the global campus goals of the Campus Planning Committee. The design team successfully met priorities by enhancing existing and incorporating new pedestrian connections. An open plaza that welcomes all of campus connects to University Street.

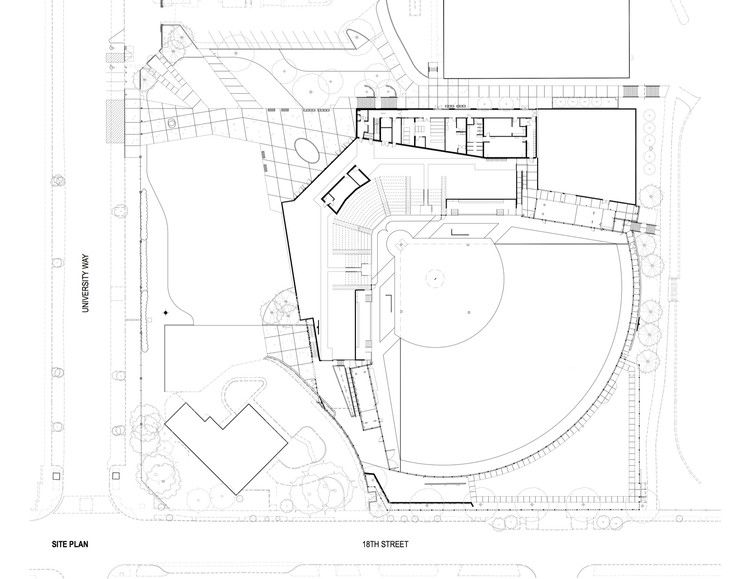

Floor Plan

以前的球场，豪菲尔德的历史，是通过振兴豪·盖茨而保存下来的。这些历史性的大门再次为许多从大学街进入新公共广场的人的道路增色。

The history of the former ballpark, Howe Field, is preserved through the revitalization of Howe Gates. These historic gates again grace the path of many who enter the new public plaza from University Street.

C.劳伦斯·安德森

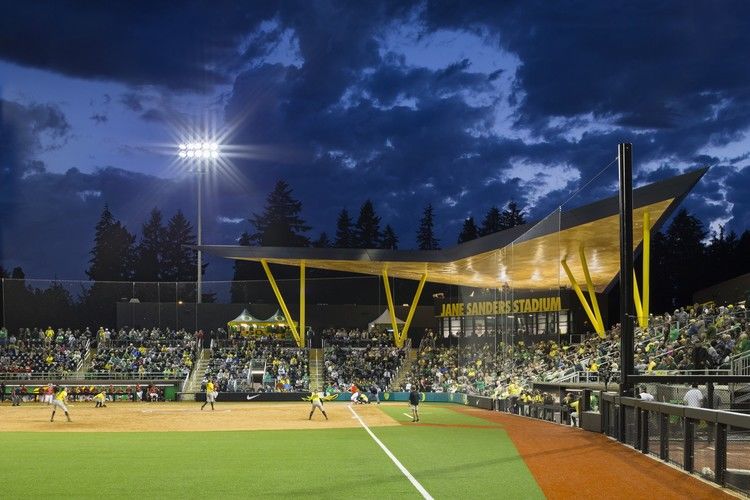

体育场的设计也必须对周围的邻居敏感。在这种情况下，该网站是相邻的一个住宅社区。政府已采取措施，减轻市民对公园内光线及声音污染的关注。光分布和声音计算机模型在公开会议上共享，以确保社区关注的理解和解决。

Stadium design must also be sensitive to surrounding neighbors. In this case, the site is adjoined by a residential community. Care was taken to alleviate residents’ concerns about light and sound pollution from the ballpark. Light distribution and sound computer models were shared in public meetings to ensure neighborhood concerns where understood and addressed.

C.劳伦斯·安德森

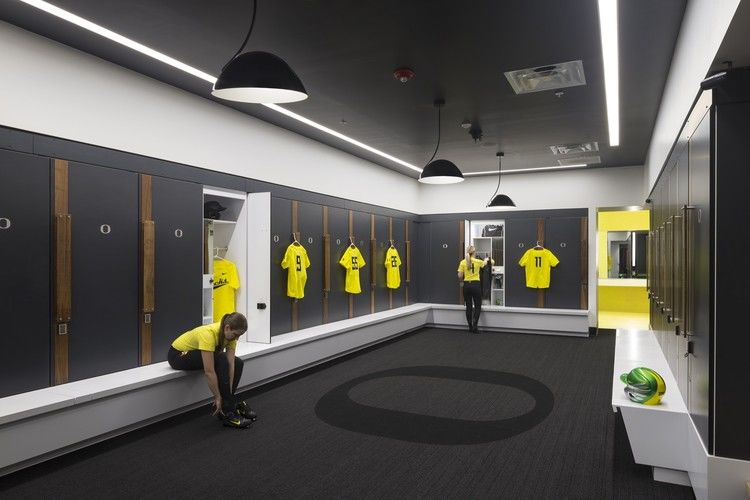

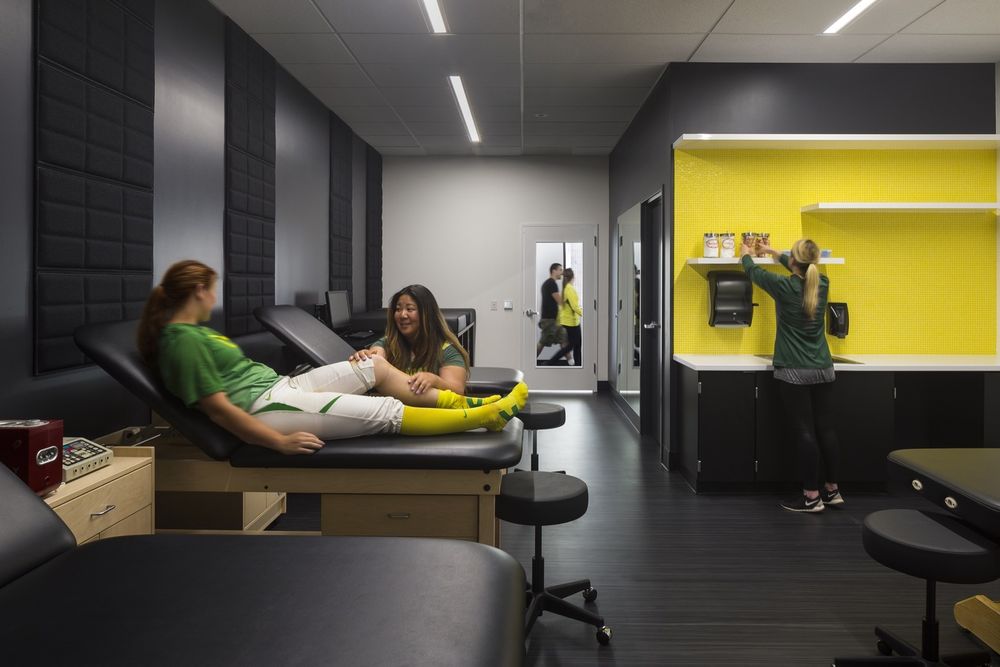

团队建设和与之毗邻的垒球表演中心(SPC)使训练-练习-游戏日例行公事成为一种无缝体验。棱镜天窗照射SPC，节约能源，模拟野外条件。

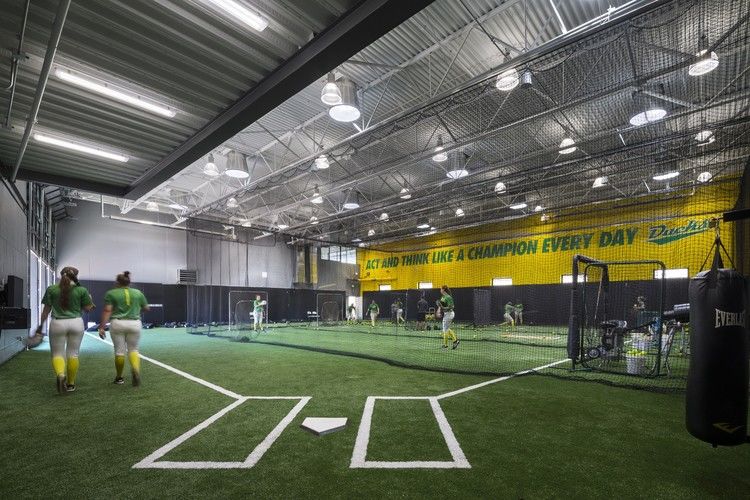

Building Performance The team building and adjoining Softball Performance Center (SPC) make training-practice-game day routine a seamless experience. Prismatic skylights daylight the SPC, conserving energy and emulating outdoor conditions of the field.

C.劳伦斯·安德森

设计实现LEED金牌认证，是世界体育设施中的一项独特成就。该建筑还符合UO积极的俄勒冈州可持续发展模式，比俄勒冈州能源法规减少35%。该建筑还减少了37%的用水与低流量固定装置和灌溉节约措施.草坪的灌溉和维护要求较低，因此选择了草坪。体育场的碗是由预制系统建造的。该组件具有高的回收含量，易于维护，并在其使用寿命结束时，可以重新解构和回收。

Designed to achieve LEED Gold certification, a unique accomplishment in the world of sports facilities. The building also meets UO’s aggressive Oregon Model for Sustainable Development, with an energy reduction of 35% over Oregon Energy Code. The building also reduces water usage by 37% with low-flow fixtures and irrigation savings measures. Turf was chosen for the outfield for its low irrigation and maintenance requirements. The stadium bowl is built from a prefab system. The components have a high recycled content, are easily maintained, and at the end of their useful life, can be deconstructed and recycled again.

C.劳伦斯·安德森

产品描述：体育场标志性的天篷松软被定制的胶合板所覆盖，这些胶合板被切割成家庭板的形状。主板以动态方式组装，使用胶合板模块，以尽量减少制造过程中的浪费。木材元素还巧妙地提到了该项目的主要捐助者，以谁命名的体育场。

Product Description. The stadium’s iconic canopy soffit was clad with custom-made plywood panels cut into the shape of home plates. The home plates are assembled in a dynamic pattern, using a plywood module intended to minimize waste during fabrication. The wood element also subtly references the project’s primary donor, for whom the stadium is named.
