设计亮点

充分利用自然光、垂直核心与内庭院的策略性布局、低矮城市肌理的呼应。

Ocantos 235大楼位于Crucecita地区的Avellaneda区域，所在基地前部宽8.66米、长43米，距离Miter大道仅200米，可以直达联邦政府。建筑以充分利用自然光的方式置入场地，战略性地设置垂直核心，并引入内庭院来实现这一点。

The Ocantos 235 building is located in the Avellaneda district, Crucecita area, just 200 meters from Miter Avenue and with a direct connection to the Federal Capital, on a plot of 8.66 meters. front and 43 mts. long. The implantation was designed considering making the most of natural light, strategically locating the vertical core and incorporating internal courtyards to favor this situation.

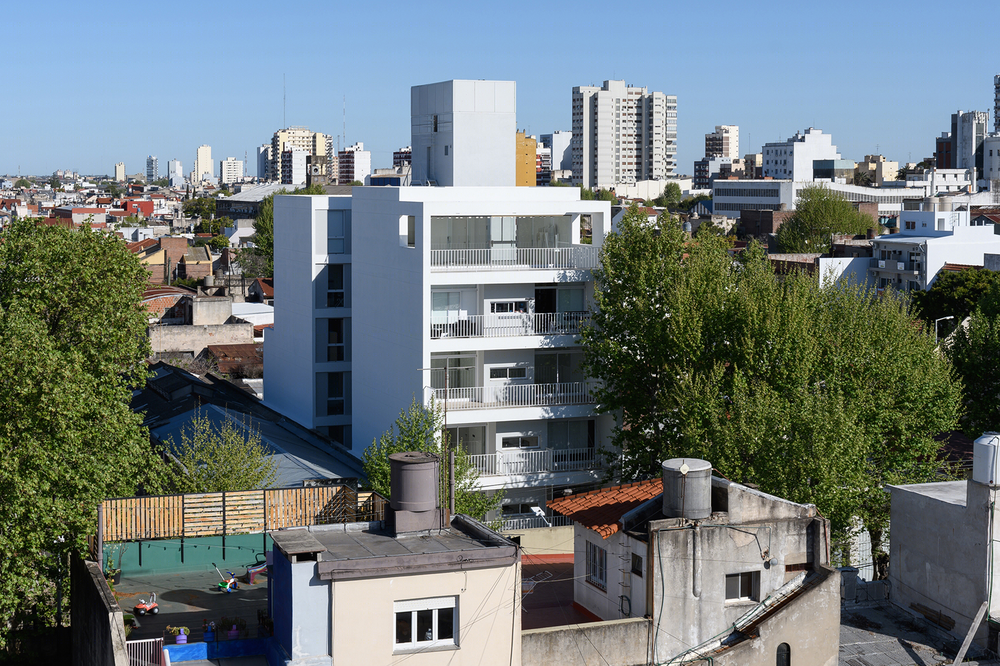

▼项目鸟瞰，aerial view ©Gonzalo Viramonte

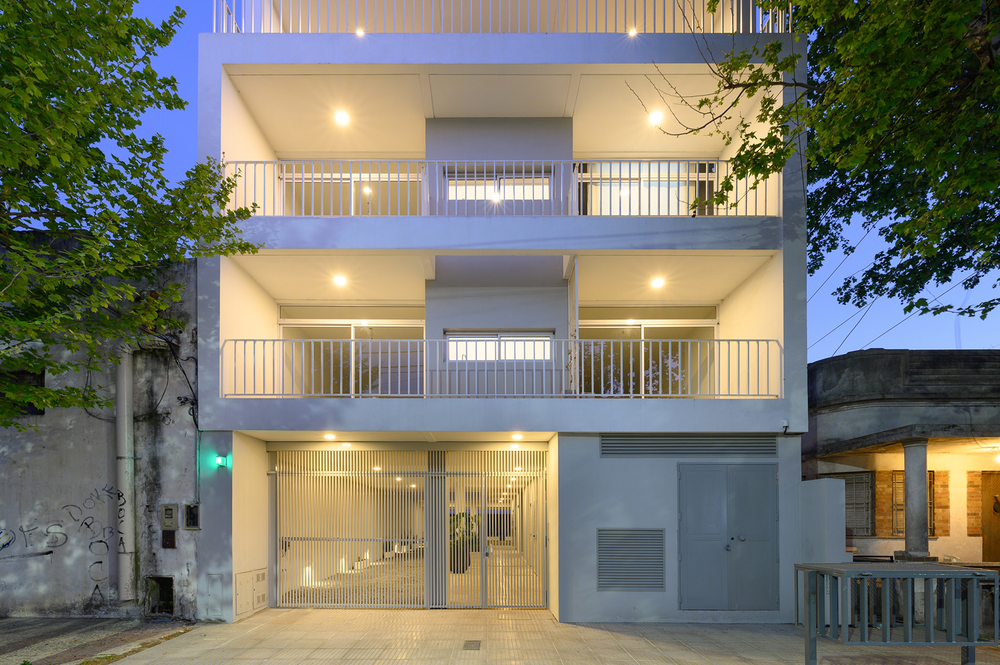

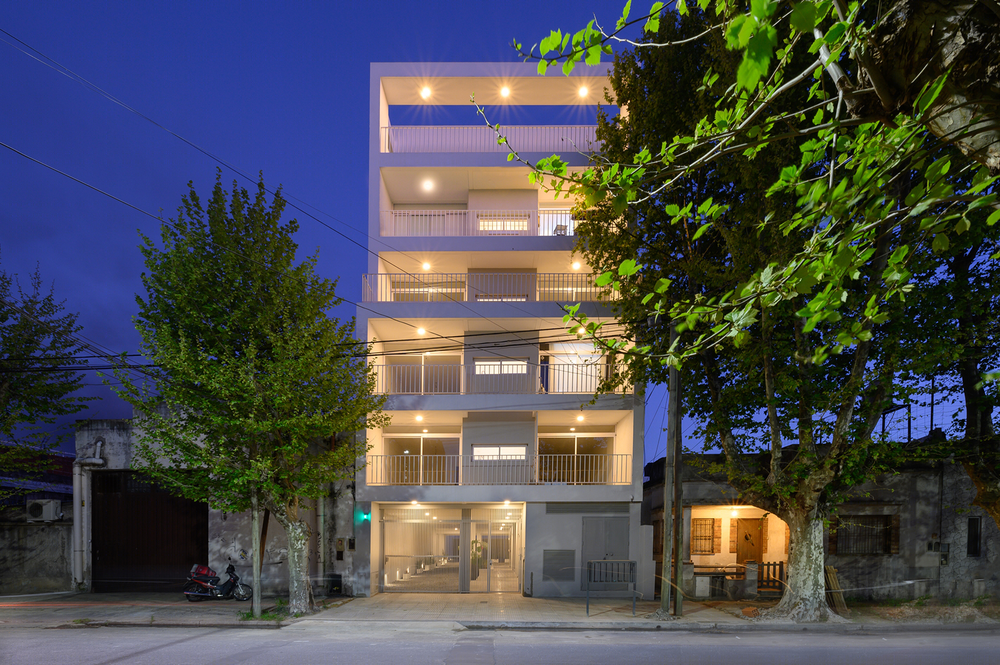

▼正立面，front facade ©Gonzalo Viramonte

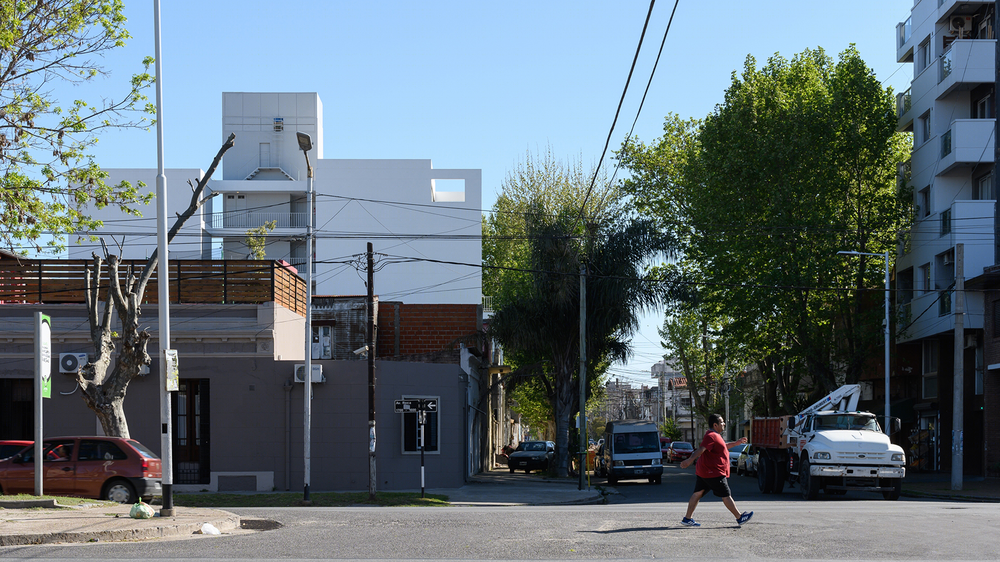

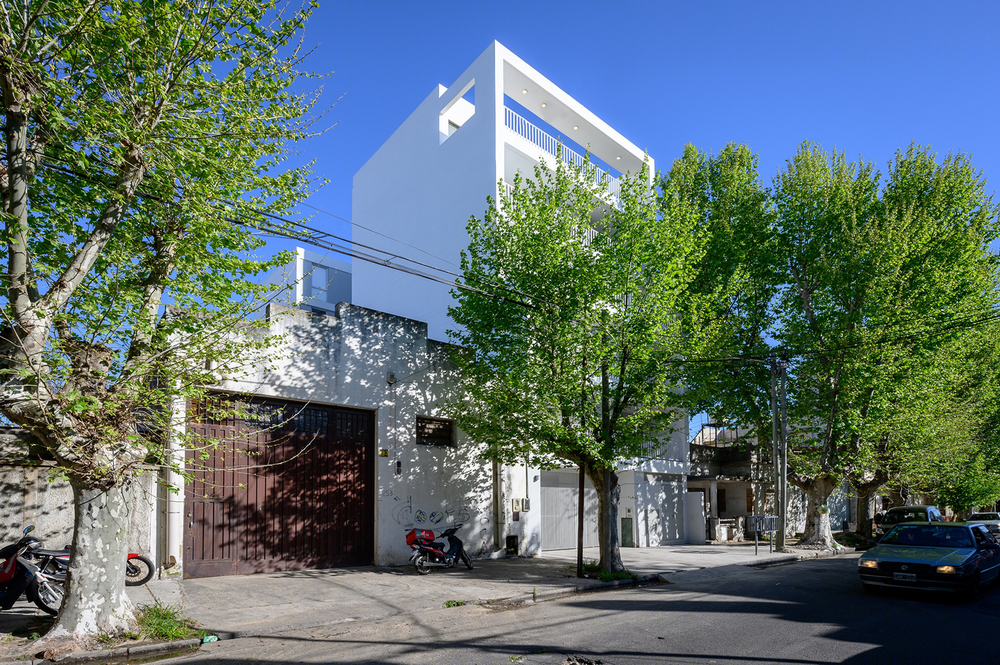

▼临街视角，street view ©Gonzalo Viramonte

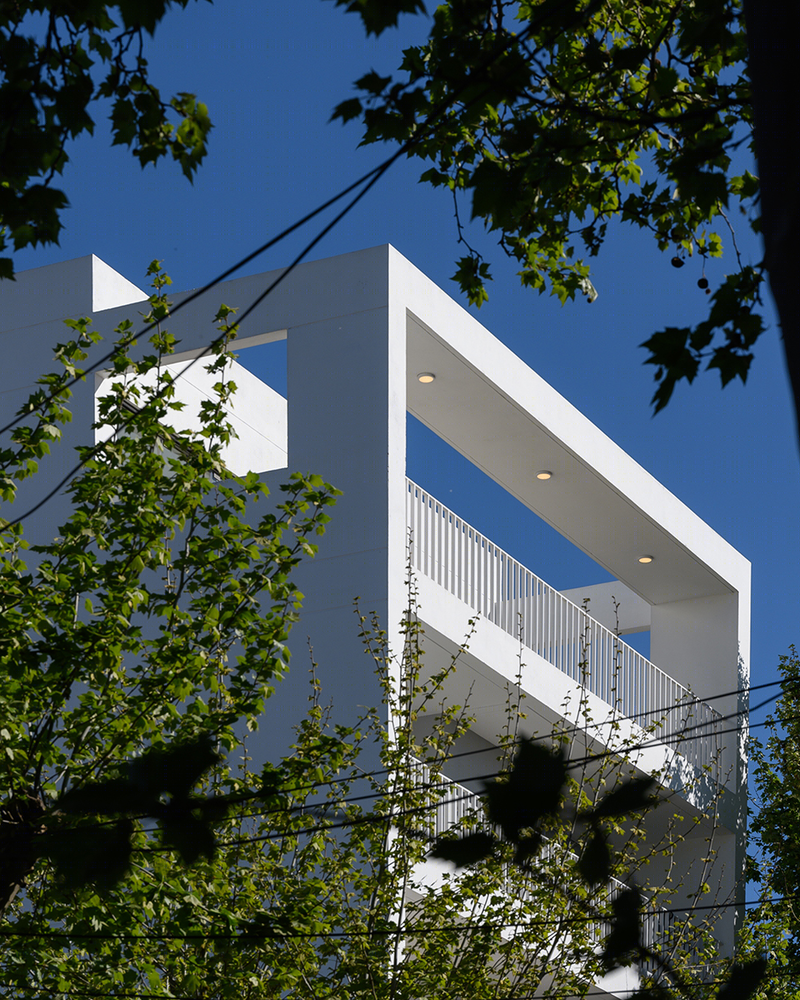

▼棱角分明的屋顶形象，the prismatic roof image ©Gonzalo Viramonte

在Crucecita街区独特的城市环境中，Ocantos 235具有理性而现代的设计，并考虑了人们对住宅建筑的需求。此外，它还考虑到城市规模，自第三层开始后退于市政线路，呼应了低矮的城市肌理。

Ocantos 235 has a rational and contemporary design, which is introduced within the characteristic urban context of the Crucecita neighborhood and considering the needs of a residential building. Responding to an urban context with a low environment, it respects the predominant urban scale, generating a retreat on the municipal line from the 2nd level.

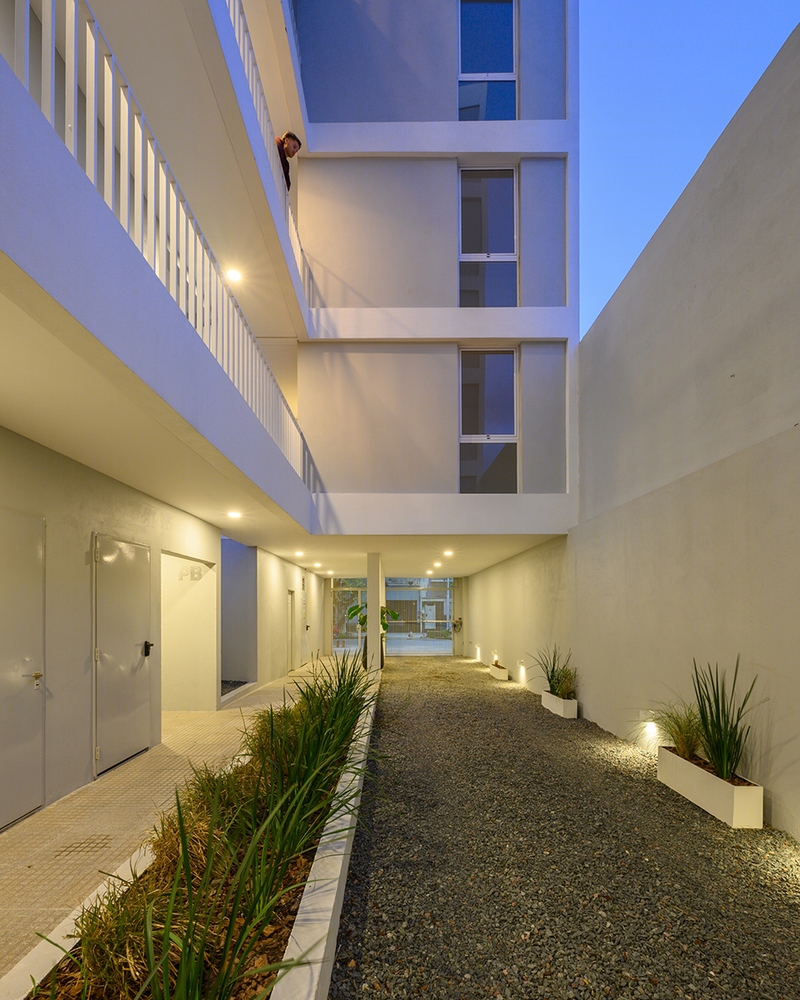

▼内庭院，the internal courtyard ©Gonzalo Viramonte

▼后退的体量，retreating volumes ©Gonzalo Viramonte

建筑在形态上由两个主体和一个自由流通的垂直核心组成，实现了舒适、灵活并且能够交叉通风的功能单元。它共设有13个功能单元，分别是布置在前两层的1、2号户型，以及前后布置在上半部分后退楼层的3号户型。两个体量加上独立核心的组合丰富了立面和扶壁，为所有单元创造出内立面，并通过大量木制栏杆优化采光，不仅可以促进内外部联系，而且有利于独立空间的单间公寓交叉通风。

The building is morphologically composed of two main bodies and a vertical core with free circulation, achieving comfortable, flexible and cross-ventilated functional units. In total there are 13 functional units, in the first two levels the units of 1 and 2 rooms are developed, in the upper levels, from the retreat, semi-floors of 3 rooms are developed in front and back. The composition of two volumes plus a free-standing core multiplies the fronts and the buttresses, generating an internal façade for all the units, optimizing the lighting with large carpentry, which favors the interior-exterior relationship, and in the case of the units of studio apartment the possibility of independent spaces, allowing cross ventilation in all units.

▼入口，entrance ©Gonzalo Viramonte

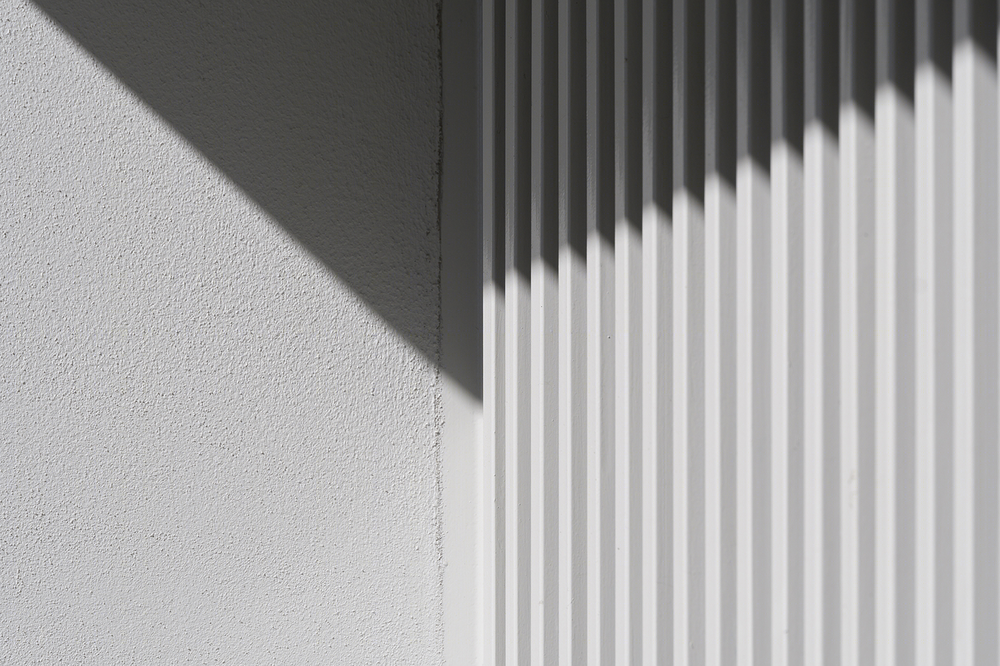

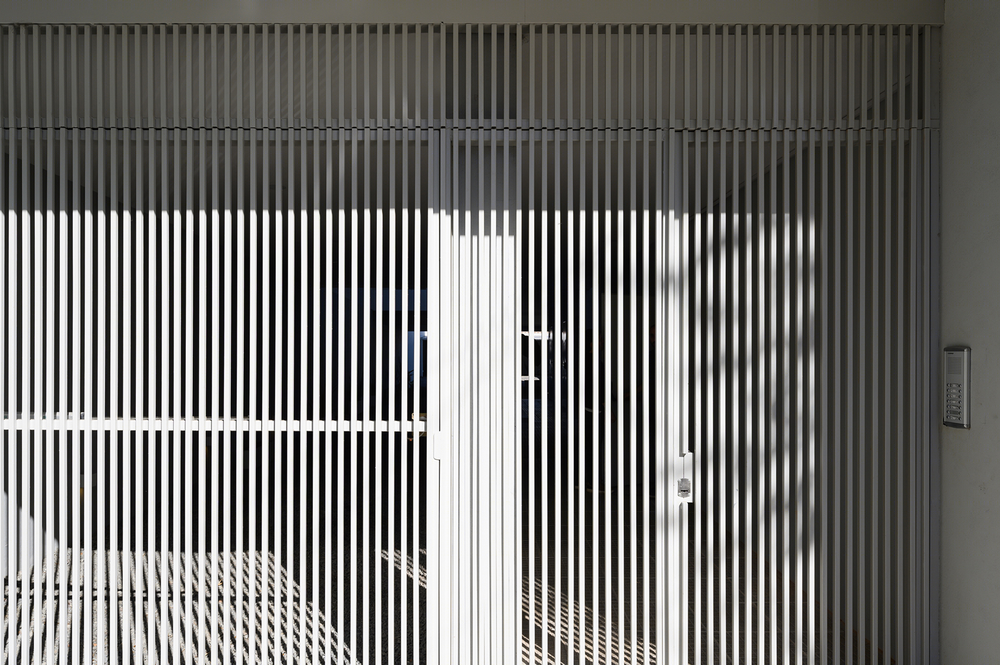

▼入口细部，details ©Gonzalo Viramonte

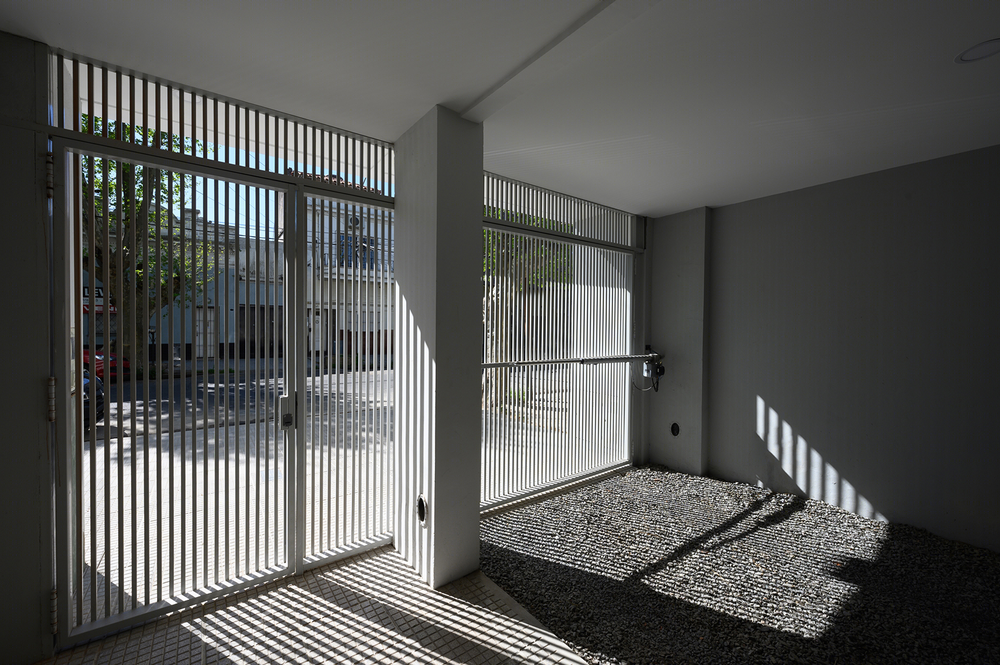

▼入口区域，entrance area ©Gonzalo Viramonte

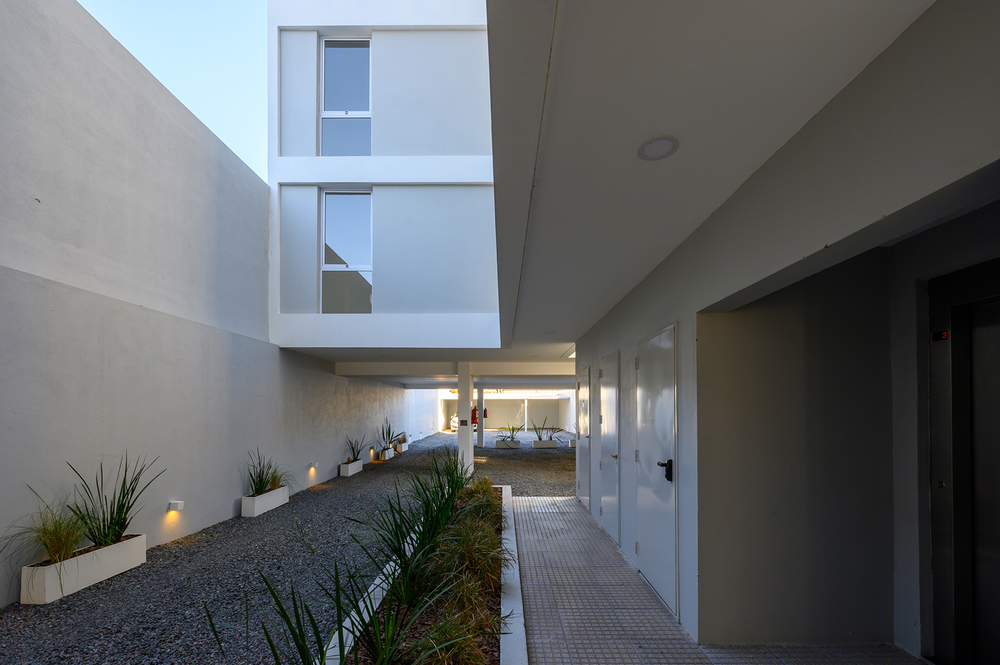

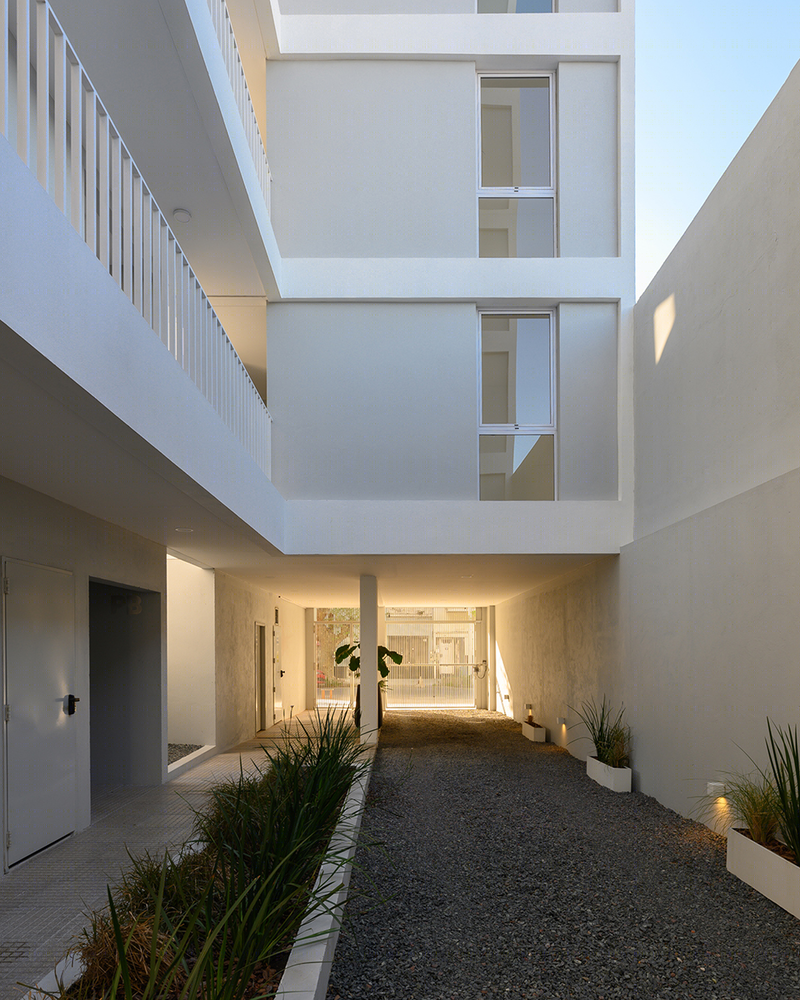

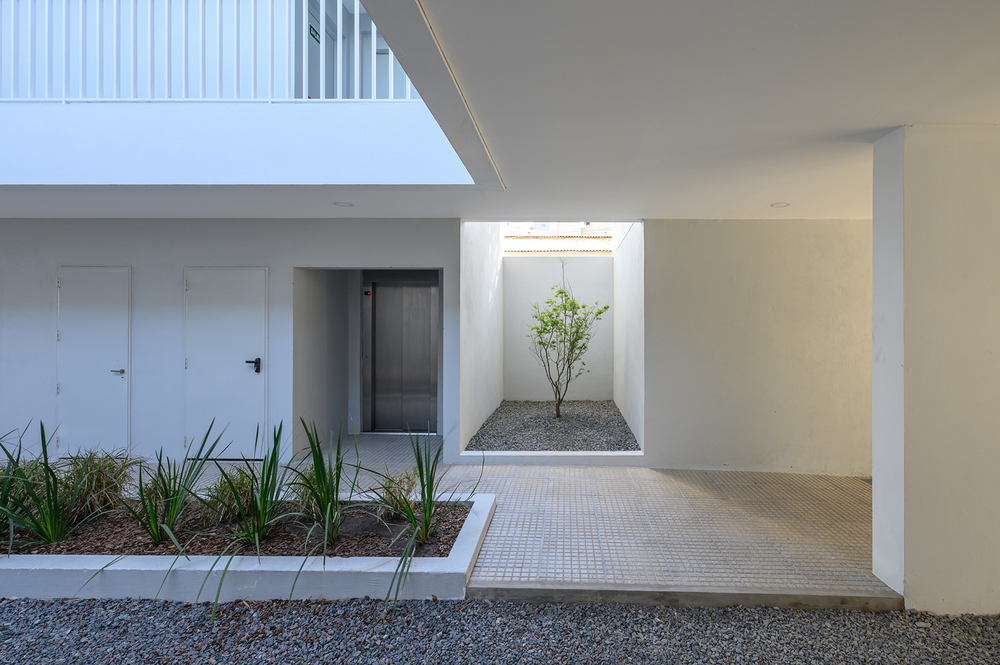

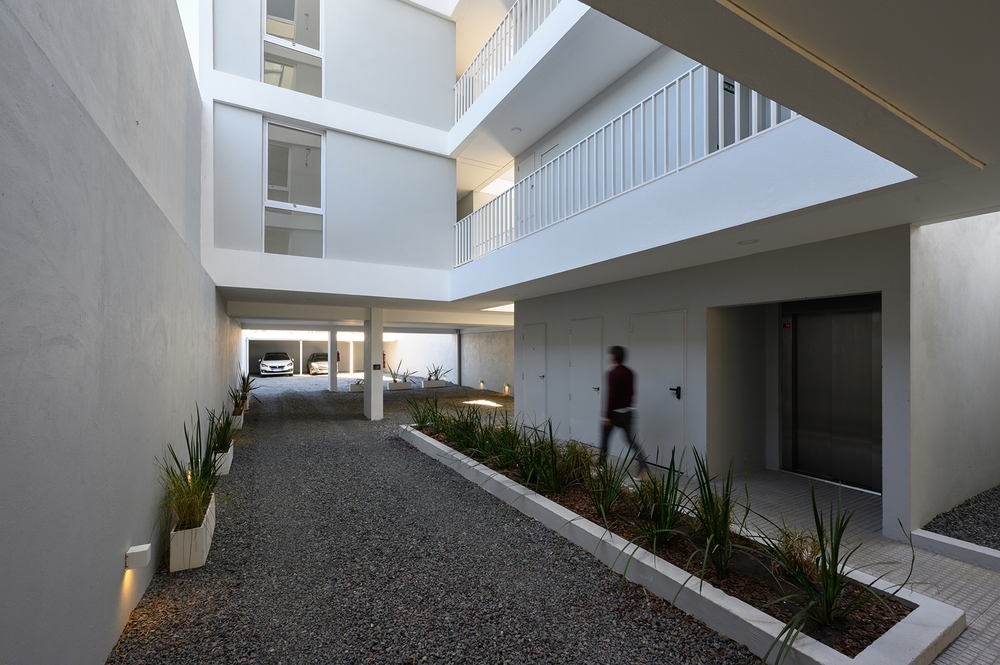

▼自由的地面空间，the free ground floor ©Gonzalo Viramonte

▼内庭采光，the internal courtyard daylighting ©Gonzalo Viramonte

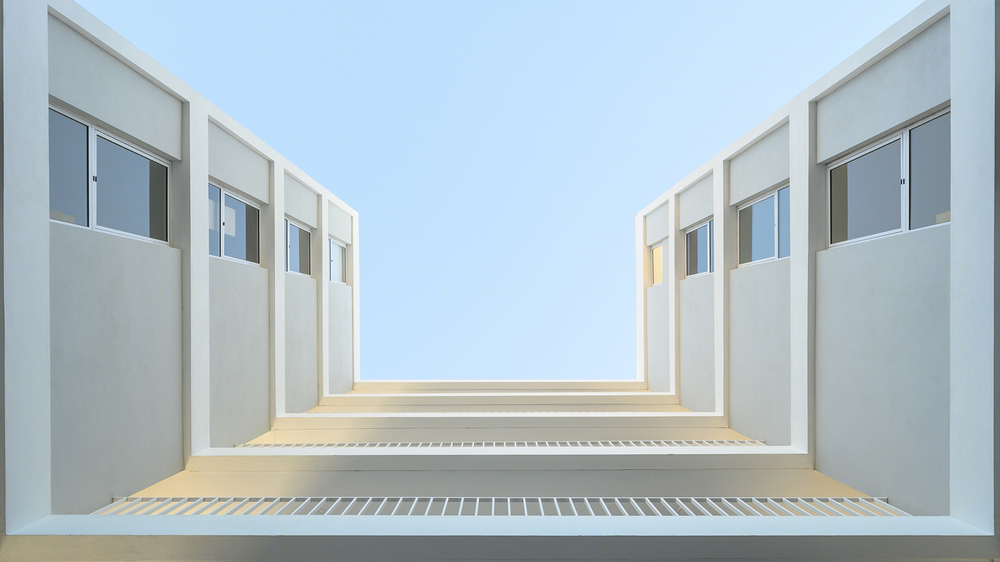

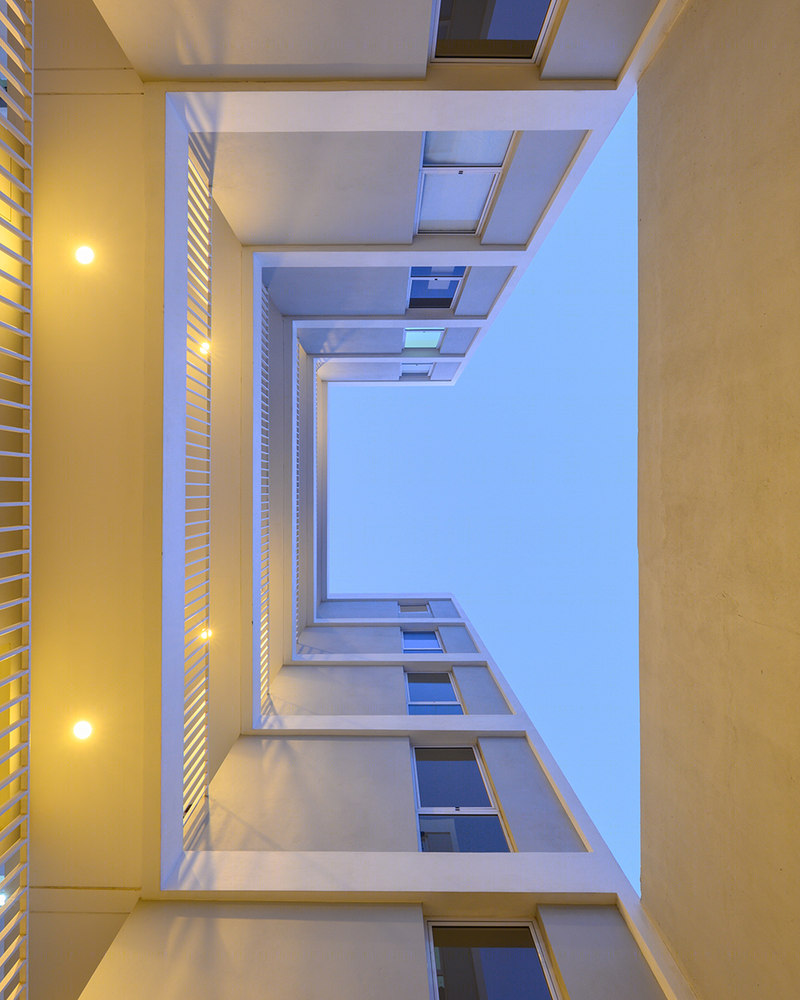

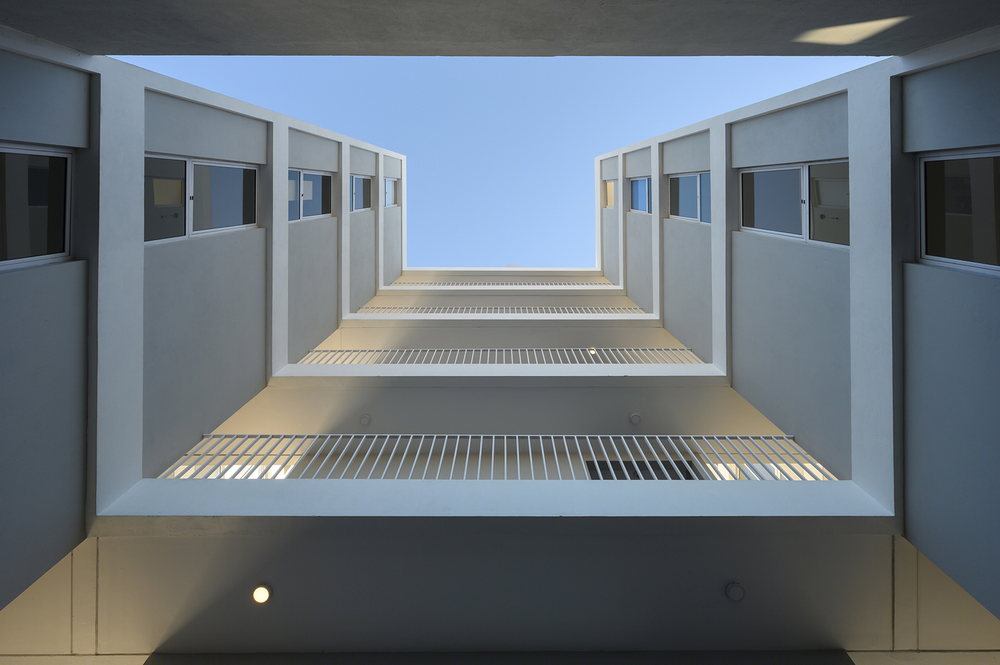

▼仰视内庭，looking up to the internal courtyard ©Gonzalo Viramonte

关于公共空间，行人通道和车库均设置在架空层，形成了自由的地面空间。所有楼层的楼梯和挑廊均采取半遮蔽形式，这意味着人们可以直接从室外进入房屋。内庭院位于上部五层，它作为有趣的空间，与露天挑廊一起突出了建筑“内外关系”概念，将内部空间与宽敞的室外挑廊联系起来。而在建筑顶部，巨大的梁则增进了屋顶棱角分明的形象。

Regarding the common spaces, both the pedestrian access, as well as the garages, is given from level 0, forming a free ground floor. The stairs and horizontal circulations are semi-covered at all levels, suggesting a direct entrance to the houses. On the upper floor of the 5th floor, the SUM is located, as a playful space, together with an open-air expansion, accentuating the concept proposed for the building “interior-exterior relationship” linking the interior spaces with the wide exterior expansions. To top off the building, a large beam recomposes its prismatic image.

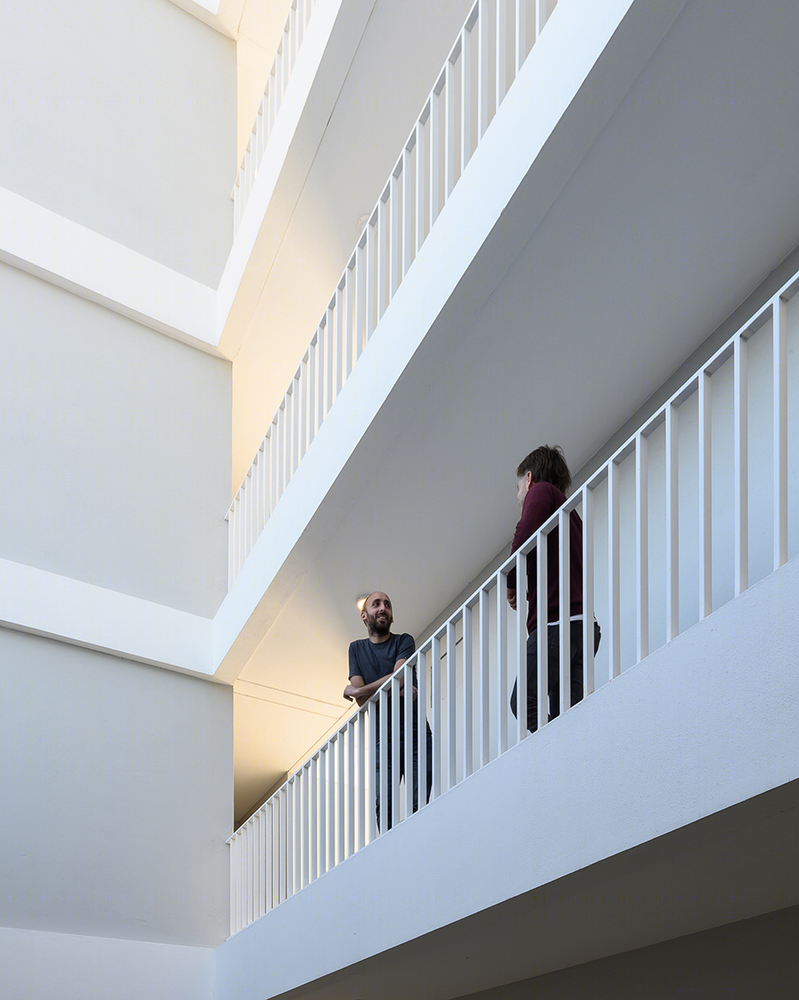

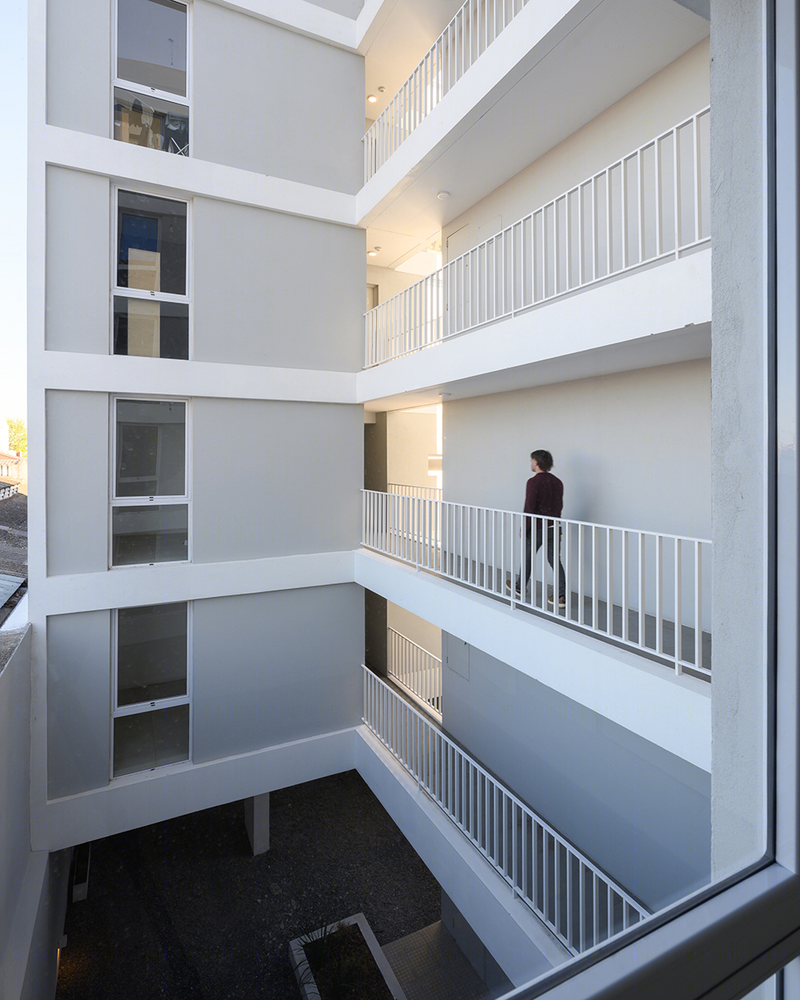

▼挑廊与内庭的关系 ©Gonzalo Viramonte the relationship between veranda and atrium

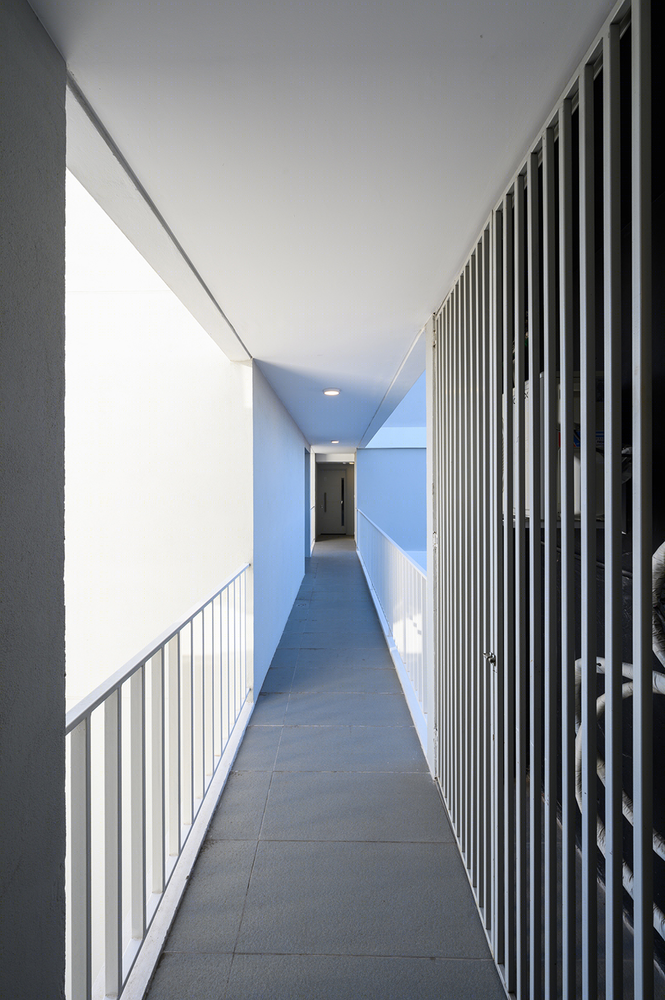

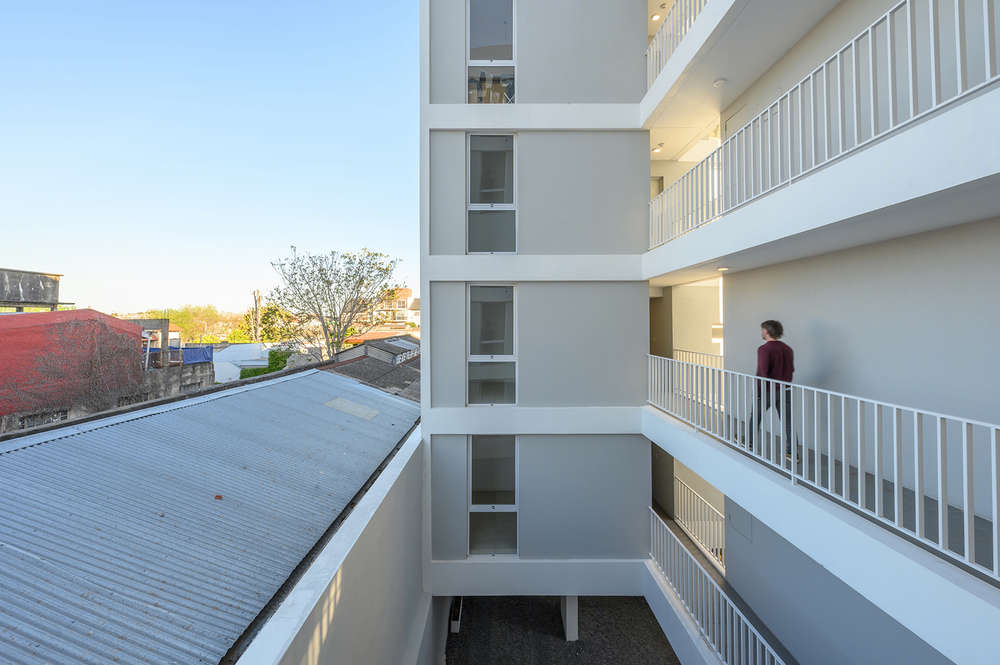

▼半遮蔽挑廊，the semi-covered veranda ©Gonzalo Viramonte

▼挑廊内部，internal view ©Gonzalo Viramonte

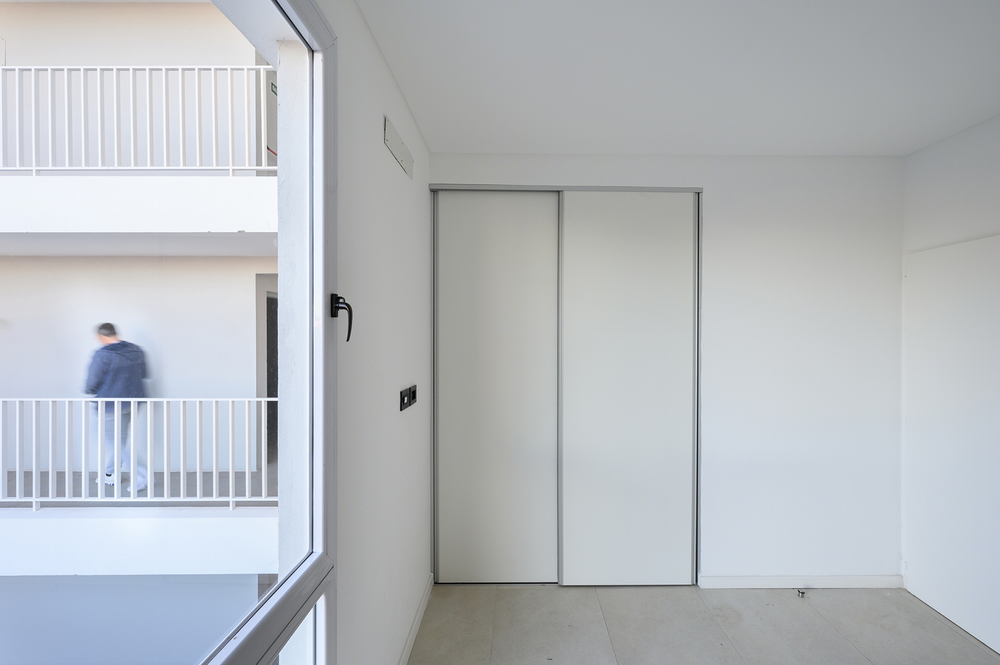

▼室内外关系，the relationship between indoor and outdoor ©Gonzalo Viramonte

室内空间分布包括在中心区域设置集中服务和交通空间以及在两侧设置主要房间，此外，通过大量木制栏杆促进采光和通风，外加半遮蔽的挑廊，使内外部形成良好的连续性。

The criterion adopted for the distribution of the interior spaces consists of a central strip that concentrates the services and circulations, leaving the main rooms on both sides, with extensive carpentry prioritizing lighting and ventilation, generating a good relationship of interior-exterior continuity, with the semi-covered surface of the expansions.

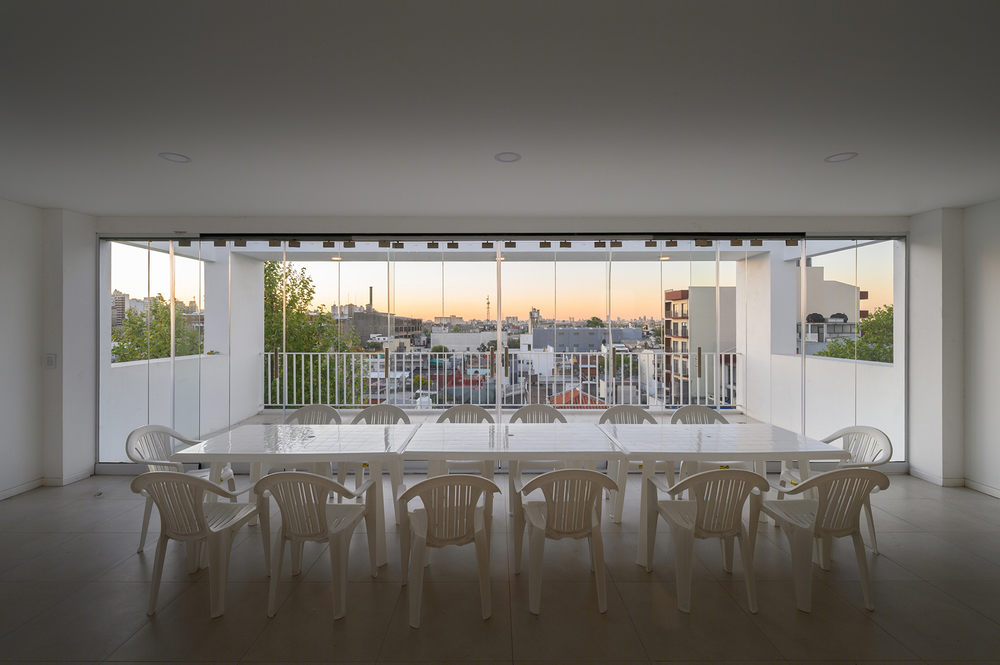

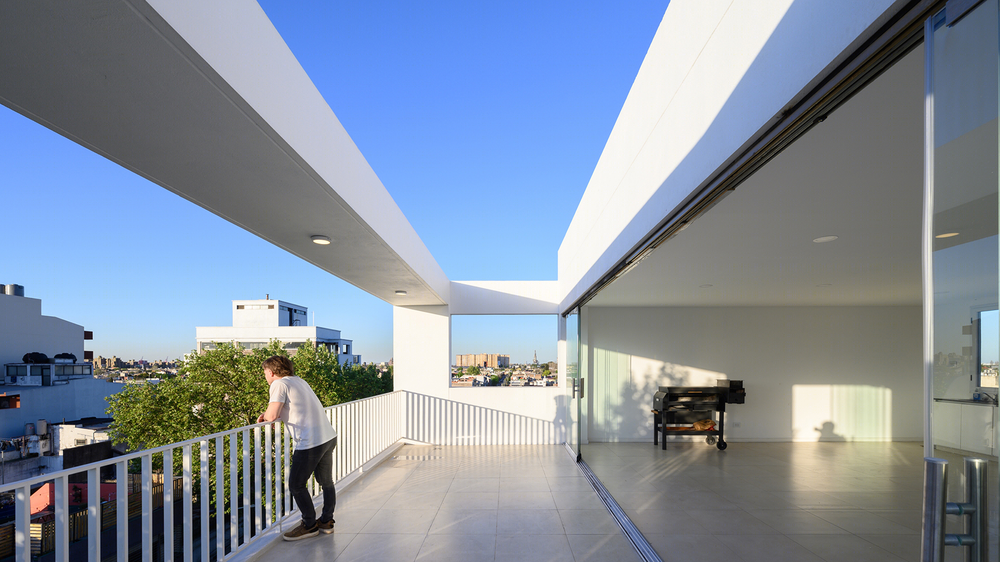

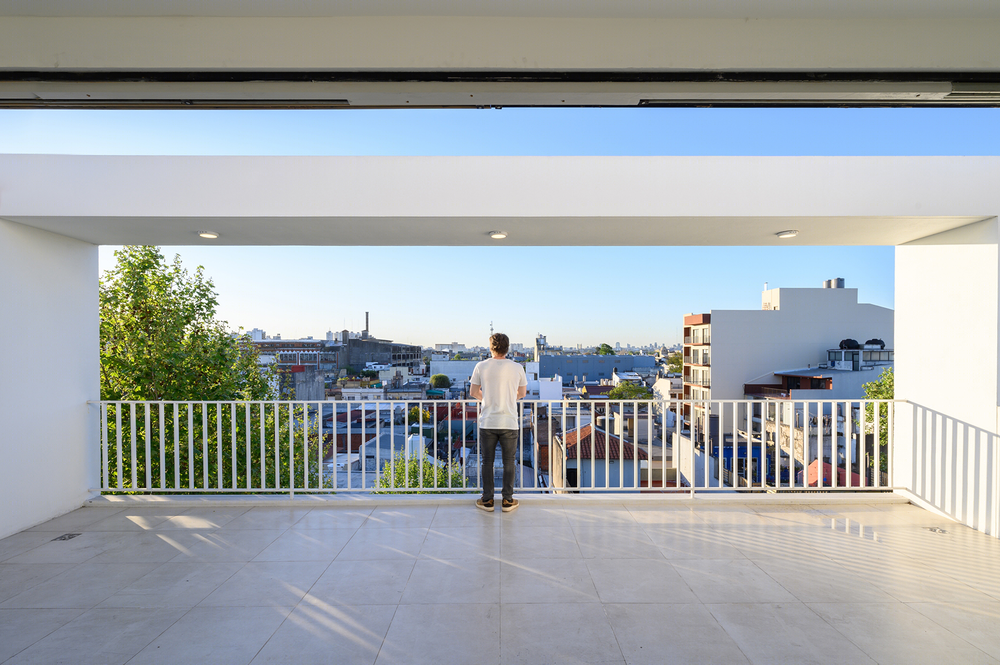

▼由露台望向城市景观，city landscape from terrace ©Gonzalo Viramonte

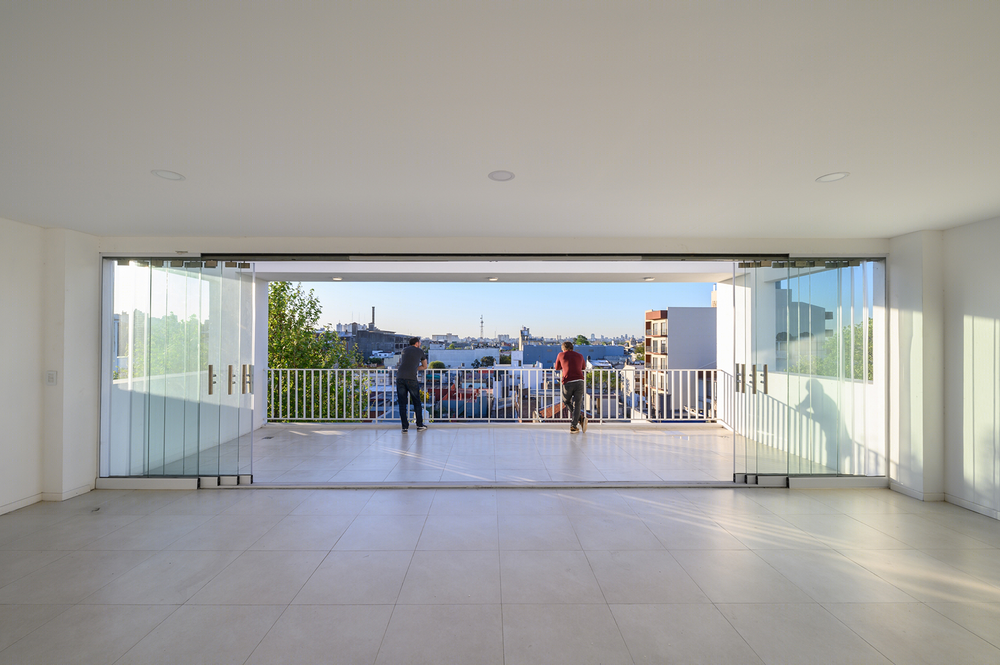

▼由室内望向露台，terrace from interior ©Gonzalo Viramonte

▼餐厅，dining room ©Gonzalo Viramonte

建筑采用钢筋混凝土结构，外墙覆以有纹理的涂料，整体颜色呈现单一的白灰色调。室内采用优质材料和饰面，厨房和卫生间采用黑色花岗岩台面、瓷砖以及白色组合家具。

The construction system adopted is a reinforced concrete structure, with exterior finishes covered with textured paint. The range of colors used is monochrome in white and gray tones. Black granite countertops and porcelain tiles were used, and white modular furniture in kitchens and design in toilets. Built with quality materials and finishes.

设计团队将建筑手段、简洁的体量、纯粹的线条以及现代的设计结合起来，以标准和责任规划栖息地，用美学设计材料、颜色及纹理。

We synthesize our architectural actions, simple volumes, pure lines, contemporary design, planning the habitat with criteria and responsibility and designing materials, colors and textures with aesthetics.

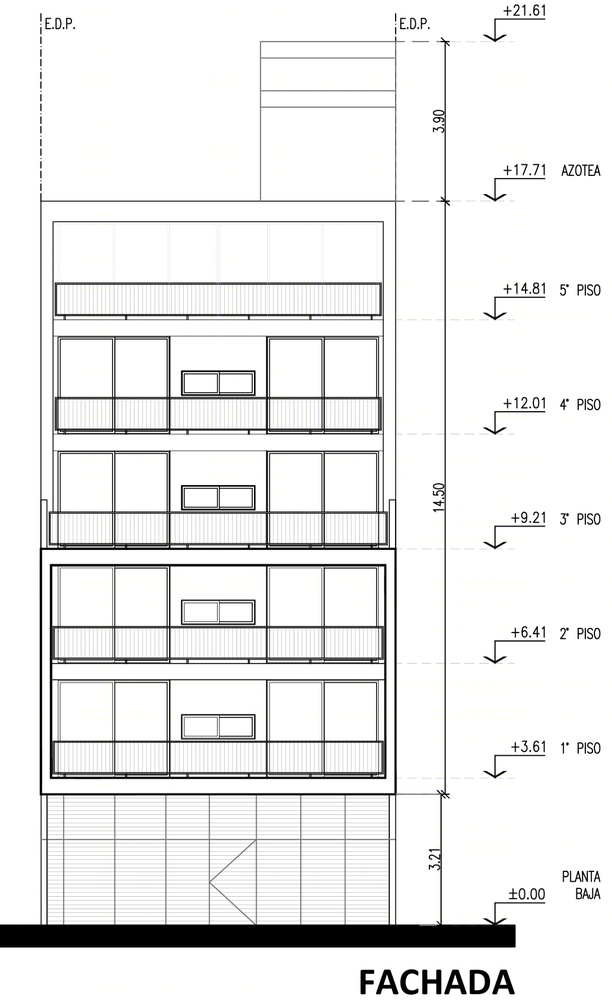

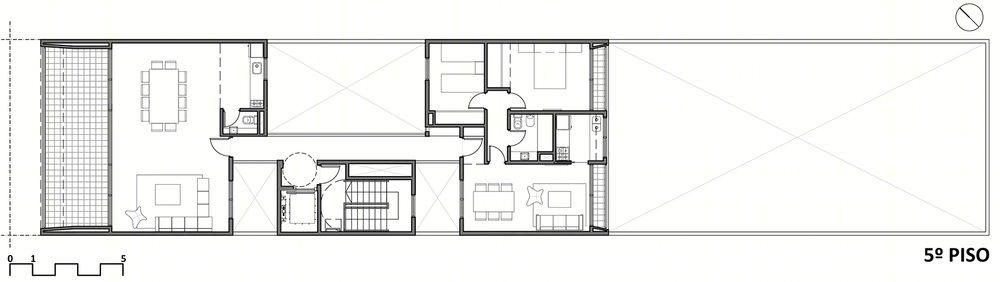

▼项目更多图片
