巴西 Aníbal 办公楼——光影交织的办公空间

Architect：Bernardes Arquitetura

Location：Rio de Janeiro, State of Rio de Janeiro, Brazil; | ;

Project Year：2015

Category：Offices

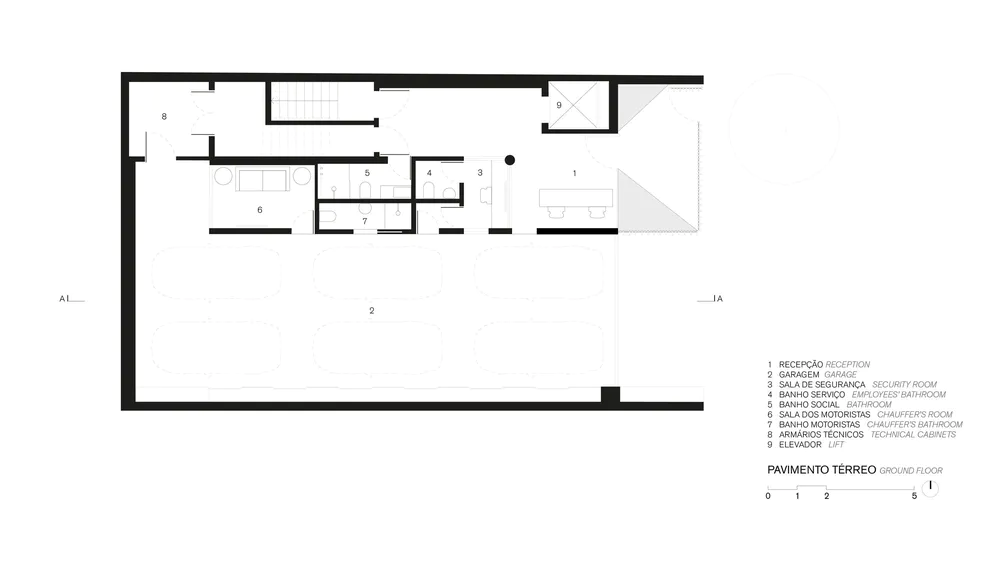

The Anibal Building houses the headquarters of three companies distributed in three open plan floors. Ground floor and roof are spaces shared by all users.

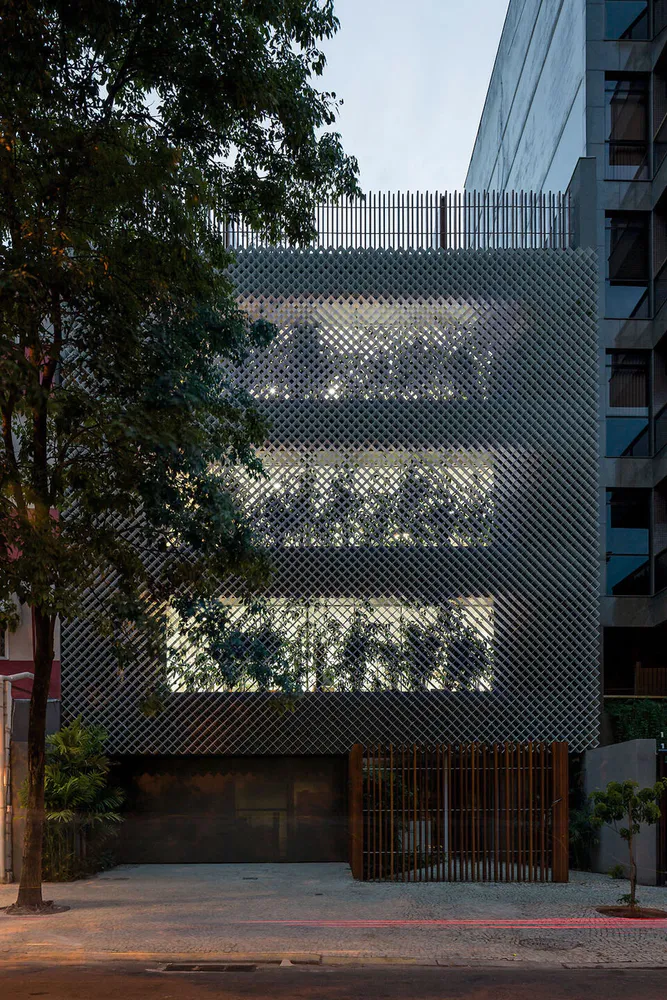

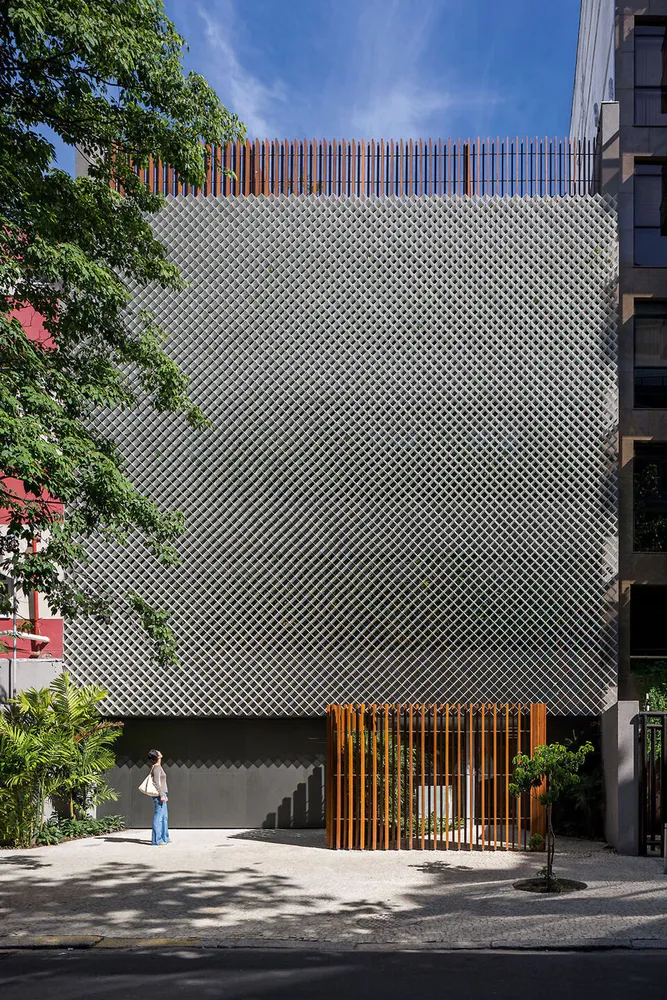

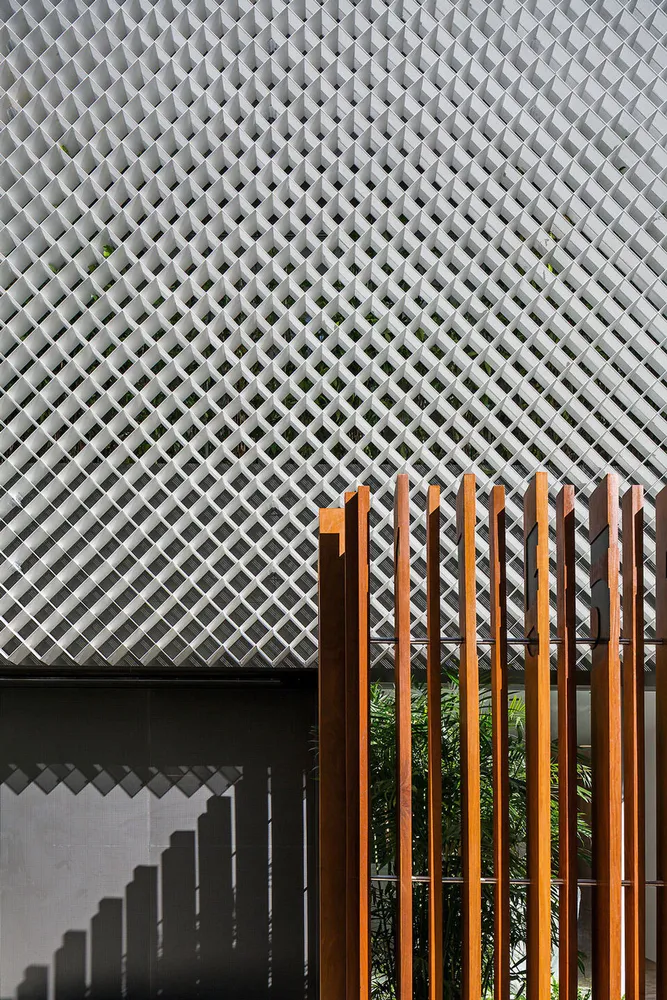

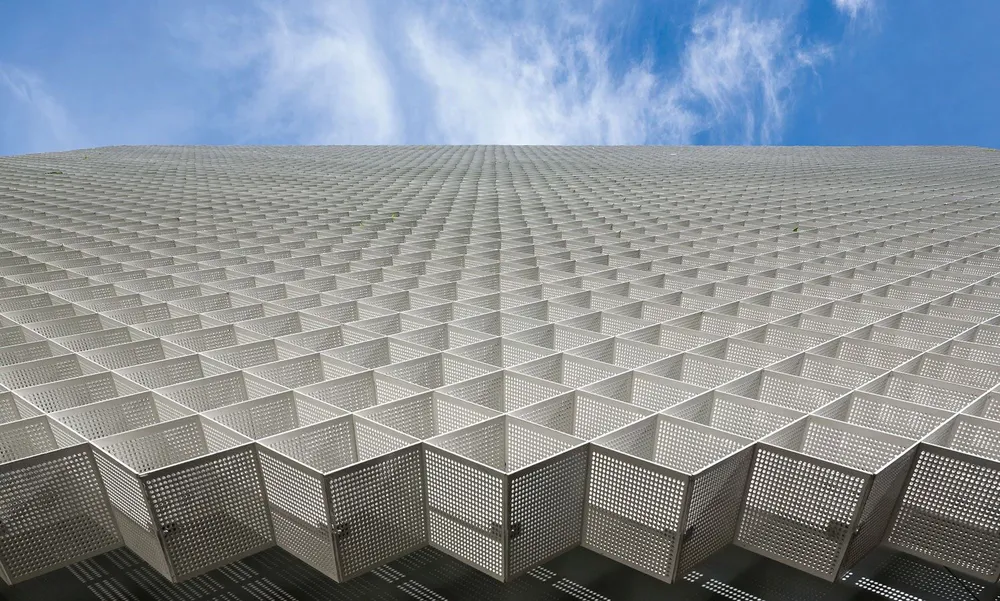

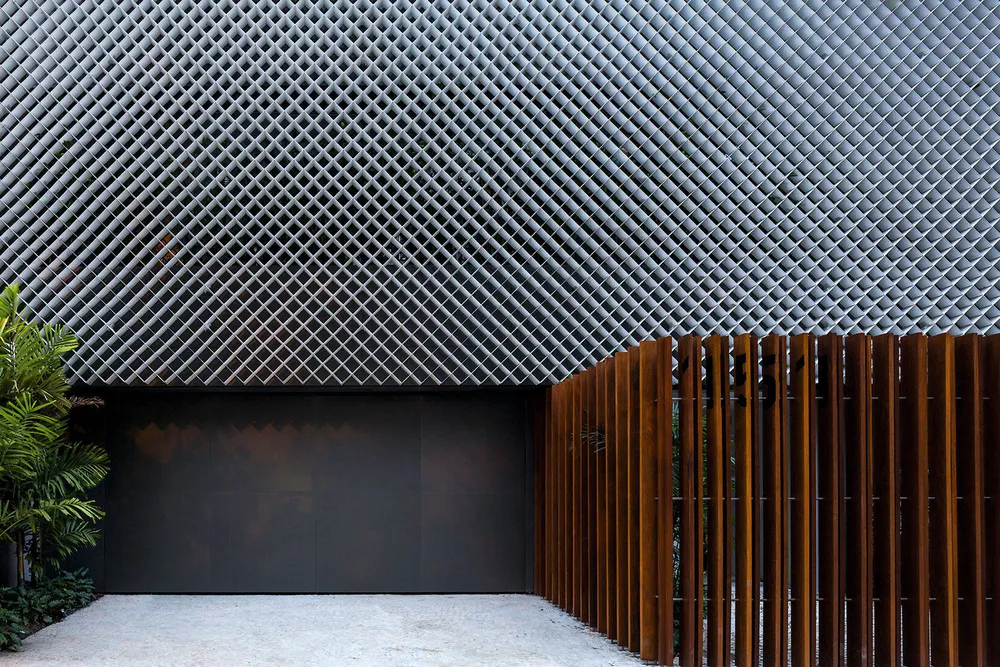

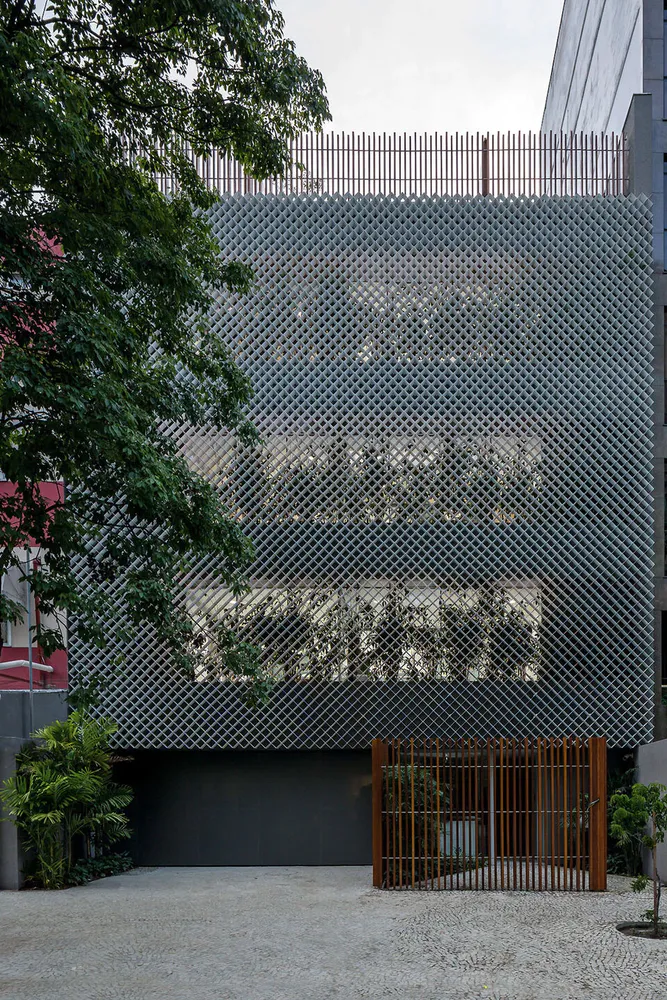

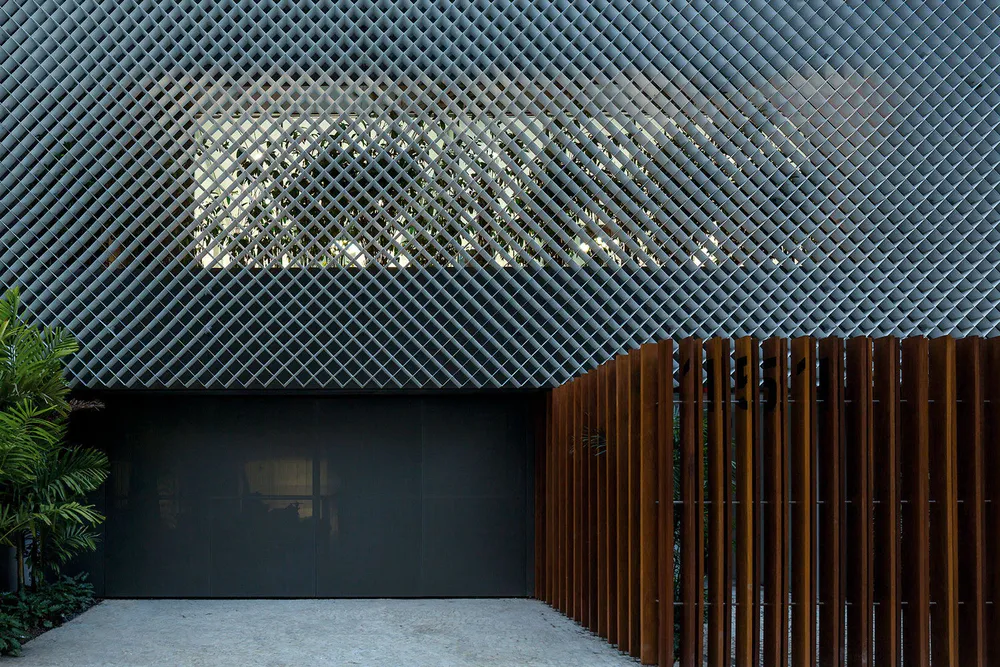

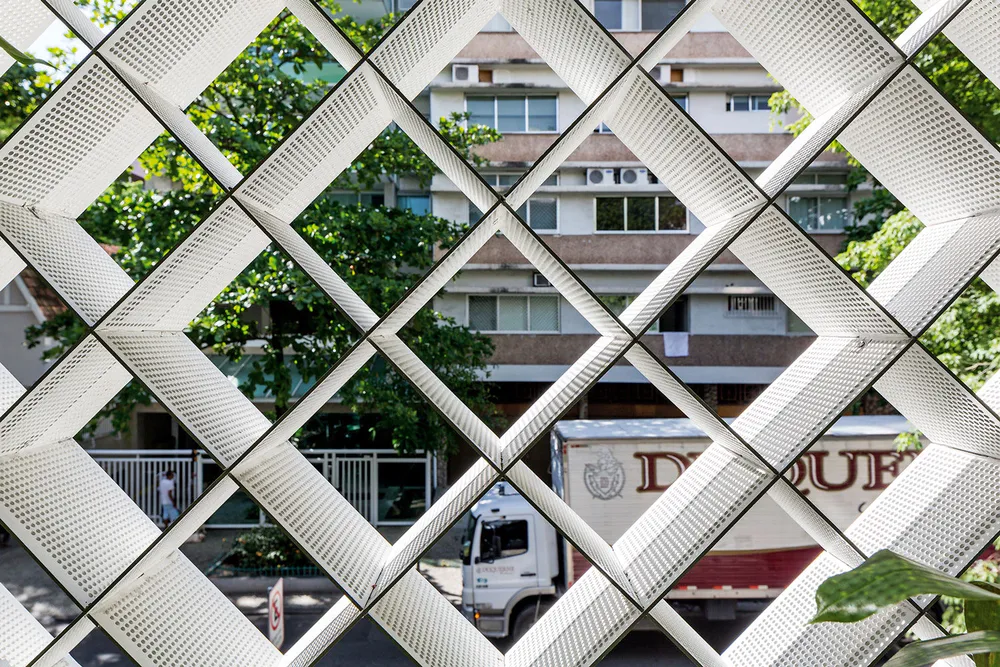

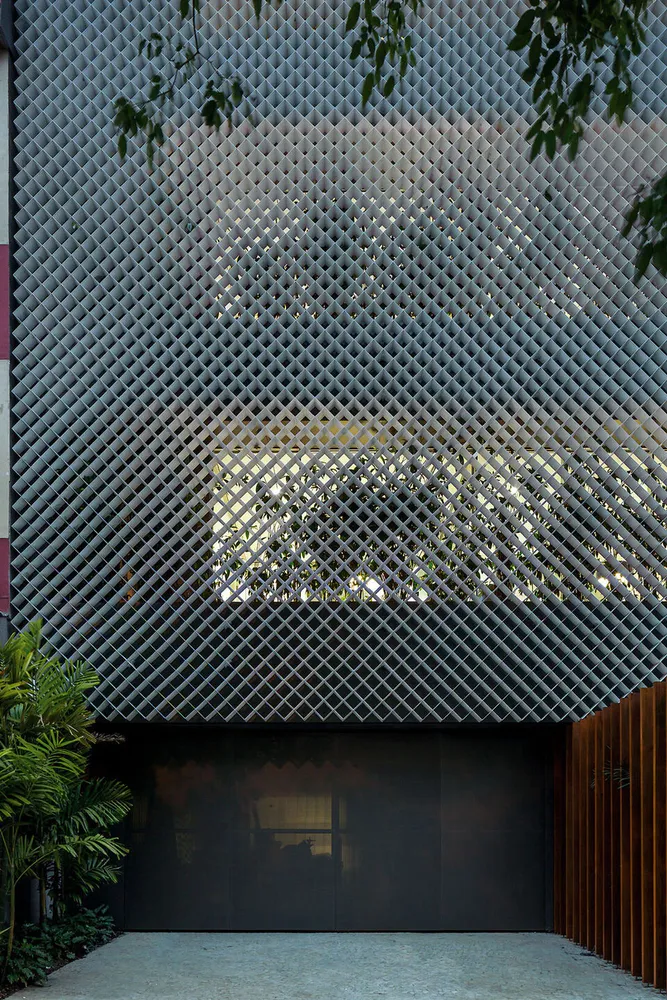

The facade is composed of different layers that filter light and sound. The outer one consists of a perforated aluminum structure that covers the upper work floors, followed by landscaping and, finally, special soundproof windows.

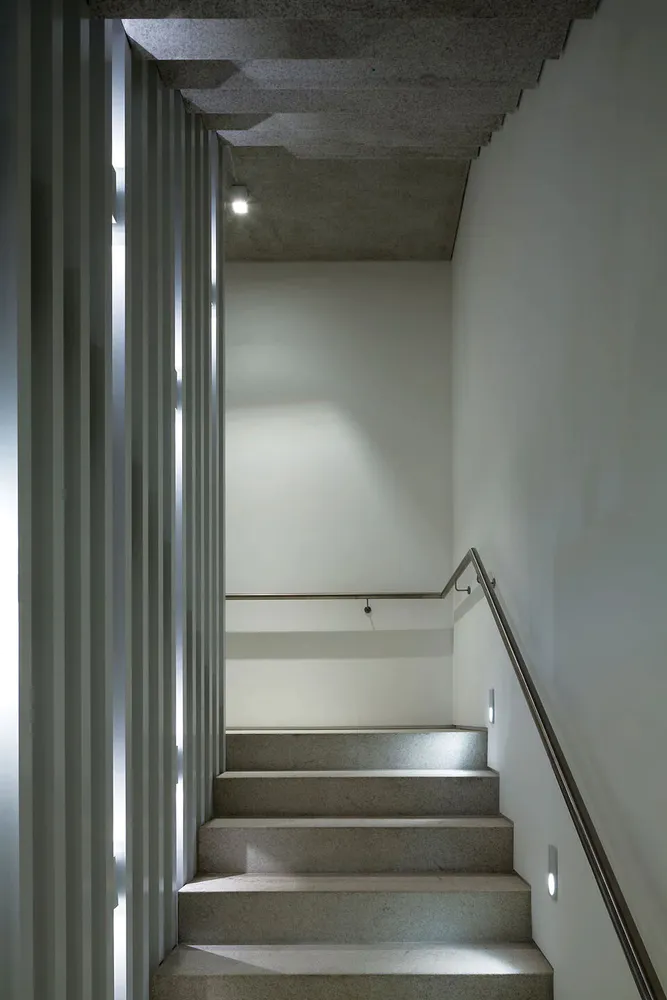

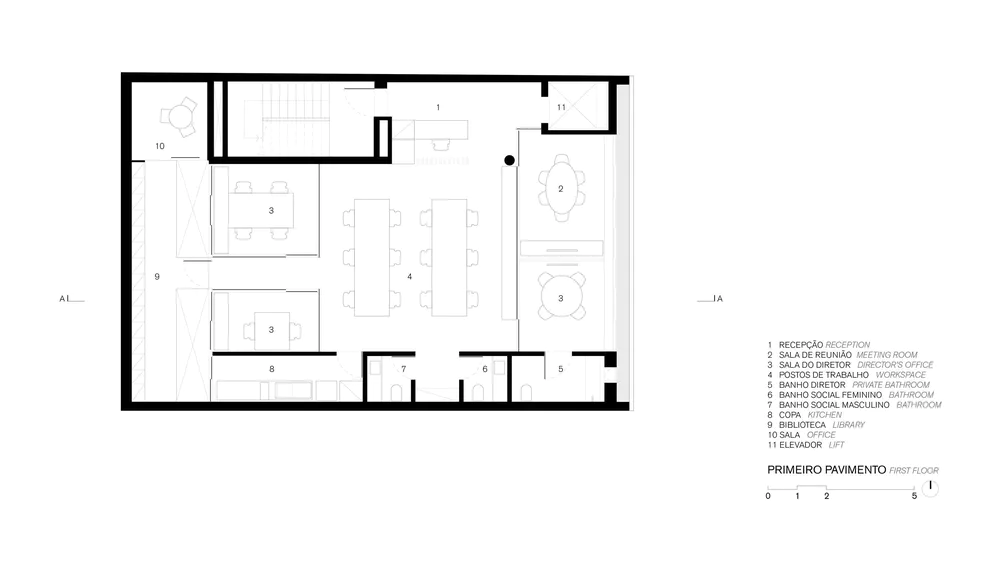

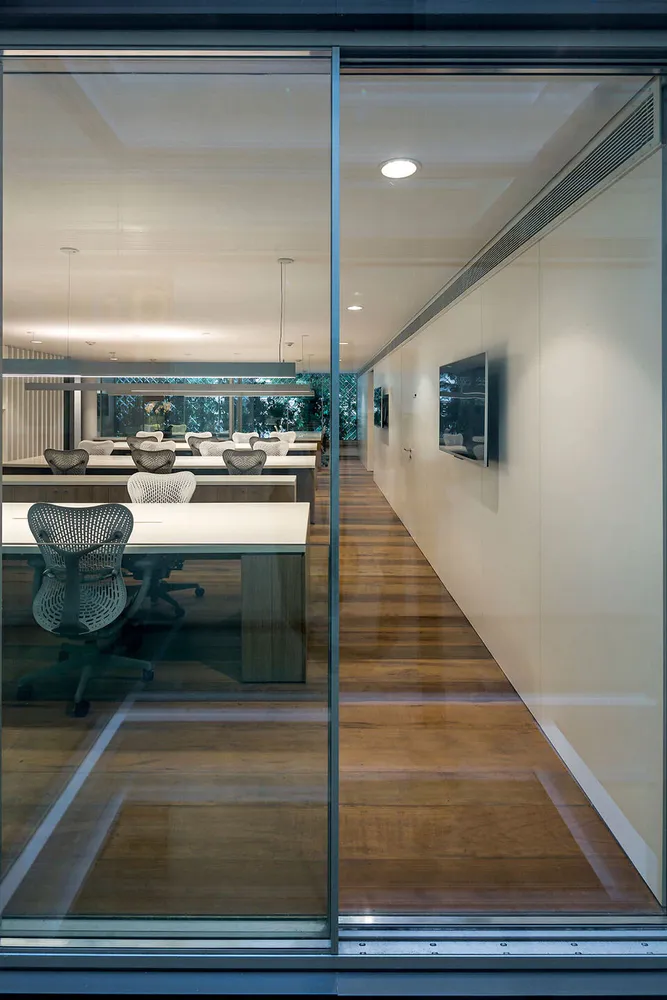

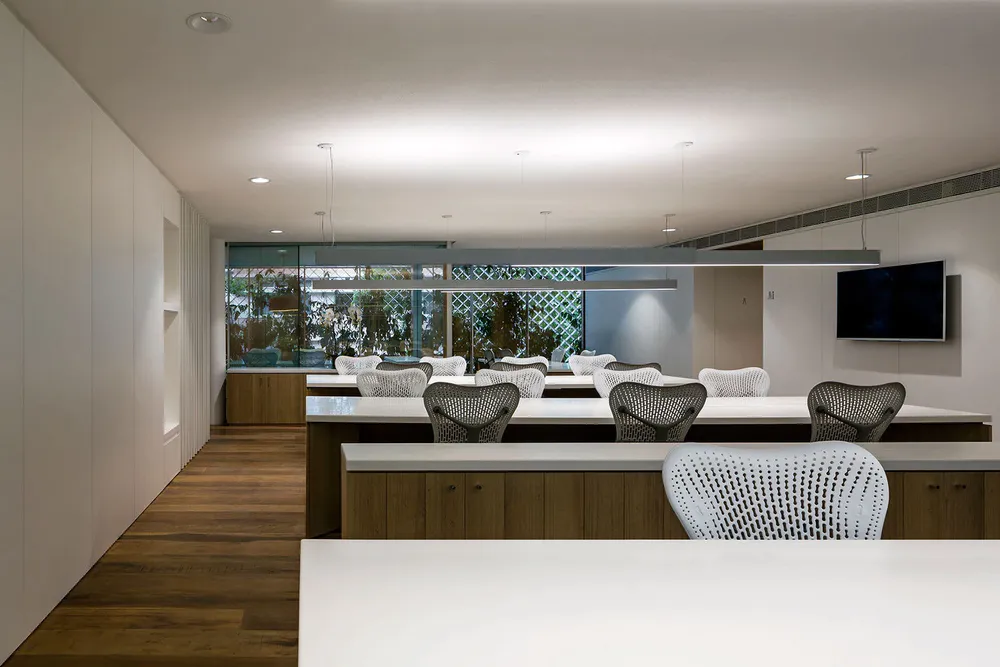

Workspaces occupy areas free of structural interference – open plans were made possible by the use of ribbed concrete slabs supported by peripheral columns. Building installations and vertical circulation are located around the perimeter of the building.

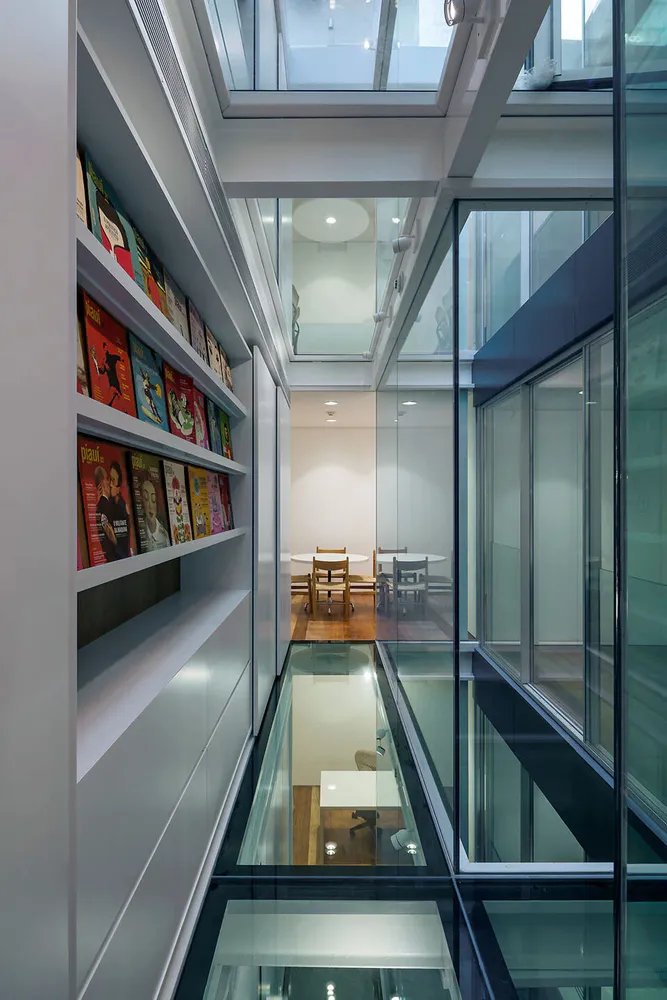

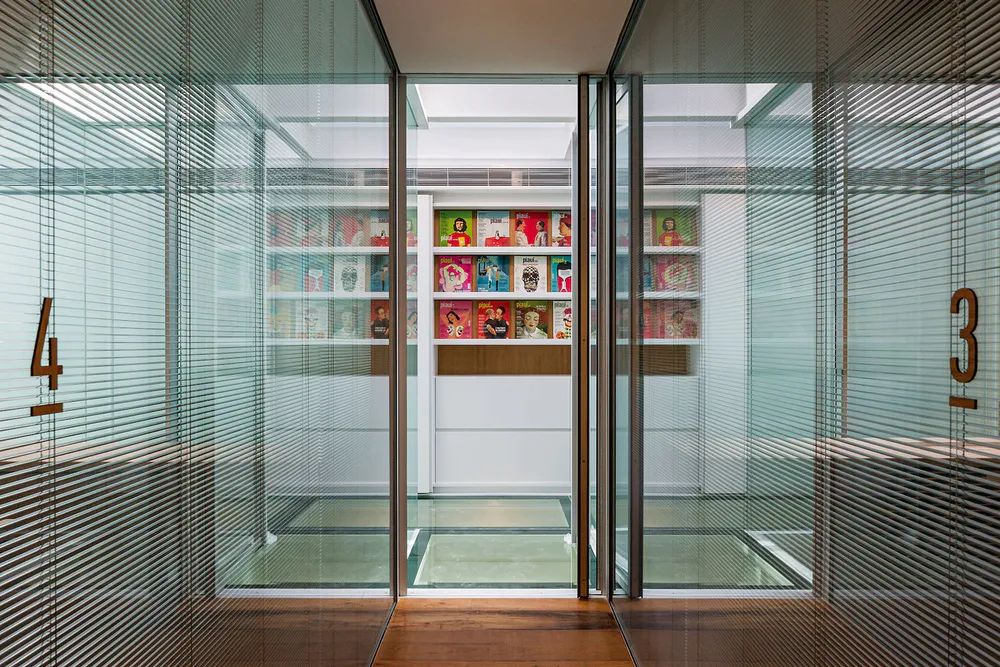

The complete occupation of the site by the building has brought the challenge of ensuring adequate lighting for its interior, which is solved through the library, which functions as a large-scale skylight. Glass partitions and floors turn the library into a kind of lighting pit, which distributes daylight across all floors while filtering out unwanted radiation.

Site Area:

230 sqm

Built Area:

1020 sqm

Beginning of the Project:

2011

Conclusion of the Construction:

2015

Architecture:

Bernardes Arquitetura

Interior Design:

Claudia Moreira Salles

Team:

Thiago Bernardes, Camila Tariki, Francisco Abreu, Daniel Vannucchi, Fabiana Porto, Victor Campos, Gabriela Di Toma, Antonia Bernardes, Caroline Premoli, Fernanda Lopes, Luiza Landim

Landscape Architecture:

Daniela Infante

Lighting Design:

Studio ILuz

Photos:

Leonardo Finotti

Design team and collaborators:

Acoustics: Roberto Thompson Motta

Air Conditioning: Frioterm

Automation: Noise

Visual Communication: 6D

Construction Company: São Bento

Detection: Proline

Electrical and Hydraulic Installations: Efficienta

Structural Design: Abilitá

Foundations: Costa Santos

Façades: Tecnosystem

Woodwork: CAP Maison Marcenaria; Grifel Marcenaria;

Lamps: Lumini, Erco, Foscarini

Sanitary Fixtures: Toto Brasil, Deca e Metal Bagno

Glass: Tecnosystem

Ceiling: OWA (work spaces); Carpinta (wet areas);

Air Conditioning: Frioterm

Metal Structure: Estrutural JK Engenharia

Window Frame: Panoramah
