设计亮点

利用高差打造嵌入式绿色屋顶，融入周围花园景观。

该项目位于Empúries希腊罗马式古建筑遗址的东南端，周围环绕着如那不勒斯城般的美景。悠久的历史和独特的景观为其赋予了宝贵的价值。该项目为这一敏感的场地赋予了一系列新的功能空间，包括访客接待区、售票处、商店、多功能室、咖啡厅、带有露台的餐厅以及基础服务设施，面积共计1079平方米。

With beautiful views of the Greek Neápolis, the new building is located in the south-east end of the archaeological greco-roman set of Empúries. It is a highly sensitive place given its patrimonial and landscape interest.The project solves a mixed program with a visitors welcome area, ticket desk, shop, multi-purpose room, coffee shop, restaurant with terrace and service facilities. The overall built area is 1079sqm.

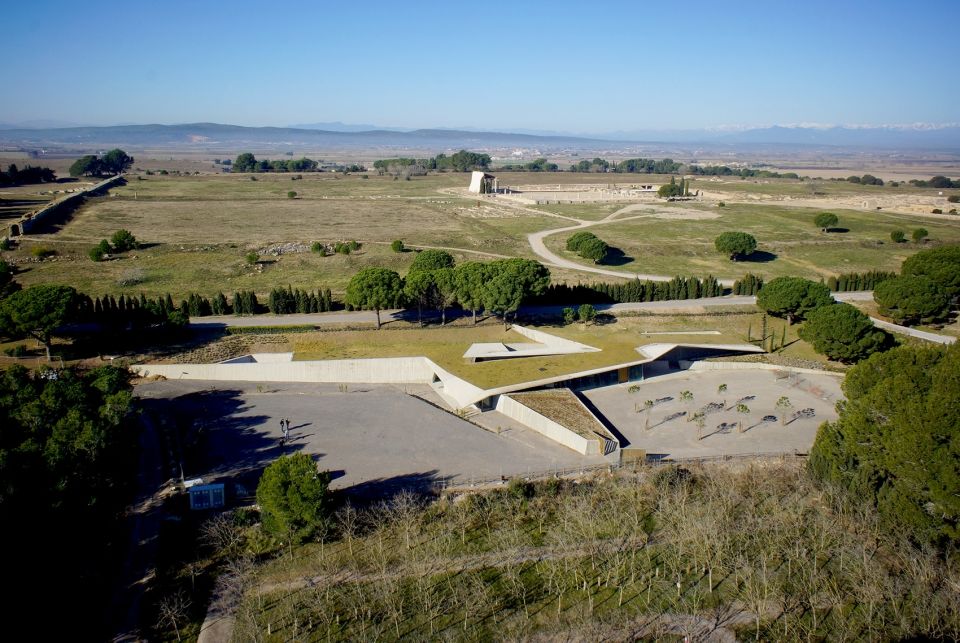

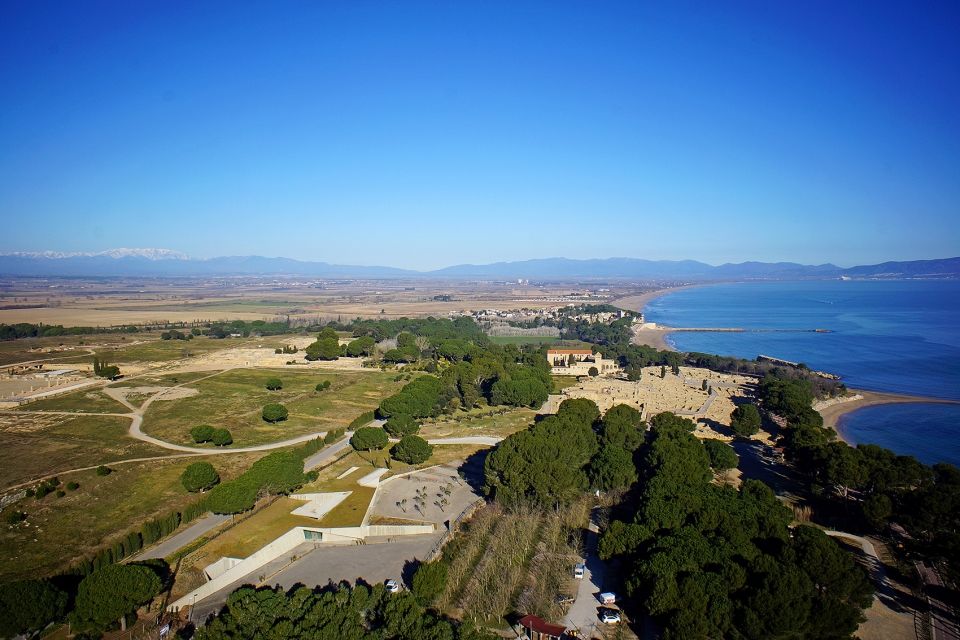

▼鸟瞰图，aerial view

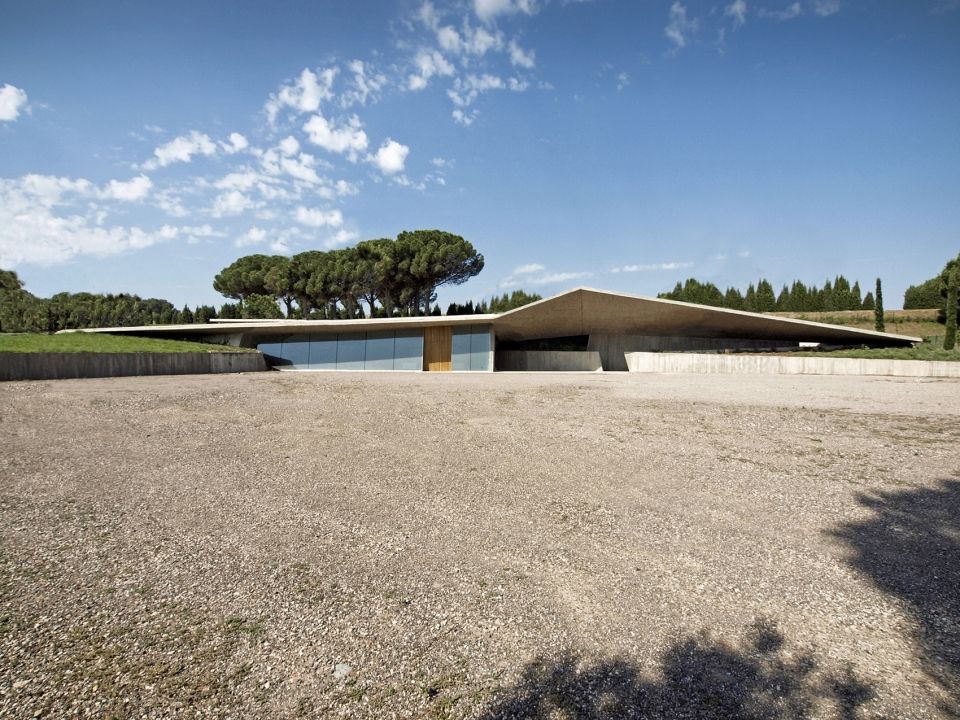

▼建筑师利用路面与场地之间的高差打造了一个嵌入式的、带有绿色屋顶的单层体量，the building uses the existing height difference between the top level of the road and the low one of the terrain, to build a half- buried single floor with green roof

新的建筑并未试图模仿或融入Empúries遗址的强烈特征，相反，它以一种新的姿态成为了周围花园的一部分。建筑师利用路面与场地之间的高差打造了一个嵌入式的单层体量，铺满植被的绿色屋顶使其与周围的花园融为一体，降低了新建筑对于周围环境的视觉冲击。

The architecture of the new building does not try to emulate or to join the “strong architectures” of Empúries, on the contrary, it develops a building that becomes a part of the surrounding gardens. The building uses the existing height difference between the top level of the road and the low one of the terrain, to build a half- buried single floor with green roof, becoming one with the surrounding gardens and reducing the visual impact of the new construction.

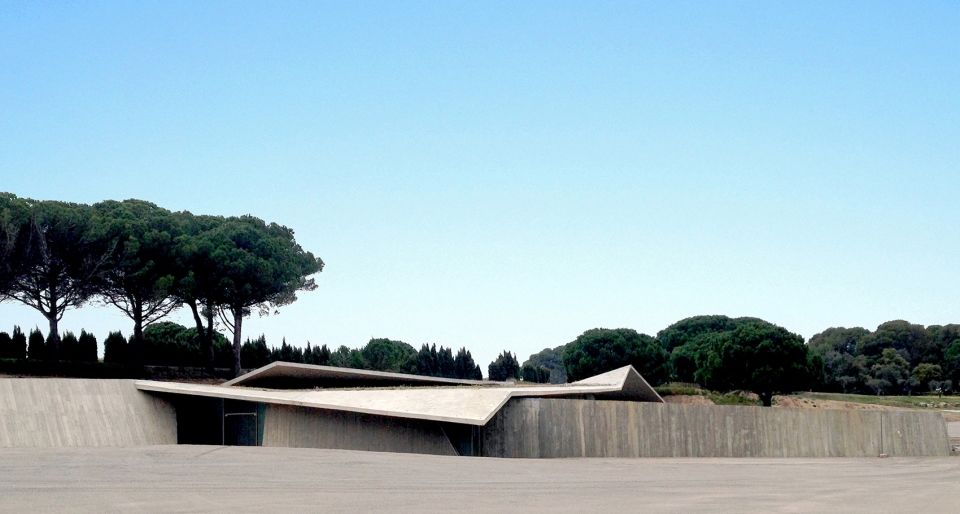

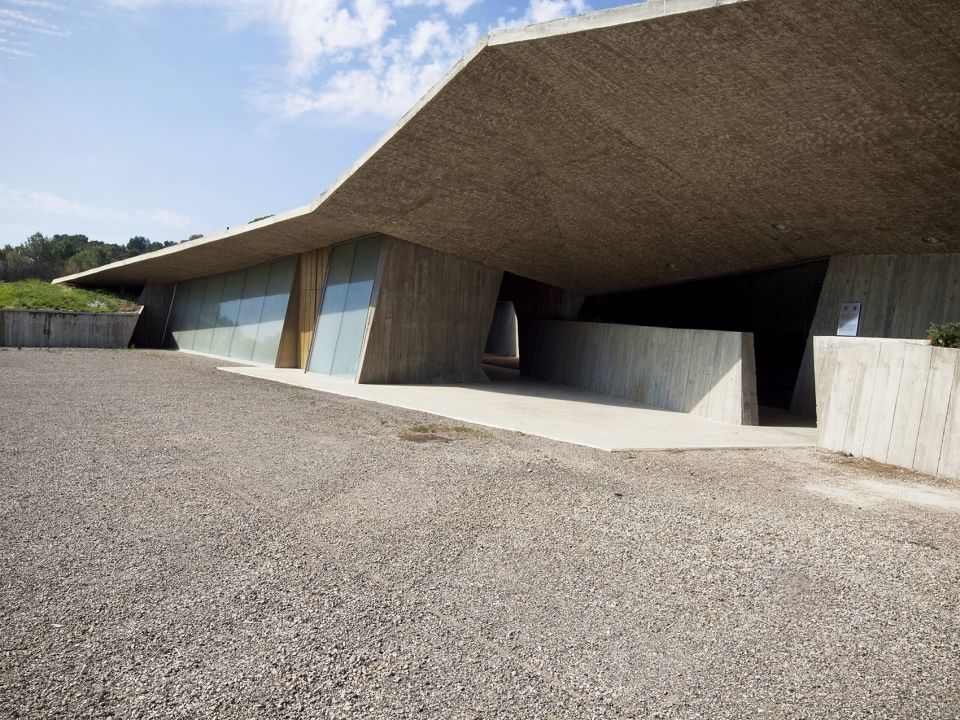

▼入口立面，entrance facade

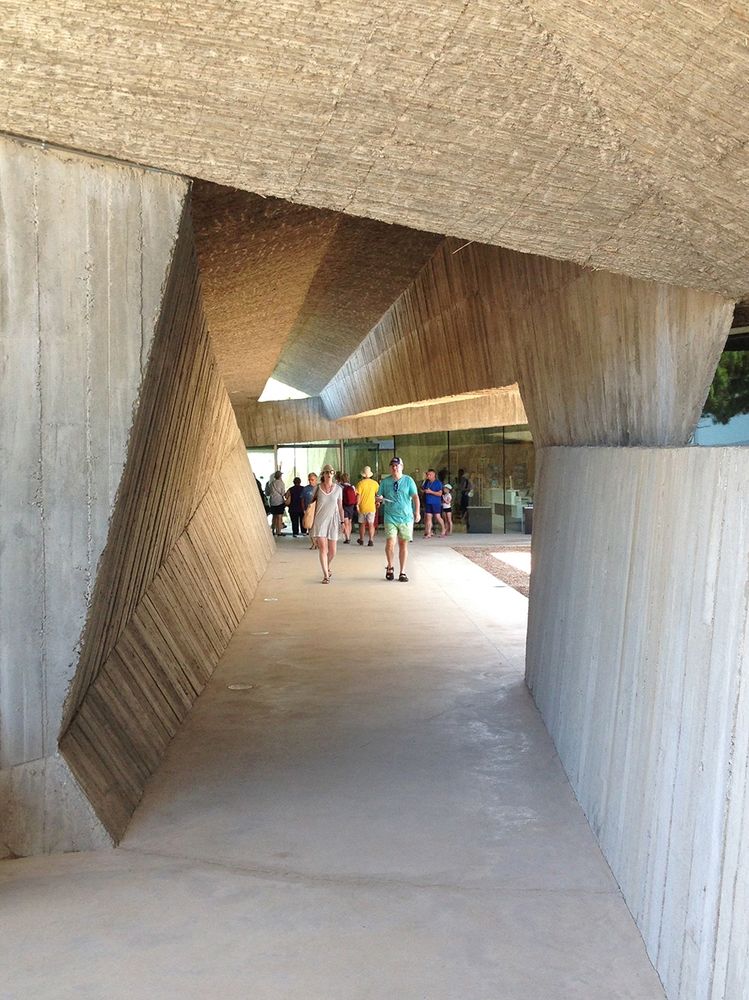

▼入口细部，entrance

▼整个建筑以单一的钢筋混凝土材料建成，all the construction is made with a single material: reinforced concrete

整个建筑以单一的钢筋混凝土材料建成，且采用了不同的饰面：藤条材质的天花板、木制墙壁以及灰泥地面。这为整个建筑群赋予了连续且质朴的外观。

All the construction is made with a single material: reinforced concrete, with different finishes. Cane for the ceiling, wooden planks for walls and plastered for the floor. This creates continuity and a stony and stark look throughout the complex.

▼藤条材质的天花板，the ceiling is built with cane

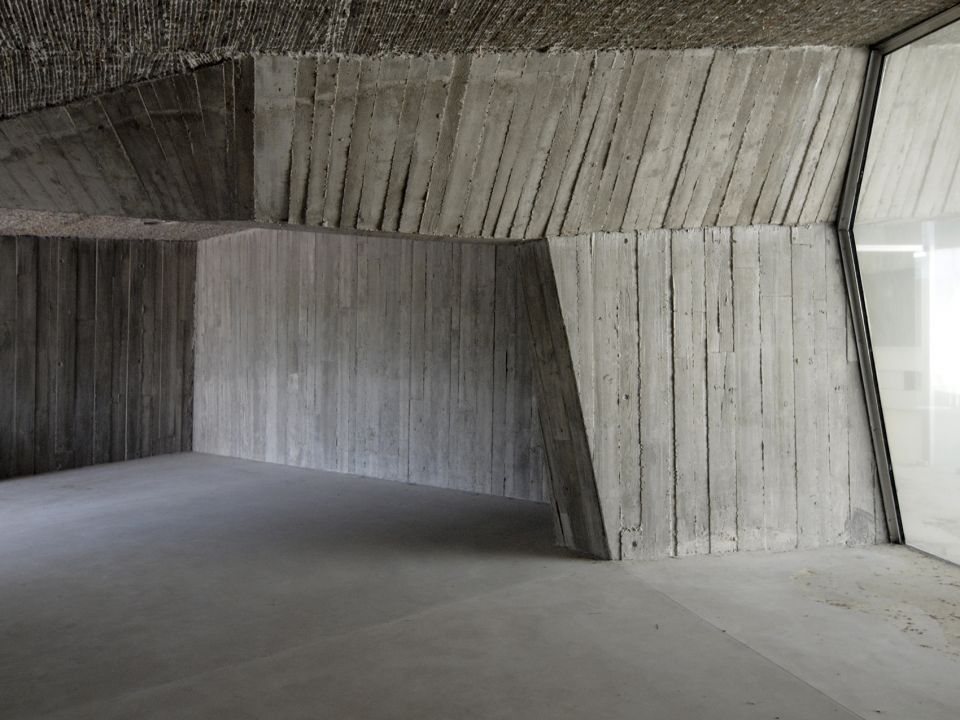

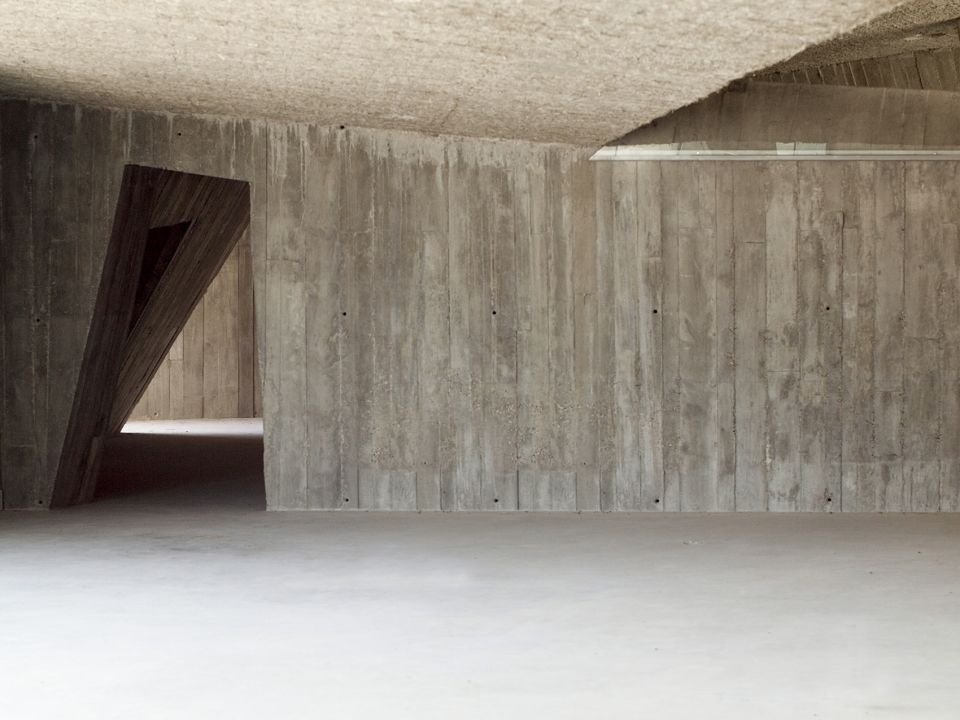

▼木制墙壁和灰泥地面，wooden walls and plastered floor

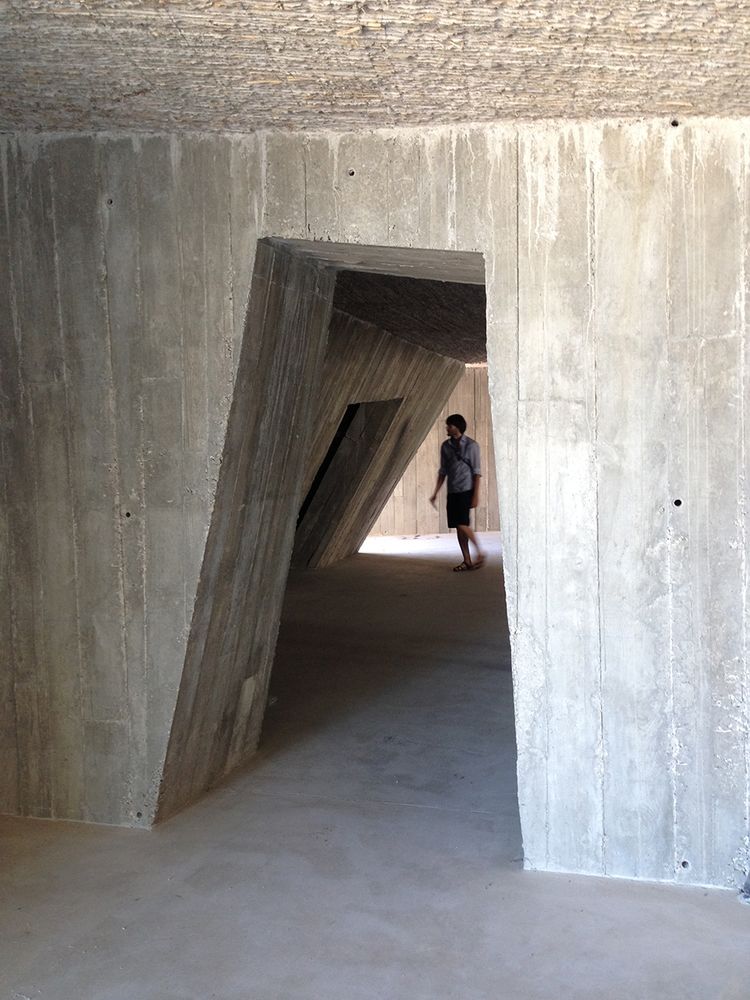

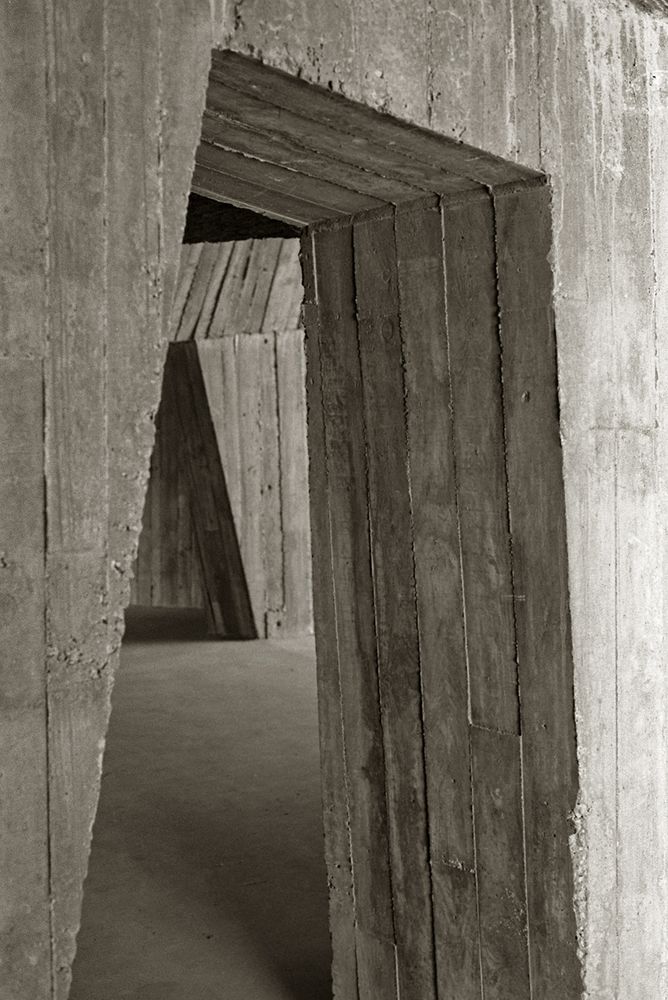

▼室内细部，interior view

建筑的平面将不同的功能空间组织在一个线性的序列上，成为入口区域和遗址区之间的过渡空间。建筑的入口和中心地带各设有一个斜面的屋顶，其中后者的尺寸较大，形成一个半遮盖的中庭空间，将不同的空能空间连接起来。

The plan organizes the building in a linear scheme that acts as a transitional space between the access zone and the monumental complex, with a sequence of two compressions, one at the entrance of the building and another one exiting towards the ruins with a widening in the central zone, where a semi-covered patio is placed acting as a link between the different intended uses.

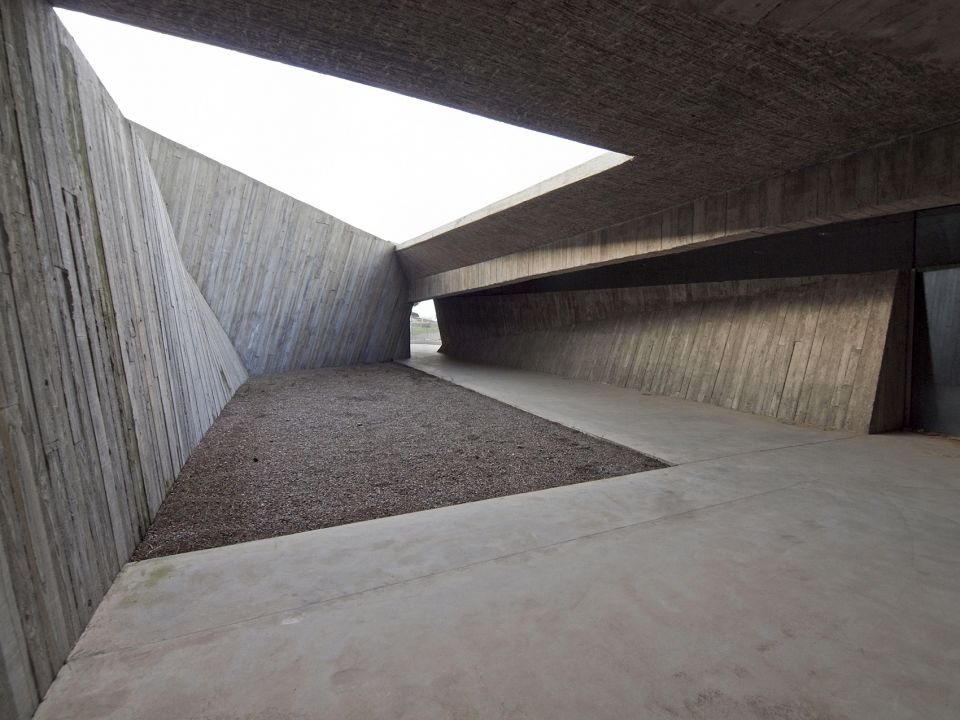

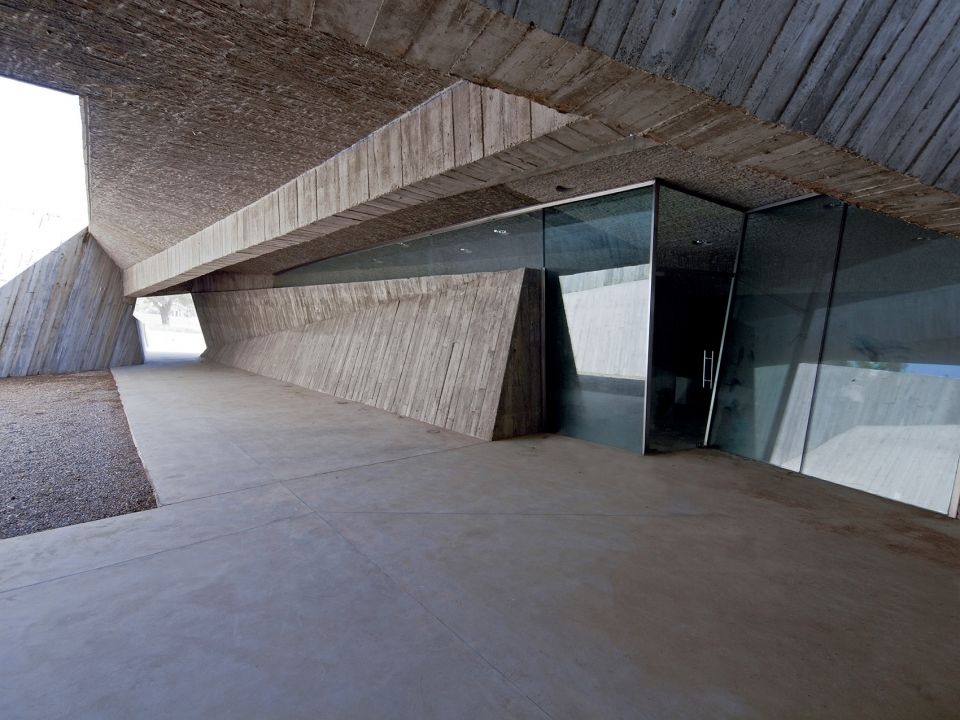

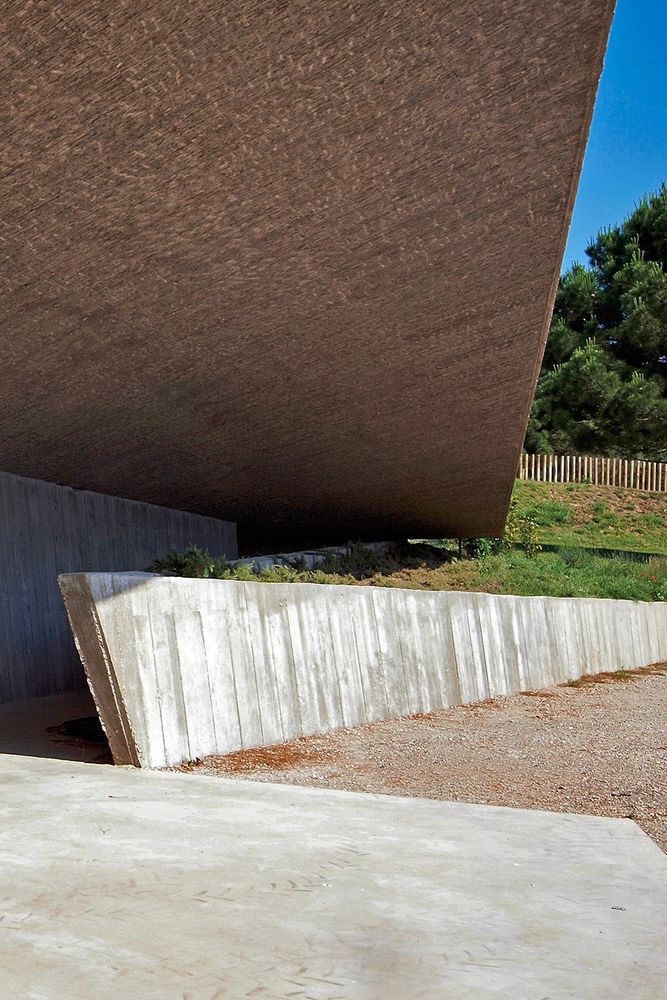

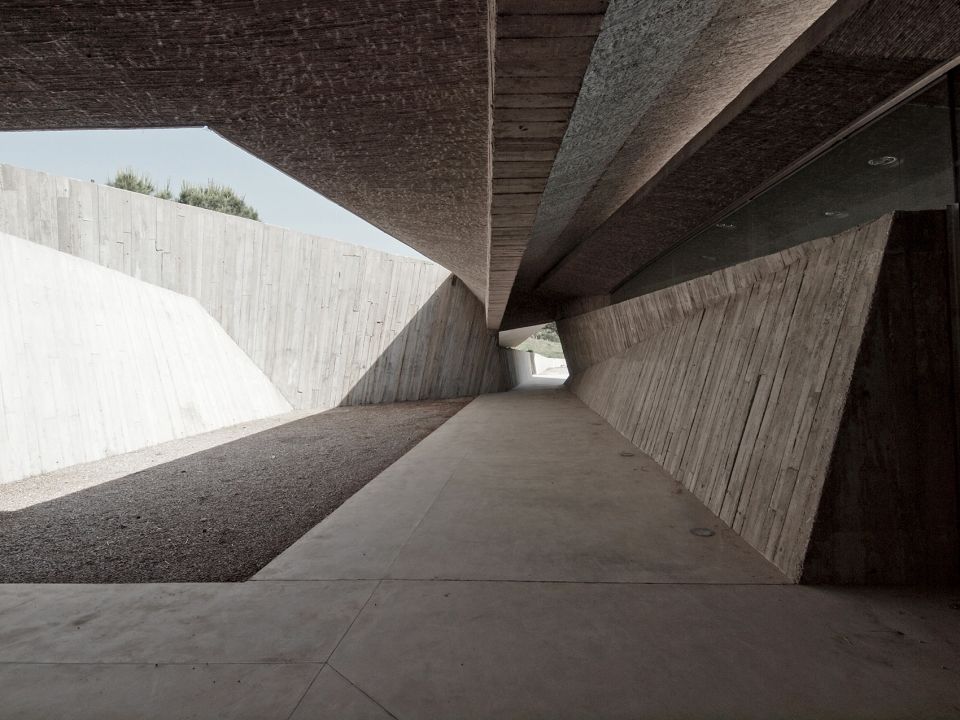

▼半遮盖的中庭空间将不同的空能空间连接起来， a semi-covered patio is placed acting as a link between the different intended uses

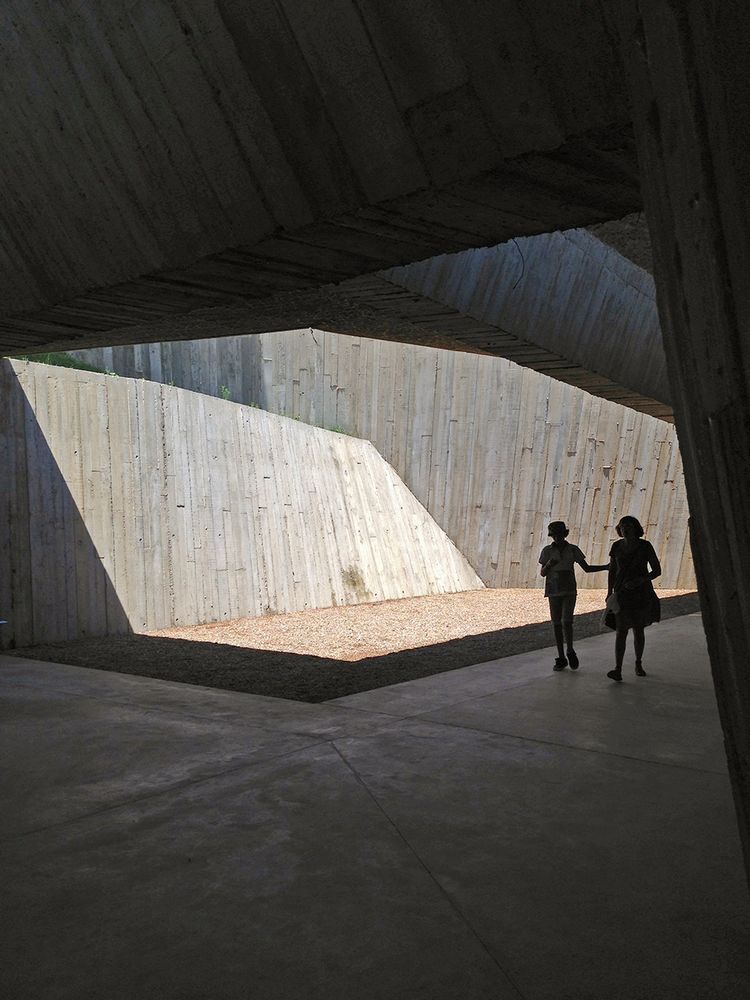

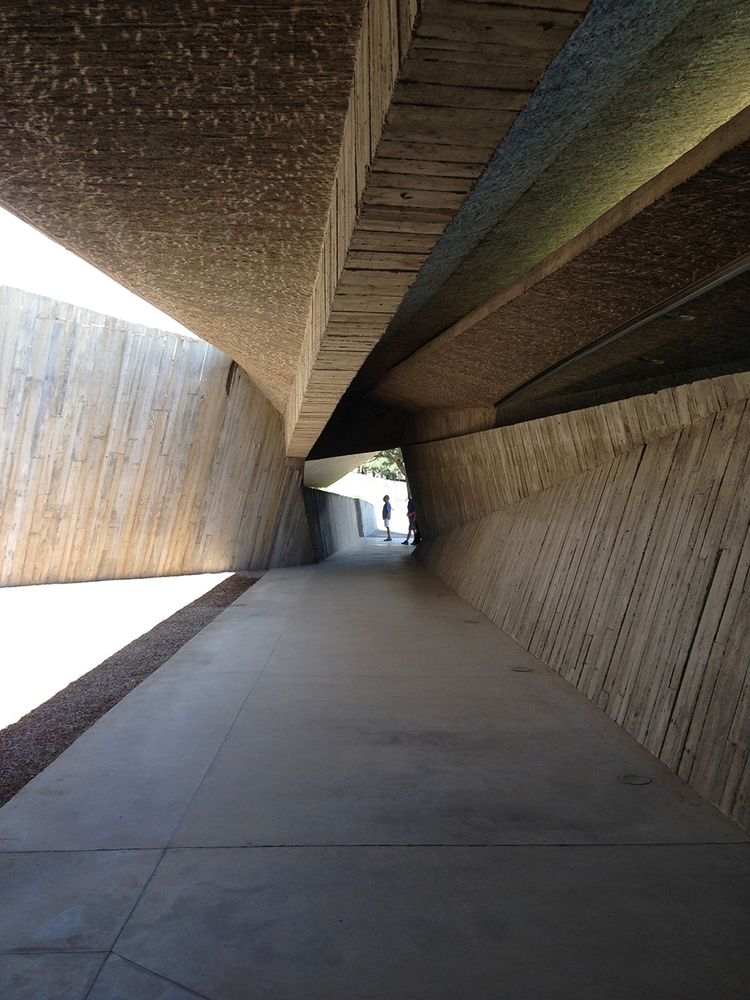

▼中庭细部，detailed view

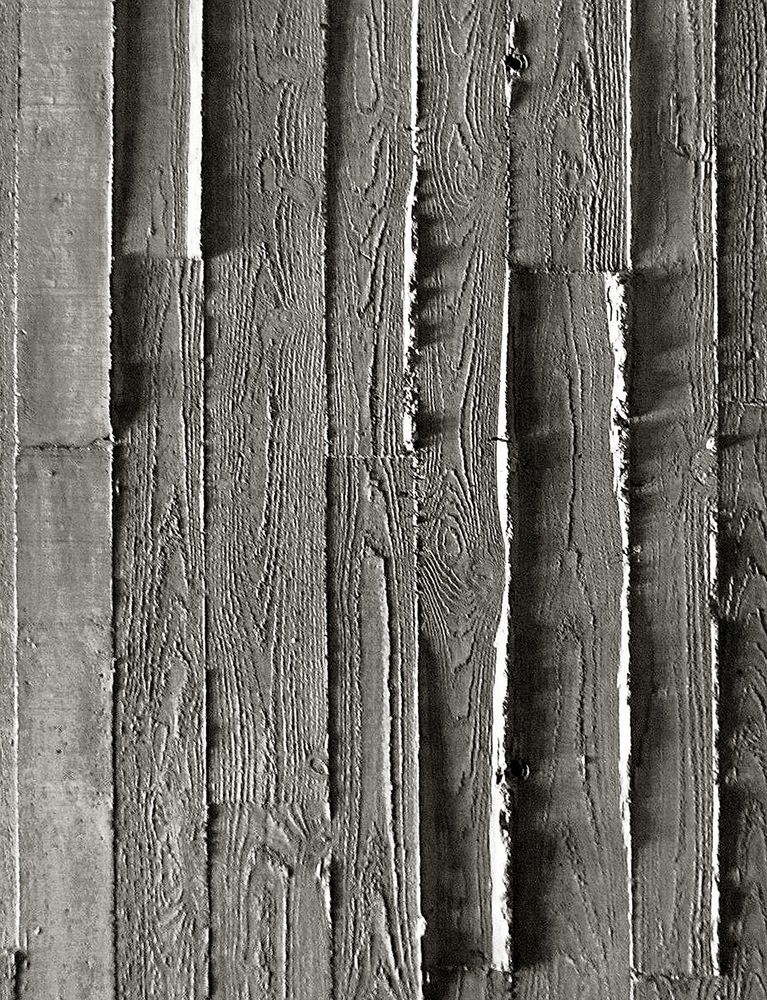

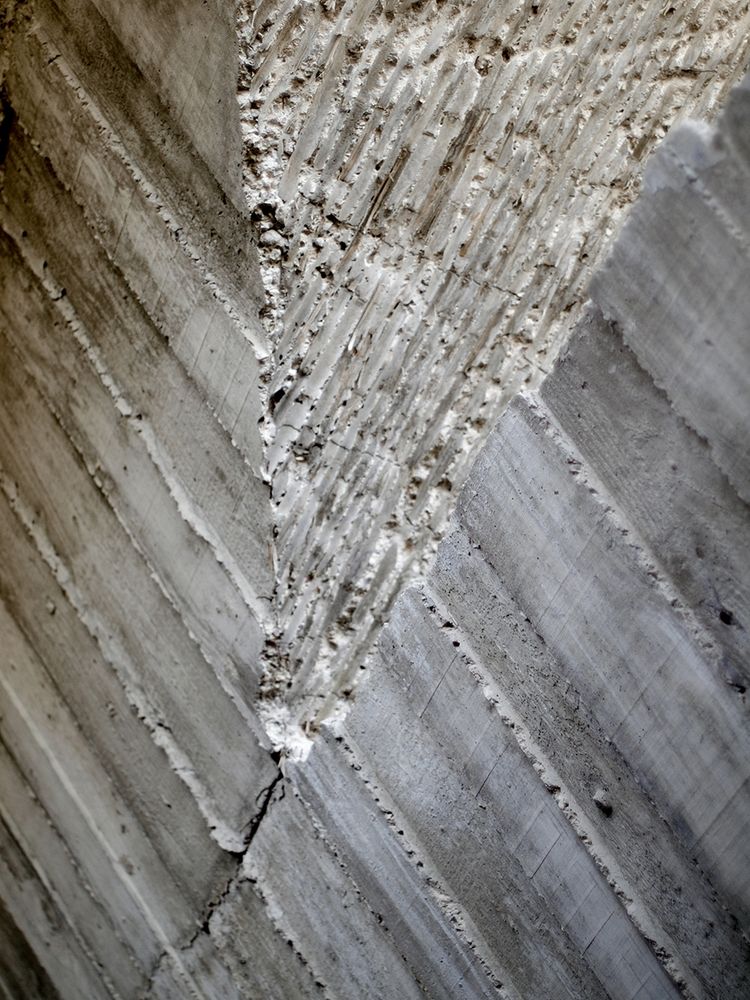

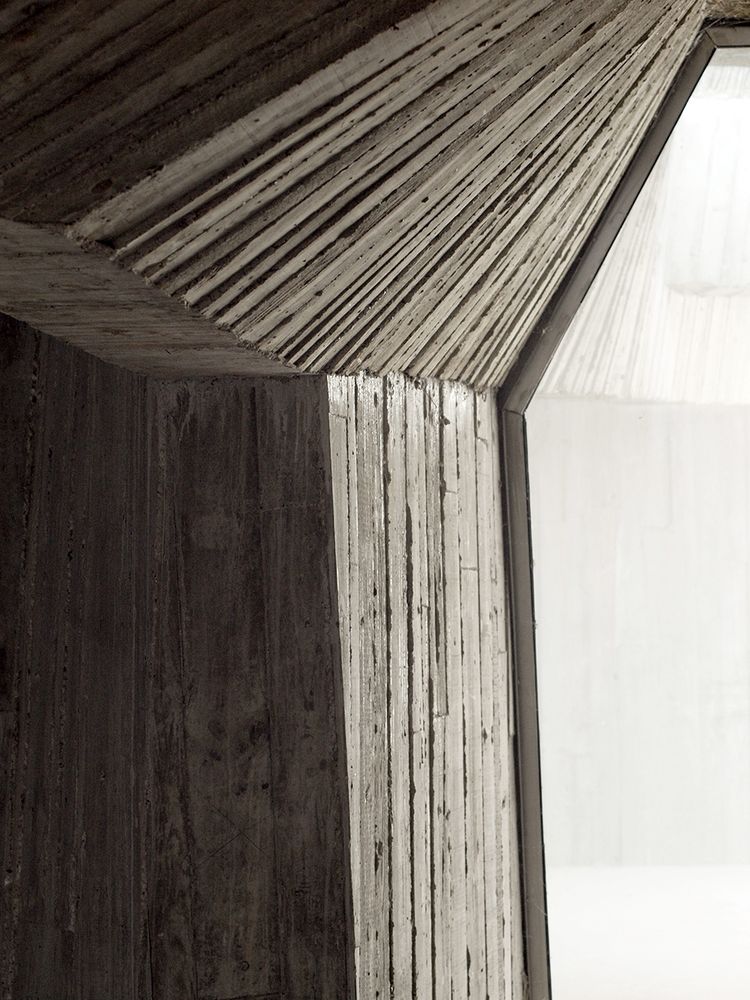

▼材料细部，material

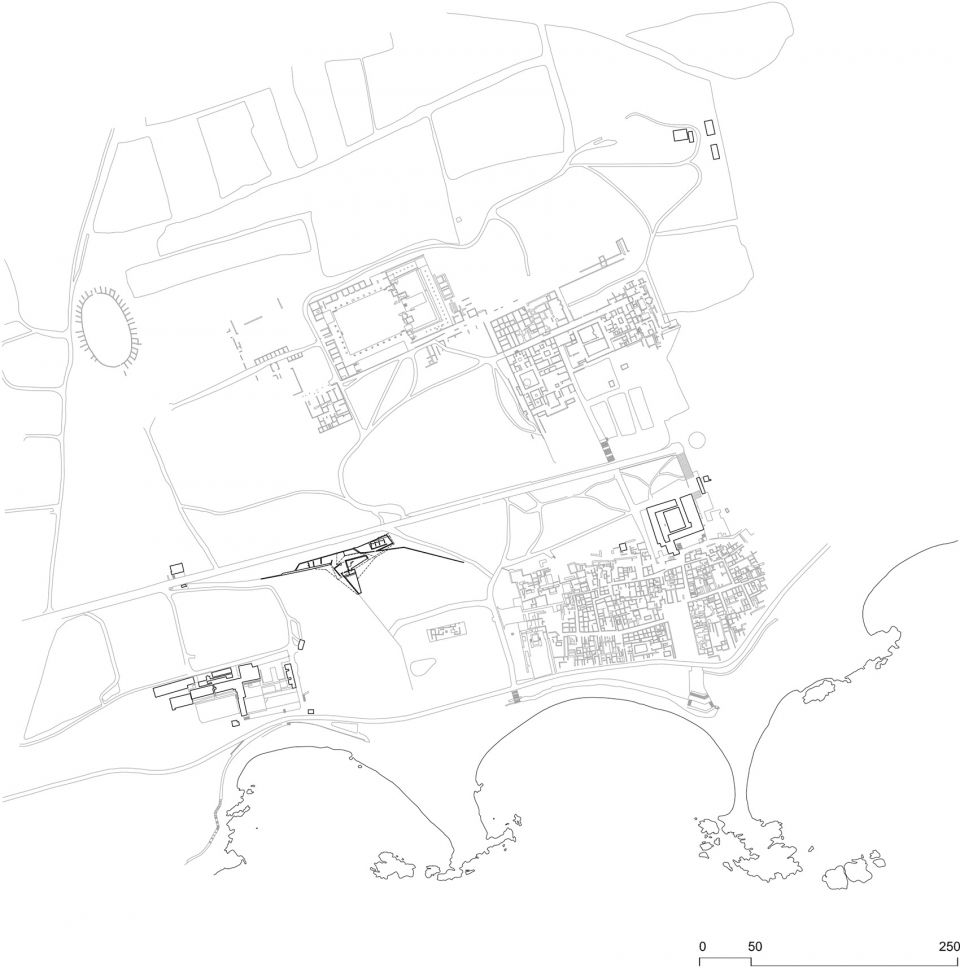

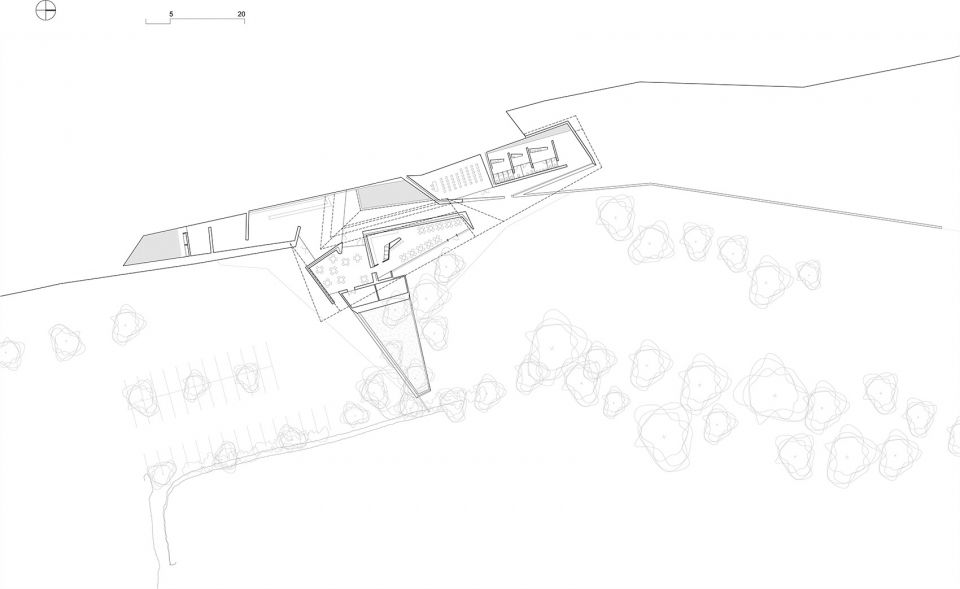

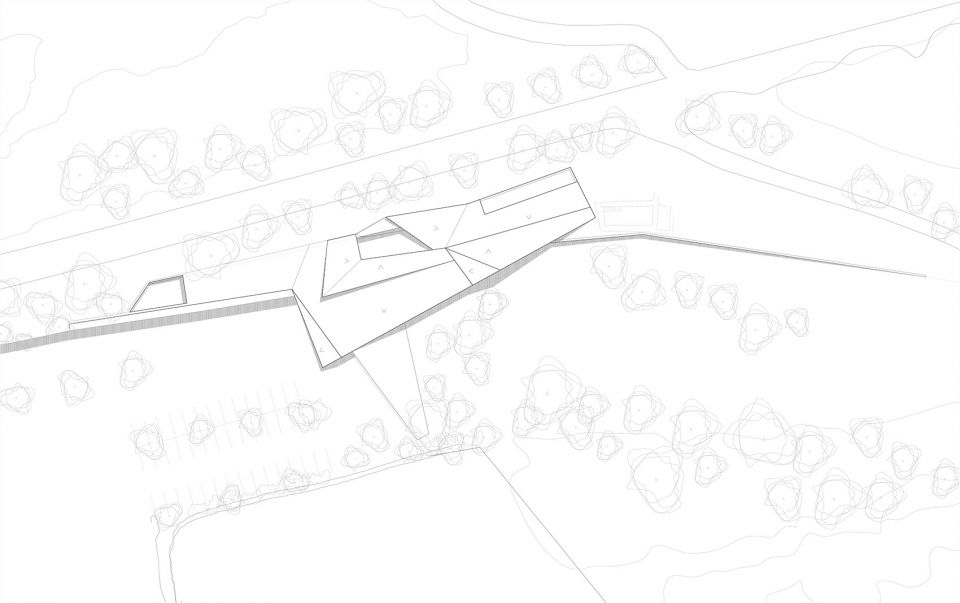

▼场地平面图，site plan

▼首层平面图，ground floor plan

▼屋顶平面图，roof plan

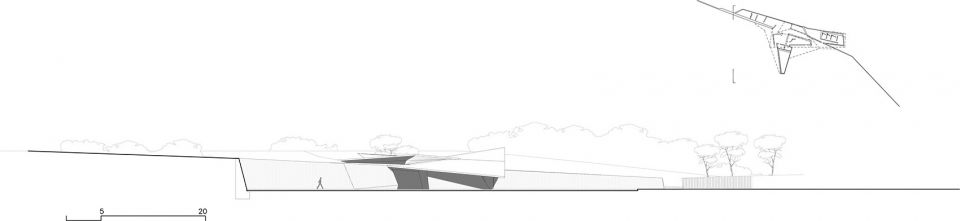

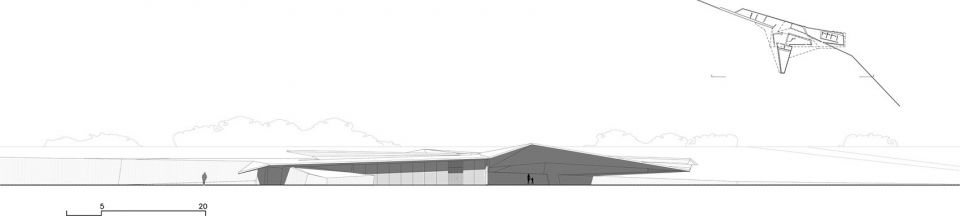

▼立面图，elevations

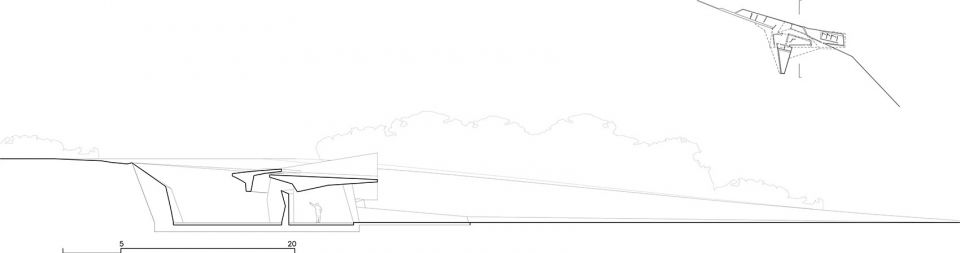

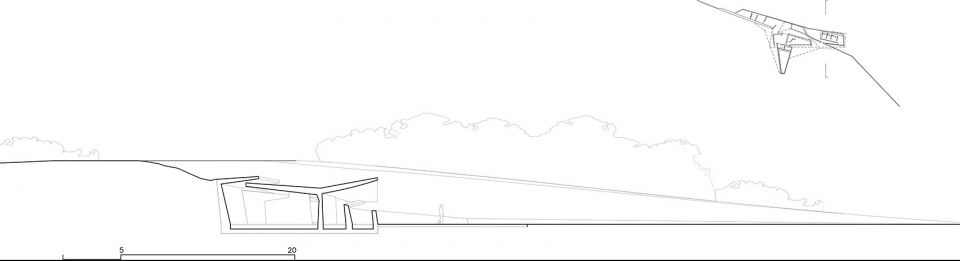

▼剖面图，sections

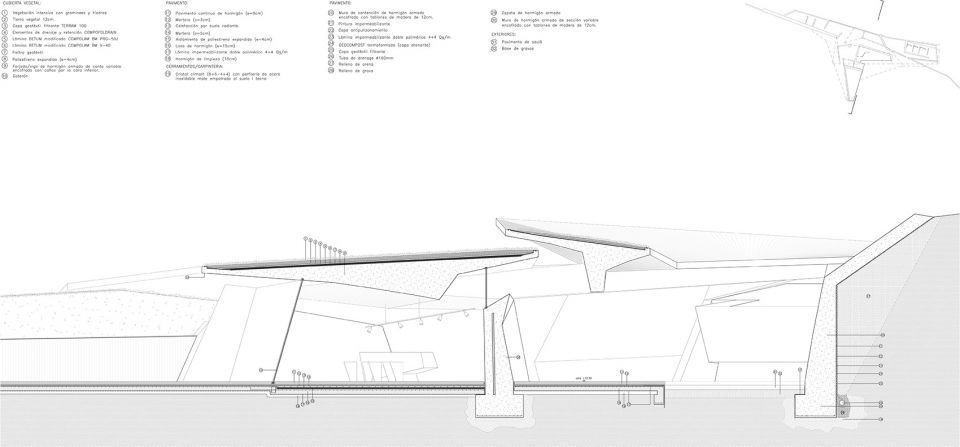

▼结构细部，detailed section
