Greenhouse jellyfish boat floating in the water

分类：公共环境

内容：实景照片

图片：17张

随着地球人口急剧增长，可持续农业和清洁水逐渐变得极其重要。Studiomobile的Cristiana Favretto和Antonio Giraridi认识到了这一点并提出了解决方案。“水母船”的称呼来自其形状和半透明外观。这个漂浮在水中的温室可以通过水培种植食物，每天还能产生大约150升的饮用水。更加有利的是其低成本以及容易安装的设计，这使得它可以安装在许多地方。“水母船”被设计成一个70平方米的八边形，其下方是回收利用的塑料桶。这些塑料桶直接固定在上方的木质“甲板”上，八边形周围的网状木梁让它们保持住了平衡。

温室空间占了“船”的大部分空间。温室内部种有水培植物。水培法指的是仅使用水和矿物来种植植物，这样的种植方法比传统的方法要节约70%水量。“水母船”内

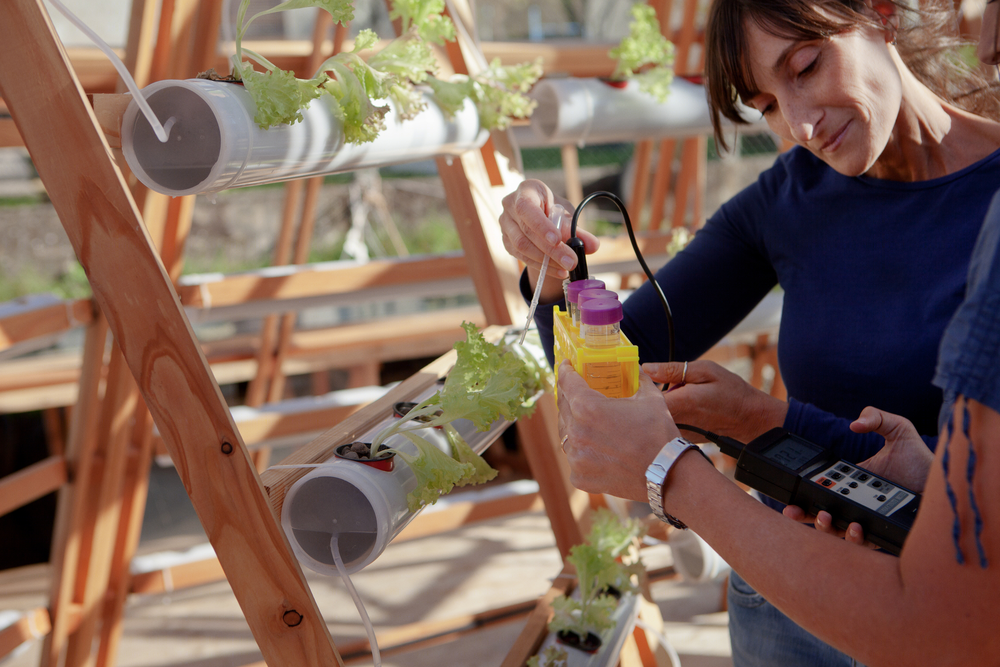

植物种植

用水中有15%的海水，这样更加减少了水的用量。“水母船”设计的规模很小，这样的设计是为了方便安装在那些材料有限的地方。除此之外，它足以满足两个家庭的食物和水的需求。“船”是模块化的，它甚至可以与其他的模块拼接在一起从而为整个社区提供食物。

译者: 柒柒

With the earth’s population increasing at an exponential rate, sustainable agriculture and access to clean water are becoming desperately important. Cristiana Favretto and Antonio Giraridi of Studiomobile recognize this and have proposed a solution. Dubbed the Jellyfish Barge for its shape and translucency, this floating greenhouse is capable of growing its own food hydroponically and producing up to 150 liters of fresh drinking water per day. Even more beneficial is its low-cost, easy-to-assemble design that can be implemented in a variety of locations.

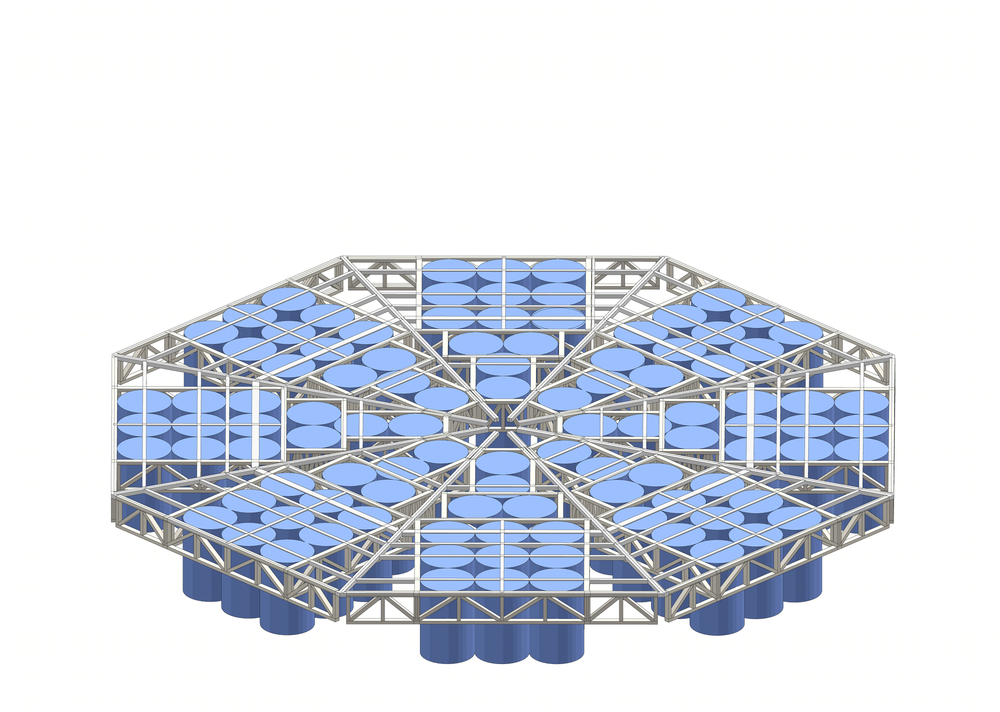

The Jellyfish Barge was conceived as a 70 square meter octagon, floating atop recycled plastic drums. These drums are attached directly to the wooden decking above, and are held steady by reticular wooden beams along the radii of the octagon.The majority of the barge’s space is taken up by a covered greenhouse space. The interior houses scaffolding on which hydroponic gardening can take place. Hydroponics, the act of growing plants using only water and minerals, uses 70% less water than traditional agriculture. The Jellyfish Barge improves on this efficiency by using 15% seawater in its growing solution, cutting down on the amount of water taken from the freshwater supply of the Barge’s solar stills.

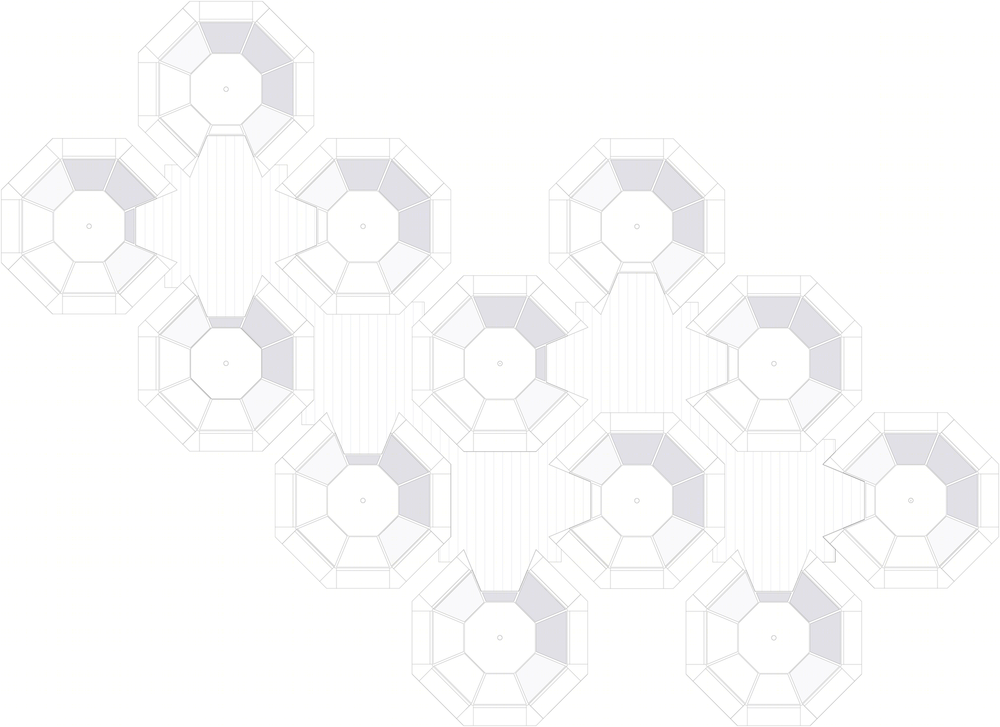

The Jellyfish barge was designed to be small in size, specifically for installation in places with a limited supply of materials. Despite this, it is capable of supporting the food and water needs of up to two families. The Barge is also modular, and can be combined with others of its kind to provide food for entire communities.

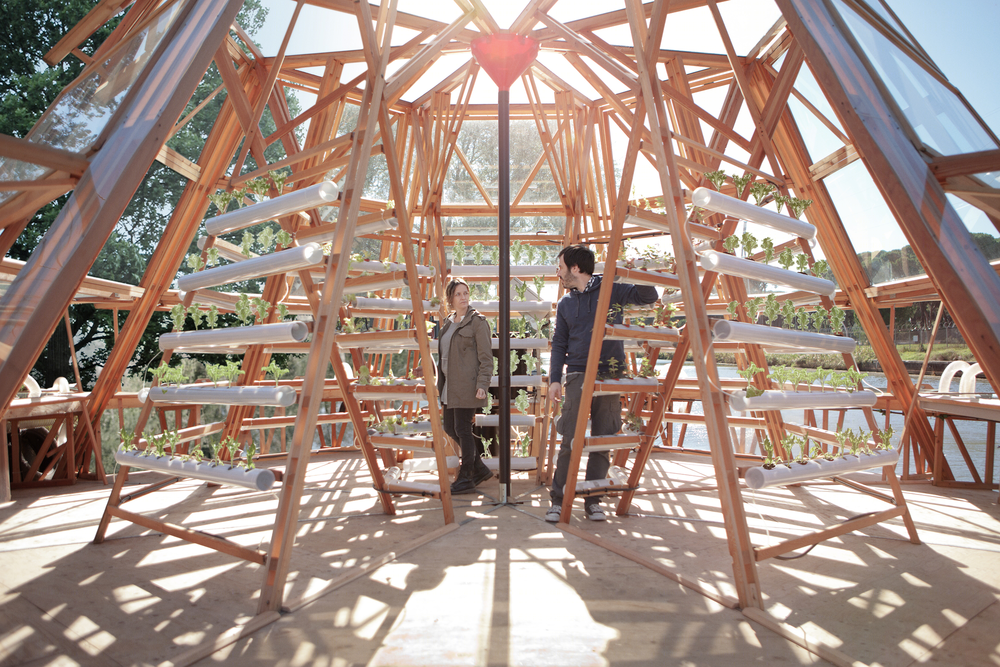

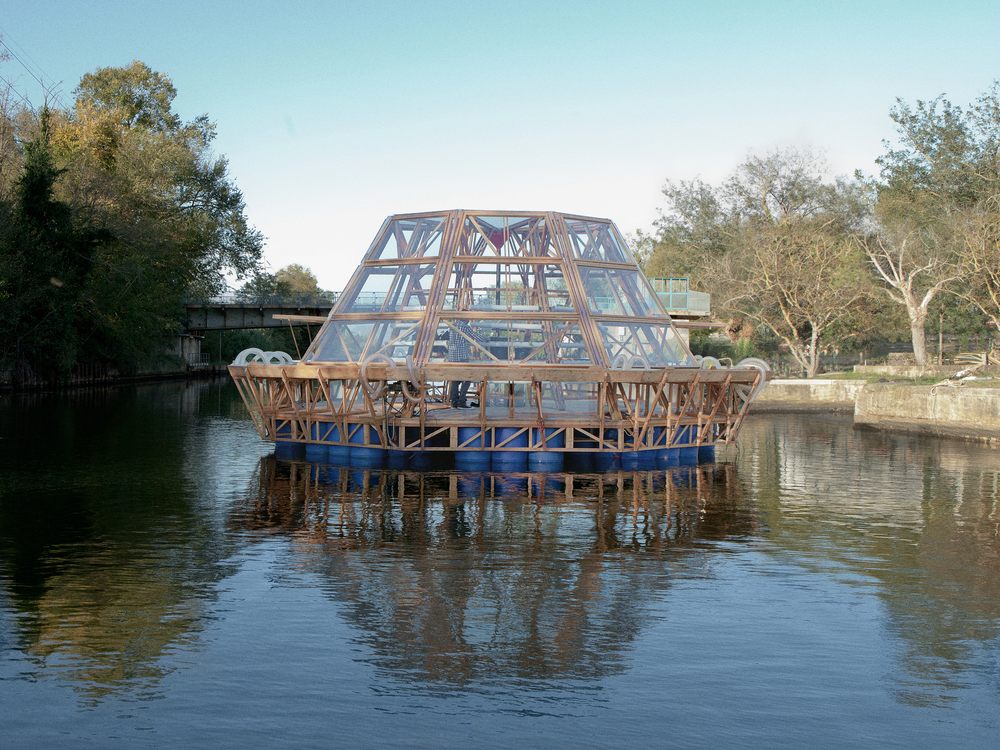

漂浮在水中温室的水母船外部细节实景图

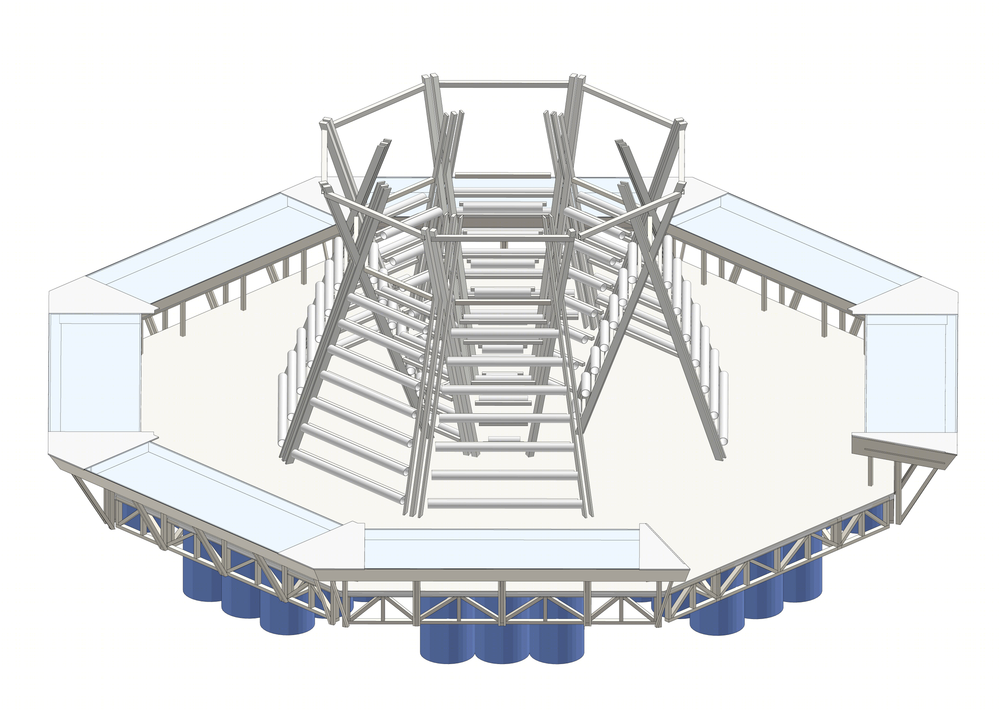

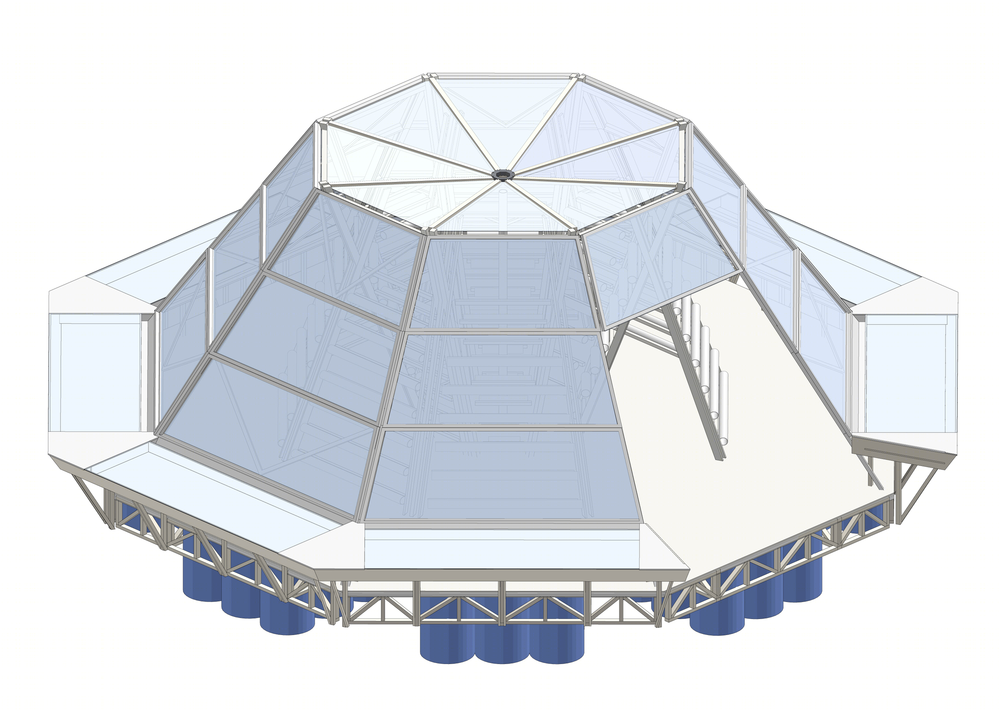

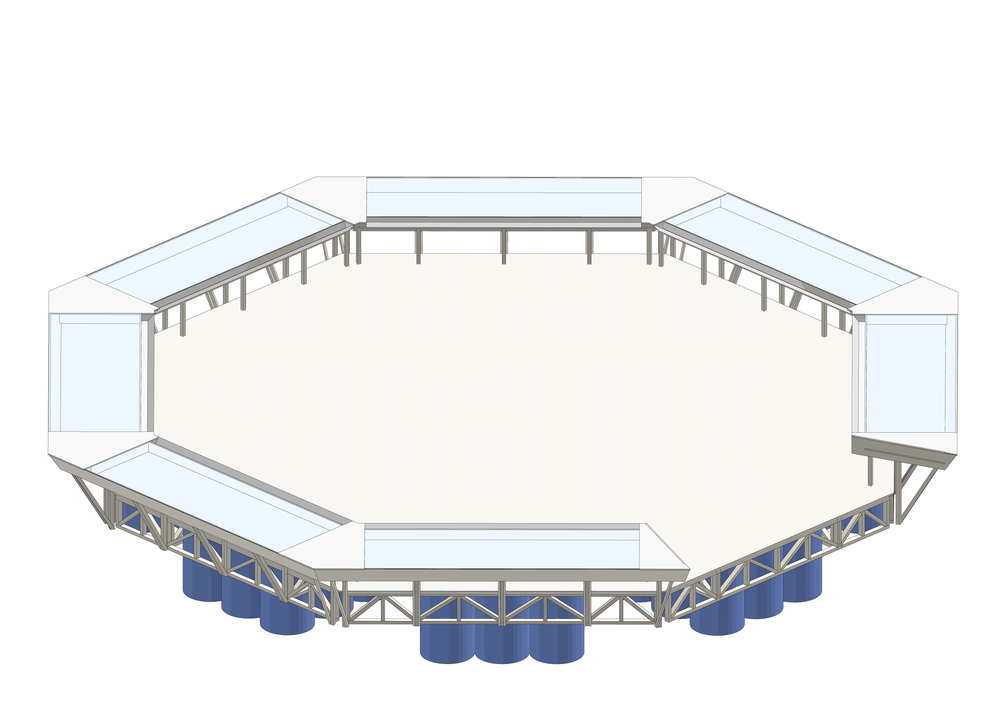

漂浮在水中温室的水母船模型图

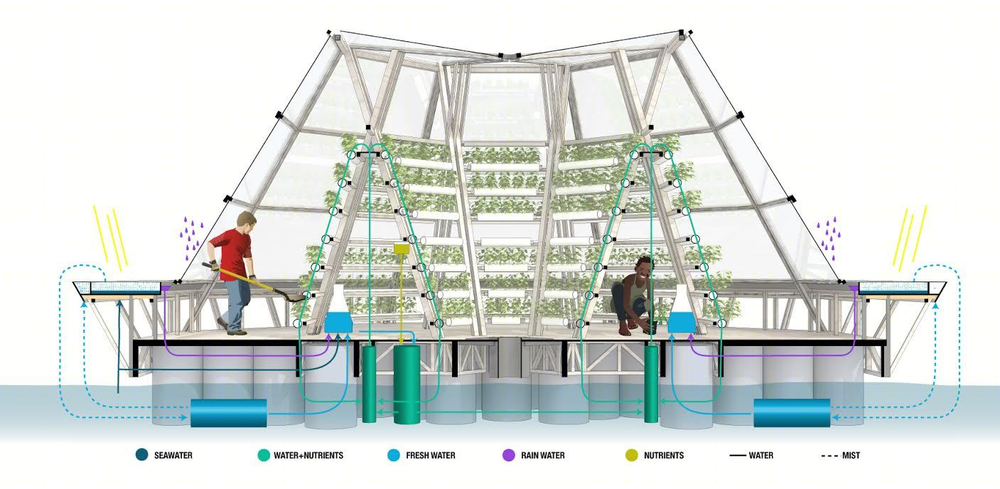

漂浮在水中温室的水母船剖面图

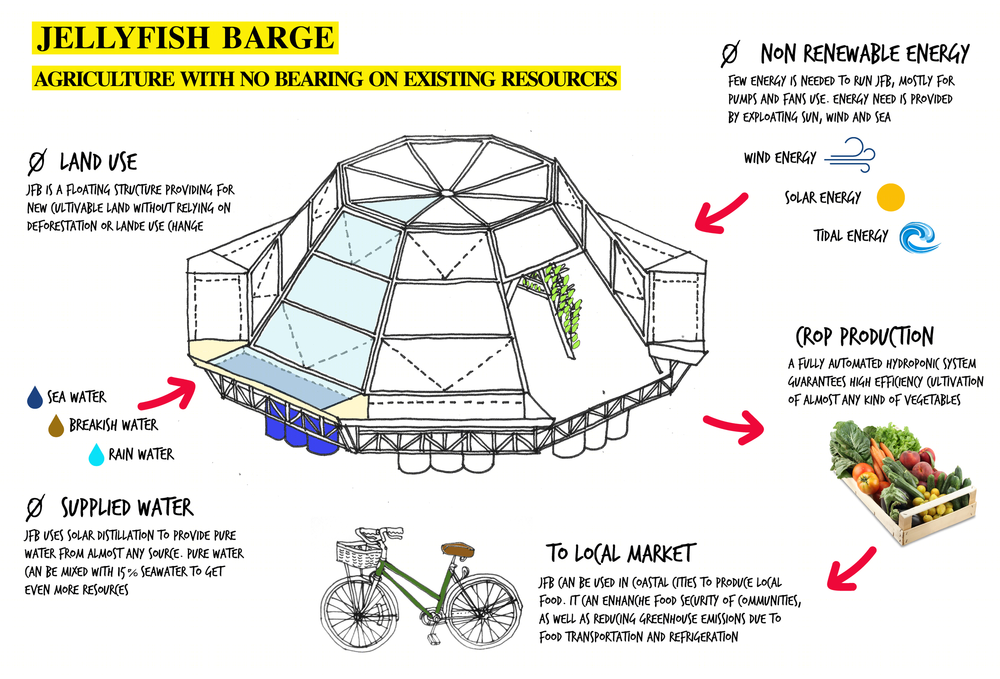

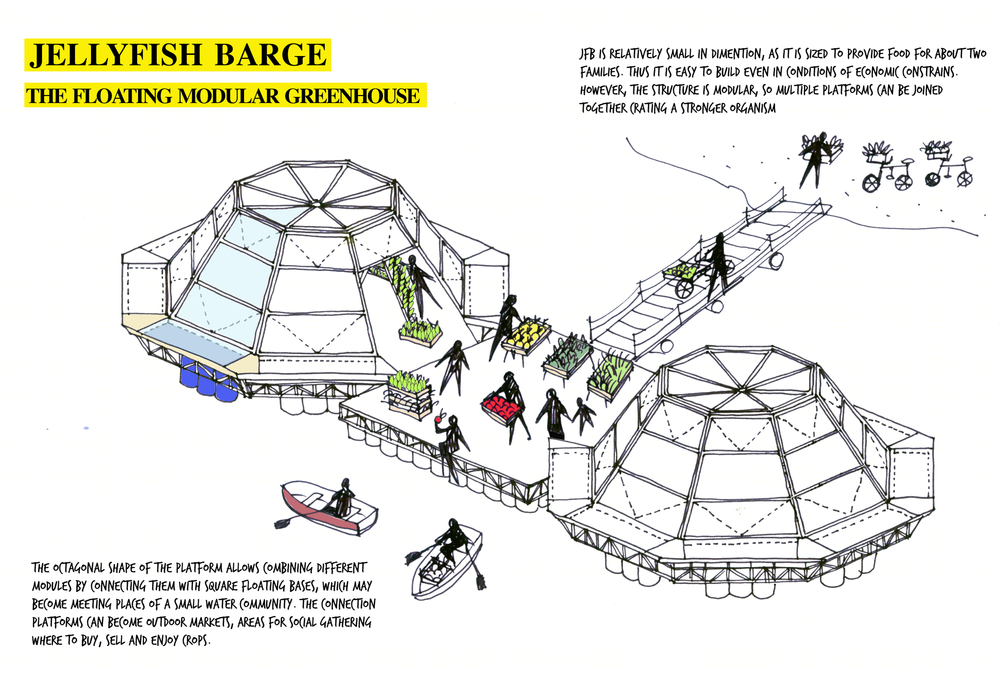

漂浮在水中温室的水母船分析图

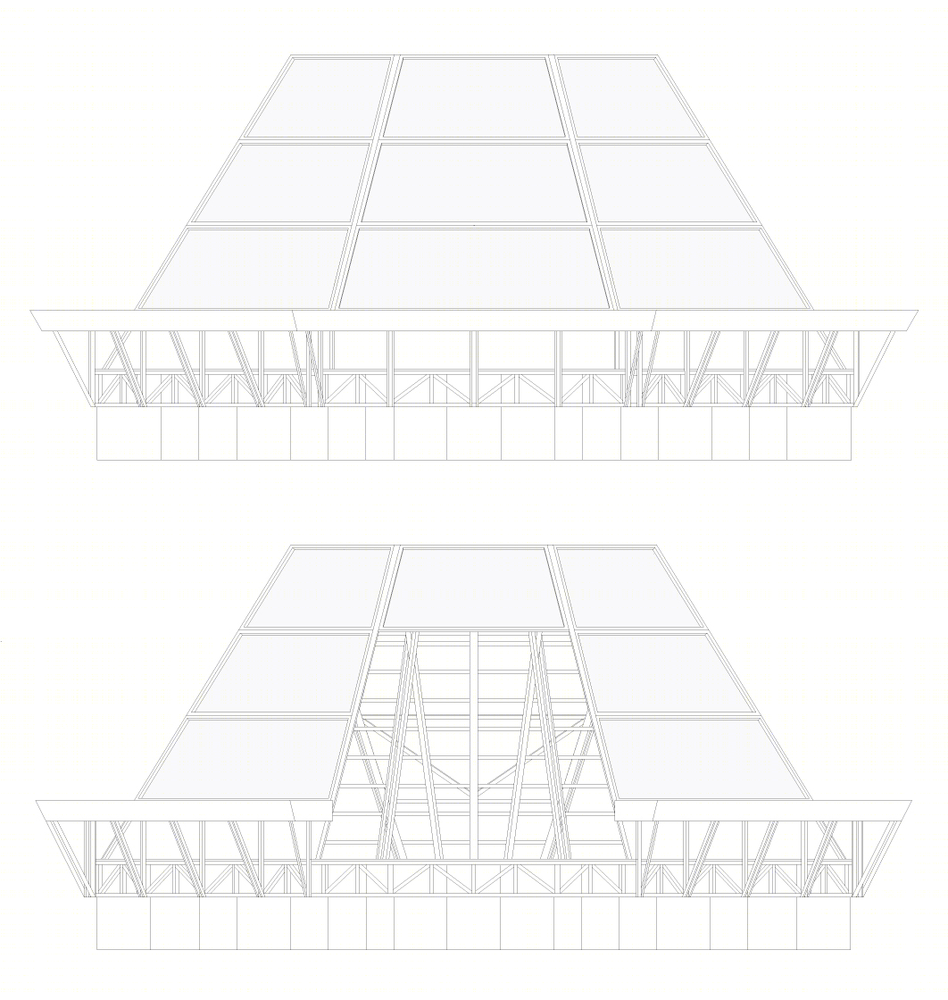

漂浮在水中温室的水母船立面图

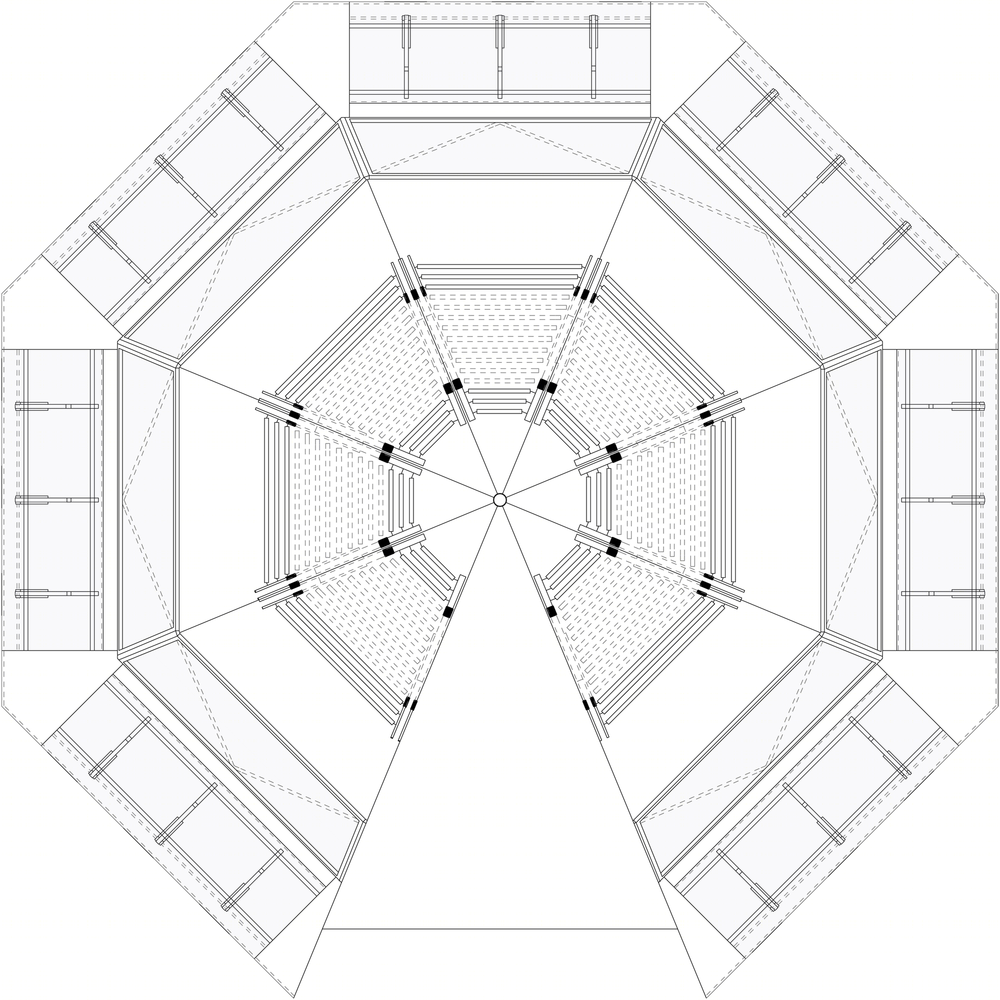

漂浮在水中温室的水母船平面图
