设计亮点
室内外空间交融,开放式阳台与空中桥梁设计独特。

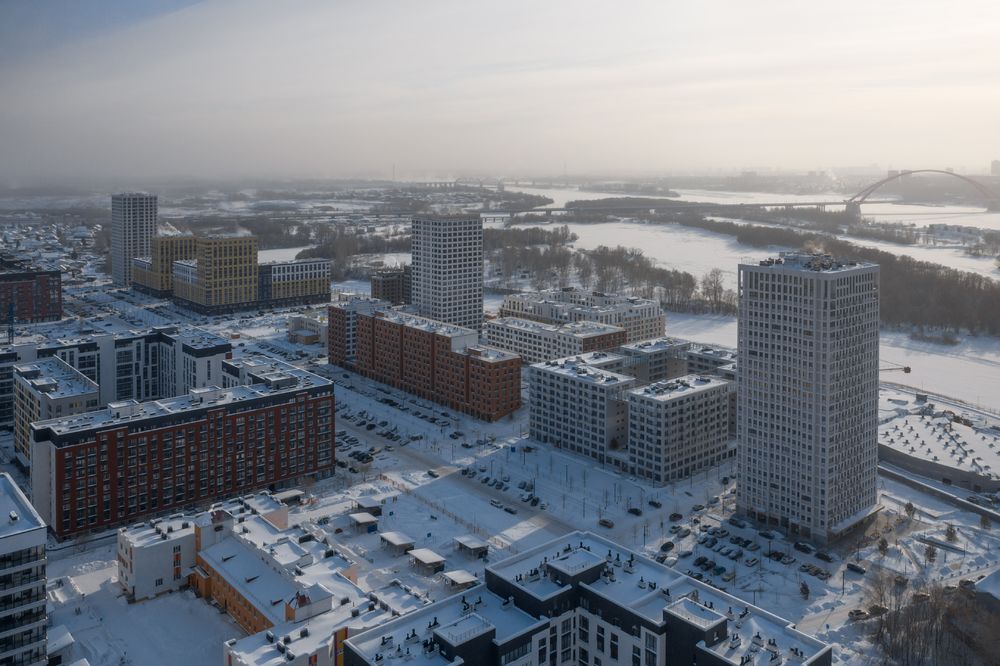

In 2014 Novosibirsk launched the Ob river embankment redevelopment — several residential areas were to replace an industrial estate and a fire station. The European Riverfront, one of the lots along the river, was developed by Brusnika.

The residential area master plan was designed by KCAP Architects & Planners, a bureau which had won recognition in Russia for working out strategic planning for the city of Perm. The  European Riverfront urban development proposes the construction of a boulevard along the Ob, the main Novosibirsk river. The new boulevard is meant as a continuation of the cycling and pedestrian route, connecting several riverside areas and the river boat station park.

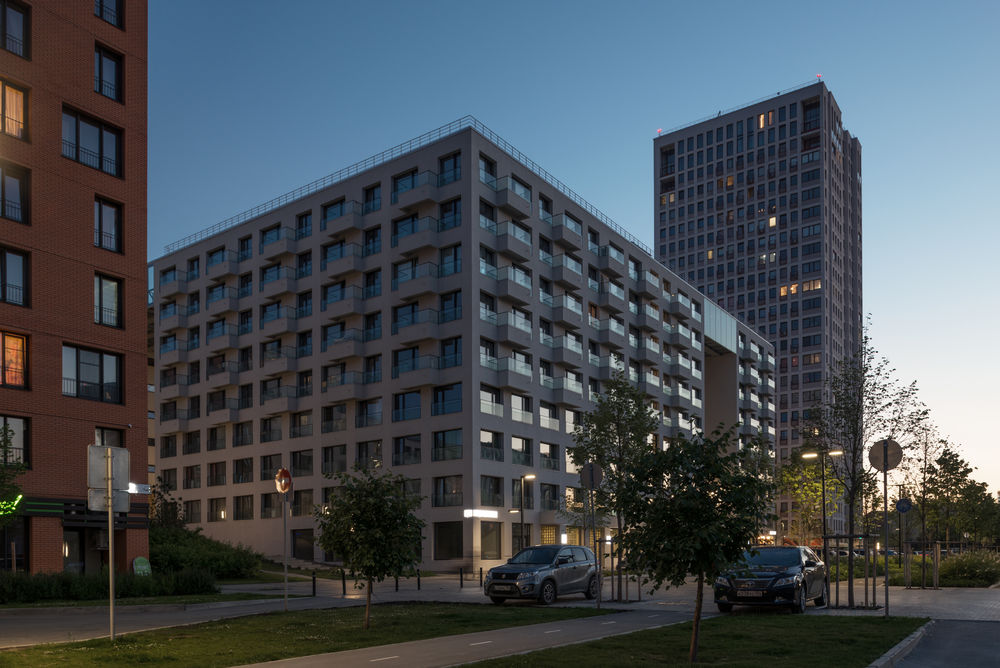

European Riverfront unfolds as a regular grid of streets linking the river boulevard to the Soviet-time housing located up the riverside. This creates new residential blocks inside the  European Riverfront, with house №27 among them.

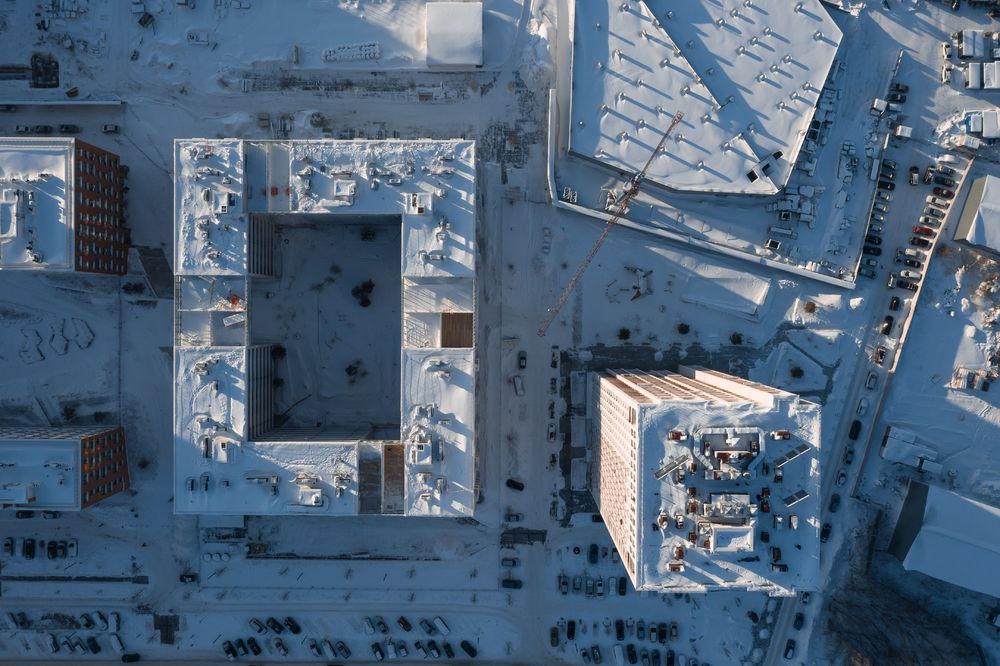

SVESMI, the architectural bureau which designed house №27, modified its urban planning concept. Instead of dividing the building perimeter into two parts, as had been initially planned by KCAP, the architects split it into four parts.

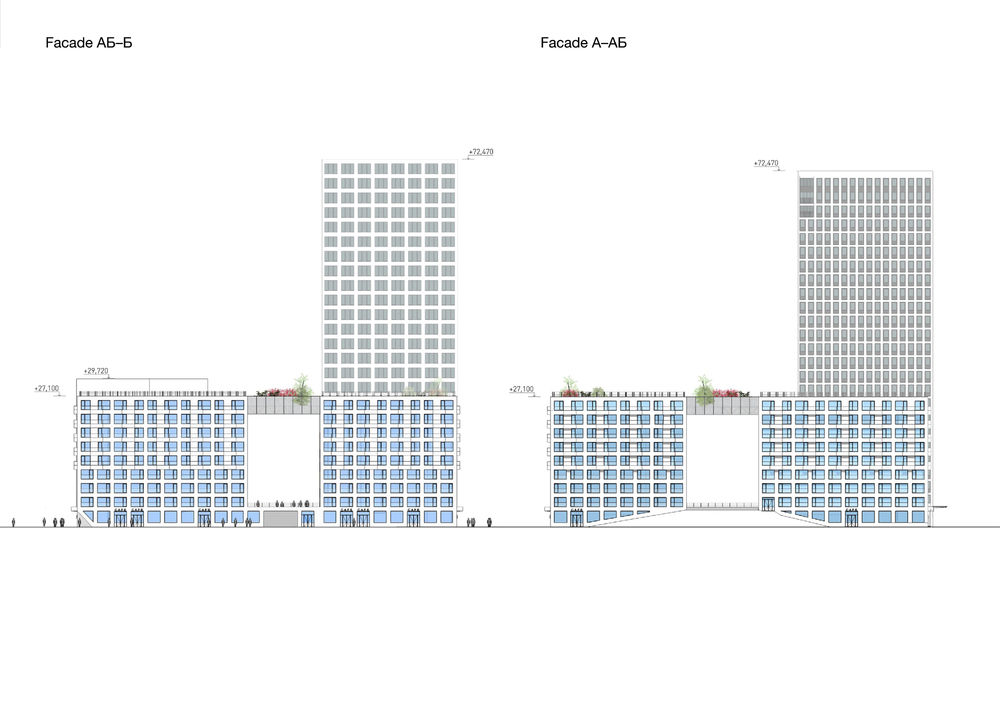

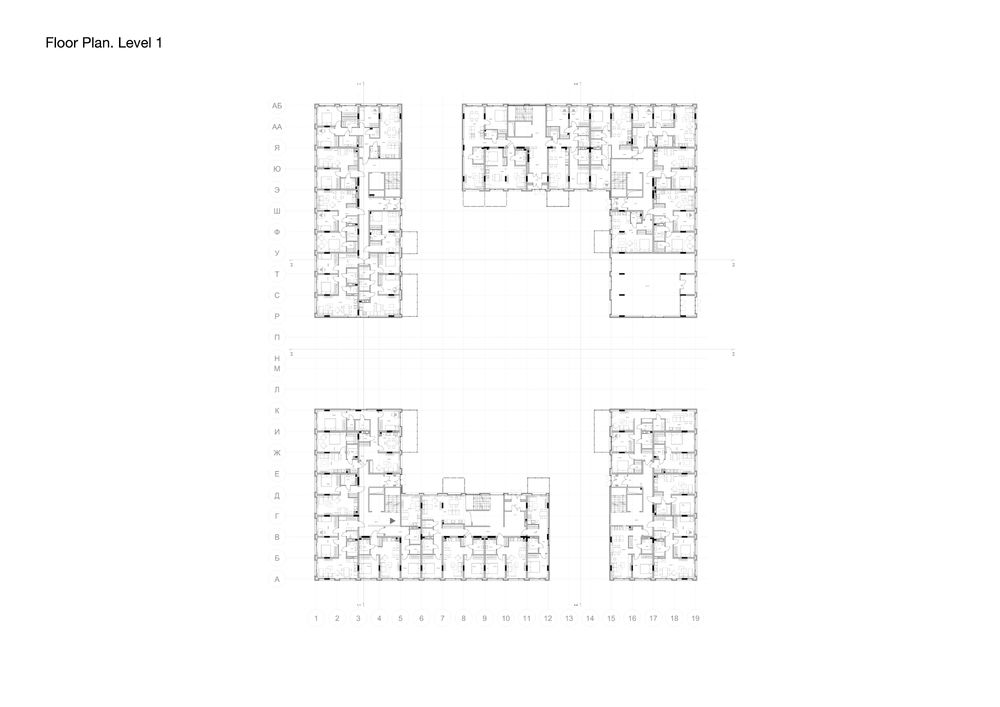

Adding slots at the edges but not in the middle of facades resulted in the four blocks of flats emerging from the closed perimeter of the building cluster. They are joined with a podium at the bottom and terraces of penthouses at the top.

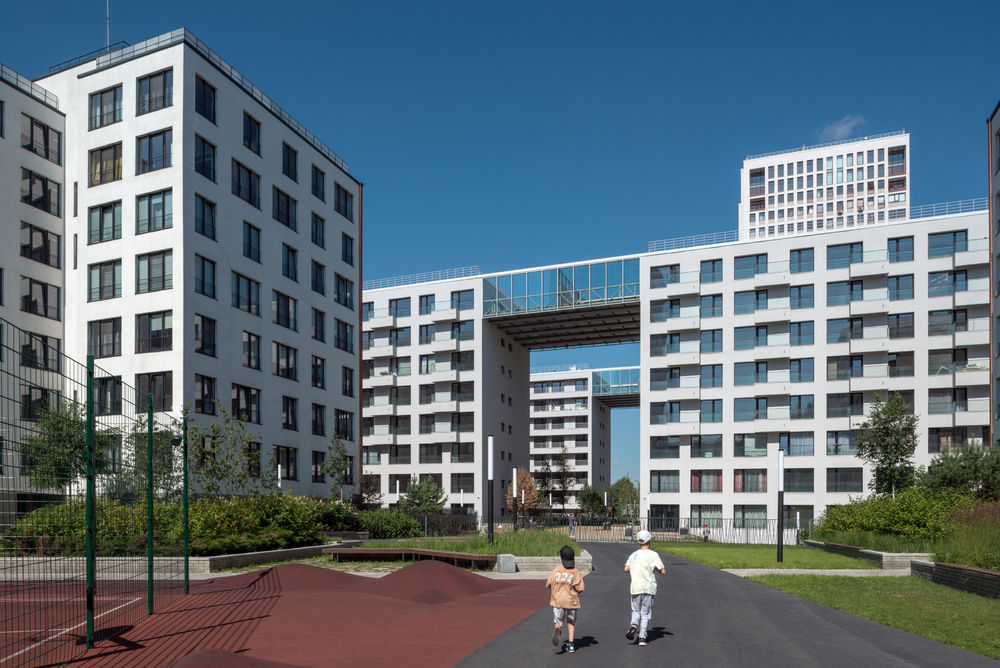

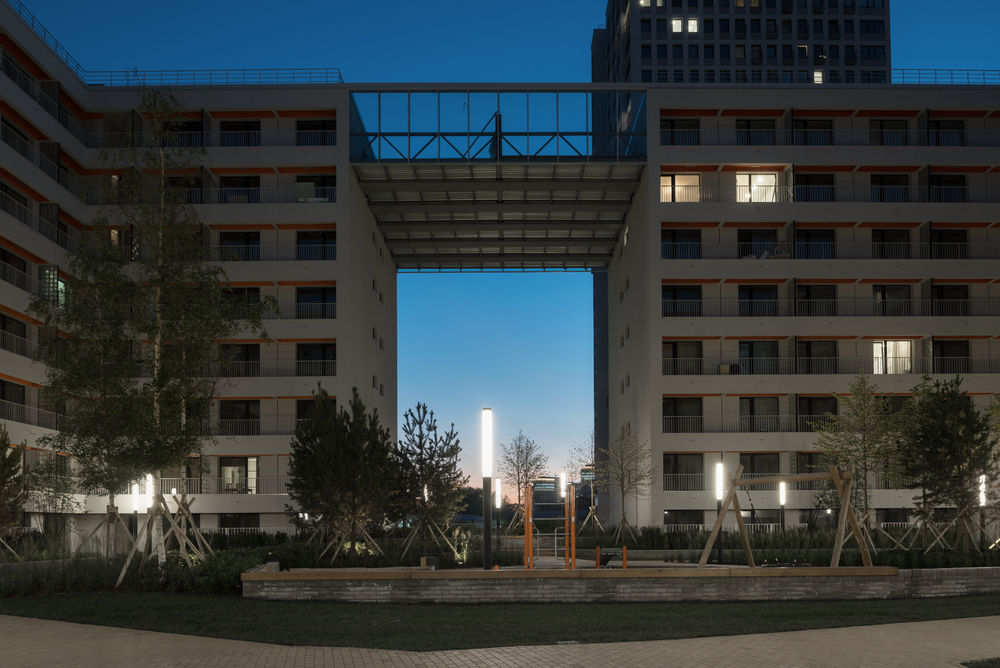

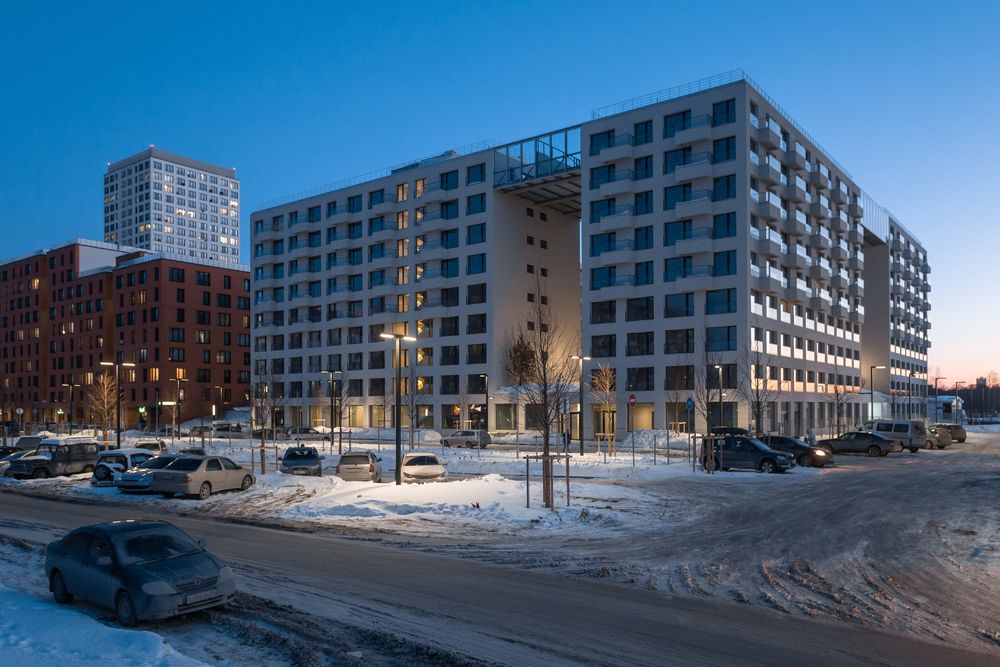

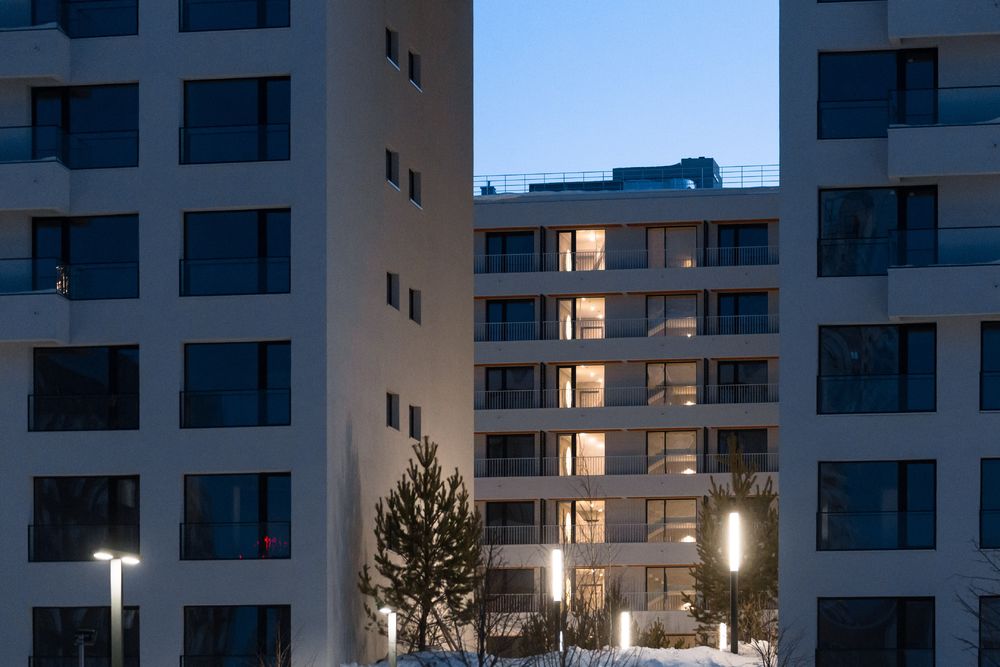

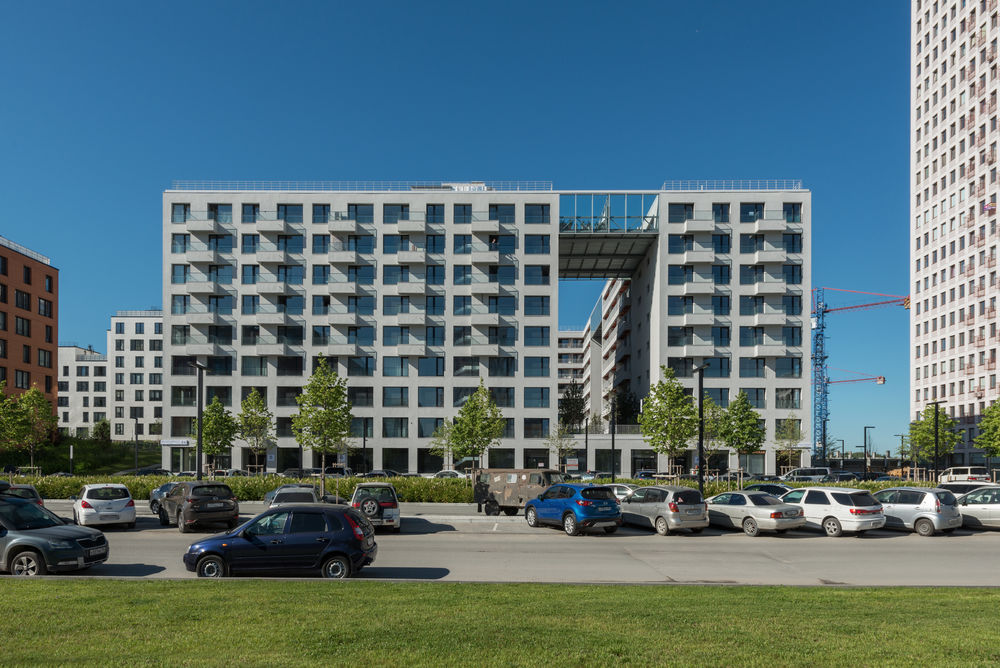

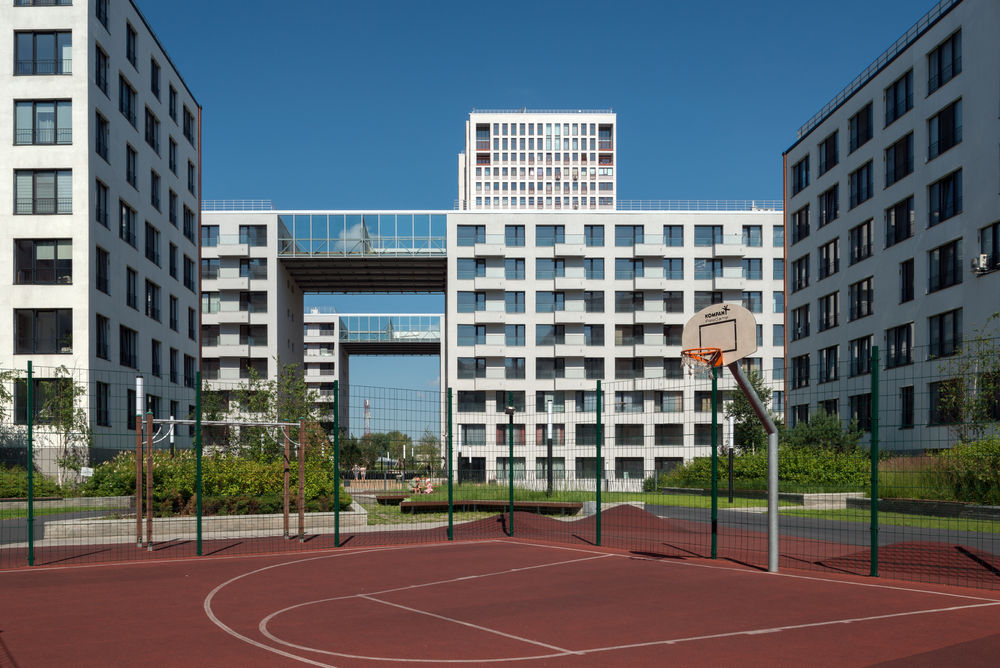

The openings between the blocks act as arches merging the inner space of the yard with the world outside. The name of the building — the House with Bridges — was coined thanks to its terraces.

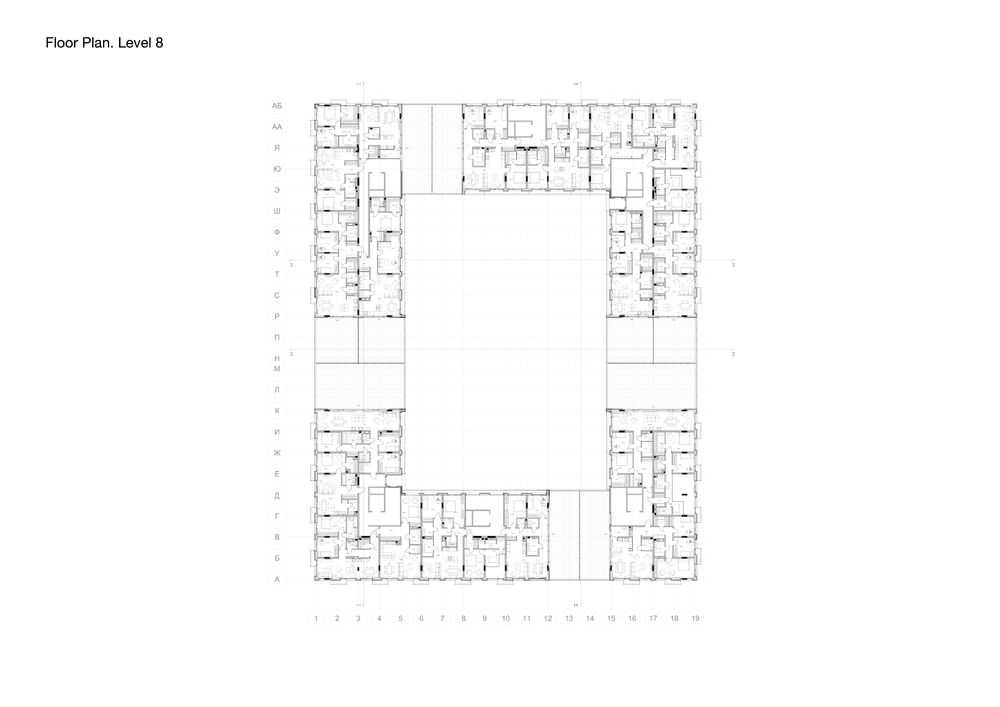

The terraces on the bridges are shared between two or three flats and are designed as patios. Accessible from the flats, they have an open top and panoramic glazing overlooking either the river, or the yard. The project comprises fifteen apartments with terraces overall.

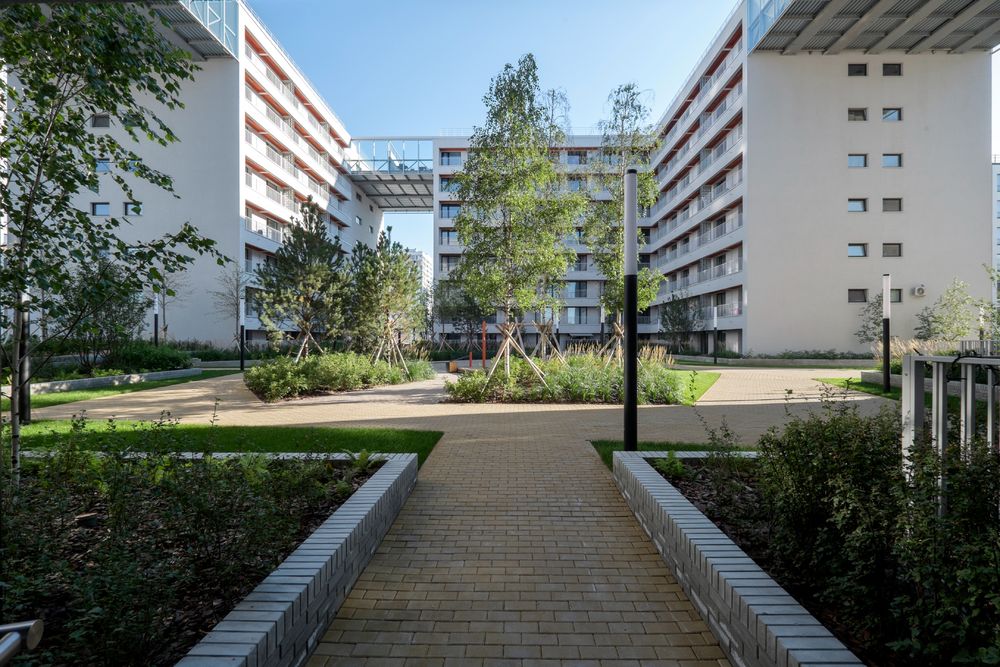

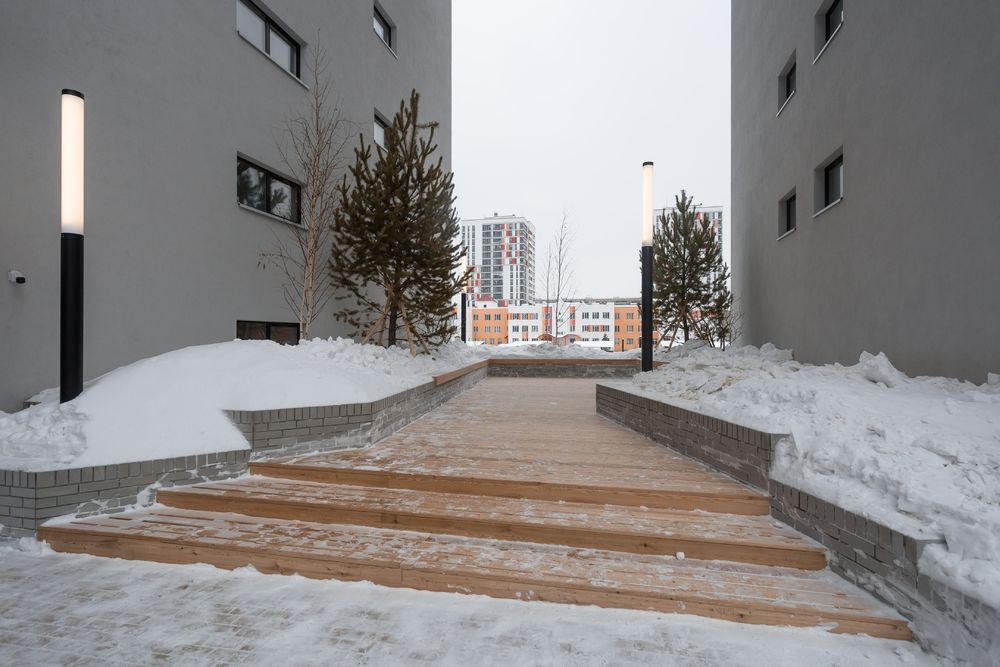

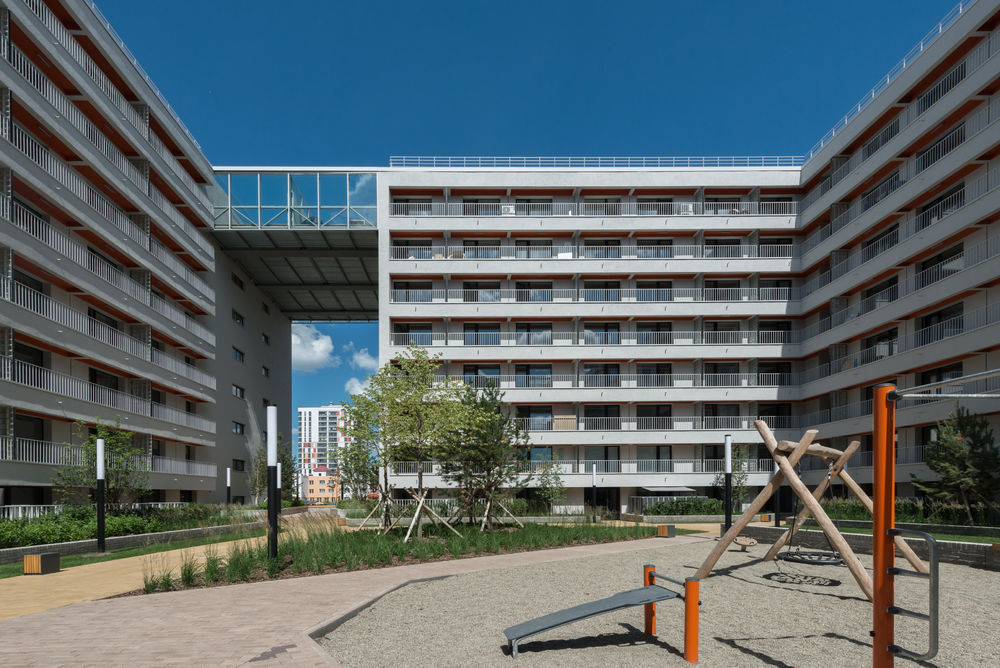

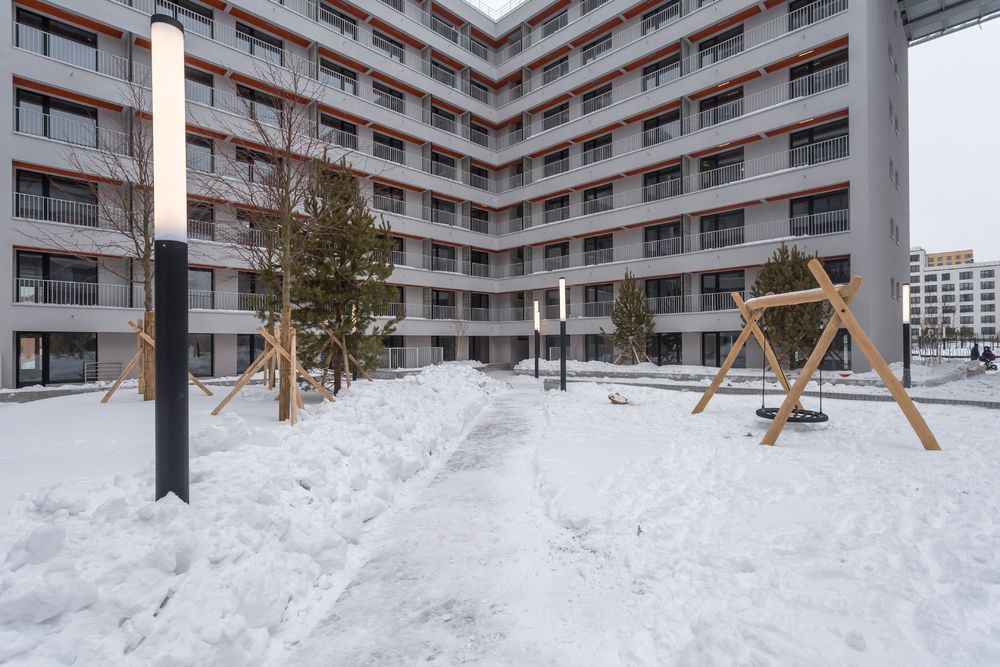

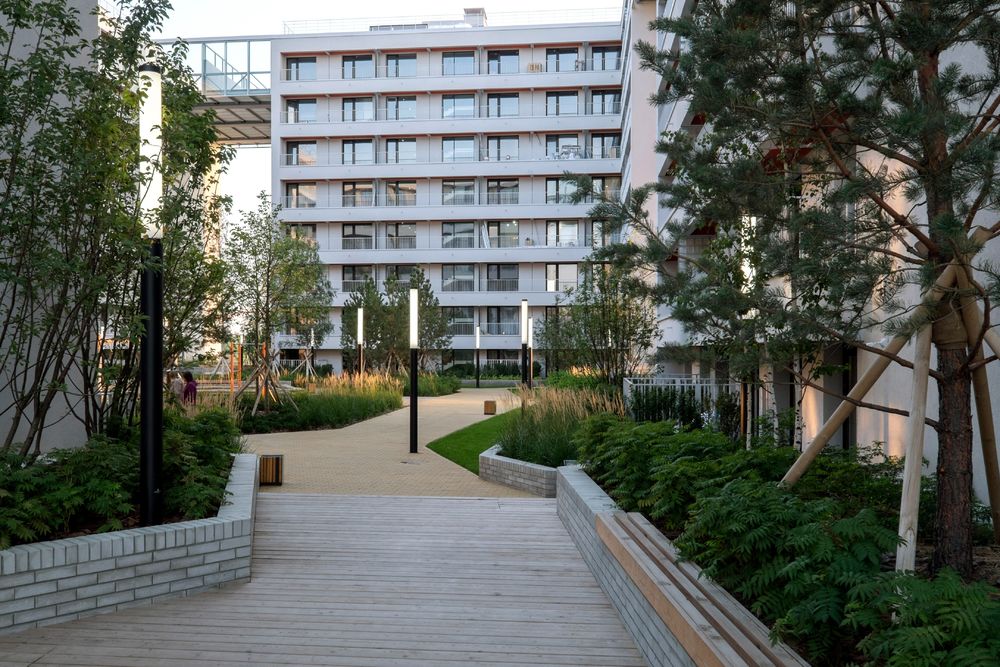

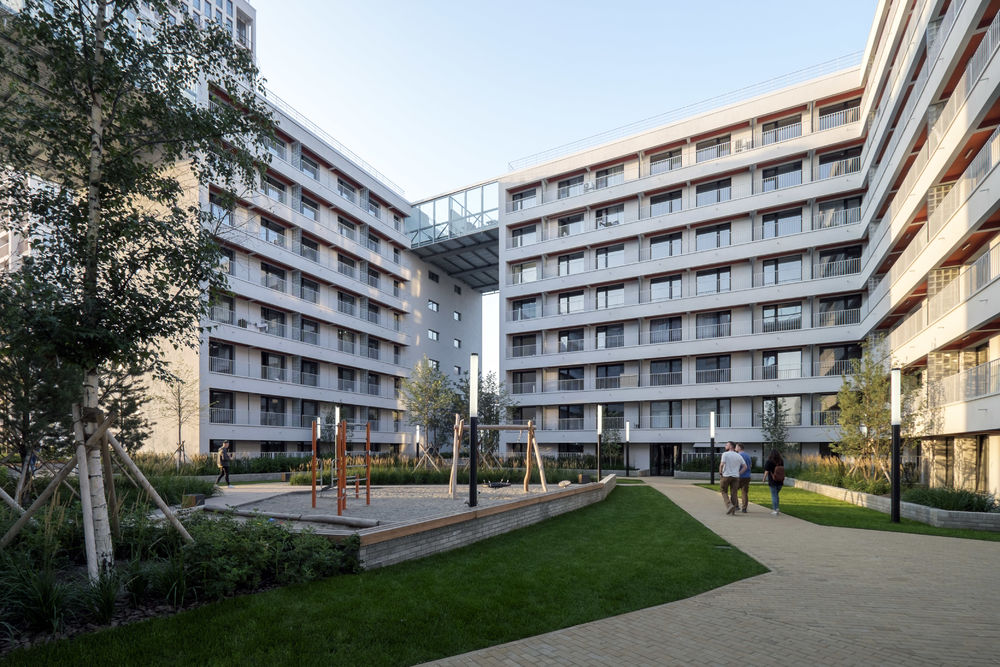

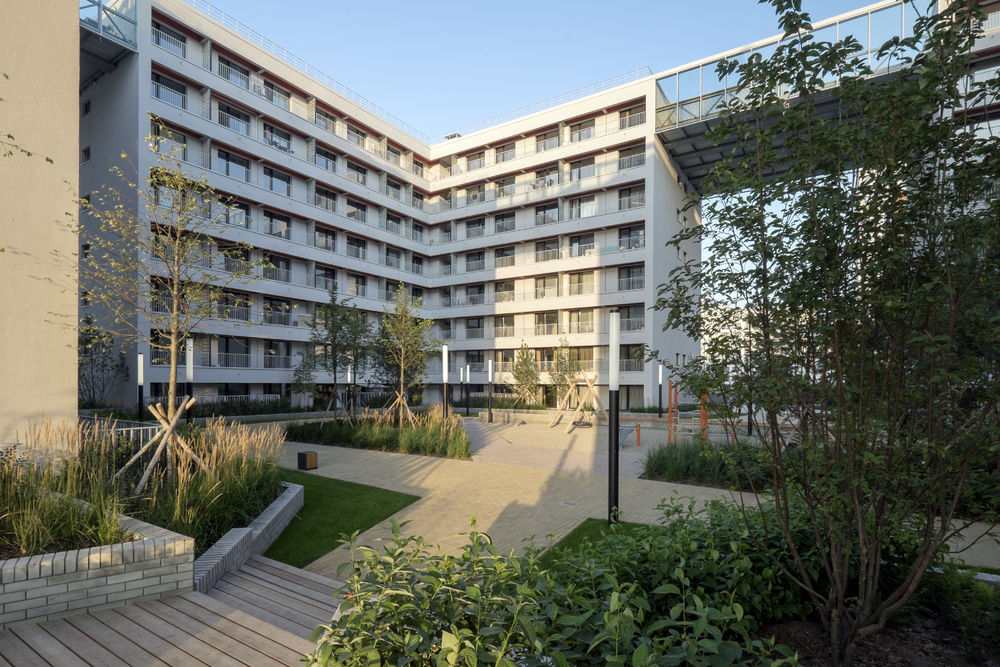

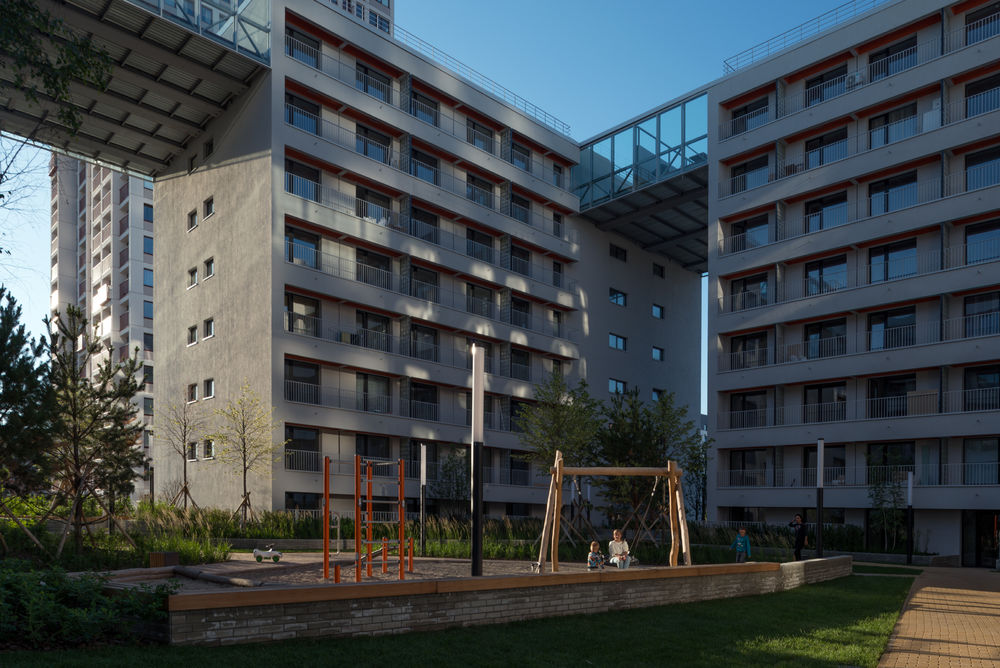

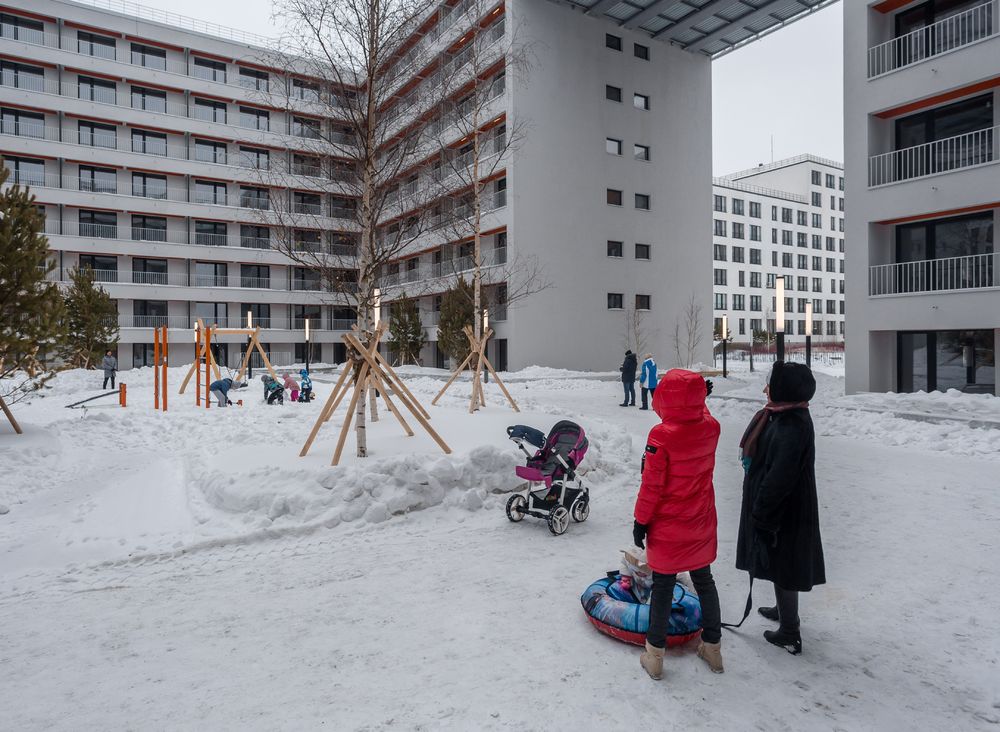

The inner space of the European Riverfront is elevated — eight storeys overlook the yard and nine have a street view. The yard is equipped with a playground for children aged 3 to 5, a gazebo, street furniture and pull-up bars for workouts. Basketball and football fields, dog walking trails and other public areas are spaced between the houses of the  European Riverfront and the embankment. The owners of ground-floor flats have small terraces opening out into the yard — these can be reached right from the apartment. Each terrace has a wooden flooring and is split off from the rest of the yard by low shrubs and a fence: the green hedge creates a private zone for apartment owners.

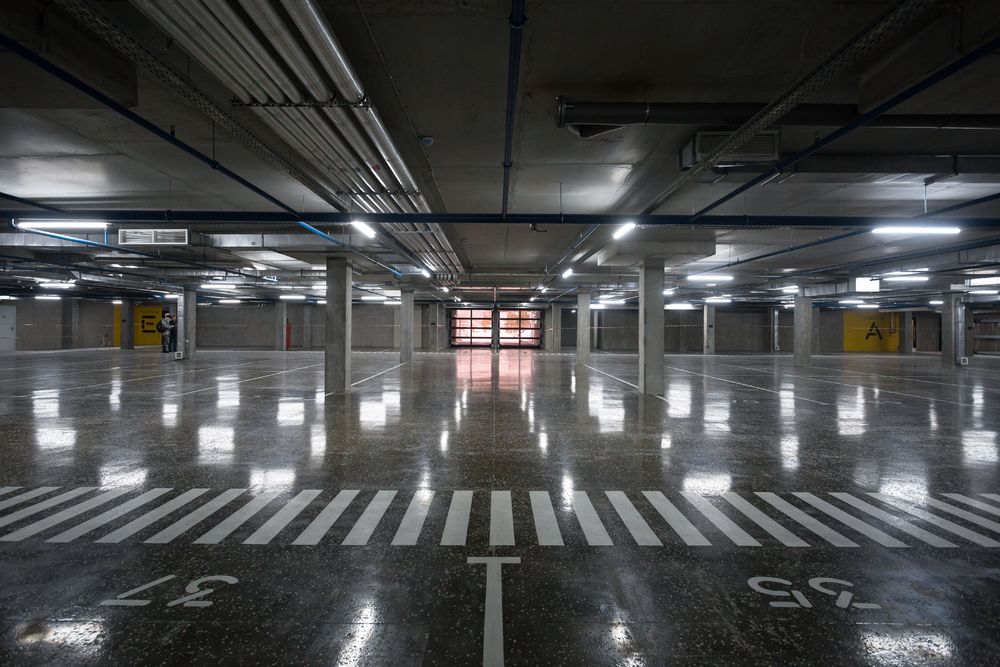

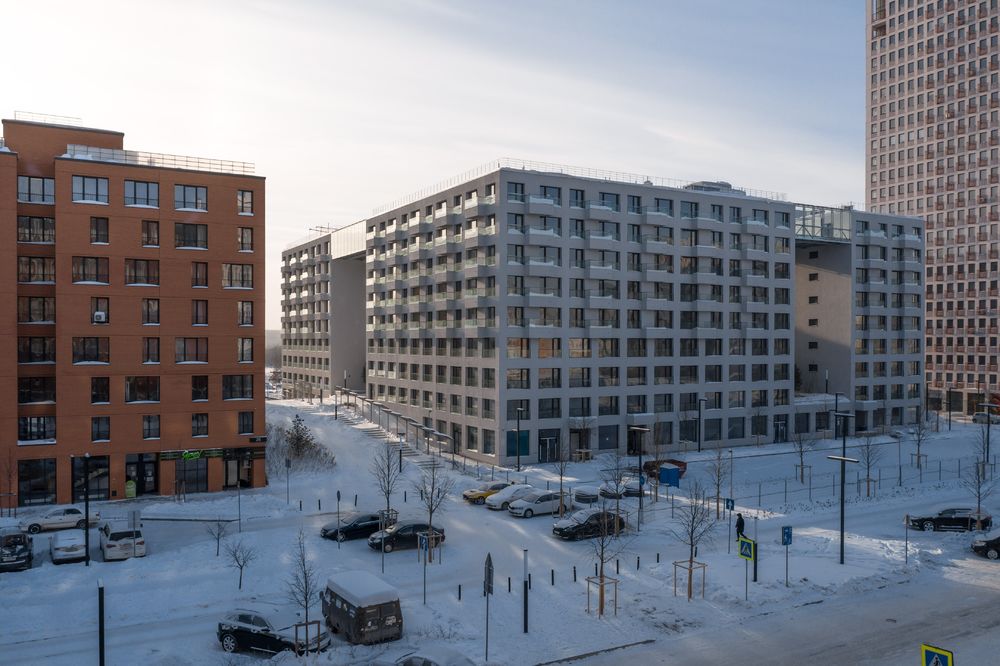

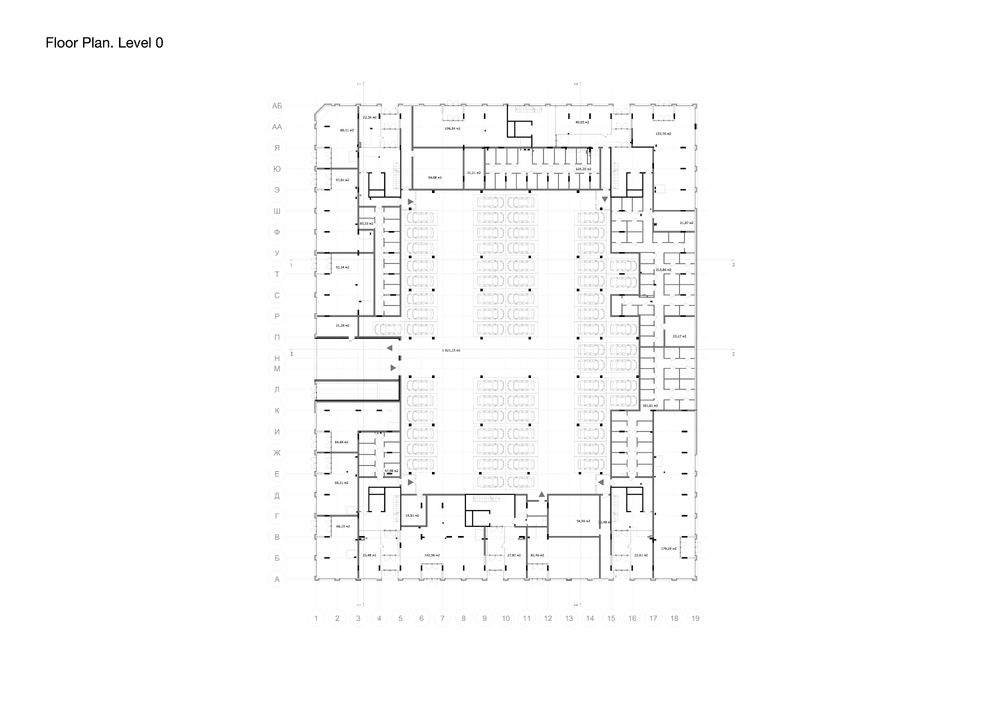

70 parking spaces and 89 storerooms located under the podium yard can be purchased along with the apartment. The outer perimeter of the block hosts cafes, shops and offices, their vast glass windows outlooking the  European Riverfront.

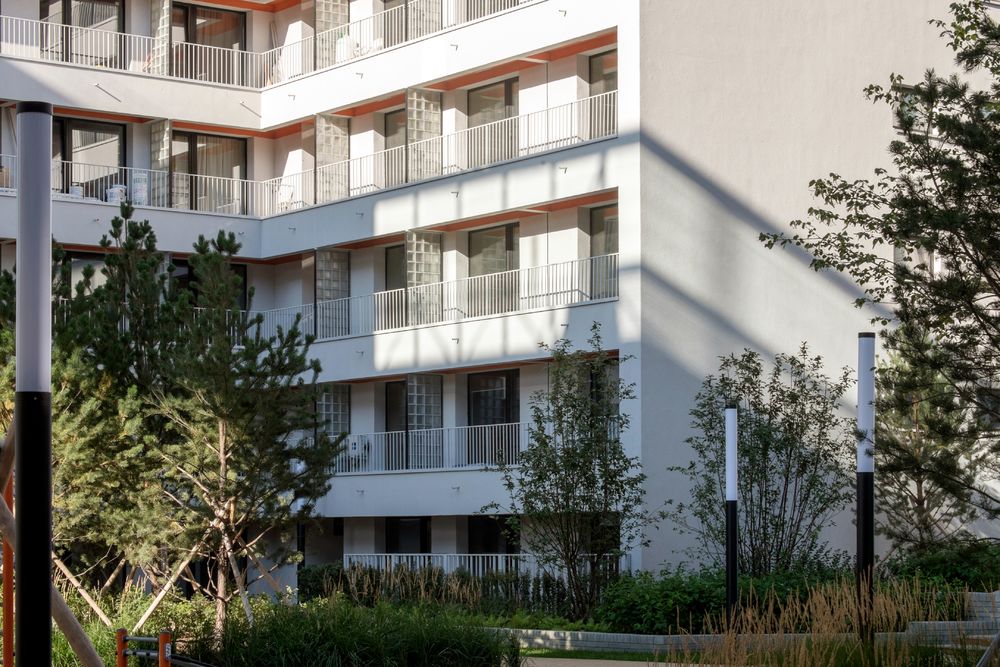

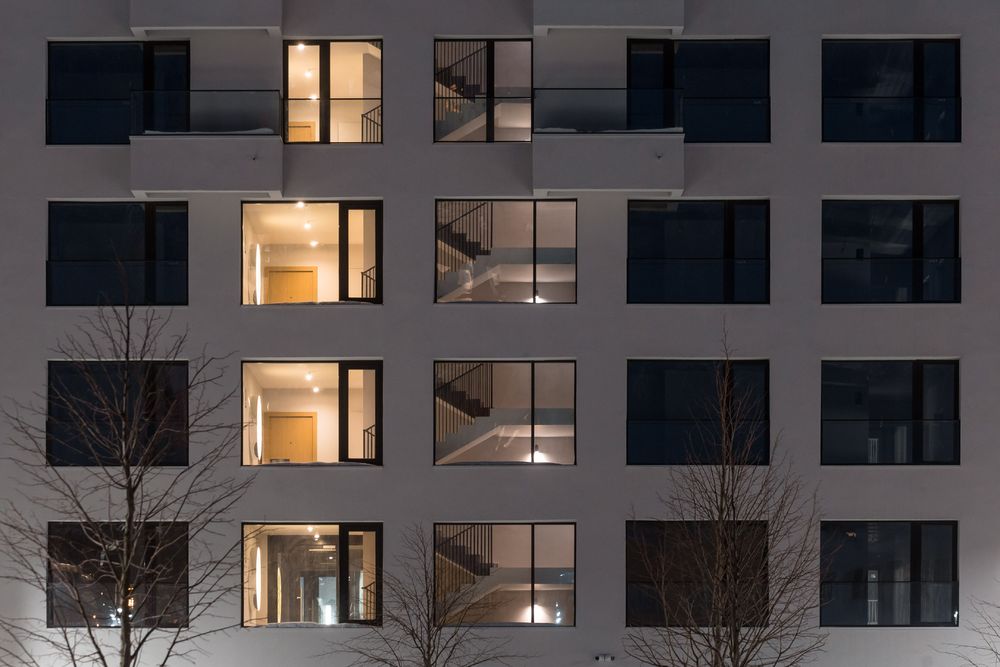

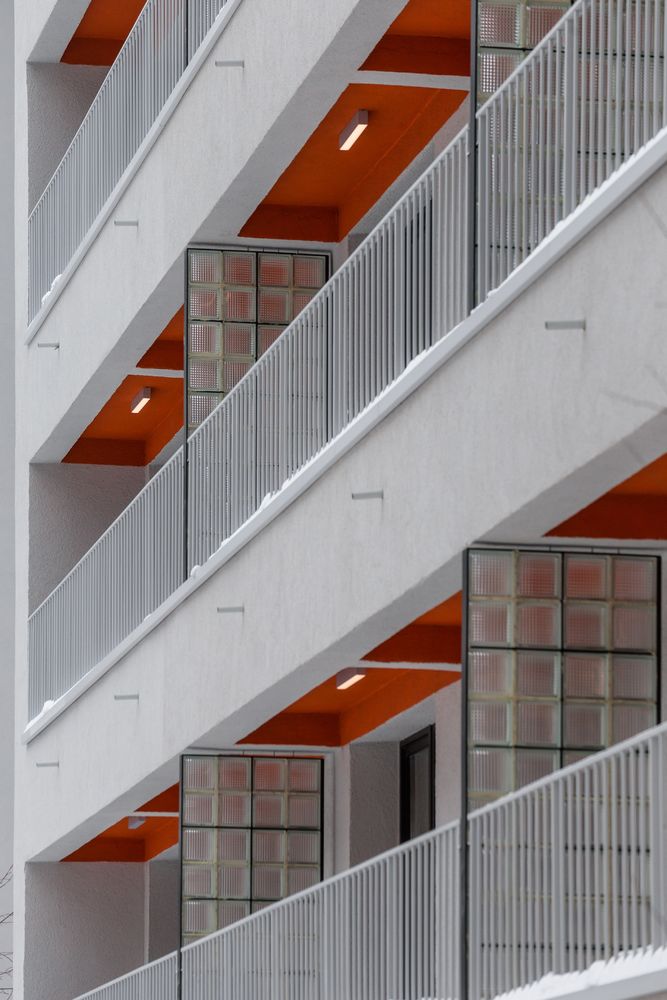

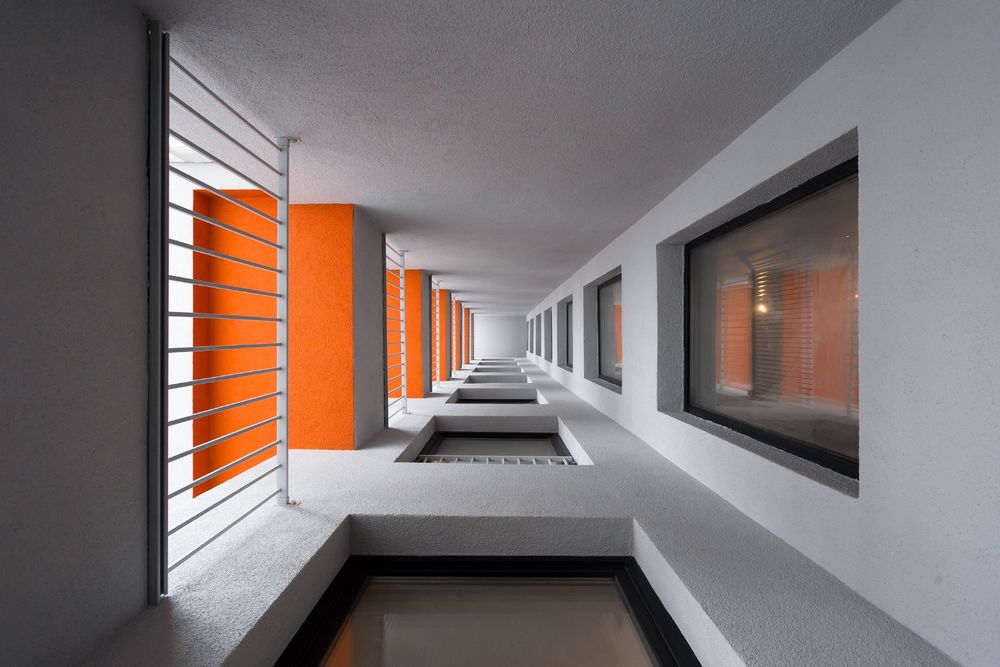

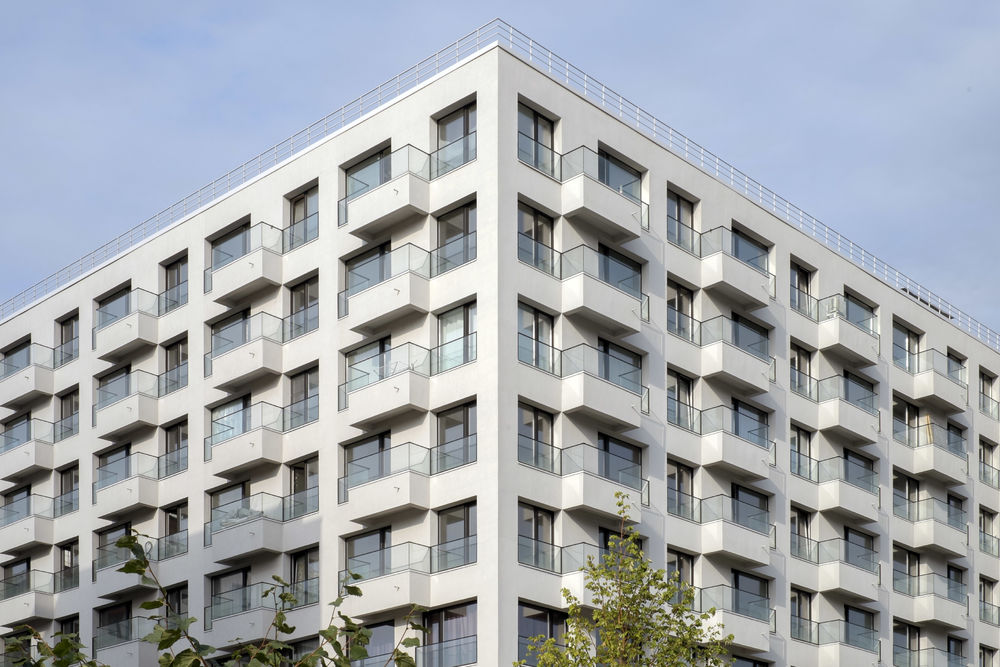

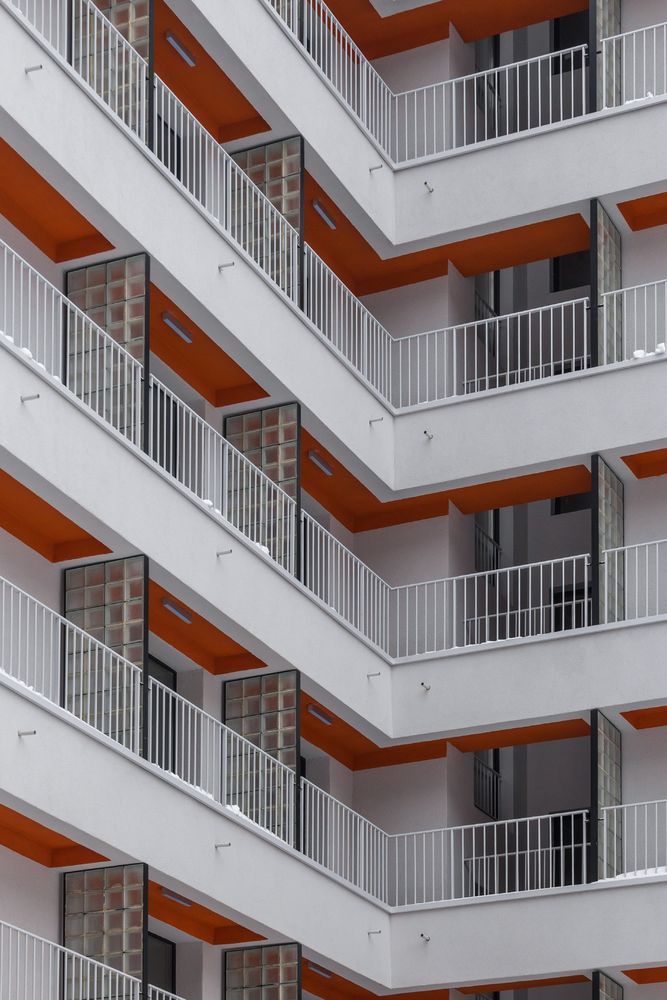

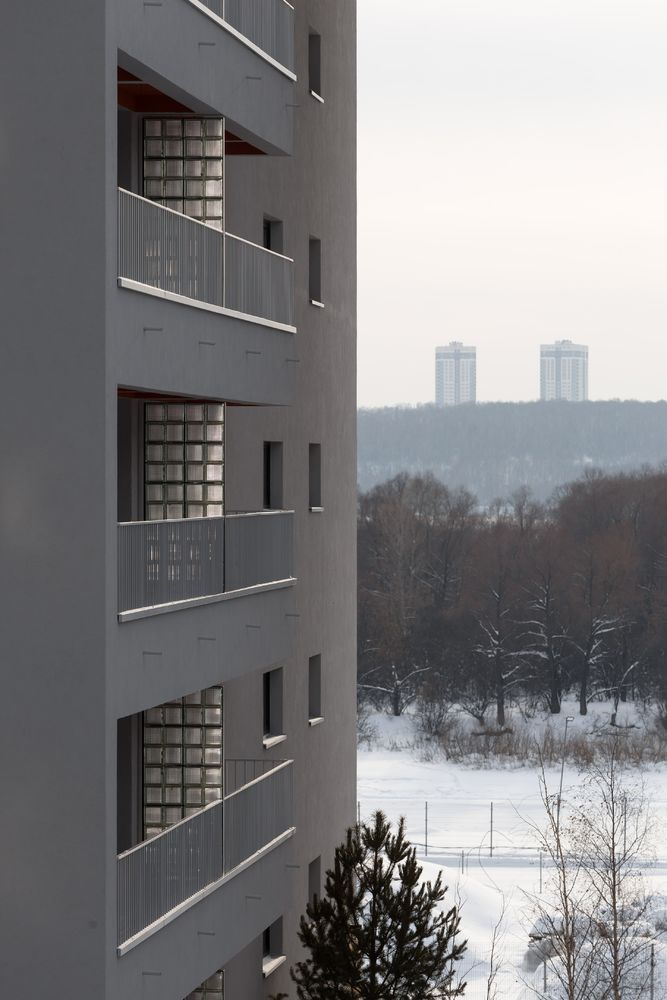

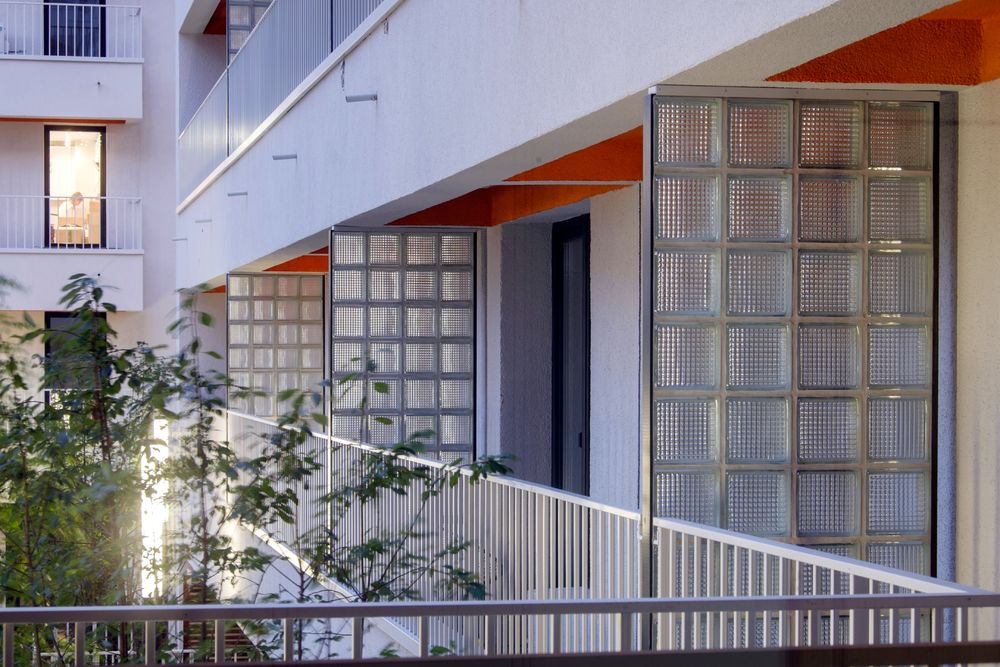

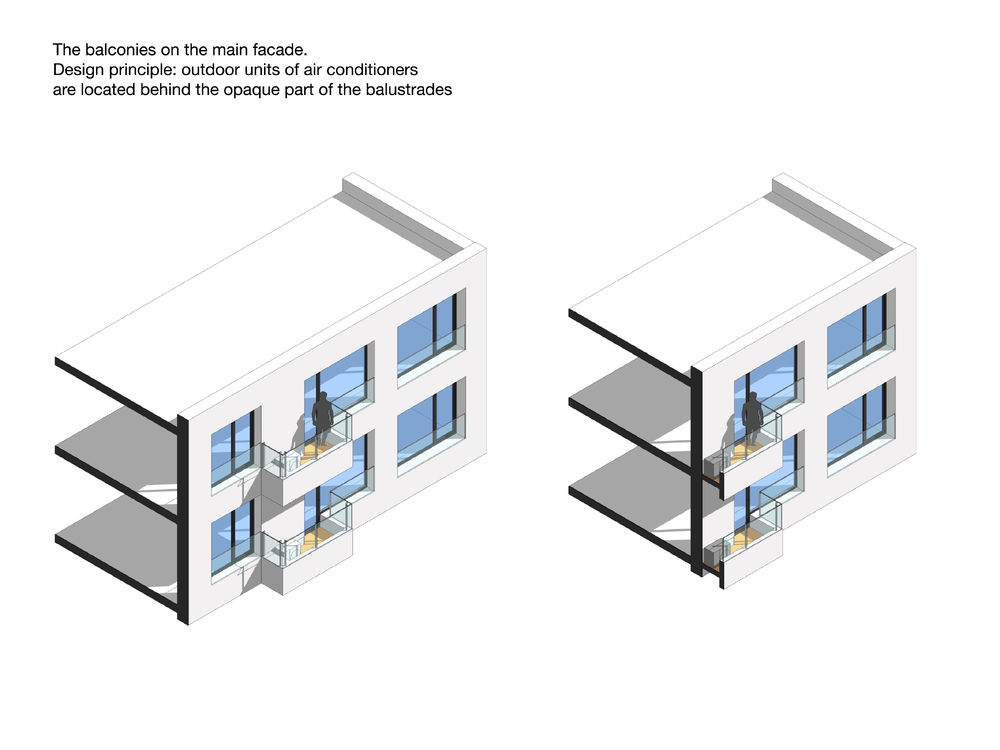

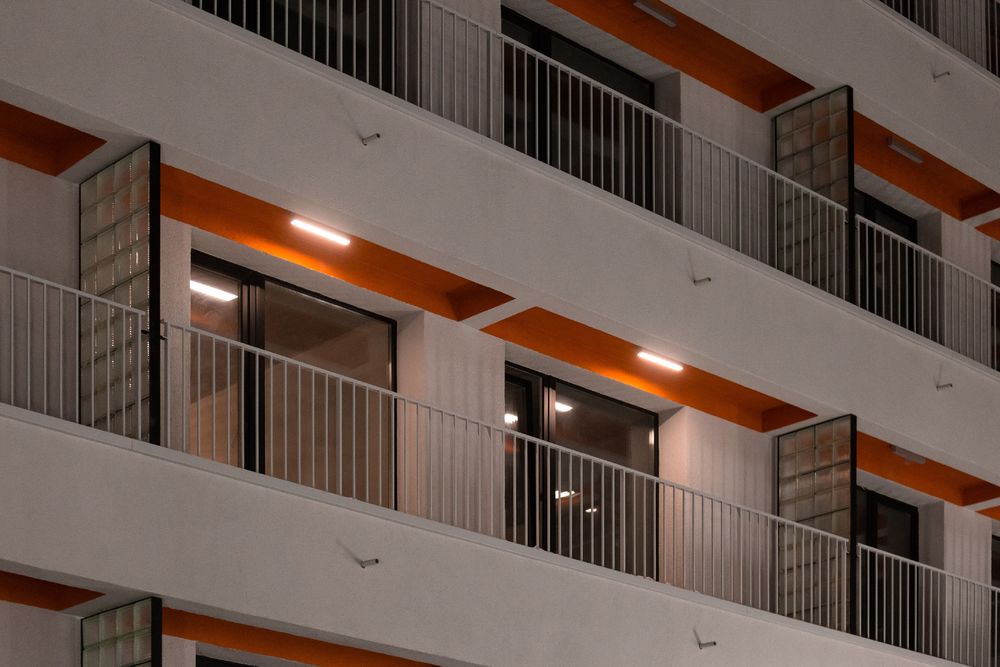

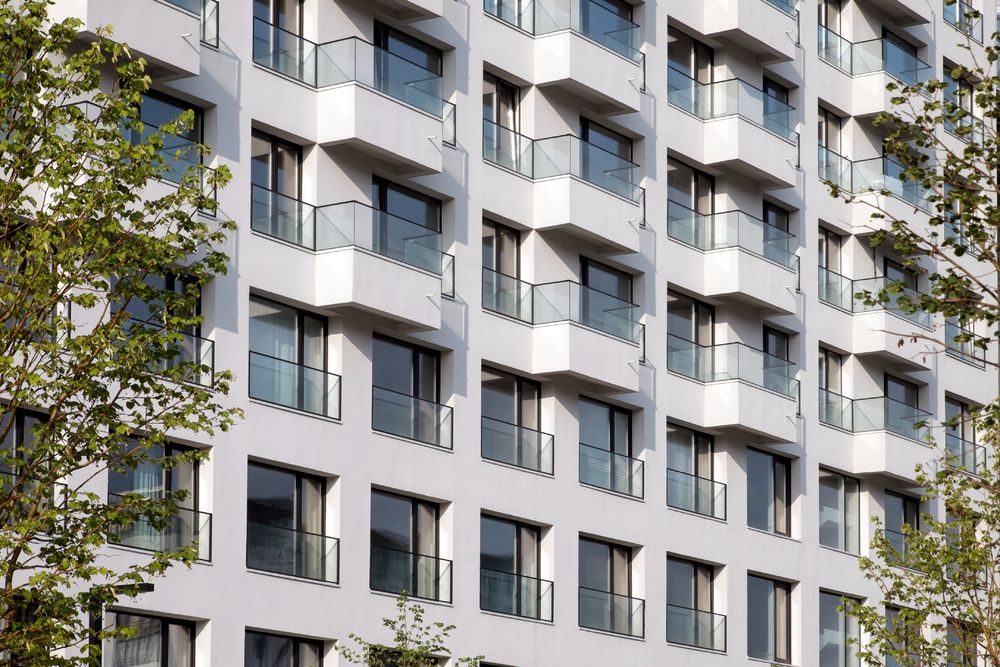

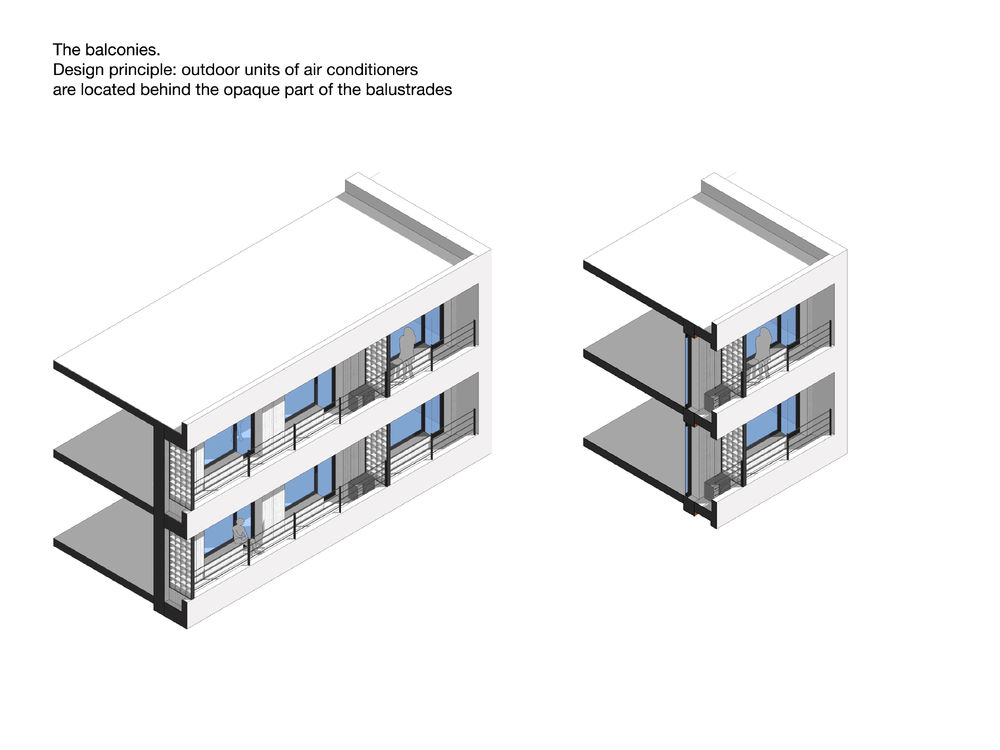

Terraces are just one kind of outdoor summer spaces in the project. In order to vary the apartment layouts and enliven architecture, SVESMI designers came up with small French balconies above the third floor creating delicate relief on street facing facades. Open recessed balconies overlook yard facades. Their ceilings are painted bright orange and equipped with LED lighting. The lights, which can be switched on individually, create a constantly changing pattern. The recessed balconies provide room for air conditioning — technical cases are concealed in special niches or non-transparent shields. Glass tile partitions separate recessed balconies from each other, while white metal railings to match the colour of plastered walls face the yard.

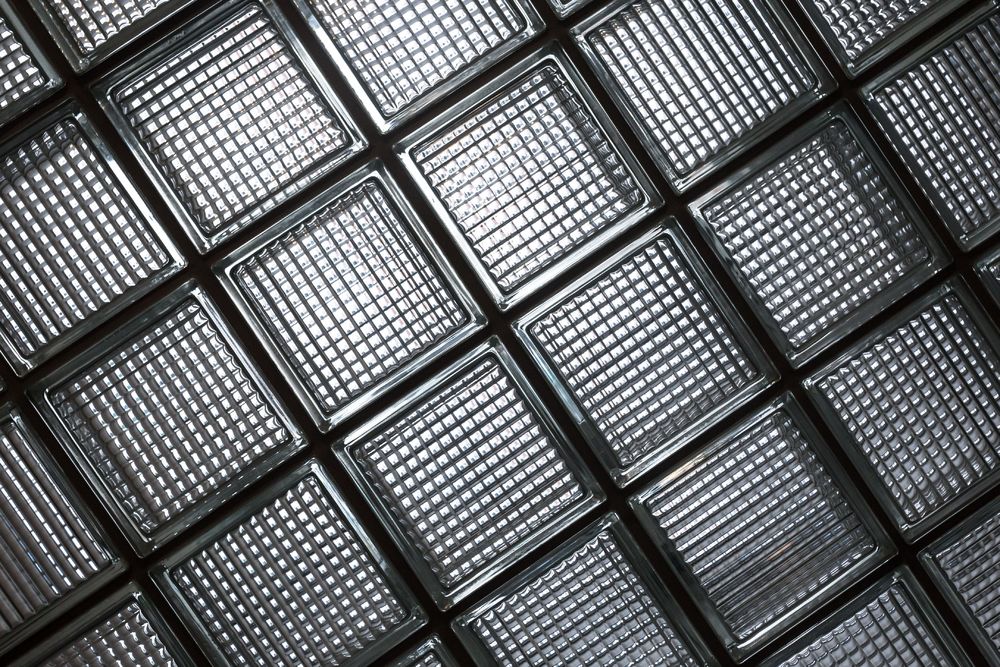

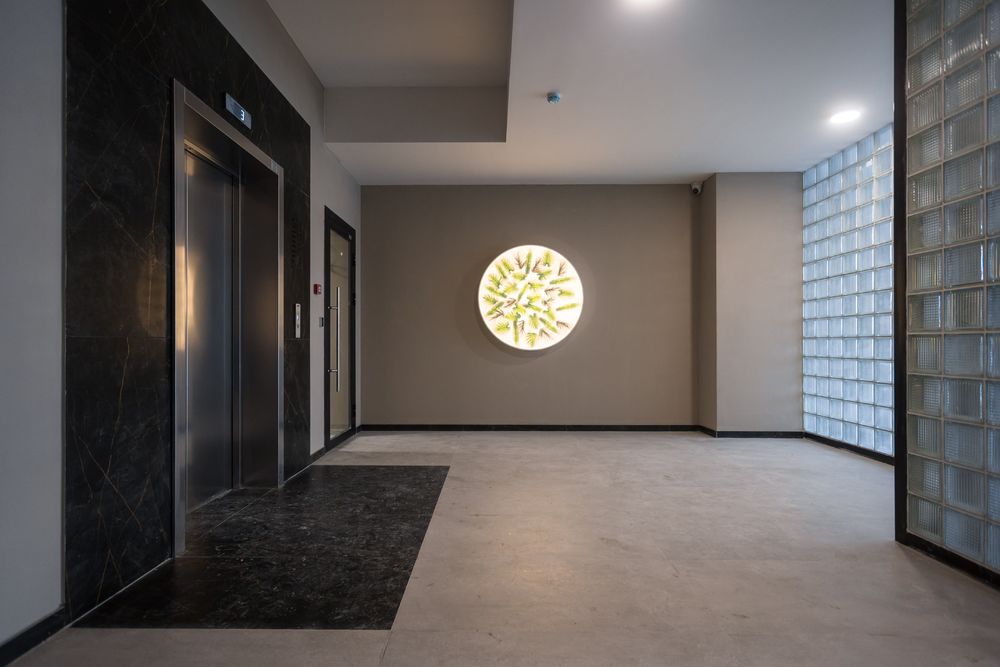

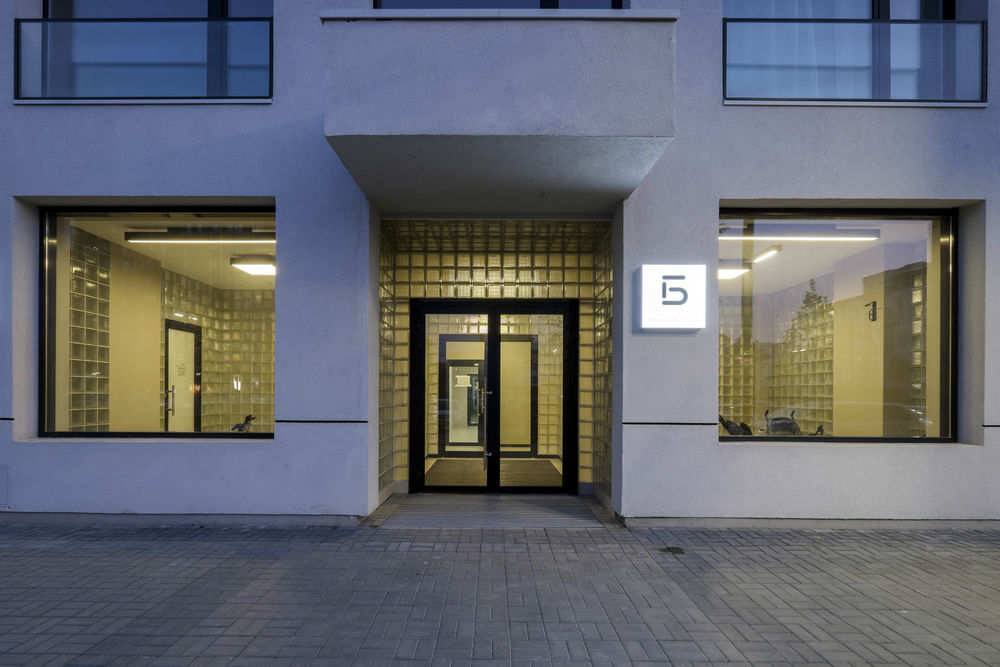

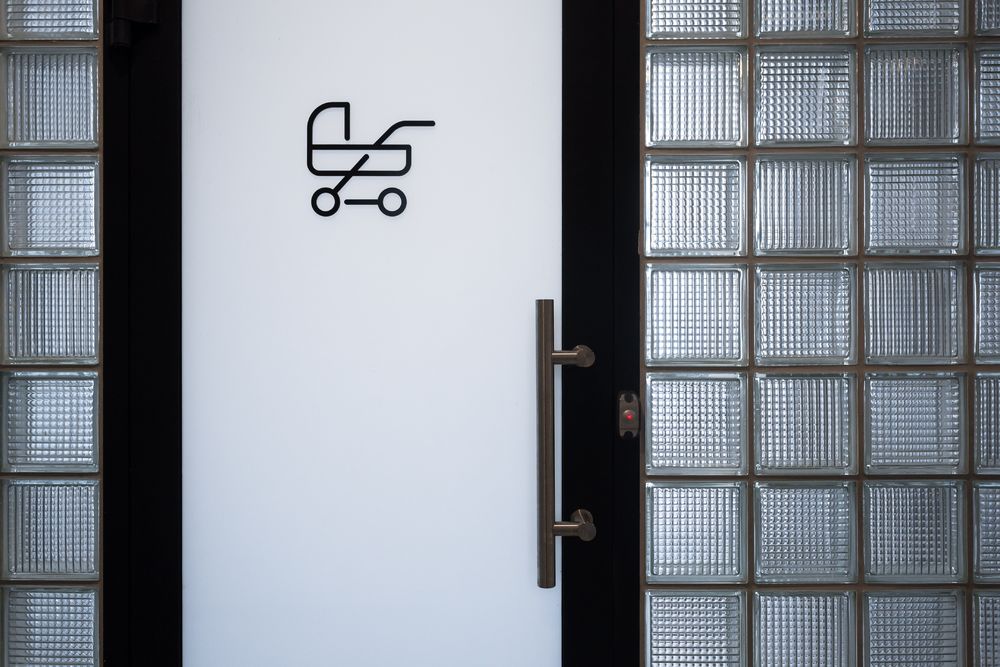

Glass tiles are also utilised in the entrance zones of the building — filling the elevator hall with light while creating private and sheltered space for those who are inside.

The quarter accommodates 245 apartments ranging from small studios to four-bedroomed flats. The flats layout was accomplished by Brusnika. The outer perimeter is filled up with cafes, shops and offices, their vast glass windows overlooking the streets of the  European Riverfront. These communal spaces are equally available to local residents and city-dwellers.

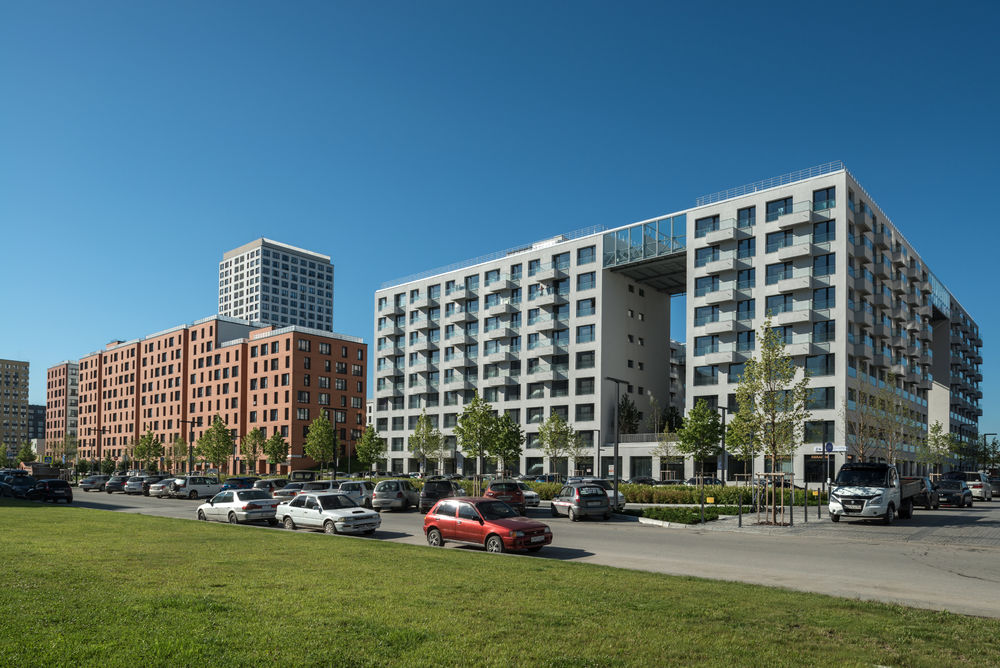

The House with Bridges is a landmark and reference point of the  European Riverfront. The bridges between the sections make the shape of the house eye-catching and recognisable, so people who live in the neighbouring houses or those who take a walk down the river may well say to each other: “I’ll meet you at the House with Bridges”.

Location Bolshevistskaya Street, Novosibirsk, Russia

Project team Developer — Brusnika Master plan — KCAP Architects & Planners in collaboration with Felixx Landscape Architects Massing and facades — SVESMI Layouts — Brusnika Design Communal space interiors — SVESMI Landscape architecture — S&P Landscape Architects Execution and construction — Brusnika Company

Photographs Valery Kostyunin

Project Area & Programme 24 230 m2 — total area 13 720 m2 — accommodation 9 445 m2 — offices and retailers

245 apartments 12 offices 89 storerooms 70 parking spaces

Realization 2018–2021
