设计亮点
利用混凝土框架和玻璃体积的组合,打造高效灵活的办公空间,同时创造独特的入口景观。

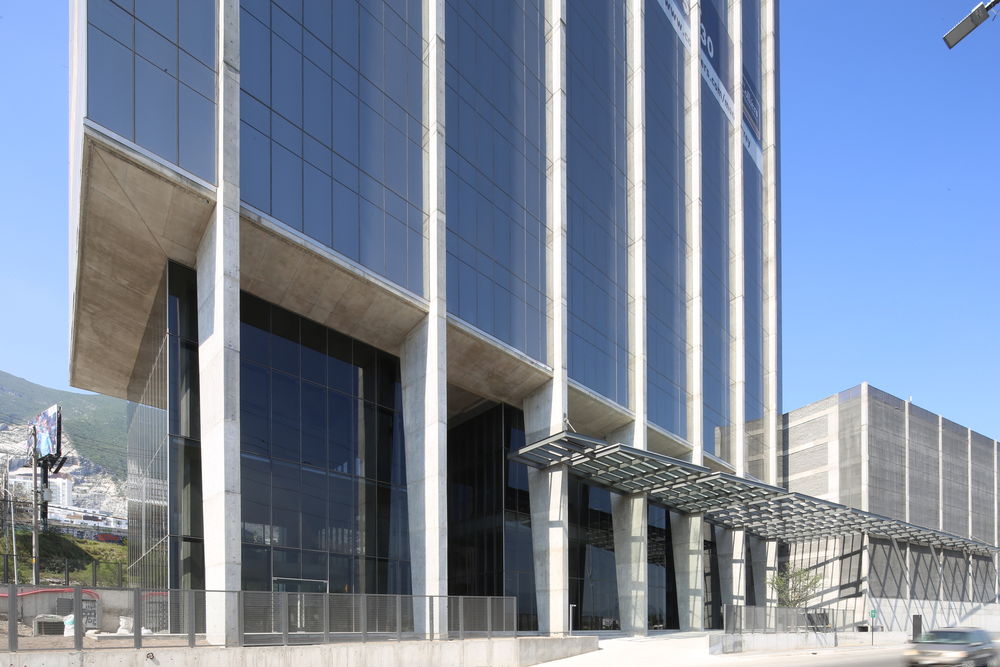

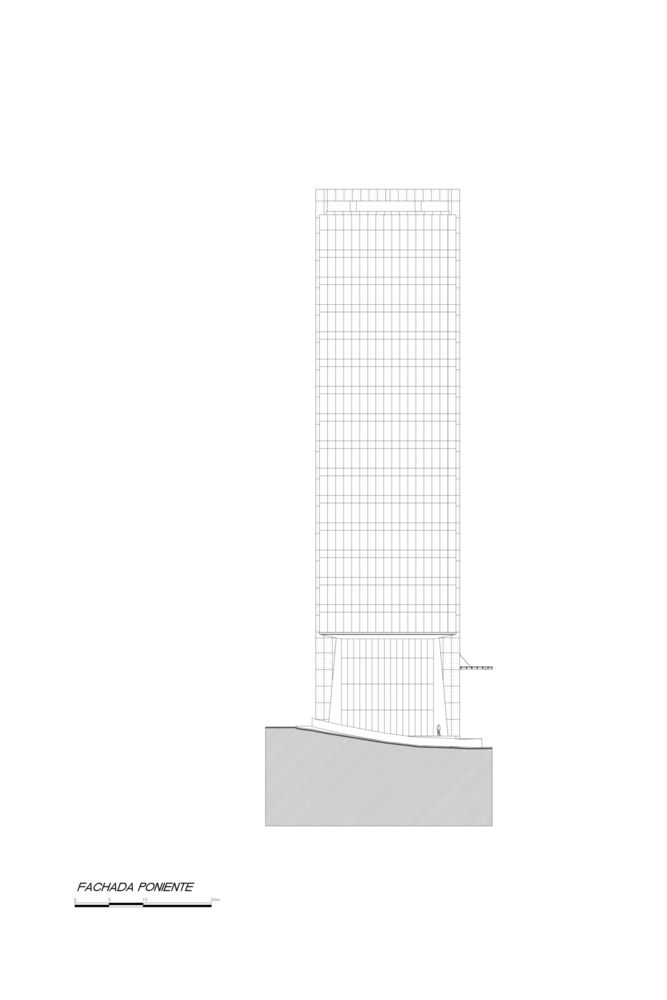

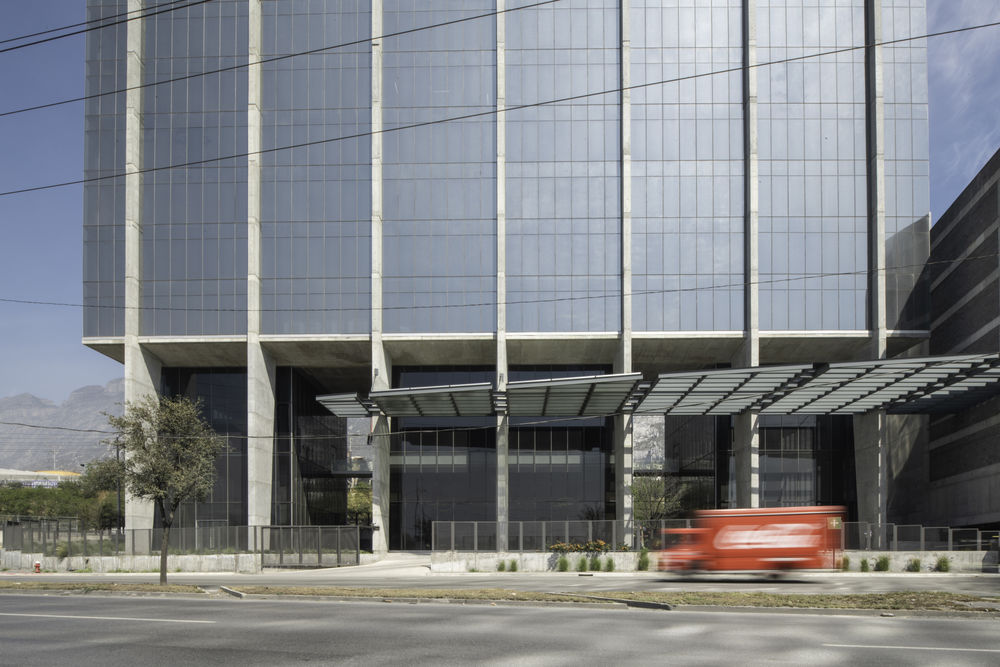

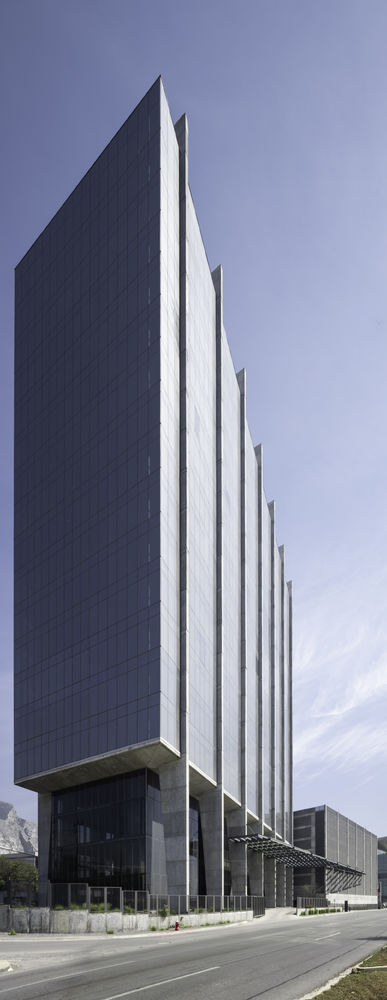

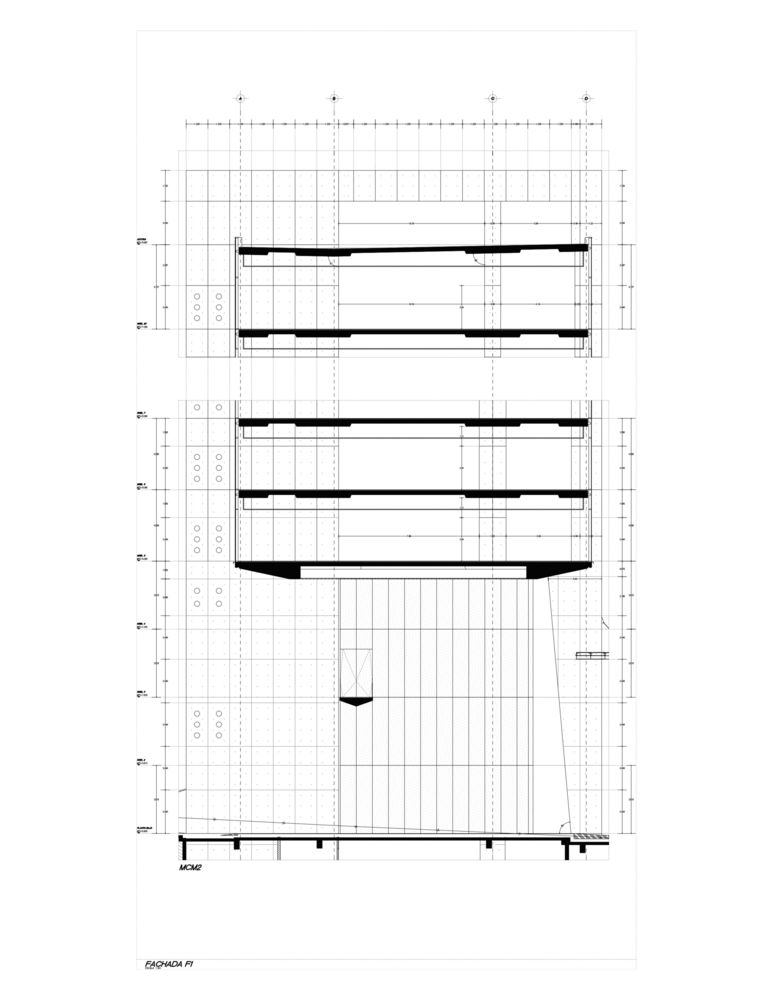

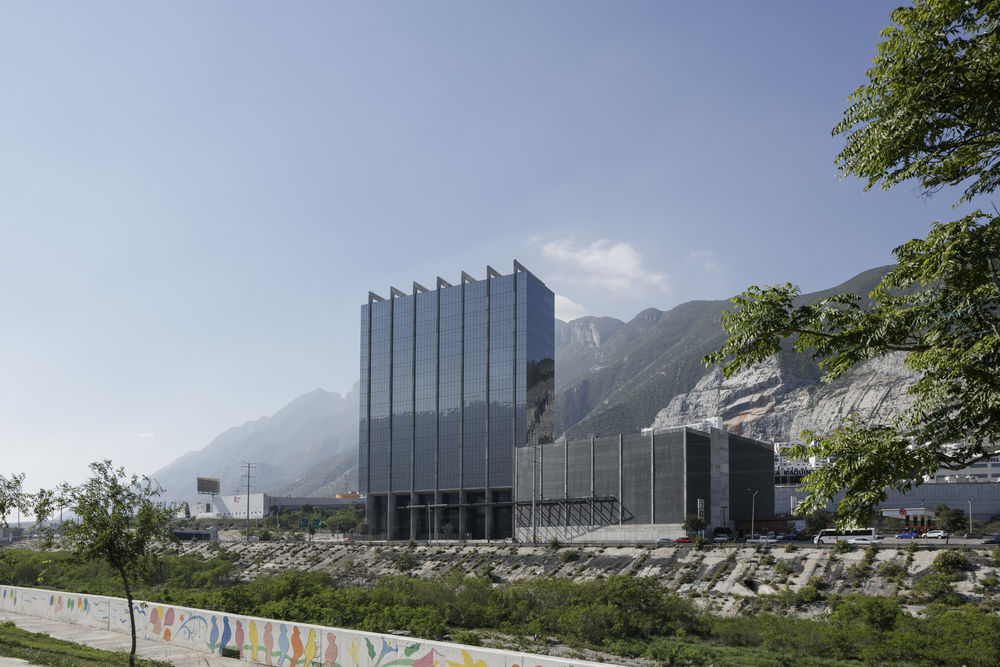

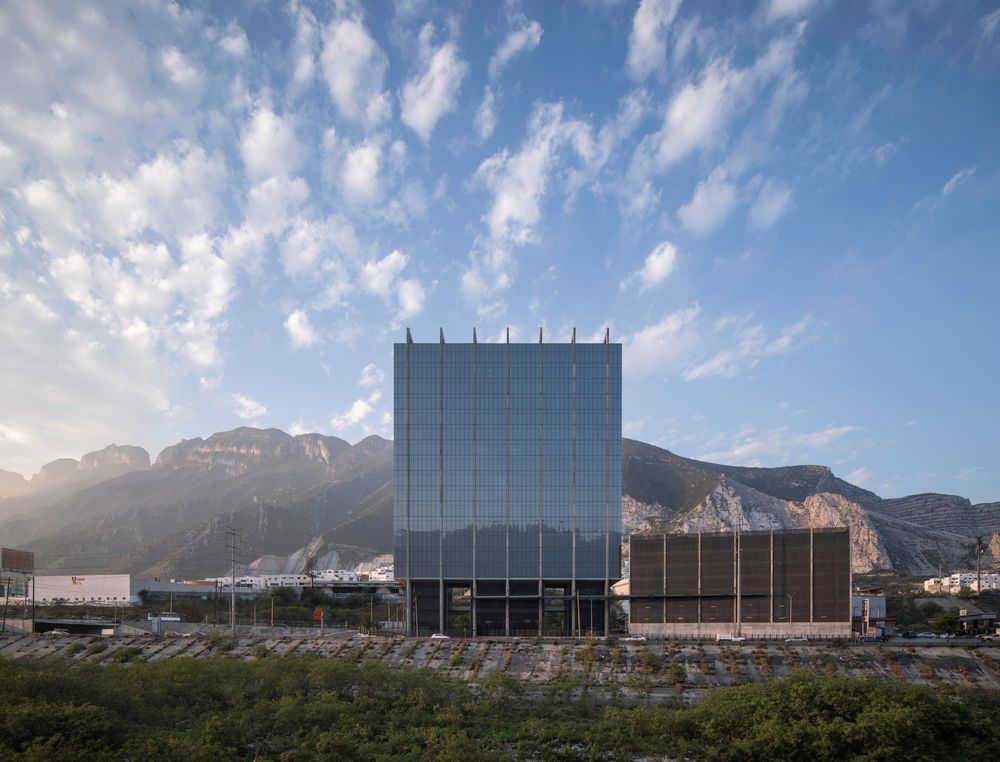

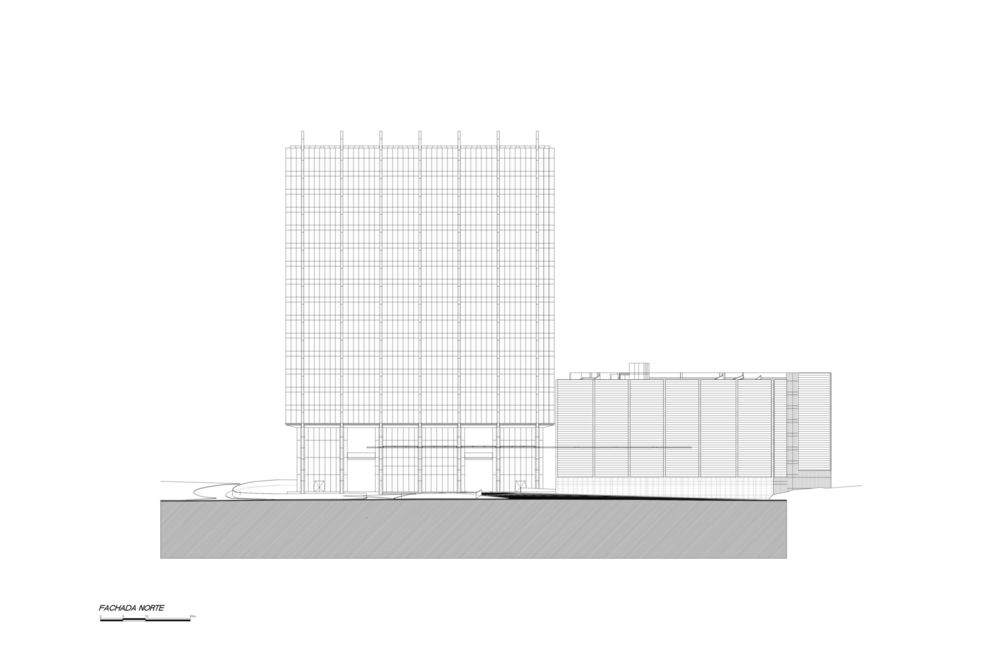

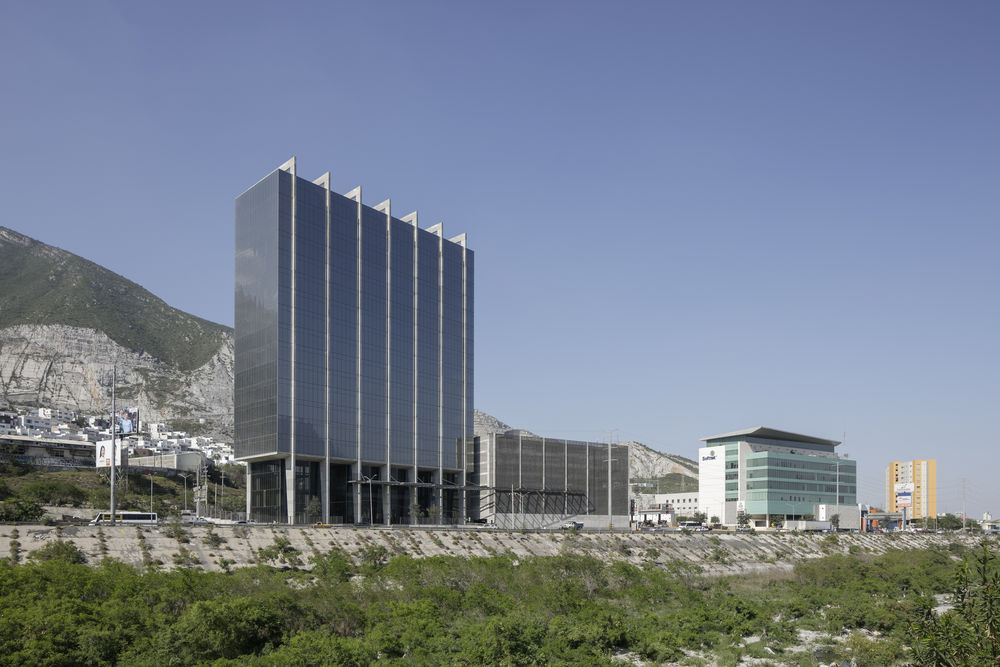

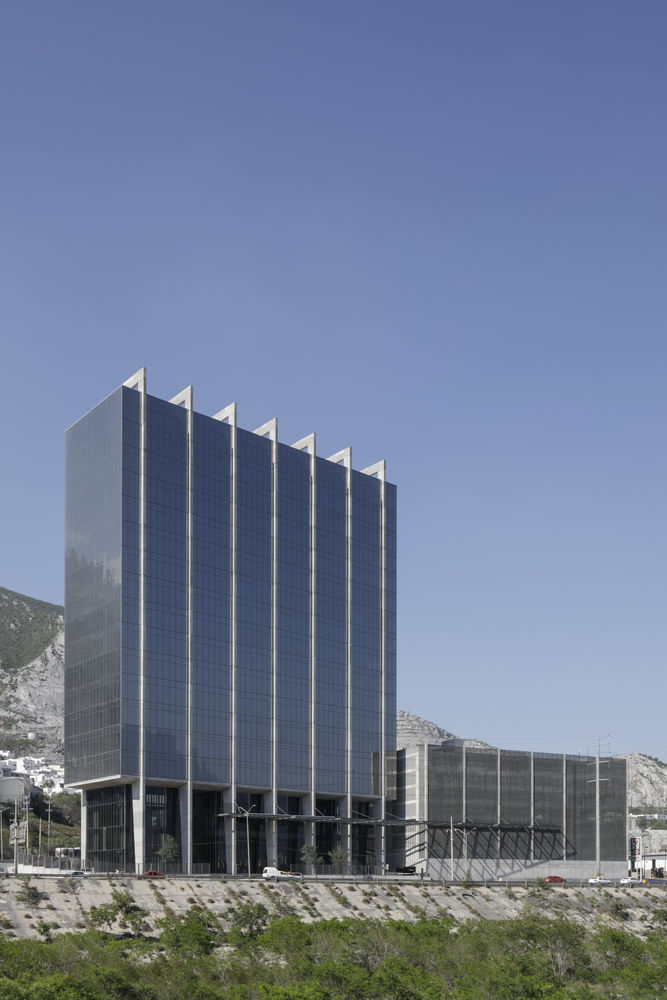

Albia is a twenty-floor office building located on a property between Antonio L. Rodriguez and Blvd. Gustavo Díaz Ordaz, two high-velocity avenues in the west of Monterrey. Its structure is composed of visible concrete frames that are expressed on the facade as vertical mullions. The offices are located in a reflective glass volume, with a north-south orientation, on a quadruple height base.

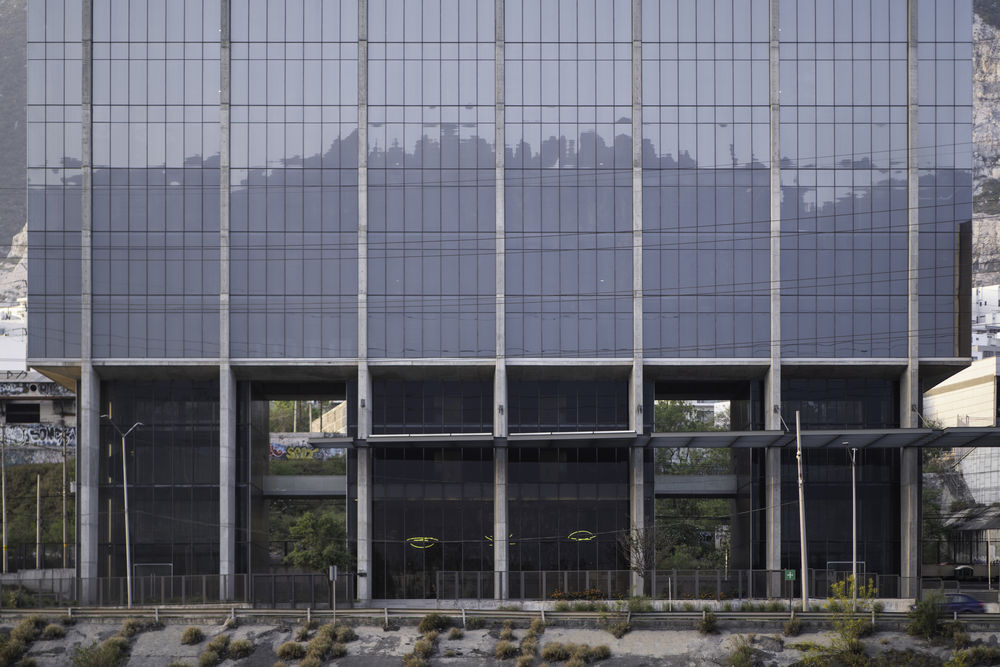

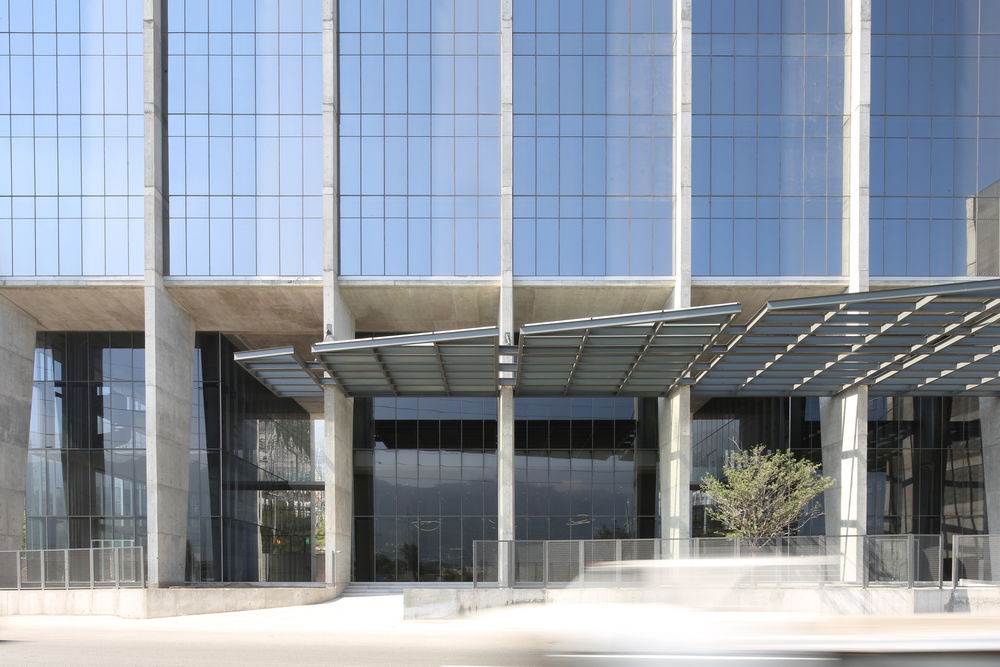

The lower part of the building is divided into three glass volumes separated by large voids. The access passes through the voids to the lobby in the central volume. The other two volumes, also connected by bridges on the third level, house shops on the ground floor and two levels of offices.

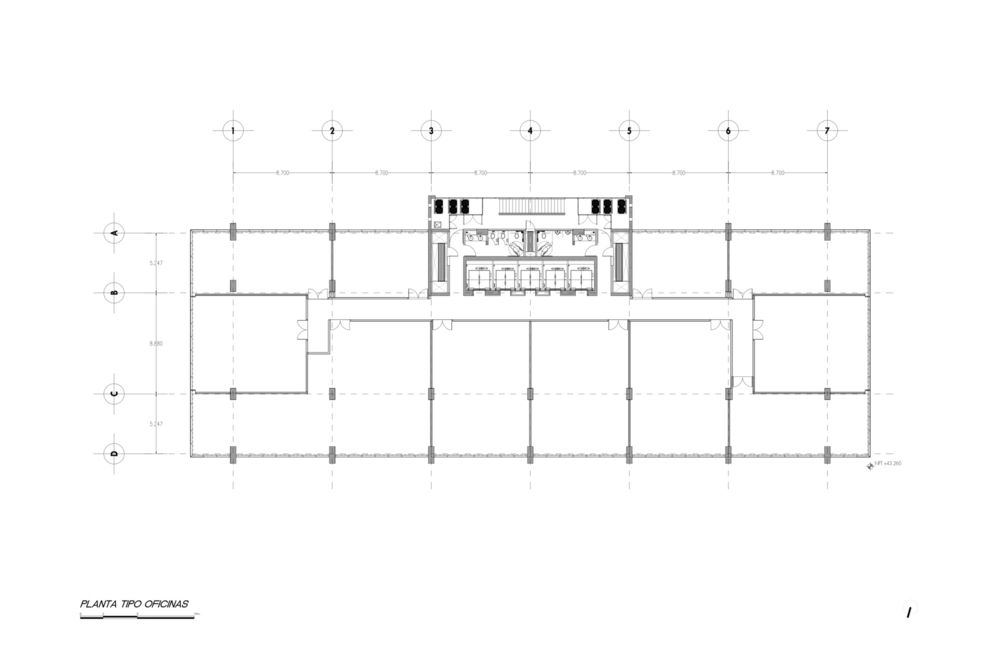

The promoters of the building sought to introduce small offices to the real estate market of Monterrey, a virtually non-existent commerce. The floors of the building respond to this initiative: they are very efficient, without columns, and can be easily divided. The circulations and services are concentrated in a core in the back facade of the building.

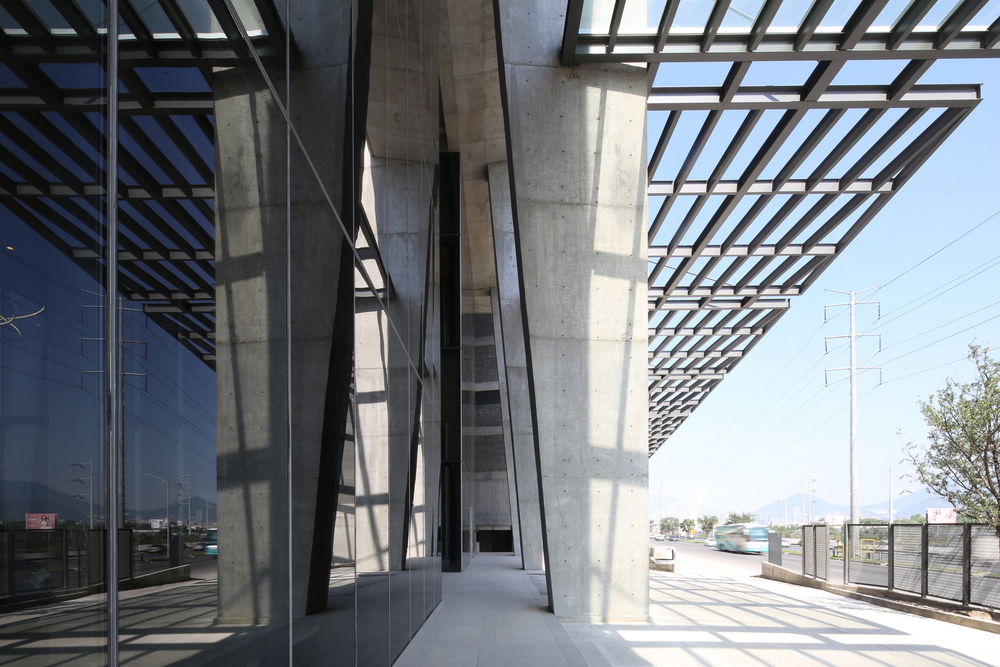

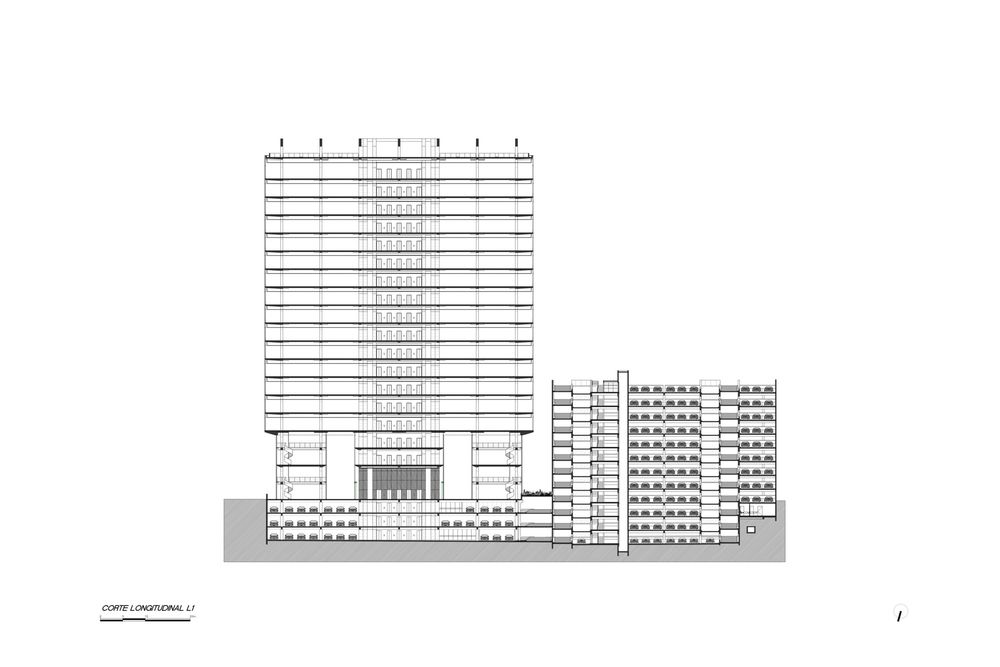

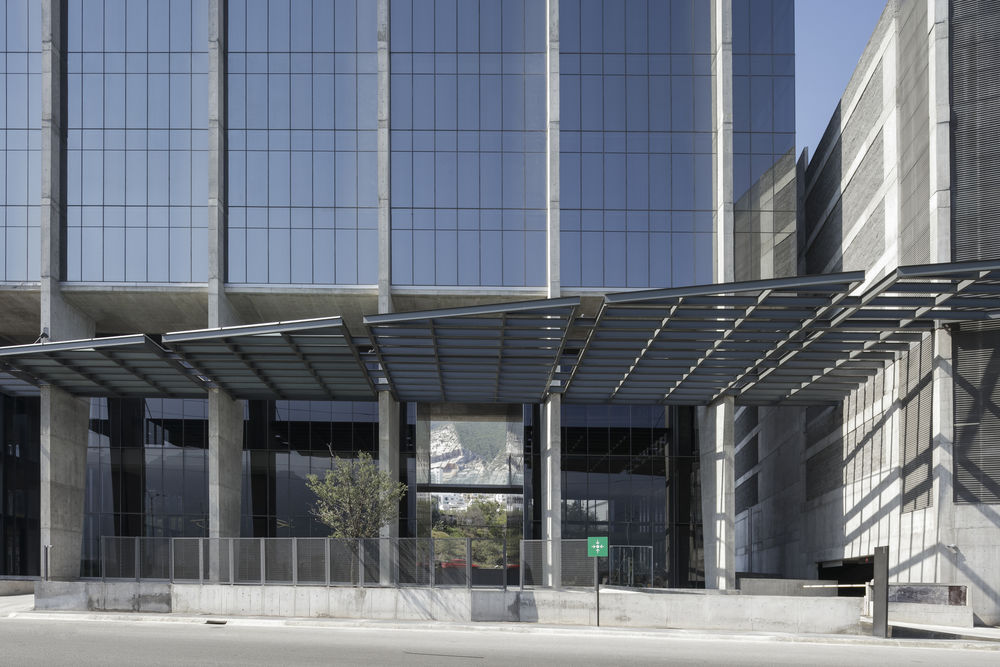

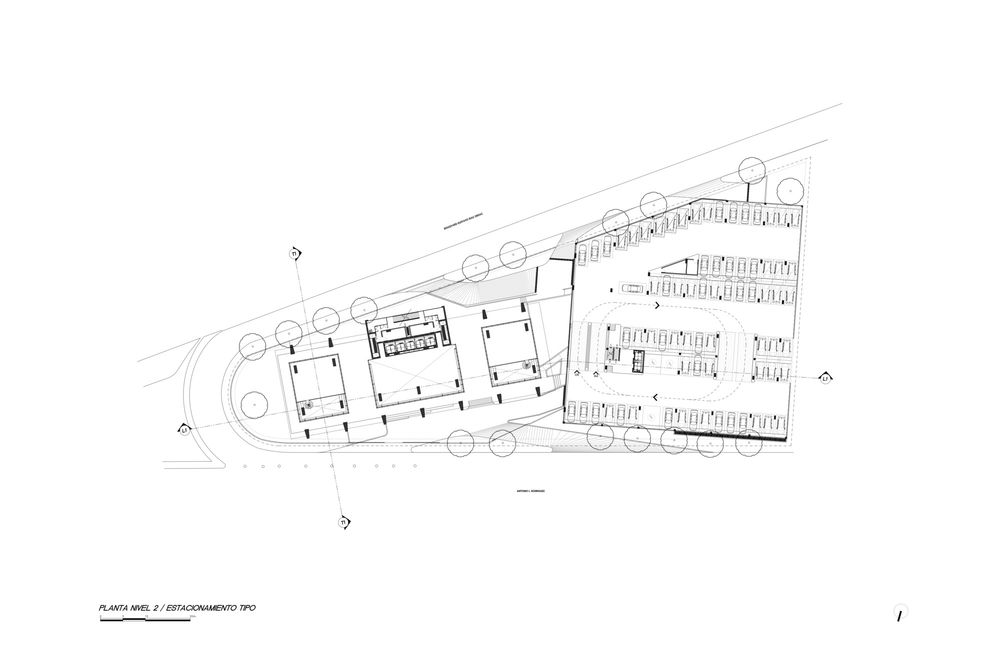

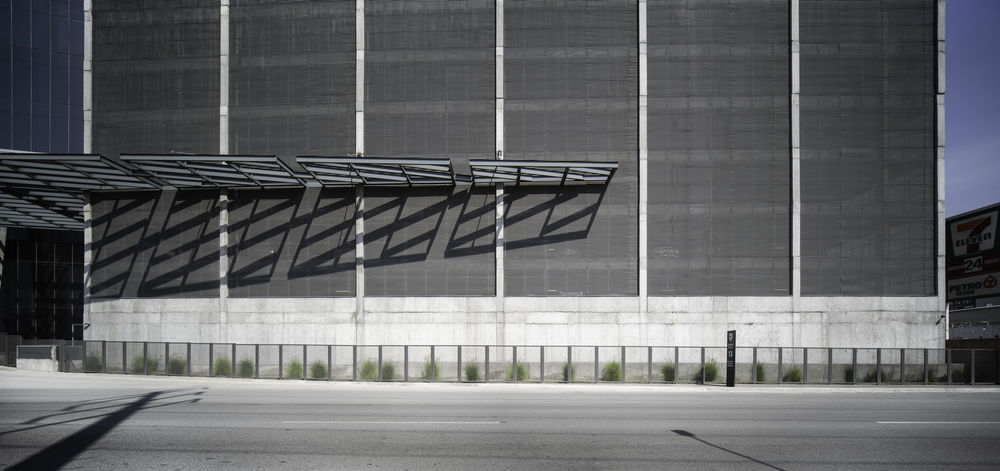

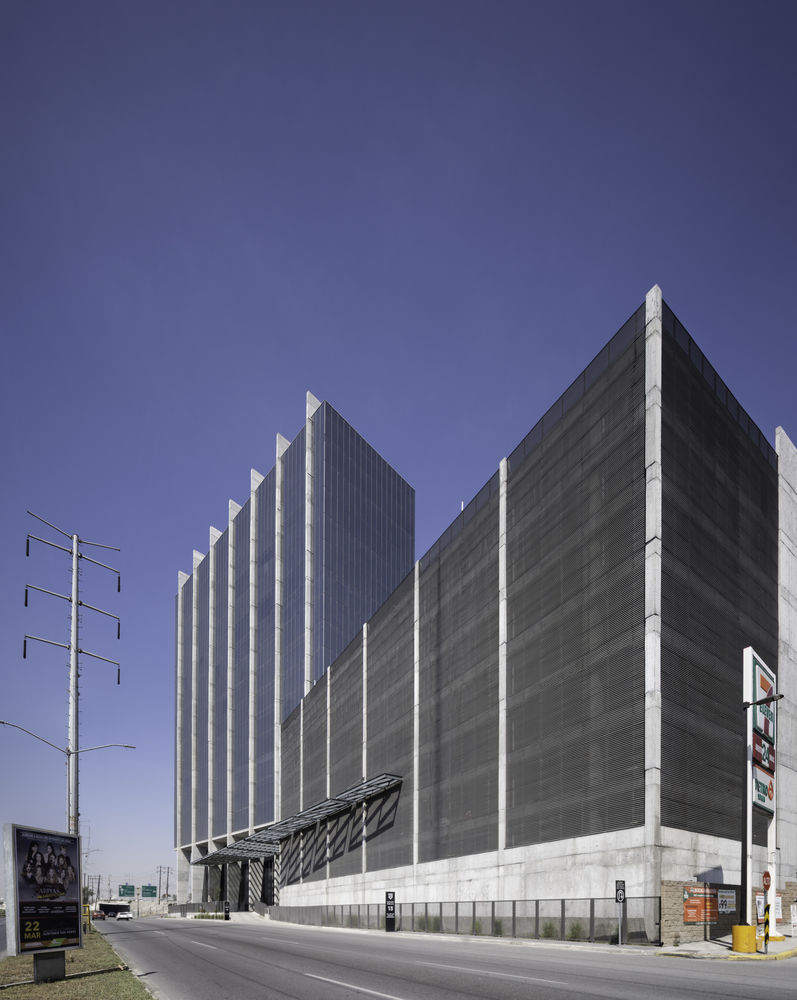

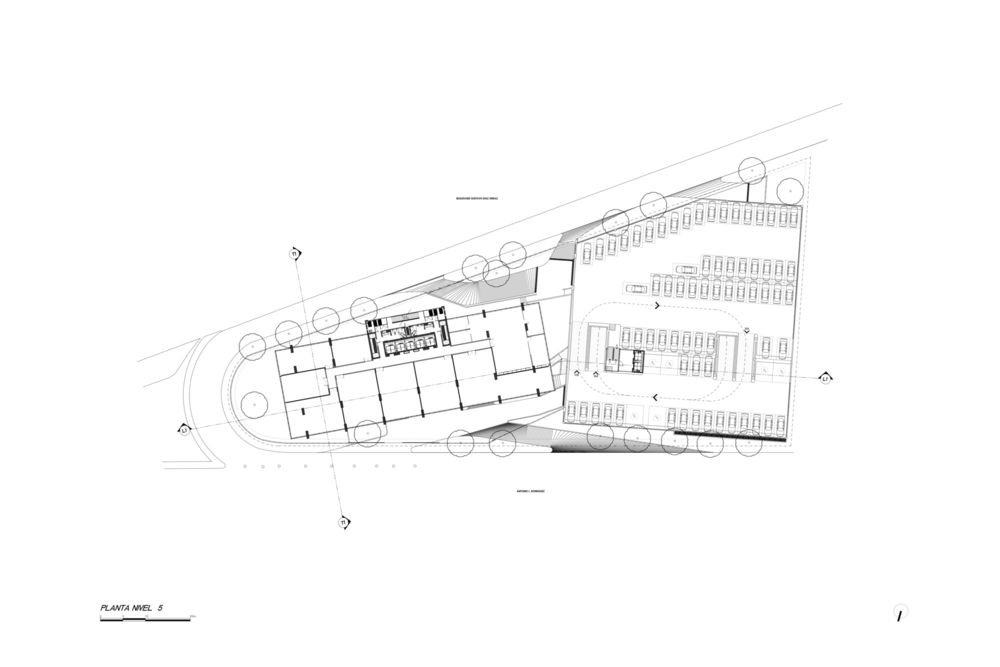

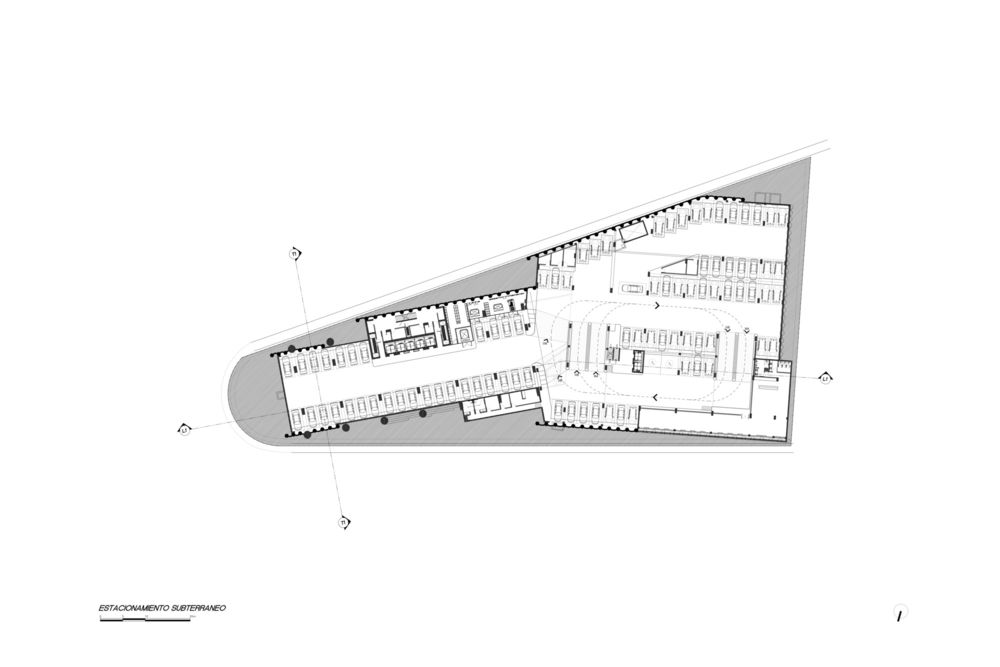

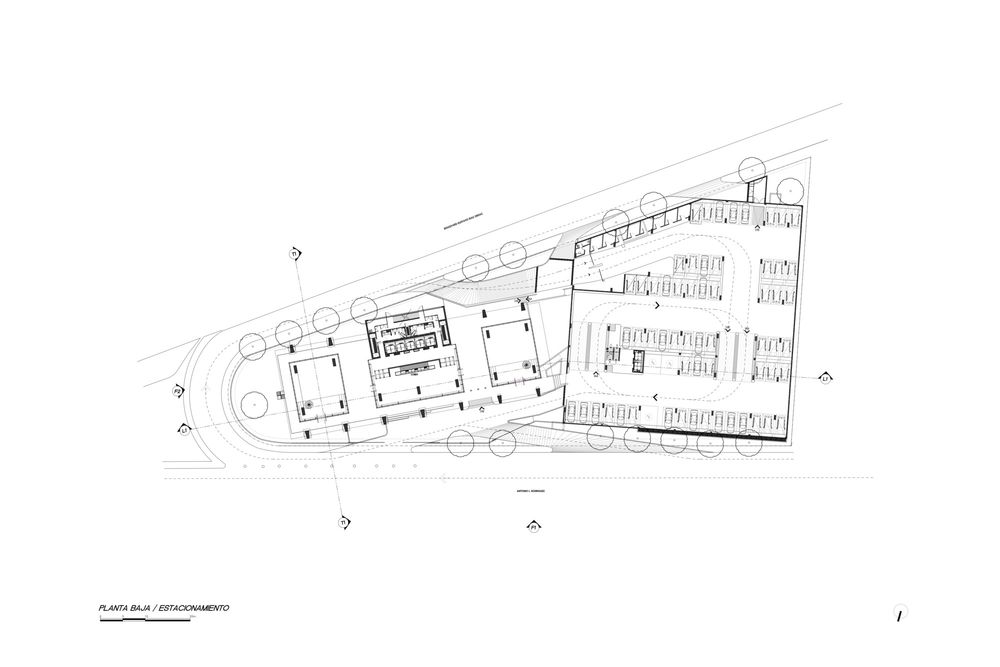

Due to the absence of a surrounding urban context, a large parking lot was required. The parking area is concentrated in a structure with three underground floors and seven floors above street-level. It is linked to the main building by a large steel pavilion.

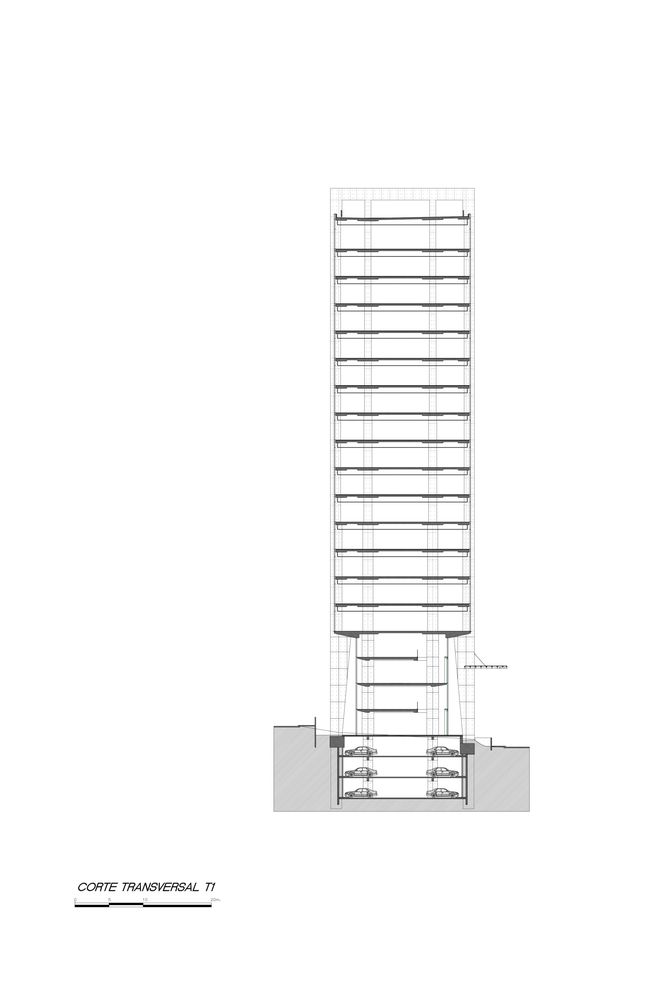

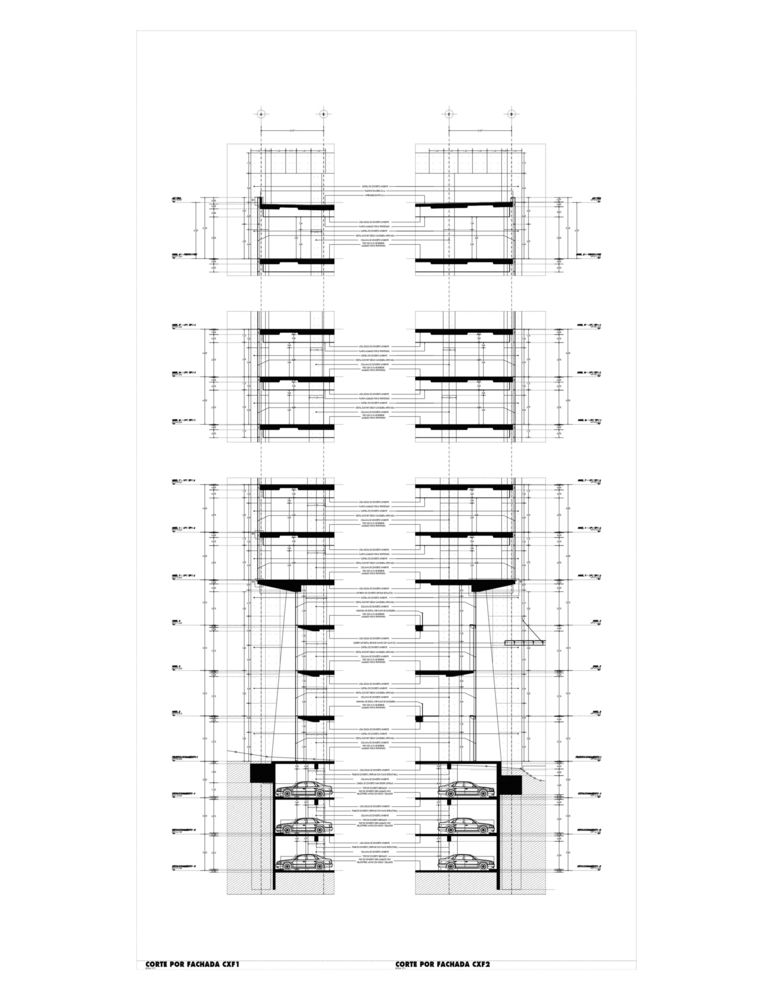

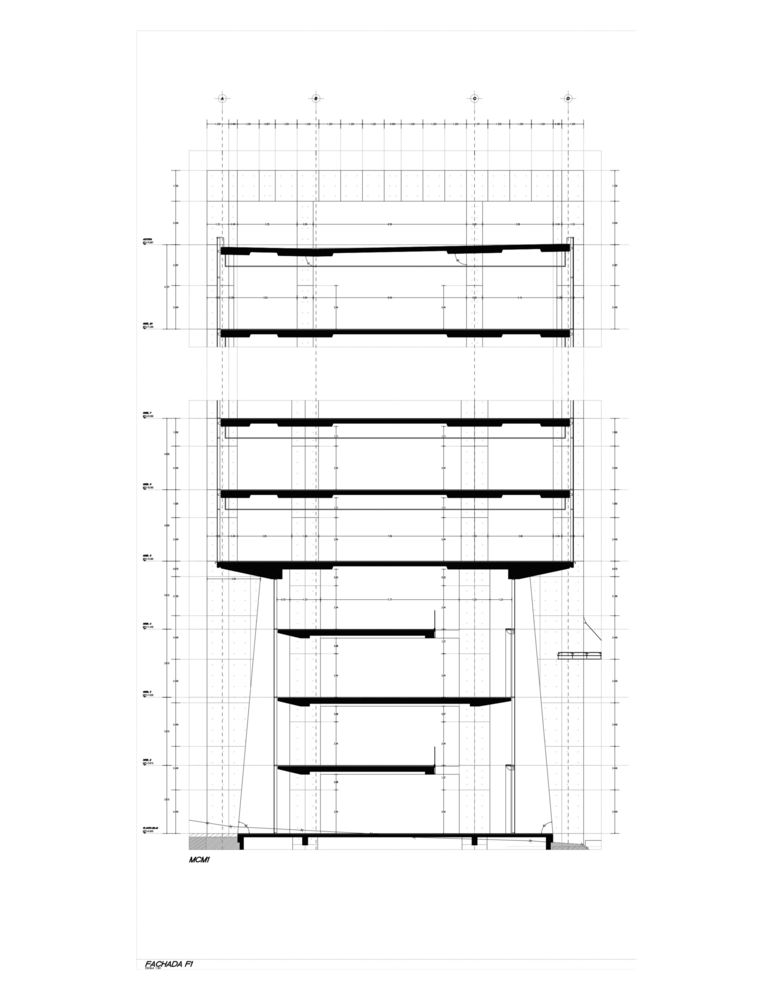

The skilful handling of concrete can be seen in the geometry of the concrete slabs. On the ground floor, the slabs are very narrow and shaped as rhombuses. In the cross-section of the lower part of the building, the slabs are wider at the top. On the ground floor, these skewed fifteen meter high monoliths define a gateway.

{{item.text_origin}}

墨西哥 Monterrey Albia 办公大楼——现代简约风格与高效空间的完美结合
