Längenfeldgasse Primary and Vocational School / PPAG architects

Architects:PPAG architects

Area:10750m²

Year:2020

Photographs:Hertha Hurnaus

Manufacturers:Bemo,Domoferm,Euval Betonwerkstein,Fa. Reinlein,Hella,Heradesign,Hueck Alumium System,Largilla,MARAZZI,Wicona

Landscape Architects:EGKK

Structural Engineering:Werkraum Ingenieure ZT GmbH

Fire Consulting:Kunz – Die innovativen Brandschutzplaner GmbH

Climatisation:Bauklimatik

City:Vienna

Country:Austria

Text description provided by the architects. This highly urban extension building for a pre-existing school campus contains a novel combination of a 17-class Primary school (children 6-10 y) and a vocational school, consisting of 23 classes (students 15-19 y).

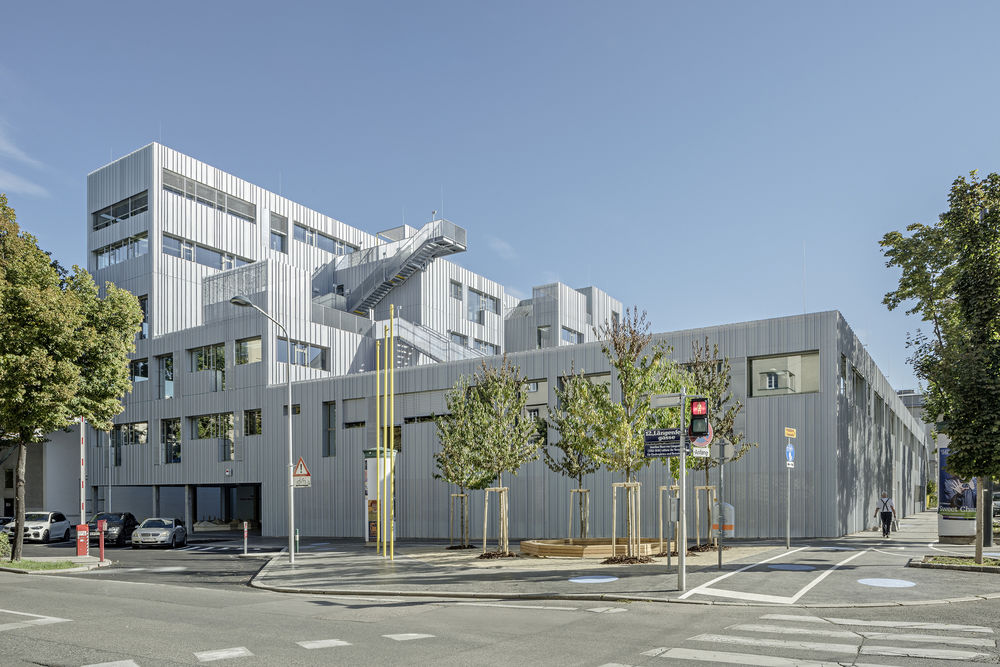

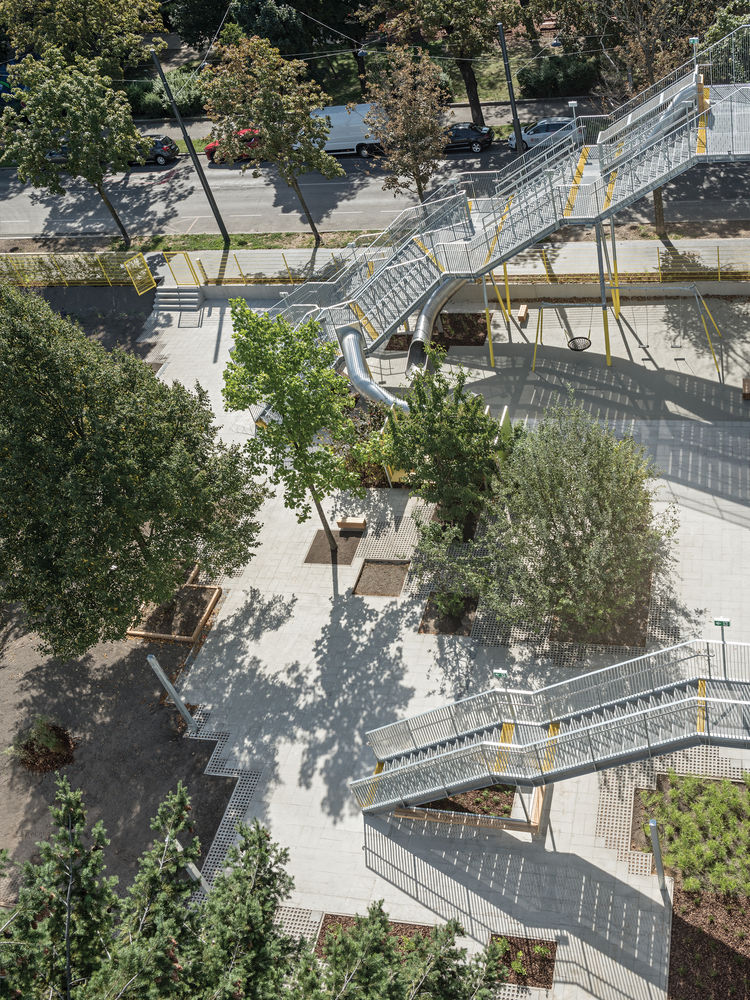

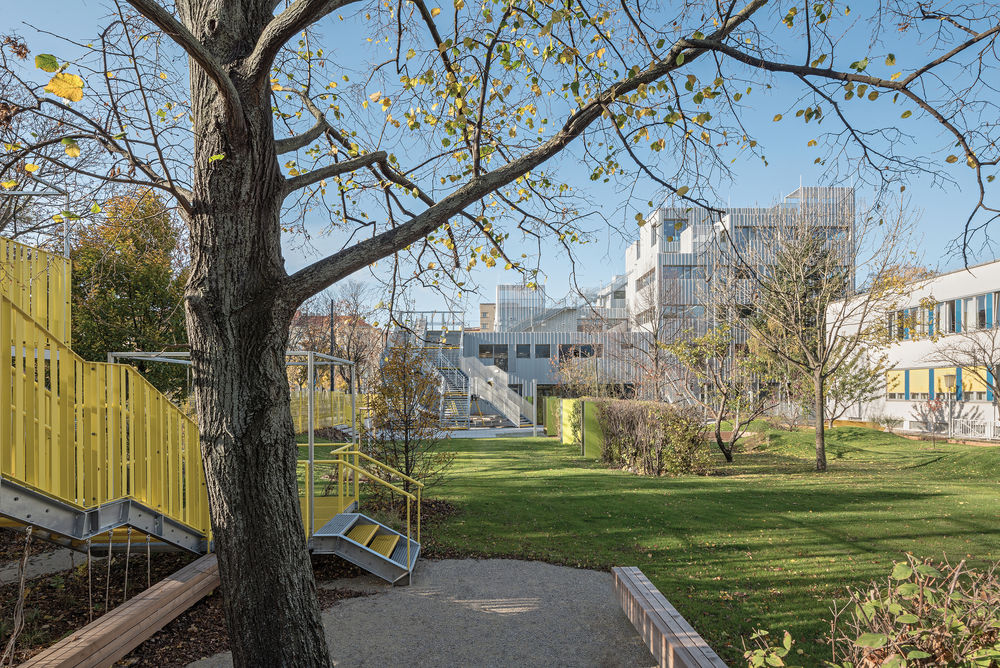

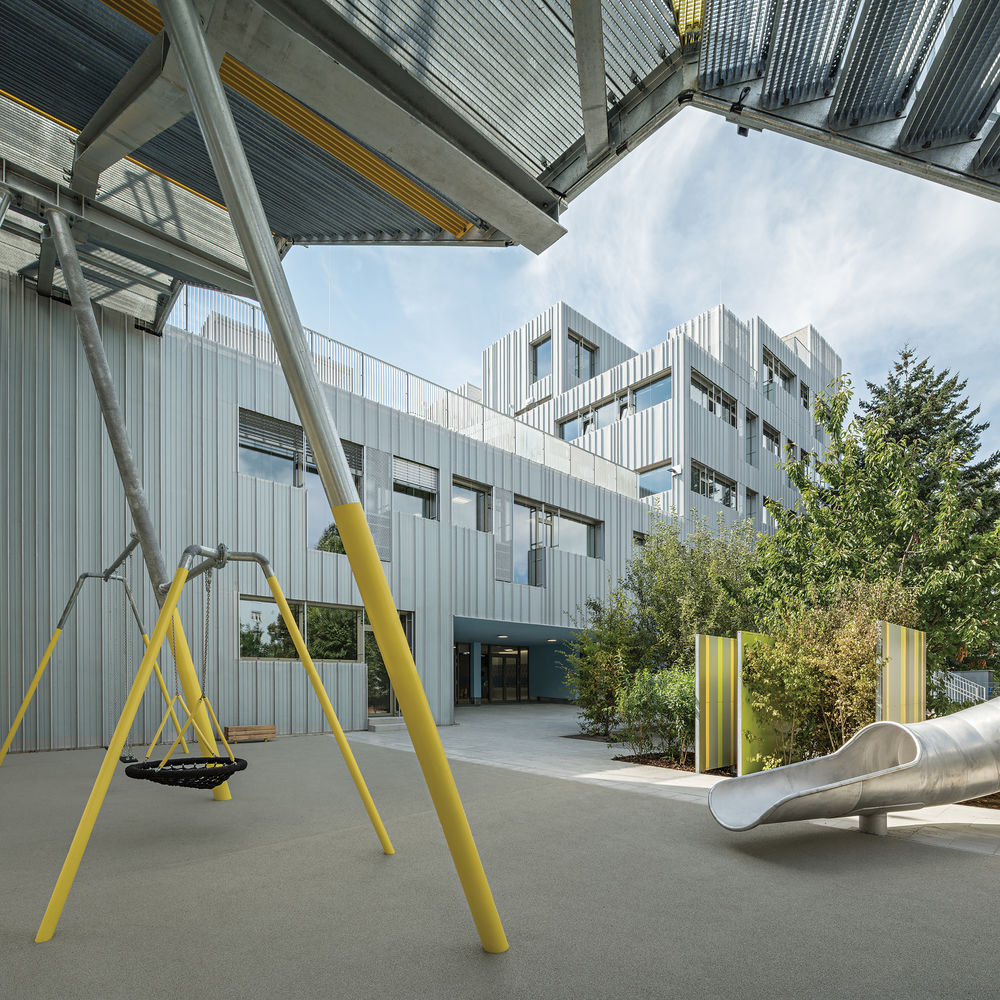

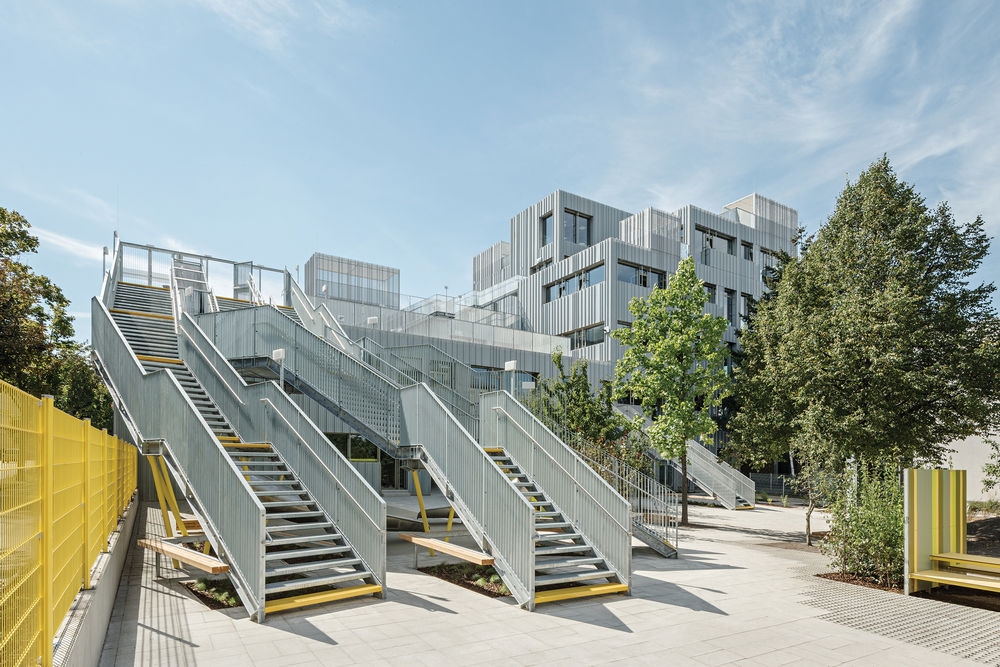

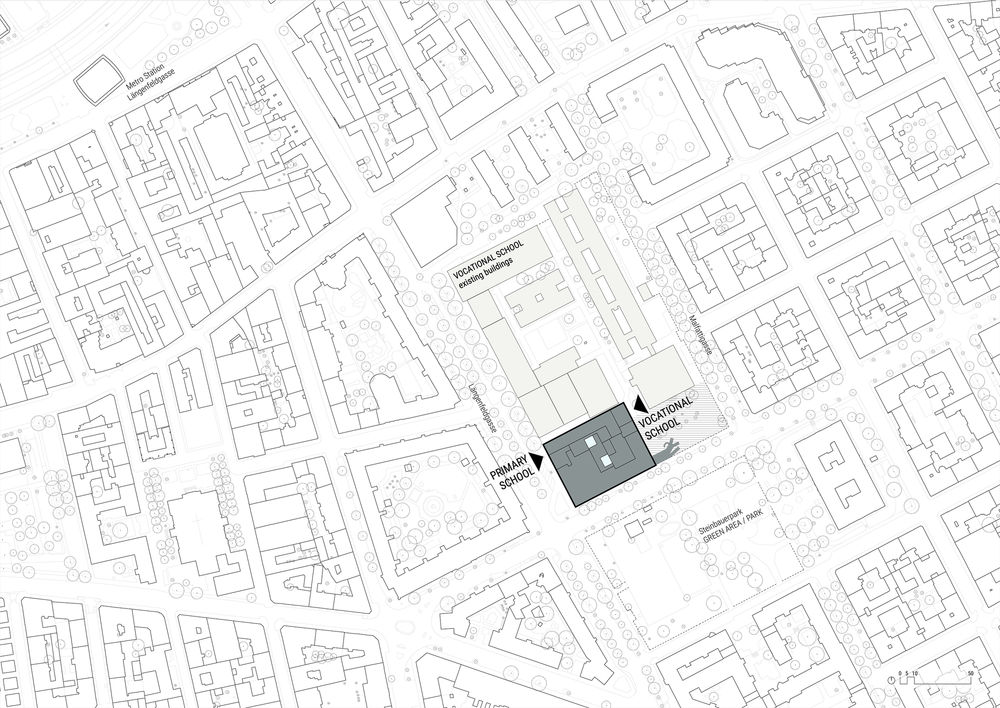

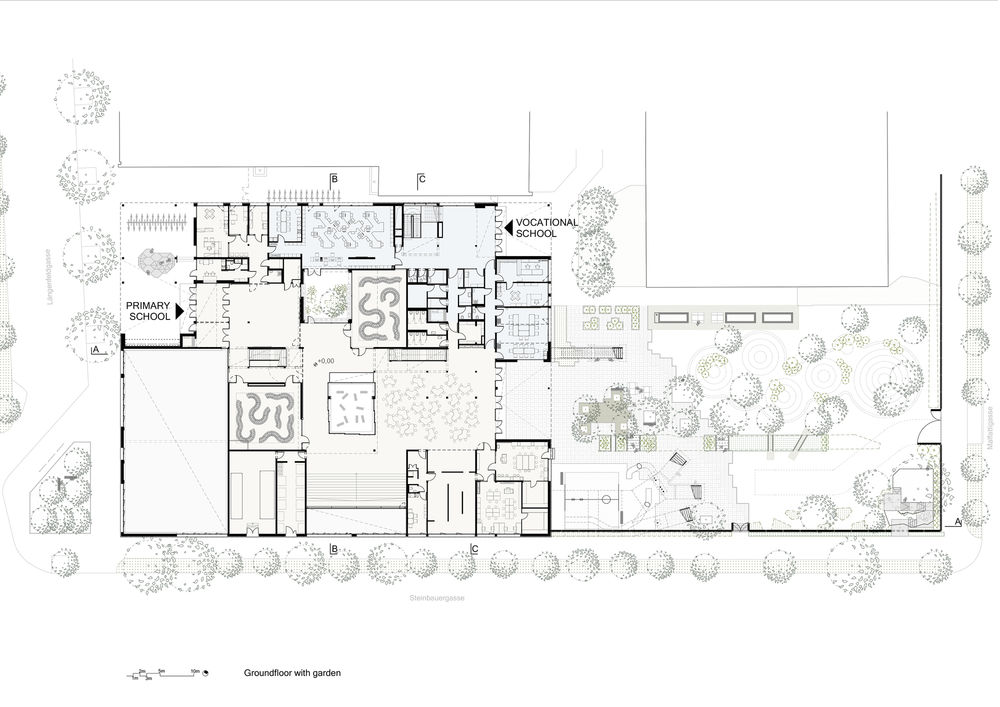

Built in a densely developed area, the school has six stories and is relatively high in the Viennese context: it ensures that the building requires as little ground area as possible in order to preserve a large green area for the pupils.

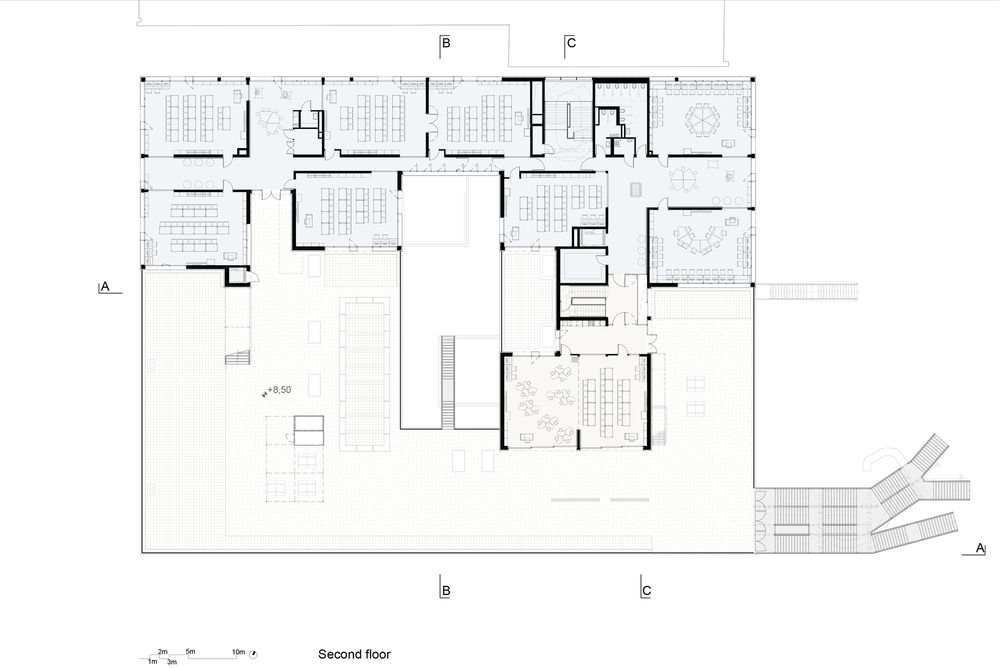

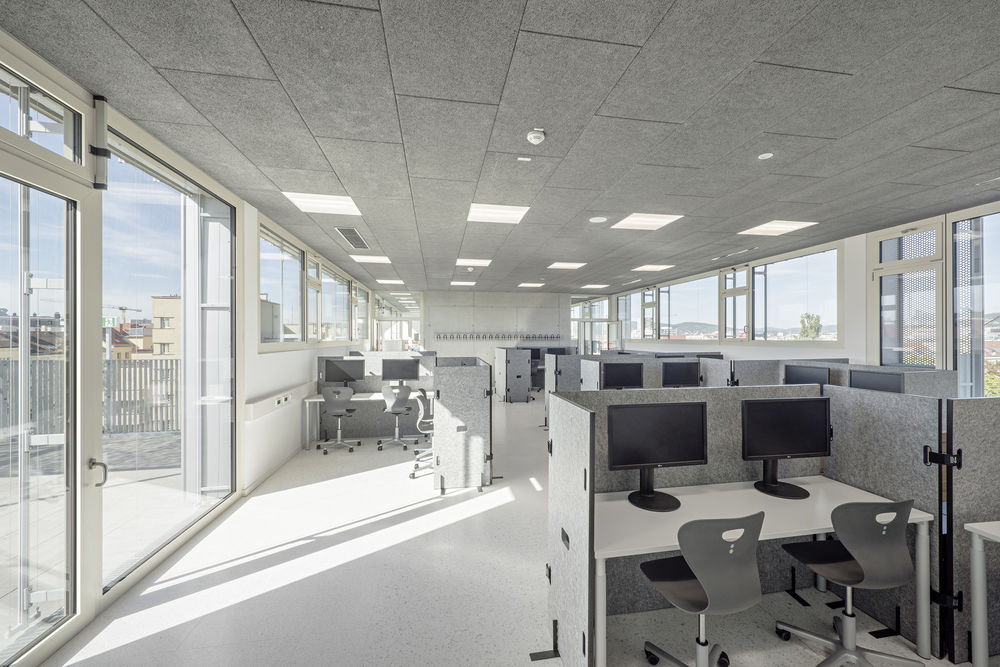

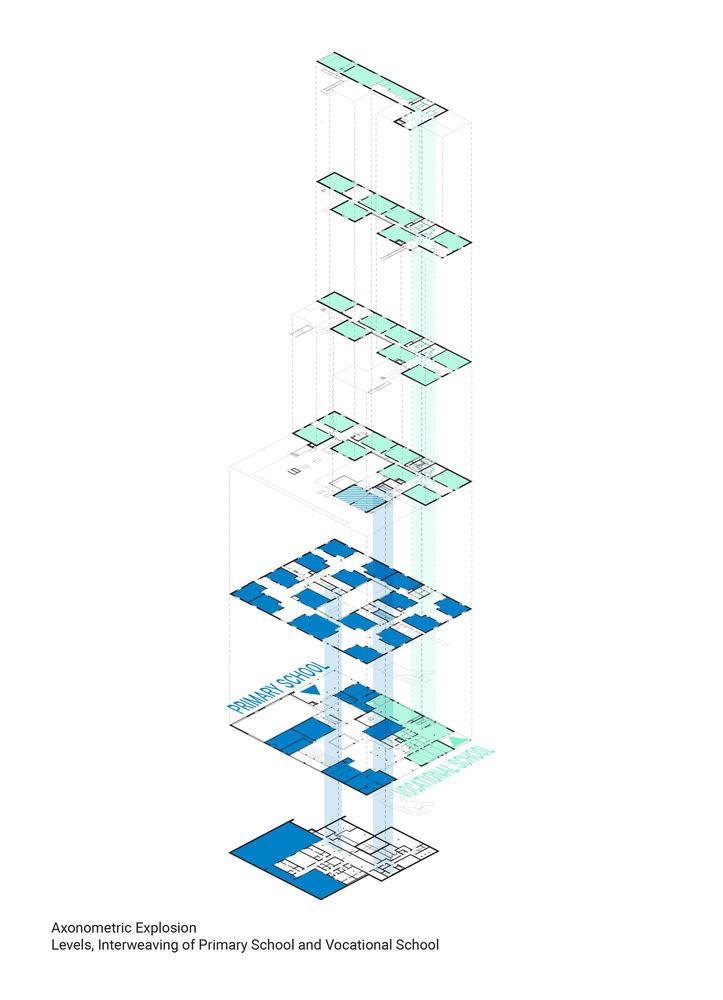

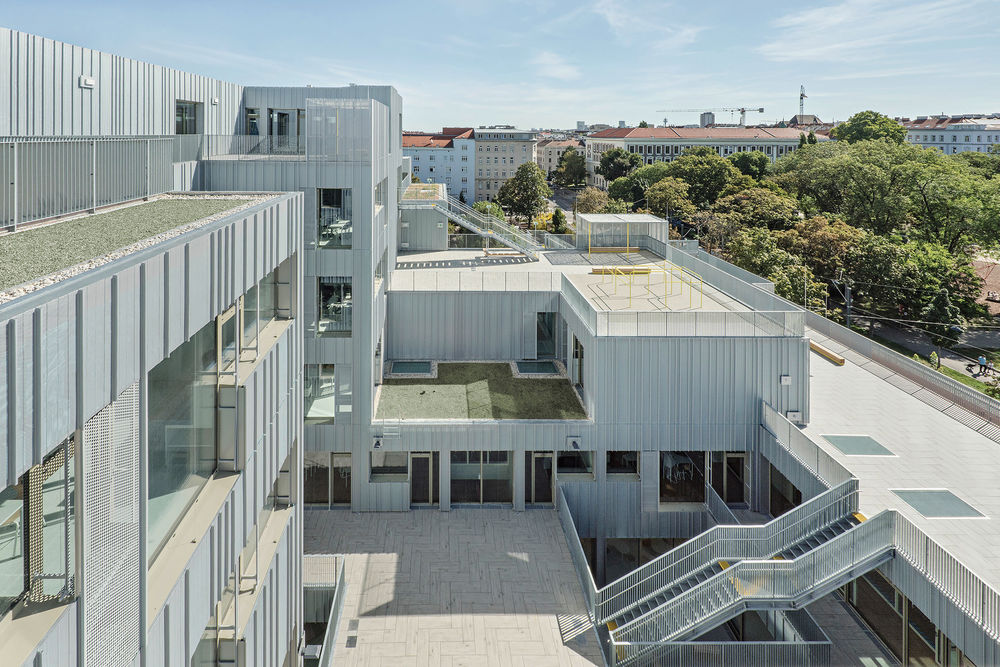

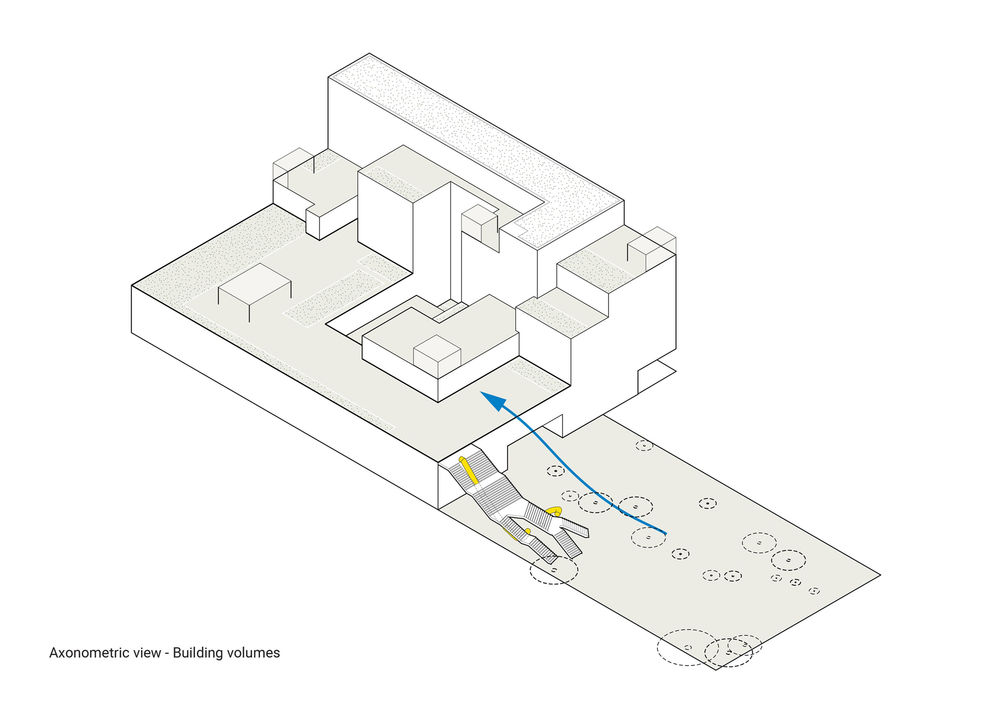

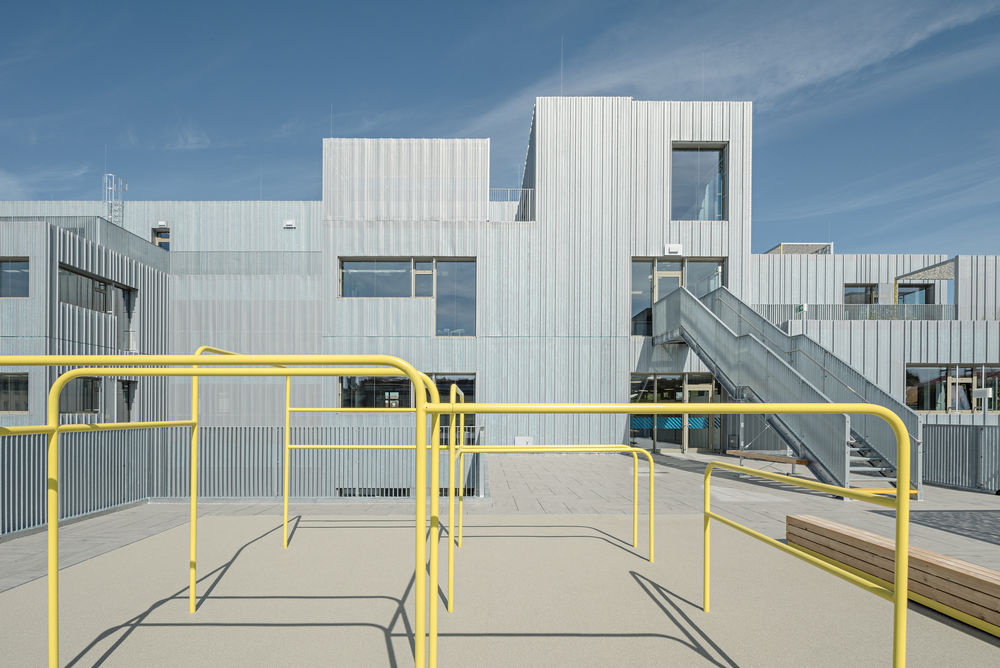

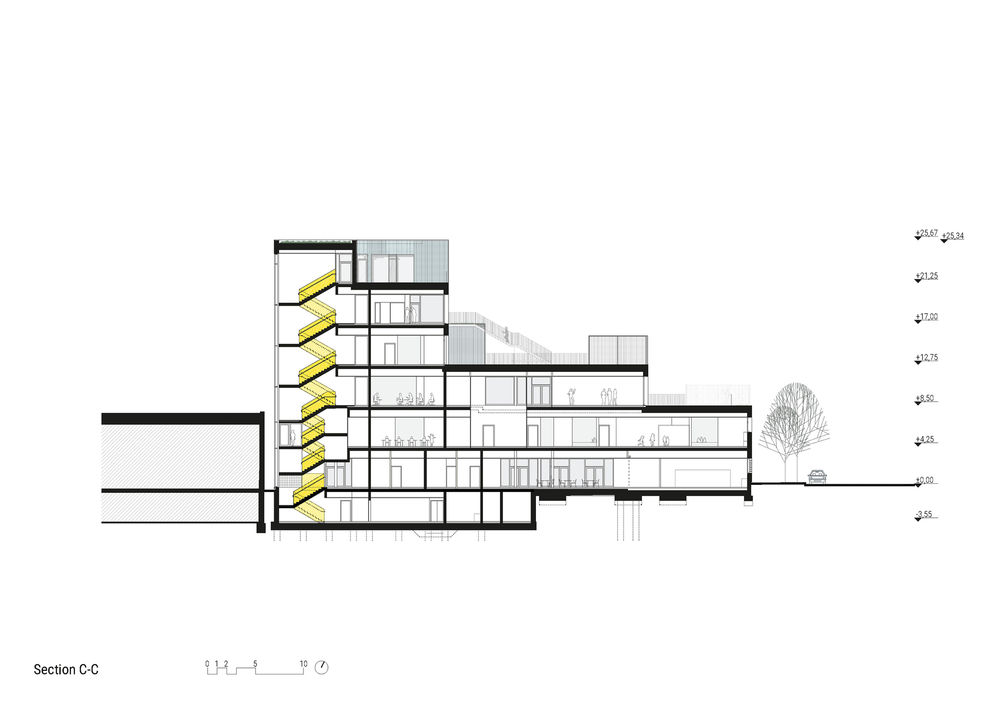

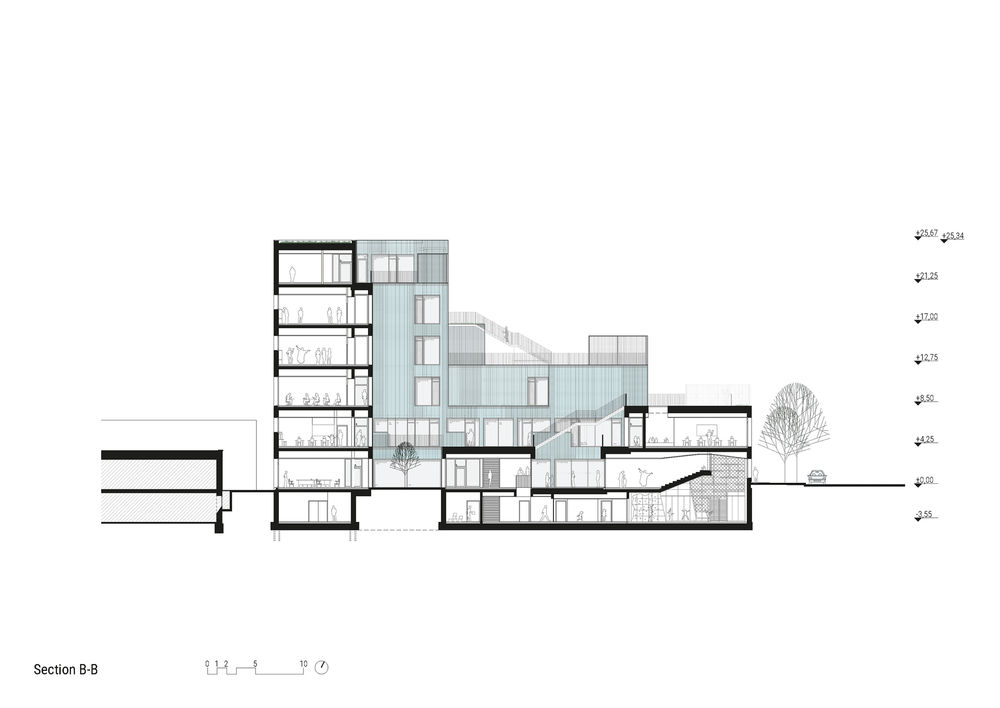

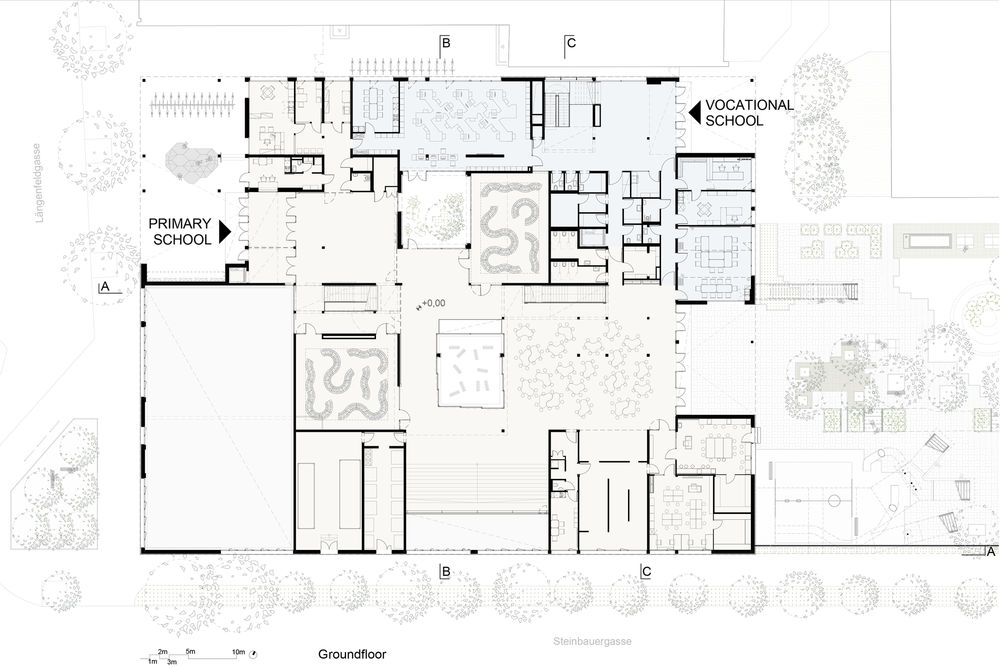

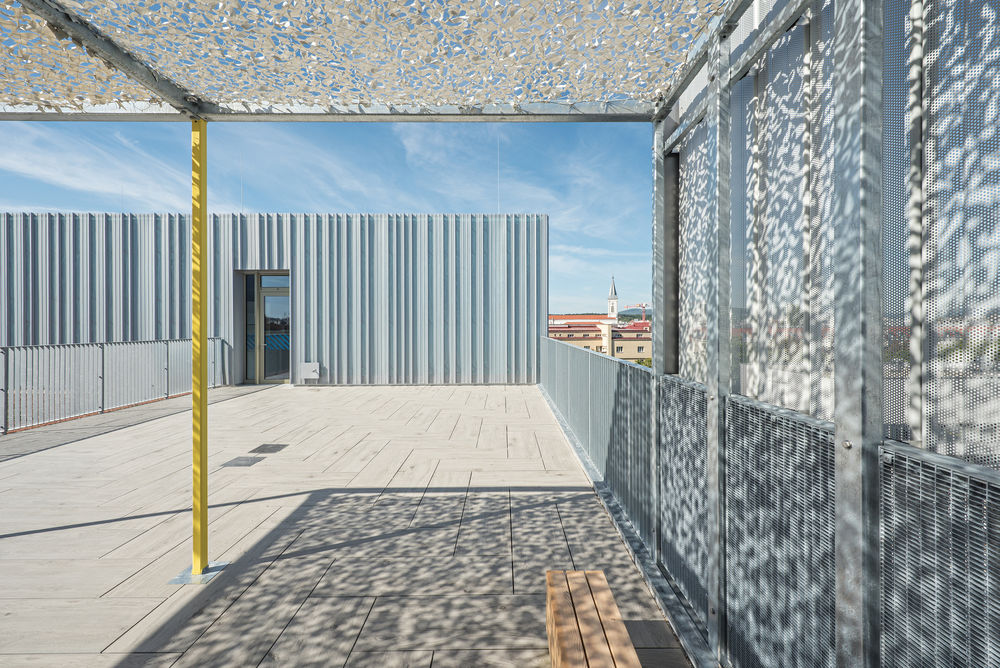

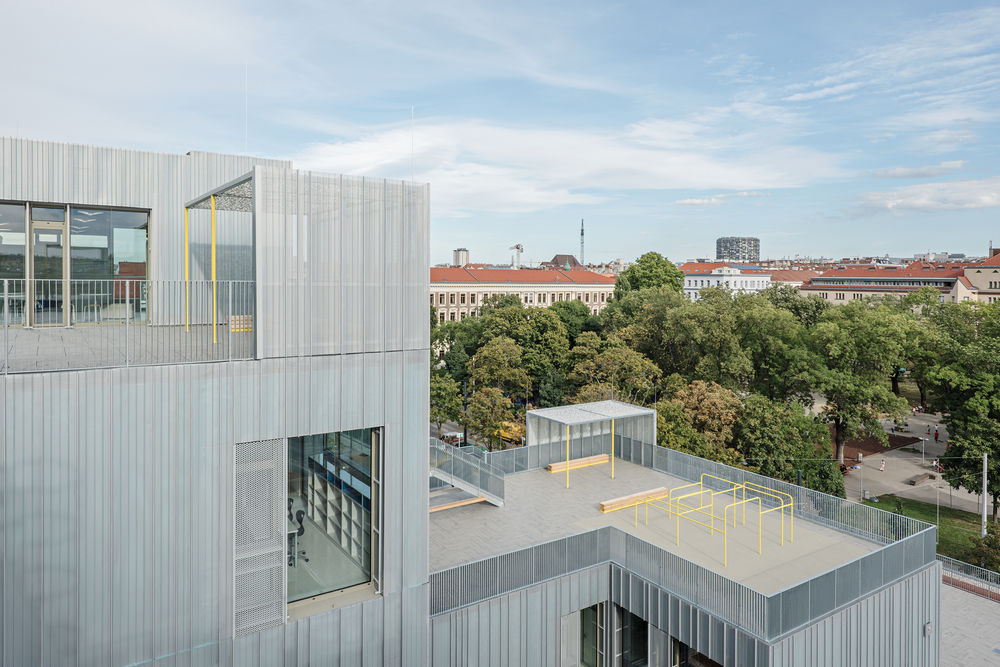

The primary school is situated in the horizontal part of the building on the ground floor and first floor, in a rectangular shape of 50 by 64 meters. The vocational school is accommodated in the vertical part, which tapers towards the top. There is a “practice firm” on top of the building, overlooking the city and giving the young students the opportunity to enjoy conditions usually only available in fancy offices: it gives them mental and literal space to plan a bright career.

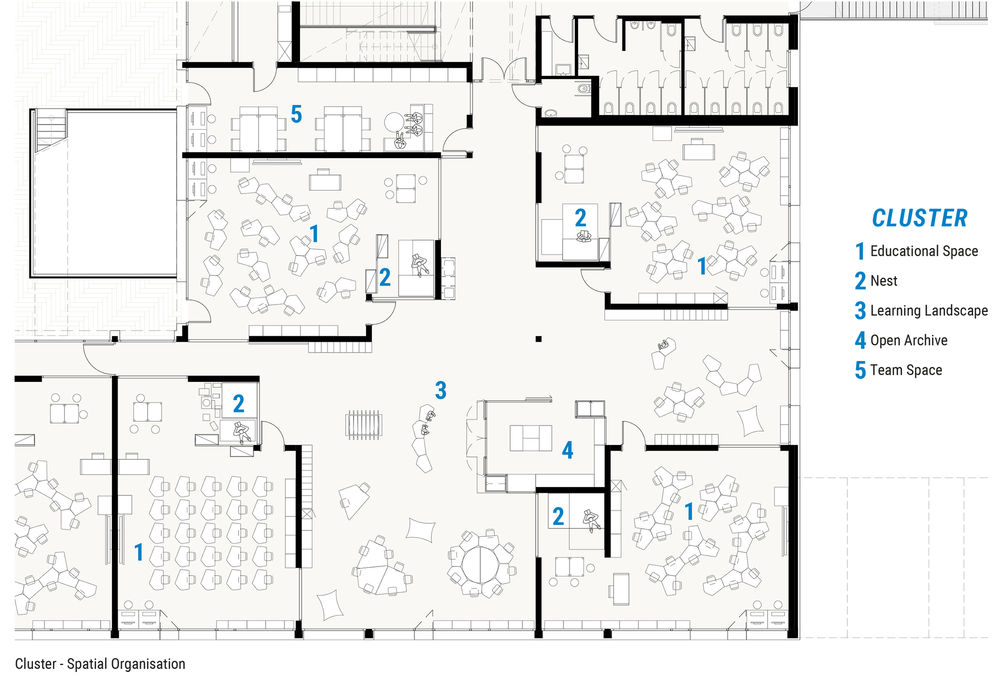

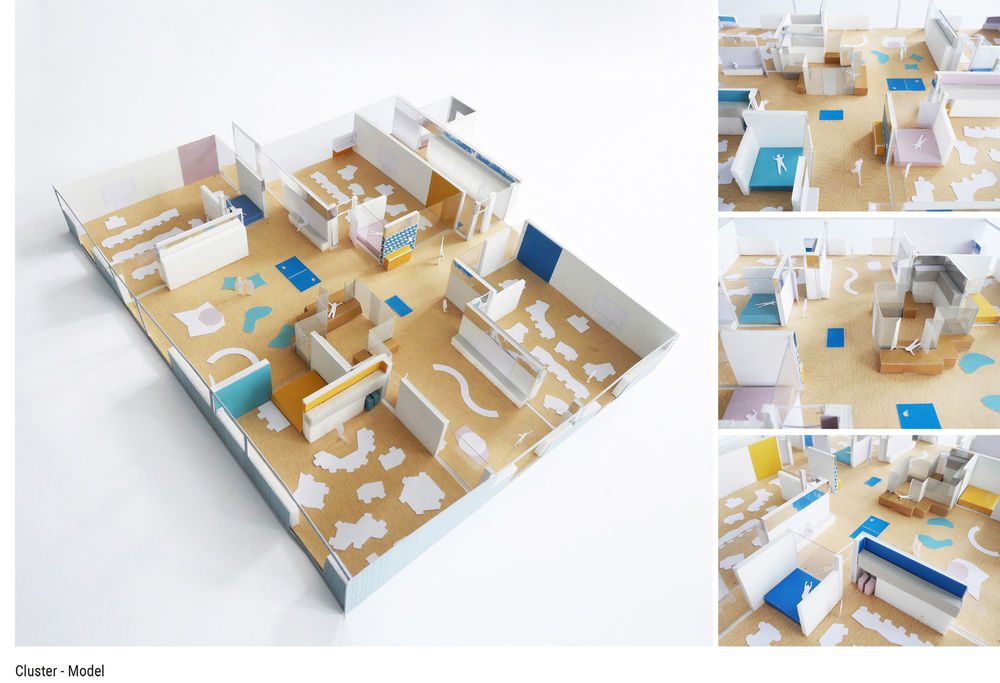

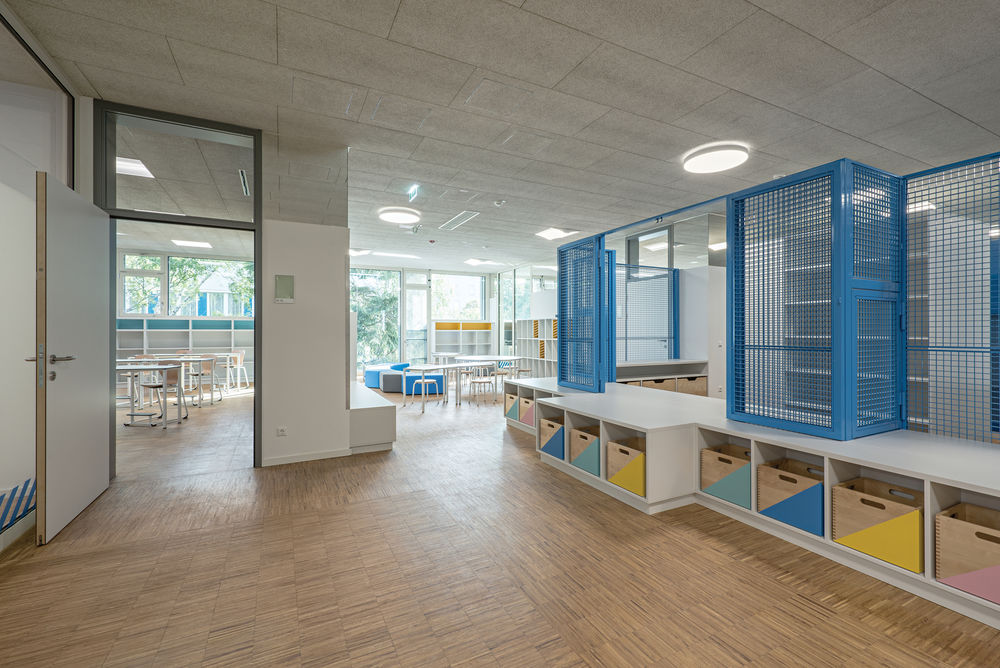

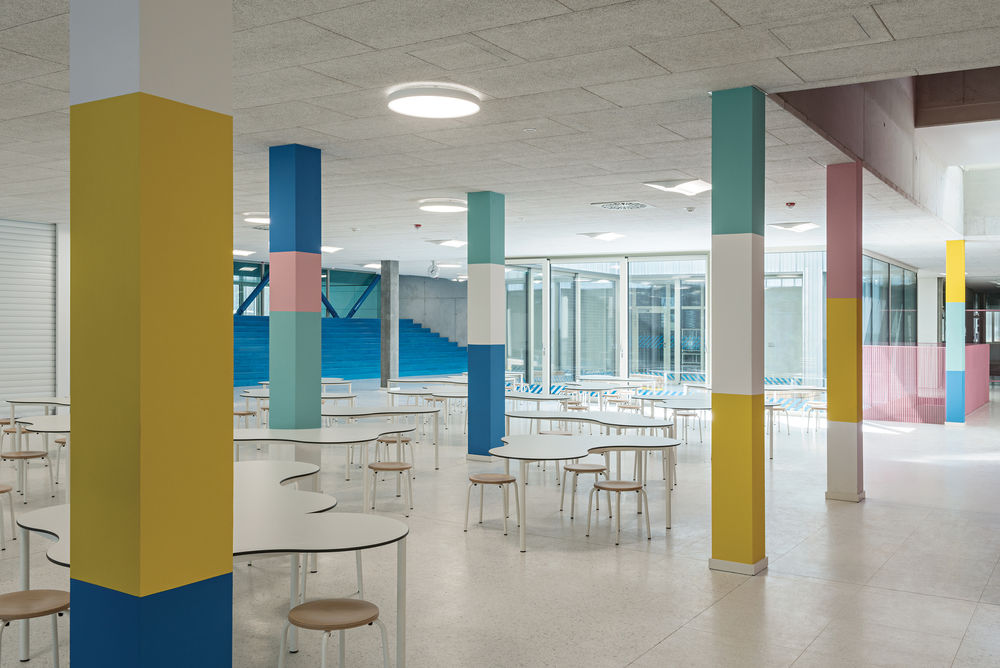

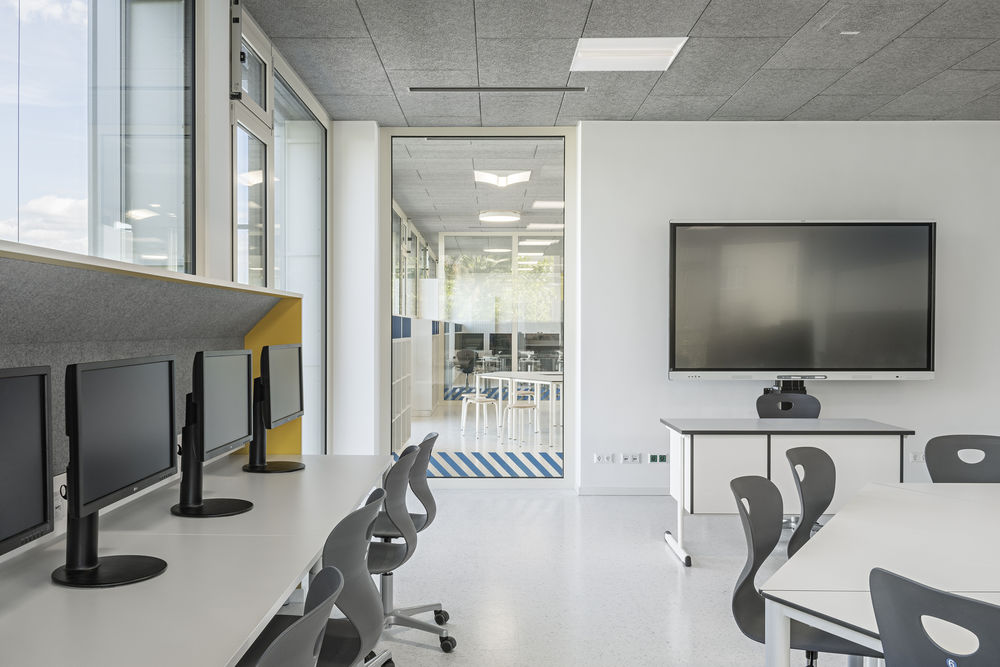

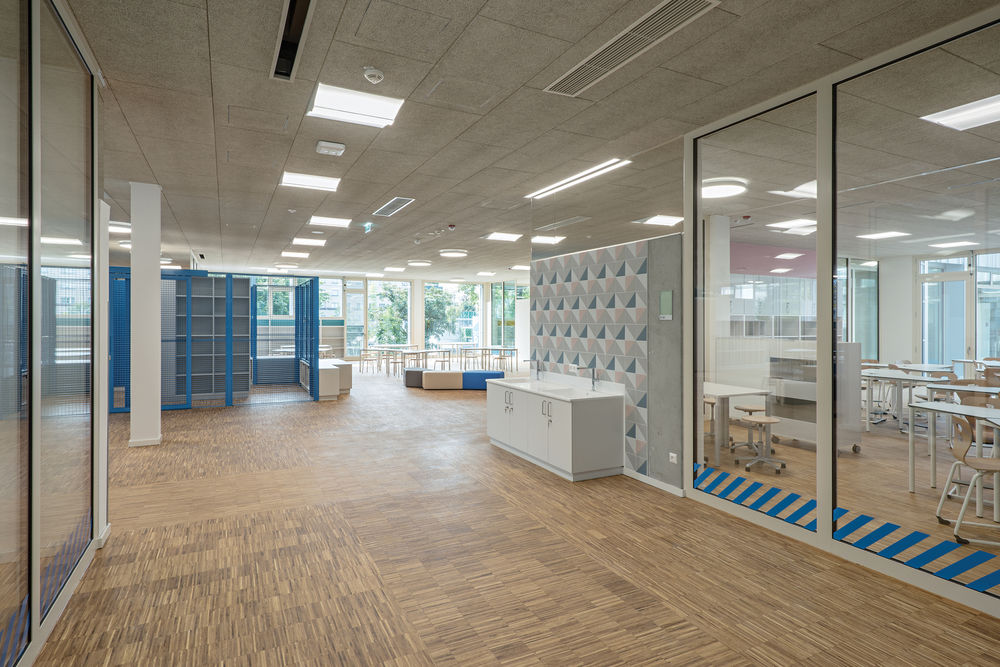

The primary school meets all requirements of contemporary teaching thanks to its spatial-pedagogical concept. It consists of four clusters, each with four to five educational rooms that are grouped around a learning landscape. The architecture allows educators to act as companions of small groups of children of various ages, from different classes. The building serves the purpose of acquiring knowledge and practices in many different ways. Each educational room has an appendix that can be used as a nest or an oasis of quietude. The team rooms for teachers within each cluster are all linked through a terrace in the inner courtyard to enhance informal exchange.

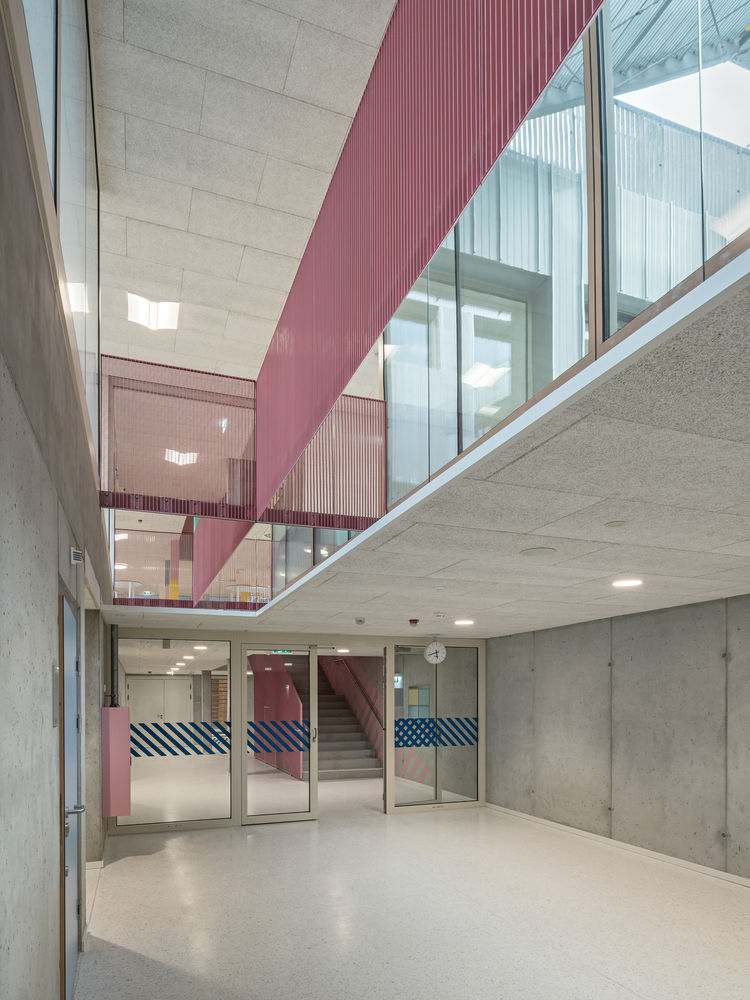

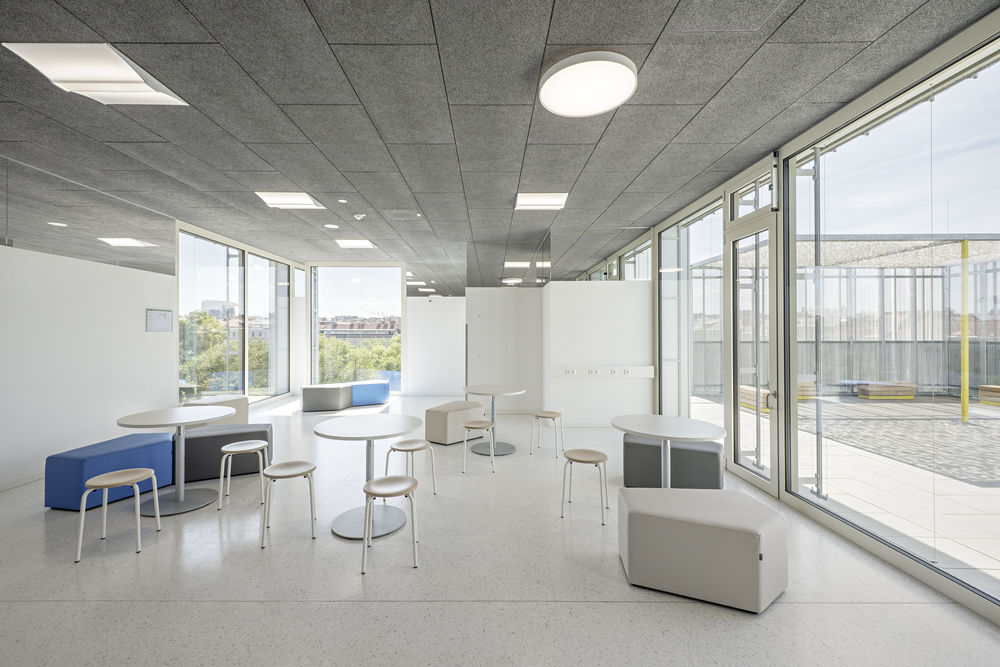

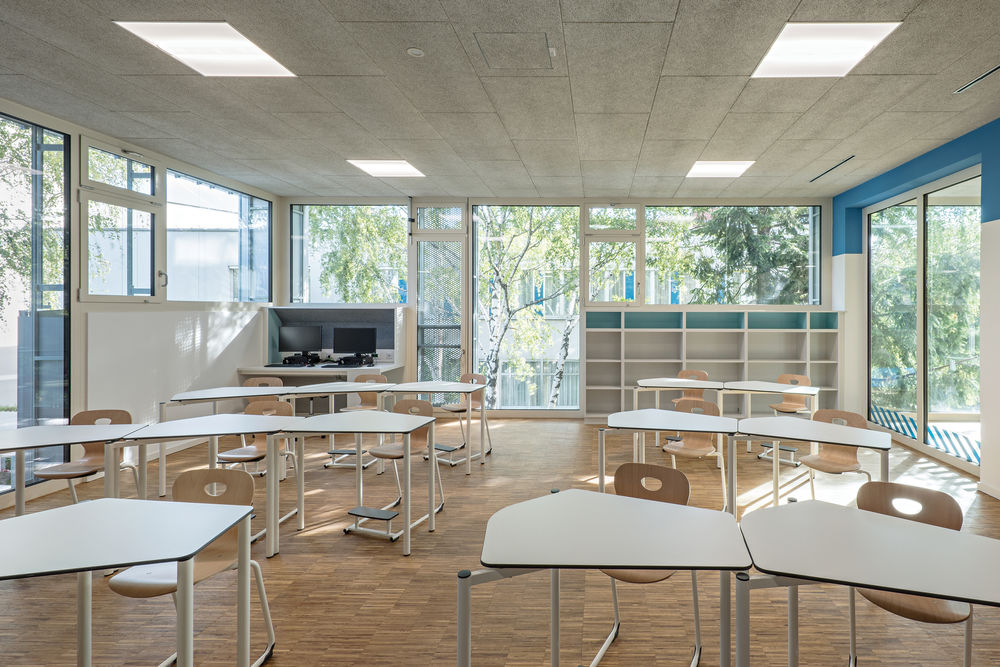

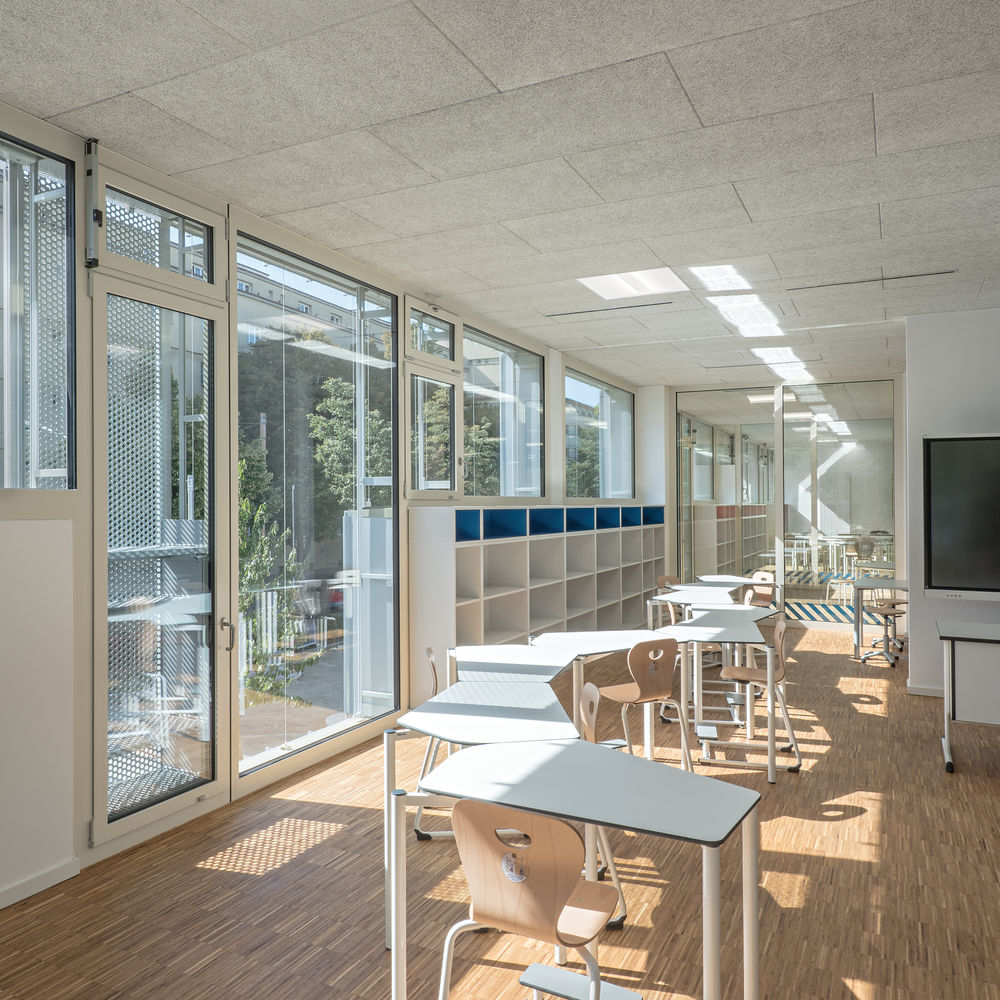

Inner courtyards and cleverly placed floor-to-ceiling windows ensure a large amount of daylight and direct views to the outside, without feeling exposed. Inside, mirrors enhance the light and the outside views, creating a “continuous learning landscape” and a new spatial sensation.

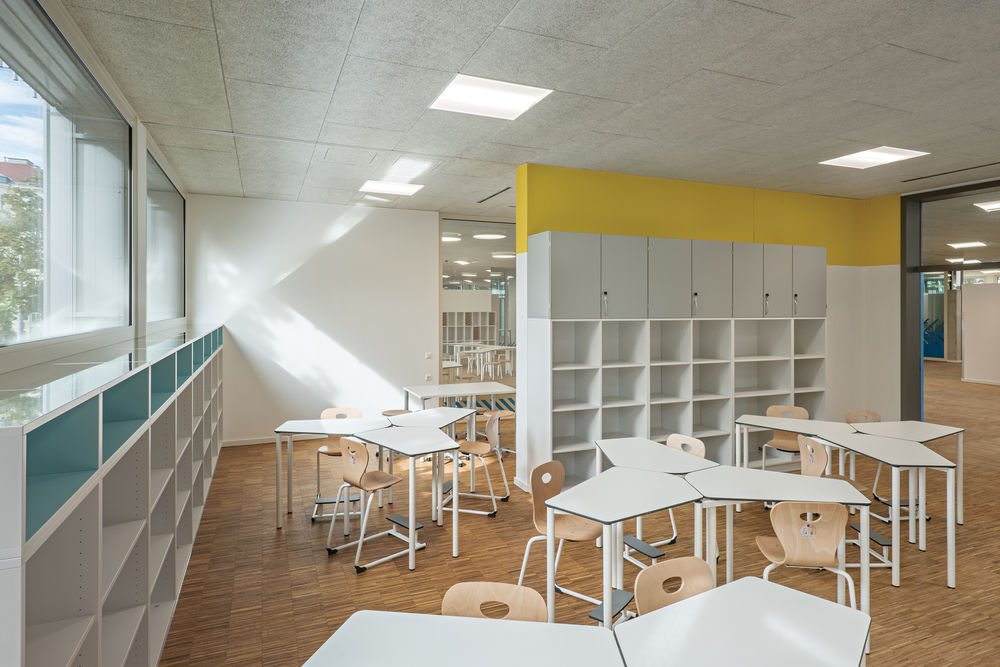

The custom-designed storage spaces can easily be reached by children on their own. Using the exterior walls, the furniture nevertheless doesn’t obstruct the incidence of daylight. A specially developed wall system provides an additional skylight with a light deflector above the shelves, flooding the inner space with daylight.

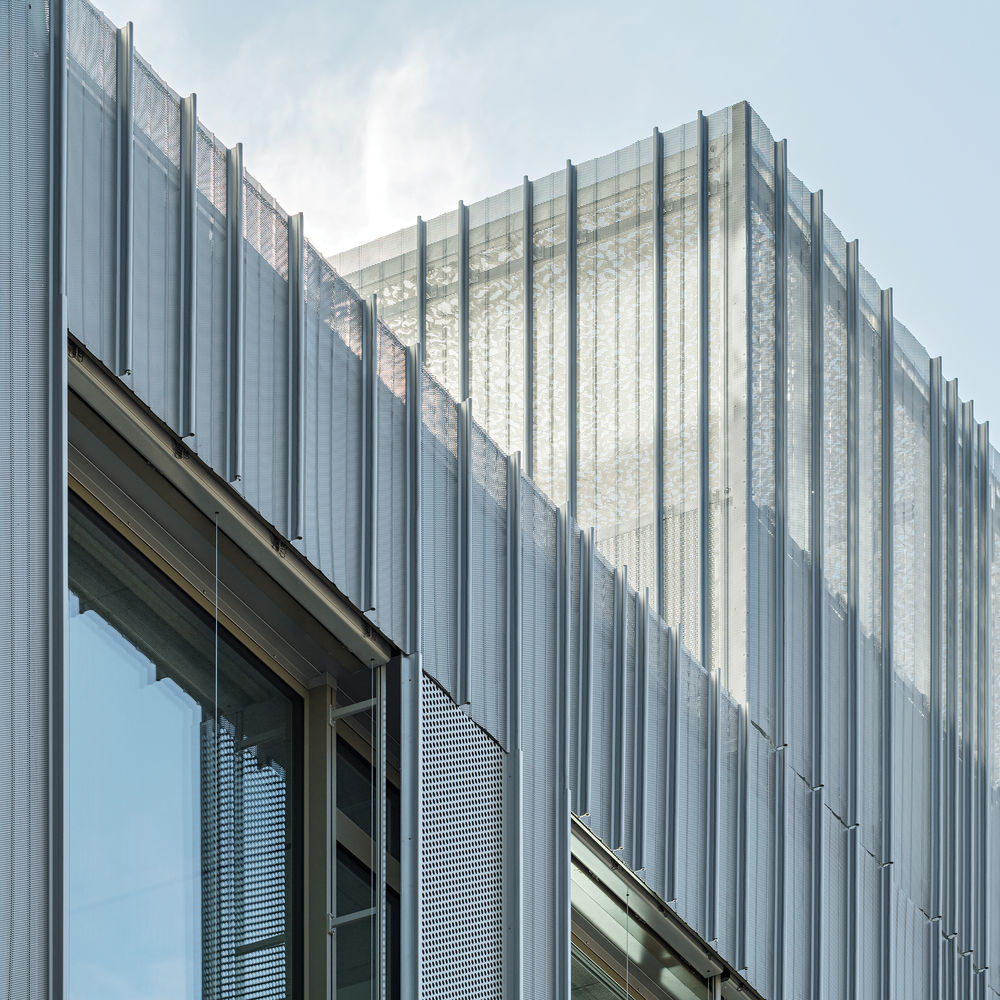

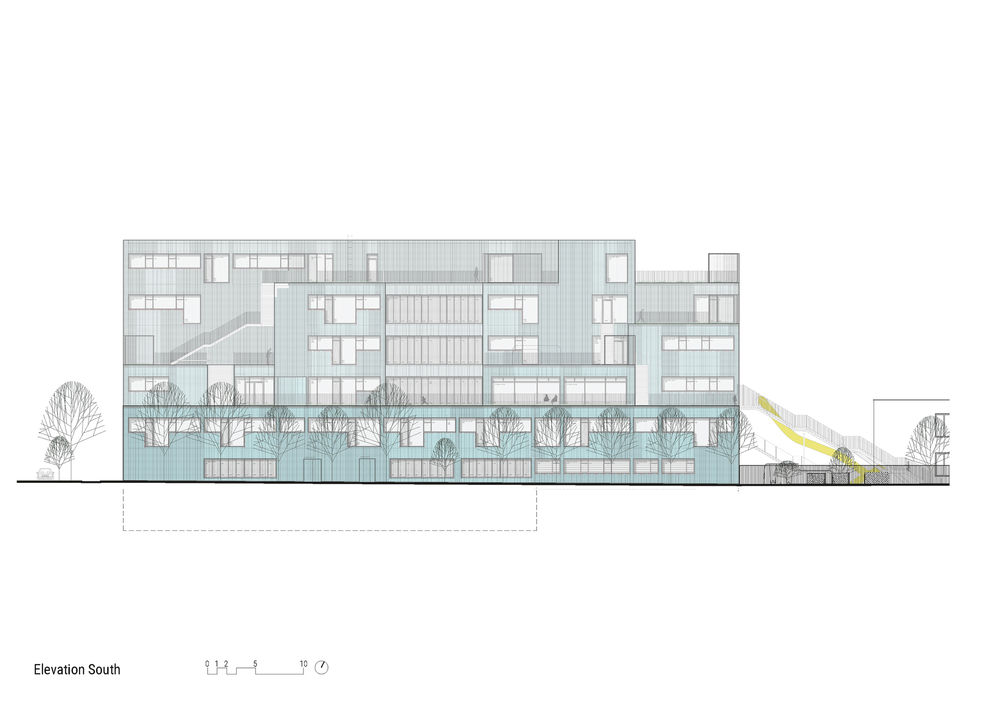

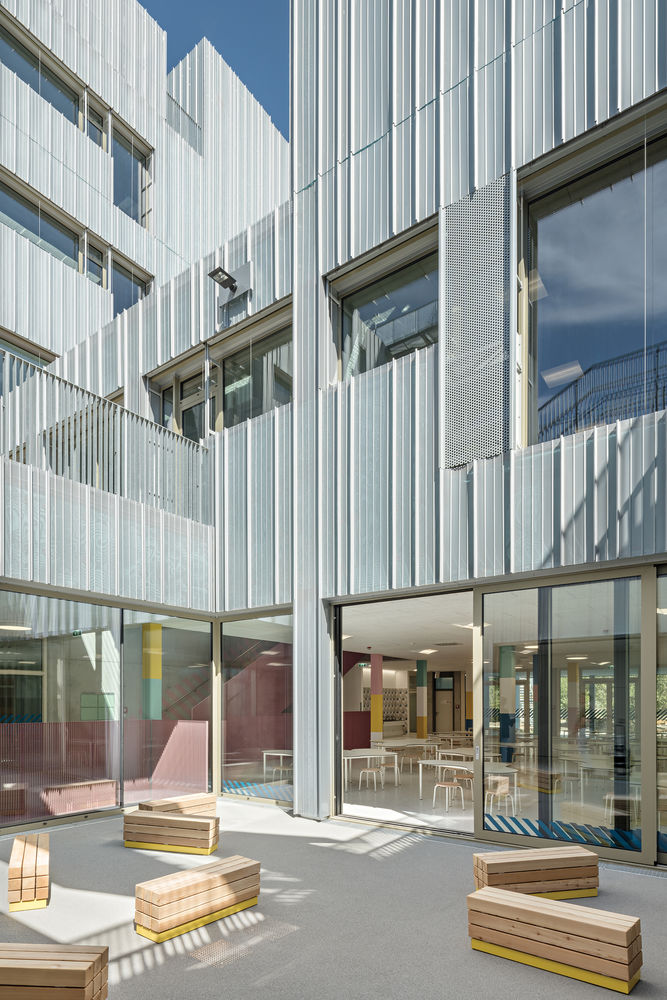

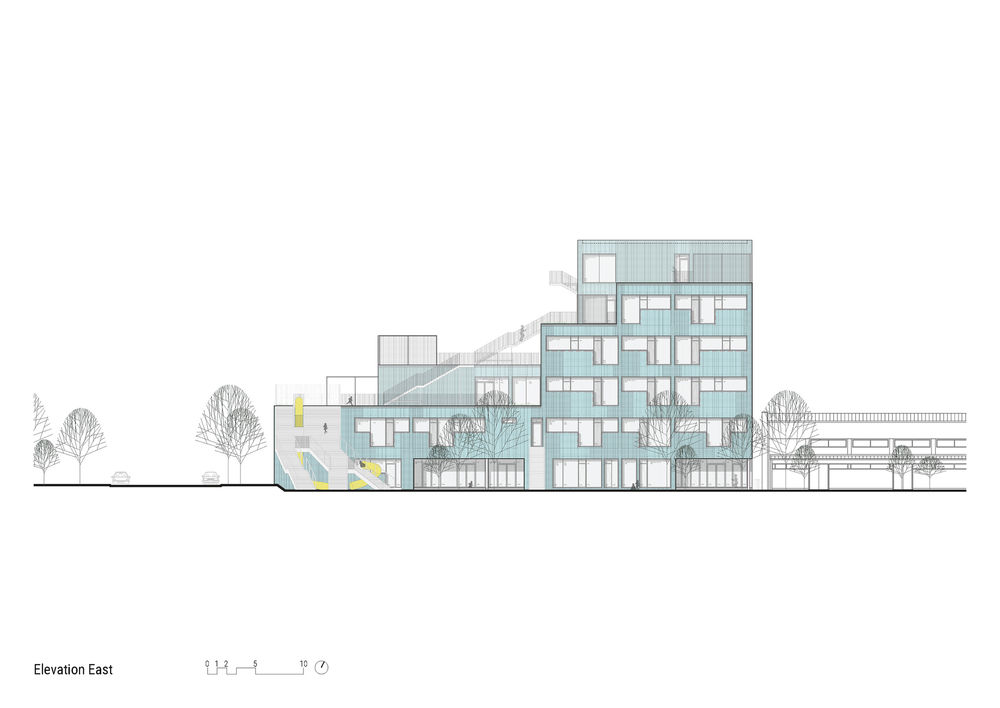

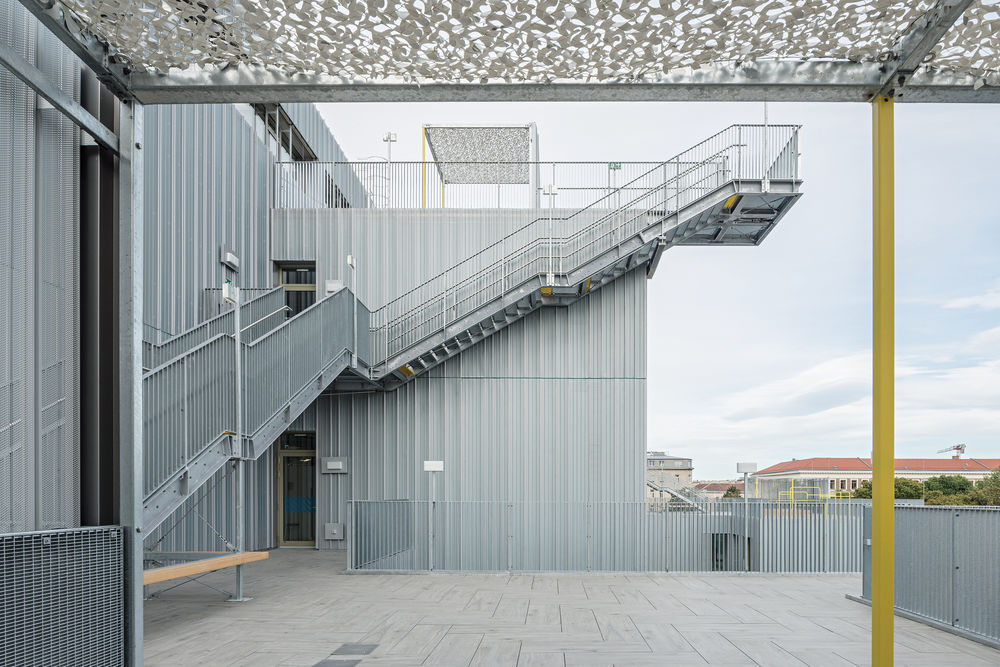

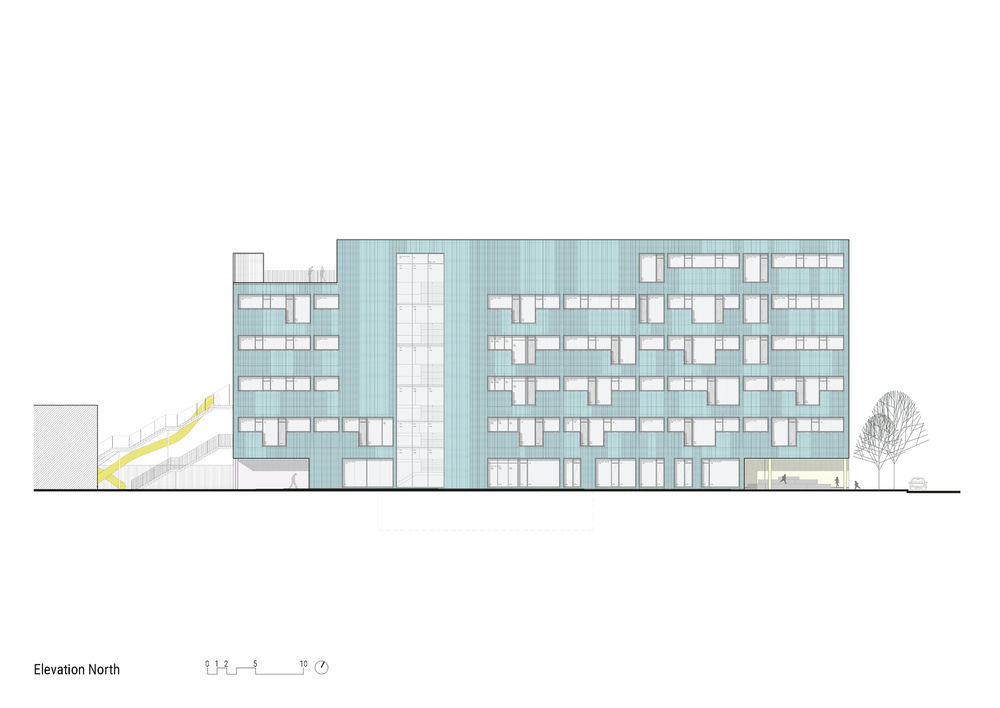

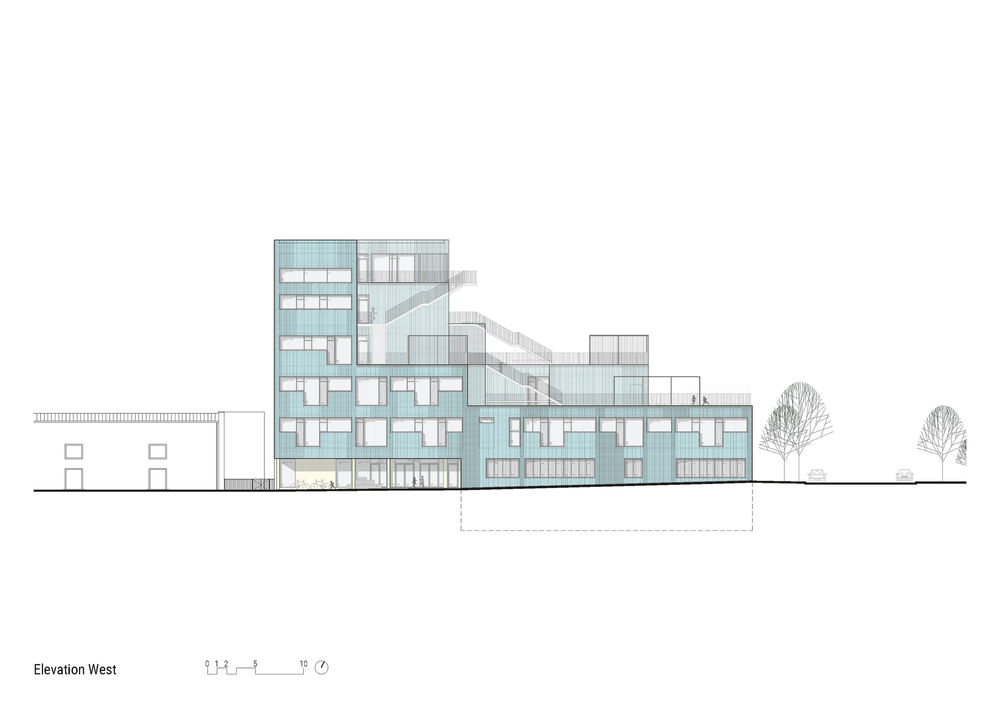

The facade consists of a corrugated sheet with an underlay of blue wind paper. It changes its appearance with the passing atmospheric conditions. Due to its highly abstract and ambiguous look, the school stands out, heralding in a new approach to school design.

Project gallery

Project location

Address:Vienna, Austria
