Kinder Monte Sinai at kindergarten

设计方：LBR + A

分类：教育建筑

内容：实景照片

建筑设计负责人：Julieta Boy, Aby Helfon, José Luis Martin, Mariana Mercado

结构工程师：VAMISA + DITEC

合作人：Benjamín Romano

建筑公司：DANHOS

图片：28张

摄影师：Alfonso Merchand

这是由LBR + A设计的Kínder Monte Sinaí幼儿园。新建的幼儿园建筑是在现有小学、初中和高中旁扩建的。该建筑分成三层，分别是停车场层、首层和二层。在停车场层，特意为幼儿园加建了一个礼堂和体育馆。首层里包括操场、庭院、图书馆和教室。教室是沿着主要轴线布置的，其含义就如堆砌积木。在首层的教室之间，设计了许多小庭院，小庭院旁是种满各种植物的院子和通向二层的楼梯。二层的教室都有一个阳台。每个教室内还有一个小型的厨房、储物室和浴室。教室内的家具也是根据儿童的尺度定做的。幼儿园一共有18间教室，其中12间是采用预制板，另外6间是采用彩色的安全玻璃。预制板是教室外墙的最佳选择。停车空间的长跨度是通过空腹桁架结构实现的。这种设计使得建筑更具灵活性。在这个项目中，达到可持续的目的是非常重要的。该幼儿园朝向南面，获得阳光之余也减少了建筑的能耗，无论是教室的内部还是外部都能维持舒适的温度。预制板上的窗户能达到自然通风的目的，收集到的雨水和污水都能够循环利用。

译者： 艾比

From the architect. The Kinder Monte Sinai encourages children’s creativity through educational spaces designed to their size and comfort. The spaces generate a greater sense of belonging and create a comfortable and safe environment for the children.The new preschool building is an expansion of the existing elementary, middle school, and high school. Because of the limited campus space, the project is located on top of the student drop off and parking area. It is distributed on 3 levels: the parking level, the first floor, and the second floor.

In the parking level, besides the drop off and parking area, an auditorium and gym was added for preschool only. In first level there is the playground, main courtyard, library, and first floor of classrooms. This level covers the parking area and is 36 feet above, offering many benefits such as safety and good views for the classrooms.

The classrooms are placed perpendicular along the main axis, alluding to the concept of stacked toy blocks. In the first floor, between the classrooms, are small patios designated for each classroom. Behind them are courtyards with plants and trees and stairs that lead you to the second level. Since the classrooms on the second floor are overlapped, there are terraces for each one.

The classroom units are 33 by 17 feet and 6 feet 10 inches in height designed to create a comfortable space for the children. Inside the classrooms are a small kitchen, storage room, and bathroom. Furniture is designed at the children’s height. There are 18 classrooms in total, 12 covered in precast panels, and 6 in colored laminated glass.

The precast, being the best solution, was used to cover the outer walls of the classrooms. The building’s orientation is south, receiving sunlight during all hours of the day therefore the precast maintained a steady indoor temperature without direct sunlight. Because of the limited construction site and the restricted working hours, the precast facilitated construction. The precast allowed the design of drippers, round windows placed at different heights, and a white washed quality finish.

The long span to cover the parking on ground level was achieved with the vierendeel truss. Its rectangular unobstructed frame permits flexibility for the architectural design. Some of the classrooms, aligned perpendicular to the truss, are in cantilever. It was very important to attain a sustainable design for the project. The preschool, positioned facing south, receives direct sunlight during school hours, reducing energy consumption and maintaining comfortable temperatures inside and outside the classrooms. The position of the round windows on the precast panels allow for natural cross ventilation. Rainwater and sewage is collected and treated in the water treatment plant to be reused.

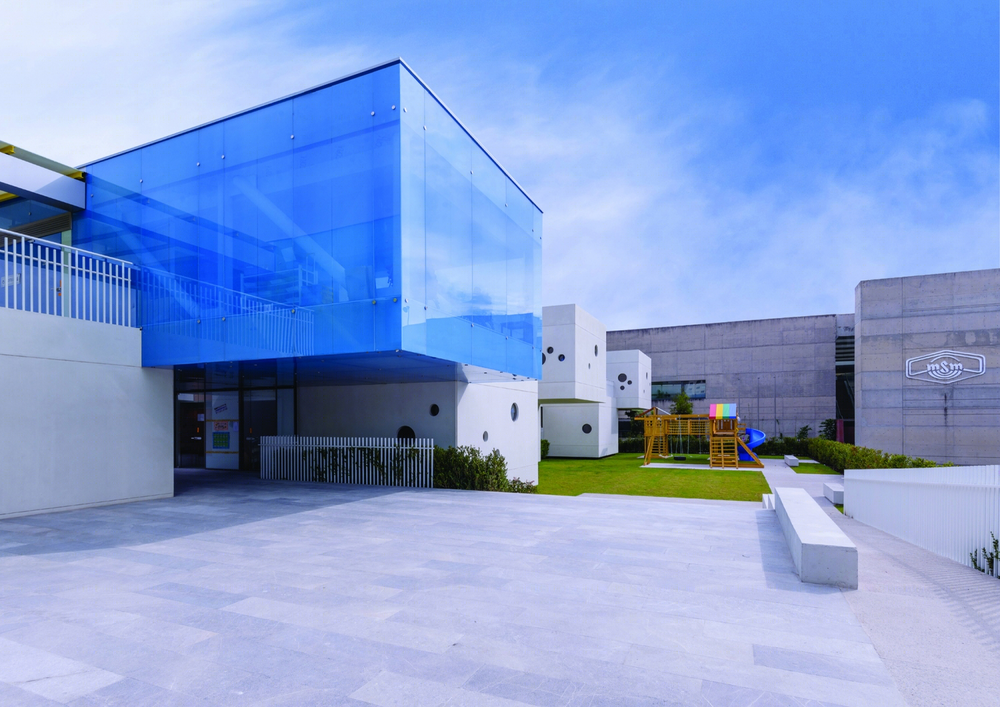

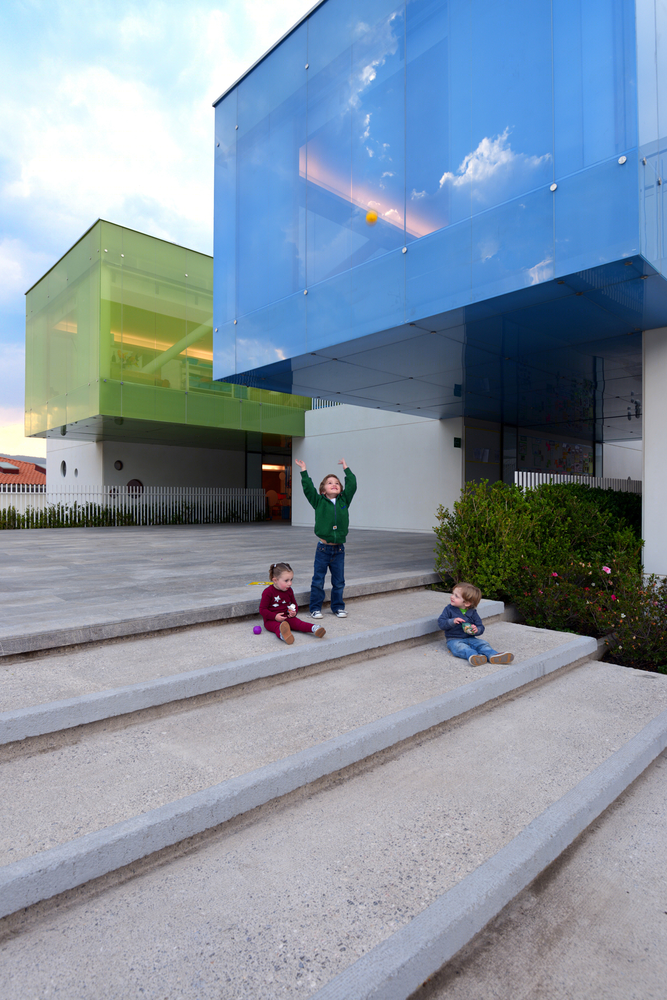

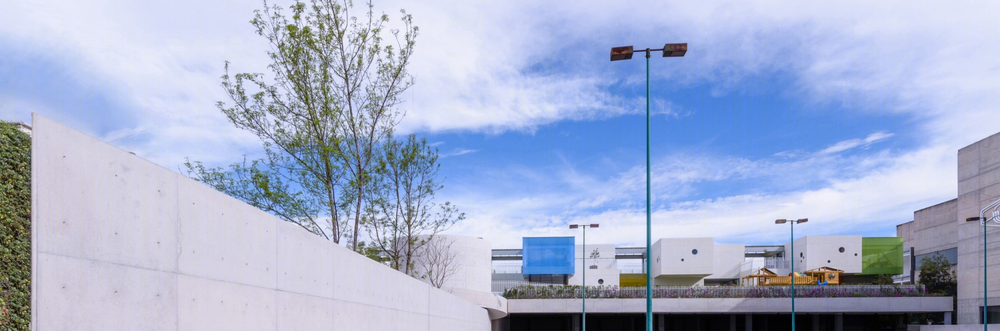

Kínder Monte Sinaí幼儿园外部实景图

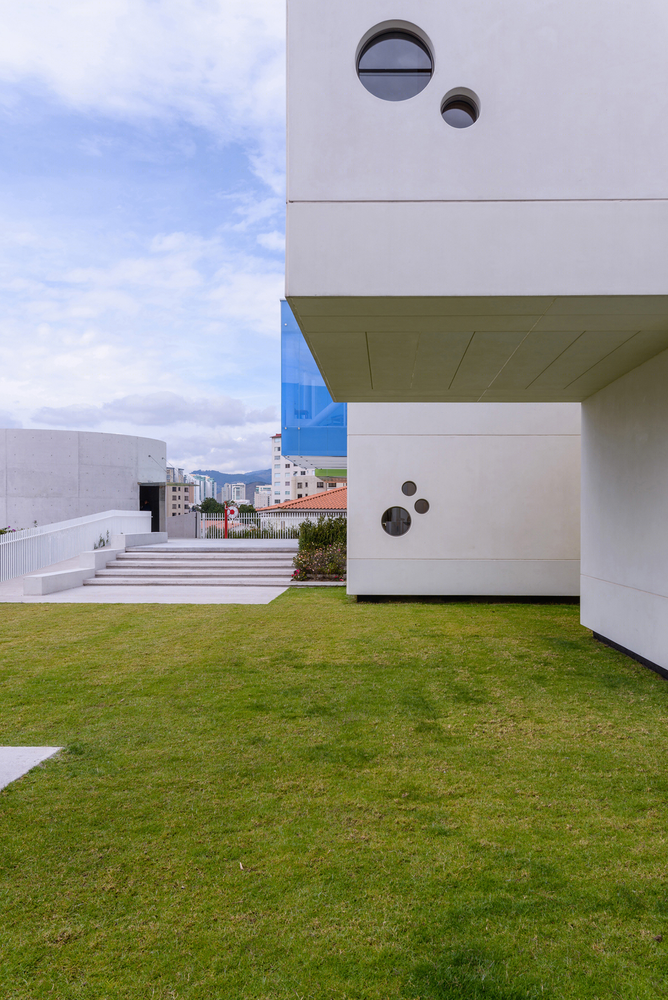

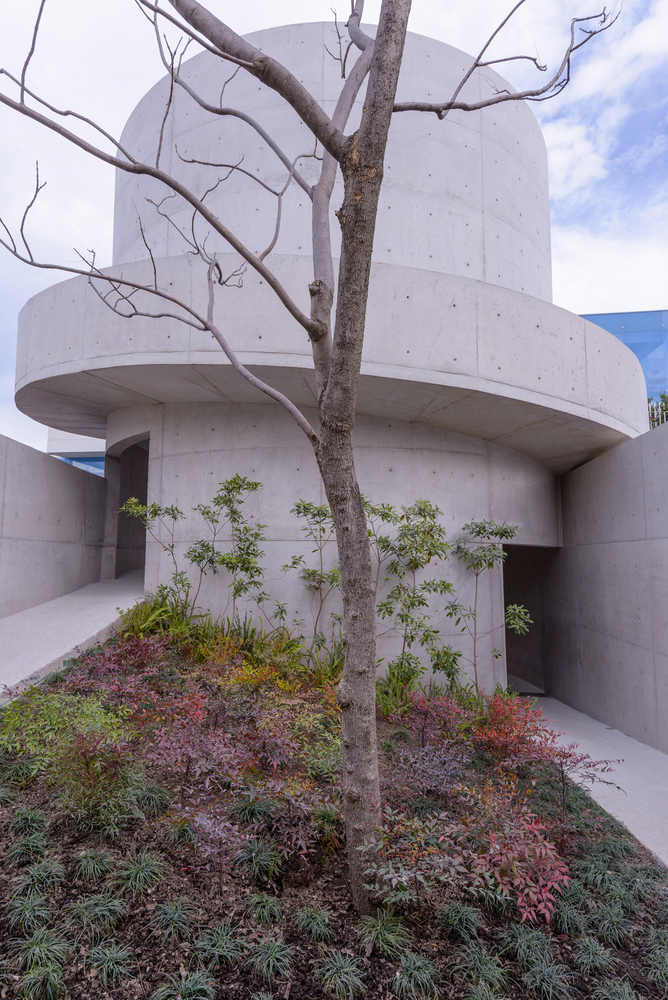

Kínder Monte Sinaí幼儿园外部局部实景图

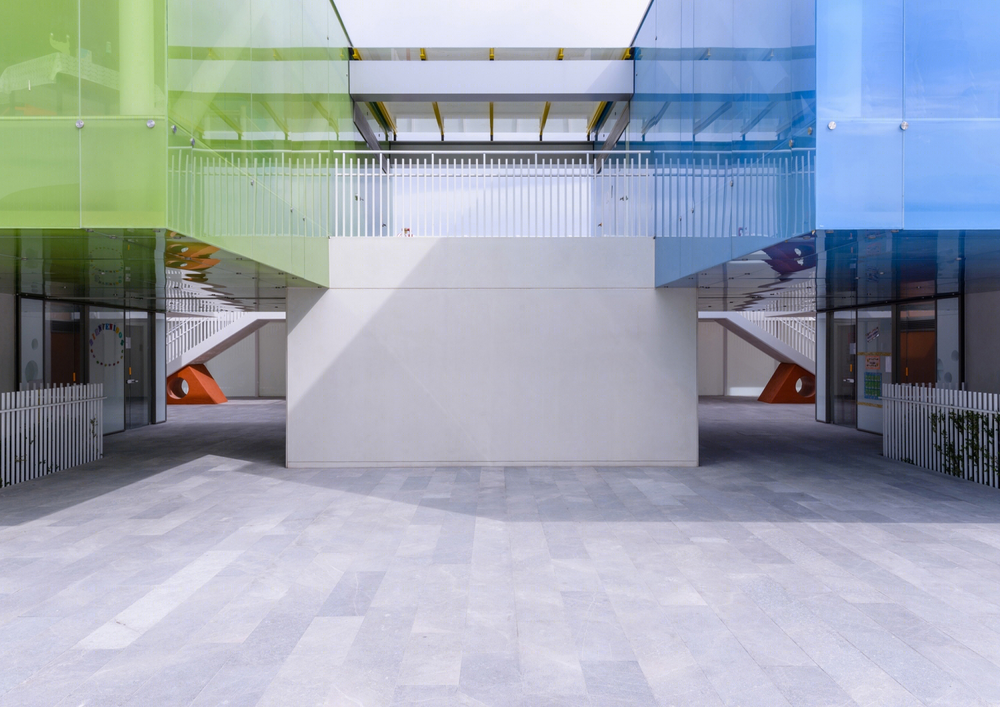

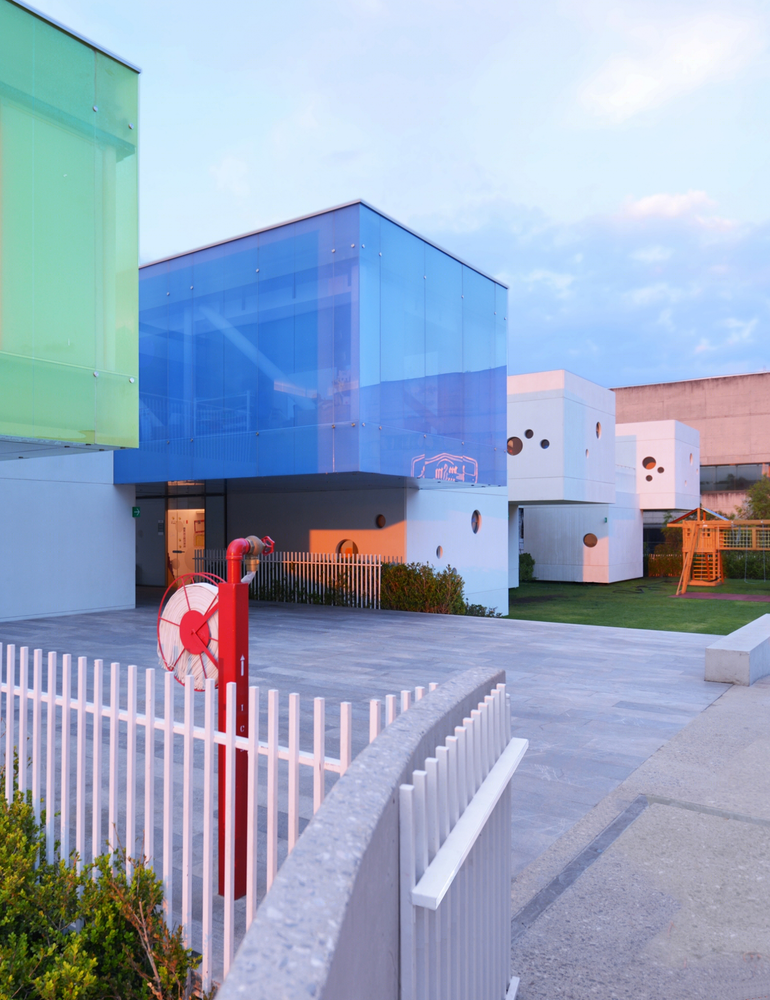

Kínder Monte Sinaí幼儿园外部门口实景图

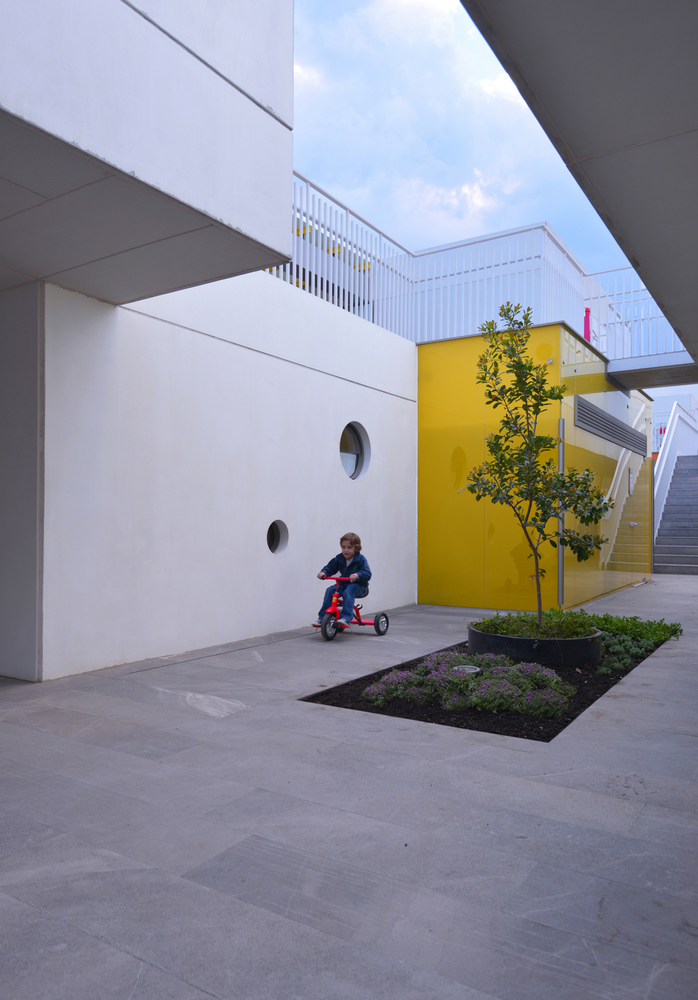

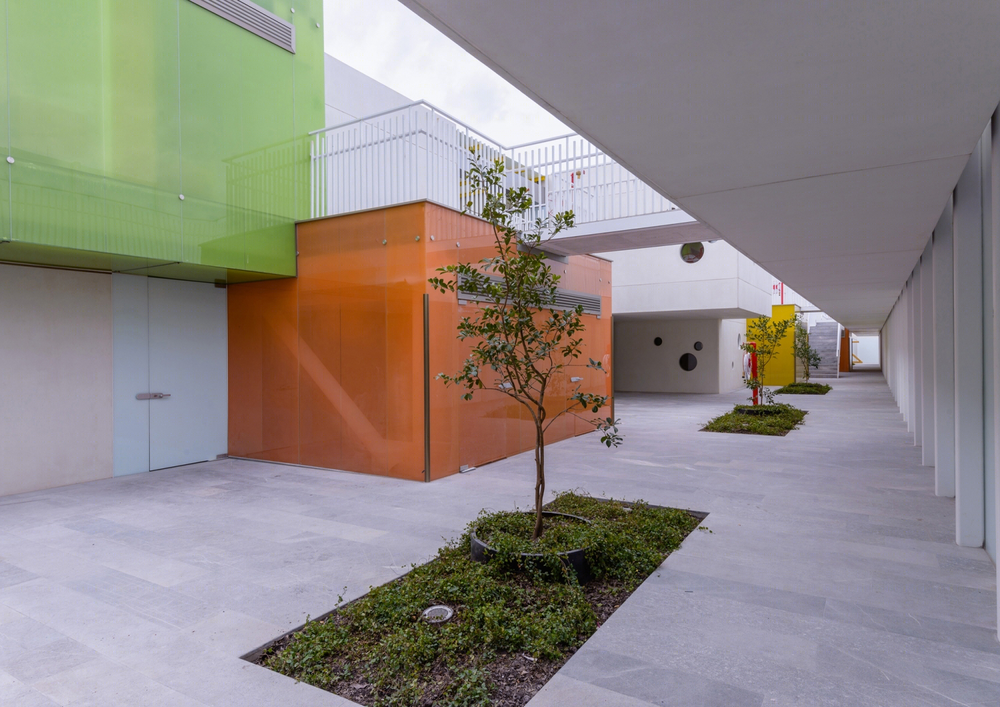

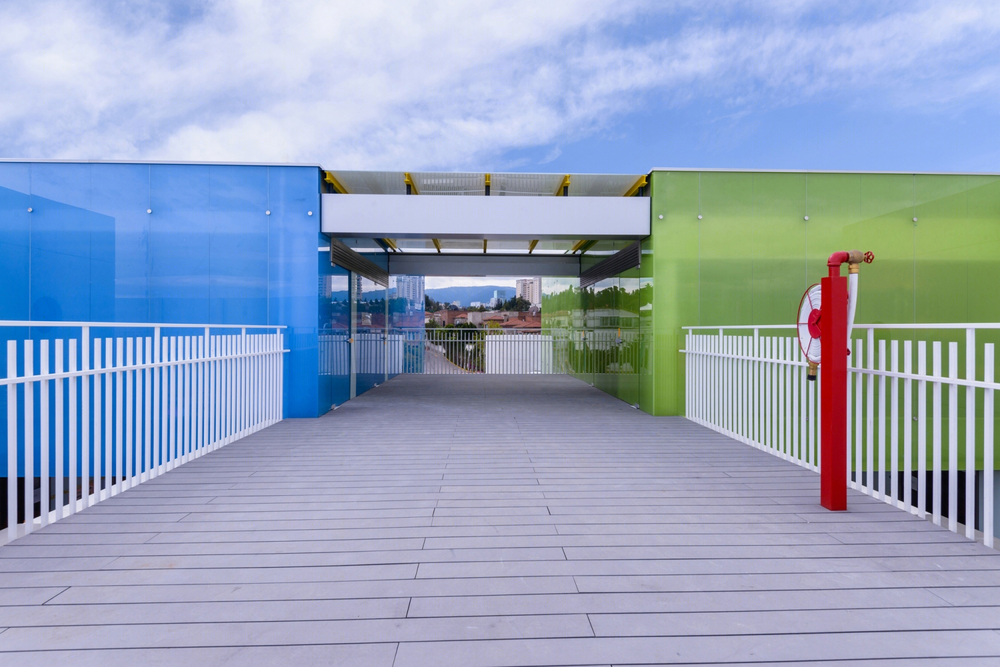

Kínder Monte Sinaí幼儿园外部过道实景图

Kínder Monte Sinaí幼儿园外部墙体局部实景图

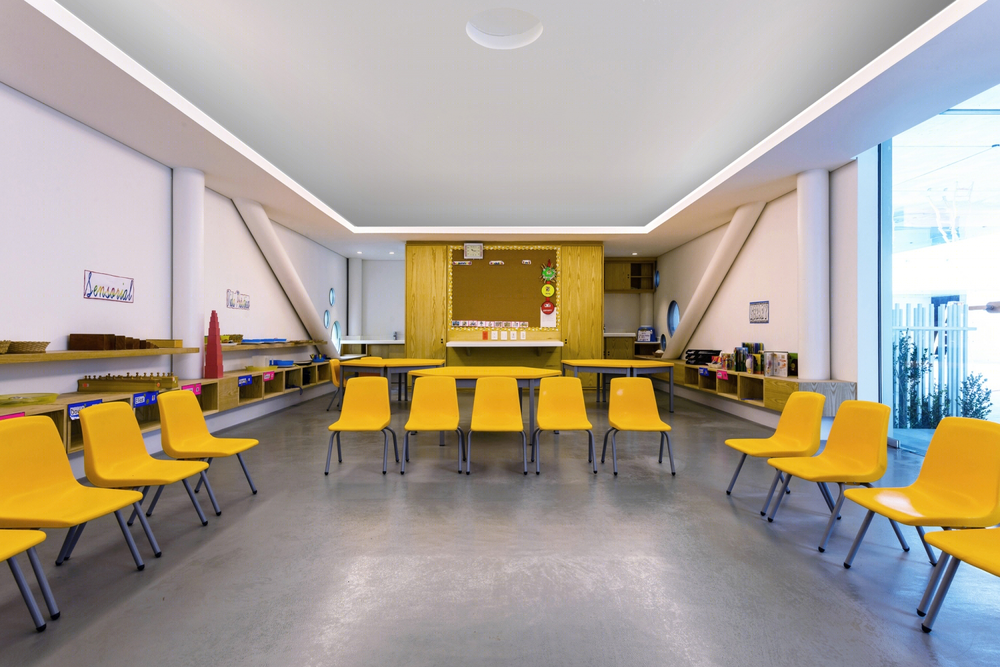

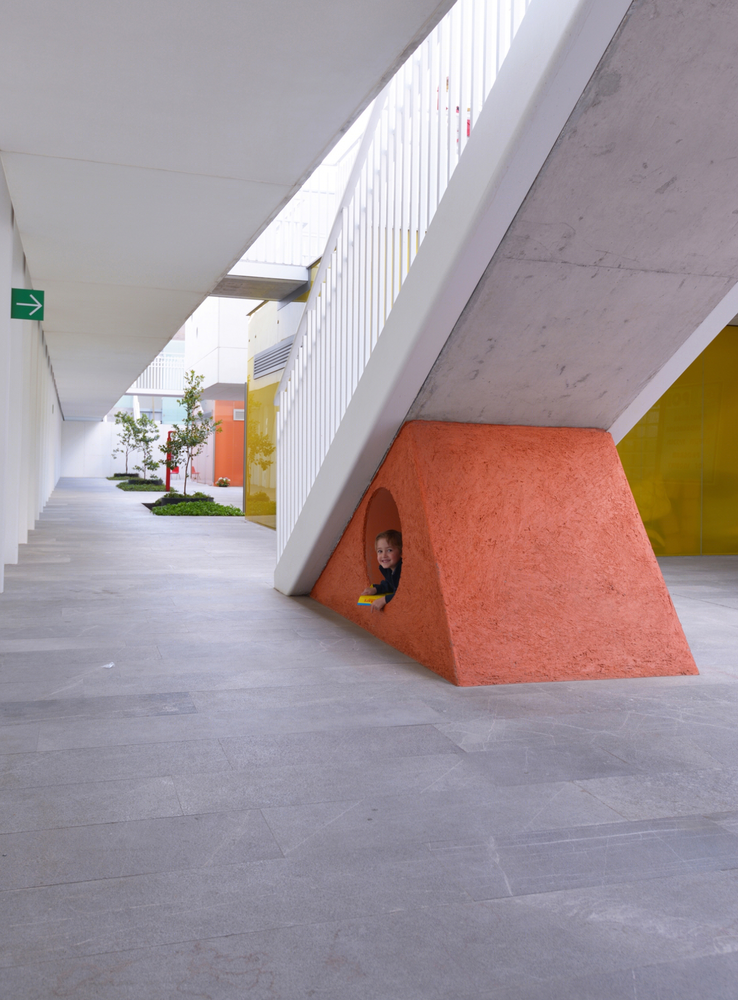

Kínder Monte Sinaí幼儿园内部实景图

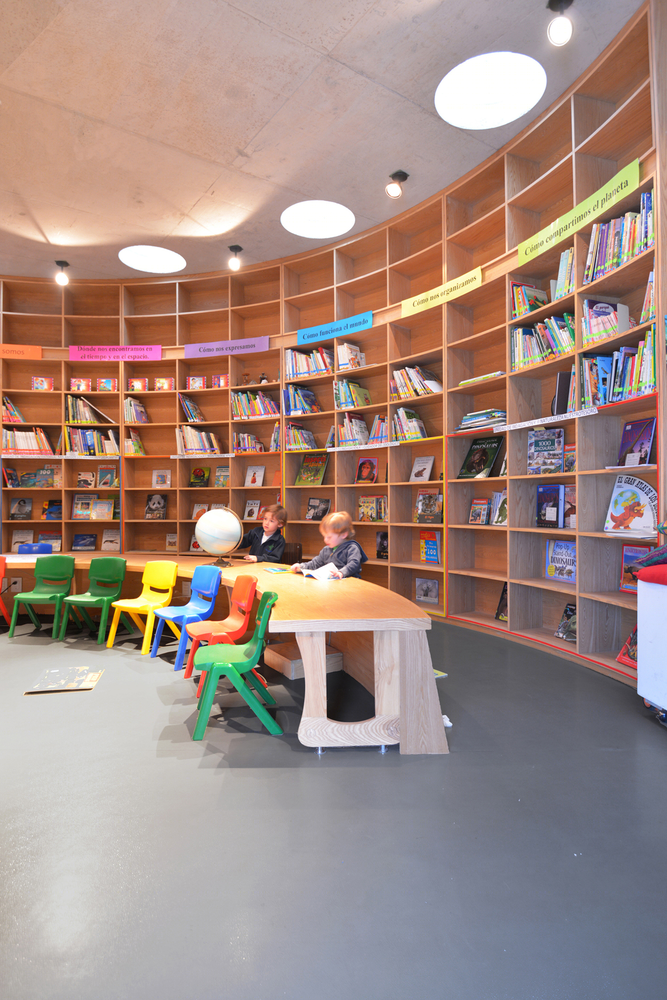

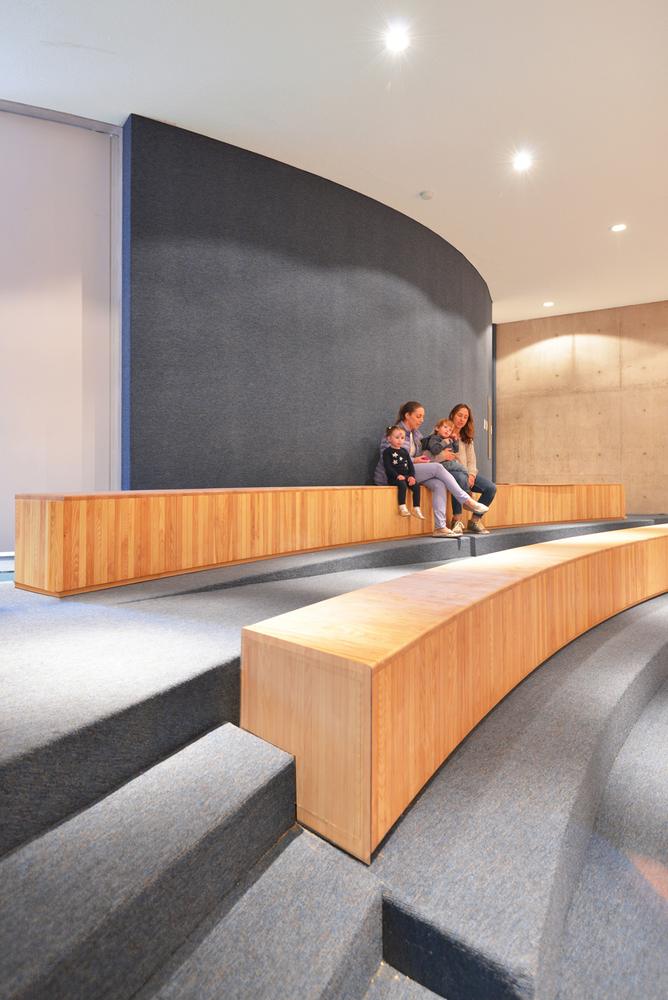

Kínder Monte Sinaí幼儿园内部阅览室实景图

Kínder Monte Sinaí幼儿园内部房间局部实景图

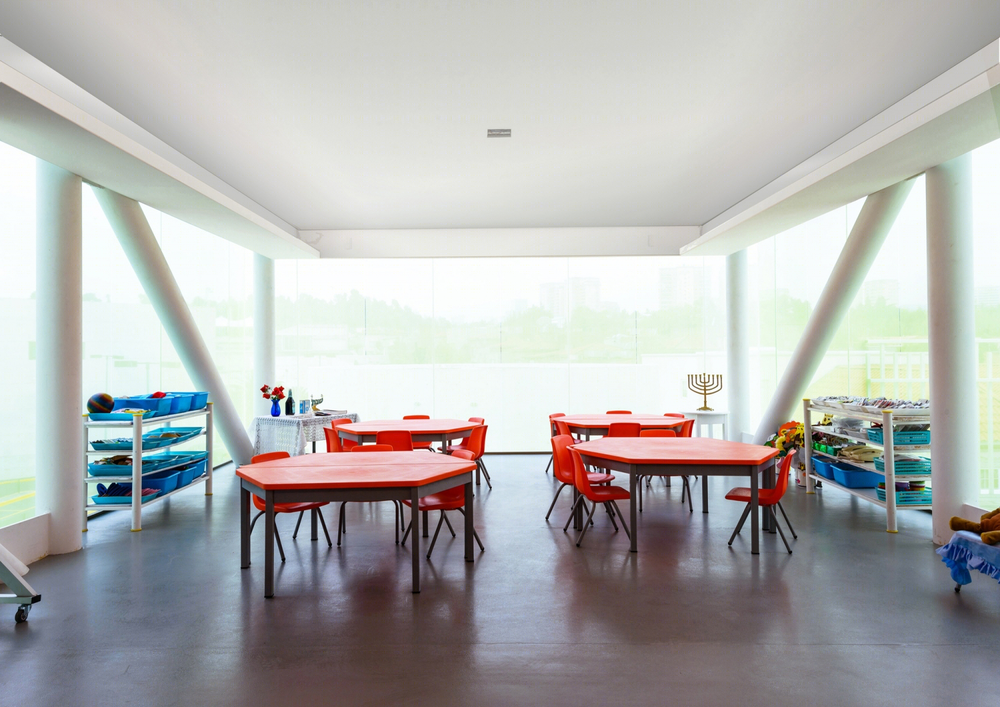

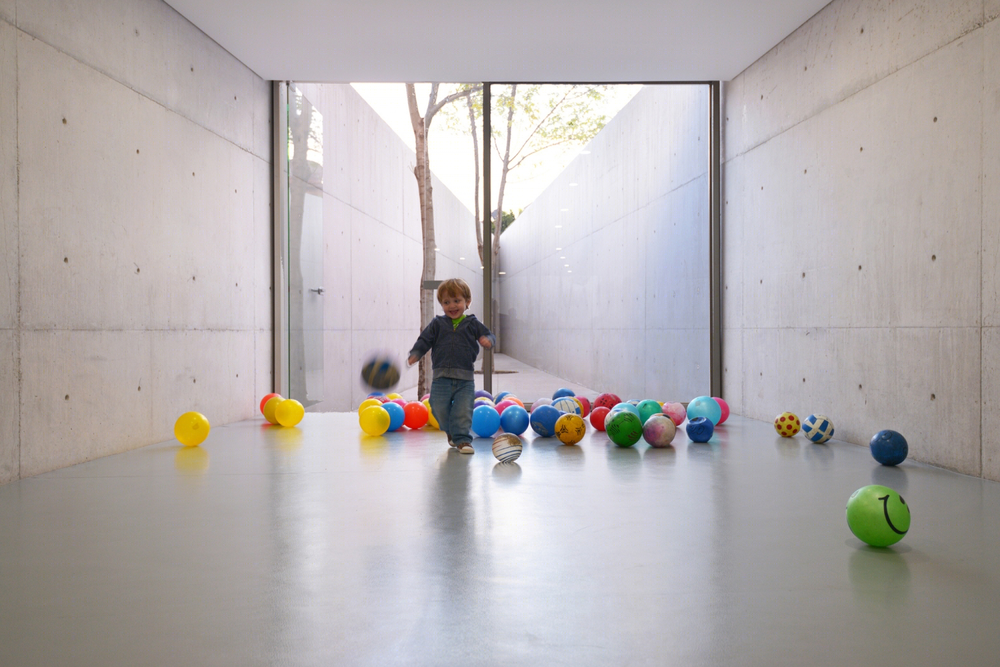

Kínder Monte Sinaí幼儿园内部教室间实景图

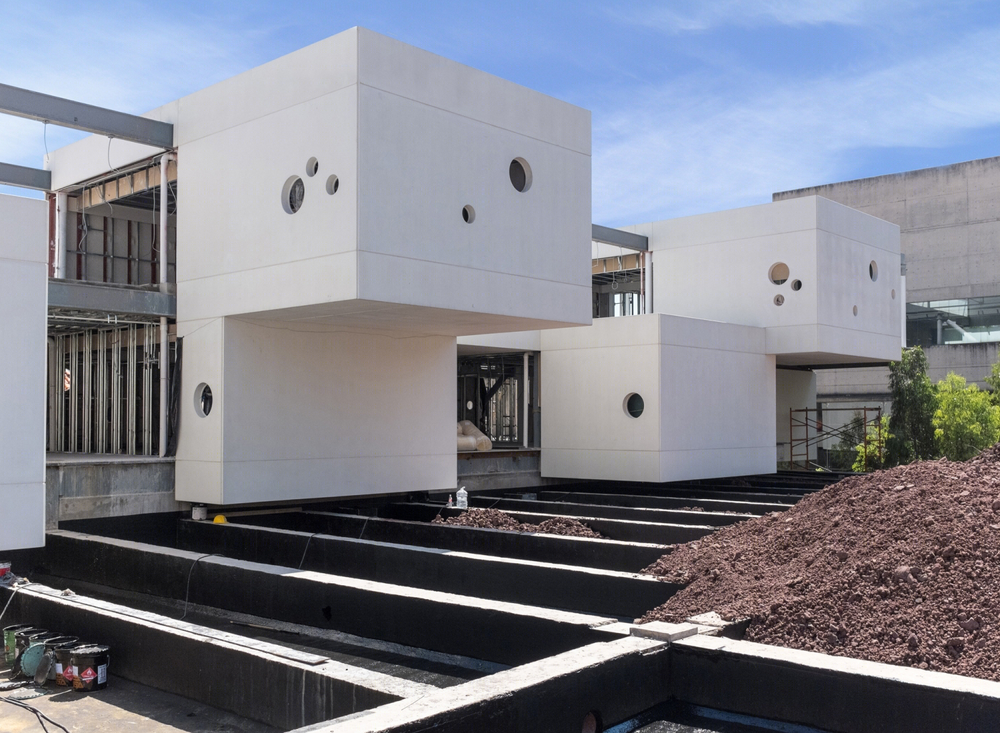

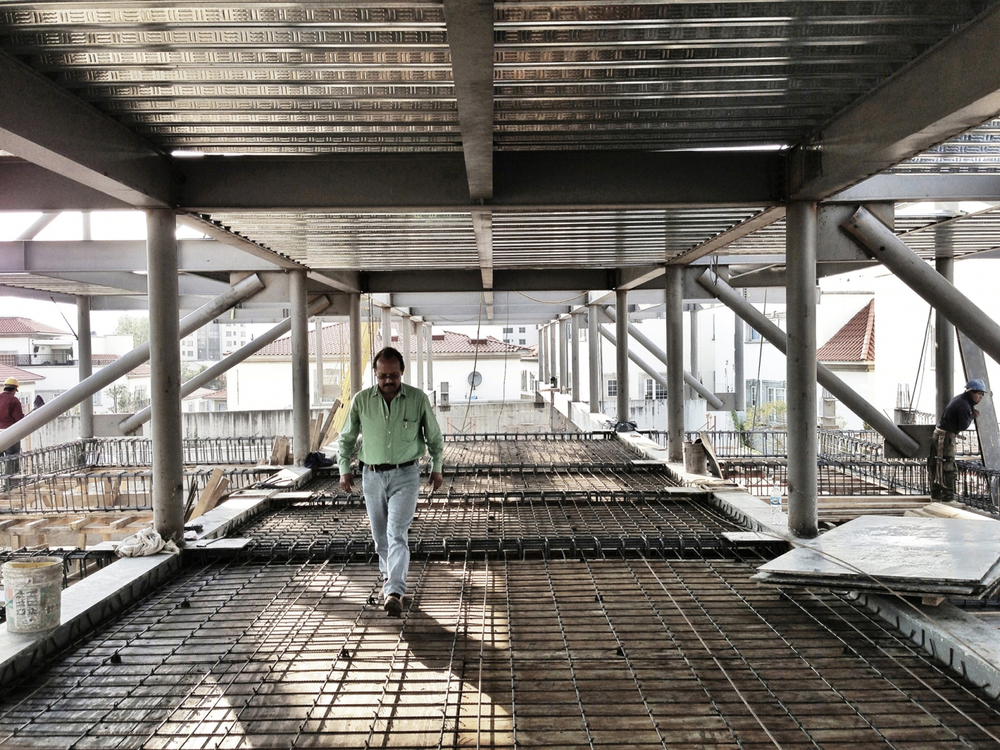

Kínder Monte Sinaí幼儿园施工过程实景图

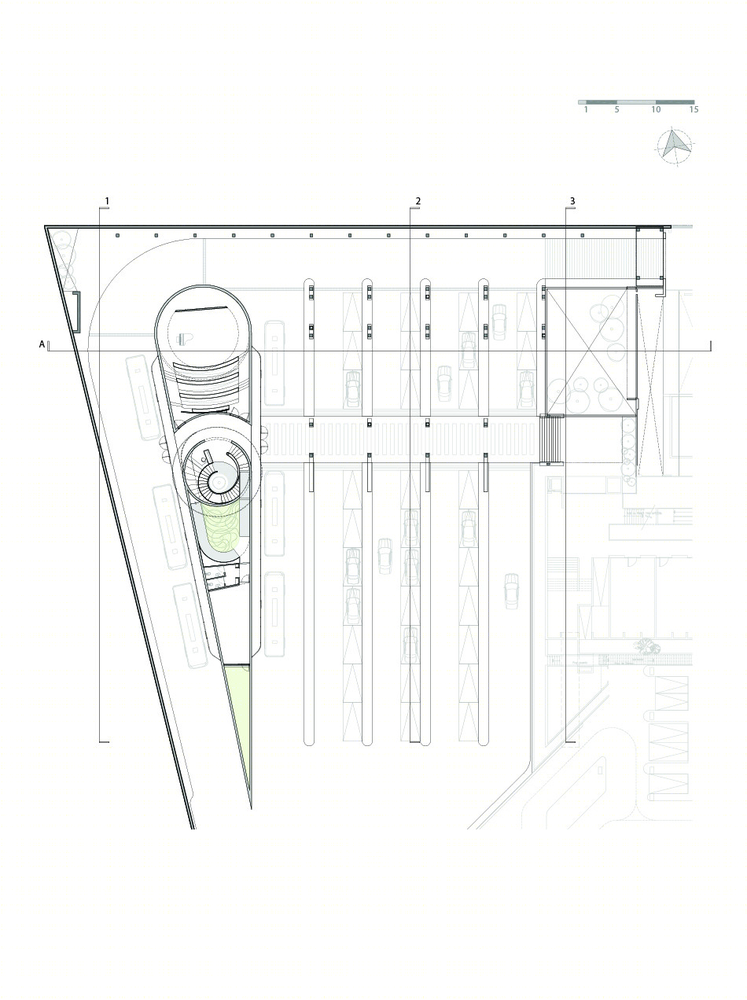

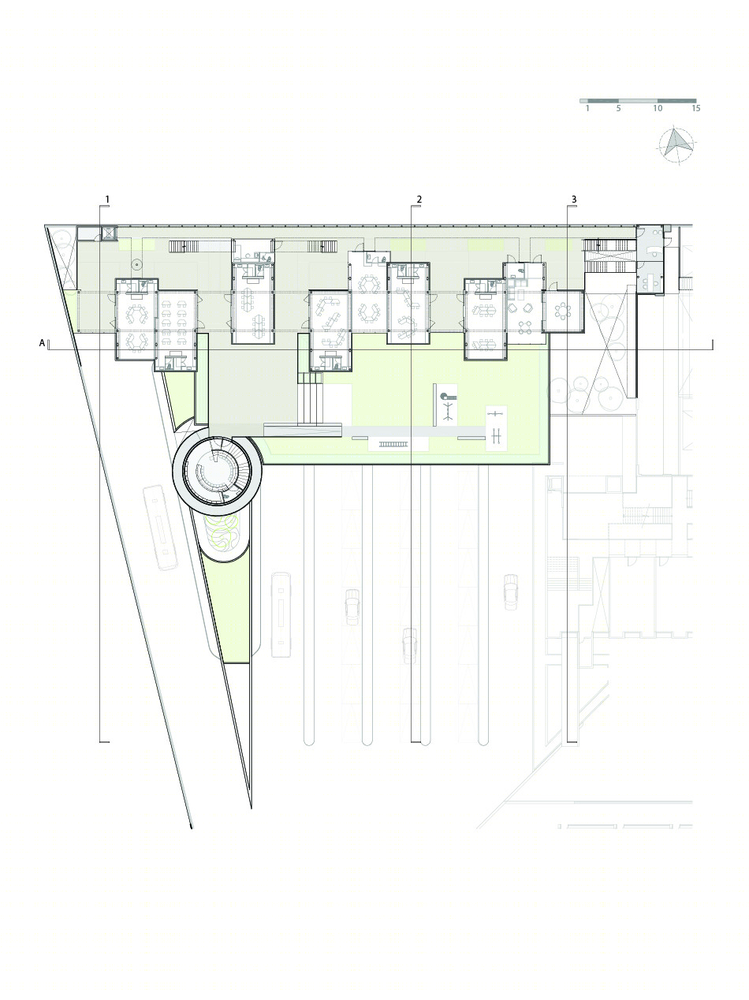

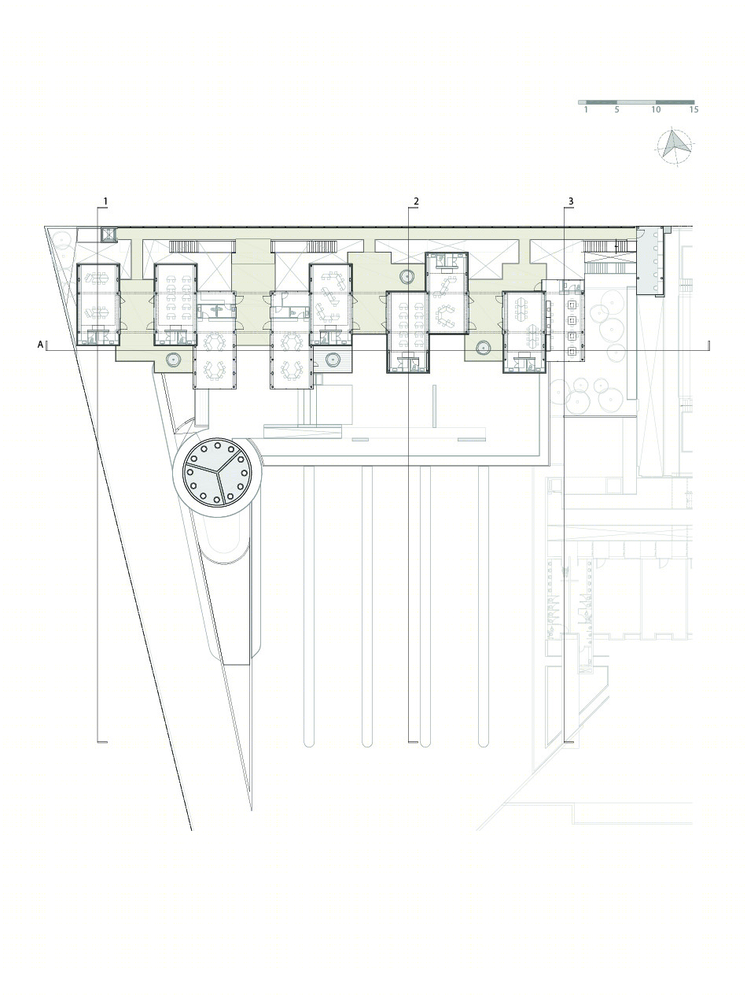

Kínder Monte Sinaí幼儿园平面图

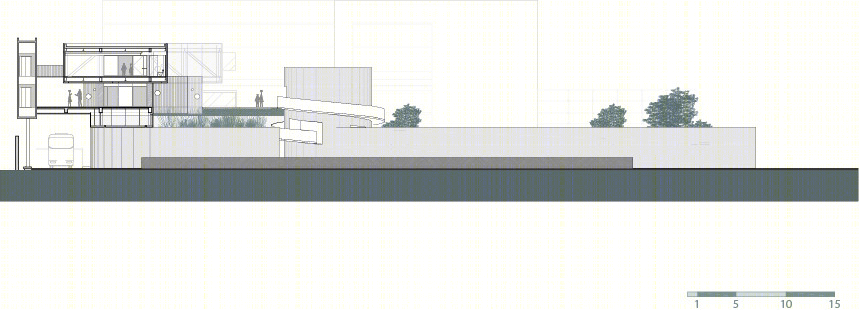

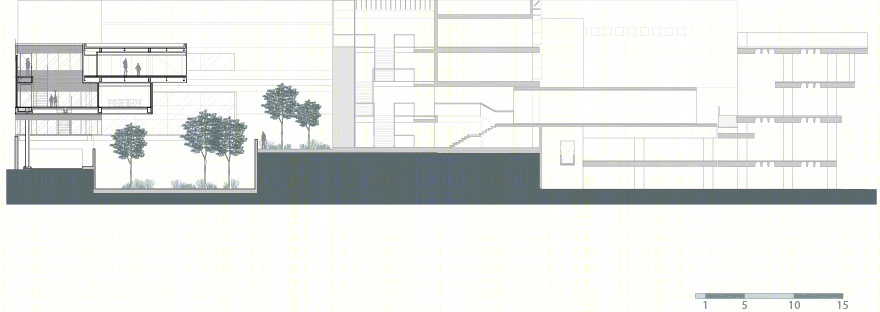

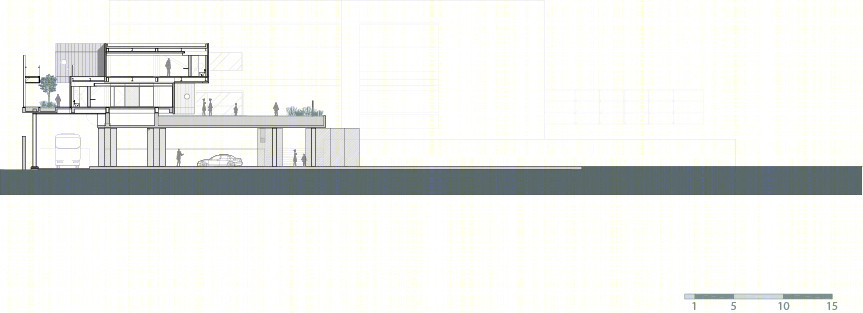

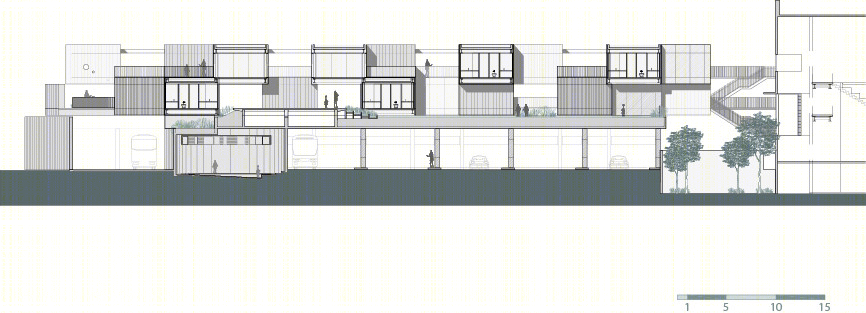

Kínder Monte Sinaí幼儿园剖面图

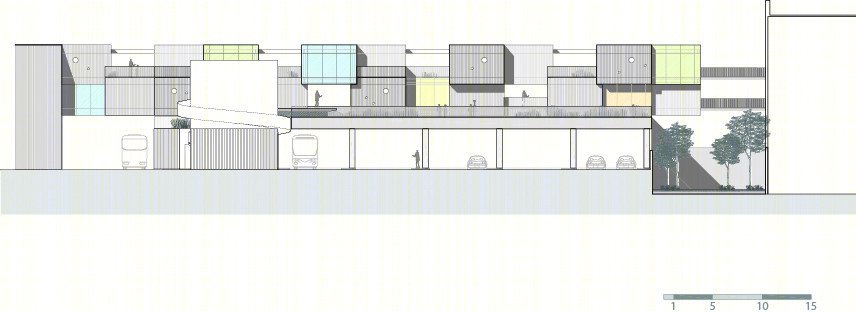

Kínder Monte Sinaí幼儿园正面图
