树影下的解构空间——拉马尔卡住宅设计

发布时间:2019-06-27 19:25:34 00
设计亮点
工业材料与手工艺的融合,树与建筑的共生,对称与非对称的平衡,开放与封闭空间的转换。

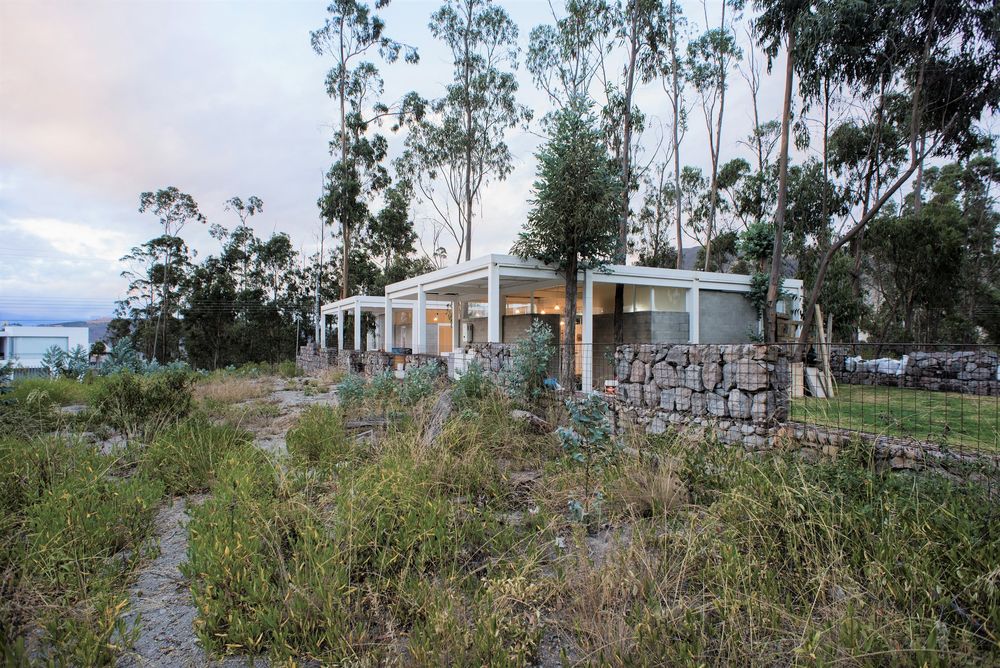

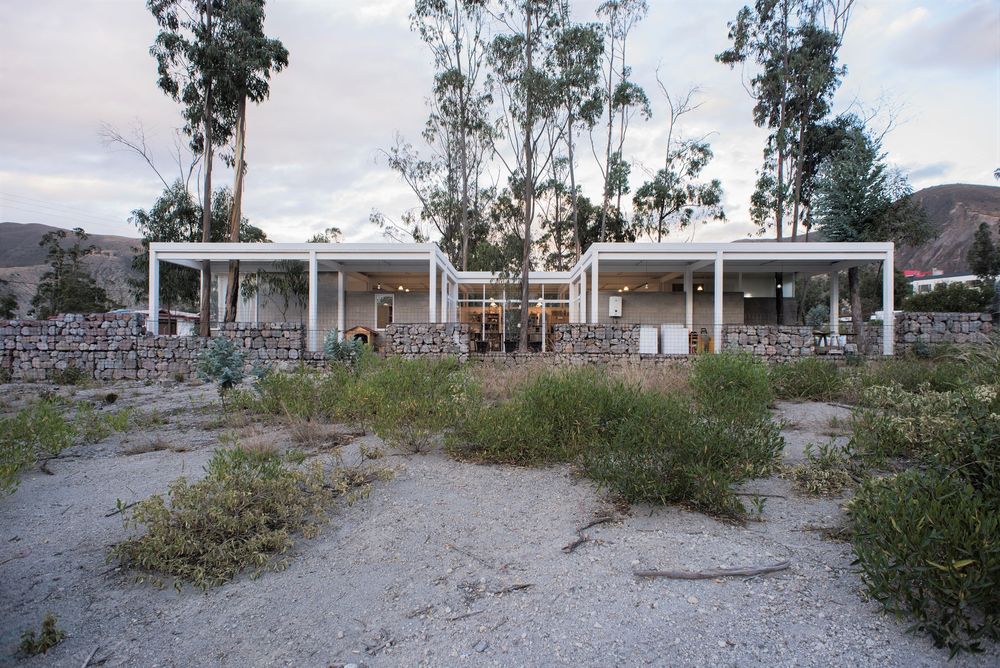

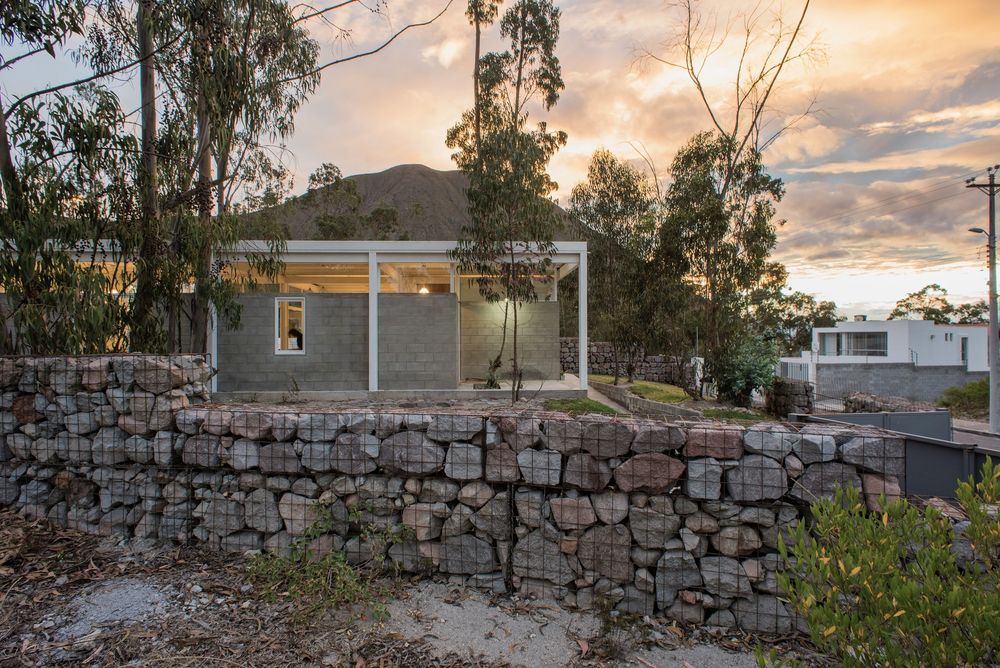

Informal generic architecture is the reference of this universal "primitive refuge" where steel and concrete blocks are used for economic reasons. These materials synthesize industrialized construction materials and craft work. The house accepts this generic universal condition of its tectonics and positions itself as an absolute shape that takes advantage of the elevated terrain. This absolute and generic condition is confronted with the variety of layouts defined by non-load bearing walls within the virtual arcaded volume.

树影下的解构空间——拉马尔卡住宅设计

树影下的解构空间——拉马尔卡住宅设计

树影下的解构空间——拉马尔卡住宅设计

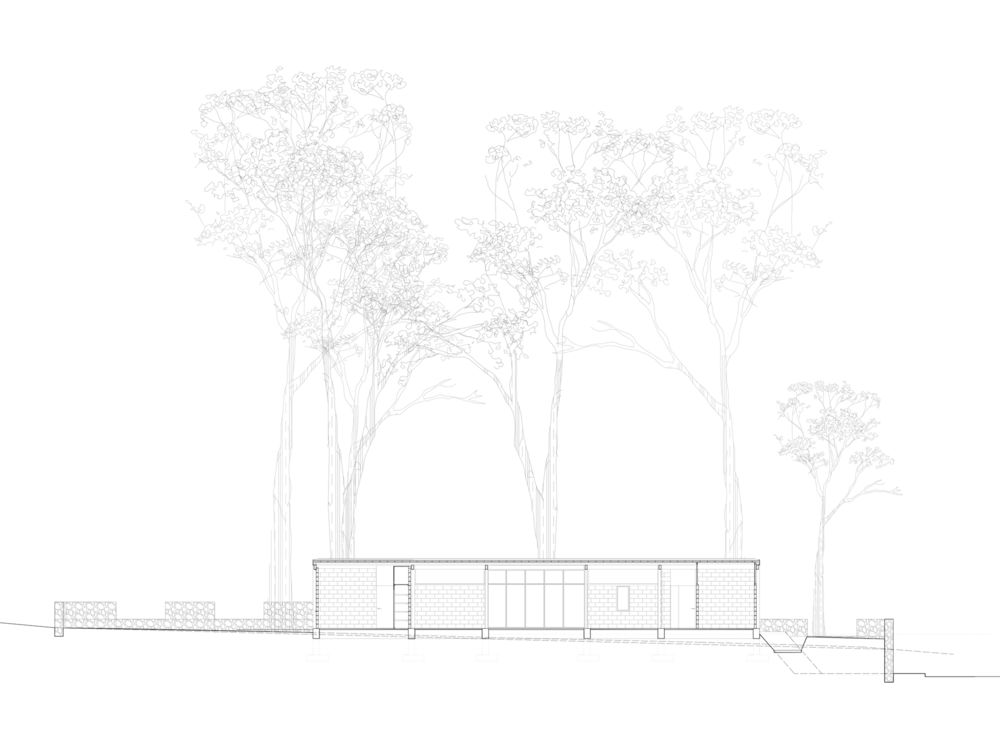

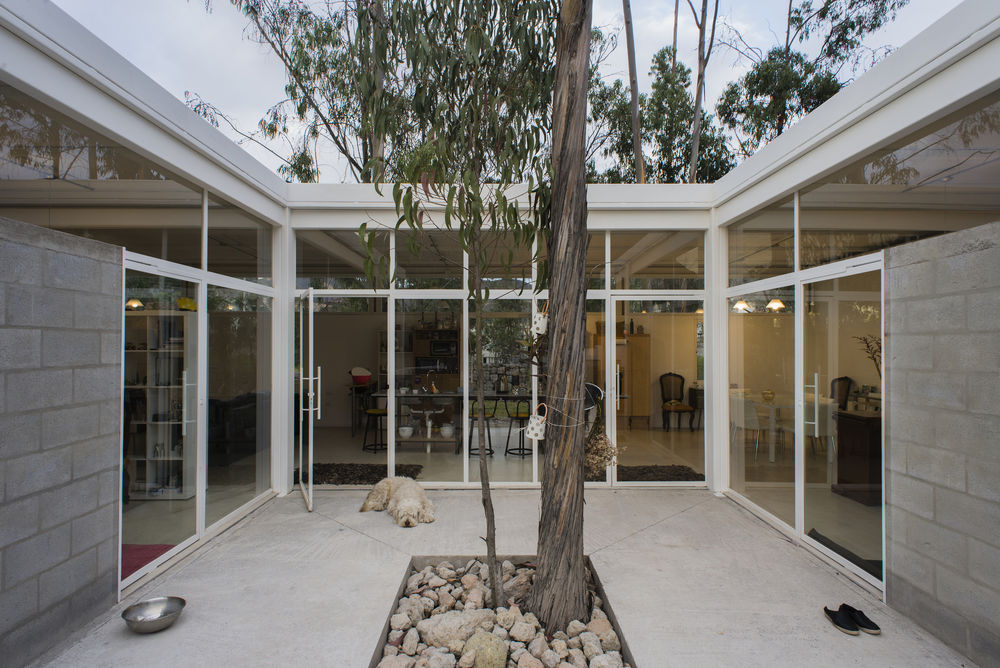

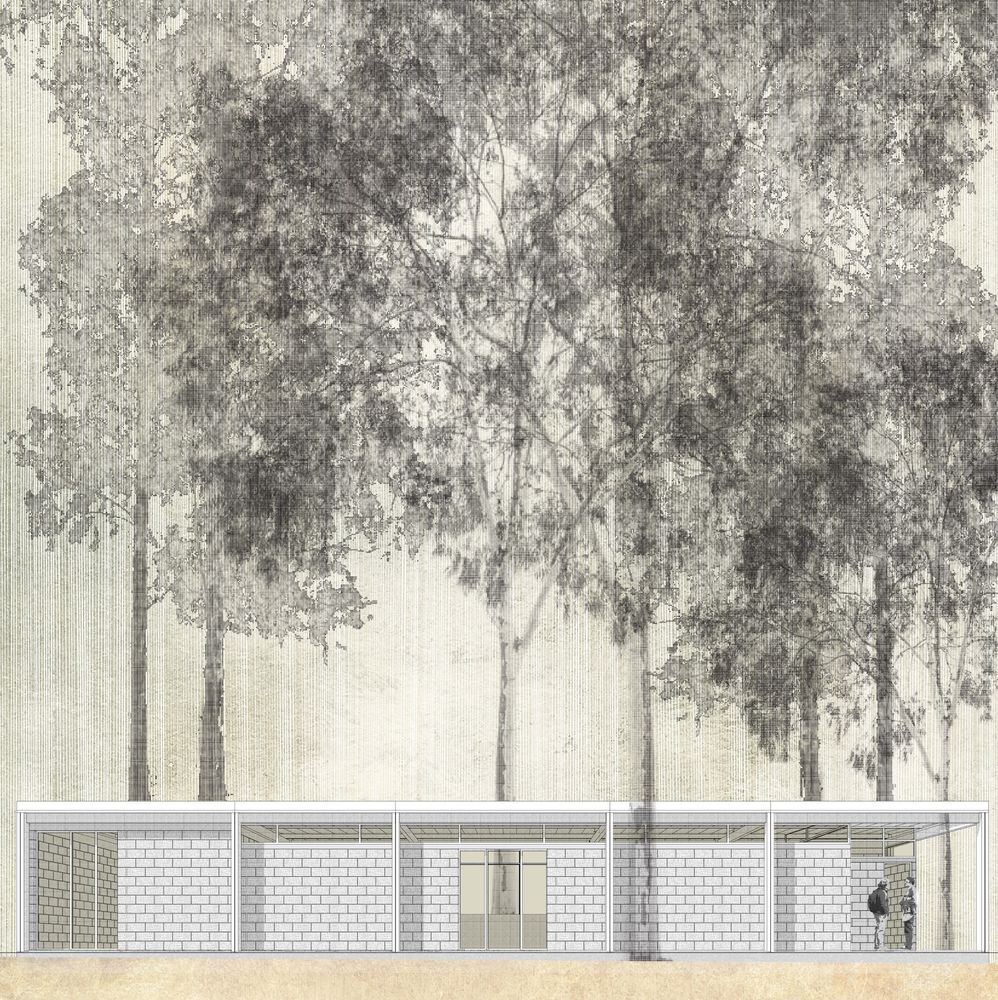

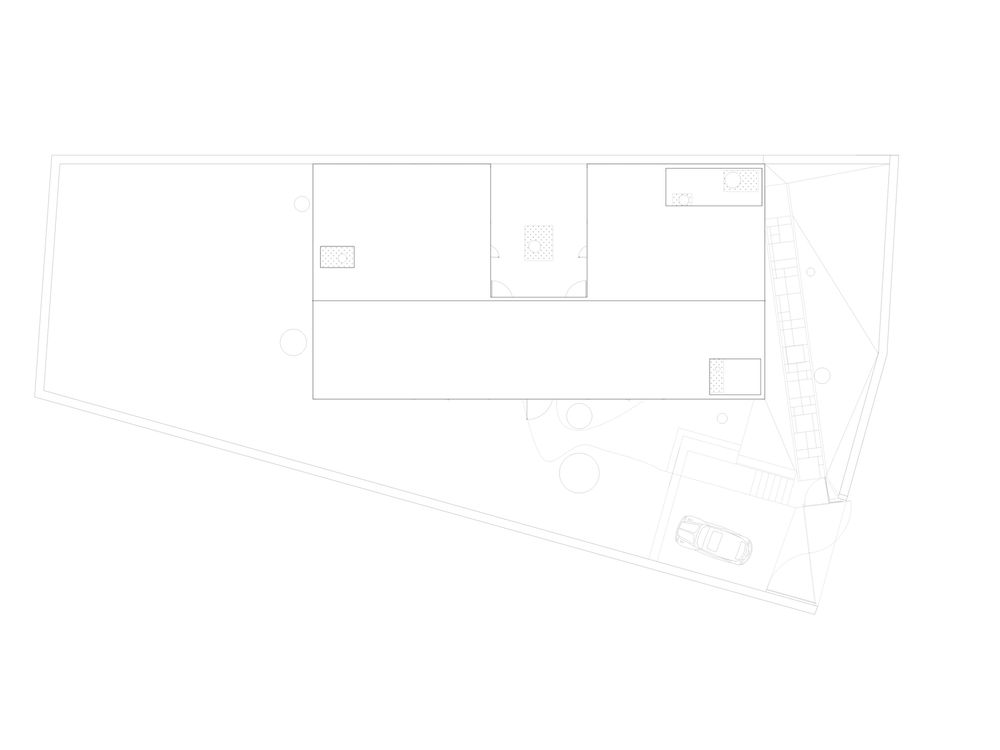

The existing eucalyptus trees are a kind of archetypal columns, tree-columns that are preserved as they were found. The progressive rhythm of the mesh in the plan results in the negotiation between existing trees, urban regulations and dimensional requirements.

树影下的解构空间——拉马尔卡住宅设计

树影下的解构空间——拉马尔卡住宅设计

树影下的解构空间——拉马尔卡住宅设计

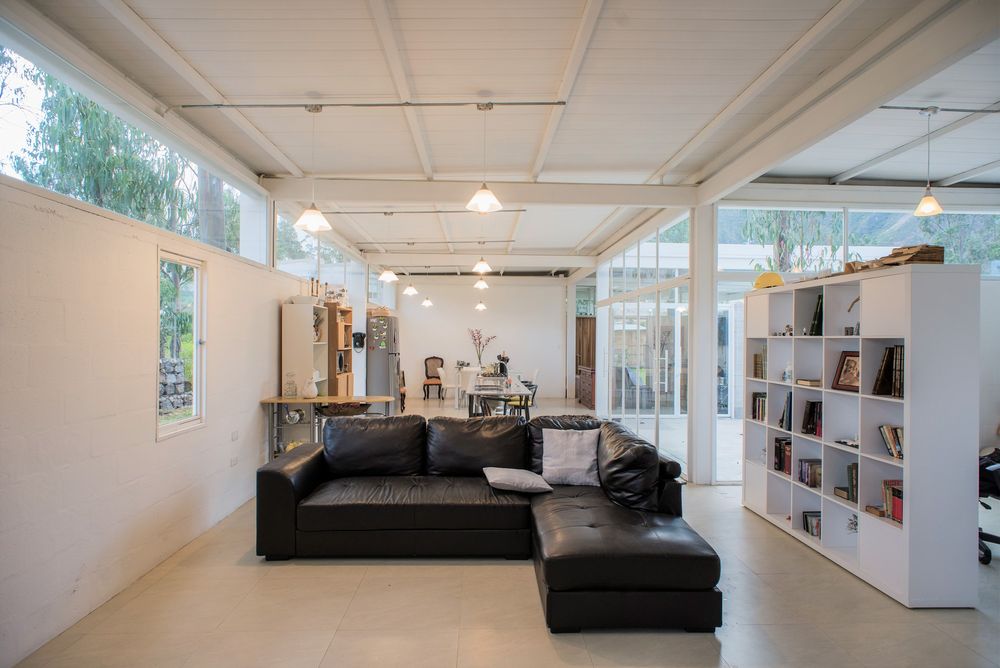

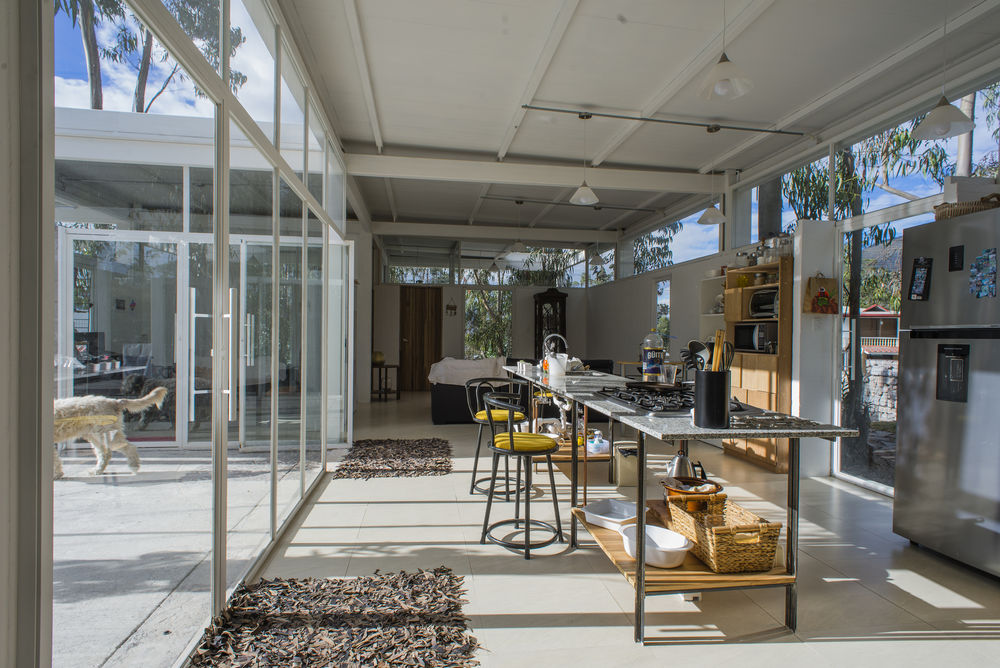

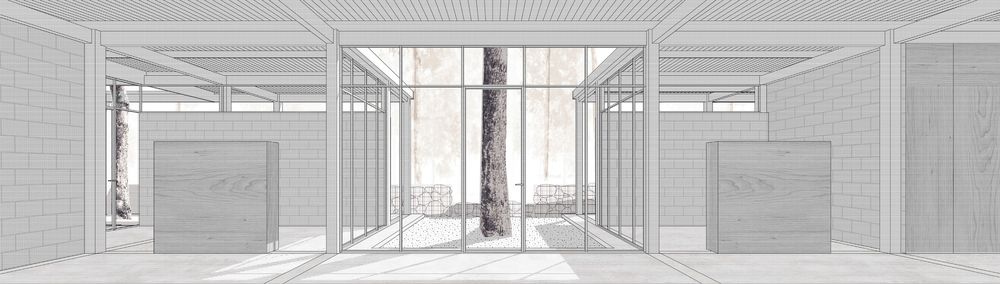

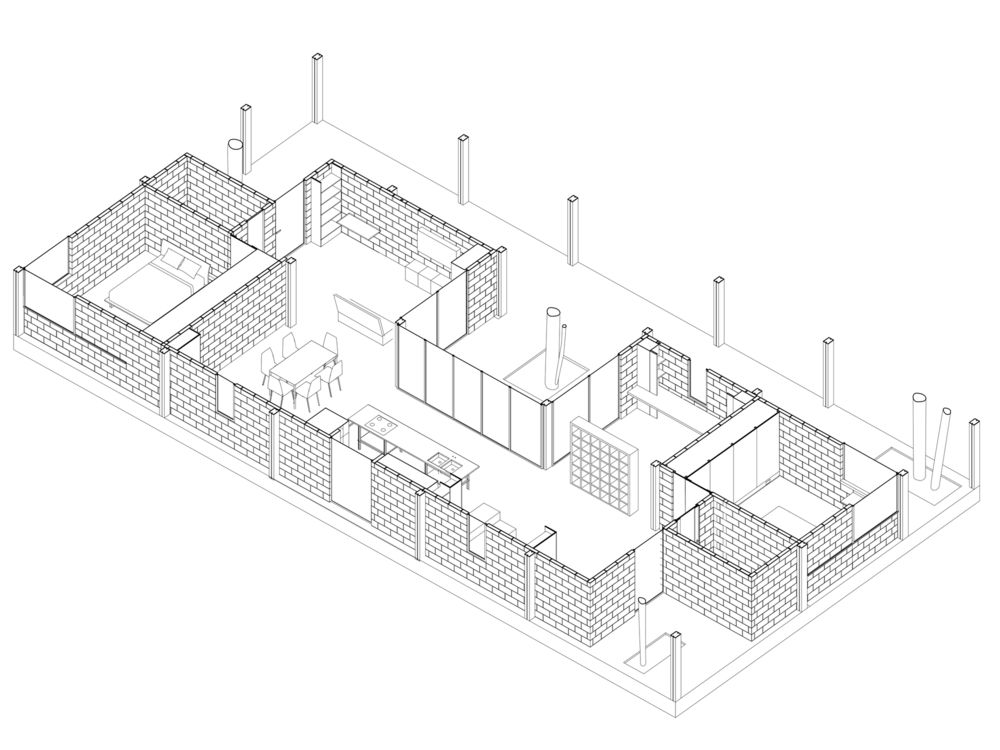

The final project is developed from a central organization, where the tension between symmetrical and asymmetrical schemes becomes evident. The central kitchen responds to the demands of the program, considering this as the main source of daily activities and social gatherings, the kitchen commands the common space that is suggested as an open matrix of adjoining rooms due to the presence of the courtyard. Hence, this space is generic and specific at the same time, the house is developed in an open plan but the central courtyard breaks its unitary amplitude and fragments it into five spaces: the kitchen, the hall, the dining room, the study and the living room. The 3-meter withdrawal becomes a kind of stoa. This portico configures a covered backyard where the machinery of the house is located.

树影下的解构空间——拉马尔卡住宅设计

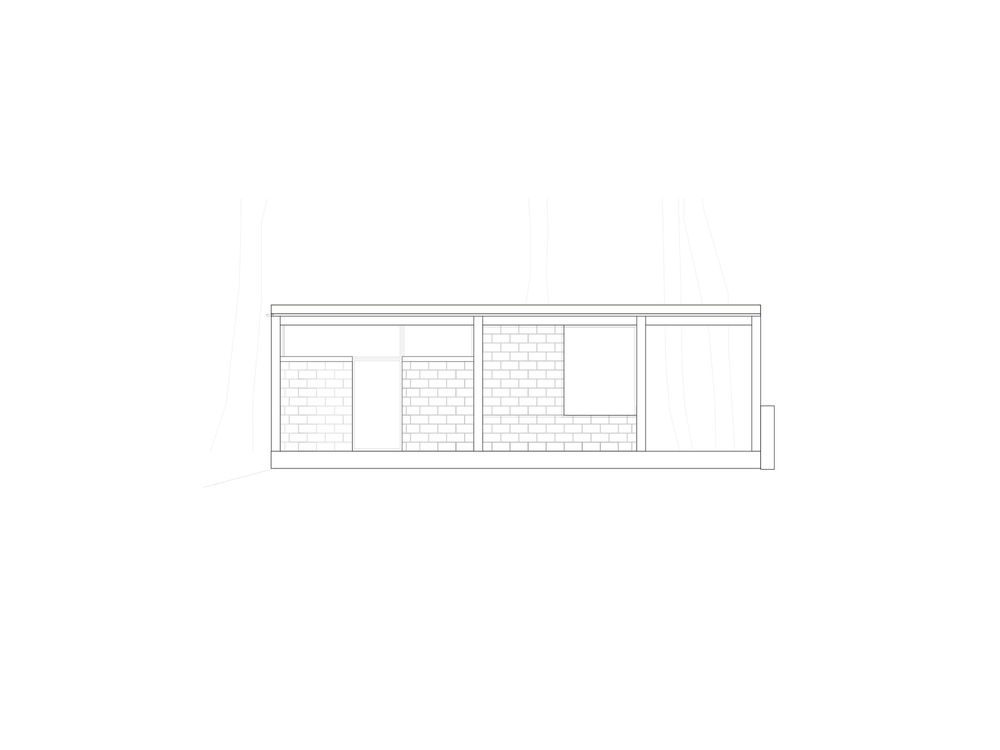

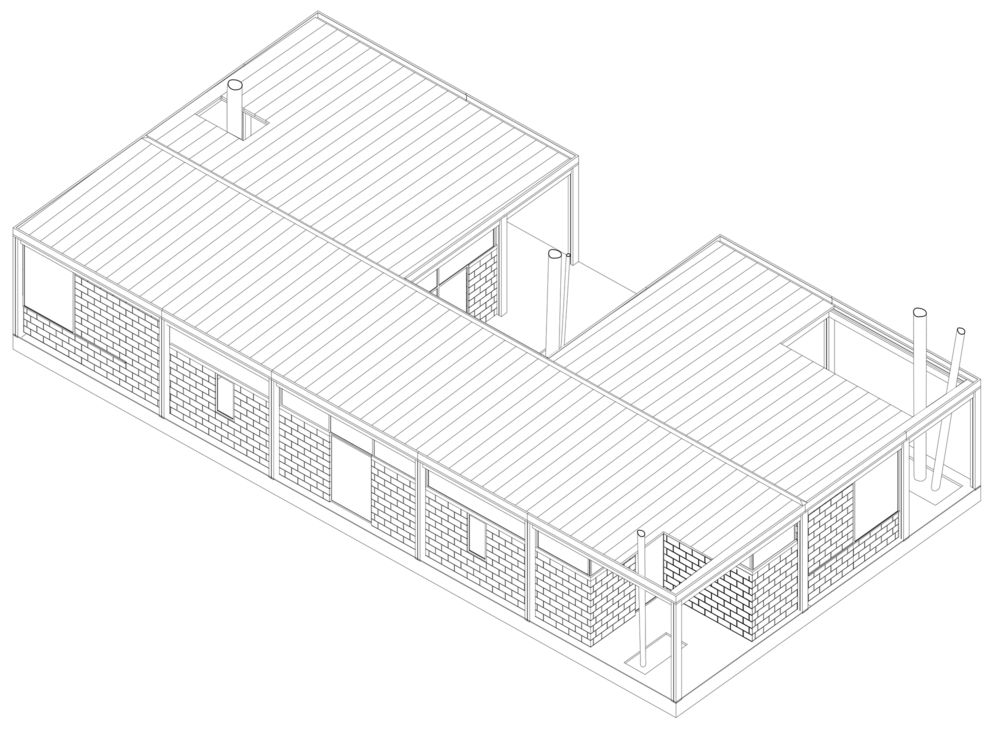

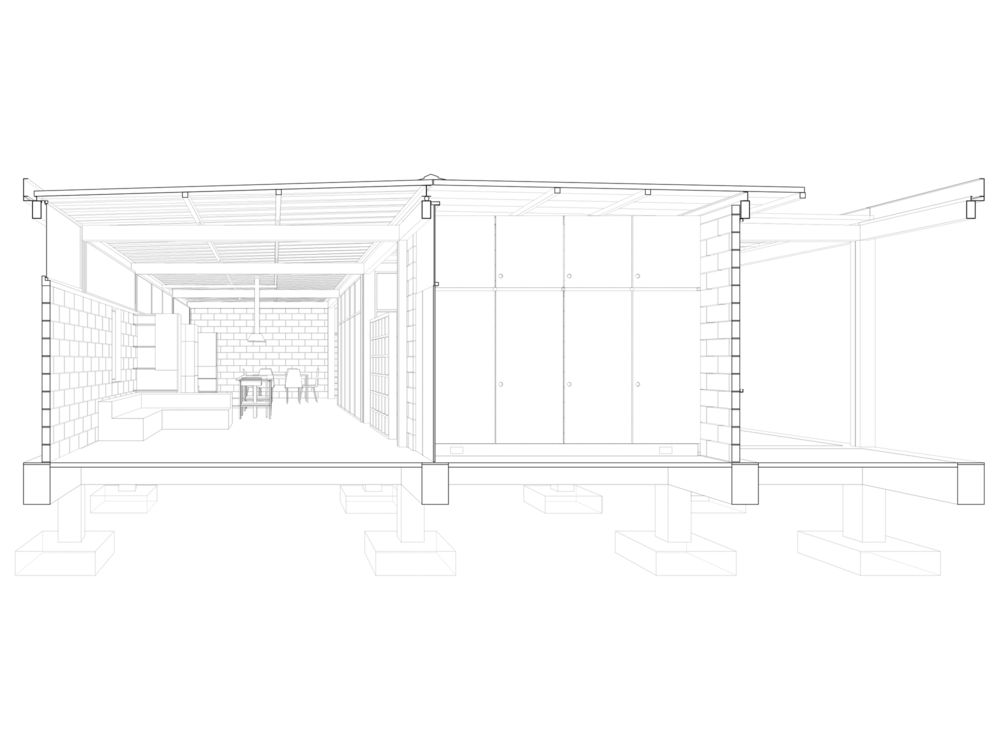

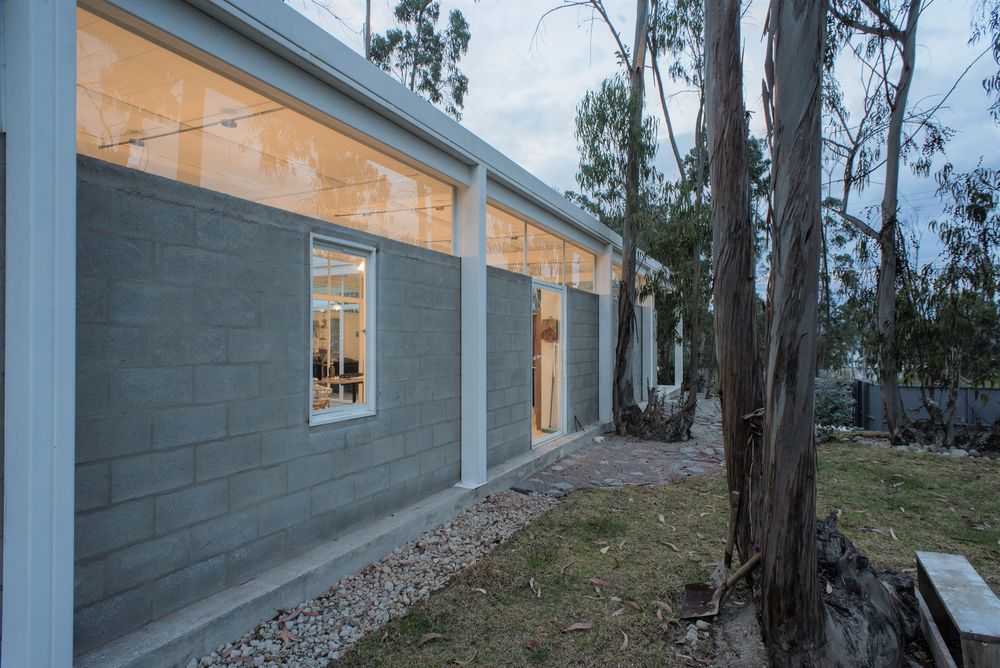

The two rooms are the most opaque spaces and constitute the boundaries of the house. The closed characteristic of the house allows privacy and thermal control for abrupt temperature changes during fog. The clerestories of the central space articulate the lightweight structure of the roof with the non-load bearing walls of concrete blocks. This lightweight steel structure completely covers the entire structure in the manner of a large industrial warehouse. The clerestories allow a partial perception of the surrounding forest of eucalyptus trees, the mountains and the sky.

树影下的解构空间——拉马尔卡住宅设计

树影下的解构空间——拉马尔卡住宅设计

树影下的解构空间——拉马尔卡住宅设计

树影下的解构空间——拉马尔卡住宅设计

树影下的解构空间——拉马尔卡住宅设计

树影下的解构空间——拉马尔卡住宅设计

树影下的解构空间——拉马尔卡住宅设计

树影下的解构空间——拉马尔卡住宅设计

树影下的解构空间——拉马尔卡住宅设计

树影下的解构空间——拉马尔卡住宅设计

树影下的解构空间——拉马尔卡住宅设计

树影下的解构空间——拉马尔卡住宅设计

树影下的解构空间——拉马尔卡住宅设计

树影下的解构空间——拉马尔卡住宅设计

树影下的解构空间——拉马尔卡住宅设计
