设计亮点
木结构设计与周围自然景观完美融合,空间布局巧妙,充分引入光线与景观。

Architect:viar estudio

Location:Errekagana Kalea, 5B, Spain; | ;

Project Year:2022

Category:Golf Courses;Private Houses

The project develops the extension of a dining room in the swimming pool area of a Golf Club.

The new club activities demanded the expansion of a dining room, a social area for young people and a sports area with gym and locker rooms. The initial project commissioned in 2019 underwent several changes until the start of the works in September 2021, being completed in April 2022.

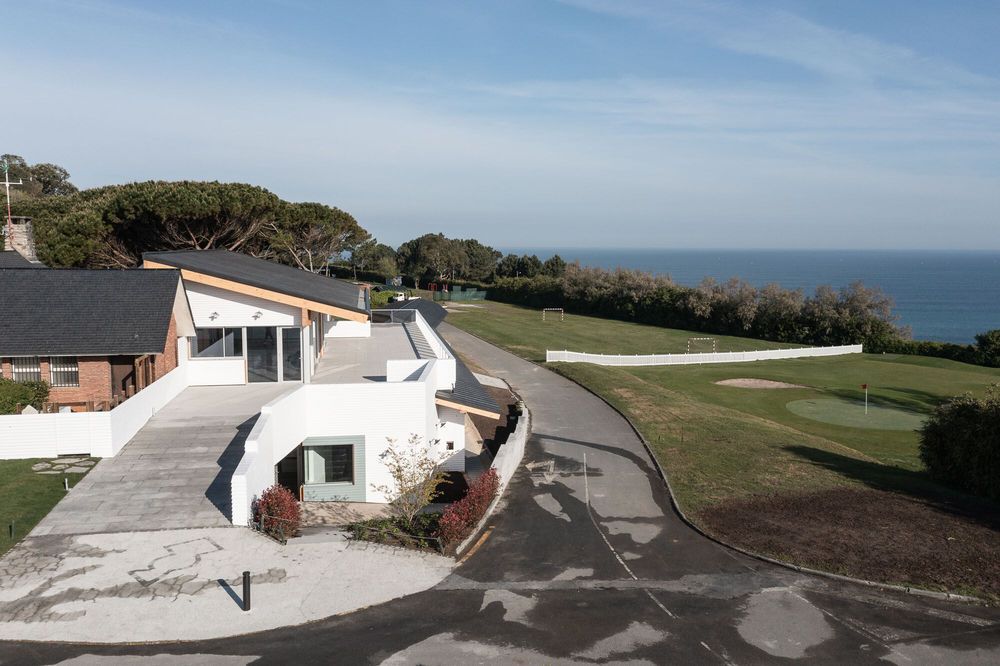

The extension is built over the existing pool dining area and opens onto the superb views to the northest; the Cantabrian Sea in the Biscay Bay and the rock formations of the Flysch cliffs.

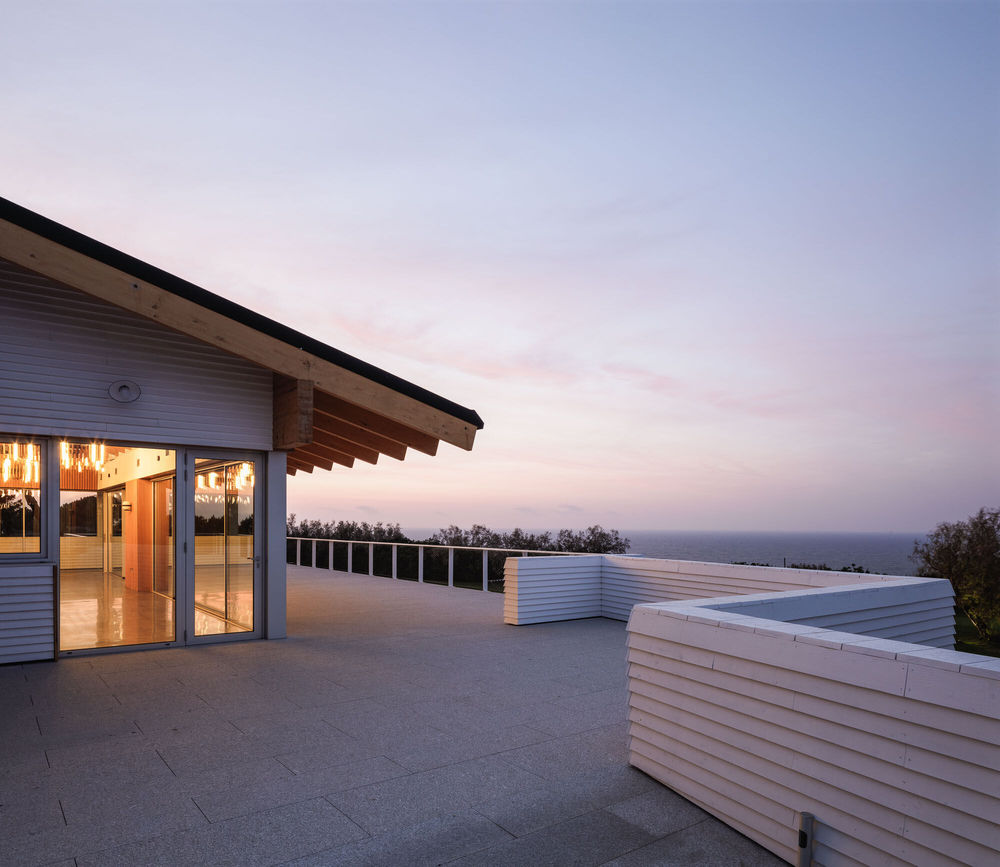

The dining room and a large terrace are located on the upper level, the rest of the program on the constructed plinth.

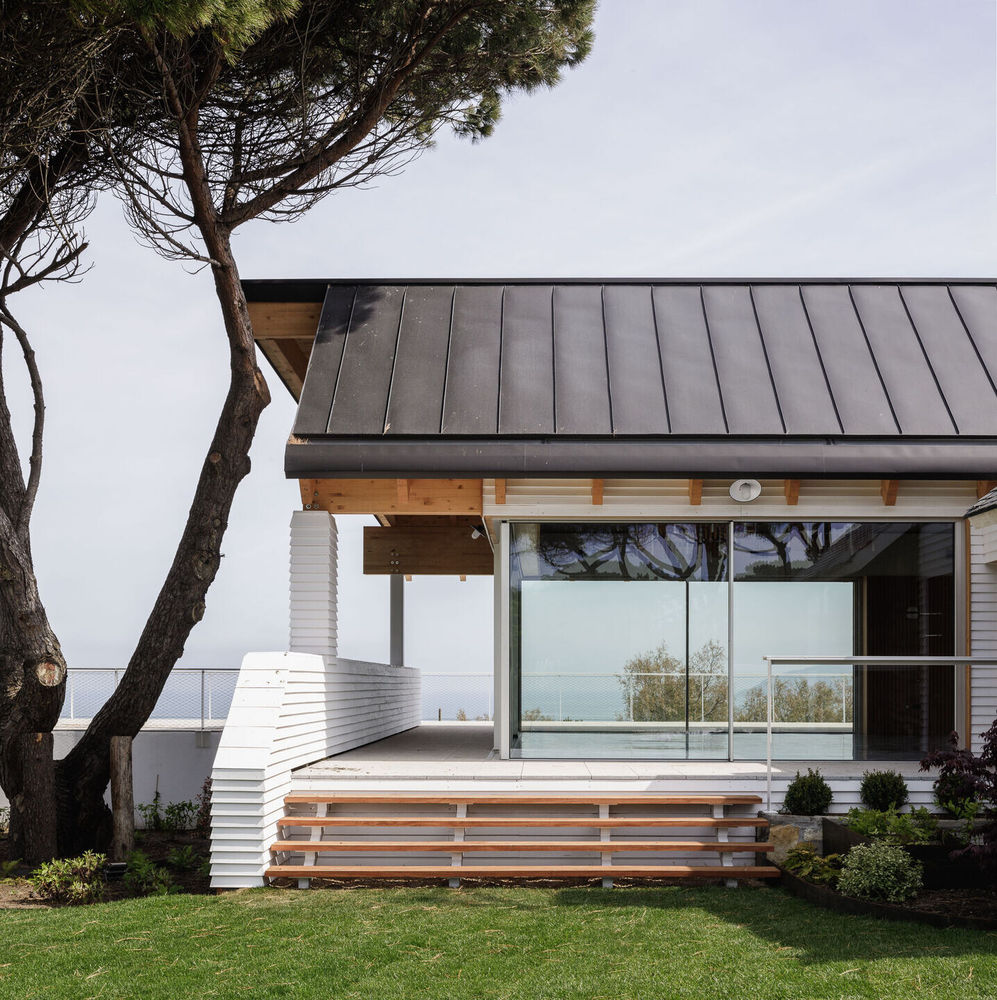

The views are the protagonists of the project, which opens towards them. The dining room is conceived as a glass box that opens onto the terrace and looks to the horizon. A wooden roof and a protective overhang complete the dining room.

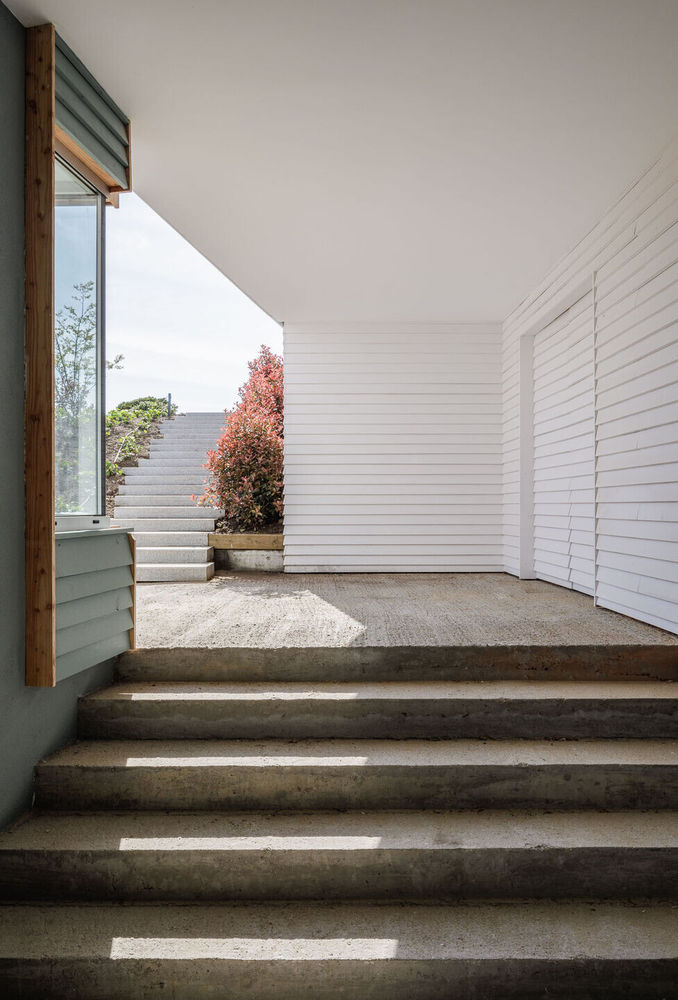

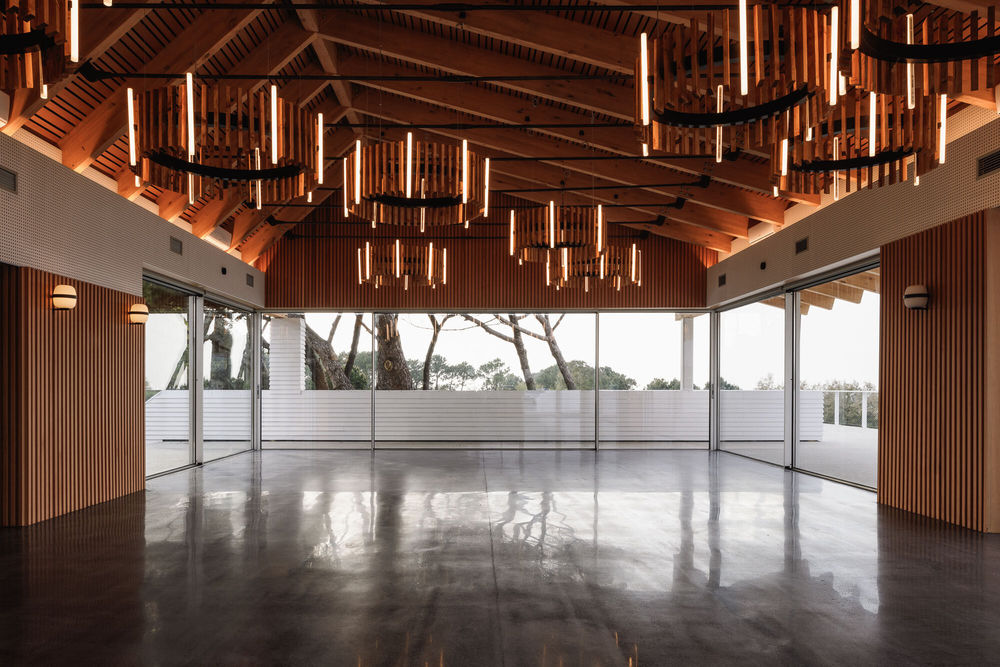

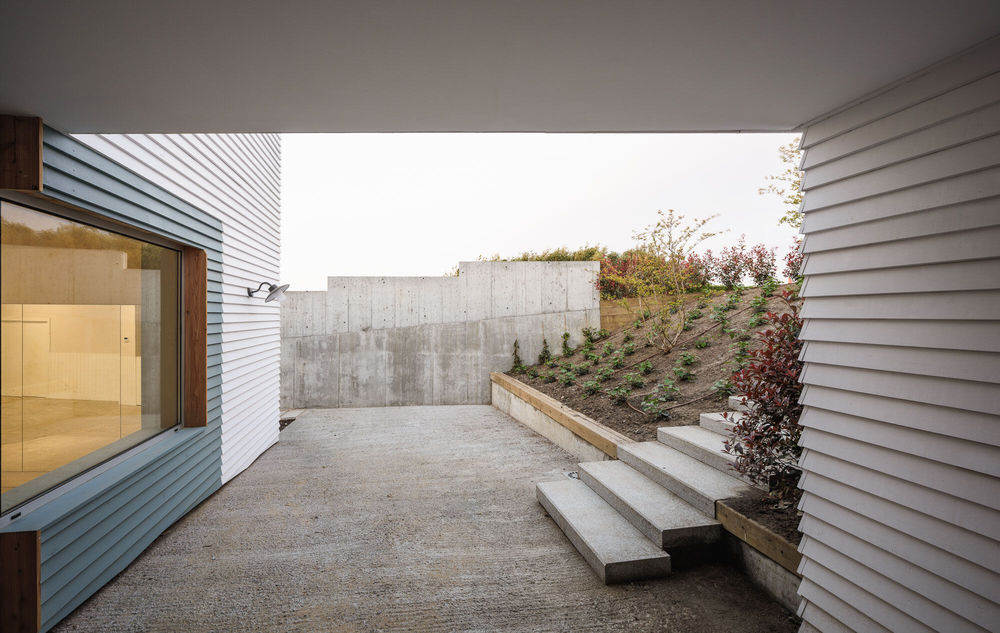

The solution is simple, a rectangular space with a gable roof that folds to save the different solicitations. The interior is constructed with glass and exposed wooden beams, with a virtual ceiling configured with specifically designed lamps made by Gropius Lamps. The entrance from the parking lot is a zigzagging path that leads and funnels the visitor towards the terrace, towards the magnificent landscape. The plinth is more opaque and extends horizontally to form an open porch at the end.

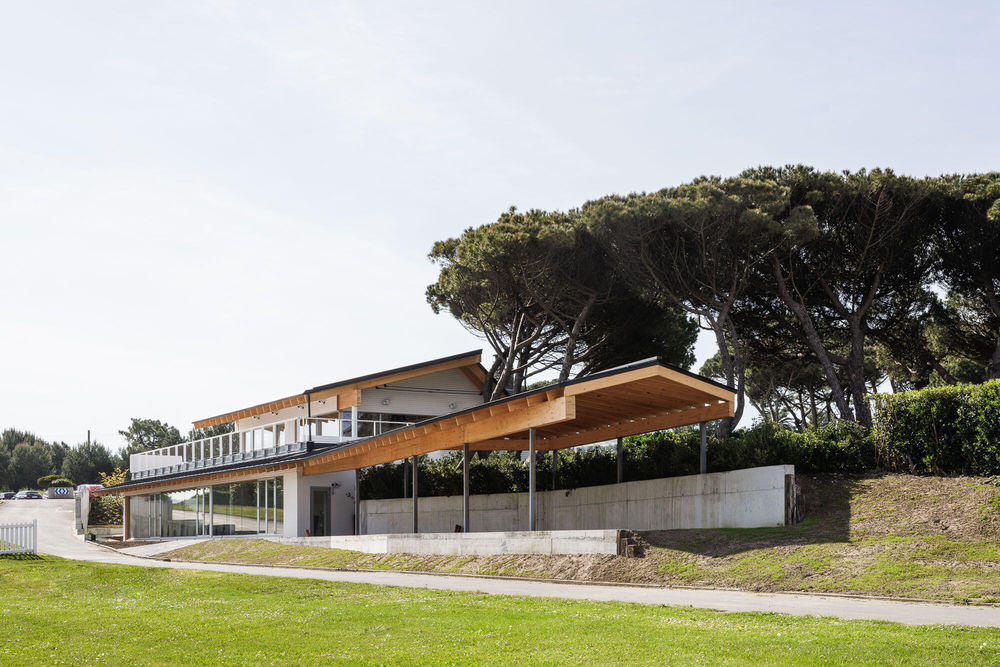

The project seeks continuity with the club's previous architectures, hence the use of wood as the main material, the large overhangs of the structure and the discontinuities in the roof, which also saves the existing trees.

The basic decisions of the project are elementary questions of architecture: the attention to the architectures of the place, it´s condition as filter, the movements directing the entrance, the position of the terrace on the horizon, the clear geometry, the search for the horizontal, the long terrace/balcony or the efficient construction freeing the corners are some of them. The design is a second derivative.

Architects: Viar Estudio Arquitectura

Architect: Iñigo de Viar

Associate Architect: Daniel Migoya

Quantity Surveyor: Mikel Mauraza

Builder: Uribe Edificacion

Photographer: Fernando Alda

Facade cladding: Pine wood, Precom

Flooring: Stained polished concrete

Windows: Cortizo COR-70 Industrial

Roofing: Wood structure and zinc

Interior lighting: Gropius lamp and Luz Bilbao
